Product Description

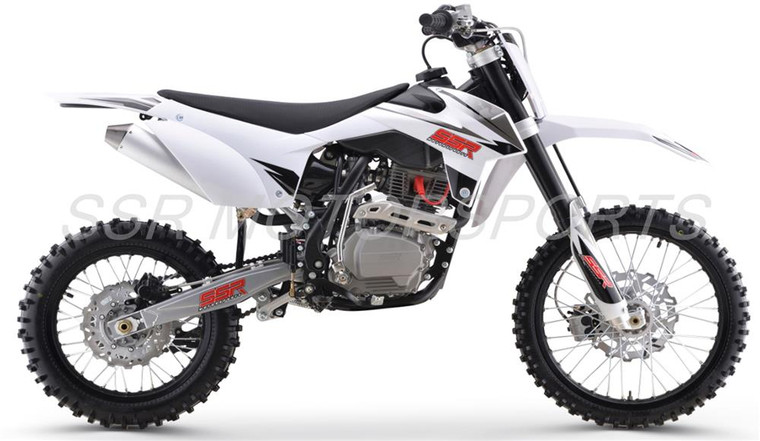

| 2020-2023 SR189 | ||||||
 |
||||||
| ENGINE ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01097-09-00 | COMPLETE ENGINE ASSY | 520X13T *OVERSIZE* | 1 | Assy. | $479.00 |
| 1-1 | A00288-07-00 | FRONT SPROCKET | 520-13T | 1 | Pc. | $18.00 |
| 2 | A00096-13-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $7.00 | |
| 3 | A00213-14-00 | INTAKE INSULATOR | 1 | Pc. | $8.00 | |
| 4 | A00290-14-00 | INTAKE MANIFOLD FLANGE | 1 | Pc. | $16.00 | |
| 5 | A00003-19-01 | FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 6 | A00214-14-00 | INTAKE MANIFOLD | 1 | Pc. | $11.00 | |
| 7 | A00005-24-02 | HOSE CLAMP | 35-51 10mm | 2 | Pcs. | $8.00 |
| 8 | A00407-12-00 | CARBURETOR | PE28-6 130/45 | 1 | Pc. | $142.00 |
| 9 | A00004-19-01 | FLANGE BOLT | M10X120 | 1 | Pcs. | $3.50 |
| 10 | A00315-11-00 | COLLAR | 10X20X10 | 1 | Pc. | $2.50 |
| 11 | A00004-22-03 | FLANGE NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 12 | A01000-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $39.00 | |
| 12-1 | A00001-19-01 | FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 13 | A00005-19-88 | FLANGE BOLT | M10X115 | 1 | Pc. | $3.50 |
| 14 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 15 | A00532-05-00 | GEAR SHIFTER | 1 | Pc. | $18.00 | |
| 16 | A00533-05-00 | KICKSTARTER LEVER | 1 | Pc. | $41.00 | |
| 16-1 | A00007-19-01 | FLANGE BOLT | M8X25 | 1 | Pc. | $1.50 |
| 17 | A00100-22-34 | FLANGE LOCKNUT | M8 | 5 | Pcs. | $1.50 |
| 18 | A00008-19-01 | FLANGE BOLT | M8X95 | 4 | Pcs. | $2.50 |
| 19 | A00316-11-00 | ENGINE BRACKET A | 2 | Pcs. | $10.00 | |
| 20 | A00009-19-01 | FLANGE BOLT | M8X75 | 1 | Pc. | $2.00 |
| 21 | A00317-11-00 | ENGINE BRACKET B | 2 | Pcs. | $6.00 | |
| 22 | A00001-19-02 | ALLEN BOLT | M8X16 | 3 | Pcs. | $1.50 |
| 23 | A00001-21-02 | LOCK WASHER | M8 | 4 | Pcs. | $1.50 |
| 24 | A00013-21-01 | WASHER | M8 | 8 | Pcs. | $1.50 |
| 27 | A00546-11-00 | SPACER | 8.5X15X8 | 1 | Pc. | $2.50 |
| AIR BOX | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00004-24-02 | HOSE CLAMP | 38-57 | 1 | Pc. | $6.00 |
| 2 | A00303-14-00 | AIRBOX BOOT | 1 | Pc. | $48.00 | |
| 3 | A00304-14-00 | SPRING HOSE CLAMP | 13.5 | 2 | Pcs. | $1.50 |
| 4 | A00305-14-00 | AIRBOX DRAIN HOSE | 12mm | 1 | Pc. | $1.50 |
| 5 | A00306-14-00 | AIRBOX DRAIN HOSE PLUG | 12.5mm | 1 | Pc. | $1.50 |
| 6 | A00307-14-00 | HOSE CLAMP | 140-160 9mm | 1 | Pc. | $8.00 |
| 7 | A00308-14-00 | AIRBOX BACKFIRE SCREEN | 1 | Pc. | $24.00 | |
| 8 | A00309-14-00 | AIR FILTER CAGE | 1 | Pc. | $14.00 | |
| 9 | A00310-14-00 | AIR FILTER ELEMENT | 1 | Pc. | $39.00 | |
| 10 | A00004-21-01 | WASHER | M8X22 | 1 | Pc | $1.50 |
| 11 | A00454-19-W3 | WING BOLT | M6X40 | 1 | Pc. | $2.00 |
| 12 | A00123-19-02 | BUTTON HEAD ALLEN BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 13 | A00311-14-00 | AIRBOX HOUSING | 1 | Pc. | $27.00 | |
| 14 | A00009-20-03 | SCREW | 4.8X16 | 6 | Pcs. | $1.50 |
| 15 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| EXHAUST SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00061-10-00 | EXHAUST HEAD PIPE | 1 | Pc. | $51.00 | |
| 1-1 | A00513-10-00 | EXHAUST HEAT SHIELD | 1 | Pc. | $18.00 | |
| 2 | A00003-22-03 | FLANGE NUT | M8 | 2 | Pcs. | $1.50 |
| 3 | A00097-13-00 | EXHAUST GASKET | 1 | Pc. | $4.00 | |
| 4 | A00017-19-01 | FLANGE BOLT | M8X16 | 4 | Pcs. | $1.50 |
| 5 | A00121-10-00 | HEAD PIPE MOUNTING BRACKET | 1 | Pc. | $7.00 | |
| 6 | A00001-21-02 | LOCK WASHER | M8 | 3 | Pcs. | $1.50 |
| 7 | A00001-19-01 | FLANGE BOLT | M6X30 | 1 | Pc. | $1.50 |
| 8 | A00113-10-00 | EXHAUST PIPE MOUNT CLAMP | 32-35 | 1 | Pc. | $8.00 |
| 9 | A00001-22-05 | CLIP NUT | M6 | 1 | Pc. | $1.50 |
| 10 | A00063-10-00 | GROMMET | 1 | Pc. | $2.00 | |
| 11 | A00062-10-00 | COLLAR | 6X9X18X13X15MM | 1 | Pc. | $1.50 |
| 12 | A00003-19-01 | FLANGE BOLT | M6X25 | 1 | Pc. | $1.50 |
| 13 | A00066-10-00 | CLAMP | 40-43 | 1 | Pc. | $8.00 |
| 14 | A00007-19-01 | FLANGE BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 15 | A00004-21-01 | WASHER | M8X22 | 2 | Pcs. | $1.50 |
| 16 | A00065-10-00 | MUFFLER | 1 | Pc. | $89.00 | |
| 17 | A00280-13-00 | PACKING GASKET | 1 | Pc. | $11.00 | |
| 18 | A00041-20-02 | BUTTONHEAD SCREW | M6X8 | 2 | Pcs. | $1.50 |
| 19 | A00065-01-00 |
PRO CIRCUIT T4S MUFFLER W/ SPARK ARRESTOR
|
OPTIONAL | 1 | Pc. | $402.00 |
| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00248-18-00 | FRONT WHEEL ASSY | 1.60*19 | 1 | Assy. | $119.00 |
| 1-1 | A00249-18-00 | FRONT RIM | 1.60*19 | 1 | Pc. | $61.00 |
| 1-2 | A00250-18-00 | FRONT HUB | 1 | Pc. | $83.00 | |
| 1-3 | A00251-18-00 | FRONT SPOKE W/ NIPPLE | 36 | Pc. | $2.00 | |
| 1-4 | A00111-28-00 | BEARING | 6004 | 2 | Pcs. | $13.00 |
| 1-5 | A00078-26-00 | SEAL | 26X42X7 | 2 | Pcs. | $3.50 |
| 2-1 | A00600-18-00 | FRONT TIRE | 70/100-19 INNOVA | 1 | Pc. | $63.00 |
| 2-2 | A00257-18-00 | FRONT TUBE | 1 | Pc. | $18.00 | |
| 3 | A00456-04-00 | FRONT BRAKE ROTOR | 260x101 | 1 | Pc. | $54.00 |
| 3 | A00734-04-00 | FRONT BRAKE ROTOR |
2021+ VIN START: L3BSEKA35M0001047
|
1 | Pc. | $54.00 |
| 4 | A00005-22-X4 | LOCK NUT | M6 | 6 | Pcs. | $1.50 |
| 5 | A00126-19-19 | BUTTON HEAD ALLEN BOLT | M6X20 | 6 | Pcs. | $1.50 |
| 5 | A00489-19-03 | HEX BOLT |
2021+ VIN START: L3BSEKA35M0001047
|
6 | Pcs. | $1.50 |
| 6 | A00260-18-00 | FRONT AXLE | M20X217 | 1 | Pc. | $33.00 |
| 7 | A00556-18-00 | FRONT AXLE SPACER | 30*20.2*28-26 ALLOY | 1 | Pc. | $4.00 |
| 8 | A00555-18-00 | FRONT AXLE SPACER | 30*20.2*24-26 ALLOY | 1 | Pc. | $4.00 |
| 9 | A00266-18-00 | RIM STRIP | 19" | 1 | Pc. | $8.00 |
| 10 | A00065-18-00 | RIM LOCK | 1.6 | 1 | Pc. | $13.00 |
| 11 | A00088-22-01 | FRONT AXLE NUT | 1 | Pc. | $2.50 | |
| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00252-18-00 | REAR WHEEL ASSY | 1.85-16 | 1 | Assy. | $131.00 |
| 1-1 | A00253-18-00 | REAR RIM | 1.85-16 | 1 | Pc, | $69.00 |
| 1-2 | A00254-18-00 | REAR HUB | 1 | Pc. | $89.00 | |
| 1-3 | A00255-18-00 | REAR SPOKE W/ NIPPLE | 36 | Pcs. | $2.00 | |
| 1-4 | A00110-28-00 | BEARING | 6005 | 3 | Pcs. | $13.00 |
| 1-5 | A00076-26-00 | DUST SEAL | 30X47X7 | 2 | Pcs. | $3.50 |
| 2-1 | A00601-18-00 | REAR TIRE | 90/100-16 INNOVA | 1 | Pc. | $84.00 |
| 2-2 | A00259-18-00 | REAR INNER TUBE | 1 | Pc. | $18.00 | |
| 3 | A00457-04-00 | REAR BRAKE ROTOR | 240X116 | 1 | Pc. | $54.00 |
| 3 | A00735-04-00 | REAR BRAKE ROTOR |
2021+ VIN START: L3BSEKA35M0001047
|
1 | Pc. | $54.00 |
| 4 | A00126-19-19 | BUTTON HEAD ALLEN BOLT | M6X20 | 6 | Pcs. | $1.50 |
| 4 | A00489-19-03 | HEX BOLT |
2021+ VIN START: L3BSEKA35M0001047
|
6 | Pcs. | $1.50 |
| 5 | A00005-22-04 | LOCK NUT | M6 | 6 | Pcs. | $1.50 |
| 6 | A00285-07-00 | REAR SPROCKET | 43T | 1 | Pc. | $51.00 |
| 7 | A00289-07-00 | CS ALLEN BOLT | M8X35 | 6 | Pcs. | $1.50 |
| 8 | A00100-22-34 | FLANGE LOCKNUT | M8 | 6 | Pcs. | $1.50 |
| 9 | A00394-07-00 | DRIVE CHAIN | 520-106L | 1 | Pc. | $66.00 |
| 9-1 | A00350-07-01 | DRIVE CHAIN LINK | 520 | 1 | Pc. | $4.00 |
| 10 | A00261-18-00 | REAR AXLE | M25X242 | 1 | Pc. | $35.00 |
| 11 | A00565-18-00 | REAR AXLE SPACER | 40X25.2X33X30 ALLOY | 1 | Pc. | $4.00 |
| 12 | A00566-18-00 | REAR AXLE SPACER | 40X25.2X14X30 ALLOY | 1 | Pc. | $4.00 |
| 13 | A00267-18-00 | RIM STRIP | 16" | 1 | Pc. | $8.00 |
| 14 | A00264-18-00 | RIM LOCK | 1.85 | 1 | Pc. | $13.00 |
| 15 | A00109-21-01 | WASHER | M25 | 1 | Pc. | $1.50 |
| 16 | A00087-22-01 | REAR AXLE NUT | M25 | 1 | Pc. | $8.00 |
| SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00707-16-00 | LEFT FRONT FORK ASSY | 830-53/58.5MM | 1 | Assy. | $229.00 |
| 1A | A00708-16-00 | RIGHT FRONT FORK ASSY | 830-53/58.5MM | 1 | Assy. | $229.00 |
| 1-1 | A01032-02-01 | FORK GUARD SET | WHITE | 1 | Set | $39.00 |
| 1-2 | A00525-16-00 | FORK DUST SEAL | 43x53.2x15 | 2 | Pcs. | $13.00 |
| 1-3 | A00552-16-00 | FORK SEAL | 43x53.1x11MM | 2 | Pcs. | $13.00 |
| 2 | A00008-19-07 | STEPPED ALLEN BOLT | M6X12 | 6 | Pcs. | $1.50 |
| 3 | A00273-21-01 | WASHER | 10X16X1 | 6 | Pcs. | $1.50 |
| 4 | A00123-19-02 | BUTTON HEAD ALLEN BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 5 | A00005-22-04 | LOCK NUT | M6 | 2 | Pcs. | $1.50 |
| 6 | A00005-19-07 | SPECIAL BOLT | M10X45 | 1 | Pc. | $3.50 |
| 7 | A00004-22-03 | FLANGE NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 8 | A00706-16-00 | REAR SHOCK ABSORBER | 450MM 12.5 | 1 | Pc. | $265.00 |
| 9 | A00010-19-01 | FLANGE BOLT | M10X60 | 1 | Pc. | $4.00 |
| 10 | A01033-02-00 | BRAKE LINE HOLDER SET | 1 | Set | $2.50 | |
| 11 | A00014-19-01 | FLANGE BOLT | M8X40 | 4 | Pcs. | $2.00 |
| TRIPLE CLAMPS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00064-21-01 | WASHER | 23X35X1.5 | 1 | Pc. | $2.50 |
| 2 | A00086-22-01 | NUT | M22 | 1 | Pc. | $6.00 |
| 3 | A00005-19-02 | ALLEN BOLT | M8X30 | 4 | Pcs. | $1.50 |
| 4 | A00369-15-00 | UPPER HANDLEBAR CLAMP | 2 | Pcs. | $14.00 | |
| 5 | A00370-15-00 | LOWER HANDLEBAR CLAMP | 2 | Pcs. | $21.00 | |
| 6 | A00014-19-01 | FLANGE BOLT | M8X40 | 8 | Pcs. | $2.00 |
| 7 | A00232-15-00 | RUBBER DAMPER | 4 | Pcs. | $1.50 | |
| 8 | A00110-21-01 | WASHER | 26X30X3 | 4 | Pcs. | $1.50 |
| 9 | A00111-21-01 | WASHER | 12X24X1.5 | 2 | Pcs. | $1.50 |
| 10 | A00001-22-34 | FLANGE LOCKNUT | M12X1.25 | 2 | Pcs. | $2.00 |
| 11 | A00127-19-04 | STUD | M12X1.25X72 | 2 | Pc. | $2.50 |
| 12 | A00375-15-00 | STEERING STEM | 270MM | 1 | Pc. | $33.00 |
| 13 | A00371-15-00 | LOWER TRIPLE CLAMP | 1 | Pc. | $69.00 | |
| 14 | A00461-19-01 | FLANGE BOLT | M6X8 | 1 | Pc. | $1.50 |
| 15 | A00372-15-00 | BRAKE HOSE GUIDE BRACKET | 1 | Pc. | $7.00 | |
| 16 | A00373-15-00 | BRAKE HOSE GUIDE | 1 | Pc. | $2.50 | |
| 17 | A00002-19-01 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 18 | A00003-19-02 | ALLEN BOLT | M8X16 | 2 | Pcs. | $1.50 |
| 19 | A00001-21-02 | LOCK WASHER | M8 | 2 | Pcs. | $1.50 |
| 20 | A00077-26-00 | DUST SEAL | 2 | Pcs. | $4.00 | |
| 21 | A00364-15-00 | STEERING STEM BEARING | 25X52 (30205) | 2 | Pcs. | $18.00 |
| 22 | A00032-22-01 | STEERING STEM NUT | M25X1X7 | 1 | Pc. | $7.00 |
| 23 | A00363-15-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $60.00 | |
| CONTROLS & BRAKES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00280-05-00 | HANDLEBAR GRIP SET | 1 | Set | $13.00 | |
| 2 | A00408-08-00 | KILL SWITCH | 1 | Pc. | $11.00 | |
| 3 | A00602-05-00 | HANDLEBAR | 800-810 28.5X22.2 | 1 | Pc. | $33.00 |
| 4 | A00543-05-00 | CLUTCH PERCH ASSY | BLACK | 1 | Assy. | $42.00 |
| 4-1 | A00539-05-00 | CLUTCH LOCKOUT SWITCH | CLIP | 1 | Pc. | $11.00 |
| 5 | A00283-05-00 | CLUTCH CABLE | 1 | Pc. | $18.00 | |
| 6 | A00455-04-00 | REAR BRAKE ASSY | 1 | Assy. | $104.00 | |
| 6-1 | A00458-04-00 | REAR BRAKE PAD SET | 1 | Set | $14.00 | |
| 6-2 | A00417-04-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
| 6-3 | A00007-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 6-4 | A00594-04-00 | REAR BRAKE MASTER CYLINDER | 1 | Assy. | $39.00 | |
| 6-5 | A00691-04-00 | REAR BRAKE CALIPER ASSY | INCLUDES BRAKE PADS | 1 | Assy. | $59.00 |
| 6-6 | A00596-04-00 | REAR BRAKE HOSE | 1 | Pc. | $18.00 | |
| 7 | A00003-19-01 | FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 8 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 9 | A00445-05-00 | CHOKE CABLE | 1 | Pc. | $18.00 | |
| 10 | A00297-05-00 | THROTTLE CABLE | 1 | Pc. | $18.00 | |
| 11 | A00700-04-00 | FRONT BRAKE ASSY | 1 | Assy. | $110.00 | |
| 11-1 | A00701-04-00 | FRONT BRAKE PAD SET | 1 | Set | $14.00 | |
| 11-2 | A00702-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $39.00 | |
| 11-3 | A00703-04-00 | FRONT BRAKE CALIPER | INCLUDES BRACKET+PADS | 1 | Pc. | $59.00 |
| 11-4 | A00704-04-00 | FRONT BRAKE HOSE | 1 | Pc. | $18.00 | |
| 11-5 | A00705-04-00 | FRONT CALIPER BRACKET | 1 | Pc. | $4.00 | |
| 12 | A00014-19-01 | FLANGE BOLT | M8X40 | 2 | Pc. | $2.00 |
| 12 | A00016-19-01 | FLANGE BOLT | M8X45 | 2 | Pc. | $2.00 |
| 13 | A00013-21-01 | WASHER | M8 | 4 | Pcs. | $1.50 |
| 14 | A00262-12-00 | SPACER | 8.5X15X8 | 2 | Pcs. | $1.50 |
| 14 | A00760-04-00 | SPACER | 8X14X12.5 | 2 | Pcs. | $1.50 |
| 15 | A00409-08-00 | START SWITCH | 1 | Pc. | $18.00 | |
| 16 | A00284-05-00 | THROTTLE TUBE | 1 | Pc. | $8.00 | |
| 17 | A00285-05-00 | THROTTLE HOUSING | 1 | Pc. | $18.00 | |
| 18 | A00009-24-01 | RUBBER CABLE CLAMP | 75MM | 4 | Pcs. | $1.50 |
| 19 | A01026-02-02 | HANDLEBAR PAD COVER | W/ FUEL HOSE NOTCH | 1 | Pc. | $14.00 |
| 20 | A00565-05-01 | HANDLEBAR PAD | W/ FUEL HOSE NOTCH | 1 | Pc. | $23.00 |
| 21 | A00546-05-00 | CLUTCH LEVER | 1 | Pc. | $18.00 | |
| 22 | A00534-05-00 | FRONT BRAKE LEVER | 1 | Pc. | $18.00 | |
| 23 | A00399-19-00 | CLUTCH LEVER PIVOT BOLT | 1 | Pc. | $2.50 | |
| 24 | A00002-21-02 | LOCK WASHER | M6 | 1 | Pc. | $1.50 |
| 25 | A00001-22-01 | NUT | M6 | 1 | Pc. | $1.50 |
| 26 | A00421-19-X8 | CASE FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 27 | A00585-05-00 | CHOKE LEVER | 1 | Pc. | $2.50 | |
| 28 | A00586-05-00 | CLUTCH CABLE ADJUSTER W/ NUT | 1 | Pc. | $2.50 | |
| 29 | A00587-05-00 | SPACER | 1 | Pc. | $2.50 | |
| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 2 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 3 | A00554-11-00 | BODY BRACKET LEFT | W/ HOLE | 1 | Pc. | $8.00 |
| 3-1 | A00555-11-00 | BODY BRACKET RIGHT | 1 | Pc. | $8.00 | |
| 4 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 5 | A00031-22-05 | WIRE HOLDER | 1 | Pc. | $1.50 | |
| 6 | A00640-11-00 | FRAME | BLACK *OVERSIZE* | 1 | Pc. | $229.00 |
| 7 | A00017-19-01 | FLANGE BOLT | M8X16 | 4 | Pcs. | $1.50 |
| 8 | A00001-21-02 | LOCK WASHER | M8 | 4 | Pcs. | $1.50 |
| 9 | A00550-11-00 | REAR FENDER SUPPORT | 1 | Pc. | $48.00 | |
| 10 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 11 | A00100-22-34 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 12 | A00551-11-00 | SUBFRAME | SILVER | 1 | Pc. | $112.00 |
| 13 | A00553-11-00 | COLLAR | 22X6.2X4.5X9X2.5 | 1 | Pcs. | $1.50 |
| 14 | A00457-19-W3 | WING BOLT | M6X20 | 1 | Pc. | $1.50 |
| 15 | A00552-11-00 | BATTERY TRAY | 1 | Pc. | $30.00 | |
| 16 | A00449-11-00 | RUBBER GROMMET | 3 | Pcs. | $2.00 | |
| 17 | A00026-19-02 | ALLEN BOLT | M8X45 | 2 | Pcs. | $2.00 |
| 18 | A00556-11-00 | FUEL PETCOCK BRACKET | 1 | Pc. | $4.00 | |
| 19 | A00557-11-00 | IGNTION SWITCH BRACKET | 1 | Pc. | $7.00 | |
| 20 | A00456-19-09 | BUTTON HEAD ALLEN BOLT | M6X12 | 2 | Pcs. | $1.50 |
| FOOTPEGS & SIDE STAND | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00320-11-00 | CHAIN ROLLER BRACKET | 1 | Pc. | $4.00 | |
| 2 | A00002-21-01 | WASHER | M10 | 5 | Pcs. | $1.50 |
| 3 | A00321-11-00 | CHAIN ROLLER | 35X26 | 1 | Pc. | $7.00 |
| 4 | A00096-28-00 | BEARING | 6900 | 2 | Pcs. | $7.00 |
| 5 | A00008-25-01 | COTTER PIN | 2.5X16 | 3 | Pcs. | $1.50 |
| 6 | A00290-05-00 | FOOTPEG SET | 1 | Set | $30.00 | |
| 7 | A00292-05-00 | FOOTPEG PIN | 8X42 | 2 | Pcs. | $1.50 |
| 8 | A00013-21-01 | WASHER | M8 | 2 | Pcs. | $1.50 |
| 9 | A00291-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 9-1 | A00501-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 10 | A00293-05-00 | FOOT BRAKE TIP | 1 | Pc. | $7.00 | |
| 11 | A00123-19-02 | BUTTON HEAD ALLEN BOLT | M6X16 | 1 | Pc. | $1.50 |
| 12 | A00005-22-04 | LOCK NUT | M6 | 1 | Pc. | $1.50 |
| 13 | A00535-05-00 | REAR BRAKE PEDAL | 1 | Pc. | $24.00 | |
| 14 | A00458-19-09 | BUTTON HEAD ALLEN BOLT | M8X40 | 1 | Pc. | $2.00 |
| 15 | A00100-22-34 | FLANGE LOCKNUT | M8 | 3 | Pcs. | $1.50 |
| 16 | A00065-21-01 | WASHER | 9X17X2.5 | 1 | Pc. | $1.50 |
| 17 | A00097-28-00 | BEARING | 608 | 2 | Pcs. | $7.00 |
| 18 | A00295-05-00 | PEDAL STOPPER | 18X6.5X9 | 1 | Pc. | $1.50 |
| 19 | A00010-19-02 | ALLEN BOLT | M6X10 | 1 | Pc. | $1.50 |
| 20 | A00296-05-00 | BRAKE PEDAL RETURN SPRING | 1 | Pc. | $1.50 | |
| 21 | A00001-19-07 | KICKSTAND BOLT | M10X25 | 1 | Pc. | $2.00 |
| 22 | A00111-21-01 | WASHER | 12X24X1.5 | 1 | Pc. | $1.50 |
| 23 | A00322-11-00 | KICKSTAND SPRING | 90MM | 1 | Pc. | $2.50 |
| 24 | A00503-11-00 | SIDE STAND | 310MM | 1 | Pc. | $29.00 |
| 25 | A00005-19-02 | ALLEN BOLT | M8X30 | 2 | Pcs. | $1.50 |
| 26 | A00324-11-00 | KICKSTAND BRACKET | 1 | Pc. | $11.00 | |
| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00522-11-00 | SWINGARM | 16" | 1 | Pc. | $133.00 |
| 2 | A00521-11-00 | BEARING SPACER SLEEVE | Ф22*Ф18*152mm | 1 | Pc. | $7.00 |
| 3 | A00084-28-00 | BEARING | 6002 | 4 | Pcs. | $8.00 |
| 4 | A00033-26-00 | DUST SEAL | 22X32X7 | 2 | Pcs. | $2.00 |
| 5 | A00332-11-00 | COLLAR | 22X15X8.5MM | 2 | Pcs. | $1.50 |
| 6 | A00333-11-00 | SWINGARM AXLE | 15XM14X1.5X240 | 1 | Pc. | $35.00 |
| 7 | A00003-22-34 | FLANGE LOCKNUT | M14X1.5 | 1 | Pc. | $2.50 |
| 8 | A00334-11-00 | CHAIN GUIDE | 1 | Pc. | $23.00 | |
| 8-1 | A00524-16-00 | COLLAR | 2 | Pcs. | $2.50 | |
| 8-2 | A00016-19-07 | BUTTON HEAD ALLEN BOLT | M8X45 | 2 | Pcs. | $2.00 |
| 8-3 | A00017-19-07 | BUTTON HEAD ALLEN BOLT | M8X16 | 1 | Pc. | $1.50 |
| 9 | A00451-11-00 | LEFT CHAIN ADJUSTER BLOCK | 1 | Pc. | $18.00 | |
| 10 | A00452-11-00 | RIGHT CHAIN ADJUSTER BLOCK | 1 | Pc. | $18.00 | |
| 11 | A00006-19-03 | ADJUSTER BOLT | M8X60 | 2 | Pcs. | $2.00 |
| 12 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
| 13 | A00003-20-01 | SCREW | M6X16 | 2 | Pcs. | $1.50 |
| 14 | A00336-11-00 | BRAKE HOSE CLAMP B | 1 | Pc. | $1.50 | |
| 15 | A00337-11-00 | BRAKE HOSE CLAMP A | 1 | Pc. | $1.50 | |
| 16 | A00010-19-09 | PAN HEAD ALLEN BOLT | M6X10 | 4 | Pcs. | $1.50 |
| 17 | A00338-11-00 | CHAIN SLIDER | 1 | Pc. | $30.00 | |
| SUSPENSION LINKAGE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00695-16-00 | ROD LINK | ALLOY | 1 | Pc. | $33.00 |
| 2 | A00034-26-00 | DUST SEAL | 20X32X5 | 2 | Pcs. | $2.50 |
| 3 | A00064-28-00 | NEEDLE BEARING | 2012 | 2 | Pcs. | $23.00 |
| 4 | A00018-19-01 | FLANGE BOLT | M12X1.25X120 | 1 | Pc. | $6.00 |
| 5 | A00001-22-03 | FLANGE NUT | M12X1.25 | 3 | Pcs. | $2.00 |
| 6 | A00709-16-00 | BEARING SPACER SLEEVE | 20X12X82MM | 1 | Pc. | $4.00 |
| 7 | A00019-19-01 | FLANGE BOLT | M12X1.25X95 | 1 | Pc. | $6.00 |
| 8 | A00696-16-00 | PIVOT ARM | ALLOY | 1 | Pc. | $51.00 |
| 9 | A00212-16-00 | BEARING SPACER SLEEVE | 18X12.5X24MM | 1 | Pc. | $2.50 |
| 10 | A00003-28-01 | BEARING | 6001-RS | 4 | Pcs. | $11.00 |
| 11 | A00035-26-00 | DUST SEAL | 20X28X5 | 4 | Pcs. | $2.50 |
| 12 | A00067-21-01 | SPACER | 19X12X9.5 | 8 | Pcs. | $1.50 |
| 13 | A00065-28-00 | BEARING | 6902 | 2 | Pcs. | $13.00 |
| 14 | A00214-16-00 | COLLAR | 20X10.2X11X15MM | 2 | Pcs. | $1.50 |
| 15 | A00215-16-00 | BEARING SPACER SLEEVE | 18X12.5X13.5MM | 1 | Pc. | $2.50 |
| 16 | A00020-19-01 | FLANGE BOLT | M12X1.25X83 | 1 | Pc. | $3.50 |
| 17 | A00111-21-01 | WASHER | 12*24*1.5 | 2 | Pcs. | $1.50 |
| ELECTRICAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00410-08-00 | CDI | 1 | Pc. | $24.00 | |
| 2 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 3 | A00411-08-00 | REGULATOR / RECTIFIER | 1 | Pc. | $30.00 | |
| 4 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 5 | A00010-19-02 | ALLEN BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 6 | A00104-21-01 | WASHER | M6 | 1 | Pc. | $1.50 |
| 7 | A00601-08-00 | STARTER RELAY BRACKET | 1 | Pc. | $7.00 | |
| 8 | A00602-08-00 | STARTER RELAY | 1 | Pc. | $33.00 | |
| 9 | A00603-08-00 | BATTERY STRAP | 130MM | 1 | Pc. | $14.00 |
| 10 | YTX4L-BS | BATTERY | YTX4L-BS | 1 | Pc. | $63.00 |
| 11 | A00415-08-00 | IGNITION SWITCH | 1 | Pc. | $39.00 | |
| 12 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 13 | A00667-08-00 | IGNITION COIL | W/ HARNESS | 1 | Pc. | $30.00 |
| 14 | A00604-08-00 | NEGATIVE BATTERY LEAD | 1 | Pc. | $24.00 | |
| 15 | A00605-08-00 | WIRE HARNESS | 1 | Pc. | $51.00 | |
| 16 | A00072-08-00 | BLADE FUSE | 15A | 1 | Pc. | $2.50 |
| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00011-21-01 | WASHER | M6 | 3 | Pcs. | $1.50 |
| 2 | A00002-19-01 | FLANGE BOLT | M6X16 | 3 | Pcs. | $1.50 |
| 3 | A01050-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $39.00 |
| 3 | A01050-02-12 | FRONT FENDER | BLUE | 1 | Pc. | $39.00 |
| 4 | A00720-02-01 | LEFT FRONT SHROUD | WHITE | 1 | Pc. | $27.00 |
| 4 | A00720-02-12 | LEFT FRONT SHROUD | BLUE | 1 | Pc. | $27.00 |
| 5 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 6 | A00553-11-00 | COLLAR | 22x6.2x4.5x9x2.5 | 2 | Pcs. | $1.50 |
| 7 | A00406-19-09 | PAN HEAD ALLEN BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 8 | A00456-19-09 | PAN HEAD ALLEN BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 9 | A00724-02-01 | LEFT REAR NUMBER PLATE/FRAME COVER | WHITE | 1 | Pc. | $24.00 |
| 10 | A00721-02-01 | REAR FENDER | WHITE | 1 | Pc. | $30.00 |
| 10 | A00721-02-12 | REAR FENDER | BLUE | 1 | Pc. | $30.00 |
| 11 | A00010-19-02 | ALLEN BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 12 | A00010-19-09 | PAN HEAD ALLEN BOLT | M6X10 | 4 | Pcs. | $1.50 |
| 13 | A00009-20-03 | SCREW | 4.8X16 | 2 | Pcs. | $1.50 |
| 14 | A00003-20-12 | CS SCREW | M6X16 | 2 | Pcs. | $1.50 |
| 15 | A00723-02-02 | MUD FLAP | BLACK | 1 | Pc. | $21.00 |
| 16 | A00731-02-00 | RUBBER DAMPER | 1 | Pc. | $1.50 | |
| 17 | A00725-02-01 | RIGHT REAR NUMBER PLATE/FRAME COVER | WHITE | 1 | Pc. | $24.00 |
| 18 | A00722-02-01 | RIGHT FRONT SHROUD | WHITE | 1 | Pc. | $27.00 |
| 18 | A00722-02-12 | RIGHT FRONT SHROUD | BLUE | 1 | Pc. | $27.00 |
| 19 | A01006-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $24.00 |
| 20 | A01005-02-01 | COMPLETE PLASTIC KIT | WHITE | 1 | Kit | $180.00 |
| 20 | A01005-02-12 | COMPLETE PLASTIC KIT | BLUE | 1 | Kit | $180.00 |
| 21 | A00730-02-00 | GRAPHICS KIT | 1 | Kit | $51.00 | |
| FUEL TANK & SEAT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00732-02-00 | UPPER FRONT NUMBER PLATE BRACKET | 2 | Pcs. | $13.00 | |
| 2 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 3 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 4 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 5 | A00093-22-03 | FLANGE NUT | M6 | 3 | Pcs. | $1.50 |
| 6 | A00104-21-01 | WASHER | 6*18*1.5 | 2 | Pcs. | $1.50 |
| 7 | A00012-19-01 | FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 8 | A01006-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $24.00 |
| 9 | A00338-12-00 | FUEL PETCOCK | 1 | Pc. | $23.00 | |
| 10 | A00104-21-01 | WASHER | M6 | 1 | Pc. | $1.50 |
| 11 | A00011-19-02 | ALLEN BOLT | M6X16 | 1 | Pc. | $1.50 |
| 12 | A00258-12-00 | FUEL TANK CAP | 1 | Pc. | $13.00 | |
| 13 | A00257-12-00 | FUEL TANK | 1 | Pc. | $74.00 | |
| 14 | A00021-19-01 | FLANGE BOLT | M6X40 | 1 | Pc. | $2.00 |
| 15 | A00259-12-00 | COLLAR | 22*6.5*27*12 | 1 | Pc. | $1.50 |
| 16 | A00107-21-01 | WASHER | 10X22X1.5 | 1 | Pc. | $1.50 |
| 17 | A00260-12-00 | FUEL FILTER | 1 | Pc. | $11.00 | |
| 18 | A00004-21-01 | WASHER | 8X22 | 1 | Pc. | $1.50 |
| 19 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 20 | A01031-02-00 | SEAT | 1 | Assy. | $72.00 | |
