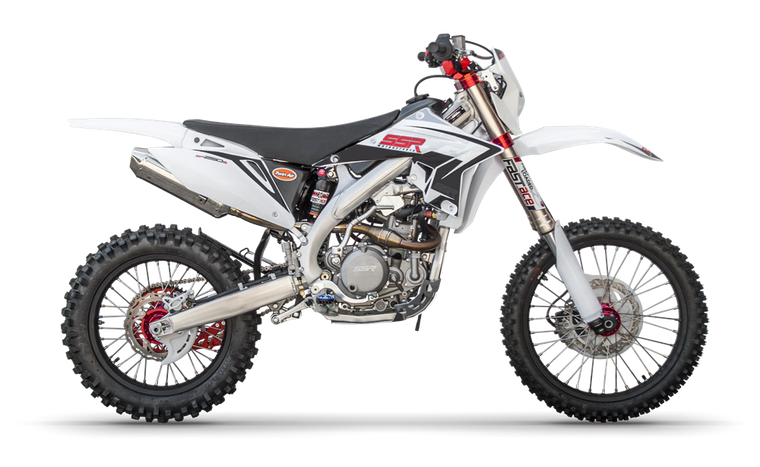

(SR250S) Full Parts Schematic (2019-2023)
SSRCALL TO ORDER (320)-358-1994
(No reviews yet)
Write a Review
SSR
(SR250S) Full Parts Schematic (2019-2023)
| 2019-2023 SR250S | ||||||
 |
||||||

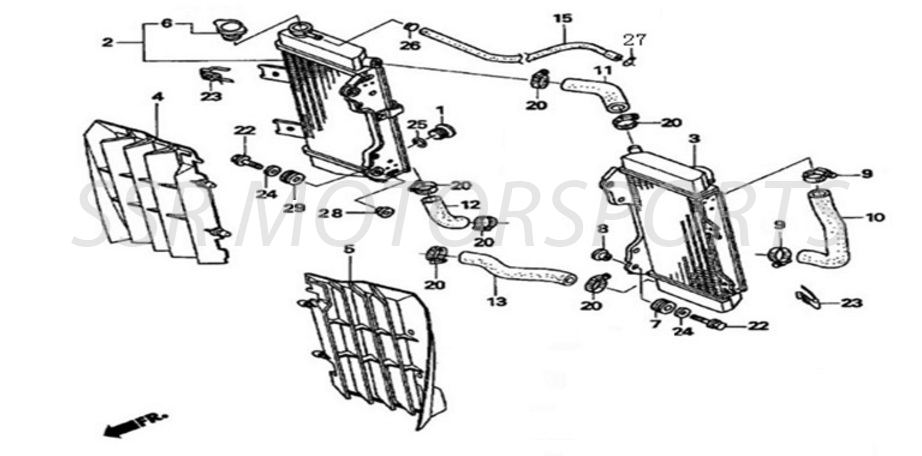

| RADIATOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00010-06-00 | RADIATOR DRAIN PLUG | M16X1.25 | 1 | Pc. | $3.50 |
| 2 | A00011-06-00 | RIGHT RADIATOR | 1 | Pc. | $112.00 | |
| 3 | A00012-06-00 | LEFT RADIATOR | 1 | Pc. | $112.00 | |
| 4 | A00051-02-01 | RIGHT RADIATOR GRILLE | WHITE | 1 | Pc. | $18.00 |
| 5 | A00052-02-01 | LEFT RADIATOR GRILLE | WHITE | 1 | Pc. | $18.00 |
| 6 | A00025-06-00 | RADIATOR CAP | 1.1 | 1 | Pc. | $8.00 |
| 7 | A00014-06-00 | RUBBER GROMMET | 4 | Pcs. | $4.00 | |
| 8 | A00015-06-00 | COLLAR | 3 | Pcs. | $1.50 | |
| 9 | A00021-24-02 | HOSE CLAMP | 2 | Pcs. | $2.00 | |
| 10 | A00016-06-00 | COOLANT HOSE A | 1 | Pc. | $14.00 | |
| 11 | A00017-06-00 | COOLANT HOSE B | 1 | Pc. | $13.00 | |
| 12 | A00018-06-00 | COOLANT HOSE C | 1 | Pc. | $13.00 | |
| 13 | A00019-06-00 | COOLANT HOSE D | 1 | Pc. | $13.00 | |
| 15 | A00020-06-00 | HOSE | 5.5x8x825 | 1 | Pc. | $18.00 |
| 20 | A00022-24-02 | HOSE CLAMP | 6 | Pcs. | $2.00 | |
| 22 | A00012-19-01 | FLANGE BOLT | M6X25 | 4 | Pcs. | $1.50 |
| 23 | A00343-22-01 | U-SHAPED CLIP NUT | M6 | 4 | Pcs. | $1.50 |
| 24 | A00044-21-01 | WASHER | 6.4X18X1.6 | 4 | Pcs. | $1.50 |
| 25 | A00037-06-00 | SEALING WASHER | 1 | Pc. | $1.50 | |
| 26 | A00023-24-03 | WIRE HOSE CLAMP | 2 | Pcs. | $1.50 | |
| 27 | A00024-24-03 | WIRE HOSE CLAMP | 1 | Pc. | $1.50 | |
| 28 | A00099-06-00 | COLLAR | 1 | Pc. | $1.50 | |
| 29 | A00098-06-00 | RUBBER GROMMET | 1 | Pc. | $1.50 | |
| AIR CLEANER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00025-24-03 | WIRE HOSE CLAMP | 3 | Pcs. | $1.50 | |
| 2 | A00026-24-03 | WIRE HOSE CLAMP | 16MM | 2 | Pcs. | $1.50 |
| 3 | A00027-14-00 | AIRBOX LID | 1 | Pc. | $24.00 | |
| 4 | A00028-14-00 | AIR FILTER HOLDER SCREEN | 1 | Pc. | $30.00 | |
| 5 | A00063-14-00 | AIR FILTER ELEMENT | TWIN AIR | 1 | Pc. | $60.00 |
| 6 | A00027-24-02 | HOSE CLAMP | 40-60mm | 1 | Pc. | $7.00 |
| 7 | A00031-14-00 | AIRBOX BOOT RETAINER | 1 | Pc. | $13.00 | |
| 8 | A00032-14-00 | AIR BOX SEAL | 1 | Pc. | $8.00 | |
| 9 | A00067-14-00 | MUDFLAP | 1 | Pc. | $8.00 | |
| 10 | A00028-24-03 | WIRE HOSE CLAMP | 12MM | 5 | Pcs. | $1.50 |
| 11 | A00034-14-00 | RIGHT AIRBOX COVER | 1 | Pc. | $18.00 | |
| 12 | A00035-14-00 | LEFT AIRBOX COVER | 1 | Pc. | $18.00 | |
| 13 | A00098-21-01 | WASHER | 1 | Pcs. | $1.50 | |
| 14 | A00036-14-00 | FILTER COVER BOLT | 1 | Pc. | $1.50 | |
| 15 | A00037-14-00 | REGULATOR / RECTIFIER BRACKET | 1 | Pc. | $6.00 | |
| 16 | A00038-14-00 | AIRBOX | 1 | Pc. | $77.00 | |
| 17 | A00039-14-00 | AIR BOX BOOT | 1 | Pc. | $39.00 | |
| 18 | A00247-19-01 | AIR FILTER WINGBOLT | 1 | Pc. | $4.00 | |
| 19 | A00029-24-07 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 20 | A00028-22-03 | FLANGE NUT | 6 | Pcs. | $1.50 | |
| 21 | A00041-14-00 | AIRBOX DRAIN HOSE | 1 | Pc. | $4.00 | |
| 22 | A00042-14-00 | TUBE JOINT | 1 | Pc. | $7.00 | |
| 23 | A00076-14-00 | PLUG | 1 | Pc. | $4.00 | |
| 24 | A00044-14-00 | VENT TUBE | 1 | Pc. | $8.00 | |
| 25 | A00078-14-00 | 3-WAY CONNECTOR | 1 | Pc. | $3.50 | |
| 26 | A00046-14-00 | VENT TUBE | 1 | Pc. | $8.00 | |
| 27 | A00047-14-00 | BREATHER TUBE | 1 | Pc. | $8.00 | |
| 28 | A00012-20-03 | SCREW | 2 | Pcs. | $1.50 | |
| 29 | A00049-14-00 | TUBE | 1 | Pc. | $8.00 | |
| 30 | A00039-20-02 | PAN HEAD SCREW | 8 | Pcs. | $1.50 | |
| 32 | A00014-25-00 | PIN | 1 | Pc. | $1.50 | |
| 33 | A00015-25-00 | PIN | 1 | Pc. | $1.50 | |
| 34 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 36 | A00118-19-01 | FLANGE BOLT | 2 | Pcs. | $1.50 | |
| 37 | A00119-19-01 | FLANGE BOLT | 1 | Pc. | $1.50 | |
| 38 | A00082-14-00 | AIR BOX ASSY | 1 | Assy. | $150.00 | |

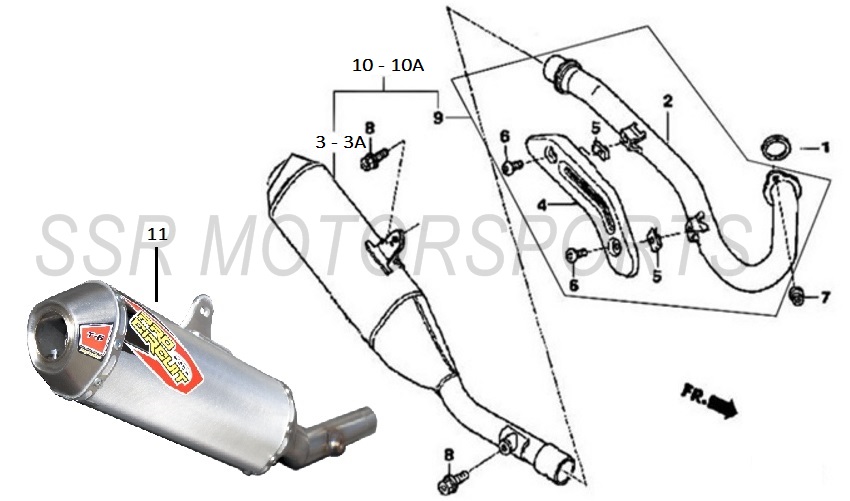

| EXHAUST SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00029-13-00 | EXHAUST GASKET | 1 | Pc. | $8.00 | |
| 2 | A00013-10-00 | HEAD PIPE | 1 | Pc. | $77.00 | |
| 3 | A00014-10-00 | MUFFLER ASSY | 1 | Pc. | $199.00 | |
| 3A | A00115-10-00 | MUFFLER ASSY | CARBON FIBER END CAP | 1 | Pc. | $219.00 |
| 4 | A00015-10-00 | HEAT SHIELD | 1 | Pc. | $30.00 | |
| 5 | A00001-22-05 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
| 6 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 7 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
| 8 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 9 | A00016-10-00 | EXHAUST HEAD PIPE ASSY | 1 | Assy. | $96.00 | |
| 10A | A00120-10-00 | EXHAUST SYSTEM ASSY | CARBON FIBER END CAP | 1 | Assy. | $292.00 |
| 11 | A00073-01-00 | PRO CIRCUIT T-6 MUFFLER W/ SPARK ARRESTOR | OPTIONAL | 1 | Pc. | $472.00 |
| 12 | A00301-13-00 | MUFFLER PACKING GASKET | NOT PICTURED | 1 | Pc. | $11.00 |
| 13 | A00024-10-00 | RUBBER STAND OFF | NOT PICTURED | 1 | Pc. | $7.00 |

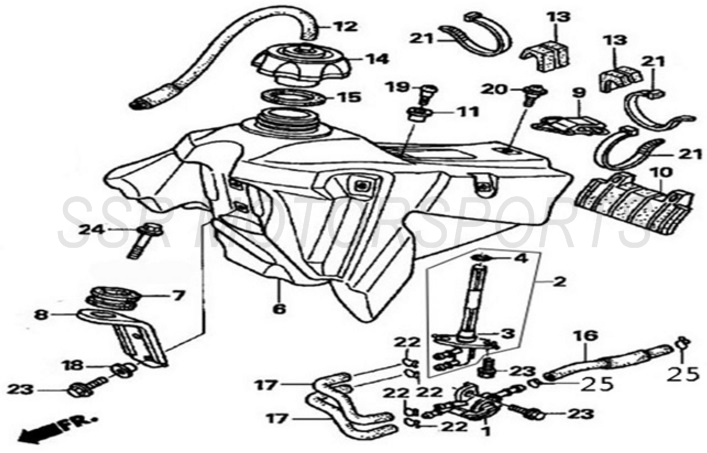

| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00080-12-00 | FUEL PETCOCK ASSY | 1 | Assy. | $21.00 | |
| 2 | A00081-12-00 | FUEL PICKUP W/ SCREEN ASSY | 1 | Assy. | $24.00 | |
| 3 | A00061-12-00 | FUEL PICKUP SCREEN | 1 | Pc. | $13.00 | |
| 4 | A00086-27-00 | O-RING | 1 | Pc. | $1.50 | |
| 6 | A00063-12-02 | FUEL TANK | BLACK | 1 | Pc. | $150.00 |
| 7 | A00377-12-00 | RUBBER GROMET | 1 | Pc. | $2.50 | |
| 8 | A00378-12-00 | FRONT FUEL TANK STAY | 1 | Pc. | $7.00 | |
| 9 | A00066-12-00 | FUEL TANK STRAP | 1 | Pc. | $8.00 | |
| 10 | A00067-12-00 | REAR RUBBER FUEL TANK DAMPER | 1 | Pc. | $7.00 | |
| 11 | A00090-12-00 | SEAT COLLAR | PLASTIC | 1 | Pc. | $1.50 |
| 12 | A00069-12-00 | FUEL TANK VENT HOSE | 4X8X300 | 1 | Pc. | $11.00 |
| 13 | A00070-12-00 | FUEL TANK RUBBER DAMPER | 4? | Pcs. | $8.00 | |
| 14 | A00071-12-00 | FUEL TANK CAP | 1 | Pc. | $14.00 | |
| 15 | A00072-12-00 | FUEL TANK CAP GASKET | 1 | Pc. | $7.00 | |
| 16 | A00073-12-00 | FUEL HOSE A | 7.3X12.5X25 | 1 | Pc. | $18.00 |
| 17 | A00074-12-00 | FUEL HOSE B | 7X12 | 2 | Pcs. | $8.00 |
| 18 | A00097-12-00 | COLLAR | 6.3X16X6.5 | 1 | Pc. | $1.50 |
| 19 | A00108-19-03 | BOLT | 1 | Pc. | $1.50 | |
| 20 | A00109-19-03 | BOLT | 1 | Pc. | $1.50 | |
| 21 | A00006-24-01 | ZIP TIE | 3.6X250 | 4 | Pcs. | $2.00 |
| 22 | A00031-24-02 | HOSE CLAMP | 4 | Pcs. | $1.50 | |
| 23 | A00002-19-01 | FLANGE BOLT | M6X16 | 5 | Pcs. | $1.50 |
| 24 | A00001-19-01 | FLANGE BOLT | M6X30 | 1 | Pc. | $1.50 |
| 25 | A00063-24-02 | HOSE CLAMP | 2 | Pcs. | $1.50 | |

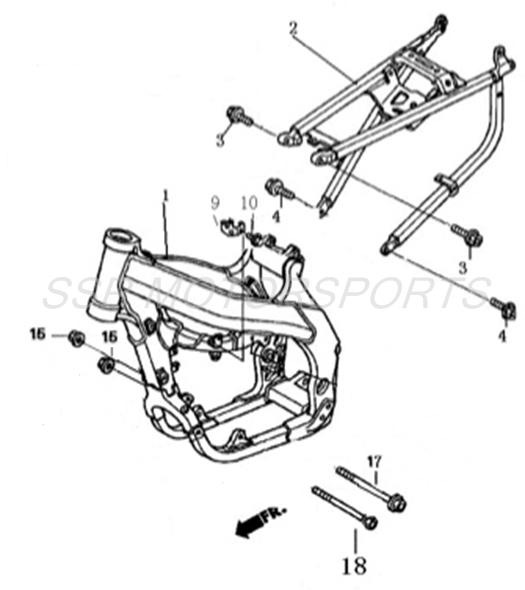

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00026-11-00 | FRAME | *OVERSIZE* | 1 | Pc. | $1,086.00 |
| 2 | A00031-11-00 | SUBFRAME | 1 | Pc. | $168.00 | |
| 3 | A00041-19-01 | FLANGE BOLT | M8X30 | 2 | Pcs. | $1.50 |
| 4 | A00079-19-01 | FLANGE BOLT | M10X30 | 2 | Pcs. | $2.00 |
| 9 | A00030-11-00 | STAY | 1 | Pc. | $2.50 | |
| 10 | A00002-19-01 | CASE FLANGE BOLT | M6X16 | 3 | Pcs. | $1.50 |
| 15 | A00004-22-04 | FLANGE LOCKNUT | M10 | 2 | Pcs. | $1.50 |
| 17 | A00069-19-01 | FLANGE BOLT | M10X135 | 1 | Pc. | $4.00 |
| 18 | A00480-19-01 | FLANGE BOLT | M10X145 | 1 | Pc. | $4.00 |

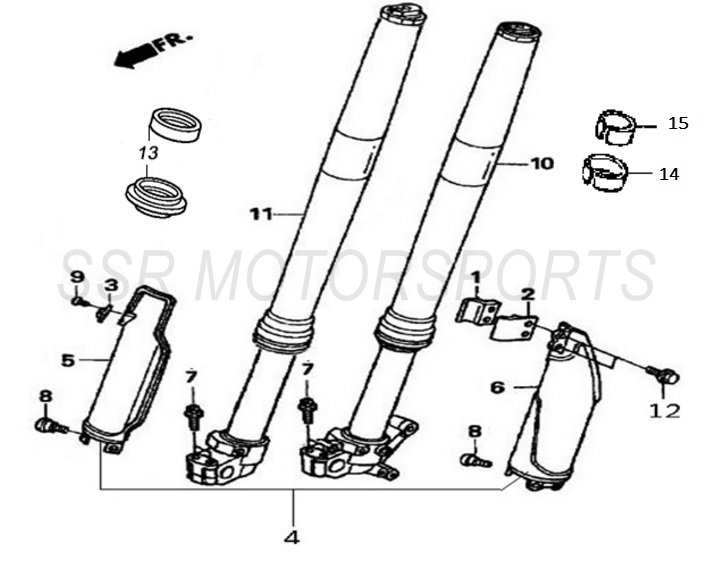

| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00078-16-00 | FRONT BRAKE HOSE HOLDER A | 1 | Pc. | $2.50 | |
| 2 | A00079-16-00 | FRONT BRAKE HOSE HOLDER B | 1 | Pc. | $2.50 | |
| 3 | A00055-16-00 | SPEEDOMETER WIRE RETAINER | 1 | Pc. | $1.50 | |
| 4 | A00053-02-01 | FORK PROTECTOR SET | 1 | Set | $59.00 | |
| 5 | A00088-02-01 | LEFT FORK PROTECTOR | WHITE | 1 | Pc. | $33.00 |
| 6 | A00089-02-01 | RIGHT FORK PROTECTOR | WHITE | 1 | Pc. | $33.00 |
| 7 | A00014-19-01 | FLANGE BOLT | M8X40 | 4 | Pcs. | $2.00 |
| 8 | A00031-19-01 | FLANGE BOLT | M6X12 | 6 | Pcs. | $1.50 |
| 9 | A00111-19-01 | ST SCREW | M4X10 | 2 | Pcs. | $1.50 |
| 10 | A00075-16-00 | RIGHT FORK ASSY | 1 | Assy. | $322.00 | |
| 11 | A00077-16-00 | LEFT FORK ASSY | 1 | Assy. | $322.00 | |
| 12 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 13 | A00687-16-00 | FORK/DUST SEAL SET | SEAL + DUST SEAL | 2 | Set | $30.00 |
| 14 | A00692-16-00 | GUIDE BUSHING | 2 | Pcs. | $8.00 | |
| 15 | A00693-16-00 | SLIDER BUSHING | 2 | Pcs. | $8.00 | |
| HANDLEBAR COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00124-05-00 | LEFT HEADLIGHT STAY | 1 | Pc. | $8.00 | |
| 1A | A00125-05-00 | RIGHT HEADLIGHT STAY | 1 | Pc. | $8.00 | |
| 2 | A00062-05-00 | UPPER HANDLEBAR CLAMP | 2 | Pcs. | $24.00 | |
| 3 | A00063-05-00 | FRONT BRAKE HOSE GUIDE | 1 | Pc. | $2.50 | |
| 4 | A00064-05-00 | HANDLEBAR | 1 | Pc. | $142.00 | |
| 5 | A00065-05-00 | LOWER HANDLEBAR CLAMP | 2 | Pcs. | $24.00 | |
| 6 | A00066-05-00 | RUBBER HANDLEBAR DAMPER | 4 | Pcs. | $3.50 | |
| 7 | A00067-05-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $104.00 | |
| 11 | A00062-08-01 | IGNITION SWITCH | W/ 2 KEYS | 1 | Pc. | $51.00 |
| 12 | A00007-19-03 | BOLT | M6X18 | 1 | Pc. | $1.50 |
| 14 | A00014-19-01 | FLANGE BOLT | M8X40 | 4 | Pcs. | $2.00 |
| 15 | A00004-19-03 | BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 16 | A00120-19-04 | STUD | M10 | 2 | Pcs. | $7.00 |
| 17 | A00345-22-01 | STEERING STEM NUT | M26 | 1 | Pc. | $7.00 |
| 18 | A00014-22-01 | FLANGE NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 20 | A00041-21-01 | WASHER | 26.5X35X1 | 1 | Pc. | $4.00 |
| 21 | A00002-21-01 | WASHER | M10 | 1 | Pc. | $1.50 |
| 22 | A00444-05-00 | HANDLEBAR PAD WITH COVER | 1 | Pc. | $24.00 | |

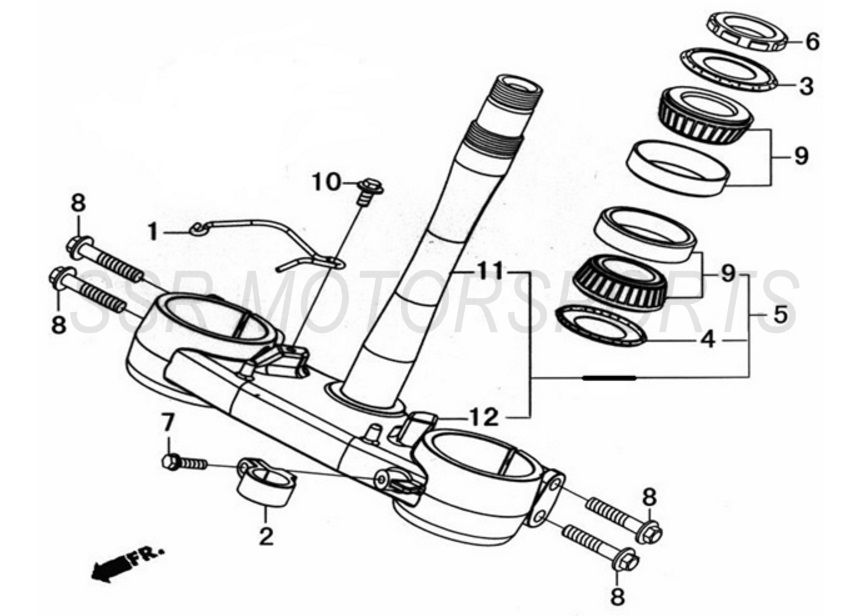

| LOWER TRIPLE CLAMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00031-15-00 | STAY | 1 | Pc. | $2.50 | |
| 2 | A00063-05-00 | FRONT BRAKE HOSE GUIDE | 1 | Pc. | $2.50 | |
| 3 | A00033-15-00 | UPPER DUST SEAL | 1 | Pc. | $7.00 | |
| 4 | A00034-15-00 | LOWER DUST SEAL | 1 | Pc. | $7.00 | |
| 5 | A00035-15-00 | LOWER TRIPLE CLAMP W/ STEM + BEARING | 1 | Assy. | $218.00 | |
| 6 | A00036-15-01 | STEERING STEM ADJ. NUT | M30X1 | 1 | Pc. | $8.00 |
| 7 | A00066-19-01 | FLANGE BOLT | M6X18 | 1 | Pc. | $1.50 |
| 8 | A00016-19-01 | FLANGE BOLT | M8X45 | 4 | Pcs. | $2.00 |
| 9 | A00037-15-00 | BEARING SET | TR0627 | 2 | Pcs. | $36.00 |
| 10 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 11 | A00038-15-00 | STEERING STEM | 1 | Pc. | $69.00 | |
| 12 | A00039-15-00 | LOWER TRIPLE CLAMP | 1 | Pc. | $112.00 | |

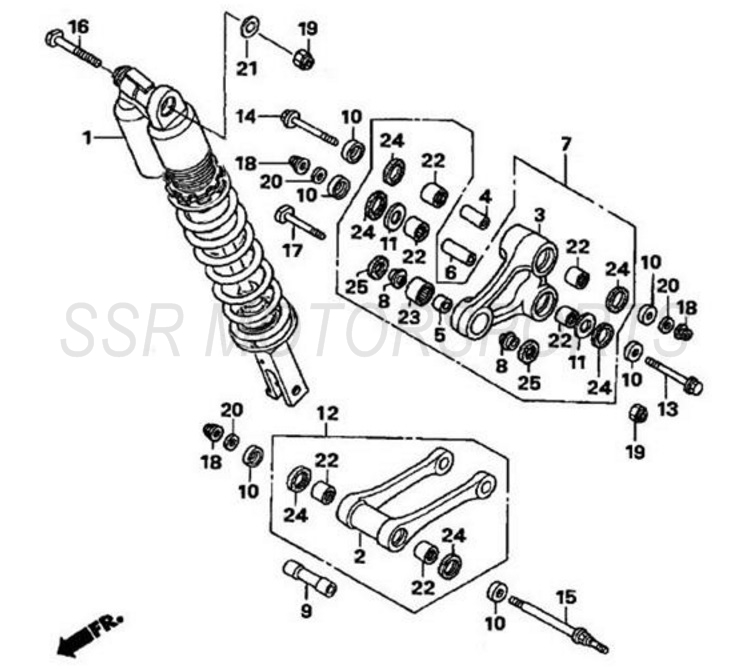

| REAR SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00058-16-00 | REAR SHOCK ASSY | 1 | Assy. | $356.00 | |
| 2 | A00059-16-00 | REAR SUSPENSION CONNECTING ROD | 1 | Pc. | $72.00 | |
| 3 | A00060-16-00 | SUB-ARM CONNECTING LINK | 1 | Pc. | $77.00 | |
| 4 | A00061-16-00 | SUB-ARM SLEEVE 2 | 12X20X37 | 1 | Pc. | $13.00 |
| 5 | A00062-16-00 | SUB-ARM SLEEVE 3 | 14X19X10.5 11 | 1 | Pc. | $8.00 |
| 6 | A00063-16-00 | SUB-ARM SLEEVE 1 | 12X20X50 | 1 | Pc. | $14.00 |
| 7 | A00064-16-00 | CONNECTING ROD SUB-ASSY | 1 | Assy. | $142.00 | |
| 8 | A00065-16-00 | SUB-ARM FRONT SPACER SLEEVE | 2 | Pcs. | $3.50 | |
| 9 | A00066-16-00 | CONNECTING ROD SLEEVE | 12X20X77.5 | 1 | Pc. | $18.00 |
| 10 | A00067-16-00 | CONNECTING ROD SPACER SLEEVE | 12X25X5 | 6 | Pcs. | $2.50 |
| 11 | A00024-21-01 | WASHER | 20X31X1.5 | 2 | Pcs. | $1.50 |
| 12 | A00069-16-00 | CONNECTING ROD ASSY | 1 | Assy. | $89.00 | |
| 13 | A00019-19-01 | FLANGE BOLT | M12X95X1.25 | 1 | Pc. | $6.00 |
| 14 | A00072-19-01 | FLANGE BOLT | M12X80X1.25 | 1 | Pc. | $4.00 |
| 15 | A00014-19-04 | STUD | M12X173X1.25 | 1 | Pc. | $8.00 |
| 16 | A00081-19-07 | SPECIAL BOLT | M10X63X1.25 | 1 | Pc. | $4.00 |
| 17 | A00005-19-07 | SPECIAL BOLT | M10X45X1.25 | 1 | Pc. | $3.50 |
| 18 | A00001-22-34 | FLANGE LOCKNUT | M12X1.25 | 3 | Pcs. | $2.00 |
| 19 | A00004-22-34 | FLANGE LOCKNUT | M10X1.25 | 2 | Pcs. | $2.00 |
| 20 | A00001-21-01 | WASHER | M12 | 2 | Pcs. | $1.50 |
| 21 | A00002-21-01 | WASHER | M10 | 1 | Pc. | $1.50 |
| 22 | A00109-28-00 | NEEDLE BEARING | FH 2016 20X26X15 | 6 | Pcs. | $13.00 |
| 23 | A00110-28-01 | NEEDLE BEARING | FH1913 19X26X13 | 1 | Pc. | $13.00 |
| 24 | A00068-26-00 | DUST SEAL | 6 | Pcs. | $3.50 | |
| 25 | A00069-26-00 | DUST SEAL | 2 | Pcs. | $2.50 | |

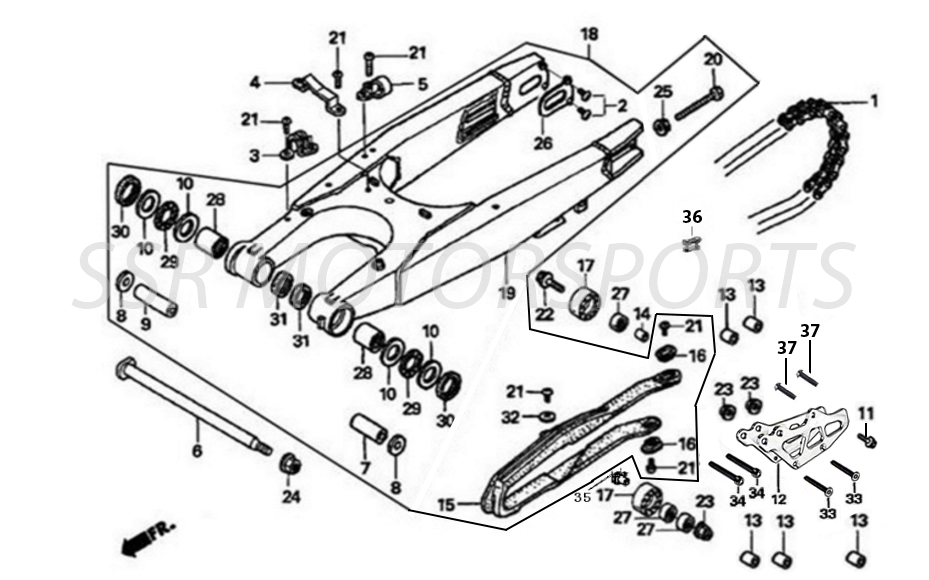

| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00033-07-00 | DRIVE CHAIN | 520X114L | 1 | Pc. | $168.00 |
| 2 | A00007-20-12 | CS SCREW | M5X12 | 4 | Pcs. | $1.50 |
| 3 | A00034-07-00 | GUIDE A | 1 | Pc. | $2.50 | |
| 4 | A00035-07-00 | GUIDE B | 1 | Pc. | $1.50 | |
| 5 | A00036-07-00 | GUIDE C | 1 | Pc. | $2.50 | |
| 6 | A00037-07-00 | SWINGARM AXLE | M14X247X1.5 | 1 | Pc. | $35.00 |
| 7 | A00038-07-00 | BUSHING LEFT | 17X22X46 | 1 | Pc. | $14.00 |
| 8 | A00039-07-00 | WASHER | 17X30X6 | 2 | Pcs. | $2.00 |
| 9 | A00040-07-00 | BUSHING RIGHT | 17X22X54 | 1 | Pc. | $18.00 |
| 10 | A00039-21-01 | WASHER | AS 22352 | 4 | Pcs. | $2.00 |
| 11 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 12 | A00431-07-00 | LOWER CHAIN GUIDE ASSY | INCLUDES HARDWARE | 1 | Assy. | $63.00 |
| 13 | A00432-07-00 | COLLAR | 6X8X14X10 | 5 | Pcs. | $2.50 |
| 14 | A00045-07-00 | COLLAR T | 8.5X16X8.5 | 1 | Pc. | $1.50 |
| 15 | A00046-07-00 | CHAIN SLIDER | 1 | Pc. | $59.00 | |
| 15 | A00427-07-00 | CHAIN SLIDER | 2022+ ONLY | 1 | Pc. | $59.00 |
| 16 | A00069-07-00 | CHAIN SLIDER WASHER | 28.5X21X5.5 | 2 | Pcs. | $1.50 |
| 17 | A00047-07-00 | CHAIN ROLLER | 2 | Pcs. | $13.00 | |
| 18 | A00071-07-00 | SWINGARM ASSY | 1 | Assy. | $367.00 | |
| 19 | A00049-07-00 | SWINGARM | 1 | Pc. | $308.00 | |
| 20 | A00041-19-03 | BOLT | M8X50 | 2 | Pcs. | $2.00 |
| 21 | A00007-20-01 | SCREW | M5X12 | 9 | Pcs. | $1.50 |
| 22 | A00014-19-01 | FLANGE BOLT | M8X40 | 1 | Pc. | $2.00 |
| 23 | A00002-22-34 | FLANGE LOCKNUT | M6 | 3 | Pcs. | $1.50 |
| 24 | A00003-22-01 | NUT | M14X1.5 | 1 | Pc. | $2.50 |
| 25 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
| 26 | A00050-07-00 | CHAIN ADJUSTER PLATE | 2 | Pcs. | $8.00 | |
| 27 | A00023-28-00 | BEARING | 608 LU | 3 | Pcs. | $21.00 |
| 28 | A00024-28-00 | NEEDLE BEARING | 22X29X30 | 2 | Pcs. | $11.00 |
| 29 | A00025-28-00 | BEARING | AXK 22352 | 2 | Pcs. | $11.00 |
| 30 | A00009-26-00 | DUST SEAL | 30X37X4 | 2 | Pcs. | $11.00 |
| 31 | A00010-26-00 | DUST SEAL | 22X29X4 | 2 | Pcs. | $4.00 |
| 32 | A00040-21-01 | WASHER | 5.5X18X2 | 1 | Pc. | $1.50 |
| 33 | A00008-19-12 | CS ALLEN BOLT | M6X20 | 2 | Pcs. | $3.50 |
| 34 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 35 | A00081-07-00 | LOWER CHAIN ROLLER BUSHING | 1 | Pc. | $2.50 | |
| 36 | A00344-07-00 | CLIP LINK | 520 | 1 | Pc. | $8.00 |
| 37 | A00433-07-00 | SPECIAL BOLT | 7.8X29 | 2 | Pcs. | $2.50 |

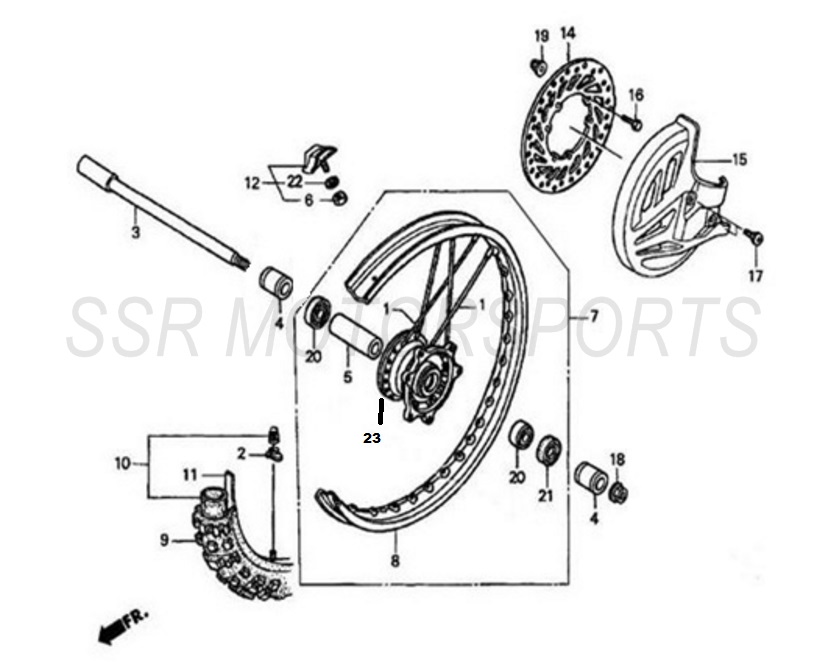

| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00054-18-00 | FRONT SPOKE W/ NIPPLE | 21 | 36 | Pcs. | $3.50 |
| 2 | A00055-18-00 | VALVE STEM RUBBER HOLDER | 1 | Pc. | $6.00 | |
| 3 | A00056-18-00 | FRONT WHEEL AXLE | M16X1.5X230 | 1 | Pc. | $33.00 |
| 4 | A00057-18-00 | FRONT LEFT WHEEL SPACER | 20X27X25.5 | 2 | Pc. | $14.00 |
| 4-1 | A00126-18-00 | FRONT RIGHT WHEEL SPACER | 20X27X24.5 | 1 | Pc. | $14.00 |
| 5 | A00058-18-00 | FRONT WHEEL BEARING SPACER | 20X26X71 | 1 | Pc. | $29.00 |
| 6 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
| 7 | A00059-18-02 | FRONT WHEEL ASSY | 1.60-21 BLACK | 1 | Assy. | $413.00 |
| 8 | A00060-18-02 | FRONT RIM BLACK | 1.60-21 BLACK | 1 | Pc. | $188.00 |
| 9 | A00061-18-00 | FRONT TIRE |
80/100-21 KT9662-01 51W
|
1 | Pc. | $121.00 |
| 10 | A00064-18-00 | INNERTUBE | 3.00-21 | 1 | Pc. | $18.00 |
| 11 | A00046-18-00 | RIM BAND | 21 | 1 | Pc. | $7.00 |
| 12 | A00065-18-00 | RIM LOCK | 1.6 | 1 | Assy. | $24.00 |
| 14 | A00556-04-00 | FRONT BRAKE ROTOR | 240X3 | 1 | Pc. | $51.00 |
| 15 | A00054-02-01 | FRONT BRAKE ROTOR COVER | WHITE | 1 | Pc. | $30.00 |
| 16 | A00006-19-01 | FLANGE BOLT | M6X20 | 6 | Pcs. | $1.50 |
| 17 | A00042-19-03 | BOLT | M6X15 | 2 | Pcs. | $1.50 |
| 18 | A00007-22-03 | FLANGE NUT | M16 | 1 | Pc. | $4.00 |
| 19 | A00001-22-01 | FLANGE NUT | M6 | 6 | Pcs. | $1.50 |
| 20 | A00038-28-00 | BEARING | 6904-2RS | 2 | Pcs. | $30.00 |
| 21 | A00011-26-00 | SEAL | 26X37X7 | 2 | Pcs. | $3.50 |
| 22 | A00023-21-01 | WASHER | 8.4X16X1.6 | 1 | Pc. | $1.50 |
| 23 | A00519-18-00 | FRONT HUB | 1 | Pc. | $272.00 | |

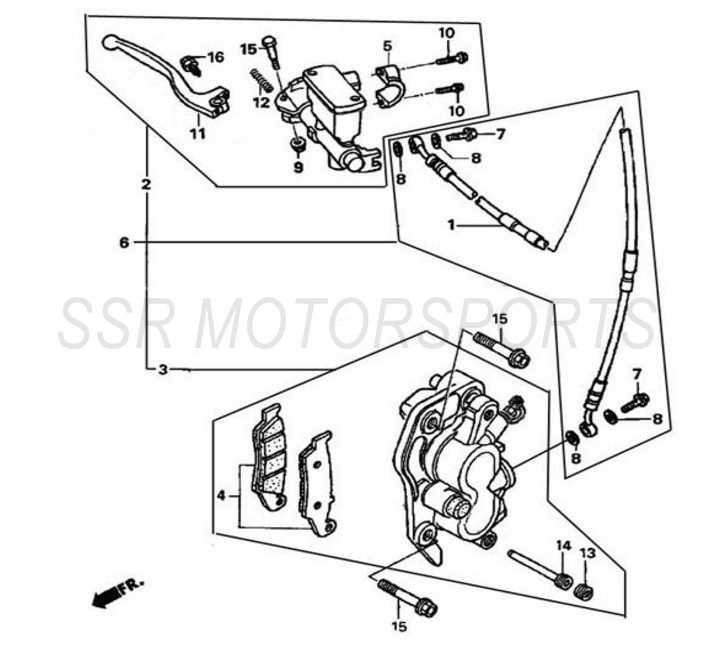

| FRONT BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00050-04-00 | FRONT BRAKE HOSE | 1 | Pc. | $39.00 | |
| 2 | A00051-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | NON SPRING TYPE | 1 | Assy. | $59.00 |
| 2 | A00748-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | BLACK | 1 | Assy. | $59.00 |
| 3 | A00052-04-00 | FRONT CALIPER ASSY | 1 | Assy. | $77.00 | |
| 4 | A00053-04-00 | FRONT BRAKE PAD SET | 1 | Set | $42.00 | |
| 5 | A00054-04-00 | MASTER CYLINER CLAMP | 1 | Pc. | $11.00 | |
| 6 | A00055-04-00 | FRONT BRAKE ASSY | 1 | Assy. | $168.00 | |
| 7 | A00056-04-00 | BANJO BOLT | 2 | Pcs. | $2.00 | |
| 8 | A00025-04-00 | SEALING WASHER | 4 | Pcs. | $1.50 | |
| 9 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
| 10 | A00113-19-01 | FLANGE BOLT | 2 | Pcs. | $1.50 | |
| 11 | A00057-04-00 | FRONT BRAKE LEVER | SPRING TYPE | 1 | Pc. | $18.00 |
| 11 | A00057-04-0A | FRONT BRAKE LEVER | NON SPRING TYPE | 1 | Pc. | $18.00 |
| 12 | A00058-04-00 | SPRING | 1 | Pc. | $1.50 | |
| 13 | A00059-04-00 | BRAKE PIN PLUG | 1 | Pc. | $1.50 | |
| 14 | A00060-04-00 | BRAKE PIN | 1 | Pc. | $2.00 | |
| 15 | A00014-19-01 | FLANGE BOLT | M8X40 | 2 | Pcs. | $2.00 |
| 16 | A00062-04-00 | LEVER ADJUSTER BOLT | 1 | Pc. | $1.50 | |

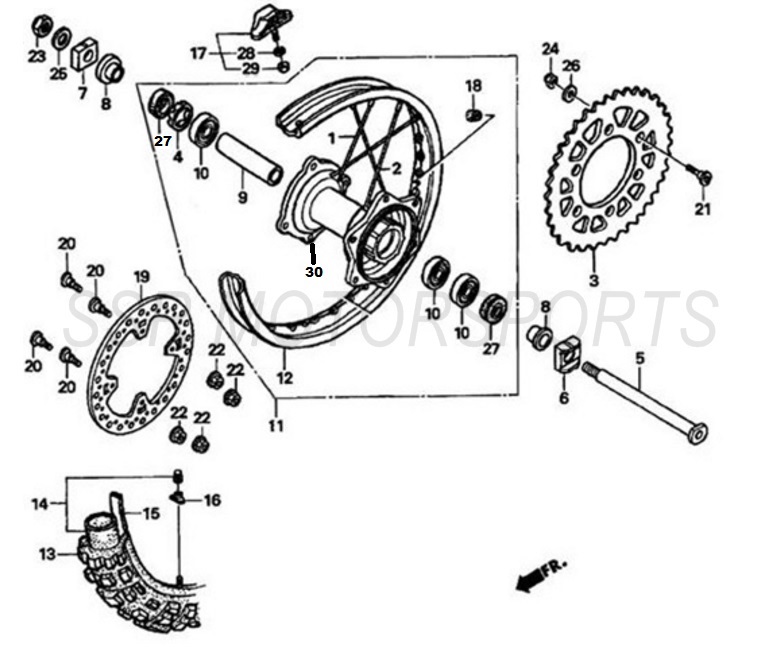

| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00070-18-00 | INNER SPOKE W/ NIPPLE | 16 | Pcs. | $3.50 | |
| 2 | A00071-18-00 | OUTER SPOKE W/ NIPPLE | 16 | Pcs. | $3.50 | |
| 3 | A00073-18-00 | REAR SPROCKET | 50T | 1 | Pc. | $142.00 |
| 4 | A00074-18-00 | RETAINER | 1 | Pc. | $4.00 | |
| 5 | A00075-18-00 | REAR WHEEL AXLE | M22X1.5X272 | 1 | Pc. | $39.00 |
| 6 | A00076-18-00 | LEFT CHAIN ADJUSTER BLOCK | 1 | Pc. | $10.00 | |
| 7 | A00077-18-00 | RIGHT CHAIN ADJUSTER BLOCK | 1 | Pc. | $10.00 | |
| 8 | A00078-18-00 | REAR WHEEL AXLE SPACER | 25X40X23 | 2 | Pcs. | $18.00 |
| 9 | A00079-18-00 | REAR WHEEL BEARING SPACER | 25X31X100.5 | 1 | Pc. | $30.00 |
| 10 | A00039-28-00 | BEARING | 6905-2RS | 3 | Pcs. | $11.00 |
| 11 | A00081-18-01 | REAR WHEEL ASSY |
2.15-18 BLACK/SILVER HUB
|
1 | Assy. | $464.00 |
| 12 | A00082-18-02 | REAR RIM BLACK | 2.15-18 BLACK | 1 | Pc. | $209.00 |
| 13 | A00083-18-00 | REAR TIRE |
100/90-18 CST C-7210-17
|
1 | Pc. | $127.00 |
| 14 | A00084-18-00 | TUBE | 4.60-18 | 1 | Pc. | $21.00 |
| 15 | A00033-18-00 | RIM STRIP | 18 | 1 | Pc. | $7.00 |
| 16 | A00085-18-00 | VALVE STEM RUBBER HOLDER | 1 | Pc. | $6.00 | |
| 17 | A00086-18-00 | RIM LOCK | 2.15 | 1 | Assy. | $24.00 |
| 18 | A00087-18-00 | SPOKE NIPPLE | 32 | Pcs. | $1.50 | |
| 19 | A00645-04-00 | REAR BRAKE ROTOR | 240X4 | 1 | Pc. | $51.00 |
| 20 | A00006-19-01 | FLANGE BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 21 | A00045-19-03 | REAR SPROCKET BOLT | M8X31 | 6 | Pcs. | $1.50 |
| 22 | A00001-22-01 | NUT | M6 | 4 | Pcs. | $1.50 |
| 23 | A00012-22-01 | AXLE NUT | M22X1.5 | 1 | Pc. | $6.00 |
| 24 | A00001-22-04 | LOCK NUT | M8X1.25 | 6 | Pcs. | $1.50 |
| 25 | A00097-21-01 | WASHER | M22 | 1 | Pc. | $2.00 |
| 26 | A00004-21-01 | WASHER | M8 | 6 | Pcs. | $1.50 |
| 27 | A00012-26-00 | SEAL | TC33X43X7 | 2 | Pcs. | $3.50 |
| 28 | A00004-21-01 | WASHER | M8 | 1 | Pc. | $1.50 |
| 29 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
| 30 | A00520-18-00 | REAR HUB | 1 | Pc. | $291.00 | |

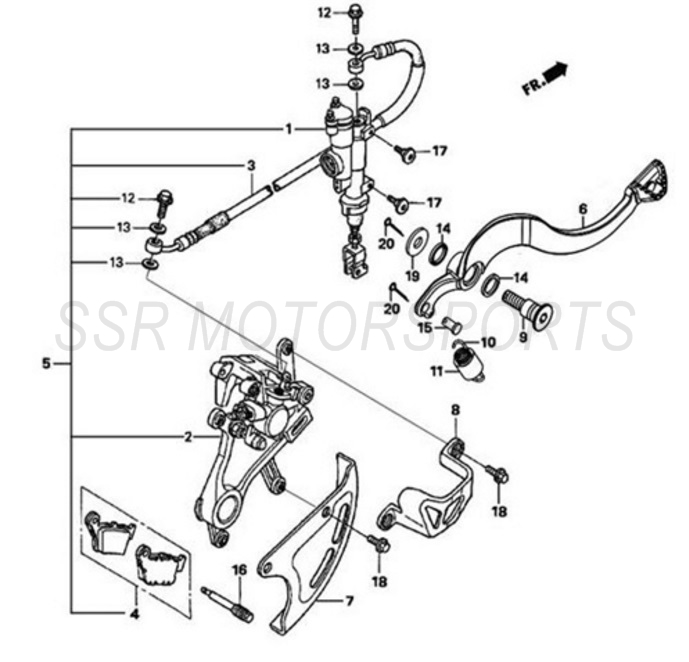

| REAR BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00063-04-00 | REAR BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $59.00 | |
| 2 | A00064-04-00 | REAR CALIPER ASSY | 1 | Assy. | $77.00 | |
| 3 | A00065-04-00 | REAR BRAKE HOSE | 1 | Pc. | $18.00 | |
| 4 | A00066-04-00 | REAR BRAKE PAD SET | 1 | Set | $51.00 | |
| 5 | A00067-04-00 | REAR BRAKE ASSY | 1 | Assy. | $150.00 | |
| 6 | A00068-04-00 | REAR BRAKE PEDAL | 1 | Pc. | $54.00 | |
| 7 | A00055-02-01 | REAR BRAKE ROTOR GUARD | WHITE | 1 | Pc. | $13.00 |
| 8 | A00075-04-01 | REAR BRAKE CALIPER COVER | 1 | Pc. | $7.00 | |
| 9 | A00069-04-00 | REAR BRAKE PEDAL PIVOT BOLT | M10X43 | 1 | Pc. | $2.00 |
| 10 | A00070-04-00 | REAR BRAKE PEDAL RETURN SPRING | 1 | Pc. | $2.50 | |
| 11 | A00071-04-00 | RUBBER SLEEVE | 14X18X17 | 1 | Pc. | $1.50 |
| 12 | A00072-04-00 | BANJO BOLT | 2 | Pcs. | $2.00 | |
| 12 | A00597-08-00 | REAR BRAKE LIGHT SWITCH | OPTIONAL | 1 | Pc. | $33.00 |
| 13 | A00025-04-00 | WASHER | 4 | Pcs. | $1.50 | |
| 14 | A00020-26-00 | DUST SEAL | 15X20X2.5 | 2 | Pcs. | $3.50 |
| 15 | A00016-25-00 | PIN | 1 | Pc. | $1.50 | |
| 16 | A00074-04-00 | BRAKE PAD PIN | 1 | Pc. | $1.50 | |
| 17 | A00042-19-03 | BOLT | M6X15 | 2 | Pcs. | $1.50 |
| 18 | A00008-19-03 | BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 20 | A00006-25-01 | COTTER PIN | 2.0X15 | 2 | Pcs. | $1.50 |

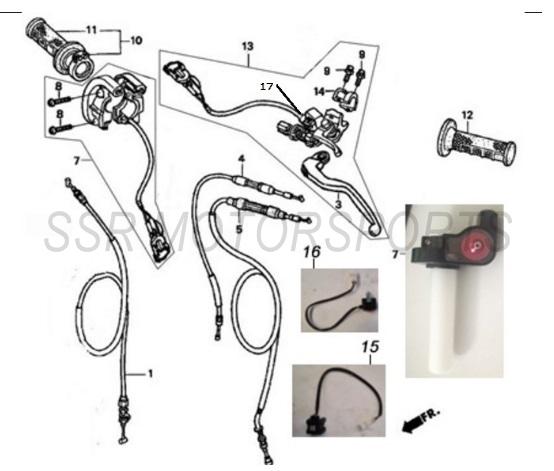

| CONTROLS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00069-05-00 | THROTTLE CABLE | SWR PHB E34 / NIBBI | 1 | Pc. | $18.00 |
| 3 | A00071-05-00 | CLUTCH LEVER | 1 | Pc. | $18.00 | |
| 4 | A00072-05-00 | CHOKE CABLE | 1 | Pc. | $24.00 | |
| 5 | A00073-05-00 | CLUTCH CABLE | 1 | Pc. | $24.00 | |
| 7 | A00457-05-00 | THROTTLE ASSY W/ TUBE | SWR PHB E34 / NIBBI | 1 | Assy. | $41.00 |
| 8 | A00023-20-02 | PANHEAD SCREW | M5X14 | 2 | Pcs. | $1.50 |
| 9 | A00032-24-01 | ZIP TIE | 3.6X150 | 2 | Pcs. | $1.50 |
| 11 | A00309-05-00 | RIGHT HANDLEBAR GRIP | GREY | 1 | Pc. | $10.00 |
| 12 | A00111-05-00 | LEFT HANDLEBAR GRIP | GREY | 1 | Pc. | $10.00 |
| 13 | A00079-05-00 | CLUTCH PERCH ASSY | 1 | Assy. | $39.00 | |
| 14 | A00080-05-00 | CLUTCH PERCH CLAMP | 1 | Pc. | $11.00 | |
| 15 | A00074-08-00 | KILL SWITCH | 1 | Pc. | $48.00 | |
| 16 | A00073-08-00 | START SWITCH | 1 | Pc. | $48.00 | |
| 17 | A00539-05-00 | CLUTCH LOCKOUT SWITCH | 1 | Pc. | $11.00 | |

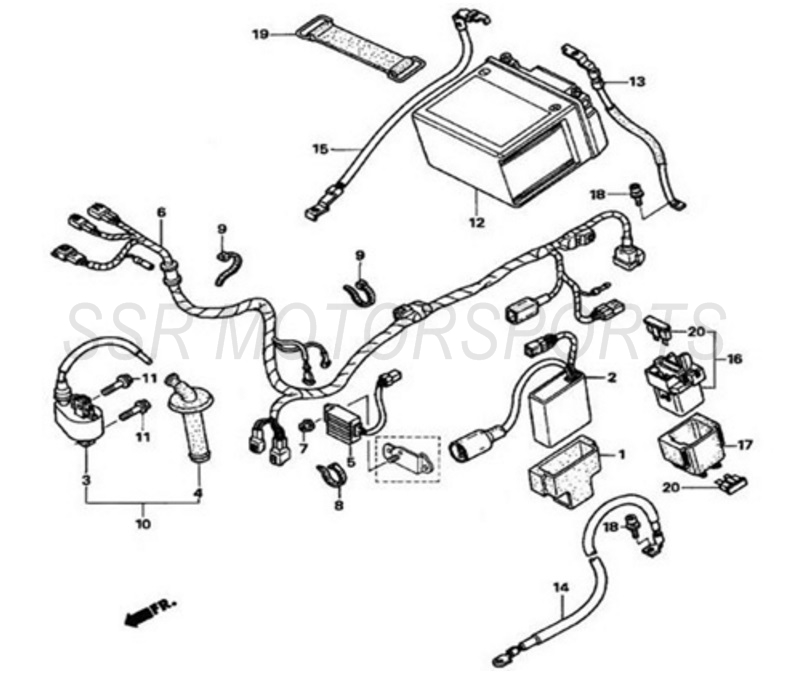

| ELECTRICAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00054-08-00 | RUBBER CDI HOLDER | 1 | Pc. | $8.00 | |
| 2 | A00055-08-00 | CDI | 1 | Pc. | $168.00 | |
| 3 | A00056-08-00 | IGNITION COIL | 1 | Pc. | $39.00 | |
| 4 | A00057-08-00 | SPARK PLUG CAP | 1 | Pc. | $21.00 | |
| 5 | A00058-08-00 | REGULATOR / RECTIFIER | 1 | Pc. | $51.00 | |
| 6 | A00059-08-01 | WIRE HARNESS LX |
W/ HEADLIGHT (DIODE TYPE)
|
1 | Pc. | $69.00 |
| 8 | A00006-24-01 | ZIP TIE | 3.6X250 | 1 | Pc. | $2.00 |
| 9 | A00007-24-01 | ZIP TIE | 3.6X150 | 2 | Pcs. | $1.50 |
| 10 | A00062-08-00 | IGNITION COIL ASSY | 1 | Assy. | $59.00 | |
| 11 | A00066-19-01 | FLANGE BOLT | M6X18 | 2 | Pcs. | $1.50 |
| 12 | HJTX7L-FP | LITHIUM BATTERY | HJTX7L-FP | 1 | Pc. | $112.00 |
| 13 | A00064-08-00 | POSITIVE BATTERY CABLE | 1 | Pc. | $18.00 | |
| 14 | A00065-08-00 | STARTER MOTOR CABLE | 1 | Pc. | $18.00 | |
| 15 | A00068-08-00 | NEGATIVE BATTERY CABLE | 1 | Pc. | $18.00 | |
| 16 | A00069-08-00 | STARTER RELAY ASSY | 1 | Assy. | $41.00 | |
| 17 | A00070-08-00 | STARTER RELAY RUBBER HOLDER | 1 | Pc. | $8.00 | |
| 18 | A00043-19-03 | BOLT | M5X9 | 2 | Pcs. | $1.50 |
| 19 | A00071-08-00 | BATTERY STRAP | 1 | Pc. | $8.00 | |
| 20 | A00072-08-00 | BLADE FUSE | 15A | 2 | Pcs. | $2.50 |

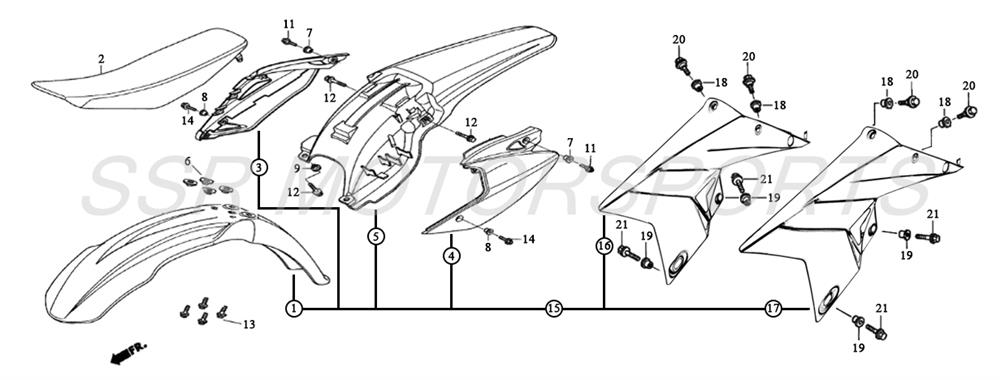

| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00056-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $51.00 |
| 2 | A00057-02-02 | SEAT | BLACK | 1 | Pc. | $112.00 |
| 3 | A00714-02-01 | RIGHT REAR NUMBER PLATE | WHITE | 1 | Pc. | $48.00 |
| 4 | A00715-02-01 | LEFT REAR NUMBER PLATE | WHITE | 1 | Pc. | $48.00 |
| 5 | A00076-02-01 | REAR FENDER | WHITE | 1 | Pc. | $51.00 |
| 6 | A00061-02-00 | COLLAR | 6.3X25X6 | 4 | Pcs. | $1.50 |
| 7 | A00063-02-00 | COLLAR | 8.5X18X6 | 2 | Pcs. | $1.50 |
| 8 | A00713-02-00 | COLLAR | 6.3X14X4.5 | 2 | Pcs. | $1.50 |
| 9 | A00064-02-00 | COLLAR | 6.3X22X5.8 | 2 | Pcs. | $1.50 |
| 11 | A00041-19-01 | FLANGE BOLT | M8X30 | 2 | Pcs. | $1.50 |
| 12 | A00001-19-01 | FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 13 | A00114-19-01 | FLANGE BOLT | 6 | Pcs. | $1.50 | |
| 14 | A00445-19-08 | CASE FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 15 | A00716-02-01 | COMPLETE PLASTIC KIT | WHITE | 1 | Kit | $235.00 |
| 16 | A00717-02-01 | RIGHT RADIATOR SHROUD | WHITE | 1 | Pc. | $54.00 |
| 17 | A00718-02-01 | LEFT RADIATOR SHROUD | WHITE | 1 | Pc. | $54.00 |
| 18 | A00067-02-00 | COLLAR | 5.5X15X4.5 | 4 | Pcs. | $1.50 |
| 19 | A00073-02-00 | COLLAR | 6.3X18X5.5 | 4 | Pcs. | $1.50 |
| 20 | A00068-19-08 | CASE FLANGE BOLT | M5X14 | 4 | Pcs. | $1.50 |
| 21 | A00419-19-08 | CASE FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 22 | A00331-03-00 | LED TAILLIGHT KIT | NOT PICTURED | 1 | Kit | $48.00 |
| HEADLIGHT / FRONT NUMBER PLATE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00091-02-01 | HEADLIGHT SHROUD | 1 | Pc. | $39.00 | |
| 2 | A00040-20-02 | HEADLIGHT ADJUSTER SCREW | M4X55 | 1 | Pc. | $1.50 |
| 3 | A00291-03-00 | HEADLIGHT ADJUSTER SPRING | 1 | Pc. | $2.50 | |
| 4 | A00292-03-00 | HEADLIGHT | 1 | Pc. | $45.00 | |
| 5 | A00293-03-00 | HEADLIGHT BULB | HS1- 12V 35/35W | 1 | Pc. | $11.00 |
| 6 | A00294-03-00 | HEADLIGHT BULB SOCKET | 1 | Pc. | $11.00 | |
| 7 | A00295-03-00 | HEADLIGHT ASSY | 1 | Assy. | $89.00 | |
| 8 | A00296-03-00 | HEADLIGHT BRACKET | 2 | Pcs. | $13.00 | |
| 9 | A00002-19-01 | FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 10 | A00001-22-01 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 11 | A00001-22-01 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 12 | A00089-19-00 | SCREW | 2 | Pcs. | $1.50 | |
| 13 | A00857-02-01 | FRONT NUMBER PLATE | 1 | Pc. | $33.00 | |
| GRAPHICS KIT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00719-02-00 | GRAPHICS KIT | 1 | Kit | $96.00 | |
| FOOTPEG / STAND | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00081-05-00 | FOOTPEG PIN | 2 | Pcs. | $2.50 | |
| 2 | A00082-05-00 | RIGHT FOOTPEG MOUNTING BRACKET | 1 | Pc. | $18.00 | |
| 3 | A00083-05-00 | LEFT FOOTPEG MOUNTING BRACKET | 1 | Pc. | $48.00 | |
| 4 | A00084-05-00 | RIGHT FOOTPEG | 1 | Pc. | $48.00 | |
| 5 | A00085-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 6 | A00086-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 7 | A00087-05-00 | LEFT FOOTPEG | 1 | Pc. | $48.00 | |
| 8 | A00056-19-03 | HEX BOLT | M12X30 | 2 | Pcs. | $2.00 |
| 9 | A00099-05-00 | SIDE STAND | 1 | Pc. | $83.00 | |
| 10 | A00006-25-01 | COTTER PIN | 2.0X15 | 2 | Pcs. | $1.50 |
| 11 | A00041-19-01 | FLANGE BOLT | M8X30 | 2 | Pcs. | $1.50 |
| 12 | A00100-05-00 | SIDE STAND SPRING RUBBER COVER | 1 | Pc. | $2.50 | |
| 13 | A00101-05-00 | OUTER SIDE STAND SPRING | 1 | Pc. | $7.00 | |
| 13A | A00103-05-00 | INNER SIDE STAND SPRING | NOT PICTURED | 1 | Pc. | $4.00 |
| 14 | A00115-19-07 | SIDE STAND BOLT | M10X35 | 1 | Pc. | $3.50 |
| 15 | A00004-22-03 | FLANGE NUT | M10 | 1 | Pc. | $1.50 |

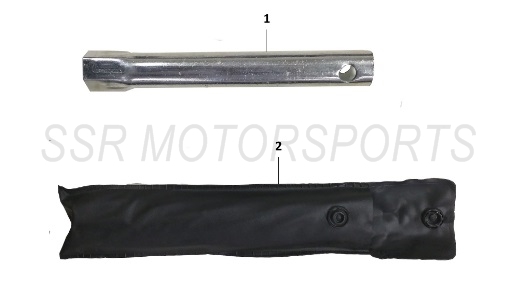

| TOOL KIT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00024-01-00 | SPARK PLUG SOCKET | 1 | Pc. | $14.00 | |
| 2 | A00026-01-00 | SPARK PLUG SOCKET BAG | 1 | Pc. | $7.00 | |
