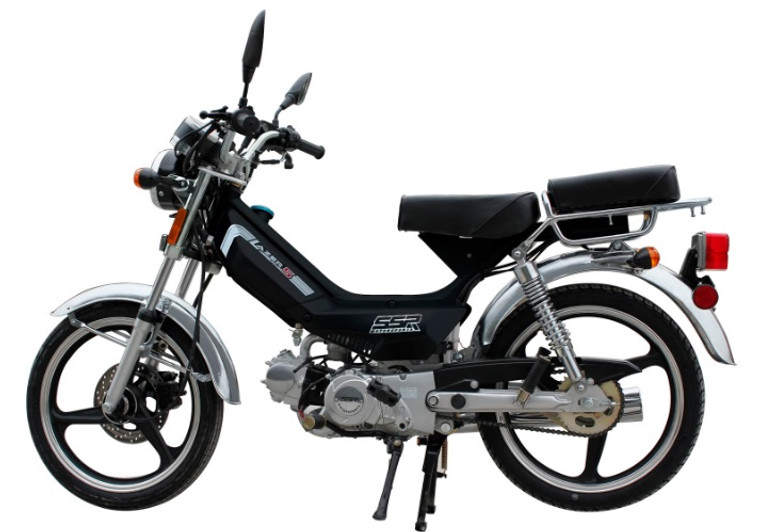

SSR Lazer 5 Parts Schematic (2015-2017)
SSR
(No reviews yet)
Write a Review
SSR
SSR Lazer 5 Parts Schematic (2015-2017)
| 2015-2017 LAZER 5 | ||||||
 |
||||||
| ENGINE / CARBURETOR / FOOTREST / AIR VALVE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00863-09-00 | COMPLETE ENGINE ASSY | 1 | Assy. | $315.00 | |
| 2 | A00458-05-00 | DRIVER FOOTREST W/ SIDE STAND ASSY | 1 | Assy. | $45.00 | |
| 3 | A00234-12-00 | CARBURETOR | 1 | Pc. | $69.00 | |
| 4 | A00170-14-00 | RUBBER VACUUM HOSE | 4X8X90 | 1 | Pc. | $7.00 |
| 5 | A00004-12-00 | FUEL LINE | 1 | Pc. | $4.00 | |
| 6 | A00003-14-00 | INTAKE INSULATOR | 1 | Pc. | $13.00 | |
| 7 | A00008-13-00 | INSULATOR GASKET | 1 | Pc. | $4.00 | |
| 8 | A00004-14-00 | INTAKE MANIFOLD | 1 | Pc. | $18.00 | |
| 9 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 10 | A00030-19-01 | FLANGE BOLT | M8X15 | 2 | Pcs. | $1.50 |
| 11 | A00203-14-00 | RUBBER INLET PIPE | 9X15 40X80 | 1 | Pc. | $14.00 |
| 12 | A00001-21-02 | LOCK WASHER | 8 | 4 | Pcs. | $1.50 |
| 13 | A00004-21-01 | WASHER | 8 | 4 | Pcs. | $1.50 |
| 14 | A00021-19-03 | BOLT | M8X20 | 4 | Pcs. | $1.50 |
| 15 | A00003-19-03 | BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 16 | A00001-19-03 | BOLT | M6X16 | 1 | Pc. | $1.50 |
| 17 | A00168-14-00 | AIR VALVE | 1 | Pc. | $13.00 | |
| 18 | A00204-14-00 | HIGH TEMPERATURE HOSE | 9X15 50X205 | 1 | Pc. | $8.00 |
| 19 | A00383-12-00 | CARBURETOR DRAIN HOSE | 1 | Pc. | $4.00 | |
| 20 | A00169-14-00 | AIR INLET PIPE | 1 | Pc. | $13.00 | |
| 21 | A00275-14-00 | SINGLE DIRECTION VALVE (EPA) | 1 | Pc. | $18.00 | |
| 22 | A00274-14-00 | CHARCOAL CANISTER (EPA) | 1 | Pc. | $30.00 | |
| 23 | A00006-05-00 | FOOTREST | 2 | Pcs. | $13.00 | |
| 24 | A00823-02-00 | SIDE STAND SPRING | 1 | Pc. | $3.50 | |
| 25 | A00822-02-00 | SIDE STAND | 1 | Pc. | $39.00 | |

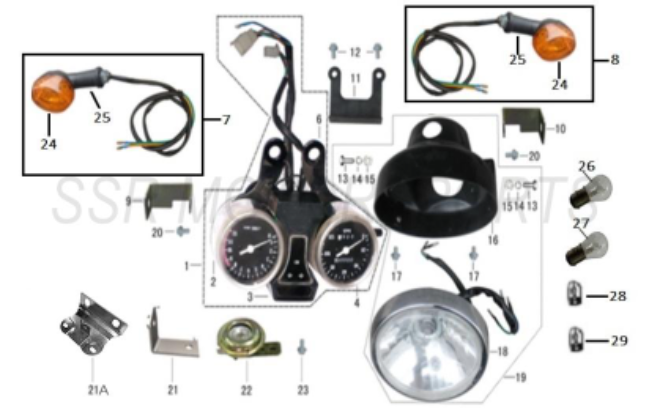

| METER / HEADLIGHT / FRONT TURN SIGNAL / HORN / BRACKET | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00398-08-00 | METER ASSY | 1 | Assy. | $69.00 | |
| 2 | A00399-08-00 | TACHOMETER | 1 | Pc. | $39.00 | |
| 3 | A00400-08-00 | METER SIGNAL BOX | 1 | Pc. | $24.00 | |
| 4 | A00401-08-00 | SPEEDOMETER | 1 | Pc. | $39.00 | |
| 5 | A00405-08-00 | IGNITION LOCK SET | W/ 2 KEYS | 1 | Set | $39.00 |
| 6 | A00403-08-00 | METER BRACKET A | 1 | Pc. | $13.00 | |
| 7 | A00011-03-00 | FRONT RIGHT TURN SIGNAL | 1 | Pc. | $18.00 | |
| 8 | A00008-03-00 | FRONT LEFT TURN SIGNAL | 1 | Pc. | $18.00 | |
| 9 | A00264-03-00 | RIGHT TURN SIGNAL BRACKET | 1 | Pc. | $7.00 | |
| 10 | A00265-03-00 | LEFT TURN SIGNAL BRACKET | 1 | Pc. | $7.00 | |
| 11 | A00569-08-00 | METER BRACKET B | 1 | Pc. | $18.00 | |
| 12 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 13 | A00021-19-03 | BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 14 | A00001-21-02 | LOCK WASHER | M8 | 2 | Pcs. | $1.50 |
| 15 | A00004-21-01 | WASHER | M8 | 2 | Pcs. | $1.50 |
| 16 | A00261-03-00 | HEADLIGHT HOUSING | 1 | Pc. | $21.00 | |
| 17 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 18 | A00262-03-00 | HEADLIGHT | 1 | Pc. | $33.00 | |
| 19 | A00260-03-00 | HEADLIGHT ASSY | 1 | Assy. | $39.00 | |
| 20 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 21 | A00008-08-00 | HORN BRACKET | 2016 AND EARLIER | 1 | Pc. | $8.00 |
| 21A | A00594-08-00 | HORN BRACKET | 2017 VERSION | 1 | Pc. | $8.00 |
| 22 | A00007-08-00 | HORN | 1 | Pc. | $11.00 | |
| 23 | A00001-19-01 | FLANGE BOLT | M6X30 | 1 | Pc. | $1.50 |
| 24 | A00009-03-00 | TURN SIGNAL LENS | 2 | Pcs. | $4.00 | |
| 25 | A00010-03-00 | SIGNAL HOUSING | 2 | Pcs. | $7.00 | |
| 26 | A00263-03-00 | HEADLIGHT BULB | 1 | Pc. | $8.00 | |
| 27 | A00014-03-00 | TURN SIGNAL BULB | 2 | Pcs. | $2.50 | |
| 28 | A00301-03-00 | METER LIGHT BULB | 1 | Pc. | $2.50 | |
| 29 | A00311-03-00 | PARKING LIGHT BULB | 1 | Pc. | $7.00 | |

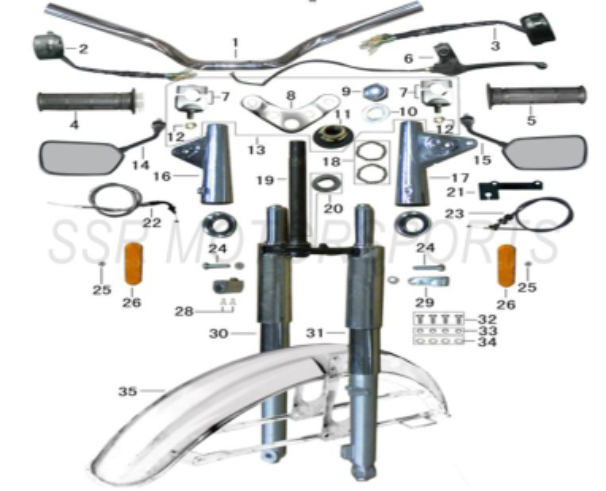

| FRONT END COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00001-15-00 | HANDLEBAR | 1 | Pc. | $24.00 | |
| 2 | A00014-08-00 | RIGHT HANDLEBAR SWITCH | 1 | Pc. | $24.00 | |
| 3 | A00015-08-00 | LEFT HANDLEBAR SWITCH | 1 | Pc. | $33.00 | |
| 4 | A00010-05-00 | THROTTLE GRIP W/ TUBE ASSY | 1 | Assy. | $7.00 | |
| 5 | A00011-05-00 | LEFT GRIP | 1 | Pc. | $4.00 | |
| 6 | A00013-05-00 | REAR BRAKE PERCH W/ LEVER | 1 | Pc. | $39.00 | |
| 7 | A00002-15-00 | HANDLEBAR CLAMP SET | W/ BOLTS | 1 | Set | $14.00 |
| 8 | A00005-15-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $36.00 | |
| 9 | A00166-15-00 | STEERING STEM NUT | M22 | 1 | Pc. | $6.00 |
| 10 | A00012-15-00 | WASHER | 1 | Pc. | $1.50 | |
| 11 | A00003-15-00 | STEERING STEM ADJUSTING NUT | 1 | Pc. | $7.00 | |
| 12 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
| 13 | A00011-15-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $36.00 | |
| 14 | A00018-05-00 | RIGHT MIRROR | 1 | Pc. | $14.00 | |
| 15 | A00019-05-00 | LEFT MIRROR | 1 | Pc. | $14.00 | |
| 16 | A00008-15-00 | RIGHT HEADLIGHT BRACKET | 1 | Pc. | $13.00 | |
| 17 | A00007-15-00 | LEFT HEADLIGHT BRACKET | 1 | Pc. | $13.00 | |
| 18 | A00168-15-00 | STEERING STEM BEARING SET | 1 | Set | $30.00 | |
| 19 | A00010-15-00 | LOWER TRIPLE CLAMP W/ STEM ASSY | 1 | Assy. | $45.00 | |
| 20 | INCLUDED WITH # 18 | 1 | Pc. | |||
| 21 | A00009-15-00 | CHOKE CABLE BRACKET | 1 | Pc. | $6.00 | |
| 22 | A00016-05-00 | THROTTLE CABLE | 1 | Pc. | $14.00 | |
| 23 | A00015-05-00 | CHOKE CABLE | 1 | Pc. | $14.00 | |
| 24 | A00016-19-01 | FLANGE BOLT | M8X45 | 2 | Pcs. | $2.00 |
| 25 | A00001-22-01 | NUT | M6 | 2 | Pcs. | $1.50 |
| 26 | A00006-15-00 | FRONT SIDE REFLECTOR | 2 | Pcs. | $7.00 | |
| 27 | A00405-08-00 | STEERING LOCK/IGNITION LOCK SET | W/ 2 KEYS | 1 | Set | $39.00 |
| 28 | A00102-20-01 | CS SCREW | M6X10 | 2 | Pcs. | $1.50 |
| 29 | A00016-15-00 | HOLDER | 1 | Pc. | $7.00 | |
| 30 | A00003-16-00 | FRONT RIGHT FORK ASSY | 1 | Assy. | $77.00 | |
| 31 | A00004-16-00 | FRONT LEFT FORK ASSY | 1 | Assy. | $77.00 | |
| 32 | A00001-19-03 | BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 33 | A00002-21-02 | LOCK WASHER | M6 | 4 | Pcs. | $1.50 |
| 34 | A00091-21-01 | WASHER | M6X13X2.0 | 4 | Pcs. | $1.50 |
| 35 | A00001-02-25 | FRONT FENDER | 1 | Pc. | $33.00 | |
| 36 | A00515-16-00 | FORK SEAL SET | 1 | Set | $13.00 | |
| 37 | A00516-16-00 | DUST SEAL SET | 1 | Set | $11.00 | |
| 38 | A00454-05-00 | REAR BRAKE LEVER | 1 | Pc. | $18.00 | |
| 39 | FORK CROWN BOLT | M10X18 | 2 | Pcs. | $3.50 | |

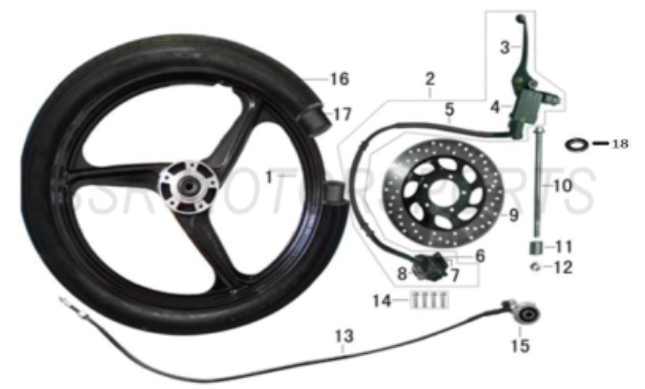

| FRONT WHEEL / FRONT BRAKE / SPEEDOMETER AND CABLE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00014-18-00 | FRONT WHEEL | 1 | Pc. | $79.00 | |
| 2 | A00010-04-00 | FRONT BRAKE ASSY | 1 | Assy. | $69.00 | |
| 3 | A00012-05-00 | FRONT BRAKE LEVER | 1 | Pc. | $18.00 | |
| 4 | A00009-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | W/ LEVER | 1 | Assy. | $45.00 |
| 5 | A00012-04-00 | FRONT BRAKE HOSE | 1 | Pc. | $14.00 | |
| 6 | A00017-04-00 | FRONT CALIPER BRACKET | 1 | Pc. | $11.00 | |
| 7 | A00008-04-00 | FRONT BRAKE PADS | 1 | Pc. | $14.00 | |
| 8 | A00011-04-00 | FRONT BRAKE CALIPER | 1 | Pc. | $51.00 | |
| 9 | A00013-04-00 | FRONT BRAKE ROTOR | 1 | Pc. | $14.00 | |
| 10 | A00009-18-00 | FRONT WHEEL AXLE | 12X198 | 1 | Pc. | $8.00 |
| 11 | A00014-05-00 | FRONT WHEEL SPACER | 1 | Pc. | $4.00 | |
| 12 | A00001-22-03 | FLANGE NUT | 12 | 1 | Pc. | $2.00 |
| 13 | A00432-05-00 | SPEEDOMETER CABLE | 1 | Pc. | $14.00 | |
| 14 | A00016-19-03 | BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 15 | A00386-18-00 | SPEEDOMETER PICKUP | 1 | Pc. | $24.00 | |
| 16 | A00013-18-00 | FRONT TIRE | 2.25-17 | 1 | Pc. | $35.00 |
| 17 | A00006-18-00 | INNERTUBE | 2.25/2.50-17 | 1 | Pc. | $14.00 |
| 18 | A00075-28-00 | BEARING | 6301RS | 2 | Pcs. | $6.00 |
| 19 | A00136-08-00 | FRONT BRAKE LIGHT SWITCH | NOT PICTURED | 1 | Pc. | $13.00 |
| REAR WHEEL / BRAKE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |

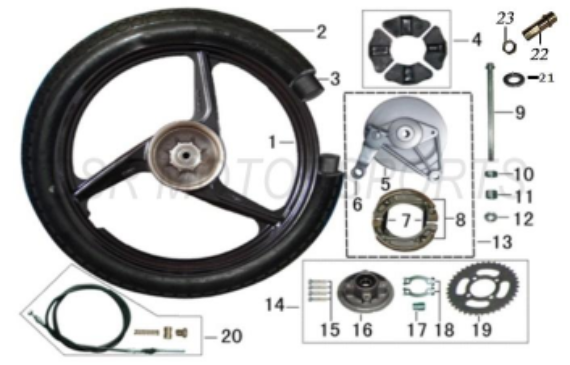

| 1 | A00008-18-00 | REAR WHEEL | 1 | Pc. | $79.00 | |
| 2 | A00007-18-00 | REAR TIRE | 2.50-17 | 1 | Pc. | $35.00 |
| 3 | A00006-18-00 | INNERTUBE | 2.50-17 | 1 | Pc. | $14.00 |
| 4 | A00008-07-00 | DRIVE CUSHION SET | 1 | Set | $10.00 | |
| 5 | A00003-04-00 | REAR BRAKE DRUM PLATE | 1 | Pc. | $21.00 | |
| 6 | A00007-04-00 | REAR BRAKE DRUM ARM | 1 | Pc. | $7.00 | |
| 7 | A00002-04-00 | REAR BRAKE SHOE SPRING | 2 | Pcs. | $1.50 | |
| 8 | A00732-04-00 | REAR BRAKE SHOE SET | 1 | Set | $14.00 | |
| 9 | A00284-18-00 | REAR WHEEL AXLE | 12X210 | 1 | Pc. | $11.00 |
| 10 | A00007-17-00 | REAR WHEEL SPACER | 12X26.5X10.2 | 1 | Pc. | $4.00 |
| 11 | A00002-18-00 | REAR WHEEL SPACER | 12X26X27 | 1 | Pc. | $4.00 |
| 12 | A00001-22-03 | FLANGE NUT | M12 | 1 | Pc. | $2.00 |
| 13 | A00004-04-00 | REAR BRAKE DRUM ASSY | 1 | Assy. | $51.00 | |
| 14 | A00005-07-00 | DRIVE HUB ASSY | 40T | 1 | Assy. | $51.00 |
| 14 | A00393-07-00 | DRIVE HUB ASSY | 41T | 1 | Assy. | $51.00 |
| 14 | A00392-07-00 | DRIVE HUB ASSY | 37T | 1 | Assy. | $51.00 |
| 15 | A00004-19-03 | BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 16 | A00174-07-00 | REAR SPROCKET CARRIER | 1 | Pc. | $14.00 | |
| 17 | A00004-18-00 | INNER SPACER | 1 | Pc. | $3.50 | |
| 18 | A00414-18-00 | RETAINER PLATE | 2 | Pcs. | $3.50 | |
| 19 | A00006-07-00 | REAR SPROCKET | 43T | 1 | Pc. | $33.00 |
| 19 | A00390-07-00 | REAR SPROCKET | 36T | 1 | Pc. | $33.00 |
| 20 | A00017-05-00 | REAR BRAKE CABLE | 1 | Pc. | $14.00 | |
| 21 | A00075-28-00 | BEARING | 6301RS | 2 | Pcs. | $6.00 |
| 22 | A00571-18-00 | ADJUSTABLE SPACER | 1 | Pc. | $7.00 | |
| 23 | A00344-22-01 | NUT | M24 | 1 | Pc. | $4.00 |

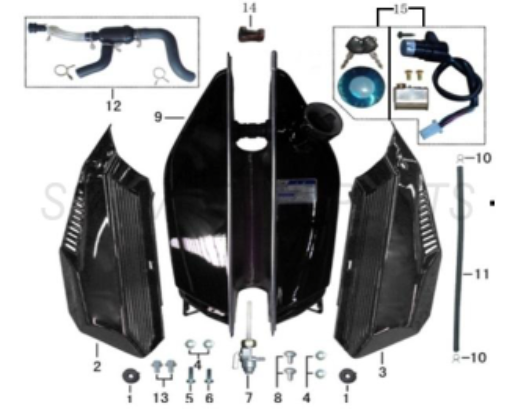

| FUEL TANK / SEPARATOR / SIDE PANELS AND LOCK SET | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00003-12-00 | GROMMET | 2 | Pcs. | $2.50 | |
| 2 | A00003-02-02 | LEFT SIDE COVER | BLACK | 1 | Pc. | $39.00 |
| 2 | A00003-02-11 | LEFT SIDE COVER | SILVER | 1 | Pc. | $39.00 |
| 2 | A00003-02-17 | LEFT SIDE COVER | DARK RED | 1 | Pc. | $39.00 |
| 3 | A00002-02-02 | RIGHT SIDE COVER | BLACK | 1 | Pc. | $39.00 |
| 3 | A00002-02-11 | RIGHT SIDE COVER | SILVER | 1 | Pc. | $39.00 |
| 3 | A00002-02-17 | RIGHT SIDE COVER | DARK RED | 1 | Pc. | $39.00 |
| 4 | A00091-21-01 | WASHER | M6X13X2.0 | 4 | Pcs. | $1.50 |
| 5 | A00022-19-03 | BOLT | M6X30 | 1 | Pc. | $1.50 |
| 6 | A00016-19-03 | BOLT | M6X20 | 1 | Pc. | $1.50 |
| 7 | A00006-12-00 | FUEL PETCOCK | 1 | Pc. | $13.00 | |
| 8 | A00003-20-01 | SCREW | M6X16 | 2 | Pcs. | $1.50 |
| 9 | A00001-12-02 | FUEL TANK ASSY | BLACK | 1 | Assy. | $39.00 |
| 9 | A00001-12-11 | FUEL TANK ASSY | SILVER | 1 | Assy. | $39.00 |
| 9 | A00001-12-17 | FUEL TANK ASSY | DARK RED | 1 | Assy. | $39.00 |
| 10 | A00001-24-03 | WIRE HOSE CLAMP | M10 | 2 | Pcs. | $1.50 |
| 11 | A00247-12-00 | FUEL HOSE | 4X8X300 | 1 | Pc. | $8.00 |
| 12 | A00005-12-00 | FUEL-AIR SEPARATOR | 1 | Pc. | $13.00 | |
| 13 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 14 | A00248-12-00 | FRONT FUEL TANK RUBBER GROMMET | 1 | Pc. | $2.50 | |
| 15 | A00405-08-00 | IGNITION LOCK SET | W/ 2 KEYS + FUEL CAP | 1 | Set | $39.00 |
| REAR COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00006-02-00 | FRONT SEAT | 1 | Pc. | $36.00 | |
| 2 | A00007-02-00 | REAR SEAT | 1 | Pc. | $36.00 | |
| 3 | A00636-02-00 | SEAT HINGE | 1 | Pc. | $11.00 | |
| 4 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 5 | A00032-19-01 | FLANGE BOLT | M8X65 | 1 | Pc. | $2.00 |
| 6 | A00016-19-03 | BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 7 | A00012-03-00 | LEFT REAR TURN SIGNAL | 1 | Pc. | $18.00 | |
| 8 | A00013-03-00 | RIGHT REAR TURN SIGNAL | 1 | Pc. | $18.00 | |

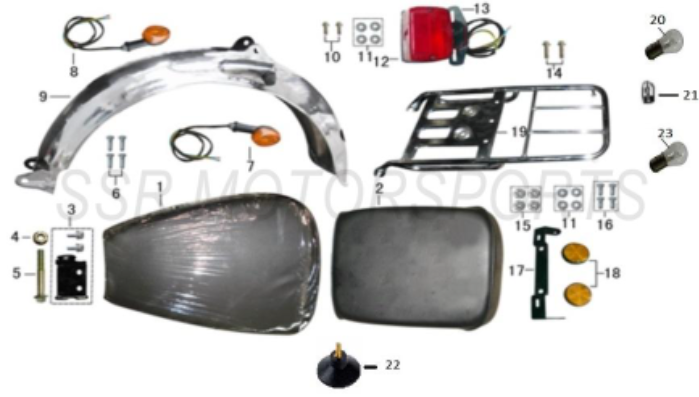

| 9 | A00004-02-25 | REAR FENDER | 1 | Pc. | $29.00 | |
| 10 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 11 | A00007-21-01 | WASHER | M6X18X1.5 - BLACK | 8 | Pcs. | $1.50 |
| 12 | A00001-03-00 | TAILLIGHT ASSY | 1 | Assy. | $30.00 | |
| 13 | A00002-03-00 | TAILLIGHT / LICENSE PLATE BRACKET | 1 | Pc. | $39.00 | |
| 14 | A00017-19-01 | FLANGE BOLT | M8X16 | 2 | Pcs. | $1.50 |
| 15 | A00003-22-03 | FLANGE NUT | M8 | 4 | Pcs. | $1.50 |
| 16 | A00001-19-03 | BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 17 | A00003-03-00 | LICENSE PLATE BRACKET | 1 | Pc. | $8.00 | |
| 18 | A00004-03-00 | REAR REFLECTOR | RED | 2 | Pcs. | $6.00 |
| 19 | A00008-02-25 | REAR RACK | 1 | Pc. | $24.00 | |
| 20 | A00299-03-00 | TAIL LIGHT BULB | 1 | Pc. | $7.00 | |
| 21 | A00300-03-00 | LICENSE PLATE LIGHT BULB | 1 | Pc. | $2.50 | |
| 22 | A00798-02-00 | SEAT SUCTION CUP | 2 | Pcs. | $8.00 | |
| 23 | A00014-03-00 | TURN SIGNAL BULB | 2 | Pcs. | $2.50 | |
| 24 | A00708-02-00 | RUBBER DAMPER | CONE SHAPED | 1 | Pc. | $1.50 |
| EXHAUST SYSTEM AND AIR CLEANER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00001-14-00 | AIR BOX ASSY | 1 | Assy. | $29.00 | |
| 2 | A00006-14-00 | REAR AIR BOX HALF | 1 | Pc. | $18.00 | |
| 3 | A00007-14-00 | AIR BOX BRACKET | 1 | Pc. | $11.00 | |
| 4 | A00005-14-00 | AIR FILTER ELEMENT | 1 | Pc. | $13.00 | |
| 5 | A00008-14-00 | FRONT AIR BOX HALF | 1 | Pc. | $18.00 | |
| 6 | A00095-24-03 | WIRE HOSE CLAMP | 1 | Pc. | $1.50 | |
| 7 | A00006-20-03 | SCREW | ST4.2X13 | 2 | Pcs. | $1.50 |
| 8 | A00100-10-00 | MUFFLER ASSY | 1 | Assy. | $69.00 | |
| 9 | A00001-22-01 | NUT | M6 | 2 | Pcs. | $1.50 |
| 10 | A00001-13-00 | MUFFLER GASKET | 1 | Pc. | $7.00 | |
| 11 | A00004-10-00 | RUBBER STOPPER | 1 | Pc. | $2.00 | |
| 12 | A00002-10-00 | CATALYTIC CONVERTER | 1 | Pc. | $51.00 | |
| 13 | A00002-20-01 | SCREW | M5X16 | 2 | Pcs. | $1.50 |
| 14 | A00003-21-01 | WASHER | M5 | 2 | Pcs. | $1.50 |
| 15 | A00010-21-04 | LOCK WASHER | M5 | 2 | Pcs. | $1.50 |
| 16 | A00003-10-00 | HEAT SHIELD | 1 | Pc. | $30.00 | |
| SWINGARM / REAR SHOCK / DRIVE CHAIN | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |

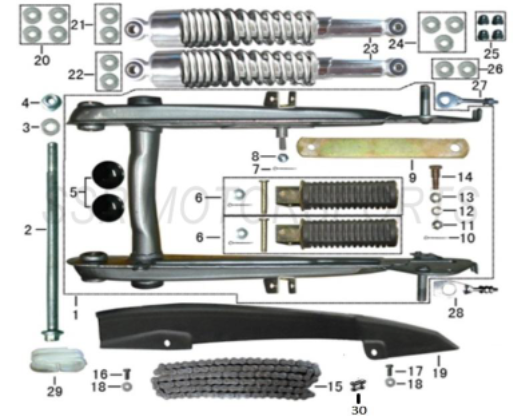

| 1 | A00001-11-00 | SWINGARM ASSY | 1 | Assy. | $104.00 | |
| 2 | A00003-11-00 | SWINGARM AXLE | M10X240 | 1 | Pc. | $18.00 |
| 3 | A00002-21-01 | WASHER | M10 | 1 | Pc. | $1.50 |
| 4 | A00004-22-03 | FLANGE NUT | M10 | 1 | Pc. | $1.50 |
| 5 | A00004-11-00 | RUBBER INSERT | 2 | Pcs. | $4.00 | |
| 6 | A00006-05-00 | FOOTREST | 2 | Pcs. | $13.00 | |
| 7 | A00001-25-01 | COTTER PIN | 2X20 | 1 | Pc. | $1.50 |
| 8 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
| 9 | A00008-05-00 | REAR BRAKE DRUM BRACKET | 1 | Pc. | $8.00 | |
| 10 | A00001-25-01 | COTTER PIN | 2X20 | 1 | Pc. | $1.50 |
| 11 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
| 12 | A00001-21-02 | LOCK WASHER | M8 | 1 | Pc. | $1.50 |
| 13 | A00004-21-01 | WASHER | M8 | 1 | Pc. | $1.50 |
| 14 | A00007-05-00 | SPECIAL BOLT | 1 | Pc. | $2.50 | |
| 15 | A00001-07-00 | DRIVE CHAIN | 420-98L | 1 | Pc. | $24.00 |
| 16 | A00008-19-03 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 17 | A00016-19-03 | BOLT | M6X20 | 1 | Pc. | $1.50 |
| 18 | A00007-21-01 | WASHER | M6X18X1.5 - BLACK | 1 | Pc. | $1.50 |
| 19 | A00002-07-00 | CHAIN COVER | 1 | Pc. | $24.00 | |
| 20 | A00002-21-01 | WASHER | M10 | 4 | Pcs. | $1.50 |
| 21 | A00001-21-07 | FENDER WASHER | M12 | 2 | Pcs. | $2.00 |
| 22 | A00001-21-07 | FENDER WASHER | M12 | 2 | Pcs. | $2.00 |
| 23 | A00001-16-00 | REAR SHOCK | 2 | Pcs. | $59.00 | |
| 24 | A00009-21-01 | WASHER | 10X25X4 | 3 | Pcs. | $1.50 |
| 25 | A00002-22-06 | CAP NUT | M10 | 4 | Pcs. | $1.50 |
| 26 | A00010-21-01 | WASHER | 12X24X4 | 2 | Pcs. | $1.50 |
| 27 | A00006-11-00 | RIGHT CHAIN ADJUSTER | 1 | Pc. | $7.00 | |
| 28 | A00520-11-00 | LEFT CHAIN ADJUSTER | 1 | Pc. | $7.00 | |
| 29 | A00003-07-00 | CHAIN GUIDE | 1 | Pc. | $8.00 | |
| 30 | A00287-07-00 | CLIP LINK | 420 | 1 | Pc. | $6.00 |

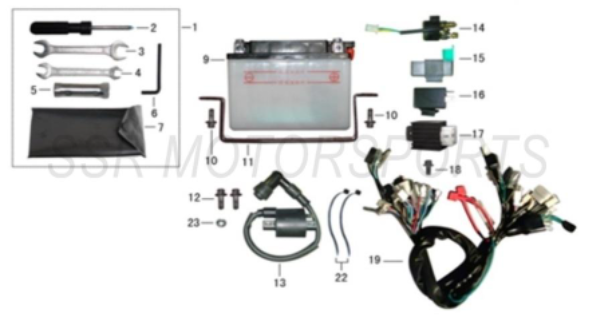

| ELECTRICAL / TOOLS AND LITERATURE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00001-01-00 | TOOL KIT | 1 | Kit | $18.00 | |
| 2 | A00002-01-00 | SCREWDRIVER | 1 | Pc. | $3.50 | |
| 3 | A00005-01-00 | OPEN WRENCH | 12 - 14 | 1 | Pc. | $3.50 |
| 4 | A00004-01-00 | OPEN WRENCH | 8 - 10 | 1 | Pc. | $3.50 |
| 5 | A00006-01-00 | SPARK PLUG SOCKET | 1 | Pc. | $3.50 | |
| 6 | A00007-01-00 | ALLEN WRENCH | 5MM | 1 | Pc. | $3.50 |
| 7 | A00008-01-00 | TOOL BAG | 1 | Pc. | $3.50 | |
| 9 | YTX4L-BS | BATTERY | YTX4L-BS | 1 | Pc. | $63.00 |
| 10 | A00008-19-03 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 11 | A00005-08-00 | BATTERY BRACKET | 1 | Pc. | $8.00 | |
| 12 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 13 | A00012-08-00 | IGNITION COIL | 1 | Pc. | $33.00 | |
| 14 | A00010-08-00 | STARTER RELAY | 1 | Pc. | $23.00 | |
| 15 | A00011-08-00 | CDI | 1 | Pc. | $24.00 | |
| 16 | A00009-08-00 | FLASHER RELAY | 1 | Pc. | $7.00 | |
| 17 | A00477-08-00 | REGULATOR / RECTIFIER | 1 | Pc. | $21.00 | |
| 18 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 19 | A00001-08-00 | MAIN WIRE HARNESS | 1 | Pc. | $39.00 | |
| 22 | A00096-24-01 | ZIP TIE | 2 | Pcs. | $1.50 | |
| 23 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 24 | A00156-08-00 | FUSE | 10A | 1 | Pc. | $2.50 |
| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |

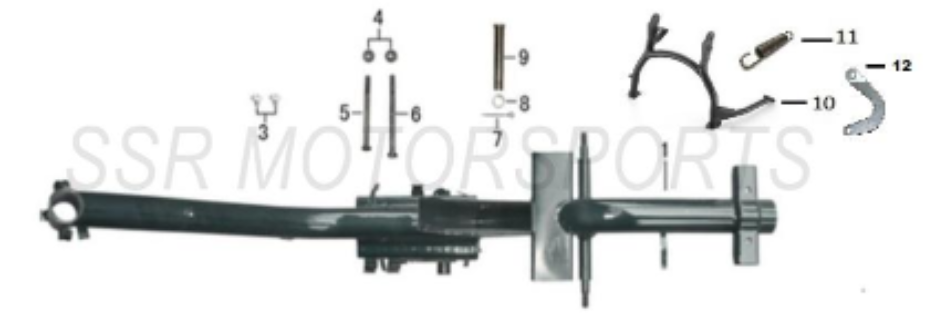

| 1 | A00010-11-00 | FRAME | 1 | Pc. | $124.00 | |
| 3 | A00009-24-06 | RIVET | 3.2X7 | 2 | Pcs. | $1.50 |
| 4 | A00003-22-03 | FLANGE NUT | 8 | 2 | Pcs. | $1.50 |
| 5 | A00023-19-03 | FLANGE BOLT | M8X105 | 1 | Pc. | $2.50 |
| 6 | A00024-19-03 | BOLT | M8X115 | 1 | Pc. | $2.50 |
| 7 | A00002-25-01 | COTTER PIN | 3X35 | 1 | Pc. | $1.50 |
| 8 | A00266-21-01 | WASHER | 18X24 | 1 | Pc. | $1.50 |
| 9 | A00004-05-00 | CENTER STAND PIN | 18X100 | 1 | Pc. | $7.00 |
| 10 | A00443-11-00 | CENTER STAND | 1 | Pc. | $45.00 | |
| 11 | A00444-11-00 | CENTER STAND SPRING | 1 | Pc. | $3.50 | |
| 12 | A00504-11-00 | CENTER STAND SPRING HOLDER | 1 | Pc. | $7.00 | |
| CYLINDER HEAD AND CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |

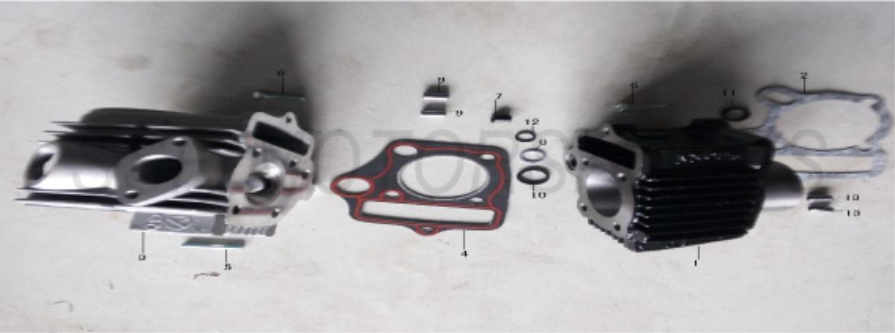

| 1 | A02386-09-00 | CYLINDER | 49cm3 Q12 | 1 | Pc. | $72.00 |
| 2 | A00230-13-00 | CYLINDER BASE GASKET | MT1 | 1 | Pc. | $11.00 |
| 3 | A02387-09-00 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $77.00 |
| 4 | A00231-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $11.00 | |
| 5 | A00040-19-04 | STUD | M6 L=20 10.9 | 2 | Pcs. | $1.50 |
| 6 | A00002-19-03 | BOLT | M6×23 | 2 | Pcs. | $1.50 |
| 7 | A00118-23-00 | SPECIAL PIN | 8X14 | 1 | Pc. | $2.50 |
| 8 | A00094-21-01 | WASHER | 8x14x1.5 | 1 | Pc. | $1.50 |
| 9 | A00001-23-00 | DOWEL PIN | M8X14 | 2 | Pcs. | $1.50 |
| 10 | A00008-27-00 | O-RING | 14.5x18.5x2.4 | 1 | Pc. | $1.50 |
| 11 | A00009-27-00 | O-RING | 11.5x15.7x2.5 | 1 | Pc. | $1.50 |
| 12 | A00112-21-01 | O-RING | 8x10.8x1.5 | 1 | Pc. | $1.50 |
| 13 | A00003-23-00 | DOWEL PIN | M8×12 | 2 | Pcs. | $1.50 |

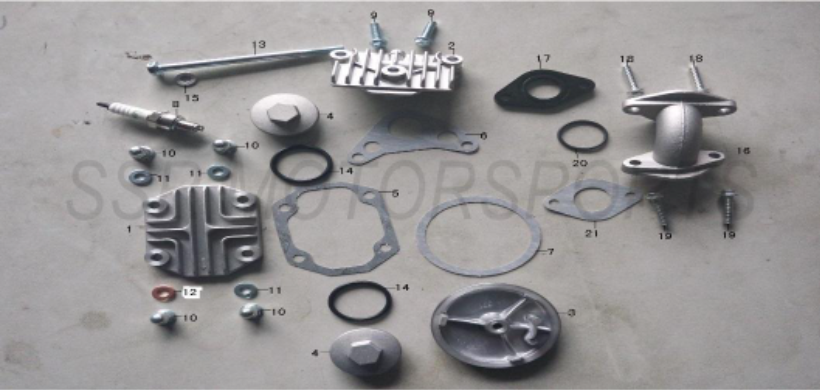

| CYLINDER HEAD COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02389-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $18.00 | |
| 2 | A02390-09-00 | RIGHT CYLINDER HEAD SIDE COVER | 1 | Pc. | $18.00 | |
| 3 | A02391-09-00 | TIMING COVER | 1 | Pc. | $18.00 | |
| 4 | A02392-09-00 | TAPPET COVER | 2 | Pcs. | $7.00 | |
| 5 | A00232-13-00 | CYLINDER HEAD COVER GASKET | MT1 | 1 | Pc. | $8.00 |
| 6 | A00233-13-00 | RIGHT CYLINDER HEAD SIDE COVER GASKET | MT1 | 1 | Pc. | $7.00 |
| 7 | A00234-13-00 | TIMING COVER GASKET | MT1 | 1 | Pc. | $7.00 |
| 8 | C7HSA | SPARK PLUG | C7HSA | 1 | Pc. | $8.00 |
| 9 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 10 | A00003-22-06 | CAP NUT | M6x12 | 4 | Pcs. | $1.50 |
| 11 | A02393-09-00 | WASHER | 6x13x2 | 3 | Pcs. | $1.50 |
| 12 | A00272-21-01 | COPPER WASHER | 6x13x2 | 1 | Pc. | $1.50 |
| 13 | A00027-19-03 | BOLT | M6×110 13mm | 1 | Pc. | $2.50 |
| 14 | A00004-27-00 | O-RING | 30.8X3.2 | 2 | Pcs. | $3.50 |
| 15 | A00091-21-01 | WASHER | 6x13x2.0 | 1 | Pc. | $1.50 |
| 16 | A00272-14-00 | INTAKE MANIFOLD | 002#;1# W01 | 1 | Pc. | $18.00 |
| 17 | A00273-14-00 | CARBURETOR INSULATOR | 20.5 | 1 | Pc. | $4.00 |
| 18 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 19 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 20 | A00076-27-00 | O-RING | VITON 25X2.4 | 1 | Pc. | $2.50 |
| 21 | A00235-13-00 | INTAKE MANIFOLD GASKET | 22 MT1 | 1 | Pc. | $3.50 |
| CAMSHAFT AND VALVES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |

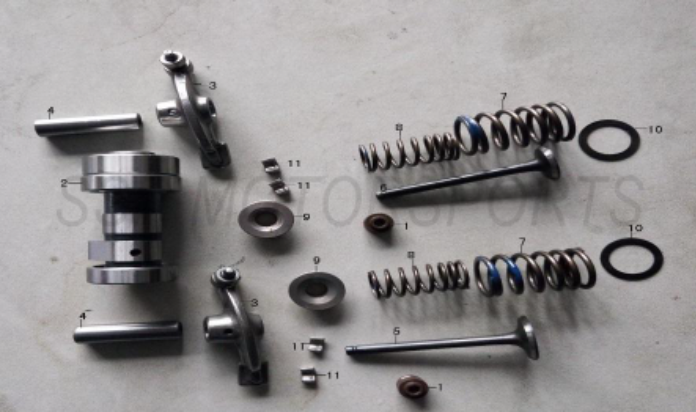

| 1 | A02395-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.00 | |
| 2 | A02396-09-00 | CAMSHAFT | 31A0 | 1 | Pc. | $51.00 |
| 3 | A02397-09-00 | ROCKER ARM | 2 | Pcs. | $18.00 | |
| 4 | A02398-09-00 | ROCKER ARM SHAFT | 2 | Pcs. | $4.00 | |
| 5 | A02399-09-00 | INTAKE VALVE | 1 | Pc. | $8.00 | |
| 6 | A02400-09-00 | EXHAUST VALVE | 1 | Pc. | $8.00 | |
| 7 | A02401-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $4.00 | |
| 8 | A02402-09-00 | INNER VALVE SPRING | 2 | Pcs. | $4.00 | |
| 9 | A02403-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $2.00 | |
| 10 | A02404-09-00 | LOWER VALVE SPRING WASHER | 2 | Pcs. | $2.00 | |
| 11 | A02405-09-00 | VALVE COLLET | 4 | Pcs. | $2.00 | |
| RIGHT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00433-19-08 | CASE FLANGE BOLT | M6×95 | 2 | Pcs. | $2.00 |
| 2 | A02914-09-00 | CABLE CLAMP | 1 | Pc. | $1.50 | |
| 3 | A00426-19-08 | CASE FLANGE BOLT | M6×40 | 2 | Pcs. | $1.50 |
| 4 | A00430-19-08 | CASE FLANGE BOLT | M6×65 | 1 | Pc. | $2.00 |
| 5 | A00426-19-08 | CASE FLANGE BOLT | M6×40 | 3 | Pcs. | $1.50 |
| 6 | A00226-26-00 | OIL SEAL | 16x24x5 | 1 | Pc. | $3.50 |
| 7 | A00006-27-00 | O-RING | 18×3.5 | 1 | Pc. | $2.50 |
| 8 | A02406-09-00 | DIPSTICK | 1 | Pc. | $7.00 | |
| 9 | A02407-09-00 | RIGHT ENGINE COVER | 1 | Pc. | $77.00 | |
| 10 | A00003-23-00 | DOWEL PIN | 8×12 | 2 | Pcs. | $1.50 |
| 11 | A00236-13-00 | RIGHT ENGINE COVER GASKET | 1 | Pc. | $13.00 | |
| CRANKCASE AND OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02408-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $77.00 | |
| 2 | A02409-09-00 | OIL FILTER SCREEN | 1 | Pc. | $8.00 | |
| 3 | A02410-09-00 | OIL DRAIN BOLT | M12×1.5 | 1 | Pc. | $2.00 |
| 4 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 5 | A00038-19-04 | CYLINDER STUD B | M6x188 | 2 | Pcs. | $3.50 |
| 6 | A00033-20-12 | CS SCREW | M6×22 | 1 | Pc. | $1.50 |
| 7 | A00003-20-01 | SCREW | M6×16 | 2 | Pcs. | $1.50 |
| 8 | A02412-09-00 | BUSHING | 1 | Pc. | $1.50 | |
| 9 | A02413-09-00 | OIL PUMP ASSY | 1 | Assy. | $39.00 | |
| 10 | A00237-13-00 | OIL PUMP GASKET | 1 | Pc. | $4.00 | |
| 11 | A00017-23-00 | DOWEL PIN | 10X12 | 2 | Pcs. | $1.50 |
| 12 | A00003-23-00 | DOWEL PIN | 8×12 | 2 | Pcs. | $1.50 |
| 13 | A00238-13-00 | CENTER CRANKCASE GASKET | 1 | Pc. | $13.00 | |
| 14 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 3 | Pcs. | $1.50 |
| 15 | A00429-19-08 | CASE FLANGE BOLT | M6×60 | 2 | Pcs. | $2.00 |
| 16 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 1 | Pc. | $2.00 |
| 17 | A00039-19-04 | CYLINDER STUD A | M6x196 | 2 | Pcs. | $3.50 |
| 18 | A02414-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $77.00 | |
| 19 | A02415-09-00 | BREATHER HOSE | 7x11, 190 | 1 | Pc. | $8.00 |
| 20 | A00432-19-08 | CASE FLANGE BOLT | M6x85 | 1 | Pc. | $2.00 |
| 21 | A02416-09-00 | HOSE RETAINER | 1 | Pc. | $4.00 | |

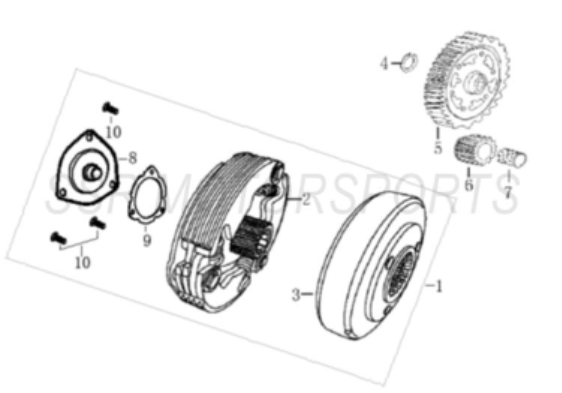

| CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00066-09-00 | CLUTCH ASSY | 1 | Assy. | $89.00 | |
| 2 | A00883-09-00 | CLUTCH | 1 | Pc. | $69.00 | |
| 3 | A00882-09-00 | OUTER CLUTCH | 1 | Pc. | $39.00 | |
| 4 | A00001-24-07 | CIRCLIP | M17 | 1 | Pc. | $1.50 |
| 5 | A00024-09-00 | DRIVEN GEAR COMPLETE | 1 | Pc. | $18.00 | |
| 6 | A00067-09-00 | PRIMARY DRIVEN GEAR | 1 | Pc. | $14.00 | |
| 7 | A00880-09-00 | DRIVEN GEAR BUSHING | 1 | Pc. | $13.00 | |
| 8 | A02508-09-00 | CLUTCH END CAP | 1 | Pc. | $18.00 | |
| 9 | A00279-13-00 | CLUTCH END COVER GASKET | 1 | Pc. | $7.00 | |
| 10 | A00001-20-01 | BOLT | M5X10 GB819-85 | 3 | Pcs. | $1.50 |

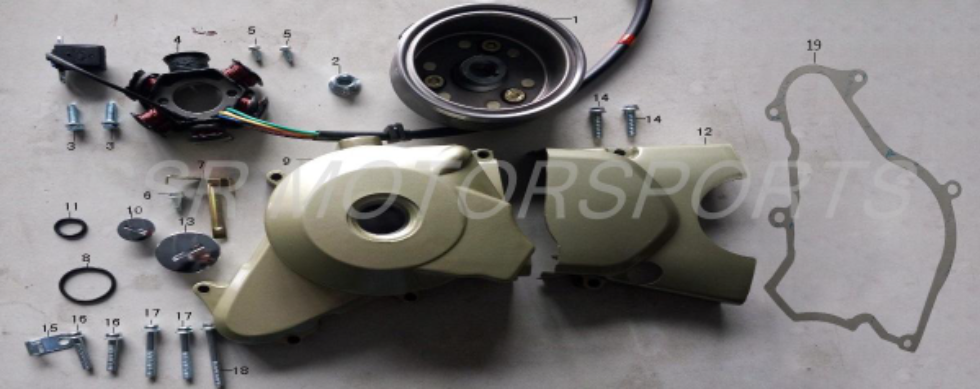

| LEFT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02424-09-00 | FLYWHEEL | 1 | Pc. | $59.00 | |
| 2 | A00085-22-01 | FLANGE NUT | 1 | Pc. | $1.50 | |
| 3 | A00245-19-01 | FLANGE BOLT | 2 | Pcs. | $1.50 | |
| 4 | A02425-09-00 | STATOR ASSY | 1 | Assy. | $77.00 | |
| 5 | A00246-19-03 | BOLT | 2 | Pcs. | $1.50 | |
| 6 | A00002-19-01 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 7 | A02426-09-00 | STATOR WIRE RETAINER | 1 | Pc. | $2.50 | |
| 8 | A00055-27-00 | O-RING | 27X2.4 | 1 | Pc. | $1.50 |
| 9 | A02427-09-00 | LEFT ENGINE COVER | 1 | Pc. | $35.00 | |
| 10 | A02512-09-00 | TIMING PLUG | 1 | Pc. | $4.00 | |
| 11 | A00056-27-00 | O-RING | 13.8×2.5 | 1 | Pc. | $2.50 |
| 12 | A02429-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $23.00 | |
| 13 | A02310-09-00 | CRANK INSPECTION PLUG | 1 | Pc. | $14.00 | |
| 14 | A00003-19-01 | FLANGE BOLT | M6×25 | 4 | Pcs. | $1.50 |
| 15 | A02431-09-00 | IGNITION COIL WIRE CLAMP | 1 | Pc. | $2.00 | |
| 16 | A00422-19-08 | CASE FLANGE BOLT | M6×28 | 1 | Pc. | $1.50 |
| 17 | A00426-19-08 | CASE FLANGE BOLT | M6×40 | 1 | Pc. | $1.50 |
| 18 | A00428-19-08 | CASE FLANGE BOLT | M6×50 | 1 | Pc. | $1.50 |
| 19 | A00290-13-00 | STATOR COVER GASKET | 1 | Pc. | $35.00 | |
| 20 | A01113-09-00 | WOODRUFF KEY | NOT PICTURED | 1 | Pc. | $1.50 |

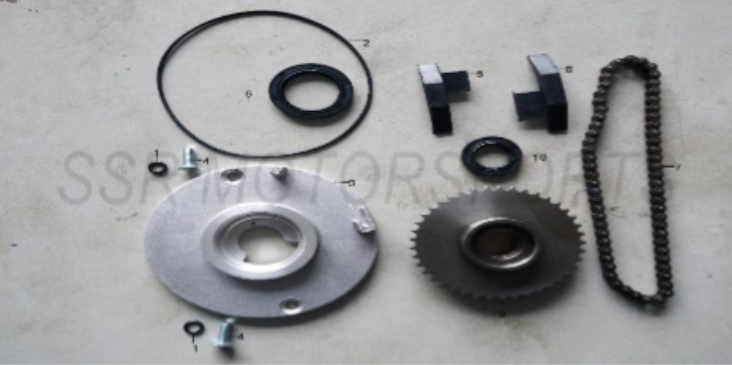

| STARTER CLUTCH / STATOR PLATE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00078-27-00 | O-RING | NBR 1.9x5.7 | 2 | Pcs. | $2.50 |
| 2 | A00010-27-00 | O-RING | 107x2 | 1 | Pc. | $8.00 |
| 3 | A02432-09-00 | STATOR PLATE | 1 | Pc. | $18.00 | |
| 4 | A00003-20-12 | CS SCREW | M6X16 | 2 | Pcs. | $1.50 |
| 5 | A00059-26-00 | OIL SEAL | 30X42X4.5 | 1 | Pc. | $4.00 |
| 6 | A02433-09-00 | STARTER CHAIN SLIDER A | 1 | Pc. | $4.00 | |
| 7 | A02520-09-00 | STARTER CHAIN | 62L | 1 | Pc. | $11.00 |
| 8 | A02435-09-00 | STARTER CHAIN SLIDER B | 1 | Pc. | $4.00 | |
| 9 | A02436-09-00 | STARTER PINION GEAR | 1 | Pc. | $23.00 | |
| 10 | A00003-26-00 | OIL SEAL | 18.9x30x5 | 1 | Pc. | $4.00 |

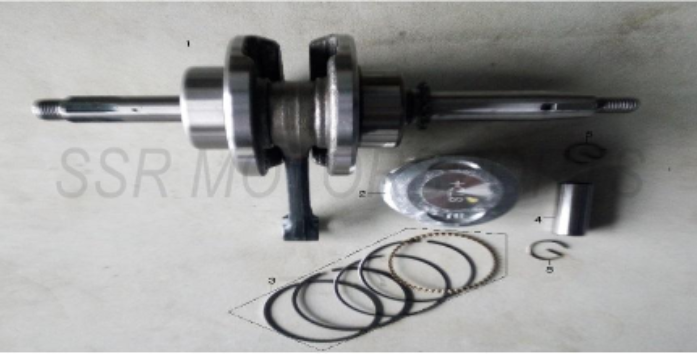

| CRANKSHAFT AND PISTON | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02437-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $77.00 | |
| 2 | A02438-09-00 | PISTON | 1 | Pc. | $29.00 | |
| 3 | A02439-09-00 | PISTON RING SET | 1 | Set | $29.00 | |
| 4 | A02440-09-00 | PISTON PIN | 1 | Pc. | $2.50 | |
| 5 | A02441-09-00 | CIRCLIP | Q07 | 2 | Pcs. | $1.50 |

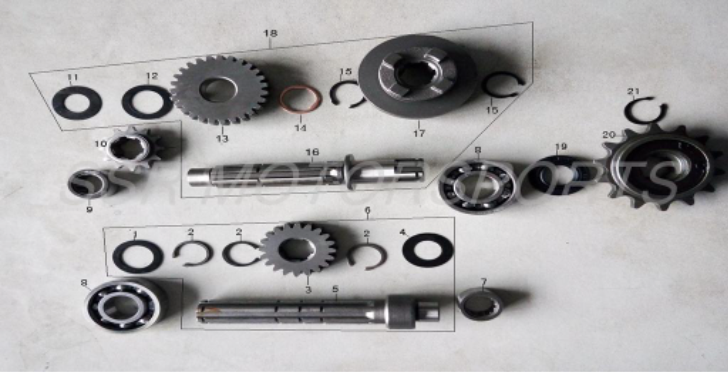

| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00371-17-00 | WASHER | 6x13x2 | 1 | Pc. | $2.00 |
| 2 | A00097-24-07 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 3 | A00373-17-00 | MAINSHAFT THIRD GEAR | 1 | Pc. | $18.00 | |
| 4 | A00374-17-00 | WASHER | 6x13x2 | 1 | Pc. | $2.00 |
| 5 | A00375-17-00 | MAINSHAFT | 1 | Pc. | $23.00 | |
| 6 | A00376-17-00 | MAINSHAFT ASSY | 31A0 | 1 | Assy. | $36.00 |
| 7 | A00090-28-00 | NEEDLE BEARING | HK14x20x12 | 1 | Pc. | $11.00 |
| 8 | A00091-28-00 | BEARING | 6203/Z2 | 2 | Pcs. | $18.00 |
| 9 | A00006-28-00 | NEEDLE BEARING | NK13.5x22x12 | 1 | Pc. | $11.00 |
| 10 | A00377-17-00 | SPROCKET | 1 | Pc. | $13.00 | |
| 11 | A00378-17-00 | WASHER | 6x13x2 | 1 | Pc. | $2.00 |
| 12 | A00379-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 13 | A00380-17-00 | COUNTERSHAFT THIRD GEAR | 1 | Pc. | $18.00 | |
| 14 | A00381-17-00 | SPLINE WASHER | 1 | Pc. | $2.00 | |
| 15 | A00002-24-07 | CIRCLIP | d=17 S=1.2 | 2 | Pcs. | $1.50 |
| 16 | A00383-17-00 | COUNTERSHAFT | 1 | Pc. | $23.00 | |
| 17 | A00384-17-00 | COUNTERSHAFT SECOND GEAR | 1 | Pc. | $18.00 | |
| 18 | A00385-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $36.00 | |
| 19 | A00001-26-00 | OIL SEAL | 17X29X5 | 1 | Pc. | $4.00 |
| 20 | A00369-07-00 | COUNTERSHAFT SPROCKET | 12T OPT. | 1 | Pc. | $14.00 |
| 20 | A00370-07-00 | COUNTERSHAFT SPROCKET | 13T OPT. | 1 | Pc. | $14.00 |
| 20 | A00356-07-00 | COUNTERSHAFT SPROCKET | 14T STD. | 1 | Pc. | $14.00 |
| 21 | A00002-24-07 | CIRCLIP | d=17_S=1.2 | 2 | Pcs. | $1.50 |

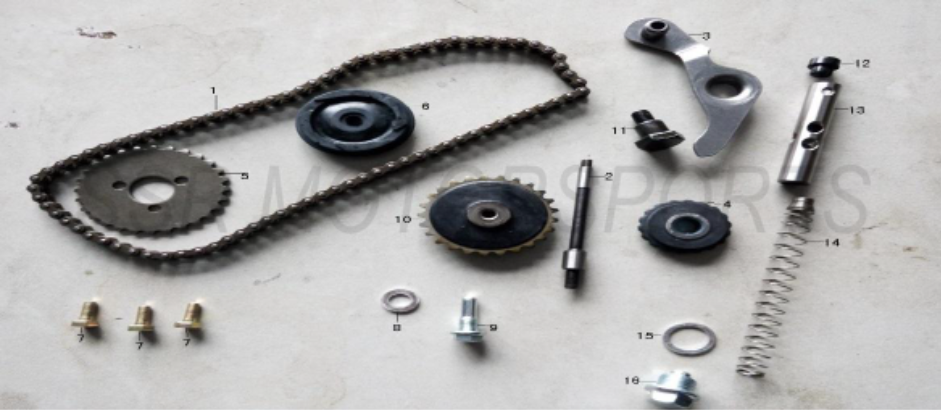

| CAM CHAIN AND TENSIONER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02442-09-00 | TIMING CHAIN | 82 | 1 | Pc. | $18.00 |
| 2 | A02443-09-00 | OIL PUMP SPROCKET SHAFT | Q07 | 1 | Pc. | $4.00 |
| 3 | A02444-09-00 | CAM CHAIN TENSIONER ARM | 1 | Pc. | $8.00 | |
| 4 | A01257-09-00 | CAM CHAIN TENSIONER ROLLER | RUBBER | 1 | Pc. | $10.00 |
| 5 | A02446-09-00 | CAMSHAFT SPROCKET | 31A0 28 | 1 | Pc. | $18.00 |
| 6 | A01300-09-00 | CHAIN ROLLER | RUBBER | 1 | Pc. | $14.00 |
| 7 | A00025-19-03 | BOLT | M5×12 | 3 | Pcs. | $1.50 |
| 8 | A00089-21-01 | WASHER | 8x14x1.5 | 1 | Pc. | $1.50 |
| 9 | A02448-09-00 | CAM CHAIN GUIDE ROLLER BOLT | 1 | Pc. | $1.50 | |
| 10 | A02449-09-00 | OIL PUMP SPROCKET | 1 | Pc. | $8.00 | |
| 11 | A02450-09-00 | CAM CHAIN TENSIONER PIVOT BOLT | 1 | Pc. | $2.00 | |
| 12 | A02451-09-00 | CAM CHAIN TENSIONER PUSH ROD HEAD | 1 | Pc. | $2.00 | |
| 13 | A02452-09-00 | CAM CHAIN TENSIONER PUSH ROD | 1 | Pc. | $6.00 | |
| 14 | A02453-09-00 | CAM CHAIN TENSIONER SPRING | 1 | Pc. | $3.50 | |
| 15 | A02454-09-00 | SEALING WASHER | 14.2 20 1.5 | 1 | Pc. | $1.50 |
| 16 | A02455-09-00 | TENSIONER BOLT | M14x1.5 | 1 | Pc. | $2.50 |

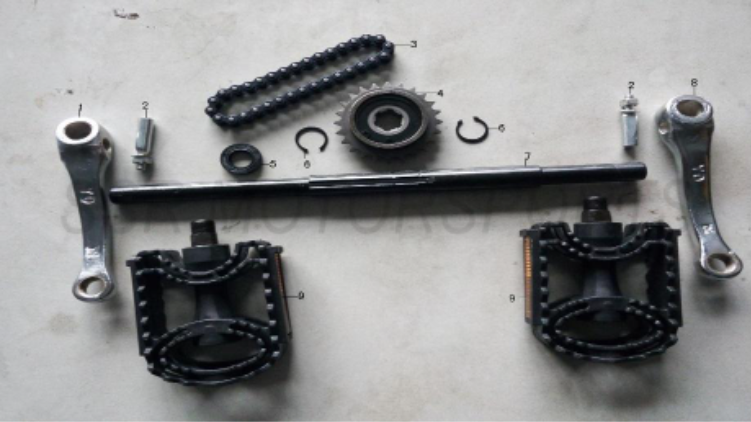

| PEDAL SHAFT AND PEDALS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00424-05-00 | LEFT PEDAL ARM | 1 | Pc. | $11.00 | |
| 2 | A02456-09-00 | PEDAL SHAFT PIN W/ NUT | 2 | Pcs. | $2.50 | |
| 3 | A02457-09-00 | PEDAL CHAIN | 32L | 1 | Pc. | $13.00 |
| 4 | A02458-09-00 | PEDAL SPROCKET | 1 | Pc. | $11.00 | |
| 5 | A00226-26-00 | OIL SEAL | 16x24x5 | 1 | Pc. | $3.50 |
| 6 | A00098-24-07 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 7 | A02460-09-00 | PEDAL SHAFT | PLEASE VIEW NOTES | 1 | Pc. | $39.00 |
| 8 | A00425-05-00 | RIGHT PEDAL ARM | 1 | Pc. | $11.00 | |
| 9 | A00538-05-00 | PEDALS (LEFT+RIGHT) | 1 | Set | $21.00 | |
| 10 | A00566-05-00 | PEDAL SHAFT ARM ADAPTERS | FOR OLDER MODELS | 1 | Set | $11.00 |
| 9 | A00426-05-00 | LEFT PEDAL | 1 | Pc. | $11.00 | |
| 10 | A00427-05-00 | RIGHT PEDAL | 1 | Pc. | $11.00 | |

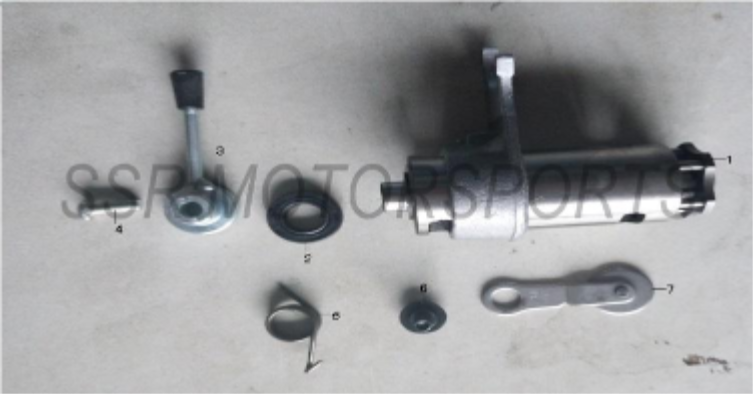

| GEARSHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02461-09-00 | GEARSHIFT DRUM | 1 | Pc. | $47.00 | |
| 2 | A00225-26-00 | OIL SEAL | 1 | Pc. | $4.00 | |
| 3 | A02462-09-00 | GEARSHAFT SELECTOR | 1 | Pc. | $11.00 | |
| 4 | A00008-19-03 | BOLT | M6×12 | 1 | Pc. | $1.50 |
| 5 | A02463-09-00 | SHIFT DRUM STOPPER SPRING | 1 | Pc. | $1.50 | |
| 6 | A00244-19-05 | SHIFT DRUM STOPPER BOLT | 1 | Pc. | $1.50 | |
| 7 | A02464-09-00 | GEARSHIFT DRUM STOPPER | 1 | Pc. | $4.00 | |

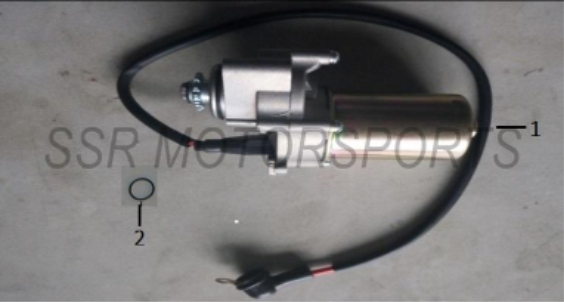

| STARTER MOTOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02510-09-00 | STARTER MOTOR ASSY | 2-BOLT (CURRENT PROD.) | 1 | Assy. | $85.00 |
| 1 | A02465-09-00 | STARTER MOTOR ASSY | 3-BOLT (OLD STYLE) | 1 | Assy. | $85.00 |
| 2 | A00138-27-00 | O-RING | 1 | Pc. | $1.50 | |
| ENGINE PART SETS / AVAILABLE ACCY. | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00246-13-00 | COMPLETE ENGINE GASKET SET | 1 | Set | $59.00 | |
| 2 | A00227-26-00 | COMPLETE ENGINE SEALS SET | 1 | Set | $51.00 | |
| 3 | A00283-13-00 | COMPLETE TOP END GASKET SET | 1 | Set | $13.00 | |
| 4 | 3-LAZ-72HEAD | 72CC BIG BORE KIT | INC. PISTON, RINGS, CYL., CYL.HEAD+GSKTS | 1 | Kit | $142.00 |
