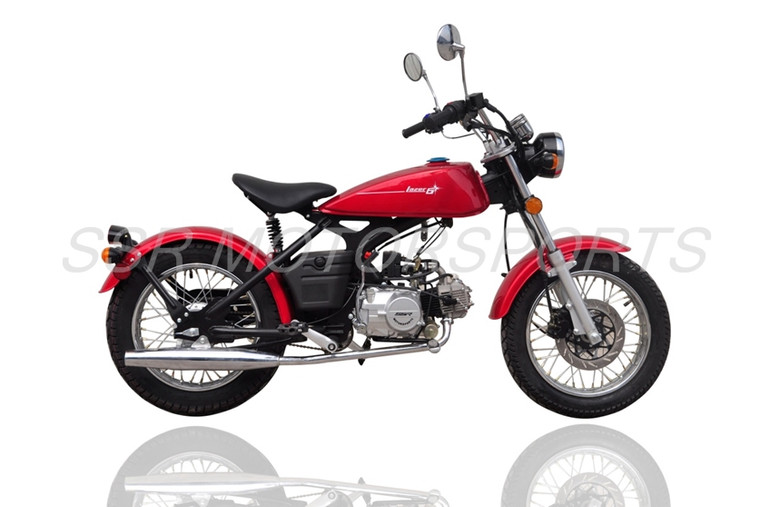

SSR Lazer 6 Parts Schematic (2021-2022)
SSR
$0.00
(No reviews yet)
Write a Review
SSR
SSR Lazer 6 Parts Schematic (2021-2022)
| HEADLIGHT / FRONT TURN SIGNALS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00344-03-00 | FRONT RIGHT TURN SIGNAL ASSY | 1 | Assy. | $23.00 | |
| 2 | A00345-03-00 | FRONT LEFT TURN SIGNAL ASSY | 1 | Assy. | $23.00 | |
| 3 | A00348-03-00 | RIGHT HEADLIGHT BRACKET | 1 | Pc. | $10.00 | |
| 4 | A00347-03-00 | HEADLIGHT ASSY | 1 | Assy. | $51.00 | |
| 5 | A00349-03-00 | LEFT HEADLIGHT BRACKET | 1 | Pc. | $10.00 | |
| 6 | A00192-03-00 | HEADLIGHT BULB | S2 12V35W/35W | 1 | Pc. | $13.00 |
| 7 | A00190-03-00 | TURN SIGNAL BULB | R10W12V | 2 | Pcs. | $8.00 |
| 8 | A00004-19-03 | HEX BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 9 | A00004-21-01 | WASHER | M8 | 2 | Pcs. | $1.50 |
| 10 | A01048-02-00 | RUBBER GROMMET | NOT PICTURED | 2 | Pcs. | $1.50 |
| SPEEDOMETER ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00632-08-00 | SPEEDOMETER ASSY | 1 | Assy. | $63.00 | |
| 1-1 | A00630-08-00 | SPEEDOMETER BRACKET | 1 | Pc. | $11.00 | |
| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00383-15-00 | HANDLEBAR | 1 | Pc. | $33.00 | |
| 2 | A00568-05-00 | REAR BRAKE PERCH/LEVER ASSY | 1 | Assy. | $21.00 | |
| 3 | A00569-05-00 | THROTTLE GRIP W/ TUBE | 1 | Assy. | $7.00 | |
| 4 | A00619-08-00 | LEFT HANDLEBAR SWITCH | 1 | Pc. | $24.00 | |
| 5 | A00620-08-00 | RIGHT HANDLEBAR SWITCH | 1 | Pc. | $30.00 | |
| 6 | A00570-05-00 | SPEEDOMETER CABLE | 1 | Pc. | $11.00 | |
| 7 | A00571-05-00 | CHOKE CABLE | 1 | Pc. | $13.00 | |
| 8 | A00572-05-00 | THROTTLE CABLE | 1 | Pc. | $13.00 | |
| 9 | A00573-05-00 | REAR BRAKE CABLE | 1 | Pc. | $24.00 | |
| 10 | A00574-05-00 | LEFT REARVIEW MIRROR | 1 | Pc. | $30.00 | |
| 11 | A00575-05-00 | RIGHT REARVIEW MIRROR | 1 | Pc. | $30.00 | |
| 12 | A00576-05-00 | LEFT HANDLEBAR GRIP | 1 | Pc. | $7.00 | |
| 13 | A00122-24-03 | WIRE STRAP | NOT PICTURED | 2 | Pcs. | $1.50 |
| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00724-16-00 | FRONT RIGHT FORK ASSY | 1 | Assy. | $72.00 | |
| 2 | A00004-21-01 | WASHER | M8 | 4 | Pcs. | $1.50 |
| 3 | A00414-19-02 | ALLEN BOLT | M8X55 | 4 | Pcs. | $2.00 |
| 4 | A00384-15-00 | HANDLEBAR CLAMP | 4 | Pcs. | $8.00 | |
| 5 | A00728-16-00 | FRONT LEFT FORK ASSY | 1 | Assy. | $72.00 | |
| 6 | A00385-15-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $60.00 | |
| 7 | A00388-15-00 | STEERING STEM WASHER | 10.5x34x4.5 | 1 | Pc. | $2.00 |
| 8 | A00389-15-00 | STEERING STEM BOLT | M10X25 | 1 | Pc. | $2.50 |
| 9 | A00390-15-00 | FRONT SIDE REFLECTOR | AMBER | 2 | Pcs. | $6.00 |
| 10 | A00386-15-00 | LOWER TRIPLE CLAMP ASSY | W/ STEM | 1 | Assy. | $59.00 |
| 11 | A00387-15-00 | STEERING STEM BEARING SET | 1 | Set | $18.00 | |
| 12 | A00392-15-00 | STEERING STEM NUT | 1 | Pc. | $4.00 | |
| 13 | A00393-15-00 | STEERING STEM DUST COVER | 1 | Pc. | $1.50 | |
| ENGINE ASSY / RELATED PARTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00106-22-36 | FLANGE CAP NUT | M6X17 | 2 | Pcs. | $1.50 |
| 2 | A00125-10-00 | MUFFLER ASSY | 1 | Assy. | $69.00 | |
| 3 | A00043-19-01 | FLANGE BOLT | M8X115 | 1 | Pc. | $2.50 |
| 4 | A00046-19-01 | FLANGE BOLT | M8X110 | 1 | Pc. | $2.50 |
| 5 | A00017-19-01 | FLANGE BOLT | M8X16 | 1 | Pc. | $1.50 |
| 6 | A02986-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $14.00 | |
| 7 | A00040-19-01 | FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 8 | A00405-07-00 | DRIVE CHAIN | 428-120L | 1 | Pc. | $30.00 |
| 9 | A00406-07-00 | PEDAL CHAIN | BICYCLE-100L | 1 | Pc. | $24.00 |
| 10 | A00333-14-00 | INTAKE MANIFOLD | 1 | Pc. | $11.00 | |
| 11 | A00418-12-00 | CARBURETOR ASSY | 1 | Assy. | $60.00 | |
| 12 | A00001-14-00 | AIRBOX ASSY | 1 | Assy. | $29.00 | |
| 12-1 | A00005-14-00 | AIR FILTER ELEMENT | 1 | Pc. | $13.00 | |
| 13 | A00012-21-01 | FENDER WASHER | M8X24 | 1 | Pc. | $1.50 |
| 14 | A00483-19-03 | BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 15 | A00306-13-00 | MUFFLER GASKET | 1 | Pc. | $1.50 | |
| 16 | A00335-14-00 | INTAKE INSULATOR | 1 | Pc. | $2.00 | |
| 17 | A00016-19-03 | BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 18 | A02988-09-00 | KICKSTARTER LEVER | 1 | Pc. | $30.00 | |
| 19 | A00419-12-00 | AIR/FUEL SEPARATOR | 1 | Pc. | $18.00 | |
| 20 | A00420-12-00 | FUEL HOSE | 2 | Pcs. | $4.00 | |
| 21 | A00421-12-00 | FUEL FILTER | 1 | Pc. | $2.50 | |
| 22 | A02987-09-00 | COMPLETE ENGINE ASSY | *OVERSIZE* | 1 | Assy. | $329.00 |
| 23 | A00095-24-03 | WIRE HOSE CLAMP | FOR AIRBOX | 1 | Pc. | $1.50 |
| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00407-07-00 | CHAIN GUARD | 1 | Pc. | $18.00 | |
| 2 | A00497-19-07 | FLANGE BOLT W/ STEP | M6X12 | 3 | Pcs. | $1.50 |
| 3 | A00120-24-07 | CIRCLIP | 7.4X0.8 | 1 | Pc. | $1.50 |
| 4 | A00412-07-00 | DRIVE CHAIN TENSIONER SPRING | 1 | Pc. | $1.50 | |
| 5 | A00416-07-00 | DRIVE CHAIN TENSIONER DAMPER | 1 | Pc. | $1.50 | |
| 6 | A00413-07-00 | DRIVE CHAIN TENSIONER | 1 | Pc. | $33.00 | |
| 7 | A00594-11-00 | FRAME | BLACK *OVERSIZE* | 1 | Pc. | $188.00 |
| 8 | A00595-11-00 | DRUM BRAKE SUPPORT | 1 | Pc. | $4.00 | |
| 9 | A00484-19-07 | BOLT W/ COTTER PIN HOLE | M8X30X1.0 | 1 | Pc. | $1.50 |
| 10 | A00004-21-01 | WASHER | M8 | 1 | Pc. | $1.50 |
| 11 | A00001-21-02 | LOCK WASHER | M8 | 1 | Pc. | $1.50 |
| 12 | A00004-25-01 | COTTER PIN | 2.5X30 | 1 | Pc. | $1.50 |
| 13 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
| 14 | C00024-22-07 | CASTLE NUT | M10 | 1 | Pc. | $1.50 |
| 15 | A00495-19-07 | BOLT W/ COTTER PIN HOLE | M10X25 | 1 | Pc. | $1.50 |
| 16 | A00004-21-01 | WASHER | M10 | 1 | Pc. | $1.50 |
| 17 | A00001-21-02 | LOCK WASHER | M10 | 1 | Pc. | $1.50 |
| 18 | A00007-25-01 | COTTER PIN | 1.5X16 | 1 | Pc. | $1.50 |
| SEAT / COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00596-11-00 | SEAT BRACKET | 1 | Pc. | $39.00 | |
| 2 | A00104-21-01 | WASHER | M6 | 3 | Pcs. | $1.50 |
| 3 | A00106-22-36 | FLANGE CAP NUT | M6X17 | 3 | Pcs. | $1.50 |
| 4 | A00090-19-01 | FLANGE BOLT | M8X70 | 1 | Pc. | $2.00 |
| 5 | A00010-19-01 | FLANGE BOLT | M10X60 | 1 | Pc. | $4.00 |
| 6 | A00485-19-01 | FLANGE BOLT | M10X65 | 1 | Pc. | $2.50 |
| 7 | A00107-22-06 | CAP NUT | M8X17 | 1 | Pc. | $1.50 |
| 8 | A00004-21-01 | WASHER | M8 | 1 | Pc. | $1.50 |
| 9 | A00725-16-00 | REAR SHOCK ABSORBER | 1 | Pc. | $51.00 | |
| 10 | A01036-02-00 | SEAT | 1 | Assy. | $59.00 | |
| 11 | A01037-02-00 | TOOL KIT/BATTERY CASE | 1 | Pc. | $24.00 | |
| 12 | A00005-22-05 | CLIP NUT | ST4.2 | 3 | Pcs. | $1.50 |
| 13 | A00010-20-03 | ST SCREW | ST4.2X16 | 3 | Pcs. | $1.50 |
| 14 | A01038-02-00 | LEFT TOOL CASE/BATTERY COVER | 1 | Pc. | $11.00 | |
| 15 | A01039-02-00 | RIGHT TOOL CASE/BATTERY COVER | 1 | Pc. | $14.00 | |
| 16 | A00002-21-01 | WASHER | M10 | 2 | Pcs. | $1.50 |
| 17 | A00002-22-06 | CAP NUT | M10 | 2 | Pcs. | $1.50 |
| 18 | A01040-02-00 | TOOL CASE/BATTERY CASE LOCK BRACKET | 1 | Pc. | $3.50 | |
| 19 | A00010-20-03 | ST SCREW | ST4.2X16 | 2 | Pcs. | $1.50 |
| 20 | A01049-02-00 | GROMMET FOR RIGHT SIDE COVER | NOT PICTURED | 2 | Pcs. | #N/A |
| FRONT WHEEL / FRONT BRAKE ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00728-04-00 | FRONT BRAKE ASSY | 1 | Assy. | $77.00 | |
| 2 | A00606-18-00 | INNERTUBE | 3.50-16 | 1 | Pc. | $24.00 |
| 3 | A00490-19-01 | FLANGE BOLT | M8X42 | 2 | Pcs. | $2.00 |
| 4 | A00001-22-03 | FLANGE LOCKNUT | M12 | 1 | Pc. | $2.00 |
| 5 | A00605-18-00 | SPEEDOMETER PICKUP | 1 | Pc. | $21.00 | |
| 6 | A00610-18-00 | FRONT RIGHT WHEEL SPACER | 12X23X35.5 | 1 | Pc. | $2.00 |
| 7 | A00611-18-00 | FRONT WHEEL AXLE | M12X234 | 1 | Pc. | $13.00 |
| 8 | A00729-04-00 | FRONT BRAKE ROTOR | 1 | Pc. | $39.00 | |
| 9 | A00607-18-00 | FRONT WHEEL ASSY | 2.15-16 | 1 | Assy. | $104.00 |
| 10 | A00608-18-00 | FRONT TIRE | 3.50-16 | 1 | Pc. | $43.00 |
| 11 | A00609-18-00 | RIM STRIP | 16" | 1 | Pc. | $4.00 |
| 12 | A00730-04-00 | FRONT BRAKE LEVER | 1 | Pc. | $18.00 | |
| 13 | A00736-04-00 | FRONT BRAKE PAD SET | 1 | Set | $18.00 | |
| 14 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 15 | A00001-21-01 | WASHER | M12 | 1 | Pc. | $1.50 |
| 16 | A00075-28-00 | BEARING | 6301-2RS | 2 | Pcs. | $6.00 |
| 17 | A00260-26-00 | DUST SEAL | 23X37X7/11 | 1 | Pc. | $2.50 |
| REAR WHEEL / REAR BRAKE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00408-07-00 | PEDAL CHAIN SPROCKET | W/ ONE-WAY 24T | 1 | Assy. | $59.00 |
| 2 | A00409-07-00 | REAR SPROCKET / CARRIER ASSY | 1 | Assy. | $48.00 | |
| 3 | A00612-18-00 | REAR WHEEL AXLE | M12X275 | 1 | Pc. | $18.00 |
| 4 | A00001-22-03 | FLANGE LOCKNUT | M12 | 1 | Pc. | $2.00 |
| 5 | A00731-04-00 | REAR DRUM BRAKE ASSY | 1 | Assy. | $51.00 | |
| 6 | A00613-18-00 | CHAIN ADJUSTER | 2 | Set | $7.00 | |
| 7 | A00617-18-00 | LEFT REAR WHEEL SPACER | 12X25X46 | 1 | Pc. | $4.00 |
| 8 | A00614-18-00 | REAR TIRE | 110/90-16 | 1 | Pc. | $40.00 |
| 9 | A00615-18-00 | REAR WHEEL ASSY | 2.15-16 | 1 | Assy. | $112.00 |
| 10 | A00616-18-00 | INNERTUBE | 110/90-16 | 1 | Pc. | $24.00 |
| 11 | A00609-18-00 | RIM STRIP | 16' | 1 | Pc. | $4.00 |
| 12 | A00410-07-00 | PEDAL SPROCKET SEAT | 1 | Pc. | $39.00 | |
| 13 | A00618-18-00 | RIGHT REAR WHEEL SPACER | 12X28X66 | 1 | Pc. | $8.00 |
| 14 | A00414-07-00 | PEDAL CHAIN TENSIONER | 1 | Assy. | $33.00 | |
| 15 | A00415-07-00 | PEDAL CHAIN TENSIONER SPRING | 1 | Pc. | $1.50 | |
| 16 | A00411-07-00 | REAR SPROCKET | 428-46T | 1 | Pc. | $30.00 |
| 17 | A00732-04-00 | REAR BRAKE SHOE SET | 1 | Set | $14.00 | |
| 18 | A00621-18-00 | BOLT LOCKING PLATE | 2 | Pcs. | $2.50 | |
| 19 | A00100-21-01 | WASHER | 8X22X1.5 | 8 | Pcs. | $1.50 |
| 20 | A00037-19-03 | HEX BOLT | M8X40 | 4 | Pcs. | $2.00 |
| 21 | A00622-18-00 | SPROCKET CARRIER DAMPER | 4 | Pcs. | $3.50 | |
| 22 | A00061-27-00 | O-RING | 40X2.5 | 1 | Pc. | #N/A |
| 23 | A00075-28-00 | BEARING | 6301-2RS | 2 | Pcs. | $6.00 |
| FENDERS / REAR LIGHTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01041-02-02 | FRONT FENDER | BLACK | 1 | Pc. | $59.00 |
| 1 | A01041-02-11 | FRONT FENDER | SILVER | 1 | Pc. | $59.00 |
| 1 | A01041-02-17 | FRONT FENDER | DARK RED | 1 | Pc. | $59.00 |
| 2 | A01046-02-00 | SPACER | 2 | Pcs. | $1.50 | |
| 3 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 4 | A00093-22-03 | FLANGE NUT | M6 | 4 | Pcs. | $1.50 |
| 5 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 2 | Pcs. | $1.50 |
| 6 | A00577-05-00 | SPEEDOMETER CABLE RETAINER | 1 | Pc. | $2.00 | |
| 7 | A01047-02-00 | RUBBER GROMMET | 2 | Pcs. | $1.50 | |
| 8 | A00031-19-01 | FLANGE BOLT | M6X12 | 10 | Pcs. | $1.50 |
| 9 | A01043-02-00 | REAR FENDER WIRE RETAINER | 1 | Pc. | $2.50 | |
| 10 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 11 | A01044-02-00 | REAR FENDER SUPPORT | 2 | Pcs. | $3.50 | |
| 12 | A00351-03-00 | TAILLIGHT ASSY | 1 | Pc. | $51.00 | |
| 13 | A00001-22-01 | NUT | M6 | 2 | Pcs. | $1.50 |
| 14 | A00354-03-00 | TAILLIGHT BRACKET | 1 | Pc. | $4.00 | |
| 15 | A00352-03-00 | RIGHT REAR TURN SIGNAL ASSY | 1 | Assy. | $30.00 | |
| 16 | A00353-03-00 | LEFT REAR TURN SIGNAL ASSY | 1 | Assy. | $30.00 | |
| 17 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 18 | A00104-21-01 | WASHER | M6 | 2 | Pcs. | $1.50 |
| 19 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 20 | A00355-03-00 | LICENCE PLATE BRACKET | 1 | Pc. | $13.00 | |
| 21 | A01042-02-02 | REAR FENDER | BLACK | 2 | Pcs. | $69.00 |
| 21 | A01042-02-11 | REAR FENDER | SILVER | 2 | Pcs. | $69.00 |
| 21 | A01042-02-17 | REAR FENDER | DARK RED | 2 | Pcs. | $69.00 |
| 22 | A00004-03-00 | REAR REFLECTOR | RED | 2 | Pcs. | $6.00 |
| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00422-12-00 | FUEL PETCOCK | 1 | Pc. | $18.00 | |
| 2 | A00041-19-01 | FLANGE BOLT | M8X30 | 1 | Pc. | $1.50 |
| 3 | A00428-12-00 | COLLAR | 8.5X11.5X8X30X2 | 1 | Pc. | $2.00 |
| 4 | A00429-12-00 | RUBBER GROMMET | 1 | Pc. | $1.50 | |
| 5 | A00093-22-03 | FLANGE NUT | M6 | 4 | Pcs. | $1.50 |
| 6 | A00423-12-02 | FUEL TANK ASSY | BLACK | 1 | Assy. | $125.00 |
| 6 | A00423-12-11 | FUEL TANK ASSY | SILVER | 1 | Assy. | $125.00 |
| 6 | A00423-12-17 | FUEL TANK ASSY | DARK RED | 1 | Assy. | $125.00 |
| 7 | A00424-12-00 | FUEL LEVEL SENSOR | 1 | Pc. | $18.00 | |
| 8 | A00621-08-00 | IGNITION LOCK SET | W/ 2 KEYS | 1 | Set | $51.00 |
| 9 | A00425-12-00 | FRONT FUEL TANK RUBBER GROMMET | 2 | Pcs. | $1.50 | |
| FOOTRESTS / SIDE STAND / PEDALS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00578-05-00 | RIGHT PEDAL ARM | 1 | Pc. | $39.00 | |
| 2 | A00579-05-00 | LEFT PEDAL | 1 | Pc. | $11.00 | |
| 3 | A00580-05-00 | FRONT PEDAL SPROCKET | 1 | Pc. | $30.00 | |
| 4 | A00597-11-00 | SIDE STAND | 1 | Pc. | $21.00 | |
| 5 | A00598-11-00 | SIDE STAND SPRING | 1 | Pc. | $1.50 | |
| 6 | A00599-11-00 | SIDE STAND BOLT | 1 | Pc. | $2.00 | |
| 7 | A00178-28-00 | BEARING | 6003RS | 2 | Pcs. | $11.00 |
| 8 | A00258-26-00 | OIL SEAL | 18X37X8 | 2 | Pcs. | $2.50 |
| 9 | A00121-24-07 | CIRCLIP | 37.8X1.5 | 1 | Pc. | $1.50 |
| 10 | A00581-05-00 | PEDAL SHAFT | 1 | Pc. | $24.00 | |
| 11 | A00034-19-03 | HEX BOLT | M8X16 | 4 | Pcs. | $1.50 |
| 12 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 13 | A00004-21-01 | WASHER | M8 | 6 | Pcs. | $1.50 |
| 14 | A00583-05-00 | FOOTREST ASSY | W/ PEGS | 1 | Assy. | $69.00 |
| 15 | A00582-05-00 | RIGHT PEDAL | 1 | Pc. | $11.00 | |
| 16 | A00588-05-00 | LEFT PEDAL ARM | 1 | Pc. | $39.00 | |
| 17 | A00009-22-01 | NUT | M10 **FOR SIDE STAND** | 1 | Pc. | $1.50 |
| 18 | A00001-21-02 | LOCK WASHER | M8 | 4 | Pcs. | $1.50 |
| 19 | A00004-21-01 | WASHER | M8 | 4 | Pcs. | $1.50 |
| 20 | A00589-05-00 | PLASTIC PLUG | FOR PEDAL ARMS | 2 | Pcs. | $2.50 |
| ELECTRICAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 12N5-3B | BATTERY | 12N5-3B | 1 | Pc. | $69.00 |
| 2 | A00622-08-00 | HORN | 1 | Pc. | $13.00 | |
| 3 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 4 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 5 | A00623-08-00 | TURN SIGNAL RELAY | 1 | Pc. | $11.00 | |
| 6 | A00624-08-00 | CDI | 1 | Pc. | $39.00 | |
| 7 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 8 | A00625-08-00 | REGULATOR/RECTIFIER | 1 | Pc. | $24.00 | |
| 9 | A00626-08-00 | WIRE HARNESS | 1 | Pc. | $51.00 | |
| 10 | A00627-08-00 | IGNITION COIL | W/ CAP | 1 | Pc. | $24.00 |
| 11 | A00628-08-00 | STARTER RELAY | 1 | Pc. | $23.00 | |
| 12 | A00629-08-00 | BATTERY BRACKET | 1 | Pc. | $11.00 | |
| TOOL KIT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00006-01-00 | SPARK PLUG SOCKET | 1 | Pc. | $3.50 | |
| 2 | A00007-01-00 | ALLEN WRENCH | 5MM | 1 | Pc. | $3.50 |
| 3 | A00004-01-00 | OPEN WRENCH | 8 - 10 | 1 | Pc. | $3.50 |
| 4 | A00005-01-00 | OPEN WRENCH | 12 - 14 | 1 | Pc. | $3.50 |
| 5 | A00002-01-00 | SCREWDRIVER | 1 | Pc. | $3.50 | |
| 6 | A00008-01-00 | TOOL BAG | 1 | Pc. | $3.50 | |
| 7 | A00001-01-00 | TOOL KIT | 1 | Kit | $18.00 | |
| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02387-09-00 | CYLINDER HEAD ASSY | INCLUDES 2, 3, 13 | 1 | Assy. | $77.00 |
| 2 | INTAKE VALVE GUIDE | 1 | Pc. | $1.50 | ||
| 3 | EXHAUST VALVE GUIDE | 1 | Pc. | $1.50 | ||
| 4 | A00231-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $11.00 | |
| 5 | C7HSA | SPARK PLUG | C7HSA | 1 | Pc. | $8.00 |
| 6 | A00272-14-00 | INTAKE MANIFOLD | 002#;1# W01 | 1 | Pc. | $18.00 |
| 7 | A00235-13-00 | INTAKE MANIFOLD GASKET | 22 MT1 | 1 | Pc. | $3.50 |
| 8 | A00040-19-04 | STUD | M6X20 | 2 | Pcs. | $1.50 |
| 9 | A00002-19-03 | BOLT | M6X23 | 2 | Pcs. | $1.50 |
| 10 | A00001-23-00 | DOWEL PIN | M8X14 | 2 | Pcs. | $1.50 |
| 11 | A00076-27-00 | O-RING | VITON 25X2.4 | 1 | Pc. | $2.50 |
| 12 | A00273-14-00 | CARBURETOR INSULATOR | 20.5 | 1 | Pc. | $4.00 |
| 13 | O-RING | 2 | Pcs. | $1.50 | ||
| 14 | A00008-27-00 | O-RING | 14.5X18.5X2.4 | 1 | Pc. | $1.50 |
| 15 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 16 | VENT PIPE GASKET | 1 | Pc. | $1.50 | ||
| 17 | VENT PIPE | 1 | Pc. | $1.50 | ||
| 18 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 19 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 20 | VENT PIPE CAP | 1 | Pc. | |||
| CYLINDER HEAD COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02389-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $18.00 | |
| 2 | A02390-09-00 | RIGHT CYLINDER HEAD SIDE COVER | 1 | Pc. | $18.00 | |
| 3 | A02391-09-00 | TIMING COVER | 1 | Pc. | $18.00 | |
| 4 | A02392-09-00 | TAPPET COVER | 2 | Pcs. | $7.00 | |
| 5 | A00232-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 6 | A00233-13-00 | RIGHT CYLINDER HEAD SIDE COVER GASKET | 1 | Pc. | $7.00 | |
| 7 | A00234-13-00 | TIMING COVER GASKET | 1 | Pc. | $7.00 | |
| 8 | A02393-09-00 | WASHER | 6X13X2 | 3 | Pcs. | $1.50 |
| 9 | A00272-21-01 | COPPER WASHER | 6X13X2 | 1 | Pc. | $1.50 |
| 10 | A00004-27-00 | O-RING | 30.8X3.2 | 2 | Pcs. | $3.50 |
| 11 | A00003-22-06 | CAP NUT | M6X12 | 4 | Pcs. | $1.50 |
| 12 | A00027-19-03 | BOLT | M6X110 | 1 | Pc. | $2.50 |
| 13 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 14 | A01177-09-00 | ALUMINUM WASHER | M6 | 1 | Pc. | $1.50 |
| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02386-09-00 | CYLINDER | 48cm3 Q12 | 1 | Pc. | $72.00 |
| 2 | A00230-13-00 | CYLINDER BASE GASKET | MT1 | 1 | Pc. | $11.00 |
| 3 | A00002-19-03 | BOLT | M6X23 | 1 | Pc. | $1.50 |
| 4 | A00094-21-01 | WASHER | 8x14x1.5 | 1 | Pc. | $1.50 |
| 5 | A00001-23-00 | DOWEL PIN | M8X14 | 2 | Pcs. | $1.50 |
| 6 | A00008-27-00 | O-RING | 14.5X18.5X2.4 | 1 | Pc. | $1.50 |
| 7 | A00009-27-00 | O-RING | 11.5X15.7X2.5 | 1 | Pc. | $1.50 |
| 8 | A00003-23-00 | DOWEL PIN | M8X12 | 2 | Pcs. | $1.50 |
| CAMSHAFT AND VALVES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02395-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.00 | |
| 2 | A02396-09-00 | CAMSHAFT | 1 | Pc. | $51.00 | |
| 3 | NUT | 2 | Pcs. | $1.50 | ||
| 4 | ROCKER ARM | 2 | Pcs. | $1.50 | ||
| 5 | A02398-09-00 | ROCKER ARM SHAFT | 2 | Pcs. | $4.00 | |
| 6 | A02399-09-00 | INTAKE VALVE | 1 | Pc. | $8.00 | |
| 7 | A02400-09-00 | EXHAUST VALVE | 1 | Pc. | $8.00 | |
| 8 | A02401-09-00 | VALVE SPRING | 2 | Pcs. | $4.00 | |
| 9 | A02397-09-00 | ROCKER ARM | 2 | Assy. | $18.00 | |
| 10 | A02403-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $2.00 | |
| 11 | A02404-09-00 | LOWER VALVE SPRING WASHER | 2 | Pcs. | $2.00 | |
| 12 | A02405-09-00 | VALVE COLLET | 4 | Pcs. | $2.00 | |
| 13 | TAPPET ADJUSTER | 2 | Pcs. | |||
| RIGHT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03048-09-00 | RIGHT ENGINE COVER | 1 | Pc. | $77.00 | |
| 2 | A00236-13-00 | RIGHT ENGINE COVER GASKET | 1 | Pc. | $13.00 | |
| 3 | A03049-09-00 | DIPSTICK | 1 | Pc. | $7.00 | |
| 4 | A00006-27-00 | O-RING | 18X3.5 | 1 | Pc. | $2.50 |
| 5 | A00003-23-00 | DOWEL PIN | 8X12 | 1 | Pc. | $1.50 |
| 6 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 5 | Pcs. | $1.50 |
| 7 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 1 | Pc. | $2.00 |
| 8 | A00436-19-08 | CASE FLANGE BOLT | M6X80 | 2 | Pcs. | $2.00 |
| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02408-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $77.00 | |
| 2 | A00238-13-00 | CENTER CRANKCASE GASKET | 1 | Pc. | $13.00 | |
| 3 | A02414-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $77.00 | |
| 4 | A02415-09-00 | BREATHER HOSE | 7X11, 190 | 1 | Pc. | $8.00 |
| 5 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 1 | Pc. | $2.00 |
| 6 | A02416-09-00 | HOSE RETAINER | 1 | Pc. | $4.00 | |
| 7 | A00038-19-04 | CYLINDER STUD B | M6X188 | 2 | Pcs. | $3.50 |
| 8 | A00039-19-04 | CYLINDER STUD A | M6X196 | 2 | Pcs. | $3.50 |
| 9 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 10 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |
| 11 | A02410-09-00 | OIL DRAIN BOLT | M12X1.5 | 1 | Pc. | $2.00 |
| 12 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 13 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 14 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 3 | Pcs. | $2.00 |
| OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02413-09-00 | OIL PUMP ASSY | 1 | Assy. | $39.00 | |
| 2 | A00237-13-00 | OIL PUMP GASKET | 1 | Pc. | $4.00 | |
| 3 | OIL PUMP BODY | 1 | Pc. | $1.50 | ||
| 4 | OIL PUMP COVER | 1 | Pc. | $1.50 | ||
| 5 | OIL PUMP COVER GASKET | 1 | Pc. | $1.50 | ||
| 6 | INNER OIL PUMP ROTOR | 1 | Pc. | $1.50 | ||
| 7 | OUTER OIL PUMP ROTOR | 1 | Pc. | $1.50 | ||
| 8 | OIL PUMP SHAFT | 1 | Pc. | $1.50 | ||
| 9 | OIL PUMP SHAFT SLEEVE | 1 | Pc. | $1.50 | ||
| 10 | A02412-09-00 | OIL PUMP SPROCKET SHAFT SLEEVE | 1 | Pc. | $1.50 | |
| 11 | A02409-09-00 | OIL FILTER SCREEN | 1 | Pc. | $8.00 | |
| 12 | A00003-20-01 | SCREW | M6X16 | 3 | Pcs. | $1.50 |
| 13 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 14 | A00420-19-08 | CASE FLANGE BOLT | M6X22 | 1 | Pc. | $1.50 |
| CLUTCH 1 | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03002-09-00 | SLEEVE | 1 | Pc. | $7.00 | |
| 2 | A00024-09-00 | DRIVEN GEAR | 1 | Pc. | $18.00 | |
| 3 | A00880-09-00 | DRIVEN GEAR BUSHING | 1 | Pc. | $13.00 | |
| 4 | A03050-09-00 | CLUTCH ASSY | 1 | Assy. | $89.00 | |
| 5 | A01283-09-00 | TONGUE WASHER | M14 | 1 | Pc. | $2.50 |
| 6 | A01284-09-00 | DISHED WASHER | 1 | Pc. | $1.50 | |
| 7 | A01282-09-00 | SPLINED LOCKNUT | M14X1 | 1 | Pc. | $2.50 |
| 8 | A00279-13-00 | CLUTCH END PLATE GASKET | 1 | Pc. | $7.00 | |
| 9 | A02508-09-00 | CLUTCH END CAP | 1 | Pc. | $18.00 | |
| 10 | A00121-19-01 | BOLT | M5X6 | 3 | Pcs. | $1.50 |
| CLUTCH 2 | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03003-09-00 | CLUTCH 2 ASSY | 1 | Assy. | $95.00 | |
| 2 | A03013-09-00 | PRIMARY DRIVEN GEAR | 1 | Pc. | $89.00 | |
| 3 | A03004-09-00 | SPLINE WASHER | 1 | Pc. | $2.50 | |
| 4 | A03005-09-00 | CLUTCH WASHER | 1 | Pc. | $3.50 | |
| 5 | A01284-09-00 | DISHED WASHER | 1 | Pc. | $1.50 | |
| 6 | A01282-09-00 | SPLINED LOCKNUT | M14X1 | 1 | Pc. | $2.50 |
| LEFT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02427-09-00 | LEFT ENGINE COVER | 1 | Pc. | $35.00 | |
| 2 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 3 | Pcs. | $1.50 |
| 3 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |
| 4 | A02310-09-00 | CRANK INSPECTION PLUG | 1 | Pc. | $14.00 | |
| 5 | A00055-27-00 | O-RING | 27X2.4 | 1 | Pc. | $1.50 |
| 6 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 7 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 8 | A02429-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $23.00 | |
| 9 | A02426-09-00 | STATOR WIRE RETAINER | 1 | Pc. | $2.50 | |
| 10 | A00002-19-01 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 11 | A02512-09-00 | TIMING PLUG | 1 | Pc. | $4.00 | |
| 12 | A00056-27-00 | O-RING | 13.8X2.5 | 1 | Pc. | $2.50 |
| 13 | A00290-13-00 | STATOR COVER GASKET | 1 | Pc. | $35.00 | |
| 14 | A02425-09-00 | STATOR ASSY | 1 | Assy. | $77.00 | |
| 15 | A02424-09-00 | FLYWHEEL | 1 | Pc. | $59.00 | |
| A00245-19-01 | FLANGE BOLT | 2 | Pcs. | |||
| A00246-19-03 | BOLT | 2 | Pcs. | |||
| A00003-19-01 | FLANGE BOLT | M6X25 | 4 | Pcs. | ||
| A02431-09-00 | IGNITION COIL WIRE CLAMP | 1 | Pc. | |||
| A00426-19-08 | CASE FLANGE BOLT | M6X40 | 1 | Pc. | ||
| A00085-22-01 | FLANGE NUT | 1 | Pc. | |||
| STARTER CHAIN/CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | Pc. | |||||
| 2 | Pc. | |||||
| 3 | Pcs. | |||||
| 4 | Assy. | |||||
| 5 | Pcs. | |||||
| 6 | Pc. | |||||
| 7 | A00010-27-00 | O-RING | 107X2 | 1 | Pc. | $8.00 |
| 8 | A03008-09-00 | STARTER CLUTCH GEAR BUSHING | 1 | Pc. | $4.00 | |
| 9 | A03009-09-00 | STARTER CLUTCH SPRKT RETAINING PLATE | 1 | Pc. | $1.50 | |
| 10 | A02435-09-00 | STARTER CHAIN SLIDER B | 1 | Pc. | $4.00 | |
| 11 | A02433-09-00 | STARTER CHAIN SLIDER A | 1 | Pc. | $4.00 | |
| 12 | A00059-26-00 | OIL SEAL | 30X42X4.5 | 1 | Pc. | $4.00 |
| 13 | A02520-09-00 | STARTER CHAIN | 62L | 1 | Pc. | $11.00 |
| 14 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 1 | Pc. | $1.50 |
| 15 | A03010-09-00 | STARTER WIRE CLAMP | 1 | Pc. | $1.50 | |
| 16 | A03011-09-00 | STARTER WIRE HOLDER | NYLON | 1 | Pc. | $2.50 |
| 17 | A02504-09-00 | STARTER MOTOR BRACKET | 1 | Pc. | $27.00 | |
| 18 | A00437-19-08 | CASE FLANGE BOLT | M6X105 | 1 | Pc. | $2.00 |
| 19 | A01177-09-00 | ALUMINUM WASHER | M6 | 1 | Pc. | $1.50 |
| 20 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 1 | Pc. | $1.50 |
| 21 | A00003-26-00 | OIL SEAL | 18.9X30X5 | 1 | Pc. | $4.00 |
| 22 | A00445-19-08 | CASE FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 23 | A00496-19-12 | CS BOLT | M6X14 | 3 | Pcs. | $1.50 |
| 24 | A03012-09-00 | STARTER CLUTCH ASSY | 1 | Assy. | $24.00 | |
| 25 | A02436-09-00 | STARTER PINION GEAR | 1 | Pc. | $23.00 | |
| 26 | A00104-21-01 | WASHER | M6 | 3 | Pcs. | $1.50 |
| STARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02510-09-00 | STARTER MOTOR ASSY | 2-BOLT | 1 | Assy. | $85.00 |
| 2 | A00423-19-08 | CASE FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 3 | A00138-27-00 | O-RING | NOT PICTURED | 1 | Pc. | $1.50 |
| CRANKSHAFT AND PISTON | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02437-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $77.00 | |
| 2 | A02439-09-00 | PISTON RING SET | 1 | Set | $29.00 | |
| 3 | A02438-09-00 | PISTON | 1 | Pc. | $29.00 | |
| 4 | A02440-09-00 | PISTON PIN | 1 | Pc. | $2.50 | |
| 5 | A02441-09-00 | CIRCLIP | Q07 | 2 | Pcs. | $1.50 |
| 6 | CONNECTING ROD | 1 | Pc. | $1.50 | ||
| 7 | RIGHT CRANK HALF | 1 | Pc. | $1.50 | ||
| 8 | LEFT CRANK HALF | 1 | Pc. | $1.50 | ||
| 9 | CONNECTING ROD PIN | 1 | Pc. | $1.50 | ||
| 10 | TIMING SPROCKET | 1 | Pc. | $1.50 | ||
| 11 | A01113-09-00 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 12 | A00087-28-01 | BEARING | 6205 | 2 | Pcs. | $21.00 |
| 13 | CONNECTING ROD BEARING | 1 | Pc. | |||
| 14 | RING I | 1 | Pc. | |||
| 15 | RING II | 1 | Pc. | |||
| 16 | OIL CONTROL RING SET | 1 | Pc. | |||
| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00425-17-00 | MAINSHAFT ASSY | 31A0 | 1 | Assy. | $36.00 |
| 2 | A00426-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $36.00 | |
| 3 | A00004-28-00 | BEARING | 6905 | 1 | Pc. | $24.00 |
| 4 | A00003-28-00 | BEARING | 6001 | 1 | Pc. | $8.00 |
| 5 | A00091-28-00 | BEARING | 6203/Z2 | 1 | Pc. | $18.00 |
| 6 | A00005-28-00 | BEARING | 6201 | 1 | Pc. | $8.00 |
| 7 | A00001-26-00 | OIL SEAL | 17X29X5 | 1 | Pc. | $4.00 |
| 8 | A00369-07-00 | COUNTERSHAFT SPROCKET | 12T OPT. | 1 | Pc. | $14.00 |
| 8 | A00370-07-00 | COUNTERSHAFT SPROCKET | 13T OPT. | 1 | Pc. | $14.00 |
| 8 | A00356-07-00 | COUNTERSHAFT SPROCKET | 14T STD. | 1 | Pc. | $14.00 |
| 10 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 11 | A00031-19-03 | BOLT | M6X8 | 2 | Pcs. | $1.50 |
| CAM CHAIN AND TENSIONER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02446-09-00 | CAMSHAFT SPROCKET | 31A0 28 | 1 | Pc. | $18.00 |
| 2 | A02442-09-00 | TIMING CHAIN | 82 | 1 | Pc. | $18.00 |
| 3 | A02444-09-00 | CAM CHAIN TENSIONER ARM | 1 | Pc. | $8.00 | |
| 4 | A01257-09-00 | CAM CHAIN TENSIONER ROLLER | RUBBER | 1 | Pc. | $10.00 |
| 5 | A02450-09-00 | CAM CHAIN TENSIONER PIVOT BOLT | 1 | Pc. | $2.00 | |
| 6 | A02453-09-00 | CAM CHAIN TENSIONER SPRING | 1 | Pc. | $3.50 | |
| 7 | A02452-09-00 | CAM CHAIN TENSIONER PUSH ROD | 1 | Pc. | $6.00 | |
| 8 | A02451-09-00 | CAM CHAIN TENSIONER PUSH ROD HEAD | 1 | Pc. | $2.00 | |
| 9 | A01300-09-00 | CHAIN ROLLER | RUBBER | 1 | Pc. | $14.00 |
| 10 | A02448-09-00 | CAM CHAIN GUIDE ROLLER BOLT | 1 | Pc. | $1.50 | |
| 11 | A02449-09-00 | OIL PUMP SPROCKET | 1 | Pc. | $8.00 | |
| 12 | A02443-09-00 | OIL PUMP SPROCKET SHAFT | Q07 | 1 | Pc. | $4.00 |
| 13 | A02455-09-00 | TENSIONER BOLT | M14X1.5 | 1 | Pc. | $2.50 |
| 14 | A00025-19-03 | BOLT | M5X12 | 3 | Pcs. | $1.50 |
| 15 | A02454-09-00 | SEALING WASHER | 14.2X20X1.5 | 1 | Pc. | $1.50 |
| 16 | A00089-21-01 | WASHER | 8X14X1.5 | 1 | Pc. | $1.50 |
| KICK STARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03006-09-00 | KICKSTARTER SHAFT ASSY | 1 | Assy. | $54.00 | |
| 2 | A03007-09-00 | KICKSTARTER LEVER ASSY | 1 | Assy. | $29.00 | |
| ENGINE PART SETS / AVAILABLE ACCY. | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00246-13-00 | COMPLETE ENGINE GASKET SET | 1 | Set | $59.00 | |
| 2 | A00227-26-00 | COMPLETE ENGINE SEALS SET | 1 | Set | $51.00 | |
| 3 | A00283-13-00 | COMPLETE TOP END GASKET SET | 1 | Set | $13.00 | |
