SSR Razkull Swing Arm (Free Shipping)
SSR
$424.50
(No reviews yet)
Write a Review
SSR
SSR Razkull Swing Arm (Free Shipping)
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00434-11-00 | SWINGARM | BLACK | 1 | Pc. | $77.00 |
| 2 | A00781-02-00 | SWINGARM FENDER WITH CHAIN GUARD | 1 | Pc. | $35.00 | |
| 3 | A00415-05-00 | RIGHT FOOTREST STAY ASSY | W/ FOOTRESTS | 1 | Assy. | $57.00 |
| 4 | A00416-05-00 | LEFT FOOTREST STAY ASSY | W/ FOOTRESTS | 1 | Assy. | $57.00 |
| 5 | A00435-11-00 | SWINGARM AXLE | 1 | Pc. | $18.00 | |
| 6 | A00436-11-00 | CHAIN ADJUSTER ASSY | 2 | Assy. | $18.00 | |
| 7 | A00437-11-00 | DRIVE CHAIN SLIDER | 1 | Pc. | $14.00 | |
| 8 | A00025-19-03 | BOLT | M5×12 | 2 | Pcs. | $1.50 |
| 9 | A00049-19-01 | FLANGE BOLT | M8×35 | 2 | Pcs. | $2.00 |
| 10 | A00010-22-01 | FLANGE NUT | M12×1.25 | 2 | Pcs. | $2.00 |
| 11 | A00008-19-03 | BOLT | M6×12 | 3 | Pcs. | $1.50 |
| 12 | A00311-07-00 | DRIVE CHAIN | 428H - 106L | 1 | Pc. | $39.00 |
| 13 | A00955-02-00 | RUBBER PLUG | 2 | Pcs. | $2.00 | |
| 14 | A00420-05-00 | REAR BRAKE PEDAL | 1 | Pc. | $23.00 | |
| 15 | A00115-24-07 | CIRCLIP | 14 | 1 | Pcs. | $1.50 |
| 16 | A00502-08-00 | REAR BRAKE LIGHT SWITCH SPRING | 1 | Pc. | $1.50 | |
| 17 | A00503-08-00 | REAR BRAKE LIGHT SWITCH | 1 | Pc. | $8.00 | |
| 18 | A00419-05-00 | REAR BRAKE PEDAL RETURN SPRING | 1 | Pc. | $2.00 | |
| 19 | A00513-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
| 20 | A00514-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 |

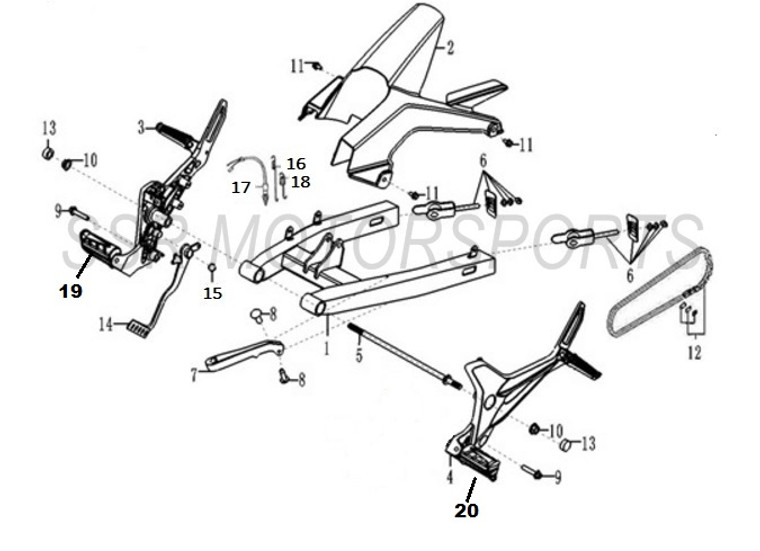

This is a swingarm package for the SSR Razkull. Evertything listed in the schematic in included with this. Free shipping!
-
-
Out of stock
-
-
-
-
-
-
-
