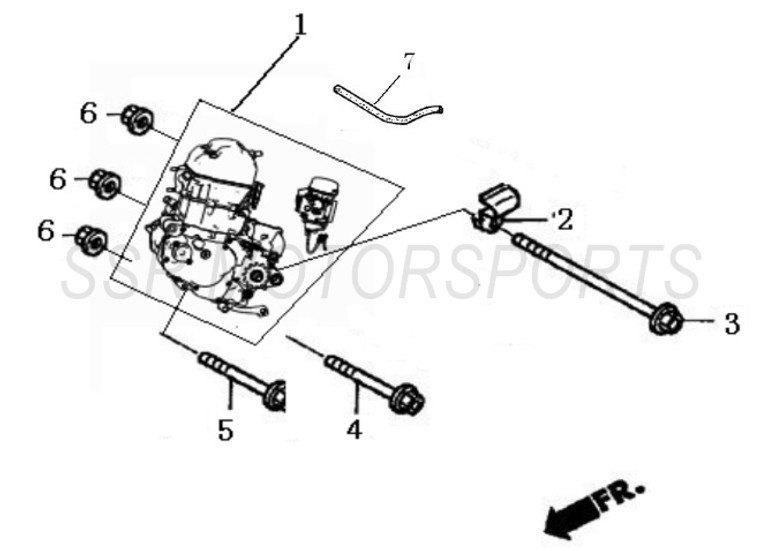

(SSR SR450S) Full Engine Parts Schematics (2016-2018)
| 2016-2018 SR450S | ||||||
| CYLINDER HEAD COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00030-26-00 | OIL SEAL | 34.5X24.5X6 | 1 | Pc. | $3.50 |
| 2 | A00627-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $104.00 | |
| 3 | A00628-09-00 | PLATE | 1 | Pc. | $18.00 | |
| 4 | A00038-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $24.00 | |
| 5 | A00629-09-00 | VALVE COVER BOLT | M6X68 | 2 | Pcs. | $2.00 |
| 6 | A00630-09-00 | VALVE COVER BOLT | M6X21.5 | 1 | Pc. | $1.50 |
| 7 | A02718-09-00 | RUBBER SEAL | 12X12X5 | 3 | Pcs. | $2.00 |
| 8 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 9 | A00632-09-00 | BREATHER FITTING | 1 | Pc. | $14.00 | |

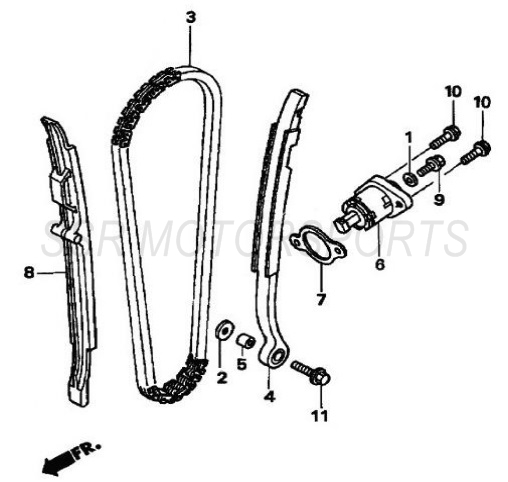

| TIMING CHAIN | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00043-21-01 | WASHER | 6.2X14X1 | 1 | Pc. | $1.50 |
| 2 | A00044-21-01 | WASHER | 6.4X18X1.6 | 1 | Pc. | $1.50 |
| 3 | A00622-09-00 | CAM CHAIN | 112L | 1 | Pc. | $112.00 |
| 4 | A00623-09-00 | REAR CAM CHAIN GUIDE | 1 | Pc. | $23.00 | |
| 5 | A00011-23-00 | DOWEL PIN | 6X9 | 1 | Pc. | $1.50 |
| 6 | A00624-09-00 | CAM CHAIN TENSIONER | 1 | Pc. | $13.00 | |
| 7 | A00037-13-00 | CAM CHAIN TENSIONER GASKET | 1 | Pc. | $4.00 | |
| 8 | A00625-09-00 | FRONT CAM CHAIN GUIDE | 1 | Pc. | $23.00 | |
| 9 | A00013-19-01 | FLANGE BOLT | M6X10 | 1 | Pc. | $1.50 |
| 10 | A00006-19-01 | FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 11 | A00215-19-01 | FLANGE BOLT | 1 | Pc. | $1.50 | |
| CAMSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00601-09-00 | VALVE STEM SEAL | VSW5-807-5-7/8.4 | 4 | Pcs. | $7.00 |
| 3 | A00003-24-07 | CIRCLIP | 12 | 1 | Pc. | $2.00 |
| 4 | A00056-28-00 | BEARING | 61904 | 1 | Pc. | $59.00 |
| 5 | A00006-24-07 | CIRCLIP | 42 | 1 | Pc. | $4.00 |
| 6 | A00604-09-00 | DECOMPRESSION SHAFT | 1 | Pc. | $41.00 | |
| 7 | A00605-09-00 | DECOMPRESSION PLUNGER | 1 | Pc. | $14.00 | |
| 8 | A00606-09-00 | CAMSHAFT ASSY | 1 | Assy. | $199.00 | |
| 9 | A00607-09-00 | CAMSHAFT | 1 | Pc. | $150.00 | |
| 10 | A00608-09-00 | ROCKER ARM | 1 | Pc. | $96.00 | |
| 11 | A00609-09-00 | ROCKER ARM SHAFT | 1 | Pc. | $14.00 | |
| 12 | A00610-09-00 | INTAKE VALVE | 2 | Pcs. | $36.00 | |
| 13 | A00611-09-00 | EXHAUST VALVE | 2 | Pcs. | $51.00 | |
| 14 | A00612-09-00 | TAPPET COVER | 2 | Pcs. | $30.00 | |
| 15 | A00613-09-00 | INTAKE VALVE SPRING | 2 | Pcs. | $8.00 | |
| 16 | A00614-09-00 | EXHAUST VALVE SPRING | 2 | Pcs. | $8.00 | |
| 17 | A00615-09-00 | UPPER INTAKE VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 18 | A00616-09-00 | UPPER EXHAUST VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 19 | A00617-09-00 | LOWER VALVE SPRING RETAINER | 4 | Pcs. | $13.00 | |
| 20 | A00618-09-00 | VALVE COLLET | 4 | Pcs. | $3.50 | |
| 21 | A00619-09-00 | VALVE COLLET | 4 | Pcs. | $3.50 | |
| 23 | A00621-09-00 | CAMSHAFT SPROCKET | 1 | Pc. | $72.00 | |
| 24 | A00016-19-02 | ALLEN BOLT | M7X10 | 2 | Pcs. | $1.50 |
| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00592-09-00 | CYLINDER HEAD ASSY | 1 | Assy. | $272.00 | |
| 2 | A00593-09-00 | INTAKE VALVE GUIDE | 2 | Pcs. | $11.00 | |
| 3 | A00594-09-00 | EXHAUST VALVE GUIDE | 2 | Pcs. | $11.00 | |
| 4 | A00595-09-00 | CAMSHAFT HOLDER ASSY | 1 | Assy. | $77.00 | |
| 5 | A00036-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $26.00 | |
| 6 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 7 | A00006-19-01 | FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 8 | A00012-23-00 | DOWEL PIN | 14X20 | 2 | Pcs. | $1.50 |
| 9 | A00051-14-00 | INSULATOR CONNECTOR | 1 | Pc. | $24.00 | |
| 10 | A00052-14-00 | CLAMP | 62 60-65 | 1 | Pc. | $6.00 |
| 11 | A00053-14-00 | CLAMP | 51 55-60 | 1 | Pc. | $6.00 |
| 12 | A00013-23-00 | DOWEL PIN | 8X10 | 2 | Pcs. | $1.50 |
| 13 | A00596-09-00 | JOINT | 1 | Pc. | $4.00 | |
| 14 | A00597-09-00 | WATER JOINT | 1 | Pc. | $8.00 | |
| 15 | IFR8H-11 | SPARK PLUG | IFR8H-11 | 1 | Pc. | $16.00 |
| 15 | IK24 | SPARK PLUG | DENSO IK24 | 1 | Pc. | $16.00 |
| 16 | A00034-19-01 | FLANGE BOLT | M6X65 | 2 | Pcs. | $2.00 |
| 17 | A00073-19-03 | FLANGE BOLT | M6X72 | 2 | Pcs. | $2.00 |
| 18 | A00017-19-04 | STUD | M8X38 | 2 | Pcs. | $1.50 |
| 19 | A00029-27-00 | O-RING | 19X3 | 1 | Pc. | $2.50 |
| 20 | A00045-21-01 | WASHER | 10.5X21X3.2 | 4 | Pcs. | $1.50 |
| 21 | A00046-21-01 | WASHER | 5.2X8X1 | 1 | Pc. | $1.50 |
| 22 | A00014-22-01 | FLANGE NUT | M10X1.25 | 4 | Pcs. | $1.50 |
| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00588-09-00 | WATER PASSAGE COLLAR | 18 | 1 | Pc. | $1.50 |
| 2 | A00012-23-00 | DOWEL PIN | 14X20 | 2 | Pcs. | $1.50 |
| 3 | A00589-09-00 | WIRE HOSE CLAMP | 8 | 1 | Pc. | $1.50 |
| 4 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 1 | Pc. | $1.50 |
| 5 | A00590-09-00 | CYLINDER | 1 | Pc. | $345.00 | |
| 6 | A00035-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $26.00 | |
| 7 | A00591-09-00 | TRANSMISSION VENT HOSE | 5X8X300 | 1 | Pc. | $18.00 |

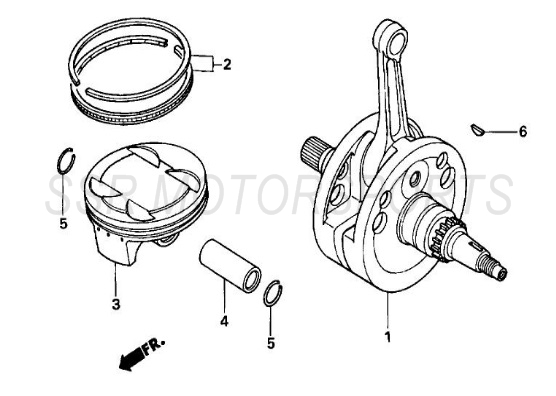

| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00582-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $448.00 | |
| 2 | A00583-09-00 | PISTON RING SET | 2 RING VERSION | 1 | Set | $51.00 |
| 2 | A03015-09-00 | PISTON RING SET | 3 RING VERSION | 1 | Set | $39.00 |
| 3 | A00584-09-00 | PISTON | 2 RING VERSION | 1 | Pc. | $161.00 |
| 3 | A03014-09-00 | PISTON | 3 RING VERSION | 1 | Pc. | $89.00 |
| 4 | A00585-09-00 | PISTON PIN | 1 | Pc. | $11.00 | |
| 5 | A00586-09-00 | CIRCLIP | 19X1.2 | 2 | Pcs. | $1.50 |
| 6 | A00587-09-00 | WOODRUFF KEY | 25X14X4.5X4 | 1 | Pc. | $2.00 |
| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00561-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $188.00 | |
| 2 | A00034-13-00 | CENTER CASE GASKET | 1 | Pc. | $36.00 | |
| 3 | A00562-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $188.00 | |
| 4 | A00563-09-00 | OIL JET | 1 | Pc. | $8.00 | |
| 5 | A00564-09-00 | REED VALVE | 1 | Pc. | $8.00 | |
| 6 | A00565-09-00 | CLUTCH ACTUATOR | 1 | Pc. | $8.00 | |
| 7 | A00566-09-00 | LIFTER PLATE | 1 | Pc. | $6.00 | |
| 8 | A00567-09-00 | CLUTCH CABLE HOLDER | 1 | Pc. | $4.00 | |
| 9 | A00006-20-X2 | TORX CS SCREW | M6X12 | 2 | Pcs. | $1.50 |
| 10 | A00018-19-04 | CYLINDER STUD | M10-M12X176 | 4 | Pcs. | $7.00 |
| 11 | A00568-09-00 | BEARING RETAINER PLATE | 2 | Pcs. | $1.50 | |
| 12 | A00014-21-04 | CRUSH WASHER | 8X16X1.5 | 1 | Pc. | $1.50 |
| 13 | A00048-21-01 | WASHER | 6.2X12X1.6 | 3 | Pcs. | $1.50 |
| 14 | A00013-24-07 | CIRCLIP | 32 | 1 | Pc. | $1.50 |
| 15 | A00569-09-00 | HOSE GUIDE | 1 | Pc. | $3.50 | |
| 16 | A00052-28-00 | BEARING | TM-SX06C84CS44 | 1 | Pc. | $51.00 |
| 17 | A00053-28-00 | BEARING | NK39X65X18-3\-5 | 1 | Pc. | $18.00 |
| 18 | A00054-28-00 | BEARING | HK 3308 | 1 | Pc. | $11.00 |
| 19 | A00027-26-00 | OIL SEAL | 38X52X7 | 1 | Pc. | $7.00 |
| 20 | A00028-26-00 | OIL SEAL | 39X56X7.5 | 1 | Pc. | $7.00 |
| 21 | A00019-26-00 | OIL SEAL | 14X22X5 | 1 | Pc. | $4.00 |
| 22 | A00007-26-00 | OIL SEAL | TC20X32X6 | 1 | Pc. | $6.00 |
| 23 | A00029-26-00 | OIL SEAL | 12X18X5 | 1 | Pc. | $6.00 |
| 24 | A00012-23-00 | DOWEL PIN | 14X20 | 2 | Pcs. | $1.50 |
| 25 | A00002-19-01 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 26 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 27 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 2 | Pcs. | $1.50 |
| 28 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 3 | Pcs. | $1.50 |
| 29 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 1 | Pc. | $2.00 |
| 30 | A00444-19-08 | CASE FLANGE BOLT | M6X75 | 7 | Pcs. | $2.00 |
| 31 | A00075-19-03 | FLANGE BOLT | M8X65 | 1 | Pc. | $2.00 |
| 32 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 33 | A00030-27-00 | O-RING | 25X3.55 | 1 | Pc. | $2.50 |
| 34 | A00579-09-00 | STARTER ASSY | 1 | Assy. | $150.00 | |
| 35 | A00014-23-00 | DOWEL PIN | 8X10.5 | 1 | Pc. | $1.50 |
| 36 | A00055-28-00 | NEEDLE BEARING | HK 1210V7 | 2 | Pcs. | $13.00 |
| 37 | A00581-09-00 | COLLAR | 2 | Pcs. | $14.00 | |
| COUNTER BALANCER SHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00556-09-00 | BALANCER SHAFT | 1 | Pc. | $80.00 | |
| 2 | A00557-09-00 | BALANCER SHAFT GEAR | 40T | 1 | Pc. | $69.00 |
| 3 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 4 | A00062-22-03 | NUT | M14X1.0X24X5 | 1 | Pc. | $2.50 |
| 5 | A00049-21-01 | WASHER | 14.2X24X2 | 1 | Pc. | $2.00 |
| 6 | A00558-09-00 | BEARING RETAINER PLATE | 2 | Pcs. | $1.50 | |
| 7 | A00050-28-00 | NEEDLE BEARING | NK 20X32X14 | 1 | Pc. | $13.00 |
| 8 | A00051-28-00 | BEARING | TMB 003C4 | 1 | Pc. | $11.00 |

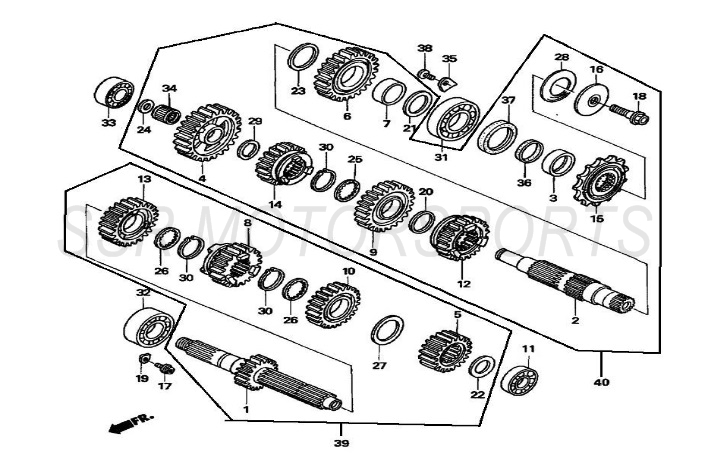

| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00107-17-00 | MAINSHAFT | 13T | 1 | Pc. | $59.00 |
| 2 | A00071-17-00 | COUNTERSHAFT | 1 | Pc. | $67.00 | |
| 3 | A00072-17-00 | COLLAR | 1 | Pc. | $8.00 | |
| 4 | A00073-17-00 | GEAR | 29T | 1 | Pc. | $45.00 |
| 5 | A00074-17-00 | GEAR | 16T | 1 | Pc. | $39.00 |
| 6 | A00075-17-00 | GEAR | 26T | 1 | Pc. | $48.00 |
| 7 | A00076-17-00 | COLLAR | 1 | Pc. | $8.00 | |
| 8 | A00077-17-00 | GEAR | 17T | 1 | Pc. | $39.00 |
| 9 | A00078-17-00 | GEAR | 21T | 1 | Pc. | $39.00 |
| 10 | A00079-17-00 | GEAR | 19T | 1 | Pc. | $39.00 |
| 11 | A00040-28-00 | BEARING | 6203U | 1 | Pc. | $27.00 |
| 12 | A00081-17-00 | GEAR | 19T | 1 | Pc. | $39.00 |
| 13 | A00082-17-00 | GEAR | 23T | 1 | Pc. | $45.00 |
| 14 | A00083-17-00 | GEAR | 19T | 1 | Pc. | $39.00 |
| 15 | A00347-07-00 | COUNTERSHAFT SPROCKET | 13T | 1 | Pc. | $39.00 |
| 16 | A00085-17-00 | PLATE | 8.2X35X3.5 | 1 | Pc. | $4.00 |
| 17 | A00025-19-01 | FLANGE BOLT | M6X14 | 2 | Pcs. | $1.50 |
| 18 | A00049-19-01 | FLANGE BOLT | M8X35 | 1 | Pc. | $2.00 |
| 19 | A00086-17-00 | BEARING RETAINER PLATE | 65MM | 2 | Pcs. | $1.50 |
| 20 | A00087-17-00 | WASHER | 25.2X30X1 | 1 | Pc. | $2.00 |
| 21 | A00088-17-00 | WASHER | 24.2X36X1.5 | 1 | Pc. | $2.00 |
| 22 | A00089-17-00 | WASHER | 17.3X25X2 | 1 | Pc. | $2.00 |
| 23 | A00090-17-00 | WASHER | 27.2X35X1 | 1 | Pc. | $2.00 |
| 24 | A00091-17-00 | WASHER | 17.4X26X1 | 1 | Pc. | $2.00 |
| 25 | A00092-17-00 | WASHER | 22X31X1.5 | 1 | Pc. | $2.00 |
| 26 | A00093-17-00 | WASHER | 24.2X31X1.5 | 2 | Pcs. | $2.00 |
| 27 | A00094-17-00 | WASHER | 25.2X36X1 | 1 | Pc. | $2.00 |
| 28 | A00095-17-00 | WASHER | 24.2X42X1.5 | 1 | Pc. | $2.00 |
| 29 | A00096-17-00 | WASHER | 192X27X1 | 1 | Pc. | $2.00 |
| 30 | A00097-17-00 | CIRCLIP | 23X29X1.5 | 3 | Pcs. | $1.50 |
| 31 | A00041-28-00 | BEARING | SX05A52 | 1 | Pc. | $69.00 |
| 32 | A00042-28-00 | BEARING | 5205AX6CS23 | 1 | Pc. | $59.00 |
| 33 | A00043-28-00 | BEARING | 3203ATN | 1 | Pc. | $53.00 |
| 34 | A00044-28-00 | NEEDLE BEARING | K19X22X9.5 | 1 | Pc. | $11.00 |
| 35 | A00102-17-00 | PLATE | 65MM | 2 | Pcs. | $1.50 |
| 36 | A00103-17-00 | D-RING | 26.7X23.75X4.5 | 1 | Pc. | $2.50 |
| 37 | A00021-26-00 | OIL SEAL | 31X40X7 | 1 | Pc. | $13.00 |
| 38 | A00008-19-03 | BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 39 | A00105-17-00 | MAINSHAFT ASSY | 1 | Assy. | $180.00 | |
| 40 | A00106-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $217.00 | |

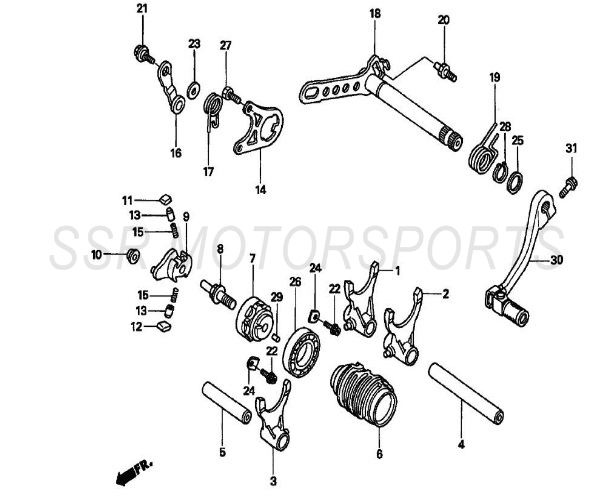

| SHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00534-09-00 | RIGHT GEAR SHIFT FORK | 1 | Pc. | $23.00 | |
| 2 | A00535-09-00 | LEFT GEAR SHIFT FORK | 1 | Pc. | $23.00 | |
| 3 | A00536-09-00 | MAINSHAFT GEAR SHIFT FORK | 1 | Pc. | $24.00 | |
| 4 | A00537-09-00 | SHAFT A | 1 | Pc. | $18.00 | |
| 5 | A00538-09-00 | SHAFT B | 1 | Pc. | $16.00 | |
| 6 | A00539-09-00 | GEARSHIFT DRUM | 1 | Pc. | $69.00 | |
| 7 | A00540-09-00 | GEARSHIFT STAR | 1 | Pc. | $18.00 | |
| 8 | A00541-09-00 | SHAFT | M8X43 | 1 | Pc. | $2.00 |
| 9 | A00542-09-00 | DRUM PLATE | 1 | Pc. | $18.00 | |
| 10 | A00543-09-00 | COLLAR | 1 | Pc. | $2.00 | |
| 11 | A00544-09-00 | PAWL A | 1 | Pc. | $1.50 | |
| 12 | A00545-09-00 | PAWL B | 1 | Pc. | $1.50 | |
| 13 | A00110-23-00 | DOWEL PIN | 2 | Pcs. | $1.50 | |
| 14 | A00546-09-00 | PLATE | 1 | Pc. | $7.00 | |
| 15 | A00547-09-00 | PAWL SPRING | 2 | Pcs. | $1.50 | |
| 16 | A00548-09-00 | DRUM STOPPER | 1 | Pc. | $11.00 | |
| 17 | A00549-09-00 | SPRING | 1 | Pc. | $2.00 | |
| 18 | A00550-09-00 | SHIFTER SHAFT | 1 | Pc. | $30.00 | |
| 19 | A00551-09-00 | SPRING | 1 | Pc. | $3.50 | |
| 20 | A00016-19-04 | STUD | M8X36.5 | 1 | Pc. | $1.50 |
| 21 | A00025-19-X7 | STEPPED FLANGE BOLT | M6X14 | 1 | Pc. | $1.50 |
| 22 | A00025-19-01 | FLANGE BOLT | M6X14 | 2 | Pcs. | $1.50 |
| 23 | A00159-21-01 | WASHER | 6.2X16X1 | 1 | Pc. | $1.50 |
| 24 | A00552-09-00 | BEARING RETAINER PLATE | 2 | Pcs. | $1.50 | |
| 25 | A00050-21-01 | WASHER | 14.2X21X1 | 1 | Pc. | $1.50 |
| 26 | A00049-28-00 | BEARING | 6805LU | 1 | Pc. | $24.00 |
| 27 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 28 | A00005-24-07 | CIRCLIP | 14 | 1 | Pc. | $1.50 |
| 29 | A00554-09-00 | ROLLER | 4X8 | 1 | Pc. | $2.50 |
| 30 | A00555-09-00 | GEARSHIFT PEDAL | 1 | Pc. | $36.00 | |
| 31 | A00003-19-01 | FLANGE BOLT | M6X25 | 1 | Pc. | $1.50 |
| STATOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00532-09-00 | FLYWHEEL | 1 | Pc. | $89.00 | |
| 2 | A00533-09-00 | STATOR | 4-WIRE | 1 | Pc. | $77.00 |
| 2 | A02925-09-00 | STATOR | TAIWAN VERSION | 1 | Pc. | $96.00 |
| 3 | A00006-19-02 | ALLEN BOLT | M5X16 | 2 | Pcs. | $1.50 |
| 4 | A00017-19-02 | ALLEN BOLT | M5X22 | 3 | Pcs. | $1.50 |
| 5 | A00051-21-01 | WASHER | 12.5X22X2.5 | 1 | Pc. | $1.50 |
| 6 | A00001-22-03 | FLANGE NUT | M12X1.25 | 1 | Pc. | $2.00 |
| STARTER CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00517-09-00 | GEAR | 40T | 1 | Pc. | $59.00 |
| 2 | A00518-09-00 | GEAR | 23T | 1 | Pc. | $63.00 |
| 3 | A02678-09-00 | PIN | 10X44 | 1 | Pc. | $7.00 |
| 4 | A00519-09-00 | GEAR | 35T | 1 | Pc. | $72.00 |
| 5 | A00520-09-00 | STARTER CLUTCH OUTER | 1 | Pc. | $74.00 | |
| 6 | A00521-09-00 | GEAR | 9T/19T | 1 | Pc. | $51.00 |
| 7 | A00522-09-00 | ONE-WAY CLUTCH | 1 | Pc. | $45.00 | |
| 8 | A00523-09-00 | CLIP | 1 | Pc. | $33.00 | |
| 9 | A00524-09-00 | HOLDER | 1 | Pc. | $48.00 | |
| 10 | A00525-09-00 | GEAR II | 23T | 1 | Pc. | $29.00 |
| 11 | A00526-09-00 | GEAR I | 13T/43T | 1 | Pc. | $53.00 |
| 12 | A00527-09-00 | WASHER BOLT | M12X1.25X47 | 1 | Pc. | $2.50 |
| 13 | A00076-19-01 | FLANGE BOLT | M7X28 | 2 | Pcs. | $1.50 |
| 14 | A00077-19-03 | FLANGE BOLT | M7X38 | 1 | Pc. | $1.50 |
| 15 | A00052-21-01 | WASHER | 12.3X32X4.4 | 1 | Pc. | $1.50 |
| 16 | A00048-28-00 | NEEDLE BEARING | KJ31X36X18.3XS | 1 | Pc. | $18.00 |
| 18 | A00529-09-00 | SHAFT A | 1 | Pc. | $8.00 | |
| 19 | A00530-09-00 | SHAFT B | 1 | Pc. | $8.00 | |
| 20 | A00531-09-00 | STARTER CLUTCH ASSY | 1 | Assy. | $188.00 | |
| KICKSTARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00504-09-00 | PLATE BRACKET | 1 | Pc. | $8.00 | |
| 2 | A00505-09-00 | COLLAR | 20X22X10 | 1 | Pc. | $8.00 |
| 3 | A00506-09-00 | GEAR | 34T | 1 | Pc. | $59.00 |
| 4 | A00507-09-00 | PLATE | 1 | Pc. | $3.50 | |
| 5 | A00508-09-00 | RACHET | 1 | Pc. | $51.00 | |
| 6 | A00509-09-00 | SPRING | 1 | Pc. | $2.50 | |
| 7 | A00510-09-00 | GEAR | 29T | 1 | Pc. | $69.00 |
| 8 | A00511-09-00 | COLLAR | 1 | Pc. | $8.00 | |
| 9 | A00512-09-00 | SHAFT | 1 | Pc. | $45.00 | |
| 10 | A00513-09-00 | SPRING | 1 | Pc. | $4.00 | |
| 11 | A00514-09-00 | COLLAR | 1 | Pc. | $8.00 | |
| 12 | A00054-21-01 | WASHER | 17.2X26X1.2 | 1 | Pc. | $1.50 |
| 13 | A00053-21-01 | WASHER | 20X28X1 | 2 | Pcs. | $2.00 |
| 14 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 15 | A00001-24-07 | CIRCLIP | 17 | 1 | Pc. | $1.50 |
| 16 | A00014-24-07 | CIRCLIP | 19 | 1 | Pc. | $1.50 |
| 17 | A00016-19-03 | BOLT | M6X20 | 1 | Pc. | $1.50 |
| 18 | A00515-09-00 | KICKSTARTER LEVER | 1 | Pc. | $104.00 | |
| 19 | A00004-19-07 | KICKSTARTER BOLT | M8X13 | 1 | Pc. | $1.50 |

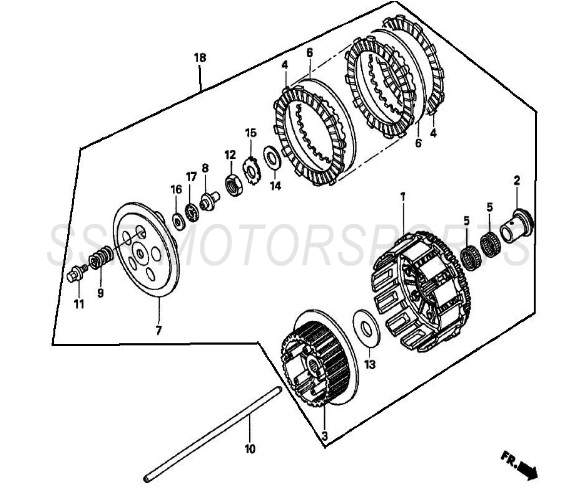

| CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00487-09-00 | CLUTCH BASKET | 1 | Pc. | $188.00 | |
| 2 | A00488-09-00 | COLLAR | 1 | Pc. | $18.00 | |
| 3 | A00489-09-00 | INNER CLUTCH HUB | 1 | Pc. | $42.00 | |
| 4 | A00490-09-00 | CLUTCH FRICTION PLATE | 8 | Pcs. | $14.00 | |
| 5 | A00046-28-00 | NEEDLE BEARING | K28X32X17 | 2 | Pcs. | $16.00 |
| 6 | A00492-09-00 | CLUTCH STEEL PLATE | 7 | Pcs. | $18.00 | |
| 7 | A00493-09-00 | CLUTCH PRESSURE PLATE | 1 | Pc. | $59.00 | |
| 8 | A00494-09-00 | CLUTCH LIFTER PIN | 1 | Pc. | $18.00 | |
| 9 | A00495-09-00 | CLUTCH SPRING | 6 | Pcs. | $3.50 | |
| 10 | A00496-09-00 | CLUTCH PUSH ROD | 1 | Pc. | $11.00 | |
| 11 | A00497-09-00 | CLUTCH BOLT | M6X25 | 6 | Pcs. | $1.50 |
| 12 | A00006-22-01 | NUT | M18 | 1 | Pc. | $4.00 |
| 13 | A00158-21-01 | WASHER | 23X48 | 1 | Pc. | $3.50 |
| 14 | A00157-21-01 | WASHER | 18X27.5X2 | 1 | Pc. | $2.00 |
| 15 | A00501-09-00 | WASHER PLATE | 1 | Pc. | $6.00 | |
| 16 | A00160-21-01 | WASHER | 1 | Pc. | $2.00 | |
| 17 | A00047-28-00 | NEEDLE BEARING | 889101 | 1 | Pc. | $8.00 |
| 18 | A00503-09-00 | CLUTCH ASSY | 1 | Assy. | $396.00 | |
| RIGHT CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00477-09-00 | COLLAR | 1 | Pc. | $3.50 | |
| 2 | A00478-09-00 | RIGHT INNER ENGINE COVER | 1 | Pc. | $104.00 | |
| 3 | A00479-09-00 | CLUTCH COVER | 1 | Pc. | $69.00 | |
| 4 | A00032-13-00 | OUTER CLUTCH COVER O-RING | 1 | Pc. | $18.00 | |
| 5 | A00033-13-00 | RIGHT INNER CRANKCASE COVER GASKET | 1 | Pc. | $29.00 | |
| 6 | A00480-09-00 | OIL FILLER CAP | 1 | Pc. | $8.00 | |
| 7 | A00481-09-00 | VENT HOSE HOLDER | 1 | Pc. | $3.50 | |
| 8 | A00482-09-00 | CAP | M30X1.5 | 1 | Pc. | $10.00 |
| 9 | A00055-21-01 | WASHER | 6.3X1.2X1.6 | 1 | Pc. | $1.50 |
| 10 | A00026-26-00 | OIL SEAL | TC20X28X6 | 1 | Pc. | $4.00 |
| 11 | A00031-27-00 | O-RING | 18X2.65 | 1 | Pc. | $2.00 |
| 12 | A00032-27-00 | O-RING | 28X2.2 | 1 | Pc. | $2.50 |
| 13 | A00006-27-00 | O-RING | 18X3.5 | 1 | Pc. | $2.50 |
| 14 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 15 | A00015-19-03 | BOLT | M6X10 | 1 | Pc. | $1.50 |
| 16 | A00111-23-00 | DOWEL PIN | 2 | Pcs. | $1.50 | |
| 17 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 6 | Pcs. | $1.50 |
| 18 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 10 | Pcs. | $1.50 |

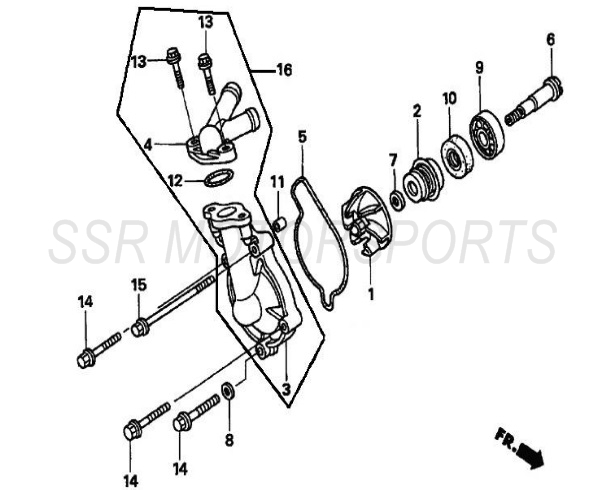

| WATER PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00466-09-00 | WATER PUMP IMPELLER | 1 | Pc. | $30.00 | |
| 2 | A00467-09-00 | WATER PUMP MECHANICAL SEAL | 1 | Pc. | $24.00 | |
| 3 | A00468-09-00 | WATER PUMP COVER | 1 | Pc. | $54.00 | |
| 4 | A00469-09-00 | WATER PUMP JOINT | 1 | Pc. | $51.00 | |
| 5 | A00470-09-00 | WATER PUMP COVER O-RING | 1 | Pc. | $8.00 | |
| 6 | A00471-09-00 | WATER PUMP SHAFT | 1 | Pc. | $30.00 | |
| 7 | A00056-21-01 | WASHER | 7.5X13X1 | 1 | Pc. | $1.50 |
| 8 | A00055-21-01 | WASHER | 6.3X1.2X1.6 | 1 | Pc. | $1.50 |
| 9 | A00045-28-00 | BEARING | 16001JRX | 1 | Pc. | $13.00 |
| 10 | A00025-26-00 | OIL SEAL | 12X22X5 | 1 | Pc. | $7.00 |
| 11 | A00015-23-00 | DOWEL PIN | 6.4X8X7 | 1 | Pc. | $1.50 |
| 12 | A00115-27-00 | O-RING | 1 | Pc. | $2.50 | |
| 13 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 14 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 3 | Pcs. | $1.50 |
| 15 | A00432-19-08 | CASE FLANGE BOLT | M6X85 | 1 | Pc. | $2.00 |
| 16 | A00476-09-00 | WATER PUMP COVER ASSY | 1 | Assy. | $96.00 | |

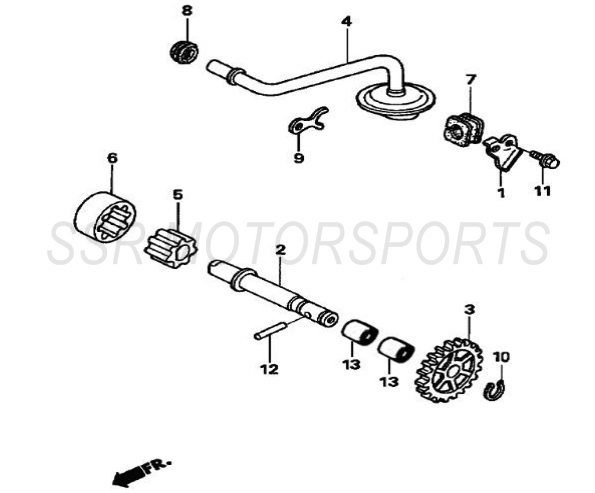

| OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00456-09-00 | OIL PUMP PLATE | 1 | Pc. | $8.00 | |
| 2 | A00457-09-00 | OIL PUMP SHAFT | 1 | Pc. | $18.00 | |
| 3 | A00458-09-00 | OIL PUMP GEAR | 1 | Pc. | $13.00 | |
| 4 | A00459-09-00 | OIL PUMP PICKUP | 1 | Pc. | $14.00 | |
| 5 | A00460-09-00 | OIL PUMP INNER ROTOR | 1 | Pc. | $11.00 | |
| 6 | A00461-09-00 | OIL PUMP OUTER ROTOR | 1 | Pc. | $13.00 | |
| 7 | A00462-09-00 | OIL PUMP TUBE HOLDER | 1 | Pc. | $7.00 | |
| 8 | A00202-26-00 | OIL SEAL | 1 | Pc. | $6.00 | |
| 9 | A00464-09-00 | OIL PUMP PICKUP HOLDER | 1 | Pc. | $4.00 | |
| 10 | A00011-24-07 | CIRCLIP | 8 | 1 | Pc. | $1.50 |
| 11 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 12 | A00001-25-03 | ROLL PIN | 3X17.8 | 1 | Pc. | $1.50 |
| 13 | A00059-28-00 | NEEDLE BEARING | HK0910 | 2 | Pcs. | $13.00 |
| LEFT CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00441-09-00 | OIL FILTER COVER | 1 | Pc. | $13.00 | |
| 2 | A00442-09-00 | LEFT CRANKSCASE COVER | 1 | Pc. | $104.00 | |
| 3 | A00031-13-00 | LEFT CRANKCASE COVER GASKET | 1 | Pc. | $36.00 | |
| 4 | A00443-09-00 | OIL VALVE | 1 | Pc. | $14.00 | |
| 5 | A00444-09-00 | OIL FILTER | 1 | Pc. | $18.00 | |
| 6 | A00445-09-00 | SPRING | 1 | Pc. | $2.50 | |
| 7 | A00446-09-00 | OIL LEVEL DIPSTICK | 1 | Pc. | $11.00 | |
| 8 | A00090-02-02 | FRONT SPROCKET COVER | 1 | Pc. | $18.00 | |
| 9 | A00447-09-00 | DRIVE CHAIN CASE PROTECTOR | 1 | Pc. | $7.00 | |
| 10 | A00049-19-01 | FLANGE BOLT | M8X35 | 1 | Pc. | $2.00 |
| 11 | A00448-09-00 | CAP | 1 | Pc. | $2.50 | |
| 12 | A00057-21-01 | WASHER | 13.5X24X1.6 | 1 | Pc. | $2.00 |
| 13 | A00014-21-04 | CRUSH WASHER | 8X16X1.5 | 1 | Pc. | $1.50 |
| 14 | A02686-09-00 | CIRCLIP | 21.51X1.2 | 1 | Pc. | $2.00 |
| 15 | A00034-27-00 | O-RING | 9X1.8 | 1 | Pc. | $1.50 |
| 16 | A00024-26-00 | OIL SEAL | 10X21X5 | 1 | Pc. | $13.00 |
| 17 | A00035-27-00 | O-RING | 40X2.2 | 1 | Pc. | $3.50 |
| 18 | A00036-27-00 | O-RING | 14X2.65 | 1 | Pc. | $1.50 |
| 19 | A00033-27-00 | O-RING | 18X3.55 | 1 | Pc. | $2.00 |
| 20 | A00001-23-00 | DOWEL PIN | 8X14 | 1 | Pc. | $1.50 |
| 21 | A00007-23-00 | DOWEL PIN | 10X16 | 1 | Pc. | $1.50 |
| 22 | A00455-09-00 | CIRCLIP | 14 | 1 | Pc. | $1.50 |
| 23 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 24 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 25 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 6 | Pcs. | $1.50 |
| 26 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 1 | Pc. | $1.50 |
| 27 | A00439-19-08 | CASE FLANGE BOLT | M6X75 | 1 | Pc. | $2.00 |
