Product Description
| 2018-2019 SRU170RS | ||||||
 |
||||||

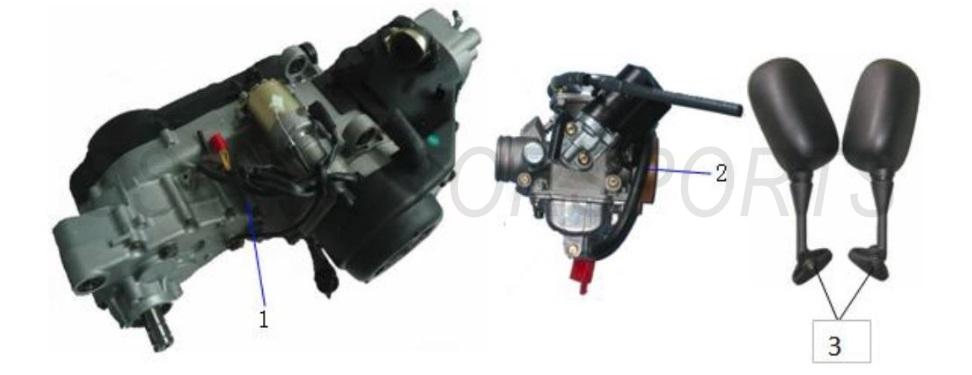

| ENGINE & CARBURETOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02915-09-00 | ENGINE ASSY |
WANGYE/JINYANG *OVERSIZE*
|
1 | Assy. | $644.00 |
| 2 | A00101-12-00 | CARBURETOR ASSY | 1 | Assy. | $142.00 | |
| 3 | A00809-02-00 | REARVIEW MIRROR SET | 1 | Set | $51.00 | |

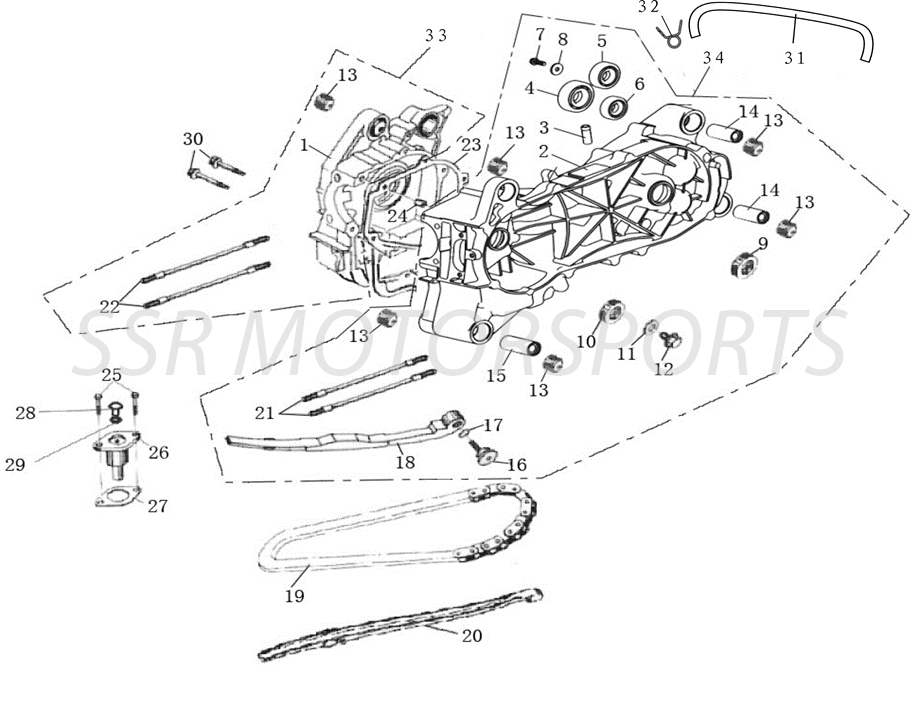

| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00634-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $89.00 | |
| 2 | A00635-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $112.00 | |
| 3 | A00636-09-00 | BREATHER PIPE JOINT | 1 | Pc. | $13.00 | |
| 4 | A00020-28-00 | BEARING | 6204 | 1 | Pc. | $30.00 |
| 5 | A00008-28-00 | BEARING | 6203 | 1 | Pc. | $27.00 |
| 6 | A00021-28-00 | BEARING | 6202 | 1 | Pc. | $13.00 |
| 7 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 8 | A00007-21-01 | WASHER | M6 | 1 | Pc. | $1.50 |
| 9 | A00007-26-00 | OIL SEAL | 20X32X6 | 1 | Pc. | $6.00 |
| 10 | A00008-26-00 | OIL SEAL | 19.8X30X5 | 1 | Pc. | $18.00 |
| 11 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 12 | A01102-09-00 | OIL DRAIN BOLT | M12 | 1 | Pc. | $4.00 |
| 13 | A00642-09-00 | FRONT ABSORBER SLEEVE | 5 | Pcs. | $2.00 | |
| 14 | A00643-09-00 | BUSHING | 42 | 1 | Pcs. | $4.00 |
| 15 | A00644-09-00 | BUSHING | 50 | 1 | Pc. | $4.00 |
| 16 | A00645-09-00 | TIMING CHAIN PIVOT BOLT | 1 | Pc. | $2.00 | |
| 17 | A00015-27-00 | O-RING | 16X1.5 | 1 | Pc. | $2.50 |
| 18 | A00647-09-00 | TIMING CHAIN GUIDE | 1 | Pc. | $18.00 | |
| 19 | A00736-09-00 | TIMING CHAIN | 1 | Pc. | $39.00 | |
| 20 | A00648-09-00 | CHAIN GUIDE | 1 | Pc. | $18.00 | |
| 21 | A00011-19-04 | STUD | M8X209 | 2 | Pcs. | $7.00 |
| 22 | A00012-19-04 | STUD | M8X201 | 2 | Pcs. | $7.00 |
| 23 | A00040-13-00 | CENTER CRANKCASE GASKET | 1 | Pc. | $18.00 | |
| 24 | A00001-23-00 | DOWEL PIN | 8X14 | 2 | Pcs. | $1.50 |
| 25 | A00024-19-01 | FLANGE BOLT | M6X22 | 2 | Pcs. | $1.50 |
| 26 | A00649-09-00 | CAM CHAIN TENSIONER | 1 | Pc. | $30.00 | |
| 27 | A00039-13-00 | CAM CHAIN TENSIONER GASKET | 1 | Pc. | $4.00 | |
| 28 | A00008-20-02 | PAN HEAD SCREW | M6X6 | 1 | Pc. | $1.50 |
| 29 | A00016-27-00 | O-RING | 9.5X1.5 | 1 | Pc. | $1.50 |
| 30 | A00019-19-03 | FLANGE BOLT | M6X50 | 2 | Pcs. | $2.00 |
| 31 | A00650-09-00 | VENT TUBE | 1 | Pc. | $11.00 | |
| 32 | A00005-24-03 | CLAMP | 11.5 | 1 | Pc. | $1.50 |
| 33 | A00651-09-00 | RIGHT CRANKCASE HALF ASSY | 1 | Assy. | $96.00 | |
| 34 | A00652-09-00 | LEFT CRANKCASE HALF ASSY | 1 | Assy. | $142.00 | |

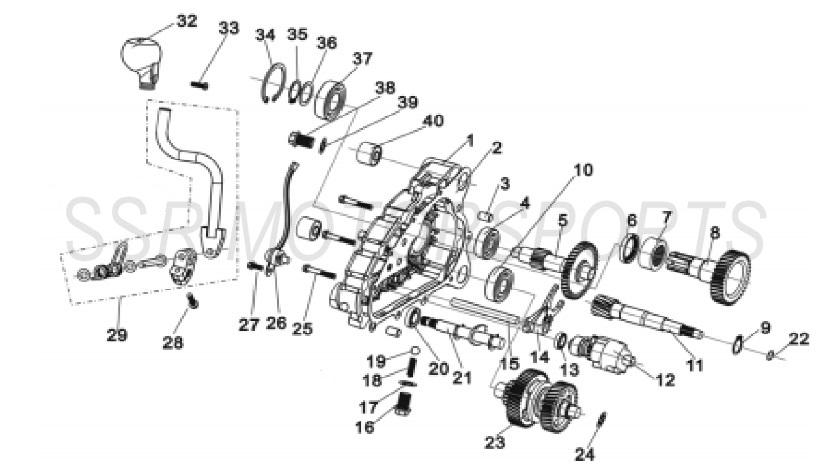

| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00108-17-00 | GEARCASE COVER | 1 | Pc. | $69.00 | |
| 2 | A00042-13-00 | GEARCASE GASKET | 1 | Pc. | $14.00 | |
| 3 | A00112-23-00 | DOWEL PIN | 2 | Pcs. | $1.50 | |
| 4 | A00167-28-00 | BEARING | 6302 | 1 | Pc. | $24.00 |
| 5 | A00110-17-00 | REVERSE GEAR SHAFT | 1 | Pc. | $77.00 | |
| 6 | A00217-26-00 | OIL SEAL | 1 | Pc. | $4.00 | |
| 7 | A00019-28-00 | NEEDLE BEARING | RNA4905 | 1 | Pc. | $18.00 |
| 8 | A00113-17-00 | OUTPUT SHAFT | 1 | Pc. | $77.00 | |
| 9 | A00072-24-07 | CIRCLIP | 1 | Pc. | $1.50 | |
| 10 | A00020-28-00 | BEARING | 6204 | 2 | Pcs. | $30.00 |
| 11 | A00115-17-00 | INPUT SHAFT | 1 | Pc. | $59.00 | |
| 12 | A00116-17-00 | SHIFT DRUM ASSY | 1 | Pc. | $77.00 | |
| 13 | A00218-26-00 | OIL SEAL | 1 | Pc. | $3.50 | |
| 14 | A00118-17-00 | SHIFT FORK | 1 | Pc. | $39.00 | |
| 15 | A00119-17-00 | SHIFT FORK SHAFT | 1 | Pc. | $18.00 | |
| 16 | A00224-19-03 | BOLT | 1 | Pc. | $1.50 | |
| 17 | A00020-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 18 | A00120-17-00 | SPRING | 1 | Pc. | $1.50 | |
| 19 | A00121-17-00 | STEEL BALL | 1 | Pc. | $4.00 | |
| 20 | A00219-26-00 | OIL SEAL | 1 | Pc. | $4.00 | |
| 21 | A00123-17-00 | SHIFT SHAFT | 1 | Pc. | $39.00 | |
| 22 | A00017-27-00 | O-RING | 10X2.5 | 1 | Pc. | $1.50 |
| 23 | A00125-17-00 | INTERMEDIATE GEAR | 1 | Pc. | $112.00 | |
| 24 | A00021-21-01 | WASHER | 15X19X1 | 1 | Pc. | $1.50 |
| 25 | A00021-19-01 | FLANGE BOLT | M6X40 | 10 | Pcs. | $2.00 |
| 26 | A00126-17-00 | GEAR SENSOR | 1 | Pc. | $35.00 | |
| 27 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 28 | A00030-19-03 | FLANGE BOLT | M6X22 | 1 | Pc. | $1.50 |
| 29 | A00077-11-00 | SHIFTER HANDLE | 1 | Pc. | $45.00 | |
| 32 | A00130-17-00 | SHIFTER KNOB | 1 | Pc. | $27.00 | |
| 33 | A00131-17-00 | SHIFTER KNOB BOLT | 1 | Pc. | $1.50 | |
| 34 | A00073-24-07 | CIRCLIP | 1 | Pc. | $2.50 | |
| 35 | A00132-17-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 36 | A00183-21-01 | WASHER | 25x33x1 | 1 | Pc. | $1.50 |
| 37 | A00142-28-00 | BEARING | 6205-2RS | 1 | Pc. | $39.00 |
| 38 | A00225-19-03 | DRAIN BOLT | M12X1.5X14 | 1 | Pc. | $1.50 |
| 39 | A00184-21-01 | DRAIN WASHER | 12X18X1 | 1 | Pc. | $1.50 |
| 40 | A00134-17-00 | RUBBER DAMPER | 2 | Pcs. | $3.50 | |

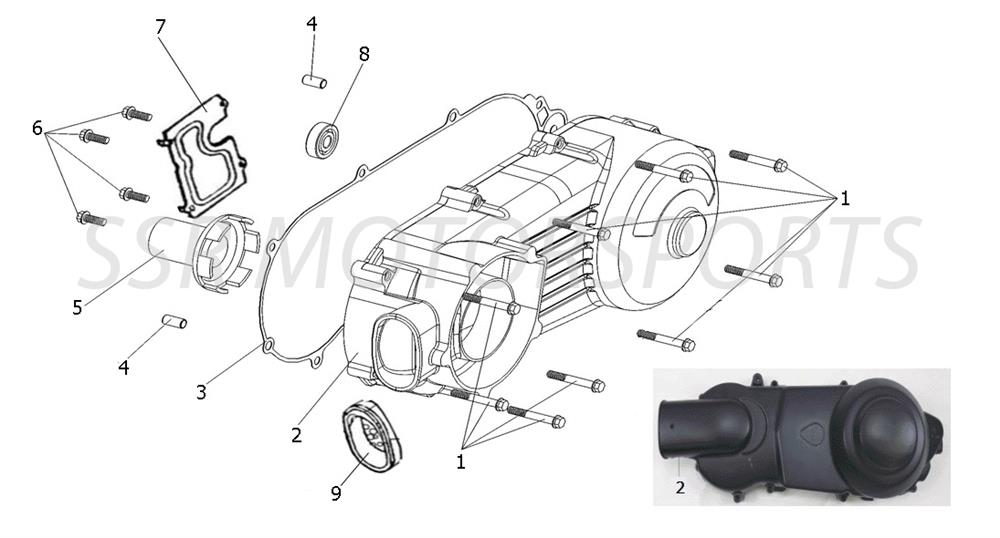

| LEFT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 8 | Pcs. | $1.50 |
| 2 | A00653-09-00 | CVT COVER | IMAGE ON RIGHT | 1 | Pc. | $89.00 |
| 3 | A00079-13-00 | CVT COVER GASKET | 1 | Pc. | $18.00 | |
| 4 | A00001-23-00 | DOWEL PIN | 8X14 | 2 | Pcs. | $1.50 |
| 5 | A00654-09-00 | COUPLER | 1 | Pc. | $30.00 | |
| 6 | A00008-20-03 | SCREW | 4.2X8 | 4 | Pcs. | $1.50 |
| 7 | A00655-09-00 | INTAKE PLATE | 1 | Pc. | $13.00 | |
| 8 | A00168-28-00 | BEARING | 6200-2RS | 1 | Pc. | $18.00 |
| 9 | A00657-09-00 | CVT COVER INTAKE FILTER | 1 | Pc. | $13.00 | |

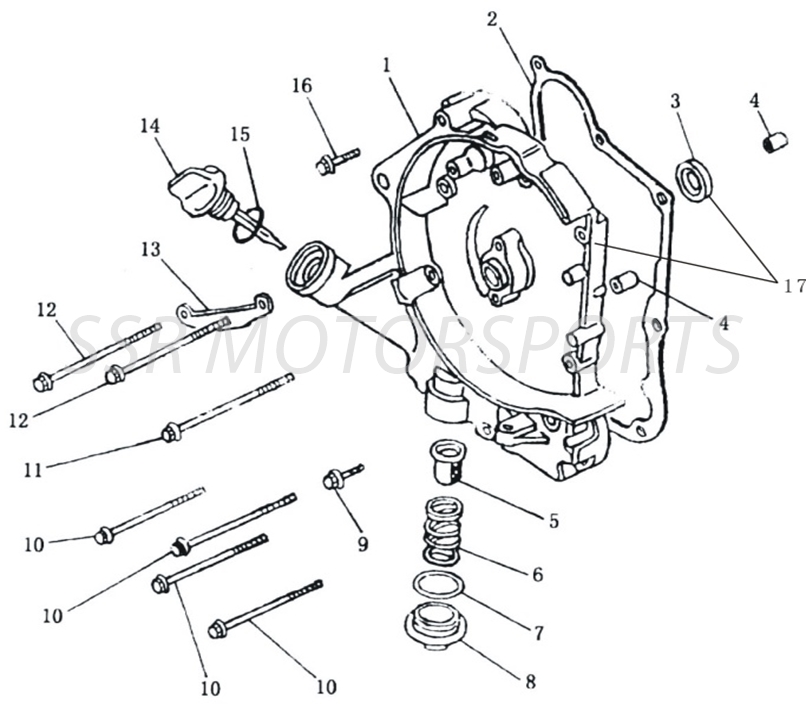

| RIGHT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00658-09-00 | RIGHT ENGINE COVER | 1 | Pc. | $51.00 | |
| 2 | A00044-13-00 | RIGHT ENGINE COVER GASKET | 1 | Pc. | $13.00 | |
| 3 | A00008-26-00 | OIL SEAL | 19.8X30X5 | 1 | Pc. | $18.00 |
| 4 | A00001-23-00 | DOWEL PIN | 8X14 | 2 | Pcs. | $1.50 |
| 5 | A00660-09-00 | OIL SCREEN | 1 | Pc. | $8.00 | |
| 6 | A00661-09-00 | OIL SCREEN SPRING | 1 | Pc. | $2.50 | |
| 7 | A00018-27-00 | O-RING | 30.5X3 | 1 | Pc. | $2.50 |
| 8 | A00663-09-00 | OIL SCREEN CAP | 1 | Pc. | $8.00 | |
| 9 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 1 | Pc. | $1.50 |
| 10 | A00433-19-08 | CASE FLANGE BOLT | M6X95 | 4 | Pcs. | $2.00 |
| 11 | A00434-19-08 | CASE FLANGE BOLT | M6X100 | 1 | Pc. | $2.00 |
| 12 | A00033-19-01 | CASE FLANGE BOLT | M6X110 | 2 | Pcs. | $2.50 |
| 13 | A00664-09-00 | WIRE HOLDER | 1 | Pc. | $8.00 | |
| 14 | A00665-09-00 | OIL DIPSTICK | 1 | Pc. | $14.00 | |
| 15 | A00090-27-00 | O-RING | 18X3 | 1 | Pc. | $2.50 |
| 16 | A00012-19-01 | FLANGE BOLT | M6X35 | 1 | Pc. | $1.50 |
| 17 | A00667-09-00 | RIGHT COVER ASSY | 1 | Assy. | $77.00 | |

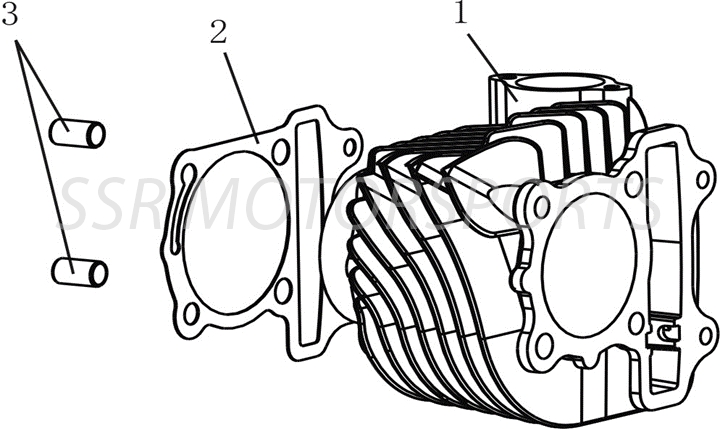

| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00668-09-00 | CYLINDER | 1 | Pc. | $89.00 | |
| 2 | A00045-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $13.00 | |
| 3 | A00007-23-00 | DOWEL PIN | 10X16 | 2 | Pcs. | $1.50 |

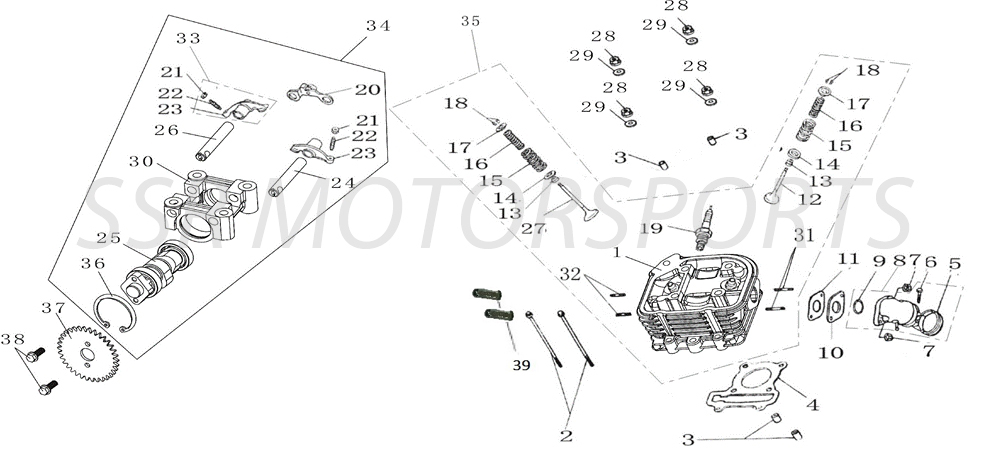

| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00669-09-00 | CYLINDER HEAD | 1 | Pc. | $96.00 | |
| 2 | A00063-19-01 | FLANGE BOLT | M6X100 | 2 | Pcs. | $2.00 |
| 3 | A00007-23-00 | DOWEL PIN | 10X16 | 2 | Pcs. | $1.50 |
| 4 | A00046-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $13.00 | |
| 5 | A00074-24-02 | INTAKE INLET CLAMP | 1 | Pc. | $4.00 | |
| 6 | A00017-20-02 | SCREW | M4X25 | 1 | Pc. | $1.50 |
| 7 | A00001-22-02 | HEX NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00267-14-00 | INTAKE MANIFOLD ASSY | 1 | Assy. | $45.00 | |
| 9 | A00020-27-00 | O-RING | 26.5X1.8 | 1 | Pc. | $1.50 |
| 10 | A00268-14-00 | INTAKE INSULATOR | 1 | Pc. | $7.00 | |
| 11 | A00041-13-00 | INTAKE GASKET | 1 | Pc. | $4.00 | |
| 12 | A00674-09-00 | INTAKE VALVE | 1 | Pc. | $27.00 | |
| 13 | A02041-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.50 | |
| 14 | A00676-09-00 | SPRING SEAT | 2 | Pcs. | $2.50 | |
| 15 | A00677-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $11.00 | |
| 16 | A00678-09-00 | INNER VALVE SPRING | 2 | Pcs. | $8.00 | |
| 17 | A00679-09-00 | SPRING RETAINER | 2 | Pcs. | $2.50 | |
| 18 | A00680-09-00 | COLLET | 4 | Pcs. | $2.50 | |
| 19 | C7HSA | SPARK PLUG | C7HSA | 1 | Pc. | $8.00 |
| 20 | A00681-09-00 | ROCKER ARM STOPPER | 1 | Pc. | $11.00 | |
| 21 | A00682-09-00 | ADJUSTER NUT | 2 | Pcs. | $1.50 | |
| 22 | A00683-09-00 | ADJUSTER SCREW | 2 | Pcs. | $1.50 | |
| 23 | A00684-09-00 | ROCKER ARM | 2 | Pcs. | $14.00 | |
| 24 | A00685-09-00 | ROCKER ARM SHAFT A | 1 | Pc. | $4.00 | |
| 25 | A00686-09-00 | CAMSHAFT | 1 | Pc. | $59.00 | |
| 26 | A00687-09-00 | ROCKER ARM SHAFT B | 1 | Pc. | $10.00 | |
| 27 | A00688-09-00 | EXHAUST VALVE | 1 | Pc. | $30.00 | |
| 28 | A00002-22-01 | NUT | M8 | 4 | Pcs. | $1.50 |
| 29 | A00004-21-01 | WASHER | M8 | 4 | Pcs. | $1.50 |
| 30 | A00689-09-00 | CAMSHAFT RETAINER | 1 | Pc. | $39.00 | |
| 31 | A00009-19-04 | STUD | M6X63 | 2 | Pcs. | $2.00 |
| 32 | A00010-19-04 | STUD | M8X32 | 2 | Pcs. | $1.50 |
| 33 | A00690-09-00 | ROCKER ARM ASSY | 2 | Pcs. | $27.00 | |
| 34 | A00691-09-00 | CAMSHAFT ASSY | 1 | Pc. | $89.00 | |
| 35 | A00692-09-00 | CYLINDER HEAD ASSY | 1 | Pc. | $112.00 | |
| 36 | A00075-24-07 | CIRCLIP | 1 | Pc. | $3.50 | |
| 37 | A00693-09-00 | TIMING SPROCKET | 1 | Pc. | $24.00 | |
| 38 | A00065-19-01 | FLANGE BOLT | M5X12 | 2 | Pcs. | $1.50 |
| 39 | A00100-22-36 | FLANGE CAP NUT | M8 | 2 | Pcs. | $1.50 |

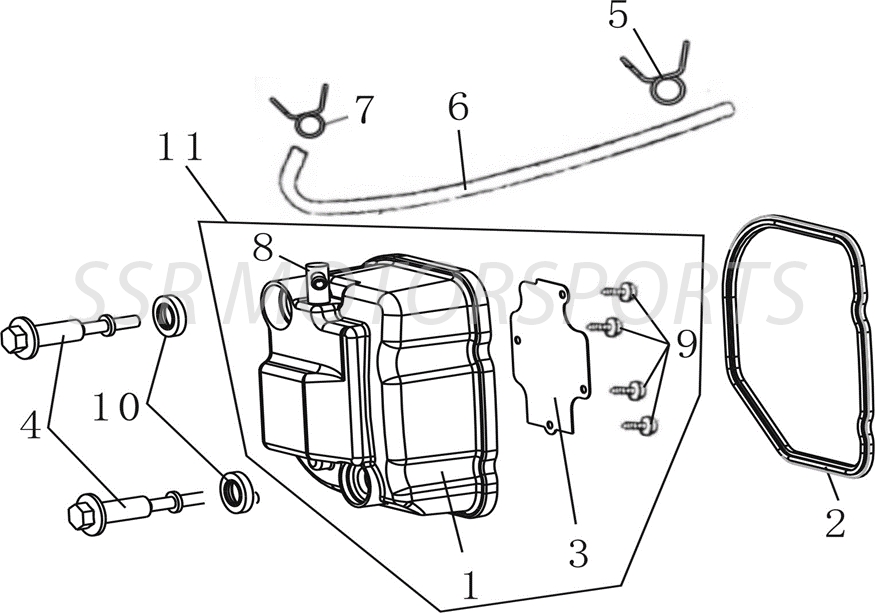

| CYLINDER HEAD COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 2 | A00048-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $13.00 | |
| 4 | A00226-19-07 | COVER BOLT | 2 | Pcs. | $1.50 | |
| 5 | A00076-24-02 | CLAMP | 1 | Pc. | $1.50 | |
| 6 | A00696-09-00 | VENT TUBE | 1 | Pc. | $11.00 | |
| 7 | A00077-24-02 | CLAMP | 1 | Pc. | $1.50 | |
| 10 | A00698-09-00 | BOLT SEAL | 2 | Pcs. | $1.50 | |
| 11 | A00699-09-00 | CYLINDER HEAD COVER ASSY | 1 | Pc. | $54.00 | |

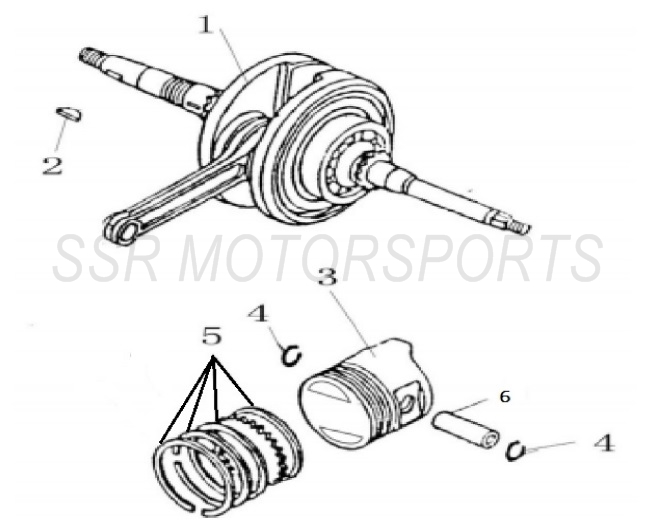

| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00700-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $112.00 | |
| 2 | A00701-09-00 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 3 | A00702-09-00 | PISTON | 1 | Pc. | $45.00 | |
| 4 | A00703-09-00 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 5 | A00704-09-00 | PISTON RING SET | 1 | Set | $51.00 | |
| 6 | A00707-09-00 | PISTON PIN | 1 | Pc. | $4.00 | |

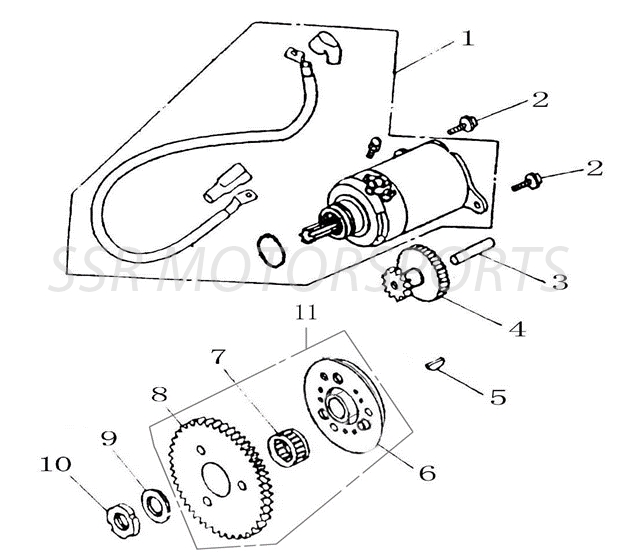

| STARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00708-09-00 | STARTER ASSY | 1 | Assy. | $77.00 | |
| 2 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 3 | A00709-09-00 | SHAFT | 1 | Pc. | $18.00 | |
| 4 | A00710-09-00 | REDUCTION GEAR | 1 | Pc. | $45.00 | |
| 5 | A00711-09-00 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 6 | A00712-09-00 | STARTER CLUTCH | 1 | Pc. | $51.00 | |
| 7 | A00143-28-00 | NEEDLE BEARING | 1 | Pc. | $14.00 | |
| 8 | A00714-09-00 | DRIVE GEAR | 1 | Pc. | $30.00 | |
| 9 | A00185-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 10 | A00003-22-08 | SPLINED NUT | M22X1.0 | 1 | Pc. | $6.00 |
| 11 | A00715-09-00 | STARTER CLUTCH ASSY | 1 | Assy. | $77.00 | |

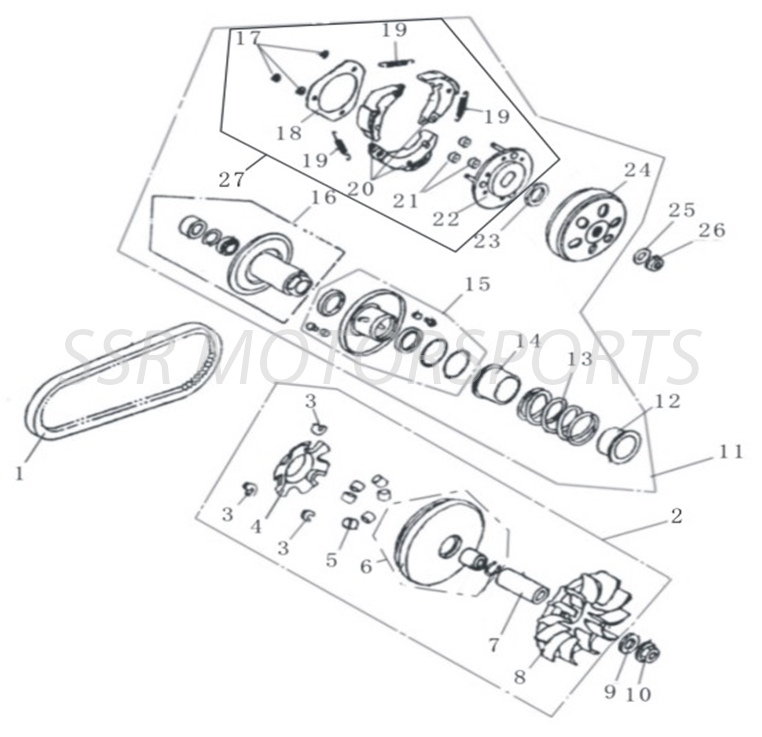

| DRIVE CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00082-07-00 | DRIVE BELT | 743-20-30 | 1 | Pc. | $54.00 |
| 2 | A00083-07-00 | VARIATOR ASSY | 1 | Assy. | $54.00 | |
| 3 | A00084-07-00 | PIN | 3 | Pcs. | $1.50 | |
| 4 | A00085-07-00 | RAMP PLATE | 1 | Pc. | $11.00 | |
| 5 | A00086-07-00 | ROLLER WEIGHT | 6 | Pcs. | $4.00 | |
| 6 | A00087-07-00 | DRIVE PULLEY | 1 | Pc. | $30.00 | |
| 7 | A00088-07-00 | DRIVE FAN SLEEVE | 1 | Pc. | $4.00 | |
| 8 | A00089-07-00 | DRIVE BELT FAN | 1 | Pc. | $21.00 | |
| 9 | A00186-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 10 | A00010-22-01 | FLANGE NUT | M12X1.25 | 1 | Pc. | $2.00 |
| 11 | A00090-07-00 | REAR DRIVE CLUTCH ASSY | 1 | Assy. | $96.00 | |
| 12 | A00091-07-00 | SPRING COLLAR A | 1 | Pc. | $3.50 | |
| 13 | A00092-07-00 | SPRING | 1 | Pc. | $4.00 | |
| 14 | A00093-07-00 | SPRING COLLAR B | 1 | Pc. | $3.50 | |
| 15 | A00094-07-00 | REAR PULLEY A | 1 | Pc. | $39.00 | |
| 16 | A00095-07-00 | REAR PULLEY B | 1 | Pc. | $39.00 | |
| 17 | A00070-22-01 | NUT | 3 | Pcs. | $1.50 | |
| 18 | A00096-07-00 | WEIGHT PLATE | 1 | Pc. | $14.00 | |
| 19 | A00097-07-00 | SPRING | 3 | Pcs. | $1.50 | |
| 20 | A00098-07-00 | CLUTCH WEIGHT | 3 | Pcs. | $8.00 | |
| 21 | A00071-22-01 | NUT | 3 | Pcs. | $1.50 | |
| 22 | A00099-07-00 | CLUTCH PLATE | 1 | Pc. | $18.00 | |
| 23 | A00100-07-00 | PLATE WASHER | 1 | Pc. | $1.50 | |
| 24 | A00101-07-00 | ONE-WAY CLUTCH | 1 | Pc. | $41.00 | |
| 25 | A00022-21-01 | WASHER | 12.3X29X2.5 | 1 | Pc. | $1.50 |
| 26 | A00072-22-01 | NUT | M12X1.25X8 | 1 | Pc. | $2.00 |
| 27 | A00102-07-00 | DRIVE CLUTCH ASSY | 1 | Assy. | $41.00 | |

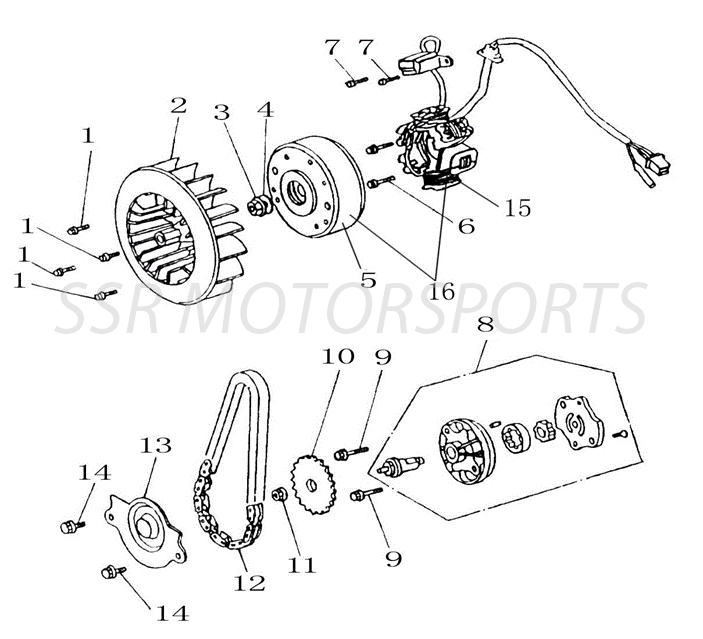

| STATOR & OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00066-19-01 | FLANGE BOLT | M6X18 | 4 | Pcs. | $1.50 |
| 2 | A00716-09-00 | FAN | 1 | Pc. | $24.00 | |
| 3 | A00010-22-01 | FLANGE NUT | M12X1.25 | 1 | Pc. | $2.00 |
| 4 | A00187-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 5 | A02916-09-00 | FLYWHEEL | 1 | Pc. | $63.00 | |
| 6 | A00008-19-02 | ALLEN BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00065-19-01 | FLANGE BOLT | M5X12 | 2 | Pcs. | $1.50 |
| 8 | A00718-09-00 | OIL PUMP ASSY | 1 | Assy. | $30.00 | |
| 9 | A00003-19-01 | FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 10 | A00719-09-00 | OIL PUMP SPROCKET | 1 | Pc. | $18.00 | |
| 11 | A00001-22-01 | NUT | M6 | 1 | Pc. | $1.50 |
| 12 | A00720-09-00 | OIL PUMP CHAIN | 1 | Pc. | $24.00 | |
| 13 | A00721-09-00 | OIL PUMP PLATE | 1 | Pc. | $18.00 | |
| 14 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 15 | A02917-09-00 | STATOR | 1 | Pc. | $89.00 | |
| 16 | A02918-09-00 | STATOR W/ FLYWHEEL ASSY | 1 | Assy. | $142.00 | |

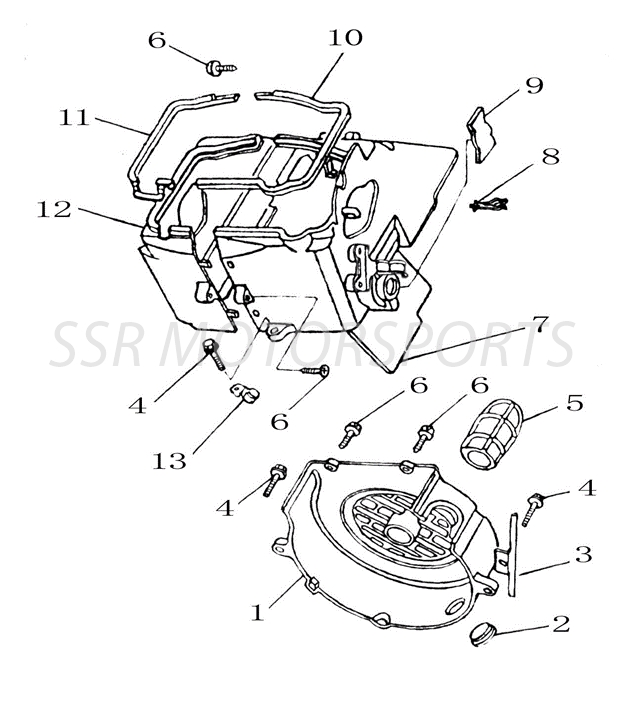

| FAN COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00724-09-00 | FAN COVER | 1 | Pc. | $18.00 | |
| 2 | A00725-09-00 | CAP | 1 | Pc. | $14.00 | |
| 3 | A00726-09-00 | CABLE CLAMP A | 1 | Pc. | $4.00 | |
| 4 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 3 | Pcs. | $1.50 |
| 5 | A00727-09-00 | COOLING DUCT | 1 | Pc | $14.00 | |
| 6 | A00009-20-03 | SCREW | ST4.8X16 | 5 | Pcs. | $1.50 |
| 7 | A00728-09-00 | UPPER FAN COVER ASSY | 1 | Pc. | $18.00 | |
| 8 | A00729-09-00 | CABLE CLAMP B | 1 | Pc. | $1.50 | |
| 9 | A00730-09-00 | COVER CAP INSERT | 1 | Pc. | $2.50 | |
| 10 | A00731-09-00 | UPPER RUBBER SEAL | 1 | Pc. | $4.00 | |
| 11 | A00732-09-00 | LOWER RUBBER SEAL | 1 | Pc. | $4.00 | |
| 12 | A00733-09-00 | LOWER FAN COVER | 1 | Pc. | $18.00 | |
| 13 | A00734-09-00 | TUBING CLAMP | 1 | Pc. | $13.00 | |
| FRAME COMPONENTS I | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00526-11-00 | FRAME | *OVERSIZE* | 1 | Pc. | $1,225.00 |
| 2 | A00454-11-00 | CENTER CAGE SUPPORT | 1 | Pc. | $188.00 | |
| 3 | A00527-11-00 | FRONT BUMPER | 1 | Pc. | $112.00 | |
| 4 | A00528-11-00 | LEFT FRONT CAGE | 1 | Pc. | $77.00 | |
| 5 | A00529-11-00 | RIGHT FRONT CAGE | 1 | Pc. | $77.00 | |
| 6 | A00056-11-00 | LEFT NET RAIL | 1 | Pc. | $66.00 | |
| 7 | A00057-11-00 | RIGHT NET RAIL | 1 | Pc. | $66.00 | |
| 8 | A00530-11-00 | REAR BUMPER | 1 | Pc. | $124.00 | |
| 9 | A00531-11-00 | FRONT CENTER UPPER CAGE | 1 | Pc. | $51.00 | |
| 10 | A00126-05-00 | BRAKE PEDAL | 1 | Pc. | $72.00 | |
| 11 | A00127-05-00 | ACCELERATOR PEDAL | 1 | Pc. | $59.00 | |
| 12 | A00532-11-00 | FRONT LOWER CAGE | 1 | Pc. | $51.00 | |
| 13 | A00462-11-00 | LEFT REAR CAGE | 1 | Pc. | $83.00 | |
| 14 | A00463-11-00 | RIGHT REAR CAGE | 1 | Pc. | $83.00 | |
| 15 | A00063-11-00 | FUEL TANK CLAMP SMALL | 1 | Pc. | $18.00 | |
| 16 | A00064-11-00 | FUEL TANK CLAMP LARGE | 1 | Pc. | $24.00 | |
| 17 | A00065-11-00 | STEERING COLUMN | 1 | Pc. | $59.00 | |
| 18 | A00066-11-00 | SPARE WHEEL CARRIER | 1 | Pc. | $59.00 | |
| 19 | A00466-11-00 | MESH CHAIN GUARD | 1 | Pc. | $45.00 | |
| 20 | A00347-22-01 | NUT | M10 | 2 | Pcs. | $1.50 |

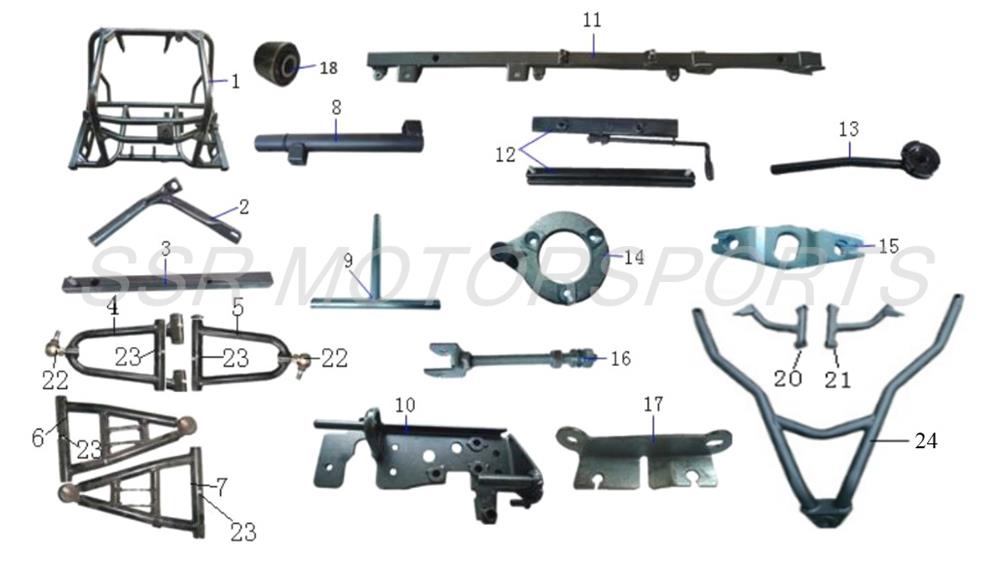

| FRAME COMPONENTS II | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00465-11-00 | ENGINE FRAME | 1 | Pc. | $385.00 | |
| 2 | A00068-11-00 | MUFFLER BRACKET | 1 | Pc. | $39.00 | |
| 3 | A00069-11-00 | PASSENGER SEAT MOUNTING BRACKET | 2 | Pcs. | $27.00 | |
| 4 | A00527-16-00 | LEFT UPPER A-ARM | 1 | Pc. | $89.00 | |
| 5 | A00528-16-00 | RIGHT UPPER A-ARM | 1 | Pc. | $89.00 | |
| 6 | A00529-16-00 | LEFT LOWER A-ARM | 1 | Pc. | $89.00 | |
| 7 | A00530-16-00 | RIGHT LOWER A-ARM | 1 | Pc. | $89.00 | |
| 8 | A00129-05-00 | HANDLEBAR SUPPORT | 1 | Pc. | $42.00 | |
| 9 | A00128-05-00 | PASSENGER HANDLEBAR | 1 | Pc. | $30.00 | |
| 10 | A00074-11-00 | FOOTREST SUPPORT | 1 | Pc. | $69.00 | |
| 11 | A00075-11-00 | SEAT BRACKET | 1 | Pc. | $77.00 | |
| 12 | A00076-11-00 | DRIVER'S SEAT SLIDER SET | 1 | Set | $66.00 | |
| 13 | A00077-11-00 | SHIFTER HANDLE | 1 | Pc. | $45.00 | |
| 14 | A00078-11-00 | ADJUSTABLE FIXED PLATE | 1 | Pc. | $51.00 | |
| 15 | A00079-11-00 | SHIFT ROCKER ARM | 1 | Pc. | $18.00 | |
| 16 | A00080-11-00 | CONTROL ROD | 1 | Pc. | $39.00 | |
| 17 | A00081-11-00 | SHIFT CABLE FIXED PLATE | 1 | Pc. | $18.00 | |
| 18 | A00531-16-00 | BUSHING | 30X10X35 | 1 | Pc. | $7.00 |
| 20 | A00533-11-00 | RIGHT FRONT BUMPER BRACKET | 1 | Pc. | $27.00 | |
| 21 | A00534-11-00 | LEFT FRONT BUMPER BRACKET | 1 | Pc. | $27.00 | |
| 22 | A00532-16-00 | BALL JOINT | M14 | 2 | Pcs. | $30.00 |
| 23 | A00533-16-00 | GREASE FITTING | 4 | Pcs. | $2.50 | |
| 24 | A00535-11-00 | HOOD CAGE | 1 | Pc. | $104.00 | |

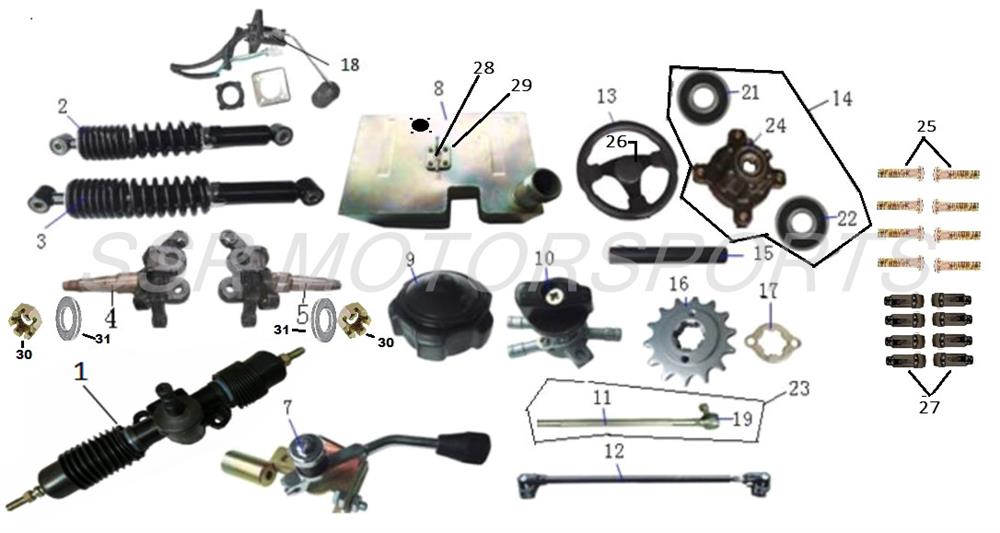

| STEERING & SUSPENSION & DRIVE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00359-15-00 | STEERING RACK | 1 | Pc. | $150.00 | |
| 2 | A00534-16-00 | FRONT SHOCK | 2 | Pcs. | $59.00 | |
| 3 | A00098-16-00 | REAR SHOCK | 2 | Pcs. | $69.00 | |
| 4 | A00239-15-00 | LEFT FRONT SPINDLE | 1 | Pc. | $89.00 | |
| 5 | A00340-15-00 | RIGHT FRONT SPINDLE | 1 | Pc. | $89.00 | |
| 7 | A00453-05-00 | EMERGENCY BRAKE | 1 | Pc. | $59.00 | |
| 8 | A00368-12-00 | FUEL TANK | 1 | Pc. | $161.00 | |
| 9 | A00369-12-00 | FUEL TANK CAP | 1/4 TURN | 1 | Pc. | $18.00 |
| 10 | A00104-12-00 | FUEL PETCOCK | 1 | Pc. | $30.00 | |
| 11 | A00341-15-00 | TIE ROD | 2 | Pcs. | $42.00 | |
| 12 | A00054-15-00 | STEERING SHAFT | 1 | Pc. | $83.00 | |
| 13 | A00055-15-00 | STEERING WHEEL | 1 | Pc. | $69.00 | |
| 14 | A00550-16-00 | FRONT WHEEL HUB ASSY | 2 | Assy. | $131.00 | |
| 15 | A00056-15-00 | STEERING PIPE | 1 | Pc. | $23.00 | |
| 16 | A02524-09-00 | FRONT SPROCKET | 12T | 1 | Pc. | $39.00 |
| 17 | A02525-09-00 | LOCKING PLATE | 1 | Pc. | $13.00 | |
| 18 | A00370-12-00 | FUEL LEVEL SENSOR | 1 | Pc. | $33.00 | |
| 19 | A00535-16-00 | BALL JOINT (LEFT THREAD) | M10X1.25 | 2 | Pcs. | $30.00 |
| 21 | A00008-28-00 | BEARING | 6203 | 2 | Pcs. | $27.00 |
| 22 | A00020-28-00 | BEARING | 6204 | 2 | Pcs. | $30.00 |
| 23 | A00536-16-00 | TIE ROD W/ BALL JOINT ASSY | 2 | Pcs. | $51.00 | |
| 24 | A00470-18-00 | WHEEL HUB | 2 | Pcs. | $112.00 | |
| 25 | A00553-16-00 | WHEEL STUD | M10x25x1.25 | 8 | Pcs. | $2.00 |
| 26 | A00902-02-00 | STEERING WHEEL CAP | 1 | Pc. | $7.00 | |
| 27 | A00095-22-01 | LUG NUT | 2 | 8 | Pcs. | $2.00 |
| 28 | A00392-12-00 | FUEL PICKUP | 1 | Pc. | $14.00 | |
| 29 | A00393-12-00 | FUEL PICKUP GASKET | 1 | Pc. | $3.50 | |
| 30 | A00323-22-01 | HUB NUT | M14X1.5 | 2 | Pcs. | $3.50 |
| 31 | A00251-21-01 | WASHER | M14 | 2 | Pcs. | $2.50 |
| 32 | A00084-19-X1 | FLANGE BOLT | M10X55X1.25 | 4 | Pcs. | $3.50 |
| 33 | A00004-22-3X | FLANGE LOCKNUT | M10X1.25 | 4 | Pcs. | $1.50 |
| 34 | A00004-25-01 | COTTER PIN | 2.5X30 | 2 | Pcs. | $1.50 |

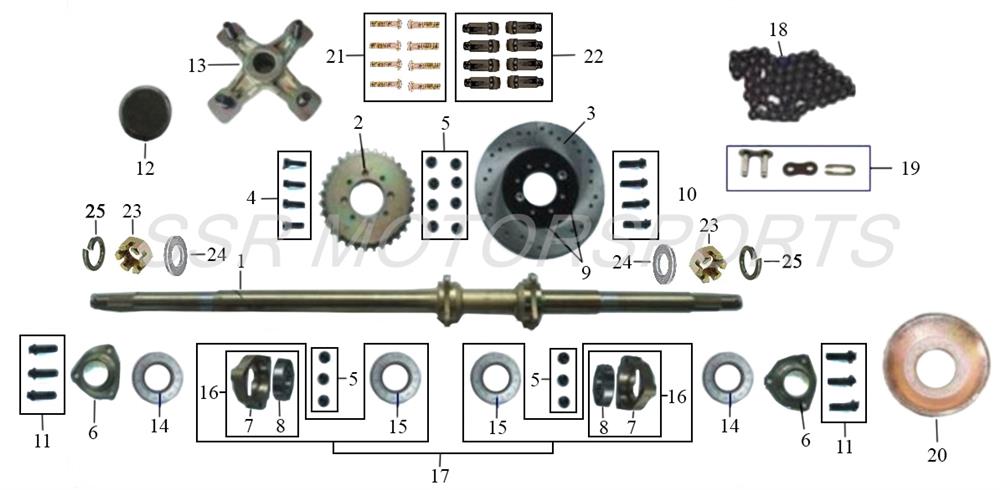

| REAR AXLE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00360-07-00 | REAR AXLE | 1 | Pc. | $180.00 | |
| 2 | A00107-07-00 | REAR SPROCKET | 530-31T | 1 | Pc. | $51.00 |
| 3 | A00092-04-00 | REAR BRAKE ROTOR | 1 | Pc. | $59.00 | |
| 4 | A00005-19-02 | FLANGE BOLT | M8X30 | 4 | Pcs. | $1.50 |
| 5 | A00002-22-01 | NUT | M8X1.25 | 14 | Pcs. | $1.50 |
| 6 | A00108-07-00 | AXLE FLANGE | 2 | Pcs. | $13.00 | |
| 8 | A00022-28-00 | BEARING | 6206 | 2 | Pcs. | $33.00 |
| 9 | A00111-07-00 | MAGNETIC PICKUP SEAT | 4 | Pcs. | $30.00 | |
| 10 | A00007-19-01 | FLANGE BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 11 | A00014-19-01 | FLANGE BOLT | M8X40 | 6 | Pcs. | $2.00 |
| 12 | A00565-08-00 | SPEEDOMETER PICKUP MAGNET | 4 | Pcs. | $4.00 | |
| 13 | A00361-07-00 | REAR WHEEL HUB | 2 | Pcs. | $72.00 | |
| 14 | A00221-26-00 | OIL SEAL | 30X42X7 | 2 | Pcs. | $4.00 |
| 15 | A00220-26-00 | OIL SEAL | 34X50X7 | 2 | Pcs. | $4.00 |
| 16 | A00144-28-00 | BEARING HOLDER ASSY | W/ BEARING + SEAL | 2 | Assy. | $45.00 |
| 17 | A00145-28-00 | BEARING HOLDER ASSY PAIR | 1 | Assy. | $69.00 | |
| 18 | A00362-07-00 | DRIVE CHAIN | 530-46L | 1 | Pc. | $59.00 |
| 19 | A00345-07-00 | CHAIN LINK | 530 | 1 | Pc. | $7.00 |
| 21 | A00553-16-00 | WHEEL STUD | M10x25x1.25 | 8 | Pcs. | $2.00 |
| 22 | A00095-22-01 | LUG NUT | M10x1.25 | 8 | Pcs. | $2.00 |
| 23 | A00324-22-01 | HUB NUT | M22X1.5 | 2 | Pcs. | $3.50 |
| 24 | A00252-21-01 | WASHER | M22 | 2 | Pcs. | $2.50 |
| 25 | A00268-21-02 | LOCK WASHER | M22 | 2 | Pcs. | $2.50 |
| 26 | A00043-25-01 | COTTER PIN | 3.0X40 | 2 | Pcs. | $1.50 |

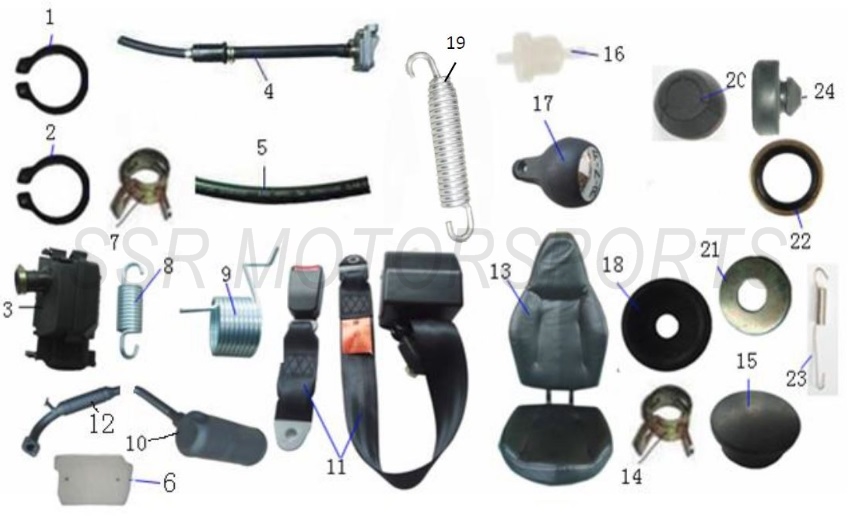

| ACCESSORIES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00004-24-07 | CIRCLIP | 10 | 1 | Pc. | $2.00 |
| 2 | A00003-24-07 | CIRCLIP | 12 | 1 | Pc. | $2.00 |
| 3 | A00084-14-00 | AIRBOX ASSY | 1 | Assy. | $51.00 | |
| 4 | A00085-14-00 | AIR INJECTION VALVE | 1 | Pc. | $39.00 | |
| 5 | A00735-09-00 | HOSE | 4.5X8.5 | 15 | Pcs. | $23.00 |
| 6 | A00283-14-00 | AIR FILTER ELEMENT | 1 | Pc. | $13.00 | |
| 7 | A00001-24-02 | HOSE CLAMP | 8.5 | 9 | Pcs. | $1.50 |
| 8 | A00095-04-00 | BRAKE RETURN SPRING | 1 | Pc. | $3.50 | |
| 9 | A00132-05-00 | ACCELERATOR SPRING | 1 | Pc. | $3.50 | |
| 10 | A00025-10-00 | MUFFLER | 1 | Pc. | $142.00 | |
| 11 | A00092-02-00 | SEAT BELT ASSY | 2 | Pcs. | $96.00 | |
| 12 | A00098-10-00 | EXHAUST HEADER | 1 | Pc. | $33.00 | |
| 13 | A00810-02-00 | SEAT | 2 | Pcs. | $142.00 | |
| 14 | A00080-24-02 | HOSE CLAMP | 10 | 1 | Pc. | $2.00 |
| 15 | A00117-07-00 | RUBBER BUMPER CAP | 38 | 4 | Pcs. | $1.50 |
| 16 | A00254-12-00 | FUEL FILTER | 1 | Pc. | $4.00 | |
| 17 | A00131-05-00 | SHIFT LEVER HANDLE | 1 | Pc. | $39.00 | |
| 18 | A00116-07-00 | DUST COVER | M10 | 16 | Pcs. | $13.00 |
| 19 | A00099-10-00 | MUFFLER SPRING | 2 | Pcs. | $7.00 | |
| 21 | A00047-13-00 | EXHAUST GASKET | 1 | Pc. | $7.00 | |
| 22 | A00619-04-00 | BRAKE SWITCH SPRING | 1 | Pc. | $2.50 | |
| 23 | A00094-02-00 | SEAT DAMPER | 4 | Pcs. | $2.50 | |
| 24 | A00291-13-00 | EGR VALVE GASKET | 1 | Pc. | $4.00 | |
| 25 | A00113-07-00 | WHEEL CENTER CAP | NOT PICTURED | 4 | Pcs. | $4.00 |
| WIRING & ELECTRICAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00092-08-00 | SPEEDOMETER | 1 | Pc. | $112.00 | |
| 2 | A00598-08-00 | MAIN WIRE HARNESS | 1 | Pc. | $124.00 | |
| 3 | A00094-08-00 | HORN | 1 | Pc. | $18.00 | |
| 4 | A00095-08-00 | IGNITION SWITCH | 1 | Pc. | $51.00 | |
| 5 | A00096-08-00 | FLASHER RELAY | CM6321 | 1 | Pc. | $30.00 |
| 6 | A00097-08-00 | STARTER RELAY | 1 | Pc. | $30.00 | |
| 7 | A00599-08-00 | CDI | 1 | Pc. | $30.00 | |
| 8 | A00562-08-00 | IGNITION COIL | 1 | Pc. | $45.00 | |
| 9 | A00600-08-00 | REGULATOR / RECTIFIER | 1 | Pc. | $51.00 | |
| 10 | A00101-08-00 | FUEL PUMP | 1 | Pc. | $77.00 | |
| 11 | A00574-08-00 | MID LED LIGHT HARNESS | 1 | Pc. | $23.00 | |
| 12 | A00335-03-00 | TOP LED LIGHT | 1 | Pc. | $218.00 | |
| 13 | A00570-08-00 | HORN SWITCH | 1 | Pc. | $8.00 | |
| 14 | A00104-08-00 | SWITCH INSERT | 2 | Pcs. | $8.00 | |
| 15 | A00336-03-00 | RIGHT HEADLIGHT ASSY | LED | 1 | Assy. | $104.00 |
| 16 | A00337-03-00 | LEFT HEADLIGHT ASSY | LED | 1 | Assy. | $104.00 |
| 17 | A00105-08-00 | BRAKE SWITCH | 1 | Pc. | $13.00 | |
| 18 | A00106-08-00 | SPEEDOMETER SENSOR | 1 | Pc. | $51.00 | |
| 19 | A00107-08-00 | POWER PORT | 1 | Pc. | $36.00 | |
| 20 | A00338-03-00 | LEFT TAILLIGHT ASSY | 1 | Assy. | $69.00 | |
| 21 | A00339-03-00 | RIGHT TAILLIGHT ASSY | 1 | Assy. | $69.00 | |
| 22 | A00811-02-00 | BLANK SWITCH COVER | 1 | Pc. | $7.00 | |
| 23 | A00103-08-00 | HEADLIGHT SWITCH | 1 | Pc. | $8.00 | |
| 24 | A00340-03-00 | FRONT RIGHT RUNNING LIGHT | LED | 1 | Pc. | $54.00 |
| 25 | A00341-03-00 | FRONT LEFT RUNNING LIGHT | LED | 1 | Pc. | $54.00 |
| 26 | A00466-12-00 | FUEL HOSE | 270MM | 1 | Pc. | $2.50 |
| 27 | A00467-12-00 | FUEL HOSE | 500MM | 2 | Pcs. | $4.00 |

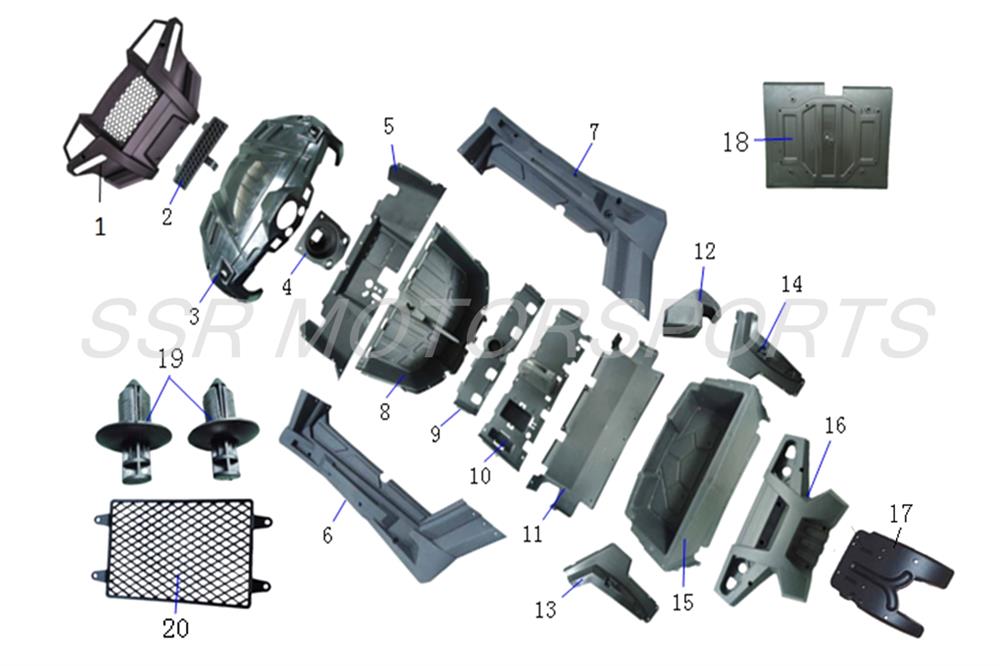

| BODY COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01000-02-00 | HEADLIGHT COWLING | BLACK | 1 | Pc. | $150.00 |
| 2 | A00096-02-00 | AIR INLET | 1 | Pc. | $30.00 | |
| 3 | A00097-02-14 | HOOD | MATTE BLACK | 1 | Pc. | $235.00 |
| 3 | A00097-02-15 | HOOD | MATTE BLUE | 1 | Pc. | $235.00 |
| 3 | A00097-02-18 | HOOD | RED | 1 | Pc. | $235.00 |
| 4 | A00098-02-00 | METER HOUSING | 1 | Pc. | $39.00 | |
| 5 | A00813-02-00 | FRONTBOARD | 1 | Pc. | $77.00 | |
| 6 | A00100-02-14 | LEFT LOWER SIDE PANEL | MATTE BLACK | 1 | Pc. | $89.00 |
| 7 | A00824-02-14 | RIGHT LOWER SIDE PANEL | MATTE BLACK | 1 | Pc. | $89.00 |
| 8 | A00101-02-00 | FLOORBOARD | 1 | Pc. | $150.00 | |
| 9 | A00102-02-00 | CONNECTING PLATE W/ CUPHOLDER | 1 | Pc. | $51.00 | |
| 10 | A00814-02-00 | GEAR SHIFTER TRIM / BATTERY TRAY | 1 | Pc. | $77.00 | |
| 11 | A00815-02-00 | BACKBOARD | MATTE BLACK | 1 | Pc. | $66.00 |
| 12 | A00105-02-00 | CARGO BED HOOK | 8 | Pcs. | $2.50 | |
| 13 | A00106-02-14 | LEFT REAR FENDER | MATTE BLACK | 1 | Pc. | $89.00 |
| 13 | A00106-02-15 | LEFT REAR FENDER | MATTE BLUE | 1 | Pc. | $89.00 |
| 13 | A00106-02-18 | LEFT REAR FENDER | RED | 1 | Pc. | $89.00 |
| 14 | A00107-02-14 | RIGHT REAR FENDER | MATTE BLACK | 1 | Pc. | $89.00 |
| 14 | A00107-02-15 | RIGHT REAR FENDER | MATTE BLUE | 1 | Pc. | $89.00 |
| 14 | A00107-02-18 | RIGHT REAR FENDER | RED | 1 | Pc. | $89.00 |
| 15 | A00108-02-14 | REAR CARGO BED | MATTE BLACK | 1 | Pc. | $168.00 |
| 15 | A01028-02-14 | REAR CARGO BED W/ PREFILTER OPENING | MATTE BLACK | 1 | Pc. | $168.00 |
| 16 | A01001-02-00 | TAILLIGHT COWLING | BLACK | 1 | Pc. | $131.00 |
| 17 | A00093-02-00 | CHAIN GUARD | 1 | Pc. | $33.00 | |
| 18 | A00111-02-00 | SKID PLATE | 1 | Pc. | $45.00 | |
| 19 | A00079-24-06 | EXPANSION RIVET | 22 | Pcs. | $1.50 | |
| 20 | A00113-02-00 | ENGINE VENT COVER | 1 | Pc. | $51.00 | |

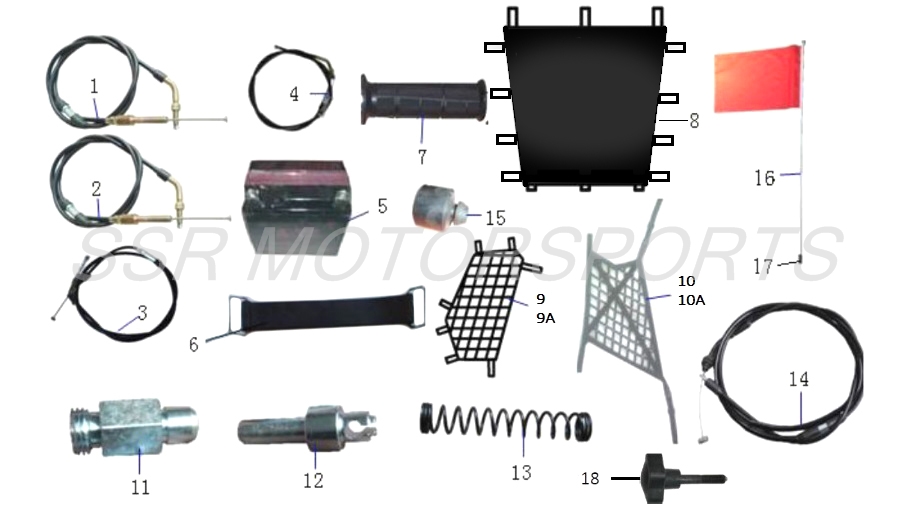

| CABLES & HARDWARE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00134-05-00 | SHIFT CABLE | SHORT 85MM | 1 | Pc. | $39.00 |
| 2 | A00135-05-00 | REVERSE CABLE | LONG 100MM | 1 | Pc. | $39.00 |
| 3 | A00136-05-00 | HAND BRAKE CABLE | 1 | Pc. | $45.00 | |
| 4 | A00137-05-00 | THROTTLE CABLE | 1 | Pc. | $39.00 | |
| 5 | YTX9-BS | BATTERY | YTX9-BS | 1 | Pc. | $83.00 |
| 6 | A00109-08-00 | BATTERY STRAP | 1 | Pc. | $14.00 | |
| 7 | A00133-05-00 | HANDLEBAR GRIP | 2 | Pcs. | $14.00 | |
| 8 | A00115-02-00 | TOP ROOF CANVAS | 1 | Pc. | $69.00 | |
| 9 | A00116-02-00 | RIGHT SIDE MESH SMALL | 1 | Pc. | $45.00 | |
| 9A | A00931-02-00 | LEFT SIDE MESH SMALL | 1 | Pc. | $45.00 | |
| 10 | A01002-02-00 | RIGHT SIDE MESH DOOR (LARGE) | 1 | Pc. | $73.00 | |
| 10A | A01003-02-00 | LEFT SIDE MESH DOOR (LARGE) | 1 | Pc. | $73.00 | |
| 11 | A00138-05-00 | FIXING SLEEVE ADAPTER | 1 | Pc. | $4.00 | |
| 12 | A00139-05-00 | CABLE PUSHROD | 1 | Pc. | $4.00 | |
| 13 | A00140-05-00 | CABLE SPRING | 1 | Pc. | $2.50 | |
| 14 | A00141-05-00 | REVERSE LOCKOUT CABLE | 1 | Pc. | $39.00 | |
| 15 | A00817-02-00 | BATTERY DAMPER | 1 | Pc. | $2.50 | |
| 16 | A00114-02-00 | SAFETY FLAG | 1 | Pc. | $21.00 | |
| 17 | A00818-02-00 | RUBBER FLAG HOLDER | 1 | Pc. | $4.00 | |
| 18 | A00073-22-01 | PASSENGER GRAB HANDLE WINGNUT | 1 | Pc. | $2.50 | |

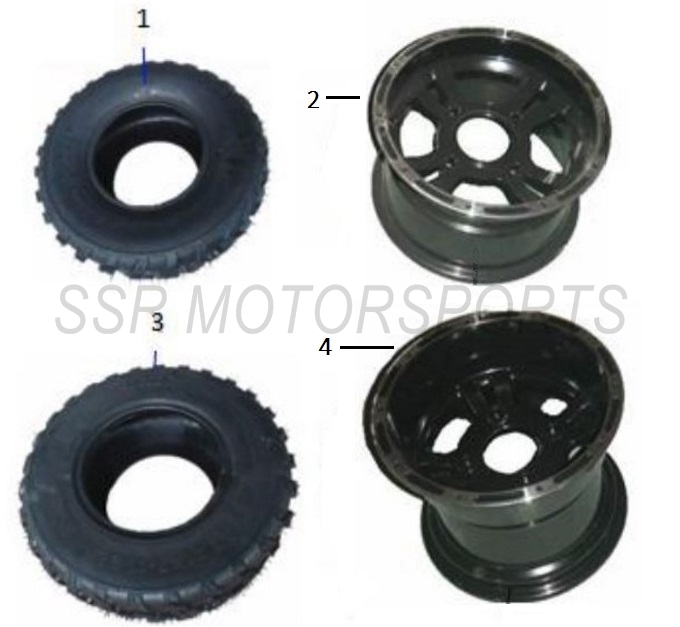

| WHEELS & TIRES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00130-18-00 | FRONT TIRE | 21X7-10 | 2 | Pcs. | $62.00 |
| 2 | A00420-08-00 | FRONT WHEEL | 6-10 | 2 | Pcs. | $124.00 |
| 3 | A00132-18-00 | REAR TIRE | 22X10-10 | 2 | Pcs. | $72.00 |
| 4 | A00421-08-00 | REAR WHEEL | 8.5-10 | 2 | Pcs. | $131.00 |
| 5 | A00514-18-00 | VALVE STEM | NOT PICTURED | 4 | Pcs. | $4.00 |

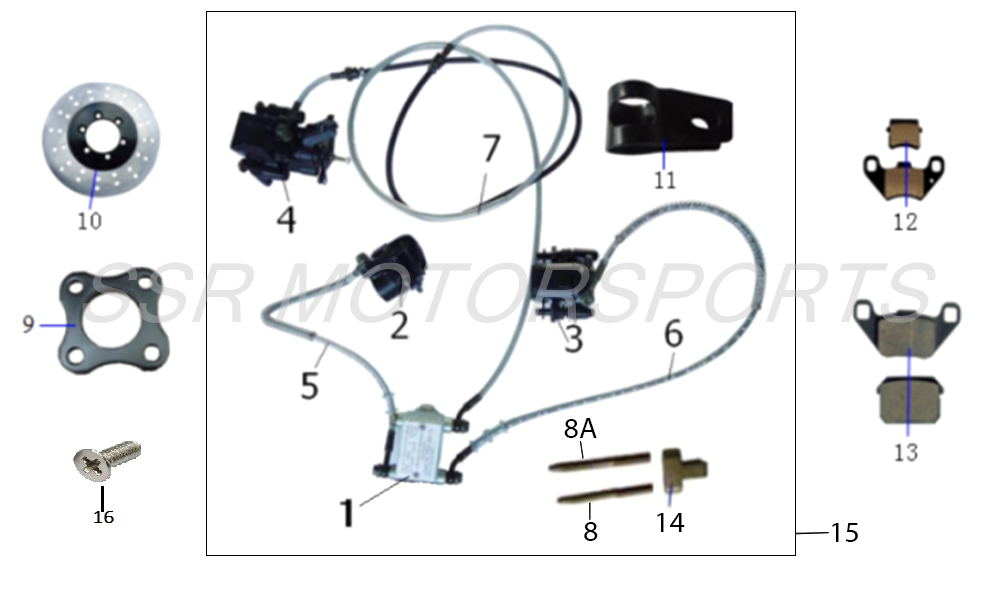

| BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00692-04-00 | BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $112.00 | |
| 2 | A00097-04-00 | LEFT FRONT BRAKE CALIPER ASSY | 1 | Assy. | $77.00 | |
| 3 | A00098-04-00 | RIGHT FRONT BRAKE CALIPER ASSY | 1 | Assy. | $77.00 | |
| 4 | A00099-04-00 | REAR BRAKE CALIPER ASSY | 1 | Assy. | $96.00 | |
| 5 | A00100-04-00 | LEFT FRONT BRAKE LINE | 760MM | 1 | Pc. | $42.00 |
| 6 | A00101-04-00 | RIGHT FRONT BRAKE LINE | 740MM | 1 | Pc. | $42.00 |
| 7 | A00102-04-00 | REAR BRAKE LINE | 1550MM | 1 | Pc. | $59.00 |
| 8 | A00693-04-00 | BRAKE MANDRIL I | 85MM | 1 | Pc. | $14.00 |
| 8A | A00696-04-00 | BRAKE MANDRIL II | 90MM | 1 | Pc. | $14.00 |
| 9 | A00104-04-00 | BRAKE MASTER CYLINDER PLATE | 1 | Pc. | $13.00 | |
| 10 | A00105-04-00 | FRONT BRAKE ROTOR | 128MM | 2 | Pcs. | $48.00 |
| 11 | A00106-04-00 | BRAKE LINE CLAMP | 6 | Pcs. | $4.00 | |
| 12 | A00560-04-00 | FRONT BRAKE PAD SET | 2 | Set | $30.00 | |
| 13 | A00564-04-00 | REAR BRAKE PAD SET | 1 | Set | $30.00 | |
| 14 | A00694-04-00 | BRAKE MANDRIL SEAT | 1 | Pc. | $24.00 | |
| 15 | A00695-04-00 | COMPLETE BRAKE ASSY | 1 | Assy. | $235.00 | |
| 16 | A00003-20-12 | CS PHILLIPS BOLT | M6X16 | 12 | Pcs. | $1.50 |
| WINDSHIELD (AVAILABLE ACCESSORY) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00085-01-00 | WINDSHIELD ASSY | W/ MOUNTING HARDWARE | 1 | Assy. | $217.00 |

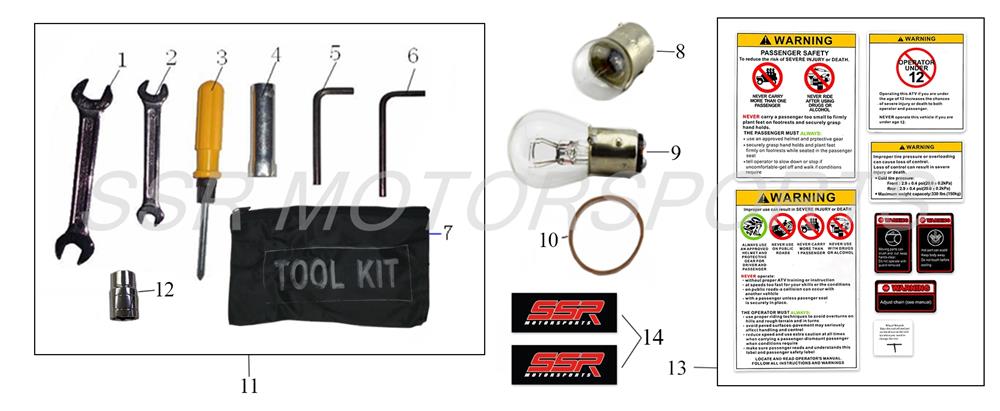

| TOOL KIT & BULBS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00029-01-00 | OPEN SPANNER | 12--14MM | 1 | Pc. | $8.00 |
| 2 | A00030-01-00 | OPEN SPANNER | 8--10MM | 1 | Pc. | $7.00 |
| 3 | A00031-01-00 | SCREWDRIVER | PHILLIPS/FLAT | 1 | Pc. | $6.00 |
| 4 | A00032-01-00 | SPARK PLUG SOCKET | S--16 | 1 | Pc. | $2.50 |
| 5 | A00033-01-00 | ALLEN WRENCH | 6MM | 1 | Pc. | $2.50 |
| 6 | A00034-01-00 | ALLEN WRENCH | 5MM | 1 | Pc. | $2.50 |
| 7 | A00071-01-00 | TOOL BAG | 1 | Pc. | $2.50 | |
| 8 | A00014-03-00 | REVERSE BULB | 10W | 2 | Pcs. | $2.50 |
| 9 | A00310-03-00 | TAILLIGHT BULB | 2 | Pcs. | $6.00 | |
| 10 | A00062-01-00 | RUBBER STRAP | 1 | Pc. | $2.50 | |
| 11 | A00035-01-00 | COMPLETE TOOL KIT | 1 | Kit | $23.00 | |
| 12 | A00072-01-00 | SOCKET | 17MM | 1 | Pc. | $2.50 |
| 13 | A00707-02-00 | SRU170RS WARNING STICKER SET | 1 | Set | $14.00 | |
| 14 | A00709-02-00 | SSR LOGO DECAL | 2 | Pcs. | $7.00 | |
