(SSR SRU170Z) Full Parts Schematics (2022)
| 2022 SRU170Z | ||||||
 |
||||||

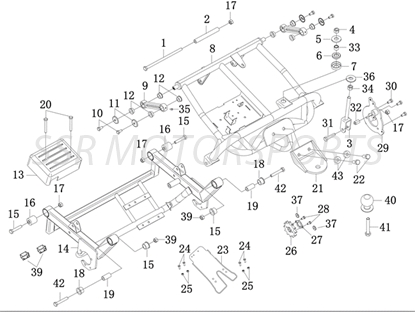

| ENGINE SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03017-09-00 | ENGINE SWINGARM SHAFT | M10X195 | 1 | Pc. | $8.00 |
| 2 | A03018-09-00 | ENGINE HANGER LINKAGE BUSHING | 1 | Pc. | $6.00 | |
| 3 | A03019-09-00 | ENGINE HANGER | 1 | Pc. | $30.00 | |
| 4 | A00001-22-03 | FLANGE LOCKNUT | M12 | 3 | Pcs. | $2.00 |
| 5 | A03022-09-00 | WASHER | 13X32X4 | 2 | Pcs. | $4.00 |
| 6 | A03023-09-00 | NYLON WASHER | 1 | Pc. | $1.50 | |
| 7 | A03024-09-00 | DUST CAP | 19X41X12.4 | 1 | Pc. | $2.00 |
| 8 | A00603-11-00 | ENGINE SWINGARM ASSEMBLY | 1 | Assy. | $124.00 | |
| 9 | A00610-11-00 | SWINGARM PIVOT SHAFT | 2 | Pcs. | $51.00 | |
| 10 | A00089-19-X1 | FLANGE BOLT | M8X12 | 4 | Pcs. | $1.50 |
| 11 | A00611-11-00 | WASHER | 4 | Pcs. | $2.50 | |
| 12 | A00612-11-00 | NYLON BUSHING | 8 | Pcs. | $1.50 | |
| 13 | A00633-08-00 | STARTER RELAY COVER | 1 | Pc. | $30.00 | |
| 14 | A00604-11-00 | ENGINE MOUNTING PLATE | 1 | Pc. | $124.00 | |
| 15 | A00187-19-01 | FLANGE BOLT | M10X55 | 2 | Pcs. | $2.00 |
| 16 | A00606-11-00 | BUSHING | 4 | Pcs. | $8.00 | |
| 17 | A00004-22-34 | FLANGE LOCKNUT | M10 | 6 | Pcs. | $2.00 |
| 18 | A00607-11-00 | BUSHING | 2 | Pcs. | $1.50 | |
| 19 | A00608-11-00 | BUSHING SLEEVE | 2 | Pcs. | $3.50 | |
| 20 | A00448-19-02 | ALLEN BOLT | M6X60 | 2 | Pcs. | $1.50 |
| 21 | A00605-11-00 | TRAILER HITCH PLATE | 1 | Pc. | $59.00 | |
| 22 | A00056-19-03 | HEX BOLT | M12X30 | 1 | Pc. | $2.00 |
| 23 | A00419-07-00 | DRIVE SPROCKET/ROTOR GUARD | 1 | Pc. | $24.00 | |
| 24 | A00002-19-X1 | FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 25 | A00093-22-03 | FLANGE NUT | M6 | 4 | Pcs. | $1.50 |
| 26 | A00417-07-00 | DRIVE SPROCKET | 12T | 1 | Pc. | $53.00 |
| 27 | A00418-07-00 | DRIVE SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 28 | A00281-19-03 | HEX BOLT | M6X12 | 3 | Pcs. | $1.50 |
| 29 | A00609-11-00 | REAR HANGER CONNECTION PLATE | 1 | Pc. | $39.00 | |
| 30 | A00017-19-01 | FLANGE BOLT | M8X16 | 3 | Pcs. | $1.50 |
| 31 | A00011-19-01 | FLANGE BOLT | M10X45 | 1 | Pc. | $3.50 |
| 32 | A03020-09-00 | ENGINE HANGER PLATE SLEEVE | 1 | Pc. | $2.50 | |
| 33 | A03021-09-00 | HANGER BUSHING | 1 | Pc. | $2.50 | |
| 34 | A00104-22-01 | NUT | M12 | 1 | Pc. | $2.00 |
| 35 | A00631-11-00 | GREASE FITTING | 4 | Pcs. | $1.50 | |
| 36 | A00287-21-07 | WASHER | 15X35X6 | 2 | Pcs. | $3.50 |
| 37 | A00001-21-X2 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 38 | A00627-11-00 | PLUG | 2 | Pcs. | $3.50 | |
| 40 | A00625-11-00 | TRAILER HITCH BALL | 1 | Pc. | $30.00 | |
| 41 | A00626-11-00 | TRAILER HITCH BOLT | M16X45 | 1 | Pc. | $7.00 |
| 42 | A00502-19-01 | FLANGE BOLT | M12X62 | 2 | Pcs. | $6.00 |
| 43 | A00001-21-07 | FENDER WASHER | 12X29X2 | 2 | Pcs. | $2.00 |
| 44 | A00284-21-02 | LOCK WASHER | M12 | 2 | Pcs. | $1.50 |
| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00402-15-00 | LEFT FRONT SPINDLE | 1 | Pc. | $60.00 | |
| 2 | A00403-15-00 | RIGHT FRONT SPINDLE | 1 | Pc. | $60.00 | |
| 4 | A00046-25-01 | COTTER PIN | 3X30 | 4 | Pcs. | $1.50 |
| 5 | A00001-22-07 | CASTLE NUT | M8 | 4 | Pcs. | $3.50 |
| 6 | A00730-16-00 | UPPER A-ARM BALL JOINT | 2 | Pcs. | $36.00 | |
| 7 | A00731-16-00 | BUSHING | 1 | Pc. | $7.00 | |
| 8 | A00732-16-00 | LEFT FRONT LOWER A-ARM | W/ BALL JOINT | 1 | Pc. | $77.00 |
| 9 | A00733-16-00 | RIGHT FRONT LOWER A-ARM | W/ BALL JOINT | 1 | Pc. | $77.00 |
| 10 | A00734-16-00 | LEFT FRONT UPPER A-ARM | 1 | Pc. | $92.00 | |
| 11 | A00735-16-00 | RIGHT FRONT UPPER A-ARM | 1 | Pc. | $92.00 | |
| 12 | A00448-19-01 | FLANGE BOLT | M10X80 | 8 | Pcs. | $3.50 |
| 13 | A00736-16-00 | DUST CAP | 16 | Pcs. | $2.00 | |
| 14 | A00737-16-00 | NYLON BUSHING | 16 | Pcs. | $1.50 | |
| 15 | A00738-16-00 | BUSHING SPACER | 8 | Pcs. | $7.00 | |
| 16 | A00004-22-04 | FLANGE NUT | M10 | 12 | Pcs. | $1.50 |
| 17 | A00739-16-00 | FRONT SHOCK ABSORBER ASSY | 2 | Assy. | $104.00 | |
| 18 | A00187-19-01 | FLANGE BOLT | M10X55 | 4 | Pcs. | $2.00 |
| 19 | A00287-21-01 | WASHER | 24X13X2.4 | 6 | Pcs. | $1.50 |

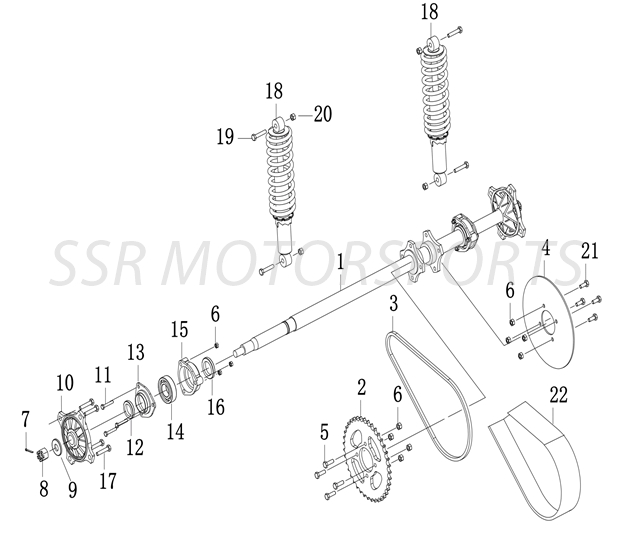

| REAR SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00420-07-00 | REAR AXLE | 1 | Pc. | $188.00 | |
| 2 | A00421-07-00 | REAR SPROCKET | 39T | 1 | Pc. | $59.00 |
| 2 | A00428-07-00 | REAR SPROCKET | 31T | 1 | Pc. | $59.00 |
| 3 | A00422-07-00 | DRIVE CHAIN | ???-??L | 1 | Pc. | $53.00 |
| 4 | A00738-04-00 | REAR BRAKE ROTOR | 1 | Pc. | $53.00 | |
| 5 | A00041-19-01 | FLANGE BOLT | M8X30 | 4 | Pcs. | $1.50 |
| 6 | A00100-22-34 | FLANGE LOCKNUT | M8 | 14 | Pcs. | $1.50 |
| 7 | A00047-25-01 | COTTER PIN | 3.2X40 | 2 | Pcs. | $1.50 |
| 8 | A00007-22-07 | CASTLE NUT | M16X1.5 | 2 | Pcs. | $4.00 |
| 9 | A00285-21-01 | WASHER | 16X40X4 | 2 | Pcs. | $2.00 |
| 10 | A00423-07-00 | REAR WHEEL HUB | 2 | Pcs. | $59.00 | |
| 11 | A00014-19-01 | FLANGE BOLT | M8X40 | 6 | Pcs. | $2.00 |
| 12 | A00261-26-00 | OIL SEAL | 34X50X7 | 2 | Pcs. | $3.50 |
| 13 | A00424-07-00 | AXLE BEARING RETAINER PLATE | 2 | Pcs. | $18.00 | |
| 14 | A00425-07-00 | REAR AXLE BEARING | 2 | Pcs. | $13.00 | |
| 15 | A00426-07-00 | REAR AXLE BEARING HOUSING | 2 | Pcs. | $54.00 | |
| 16 | A00262-26-00 | OIL SEAL | 30X42X7 | 2 | Pcs. | $3.50 |
| 17 | A00740-16-00 | WHEEL STUD | M10X32 | 8 | Pcs. | $2.00 |
| 18 | A00741-16-00 | REAR SHOCK ABSORBER ASSY | 375MM | 2 | Assy. | $124.00 |
| 19 | A00048-19-01 | FLANGE BOLT | M10X40 | 4 | Pcs. | $3.50 |
| 20 | A00004-22-04 | FLANGE LOCKNUT | M10 | 4 | Pcs. | $1.50 |
| 21 | A00002-19-01 | FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 22 | A00429-07-00 | CHAIN GUARD | 1 | Pc. | $18.00 | |
| ACCELERATOR / BRAKE PEDAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00591-05-00 | BRAKE PEDAL ASSY | 1 | Assy. | $48.00 | |
| 2 | C00044-21-01 | WASHER | M10X24X2 | 1 | Pc. | $1.50 |
| 3 | A00592-05-00 | BRAKE PEDAL NYLON SLEEVE | 21X15X20 | 1 | Pc. | $1.50 |
| 4 | A00593-05-00 | BRAKE PEDAL LINER BUSHING | 1 | Pc. | $6.00 | |
| 5 | A00594-05-00 | THROTTLE RETURN SPRING | 1 | Pc. | $3.50 | |
| 6 | A00019-28-01 | COTTER PIN | 2.5X24 | 1 | Pc. | $1.50 |
| 7 | A00595-05-00 | BRAKE/ACCELERATOR PEDAL MOUNTING PLATE | 1 | Pc. | $45.00 | |
| 8 | A00015-19-01 | FLANGE BOLT | M8X20 | 3 | Pcs. | $1.50 |
| 9 | A00100-22-34 | FLANGE LOCKNUT | M8 | 3 | Pcs. | $1.50 |
| 10 | A00596-05-00 | ACCELERATOR PEDAL ASSY | 1 | Assy. | $48.00 | |
| 11 | A00001-21-07 | FENDER WASHER | M12X29X2 | 1 | Pc. | $2.00 |
| 12 | A00597-05-00 | THROTTLE CABLE | 1 | Pc. | $39.00 | |
| 13 | A00046-25-01 | COTTER PIN | 3X30 | 1 | Pc. | $1.50 |

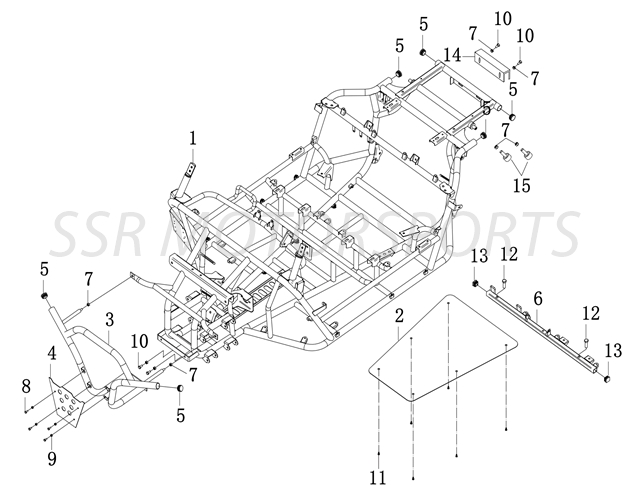

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00613-11-00 | FRAME | *OVERSIZE* | 1 | Pc. | $2,483.00 |
| 2 | A01057-02-00 | SKID PLATE | 1 | Pc. | $41.00 | |
| 3 | A00614-11-00 | FRONT BUMPER | 1 | Pc. | $89.00 | |
| 4 | A00615-11-00 | FRONT BUMPER PLATE | 1 | Pc. | $89.00 | |
| 5 | A00616-11-00 | TUBE CAP | 32 | 6 | Pcs. | $1.50 |
| 6 | A00617-11-00 | SEAT SUPPORT FRAME | 1 | Pc. | $39.00 | |
| 7 | A00100-22-34 | FLANGE LOCKNUT | M8 | 6 | Pcs. | $1.50 |
| 8 | A00003-19-X1 | FLANGE BOLT | M6X25 | 4 | Pcs. | $1.50 |
| 9 | A00093-22-03 | FLANGE NUT | M6 | 4 | Pcs. | $1.50 |
| 10 | A00015-19-01 | FLANGE BOLT | M8X20 | 4 | Pcs. | $1.50 |
| 11 | A00258-19-02 | PAN HEAD ALLEN BOLT | M6X16 | 6 | Pcs. | $1.50 |
| 12 | A00014-19-01 | FLANGE BOLT | M8X40 | 2 | Pcs. | $2.00 |
| 13 | A00618-11-00 | SQUARE TUBE CAP | 25X25 | 2 | Pcs. | $1.50 |
| 14 | A00619-11-00 | REAR SUPPORT HOLDER | 1 | Pc. | $41.00 | |
| 15 | A00628-11-00 | RUBBER DAMPER | 2 | Pcs. | $8.00 | |

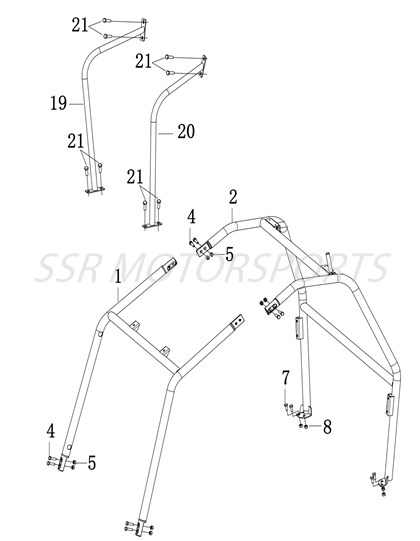

| ROLL CAGE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00620-11-00 | FRONT ROLL CAGE ASSY | 1 | Assy. | $112.00 | |
| 2 | A00621-11-00 | MID ROLL CAGE ASSY | 1 | Assy. | $218.00 | |
| 4 | A00005-19-03 | FLANGE BOLT | M10X35 | 8 | Pcs. | $2.00 |
| 5 |
9332310016361300
|
FLANGE LOCKNUT | M10X1.5 | 8 | Pcs. | $1.50 |
| 7 | A00015-19-01 | FLANGE BOLT | M8X20 | 4 | Pcs. | $1.50 |
| 8 | A00100-22-34 | FLANGE LOCKNUT | M8 | 4 | Pcs. | $1.50 |
| 19 | A00629-11-00 | RIGHT SHOULDER GUARD | 1 | Pc. | $39.00 | |
| 20 | A00630-11-00 | LEFT SHOULDER GUARD | 1 | Pc. | $39.00 | |
| 21 | A00017-19-01 | FLANGE BOLT | M8X16 | 8 | Pcs. | $1.50 |

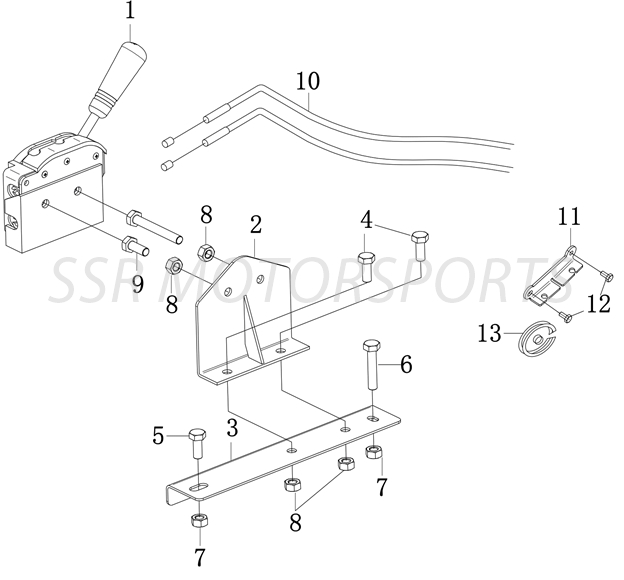

| SHIFTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00419-17-00 | SHIFTER ASSY | 1 | Assy. | $69.00 | |
| 2 | A00420-17-00 | SHIFTER BRACKET | 1 | Pc. | $24.00 | |
| 3 | A00421-17-00 | SHIFTER MOUNTING PLATE | 1 | Pc. | $24.00 | |
| 4 | A00015-19-01 | FLANGE BOLT | M8X20 | 1 | Pc. | $1.50 |
| 5 | A00002-19-01 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 6 | A00022-19-01 | FLANGE BOLT | M6X45 | 1 | Pc. | $1.50 |
| 7 | A00002-22-34 | FLANGE LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00100-22-34 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 9 | A00017-19-01 | FLANGE BOLT | M8X16 | 1 | Pc. | $1.50 |
| 10 | A00422-17-00 | SHIFTER CABLE | 2 | Pcs. | $39.00 | |
| 11 | A00423-17-00 | SHIFTER CABLE HOLDER | 1 | Pc. | $7.00 | |
| 12 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 13 | A00424-17-00 | GEAR SHIFTER , CABLE PULLEY | 1 | Pc. | $45.00 | |

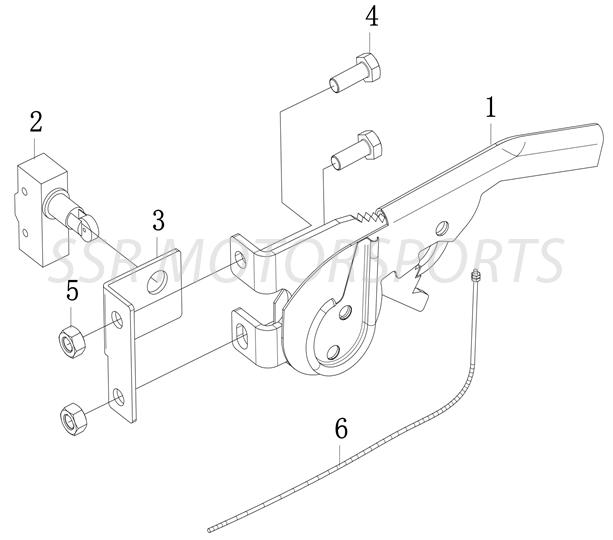

| PARKING BRAKE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00598-05-00 | PARKING BRAKE LEVER | 1 | Assy. | $24.00 | |
| 2 | A00599-05-00 | PARKING SWITCH | 1 | Pc. | $42.00 | |
| 3 | A00600-05-00 | PARKING SWITCH HOLDER | 1 | Pc. | $11.00 | |
| 4 | A00007-19-01 | FLANGE BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 5 | A00100-22-34 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 6 | A00601-05-00 | PARKING BRAKE CABLE | 1 | Pc. | $42.00 | |

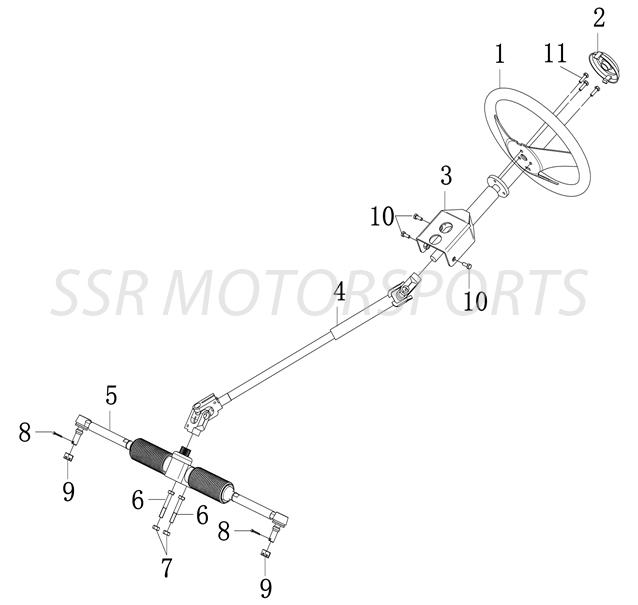

| STEERING | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00404-15-00 | STEERING WHEEL | 1 | Pc. | $63.00 | |
| 2 | A00405-15-00 | STEERING WHEEL COVER | 1 | Pc. | $7.00 | |
| 3 | A00406-15-00 | STEERING COLUMN | 1 | Pc. | $89.00 | |
| 4 | A00407-15-00 | STEERING SHAFT | 1 | Pc. | $77.00 | |
| 5 | A00408-15-00 | STEERING RACK ASSY | 1 | Assy. | $131.00 | |
| 6 | A00032-19-01 | FLANGE BOLT | M8X65 | 2 | Pcs. | $2.00 |
| 7 | A00100-22-34 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 8 | A00019-28-01 | COTTER PIN | 2.5X24 | 2 | Pcs. | $1.50 |
| 9 | A00001-22-07 | CASTLE NUT | M8 | 1 | Pc. | $3.50 |
| 10 | A00017-19-01 | FLANGE BOLT | M8X16 | 3 | Pcs. | $1.50 |
| 11 | A00002-19-01 | FLANGE BOLT | M6X16 | 3 | Pcs. | $1.50 |

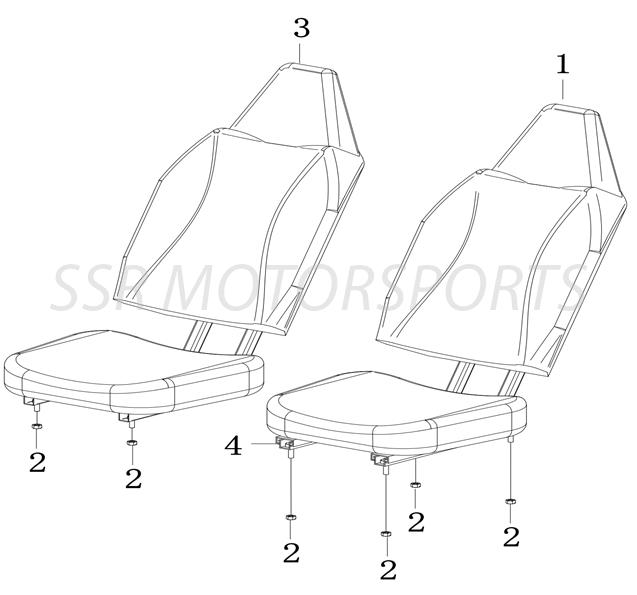

| SEATS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01058-02-00 | DRIVERS SEAT | W/ SLIDE RAILS | 1 | Pc. | $206.00 |
| 2 | A00100-22-34 | FLANGE LOCKNUT | M8 | 6 | Pcs. | $1.50 |
| 3 | A01059-02-00 | PASSENGER SEAT | NO SLIDE RAILS | 1 | Pc. | $206.00 |
| 4 | A01083-02-00 | SEAT TRACK | 2 | Pcs. | $59.00 | |
| SEAT BELT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MU7150010 | SEAT BELT ASSY | 2 | Assy. | $83.00 | |
| 2 | 1MU7155000 | SEAT BELT LATCH | 2 | Pcs. | $48.00 | |
| 4 | 1MU7150200 | LOCK WASHER | 7/16 | 8 | Pcs. | $1.50 |
| 5 | A01087-02-00 | BOLT CAP | 2 | Pcs. | $2.50 | |
| 6 | 1MU7150400 | NUT | 7/16 | 8 | Pcs. | $2.00 |
| 7 | 1MU7150100 | BOLT | 7/16X28 | 6 | Pcs. | $2.00 |
| 8 | 1MU7150600 | SPACER | 4 | Pcs. | $1.50 | |
| 9 | 1MU7150500 | BOLT A | 2 | Pcs. | $2.00 | |
| 10 | 1MU7150300 | WASHER | 8 | Pcs. | $2.00 | |
| WHEELS & TIRES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00624-18-00 | FRONT TIRE | 21X7-10 | 2 | Pcs. | $67.00 |
| 4 | A00625-18-00 | REAR TIRE | 22X10-10 | 2 | Pcs. | $79.00 |
| 7 | A00626-18-00 | FRONT HUB | 2 | Assy. | $77.00 | |
| 8 | A00002-19-01 | FLANGE BOLT | M6X16 | 12 | Pcs. | $1.50 |
| 9 | A00739-04-00 | FRONT BRAKE ROTOR | 2 | Pcs. | $53.00 | |
| 10 | A00095-22-01 | LUGNUT | M10 | 16 | Pcs. | $2.00 |
| 11 | A00627-18-00 | FRONT WHEEL BUSHING | 22X2X13.8 | 2 | Pcs. | $6.00 |
| 12 | A00286-21-07 | HUB WASHER | M15X44X4 | 2 | Pcs. | $2.00 |
| 13 | A00323-22-07 | CASTLE NUT | M14X1.5 | 2 | Pcs. | $2.50 |
| 14 | A00046-25-01 | COTTER PIN | 3X30 | 2 | Pcs. | $1.50 |
| 15 | A00628-18-00 | WHEEL CENTER CAP | RUBBER | 4 | Pcs. | $3.50 |
| 16 | A00629-18-00 | FRONT WHEEL | ALLOY (4/110 - 10X5.5) | 2 | Pcs. | $142.00 |
| 17 | A00630-18-00 | REAR WHEEL | ALLOY (4/136 - 10X7) | 2 | Pcs. | $142.00 |
| 18 | A00642-18-00 | VALVE STEM W/ CAP | 4 | Pcs. | $10.00 | |
| MUFFLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00126-10-00 | MUFFLER | 1 | Pc. | $188.00 | |
| 2 | A00127-10-00 | MUFFLER HEADER | 1 | Pc. | $41.00 | |
| 3 | A00128-10-00 | MUFFLER SPRING | 2 | Pc. | $2.50 | |
| 4 | A00129-10-00 | MUFFLER CLAMP | 1 | Pc. | $24.00 | |
| 5 | A00130-10-00 | SPACER | 1 | Pc. | $8.00 | |
| 6 | A00266-19-01 | FLANGE BOLT | M8X50 | 1 | Pc. | $2.00 |
| 7 | A00100-22-36 | FLANGE CAP NUT | M8 | 2 | Pcs. | $1.50 |
| 8 | A00131-10-00 | EXHAUST GASKET | 1 | Pcs. | $7.00 | |
| 9 | A00004-21-01 | WASHER | M8 | 2 | Pcs. | $1.50 |
| 10 | A00001-21-X2 | LOCK WASHER | M8 | 2 | Pc. | $1.50 |
| 11 | A00132-10-00 | OXYGEN SENSOR | 1 | Kit | $77.00 | |
| 12 | A00143-10-00 | MUFFLER PACKING GASKET | 1 | Pc. | $11.00 | |

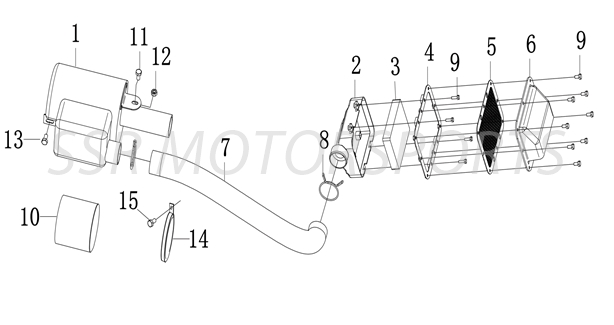

| AIRBOX & PREFILTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00344-14-00 | AIRBOX ASSY | 1 | Assy. | $69.00 | |
| 2 | A00345-14-00 | PREFILTER HOUSING | 1 | Pc. | $24.00 | |
| 3 | A00346-14-00 | PRE-FILTER | 1 | Pc. | $8.00 | |
| 4 | A00347-14-00 | PREFILTER BRACKET | 1 | Pc. | $24.00 | |
| 5 | A00348-14-00 | PREFILTER SCREEN | 1 | Pc. | $24.00 | |
| 6 | A00349-14-00 | PRE-FILTER FRONT CAP | 1 | Pc. | $24.00 | |
| 7 | A00350-14-00 | PRE-FILTER TO AIRBOX HOSE | 1 | Pc. | $72.00 | |
| 8 | A00351-14-00 | WIRE HOSE CLAMP | 2 | Pcs. | $2.50 | |
| 9 | A00013-19-20 | PHILLIPS BOLT | M5X20 | 12 | Pcs. | $1.50 |
| 10 | A00352-14-00 | AIR FILTER ELEMENT | 1 | Pc. | $30.00 | |
| 11 | A00006-19-01 | FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 12 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 13 | A00089-19-X1 | FLANGE BOLT | M8X12 | 1 | Pc. | $1.50 |
| 14 | A00353-14-00 | INTAKE HOSE CLAMP | 1 | Pc. | $4.00 | |
| 15 | A00002-19-X1 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| ACCESSORIES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01060-02-00 | RIGHT REAR VIEW MIRROR | 1 | Pc. | $18.00 | |
| 2 | A01061-02-00 | LEFT REAR VIEW MIRROR | 1 | Pc. | $18.00 | |
| 3 | A01062-02-00 | RIGHT MIRROR HOLDER | 1 | Pc. | $24.00 | |
| 4 | A01063-02-00 | LEFT MIRROR HOLDER | 1 | Pc. | $24.00 | |
| 5 | A00003-22-03 | FLANGE NUT | M8 | 4 | Pcs. | $1.50 |
| 6 | A00356-03-00 | ROOF LED LIGHT | 1 | Pc. | $89.00 | |
| 7 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 8 | A00357-03-00 | ROOF LED HARNESS | 1 | Pc. | $60.00 | |
| 9 | A01064-02-00 | WINDSHIELD | STRAPS NOT INCLUDED | 1 | Pc. | $229.00 |
| 10 | A01065-02-00 | WINDSHIELD STRAP | 4 | Pcs. | $11.00 | |
| 11 | A01068-02-00 | TOP ROOF CANVAS | 1 | Pc. | $96.00 | |
| 12 | A01067-02-00 | FLAG ASSY | W/ RUBBER HOLDER | 1 | Assy. | $24.00 |
| 13 | A00114-01-00 | TOOL KIT | 1 | Kit | $39.00 | |
| 14 | A00115-01-00 | TOOL KIT WRENCH | 1 | Pc. | $27.00 | |
| 15 | A01084-02-00 | MESH DOOR (DRIVER SIDE) | 1 | Pc. | $72.00 | |
| 16 | A01085-02-00 | MESH DOOR (PASSENGER SIDE) | 1 | Pc. | $72.00 | |

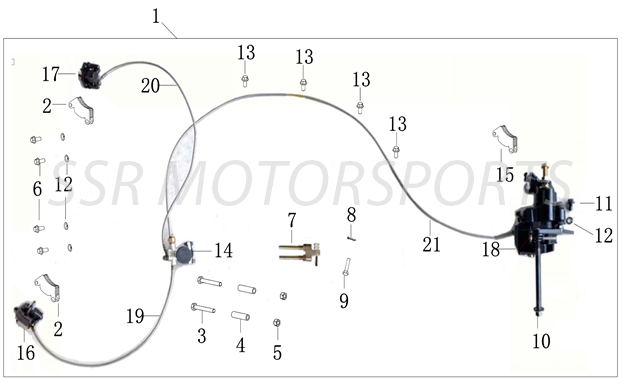

| BRAKING SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00740-04-00 | COMPLETE BRAKE ASSY | 1 | Assy. | $272.00 | |
| 2 | A00741-04-00 | FRONT BRAKE PAD SET | 2 | Set | $24.00 | |
| 3 | A00032-19-01 | FLANGE BOLT | M8X65 | 2 | Pcs. | $2.00 |
| 4 | A00742-04-00 | SLEEVE | 2 | Pcs. | $6.00 | |
| 5 | A00100-22-34 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 6 | A00015-19-01 | FLANGE BOLT | M8X20 | 4 | Pcs. | $1.50 |
| 7 | A00743-04-00 | PUSH ROD | 1 | Pc. | $8.00 | |
| 8 | A00019-28-01 | COTTER PIN | 2.5X24 | 1 | Pc. | $1.50 |
| 9 | A00744-04-00 | ROD PIN | 1 | Pc. | $1.50 | |
| 10 | A00499-19-01 | FLANGE BOLT | M8X100 | 1 | Pc. | $2.50 |
| 11 | A00089-19-X1 | FLANGE BOLT | M8X12 | 1 | Pc. | $1.50 |
| 12 | A00001-21-X2 | LOCK WASHER | M8 | 5 | Pcs. | $1.50 |
| 13 | A00002-19-X1 | FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 14 | A00749-04-00 | BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $112.00 | |
| 15 | A00750-04-00 | REAR BRAKE PAD SET | 1 | Set | $24.00 | |
| 16 | A00751-04-00 | FRONT LEFT BRAKE CALIPER ASSY | 1 | Assy. | $77.00 | |
| 17 | A00752-04-00 | FRONT RIGHT BRAKE CALIPER ASSY | 1 | Assy. | $77.00 | |
| 18 | A00753-04-00 | REAR BRAKE CALIPER ASSY | 1 | Assy. | $104.00 | |
| 19 | A00746-04-00 | FRONT LEFT BRAKE HOSE | 1 | Pc. | $24.00 | |
| 20 | A00745-04-00 | FRONT RIGHT BRAKE HOSE | 1 | Pc. | $24.00 | |
| 21 | A00747-04-00 | REAR BRAKE HOSE | 1 | Pc. | $41.00 | |
| 22 | A00765-04-00 | MASTER CYLINDER CAP | 1 | Pc. | $27.00 | |
| 23 | A00766-04-00 | BRAKE HOSE MOUNTING CLAMP | 4 | Pcs. | $1.50 | |
| 24 | 1MU563250001 | BRAKE LIGHT SWITCH | NOT PICTURED | 1 | Pc. | $42.00 |
| FUEL SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00430-12-00 | FUEL TANK | 1 | Pc. | $112.00 | |
| 2 | A00431-12-00 | FUEL LEVEL SENSOR | 1 | Pc. | $18.00 | |
| 3 | A00437-12-00 | FUEL HOSE ASSY | 1 | Assy. | $48.00 | |
| 4 | A00432-12-00 | FUEL RETURN HOSE W/ VALVE | 1 | Pc. | $21.00 | |
| 5 | A00433-12-00 | FUEL PUMP | 1 | Pc. | $96.00 | |
| 6 | A00275-19-01 | FLANGE BOLT | M5X16 | 10 | Pcs. | $1.50 |
| 7 | A00434-12-00 | FUEL TANK CAP | 1 | Pc. | $18.00 | |
| 8 | A00435-12-00 | PROTECTIVE FILM | 1 | Pc. | $18.00 | |
| 9 | A00015-19-01 | FLANGE BOLT | M8X20 | 4 | Pcs. | $1.50 |
| 10 | A00100-22-34 | FLANGE LOCKNUT | M8 | 4 | Pcs. | $1.50 |
| 11 | A00436-12-00 | HEAT PROTECTION PLATE | 1 | Pc. | $21.00 | |

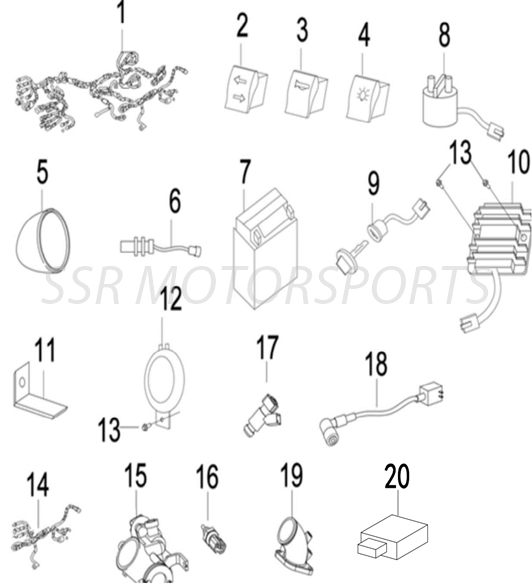

| ELECTRICAL COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00634-08-00 | WIRE HARNESS | 1 | Pc. | $150.00 | |
| 2 | A00635-08-00 | TURN SIGNAL SWITCH | 1 | Pc. | $33.00 | |
| 3 | A00636-08-00 | HORN SWITCH | 1 | Pc. | $33.00 | |
| 4 | A00637-08-00 | HEADLIGHT SWITCH | 1 | Pc. | $33.00 | |
| 5 | A00638-08-00 | LCD METER | 1 | Pc. | $142.00 | |
| 6 | A00639-08-00 | SPEEDOMETER SENSOR | 1 | Pc. | $63.00 | |
| 7 | YTX9-BS | BATTERY | 12V 9AH | 1 | Pc. | $83.00 |
| 8 | A00640-08-00 | STARTER RELAY | 1 | Pc. | $41.00 | |
| 9 | A00641-08-00 | IGNITION SWITCH | W/ 2 KEYS | 1 | Pc. | $72.00 |
| 10 | A00642-08-00 | REGULATOR RECTIFIER | 1 | Pc. | $59.00 | |
| 11 | A00643-08-00 | SPEED SENSOR HOLDER | 1 | Pc. | $53.00 | |
| 12 | A00644-08-00 | HORN | 1 | Pc. | $18.00 | |
| 13 | A00002-19-X1 | FLANGE BOLT | M6X16 | 3 | Pcs. | $1.50 |
| 14 | A00645-08-00 | ECU HARNESS | 1 | Pc. | $59.00 | |
| 15 | A00439-12-00 | THROTTLE BODY ASSY | 1 | Assy. | $89.00 | |
| 16 | A00647-08-00 | CYLINDER TEMPERATURE SENSOR | 1 | Pc. | $30.00 | |
| 17 | A00440-12-00 | FUEL INJECTOR | 1 | Pc. | $83.00 | |
| 18 | A00649-08-00 | IGNITION COIL (EFI) | 1 | Pc. | $33.00 | |
| 19 | A00438-12-00 | INTAKE MANIFOLD FLANGE | 1 | Pc. | $51.00 | |
| 20 | A00646-08-00 | ECU | 1 | Pc. | $59.00 | |
| 21 | A00650-08-00 | ROOF LED LIGHT SWITCH | 1 | Pc. | $18.00 | |
| 22 | A00665-08-00 | SWITCH HOLDER | 2 | Pcs. | $18.00 | |
| 23 | A00462-12-00 | INTAKE MANIFOLD W/ CLAMP | 1 | Assy. | $39.00 | |
| 25 | A00671-08-00 | TURN SIGNAL RELAY | W/ PIGTAIL | 1 | Pc. | $24.00 |
| LIGHTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00359-03-00 | RIGHT RUNNING LIGHT | LED | 1 | Pc. | $60.00 |
| 2 | A00358-03-00 | LEFT RUNNING LIGHT | LED | 1 | Pc. | $60.00 |
| 3 | A00361-03-00 | RIGHT LED HEADLIGHT | LED | 1 | Pc. | $104.00 |
| 4 | A00360-03-00 | LEFT LED HEADLIGHT | LED | 1 | Pc. | $104.00 |
| 5 | A00362-03-00 | TAILLIGHT | LED | 1 | Pc. | $72.00 |
| 6 | A00362-03-00 | TAILLIGHT | LED | 1 | Pc. | $72.00 |
| 7 | A00010-20-03 | ST SCREW | ST4.2X16 | 8 | Pcs. | $1.50 |
| 8 | A00025-20-03 | ST SCREW | ST3.8X10 | 4 | Pcs. | $1.50 |
| 9 | A00093-22-03 | FLANGE NUT | M6 | 6 | Pcs. | $1.50 |
| BODY PARTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01069-02-00 | REAR VALIANCE | LIGHTS NOT INCLUDED | 1 | Pc. | $69.00 |
| 2 | A01070-02-00 | REAR CARGO BED | 1 | Pc. | $124.00 | |
| 3-1 | A01071-02-18 | RIGHT REAR FENDER | RED | 1 | Pc. | $59.00 |
| 3-2 | A01071-02-02 | RIGHT REAR FENDER | BLACK | 1 | Pc. | $59.00 |
| 3-3 | A01071-02-12 | RIGHT REAR FENDER | BLUE | 1 | Pc. | $59.00 |
| 4-1 | A01072-02-18 | LEFT REAR FENDER | RED | 1 | Pc. | $59.00 |
| 4-2 | A01072-02-02 | LEFT REAR FENDER | BLACK | 1 | Pc. | $59.00 |
| 4-3 | A01072-02-12 | LEFT REAR FENDER | BLUE | 1 | Pc. | $59.00 |
| 5 | A01073-02-02 | SHIFTER COVER | 1 | Pc. | $48.00 | |
| 6 | A01074-02-02 | CUP HOLDER | 1 | Pc. | $39.00 | |
| 7 | A01075-02-02 | LEFT LOWER SIDE PANEL | 1 | Pc. | $63.00 | |
| 8 | A01076-02-02 | RIGHT LOWER SIDE PANEL | 1 | Pc. | $63.00 | |
| 9 | A01077-02-02 | FLOORBOARD | 1 | Pc. | $112.00 | |
| 10 | A01078-02-02 | BACKBOARD | 1 | Pc. | $48.00 | |
| 11 | A01079-02-02 | INSTRUMENT PANEL | 1 | Pc. | $30.00 | |
| 12 | A01082-02-00 | INSTRUMENT PANEL RUBBER CAP | 1 | Pc. | $2.50 | |
| 13 | A01080-02-02 | HOOD | BLACK | 1 | Pc. | $265.00 |
| 13 | A01080-02-12 | HOOD | BLUE | 1 | Pc. | $265.00 |
| 13 | A01080-02-18 | HOOD | RED | 1 | Pc. | $265.00 |
| 14 | A01086-02-00 | FRONT VALIANCE | LIGHTS NOT INCLUDED | 1 | Pc. | $89.00 |
| 15 | A00123-24-06 | PLASTIC RIVET | 55 | Pcs. | $1.50 | |
| 16 | A01081-02-02 | FRONTBOARD | 1 | Pc. | $54.00 | |
| 17 | A00123-19-02 | BUTTON HEAD ALLEN BOLT | M6X16 | 27 | Pcs. | $1.50 |
| 18 | A00025-20-03 | ST SCREW | ST3.8X10 | 3 | Pcs. | $1.50 |
| 19 | A00105-02-00 | CARGO BED HOOK | 8 | Pcs. | $2.50 | |

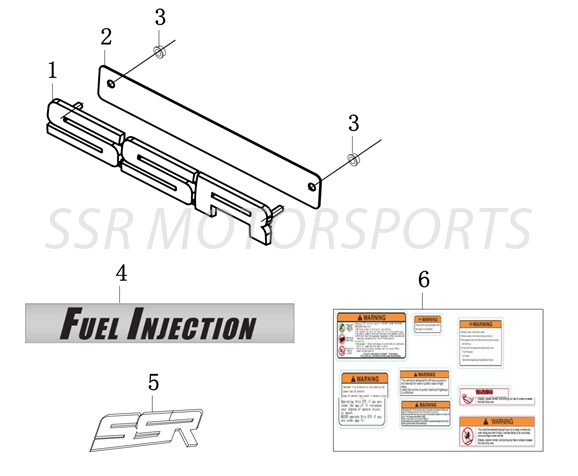

| LOGOS & WARNING STICKERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01091-02-00 | FRONT LOGO | (HARD PLASTIC) | 1 | Pc. | $24.00 |
| 2 | A01092-02-00 | FRONT LOGO BACKPLATE | 1 | Pc. | $4.00 | |
| 3 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pc. | $1.50 |
| 4 | A01093-02-00 | EFI LOGO | (HARD PLASTIC) | 2 | Pc. | $18.00 |
| 5 | A01094-02-00 | SIDE LOGO | (HARD PLASTIC) | 2 | Pc. | $13.00 |
| 6 | A01095-02-00 | WARNING STICKER SET | 1 | Set | $30.00 | |

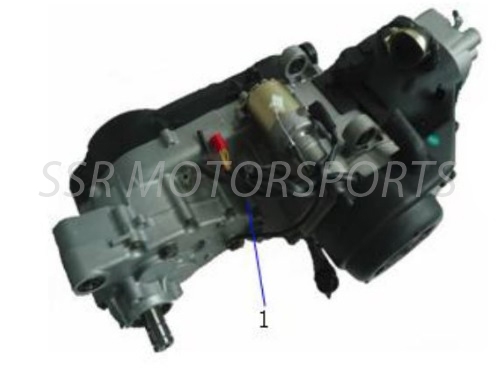

| ENGINE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02915-09-00 | ENGINE ASSY | *OVERSIZE* | 1 | Assy. | $644.00 |

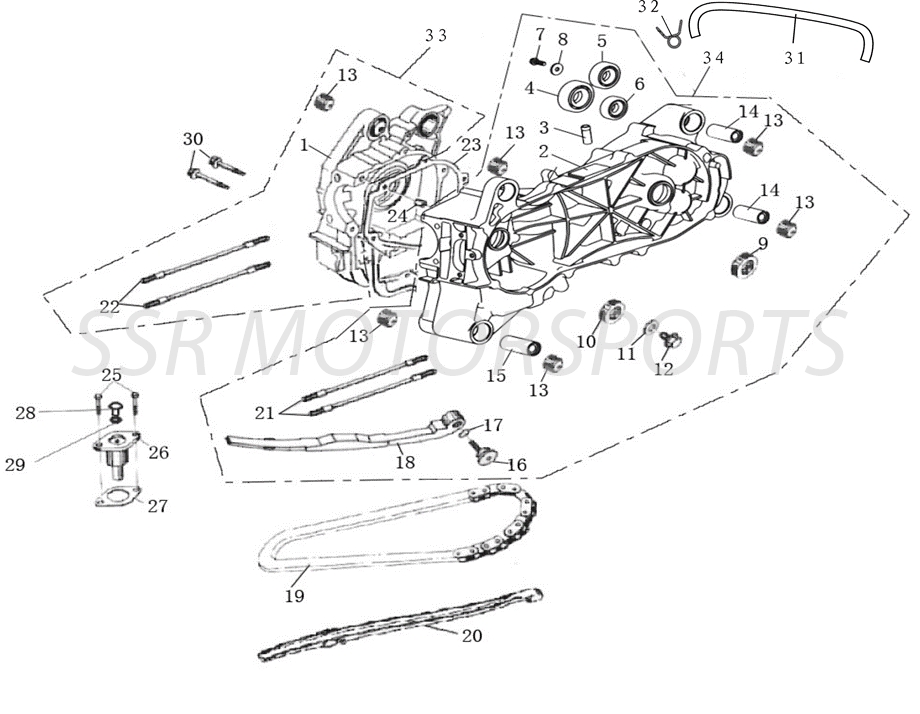

| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00634-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $89.00 | |
| 2 | A00635-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $112.00 | |
| 3 | A00636-09-00 | BREATHER PIPE JOINT | 1 | Pc. | $13.00 | |
| 4 | A00020-28-00 | BEARING | 6204 | 1 | Pc. | $30.00 |
| 5 | A00008-28-00 | BEARING | 6203 | 1 | Pc. | $27.00 |
| 6 | A00021-28-00 | BEARING | 6202 | 1 | Pc. | $13.00 |
| 7 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 8 | A00007-21-01 | WASHER | M6 | 1 | Pc. | $1.50 |
| 9 | A00007-26-00 | OIL SEAL | 20X32X6 | 1 | Pc. | $6.00 |
| 10 | A00008-26-00 | OIL SEAL | 19.8X30X5 | 1 | Pc. | $18.00 |
| 11 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 12 | A01102-09-00 | OIL DRAIN BOLT | M12 | 1 | Pc. | $1.50 |
| 13 | A00642-09-00 | FRONT ABSORBER SLEEVE | 5 | Pcs. | $2.00 | |
| 14 | A00643-09-00 | BUSHING | 42 | 1 | Pcs. | $4.00 |
| 15 | A00644-09-00 | BUSHING | 50 | 1 | Pc. | $4.00 |
| 16 | A00645-09-00 | TIMING CHAIN PIVOT BOLT | 1 | Pc. | $2.00 | |
| 17 | A00015-27-00 | O-RING | 16X1.5 | 1 | Pc. | $2.50 |
| 18 | A00647-09-00 | TIMING CHAIN SLIDE | 1 | Pc. | $18.00 | |
| 19 | A00736-09-00 | TIMING CHAIN | 1 | Pc. | $39.00 | |
| 20 | A00648-09-00 | CHAIN GUIDE | 1 | Pc. | $18.00 | |
| 21 | A00011-19-04 | STUD | M8X209 | 2 | Pcs. | $7.00 |
| 22 | A00012-19-04 | STUD | M8X201 | 2 | Pcs. | $7.00 |
| 23 | A00040-13-00 | CENTER CRANKCASE GASKET | 1 | Pc. | $18.00 | |
| 24 | A00001-23-00 | DOWEL PIN | 8X14 | 2 | Pcs. | $1.50 |
| 25 | A00024-19-01 | FLANGE BOLT | M6X22 | 2 | Pcs. | $1.50 |
| 26 | A00649-09-00 | CAM CHAIN TENSIONER | 1 | Pc. | $30.00 | |
| 27 | A00039-13-00 | CAM CHAIN TENSIONER GASKET | 1 | Pc. | $4.00 | |
| 28 | A00008-20-02 | PAN HEAD SCREW | M6X6 | 1 | Pc. | $1.50 |
| 29 | A00016-27-00 | O-RING | 9.5X1.5 | 1 | Pc. | $1.50 |
| 30 | A00019-19-03 | FLANGE BOLT | M6X50 | 2 | Pcs. | $2.00 |
| 31 | A00650-09-00 | VENT TUBE | 1 | Pc. | $11.00 | |
| 32 | A00005-24-03 | CLAMP | 11.5 | 1 | Pc. | $1.50 |
| 33 | A00651-09-00 | RIGHT CRANKCASE HALF ASSY | 1 | Assy. | $96.00 | |
| 34 | A00652-09-00 | LEFT CRANKCASE HALF ASSY | 1 | Assy. | $142.00 | |
| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00108-17-00 | GEARCASE COVER | 1 | Pc. | $69.00 | |
| 2 | A00042-13-00 | GEARCASE GASKET | 1 | Pc. | $14.00 | |
| 3 | A00112-23-00 | DOWEL PIN | 2 | Pcs. | $1.50 | |
| 4 | A00167-28-00 | BEARING | 6302 | 1 | Pc. | $24.00 |
| 5 | A00110-17-00 | REVERSE GEAR SHAFT | 1 | Pc. | $77.00 | |
| 6 | A00217-26-00 | OIL SEAL | 1 | Pc. | $4.00 | |
| 7 | A00019-28-00 | NEEDLE BEARING | RNA4905 | 1 | Pc. | $18.00 |
| 8 | A00113-17-00 | OUTPUT SHAFT | 1 | Pc. | $77.00 | |
| 9 | A00072-24-07 | CIRCLIP | 1 | Pc. | $1.50 | |
| 10 | A00020-28-00 | BEARING | 6204 | 2 | Pcs. | $30.00 |
| 11 | A00115-17-00 | INPUT SHAFT | 1 | Pc. | $59.00 | |
| 12 | A00116-17-00 | SHIFT DRUM ASSY | 1 | Pc. | $77.00 | |
| 13 | A00218-26-00 | OIL SEAL | 1 | Pc. | $3.50 | |
| 14 | A00118-17-00 | SHIFT FORK | 1 | Pc. | $39.00 | |
| 15 | A00119-17-00 | SHIFT FORK SHAFT | 1 | Pc. | $18.00 | |
| 16 | A00224-19-03 | BOLT | 1 | Pc. | $1.50 | |
| 17 | A00020-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 18 | A00120-17-00 | SPRING | 1 | Pc. | $1.50 | |
| 19 | A00121-17-00 | STEEL BALL | 1 | Pc. | $4.00 | |
| 20 | A00219-26-00 | OIL SEAL | 1 | Pc. | $4.00 | |
| 21 | A00123-17-00 | SHIFT SHAFT | 1 | Pc. | $39.00 | |
| 22 | A00017-27-00 | O-RING | 10X2.5 | 1 | Pc. | $1.50 |
| 23 | A00125-17-00 | INTERMEDIATE GEAR | 1 | Pc. | $112.00 | |
| 24 | A00021-21-01 | WASHER | 15X19X1 | 1 | Pc. | $1.50 |
| 25 | A00021-19-01 | FLANGE BOLT | M6X40 | 10 | Pcs. | $2.00 |
| 26 | A00126-17-00 | GEAR SENSOR | 1 | Pc. | $35.00 | |
| 27 | A00031-19-01 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 34 | A00073-24-07 | CIRCLIP | 52 | 1 | Pc. | $2.50 |
| 35 | A00132-17-00 | CIRCLIP | 25 | 1 | Pc. | $1.50 |
| 36 | A00183-21-01 | WASHER | 25x33x1 | 1 | Pc. | $1.50 |
| 37 | A00142-28-00 | BEARING | 6205-2RS | 1 | Pc. | $39.00 |
| 38 | A00225-19-03 | DRAIN BOLT | M12X1.5X14 | 1 | Pc. | $1.50 |
| 39 | A00184-21-01 | DRAIN WASHER | 12X18X1 | 1 | Pc. | $1.50 |
| 40 | A00134-17-00 | RUBBER DAMPER | 2 | Pcs. | $3.50 | |
| LEFT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 8 | Pcs. | $1.50 |
| 2 | A00653-09-00 | CVT COVER | IMAGE ON RIGHT | 1 | Pc. | $89.00 |
| 3 | A00079-13-00 | CVT COVER GASKET | 1 | Pc. | $18.00 | |
| 4 | A00001-23-00 | DOWEL PIN | 8X14 | 2 | Pcs. | $1.50 |
| 6 | A00008-20-03 | ST SCREW | ST4.2X8 | 4 | Pcs. | $1.50 |
| 7 | A00655-09-00 | INTAKE PLATE | 1 | Pc. | $13.00 | |
| 8 | A00168-28-00 | BEARING | 6200-2RS | 1 | Pc. | $18.00 |
| 9 | A00657-09-00 | CVT COVER INTAKE FILTER | 1 | Pc. | $13.00 | |

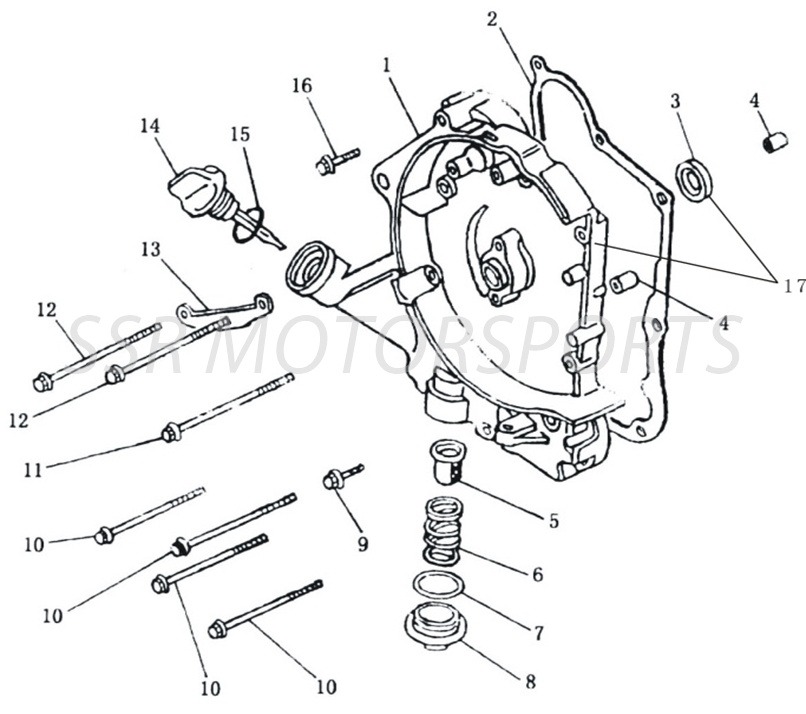

| RIGHT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00658-09-00 | RIGHT ENGINE COVER | 1 | Pc. | $51.00 | |
| 2 | A00044-13-00 | RIGHT ENGINE COVER GASKET | 1 | Pc. | $13.00 | |
| 3 | A00008-26-00 | OIL SEAL | 19.8X30X5 | 1 | Pc. | $18.00 |
| 4 | A00001-23-00 | DOWEL PIN | 8X14 | 2 | Pcs. | $1.50 |
| 5 | A00660-09-00 | OIL SCREEN | 1 | Pc. | $8.00 | |
| 6 | A00661-09-00 | OIL SCREEN SPRING | 1 | Pc. | $2.50 | |
| 7 | A00018-27-00 | O-RING | 30.5X3 | 1 | Pc. | $2.50 |
| 8 | A00663-09-00 | OIL SCREEN CAP | 1 | Pc. | $8.00 | |
| 9 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 1 | Pc. | $1.50 |
| 10 | A00433-19-08 | CASE FLANGE BOLT | M6X95 | 4 | Pcs. | $2.00 |
| 11 | A00434-19-08 | CASE FLANGE BOLT | M6X100 | 1 | Pc. | $2.00 |
| 12 | A00033-19-01 | CASE FLANGE BOLT | M6X110 | 2 | Pcs. | $2.50 |
| 13 | A00664-09-00 | WIRE HOLDER | 1 | Pc. | $8.00 | |
| 14 | A00665-09-00 | OIL DIPSTICK | 1 | Pc. | $14.00 | |
| 15 | A00090-27-00 | O-RING | 18X3 | 1 | Pc. | $2.50 |
| 16 | A00012-19-01 | FLANGE BOLT | M6X35 | 1 | Pc. | $1.50 |
| 17 | A00667-09-00 | RIGHT COVER ASSY | 1 | Assy. | $77.00 | |
| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00668-09-00 | CYLINDER | 1 | Pc. | $89.00 | |
| 2 | A00045-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $13.00 | |
| 3 | A00007-23-00 | DOWEL PIN | 10X16 | 2 | Pcs. | $1.50 |
| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00669-09-00 | CYLINDER HEAD | 1 | Pc. | $96.00 | |
| 2 | A00063-19-01 | FLANGE BOLT | M6X100 | 2 | Pcs. | $2.00 |
| 3 | A00007-23-00 | DOWEL PIN | 10X16 | 2 | Pcs. | $1.50 |
| 4 | A00046-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $13.00 | |
| 5 | A00074-24-02 | INTAKE INLET CLAMP | 1 | Pc. | $4.00 | |
| 6 | A00017-20-02 | SCREW | M4X25 | 1 | Pc. | $1.50 |
| 7 | A00001-22-02 | HEX NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00267-14-00 | INTAKE MANIFOLD ASSY | 1 | Assy. | $45.00 | |
| 9 | A00020-27-00 | O-RING | 26.5X1.8 | 1 | Pc. | $1.50 |
| 10 | A00268-14-00 | INTAKE INSULATOR | 1 | Pc. | $7.00 | |
| 11 | A00041-13-00 | INTAKE GASKET | 1 | Pc. | $4.00 | |
| 12 | A00674-09-00 | INTAKE VALVE | 1 | Pc. | $27.00 | |
| 13 | A02041-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.50 | |
| 14 | A00676-09-00 | SPRING SEAT | 2 | Pcs. | $2.50 | |
| 15 | A00677-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $11.00 | |
| 16 | A00678-09-00 | INNER VALVE SPRING | 2 | Pcs. | $8.00 | |
| 17 | A00679-09-00 | SPRING RETAINER | 2 | Pcs. | $2.50 | |
| 18 | A00680-09-00 | COLLET | 4 | Pcs. | $2.50 | |
| 19 | C7HSA | SPARK PLUG | C7HSA | 1 | Pc. | $8.00 |
| 20 | A00681-09-00 | ROCKER ARM STOPPER | 1 | Pc. | $11.00 | |
| 21 | A00682-09-00 | ADJUSTER NUT | 2 | Pcs. | $1.50 | |
| 22 | A00683-09-00 | ADJUSTER SCREW | 2 | Pcs. | $1.50 | |
| 23 | A00684-09-00 | ROCKER ARM | 2 | Pcs. | $14.00 | |
| 24 | A00685-09-00 | ROCKER ARM SHAFT A | 1 | Pc. | $4.00 | |
| 25 | A00686-09-00 | CAMSHAFT | 1 | Pc. | $59.00 | |
| 26 | A00687-09-00 | ROCKER ARM SHAFT B | 1 | Pc. | $10.00 | |
| 27 | A00688-09-00 | EXHAUST VALVE | 1 | Pc. | $30.00 | |
| 28 | A00002-22-01 | NUT | M8 | 4 | Pcs. | $1.50 |
| 29 | A00004-21-01 | WASHER | M8 | 4 | Pcs. | $1.50 |
| 30 | A00689-09-00 | CAMSHAFT RETAINER | 1 | Pc. | $39.00 | |
| 31 | A00009-19-04 | STUD | M6X63 | 2 | Pcs. | $2.00 |
| 32 | A00010-19-04 | STUD | M8X32 | 2 | Pcs. | $1.50 |
| 33 | A00690-09-00 | ROCKER ARM ASSY | 2 | Pcs. | $27.00 | |
| 34 | A00691-09-00 | CAMSHAFT ASSY | 1 | Pc. | $89.00 | |
| 35 | A00692-09-00 | CYLINDER HEAD ASSY | 1 | Pc. | $112.00 | |
| 36 | A00075-24-07 | CIRCLIP | 1 | Pc. | $3.50 | |
| 37 | A00693-09-00 | TIMING SPROCKET | 1 | Pc. | $24.00 | |
| 38 | A00065-19-01 | HEX BOLT | M5X12 | 2 | Pcs. | $1.50 |

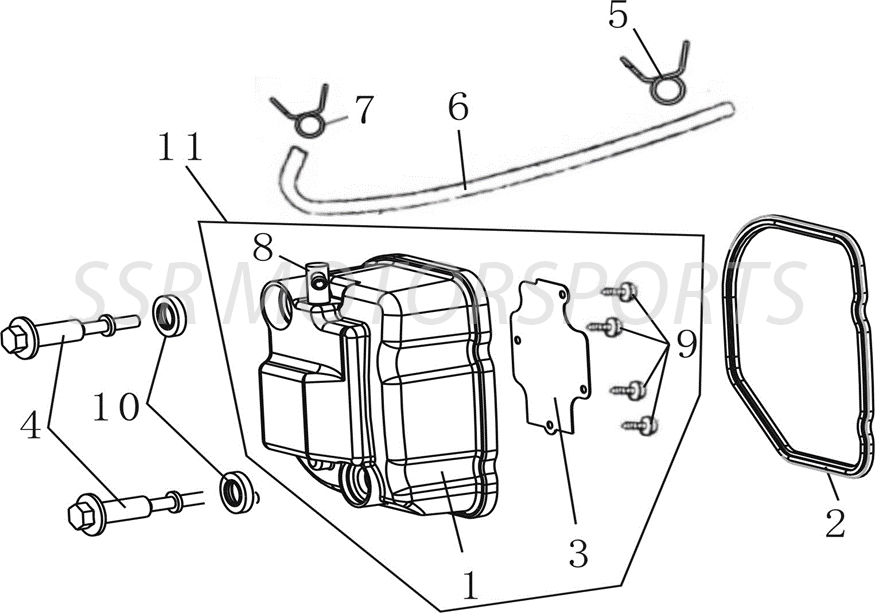

| CYLINDER HEAD COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00694-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $39.00 | |
| 2 | A00048-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $13.00 | |
| 3 | A00695-09-00 | PLATE | 1 | Pc. | $8.00 | |
| 4 | A00226-19-07 | COVER BOLT | 2 | Pcs. | $1.50 | |
| 5 | A00076-24-02 | CLAMP | 1 | Pc. | $1.50 | |
| 6 | A00696-09-00 | VENT TUBE | 1 | Pc. | $11.00 | |
| 7 | A00077-24-02 | CLAMP | 1 | Pc. | $1.50 | |
| 8 | A00697-09-00 | PIPE JOINT | 1 | Pc. | $2.00 | |
| 9 | A00008-20-03 | SCREW | ST4.2x8 | 4 | Pcs. | $1.50 |
| 10 | A00698-09-00 | BOLT SEAL | 2 | Pcs. | $1.50 | |
| 11 | A00699-09-00 | CYLINDER HEAD COVER ASSY | 1 | Pc. | $54.00 | |
| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00700-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $112.00 | |
| 2 | A00701-09-00 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 3 | A00702-09-00 | PISTON | 1 | Pc. | $45.00 | |
| 4 | A00703-09-00 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 5 | A00704-09-00 | PISTON RING SET | 1 | Set | $51.00 | |
| 6 | A00707-09-00 | PISTON PIN | 1 | Pc. | $4.00 | |

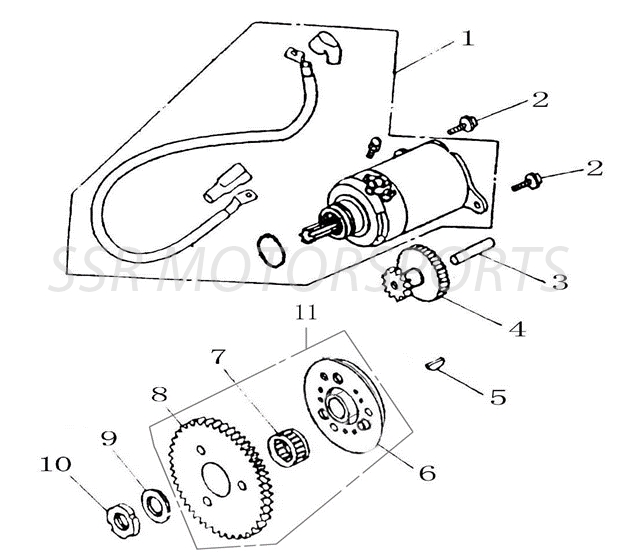

| STARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00708-09-00 | STARTER ASSY | 1 | Assy. | $77.00 | |
| 2 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 3 | A00709-09-00 | SHAFT | 1 | Pc. | $18.00 | |
| 4 | A00710-09-00 | REDUCTION GEAR | 1 | Pc. | $45.00 | |
| 5 | A00711-09-00 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 6 | A00712-09-00 | STARTER CLUTCH | 1 | Pc. | $51.00 | |
| 7 | A00143-28-00 | NEEDLE BEARING | 1 | Pc. | $14.00 | |
| 8 | A00714-09-00 | DRIVE GEAR | 1 | Pc. | $30.00 | |
| 9 | A00185-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 10 | A00003-22-08 | SPLINED NUT | M22X1.0 | 1 | Pc. | $6.00 |
| 11 | A00715-09-00 | STARTER CLUTCH ASSY | 1 | Assy. | $77.00 | |
| DRIVE CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00082-07-00 | DRIVE BELT | 743-20-30 | 1 | Pc. | $54.00 |
| 2 | A00083-07-00 | VARIATOR ASSY | 1 | Assy. | $54.00 | |
| 3 | A00084-07-00 | PIN | 3 | Pcs. | $1.50 | |
| 4 | A00085-07-00 | FAN FLANGE | 1 | Pc. | $11.00 | |
| 5 | A00086-07-00 | ROLLER WEIGHT | 6 | Pcs. | $4.00 | |
| 6 | A00087-07-00 | DRIVE PULLEY | 1 | Pc. | $30.00 | |
| 7 | A00088-07-00 | DRIVE FAN SLEEVE | 1 | Pc. | $4.00 | |
| 8 | A00089-07-00 | DRIVE BELT FAN | 1 | Pc. | $21.00 | |
| 9 | A00186-21-01 | WASHER | 12.5X25X7 | 1 | Pc. | $1.50 |
| 10 | A00010-22-01 | FLANGE NUT | M12X1.25 | 1 | Pc. | $2.00 |
| 11 | A00090-07-00 | REAR DRIVE CLUTCH ASSY | 1 | Assy. | $96.00 | |
| 12 | A00091-07-00 | SPRING COLLAR A | 1 | Pc. | $3.50 | |
| 13 | A00092-07-00 | SPRING | 1 | Pc. | $4.00 | |
| 14 | A00093-07-00 | SPRING COLLAR B | 1 | Pc. | $3.50 | |
| 15 | A00094-07-00 | REAR PULLEY A | 1 | Pc. | $39.00 | |
| 16 | A00095-07-00 | REAR PULLEY B | 1 | Pc. | $39.00 | |
| 17 | A00070-22-01 | NUT | 3 | Pcs. | $1.50 | |
| 18 | A00096-07-00 | WEIGHT PLATE | 1 | Pc. | $14.00 | |
| 19 | A00097-07-00 | SPRING | 3 | Pcs. | $1.50 | |
| 20 | A00098-07-00 | CLUTCH WEIGHT | 3 | Pcs. | $8.00 | |
| 21 | A00071-22-01 | NUT | 3 | Pcs. | $1.50 | |
| 22 | A00099-07-00 | CLUTCH PLATE | 1 | Pc. | $18.00 | |
| 23 | A00100-07-00 | PLATE WASHER | 1 | Pc. | $1.50 | |
| 24 | A00101-07-00 | ONE-WAY CLUTCH | 1 | Pc. | $41.00 | |
| 25 | A00022-21-01 | WASHER | 12.3X29X2.5 | 1 | Pc. | $1.50 |
| 26 | A00072-22-01 | NUT | M12X1.25X8 | 1 | Pc. | $2.00 |
| 27 | A00102-07-00 | DRIVE CLUTCH ASSY | 1 | Assy. | $41.00 | |

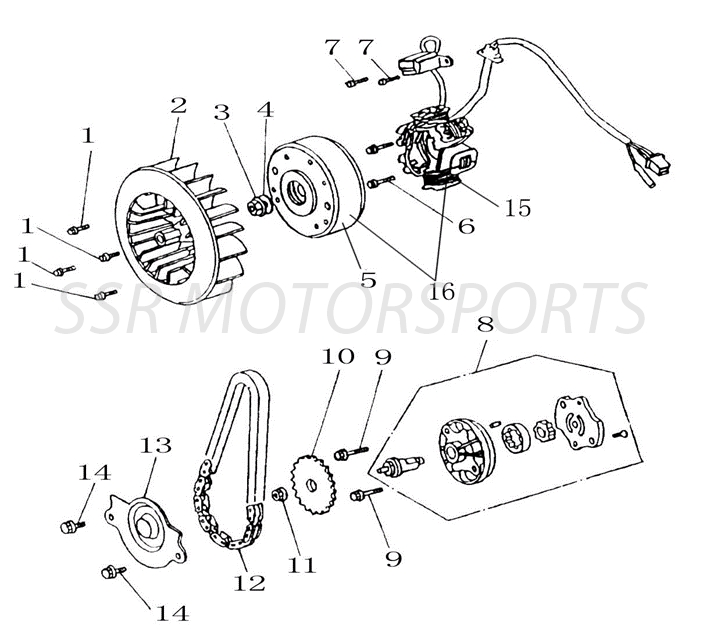

| STATOR & OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00066-19-01 | FLANGE BOLT | M6X18 | 4 | Pcs. | $1.50 |
| 2 | A00716-09-00 | FAN | 1 | Pc. | $24.00 | |
| 3 | A00010-22-01 | FLANGE NUT | M12X1.25 | 1 | Pc. | $2.00 |
| 4 | A00187-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 5 | A02916-09-00 | FLYWHEEL | 1 | Pc. | $63.00 | |
| 6 | A00008-19-02 | ALLEN BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00065-19-01 | FLANGE BOLT | M5X12 | 2 | Pcs. | $1.50 |
| 8 | A00718-09-00 | OIL PUMP ASSY | 1 | Assy. | $30.00 | |
| 9 | A00003-19-01 | FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 10 | A00719-09-00 | OIL PUMP SPROCKET | 1 | Pc. | $18.00 | |
| 11 | A00001-22-01 | NUT | M6 | 1 | Pc. | $1.50 |
| 12 | A00720-09-00 | OIL PUMP CHAIN | 1 | Pc. | $24.00 | |
| 13 | A00721-09-00 | OIL PUMP PLATE | 1 | Pc. | $18.00 | |
| 14 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 15 | A02917-09-00 | STATOR | 1 | Pc. | $89.00 | |
| 16 | A02918-09-00 | STATOR W/ FLYWHEEL ASSY | 1 | Assy. | $142.00 | |

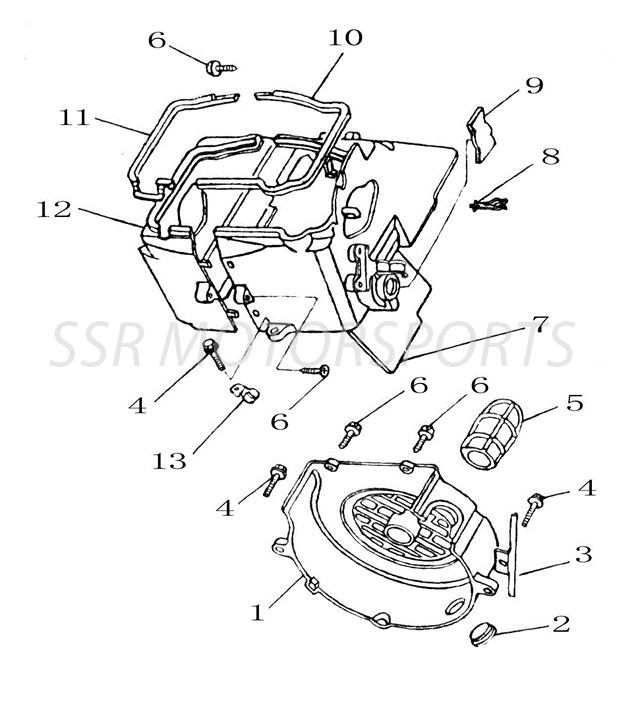

| FAN COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00724-09-00 | FAN COVER | 1 | Pc. | $18.00 | |
| 2 | A00725-09-00 | CAP | 1 | Pc. | $14.00 | |
| 3 | A00726-09-00 | CABLE CLAMP A | 1 | Pc. | $4.00 | |
| 4 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 3 | Pcs. | $1.50 |
| 5 | A00727-09-00 | COOLING DUCT | 1 | Pc | $14.00 | |
| 6 | A00009-20-03 | SCREW | ST4.8X16 | 5 | Pcs. | $1.50 |
| 7 | A00728-09-00 | UPPER FAN COVER ASSY | 1 | Pc. | $18.00 | |
| 8 | A00729-09-00 | CABLE CLAMP B | 1 | Pc. | $1.50 | |
| 9 | A00730-09-00 | COVER CAP INSERT | 1 | Pc. | $2.50 | |
| 10 | A00731-09-00 | UPPER RUBBER SEAL | 1 | Pc. | $4.00 | |
| 11 | A00732-09-00 | LOWER RUBBER SEAL | 1 | Pc. | $4.00 | |
| 12 | A00733-09-00 | LOWER FAN COVER | 1 | Pc. | $18.00 | |
| 13 | A00734-09-00 | TUBING CLAMP | 1 | Pc. | $13.00 | |
