Product Description

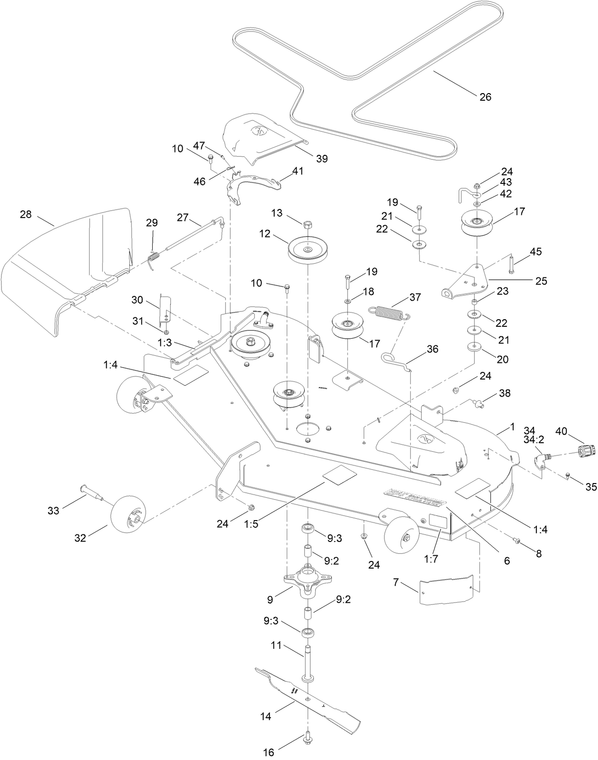

| No. | Description | Price |
|---|---|---|
| 1 | 54IN DECK AND DECAL ASM [FAB SERVICE] Part #: 138-9766 Quantity Needed: 1 |
$917.14 USD
|
| 1:3 | DANGER DECAL Part #: 130-0731 Quantity Needed: 1 |
$2.98 USD
|
| 1:4 | DECAL-DANGER, DECK Part #: 132-0872 Quantity Needed: 2 |
$1.75 USD
|
| 1:5 | BELT ROUTING DECAL Part #: 99-3943 Quantity Needed: 1 |
$6.37 USD
|
| 1:7 | ANTI-SCALP DECAL Part #: 112-9840 Quantity Needed: 1 |
$6.15 USd
|
| 6 | DECK DECAL Part #: 140-2124 Quantity Needed: 1 |
$3.84 USD
|
| 7 | BAFFLE-CORNER [FAB BLACK] Part #: 139-2448-03 Quantity Needed: 1 |
$20.89 USD
|
| 8 | SCREW Part #: 138-9753 Quantity Needed: 2 |
$0.43 USD
|
| 9 | SPINDLE ASSEMBLY FOR TIMECUTTER MOWER Part #: 139-3214 Quantity Needed: 3 |
$70.39 USD
|
| 9:2 | SPACER Part #: 120-7935 Quantity Needed: 2 |
$1.97 USD
|
| 9:3 | BALL BEARING Part #: 138-9770 Quantity Needed: 2 |
$6.70 USD
|
| 10 | TAPTITE SCREW Part #: 32144-41 Quantity Needed: 12 |
$4.72 USD
|
| 11 | SPINDLE SHAFT Part #: 117-7268 Quantity Needed: 3 |
$27.49 USD
|
| 12 | PULLEY ASSEMBLY Part #: 138-7261 Quantity Needed: 3 |
$14.29 USD
|
| 13 | HEX NUT Part #: 3219-6 Quantity Needed: 3 |
$3.71 USD
|
| 14 | 18.75 INCH HI-FLOW BLADE Part #: 115-2454-03 Quantity Needed: 3 |
$30.79 USD
|
| 16 | BLADE BOLT Part #: 145-0411 Quantity Needed: 3 |
$2.96 USD
|
| 17 | FLAT IDLER PULLEY Part #: 132-9420 Quantity Needed: 3 |
$32.99 USD
|
| 18 | FLAT WASHER Part #: 3256-24 Quantity Needed: 2 |
$0.63 USD
|
| 19 | HEX HEAD (HH) SCREW Part #: 323-9 Quantity Needed: 3 |
$1.09 USD
|
| 20 | PLAIN WASHER Part #: 110-9981 Quantity Needed: 1 |
$13.19 USD
|
| 21 | WASHER-REBOUND Part #: 63-7400 Quantity Needed: 2 |
$2.88 USD
|
| 22 | COMPOSITE FRICTION WASHER Part #: 114-0463 Quantity Needed: 2 |
$4.50 USD
|
| 23 | SPACER Part #: 115-4986 Quantity Needed: 1 |
$1.86 USD
|
| 24 | HEX FLANGE (HF) NUT Part #: 104-8301 Quantity Needed: 7 |
$1.12 USD
|
| 25 | IDLER ARM Part #: 138-7262 Quantity Needed: 1 |
$16.49 USD
|
| 26 | 54 INCH DECK BELT Part #: 130-0843 Quantity Needed: 1 |
$95.99 USD
|
| 27 | PIVOT ROD Part #: 137-2019 Quantity Needed: 1 |
$10.99 USD
|
| 28 | DISCHARGE DEFLECTOR Part #: 138-7502 Quantity Needed: 1 |
$57.19 USD
|
| 29 | TORSION SPRING Part #: 138-7268 Quantity Needed: 1 |
$2.30 USD
|
| 30 | CUTOFF BAFFLE Part #: 138-9800-03 Quantity Needed: 1 |
$9.12 USD
|
| 31 | HEX NUT Part #: 121-4600 Replaces 3296-59 Quantity Needed: 1 |
$0.99 USD
|
| 32 | ROLLER-SCALP, ANTI Part #: 1-603299 Quantity Needed: 3 |
$21.99 USD
|
| 33 | SHOULDER BOLT Part #: 112-3977 Quantity Needed: 3 |
$9.89 USD
|
| 34 | WASHOUT FITTING ASSEMBLY Part #: 133-9289 Quantity Needed: 2 |
$5.27 USD
|
| 34:2 | O-RING Part #: 133-9290 Quantity Needed: 1 |
$0.43 USD
|
| 35 | HEX WASHER HEAD (HWH) SCREW Part #: 32144-4 Quantity Needed: 4 |
$1.20 USD
|
| 36 | RETURN SPRING HOOK Part #: 138-7266 Quantity Needed: 1 |
$4.06 USD
|
| 37 | EXTENSION SPRING Part #: 138-7264 Quantity Needed: 1 |
$6.92 USD
|
| 38 | PIN-DECK Part #: 139-5871 Quantity Needed: 2 |
$2.30 USD
|
| 39 | BELT COVER Part #: 144-1906 Quantity Needed: 2 |
$9.89 USD
|
| 40 | HOSE CONNECTOR Part #: 95-3270 Quantity Needed: 1 |
$20.89 USD
|
| 41 | BRACKET ASSEMBLY - BELT [BLACK Part #: 139-3272-03 Quantity Needed: 2 |
$10.99 USD
|
| 42 | BLOWER HUB SPACER Part #: 138-7207 Quantity Needed: 1 |
$0.76 USD
|
| 43 | IDLER BELT GUIDE Part #: 138-7270 Quantity Needed: 1 |
$2.30 USD
|
| 45 | HEX HEAD (HH) SCREW Part #: 323-11 Quantity Needed: 1 |
$2.07 USD
|
| 46 | HAIR PIN Part #: 144-1944 Quantity Needed: 2 |
$0.43 USD
|
| 47 | SCREW Part #: 94-6961 Quantity Needed: 2 |
$0.98 USD
|
| No. | Description | Price |
|---|---|---|
| 1 | BRAKE BOX ASSEMBLY Part #: 138-2514 Quantity Needed: 1 |
$119.89 USD
|
| 2 | BRACKET ASSEMBLY - BRAKE [BLACK Part #: 133-9284-03 Quantity Needed: 1 |
$6.59 USD
|
| 3 | LEFT HAND BRAKE ROD Part #: 138-2591 Quantity Needed: 1 |
$10.99 USD
|
| 4 | RIGHT HAND BRAKE ROD Part #: 138-2592 Quantity Needed: 1 |
$10.99 USD
|
| 5 | COMPRESSION SPRING Part #: 117-1169 Quantity Needed: 4 |
$2.08 USD
|
| 7 | PIN-COTTER [HAIR .080 NO.2] Part #: 1-806003 Replaces 3290-307 Quantity Needed: 2 |
$1.09 USD
|
| 8 | PHILLIPS PAN HEAD (PPH) SCREW Part #: 32144-36 Quantity Needed: 4 |
$1.09 USD
|
| 9 | HEX WASHER HEAD (HWH) SCREW Part #: 32144-4 Quantity Needed: 2 |
$1.20 USD
|
| 10 | WASHER Part #: 119-8952 Quantity Needed: 6 |
$0.43 USD
|
| 11 | NI LOCK NUT Part #: 3296-42 Quantity Needed: 2 |
$0.43 USD
|
