Product Description
| 2015-2022 SR110TR | ||||||

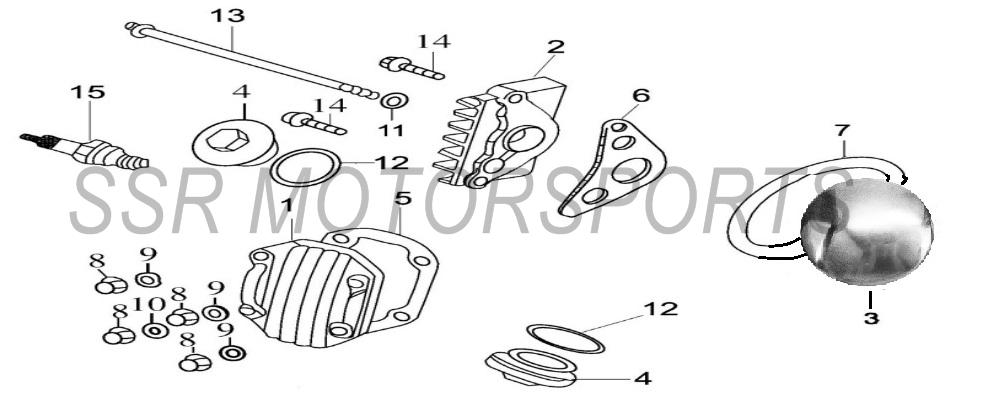

| CYLINDER HEAD COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01171-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $21.00 | |
| 2 | A02931-09-00 | RIGHT CYLINDER HEAD COVER | 1 | Pc. | $18.00 | |
| 3 | A02929-09-00 | LEFT CYLINDER HEAD COVER | MATTE | 1 | Pc. | $18.00 |
| 4 | A02930-09-00 | TAPPET COVER | MATTE | 2 | Pcs. | $8.00 |
| 5 | A00127-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 6 | A00128-13-00 | RIGHT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 7 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 8 | A00003-22-36 | FLANGE CAP NUT | M6 | 4 | Pcs. | $1.50 |
| 9 | A00017-21-01 | WASHER | M6 | 3 | Pcs. | $1.50 |
| 10 | A00272-21-01 | COPPER WASHER | M6 | 1 | Pc. | $1.50 |
| 11 | A01177-09-00 | ALUMINUM WASHER | M6 | 1 | Pc. | $1.50 |
| 12 | A00004-27-00 | O-RING | 30.8X3.2 | 2 | Pcs. | $3.50 |
| 13 | A00439-19-07 | SPECIAL FLANGE BOLT | M6X110 | 1 | Pc. | $2.50 |
| 14 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 15 | C7HSA | SPARK PLUG | C7HSA | 1 | Pc. | $8.00 |

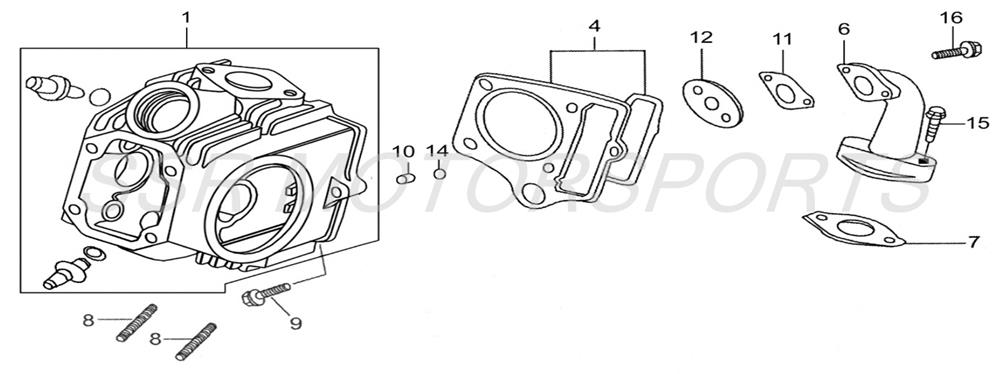

| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02721-09-00 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $115.00 |
| 4 | A00132-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $11.00 | |
| 6 | A00279-14-00 | INTAKE MANIFOLD | ZL56-2 | 1 | Pc. | $27.00 |
| 7 | A00280-14-00 | INTAKE MANIFOLD GASKET | LF120 E2-7 | 1 | Pc. | $4.00 |
| 8 | A00001-19-04 | STUD | M6X32 | 2 | Pcs. | $1.50 |
| 9 | A00002-19-03 | BOLT | M6X23 | 1 | Pc. | $1.50 |
| 10 | A00118-23-00 | SPECIAL PIN | 8X11 | 1 | Pc. | $2.50 |
| 11 | A00242-14-00 | O-RING | 27X2.0 | 1 | Pc. | $2.50 |
| 12 | A00126-13-00 | INTAKE INSULATOR | 1 | Pc. | $6.00 | |
| 14 | A00112-21-01 | O-RING | 8X10.8X1.5 | 1 | Pc. | $1.50 |
| 15 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 16 | A00024-19-01 | FLANGE BOLT | M6X22 | 2 | Pcs. | $1.50 |

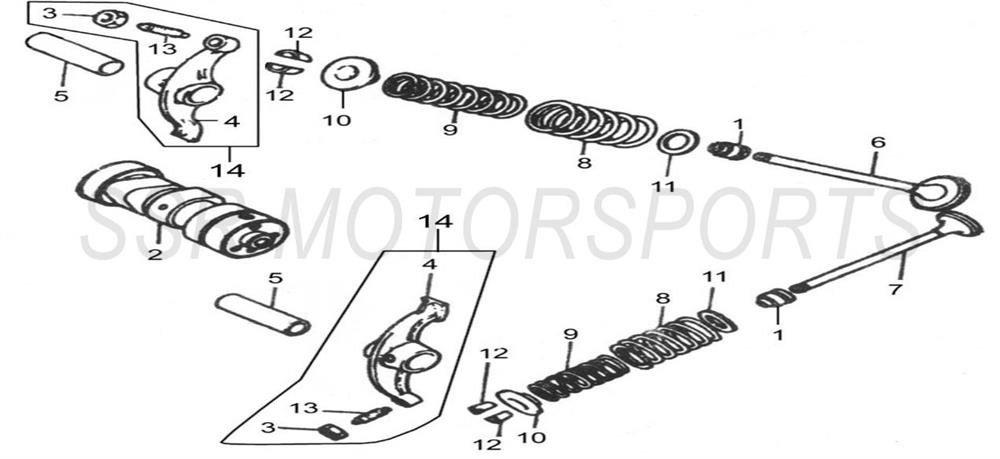

| CAMSHAFT & VALVES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02858-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.50 | |
| 2 | A02845-09-00 | CAMSHAFT | 1 | Pc. | $63.00 | |
| 3 | A02846-09-00 | VALVE ADJUSTING NUT | 2 | Pcs. | $2.00 | |
| 4 | A02847-09-00 | ROCKER ARM | 2 | Pcs. | $18.00 | |
| 5 | A02848-09-00 | ROCKER ARM SHAFT | 2 | Pcs. | $6.00 | |
| 6 | A02849-09-00 | INTAKE VALVE | 1 | Pc. | $13.00 | |
| 7 | A02850-09-00 | EXHAUST VALVE | 1 | Pc. | $13.00 | |
| 8 | A02851-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 9 | A02852-09-00 | INNER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 10 | A02853-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 11 | A02854-09-00 | LOWER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 12 | A02855-09-00 | COLLET | 4 | Pcs. | $2.00 | |
| 13 | A02856-09-00 | VALVE ADJUSTING SCREW | 2 | Pcs. | $2.00 | |
| 14 | A02857-09-00 | ROCKER ARM ASSY | 2 | Assy. | $21.00 | |

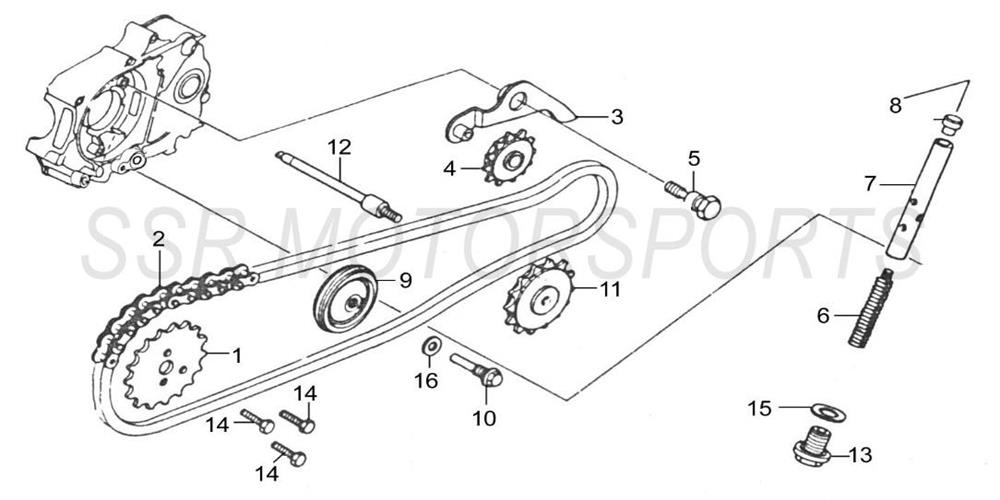

| TIMING CHAIN & TENSIONER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01329-09-00 | CAMSHAFT SPROCKET | 28T | 1 | Pc. | $21.00 |
| 2 | A01255-09-00 | TIMING CHAIN | 84L | 1 | Pc. | $30.00 |
| 3 | A02444-09-00 | CAM CHAIN TENSIONER ARM | 1 | Pc. | $8.00 | |
| 4 | A01257-09-00 | TENSIONER SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 5 | A01321-09-00 | CHAIN TENSIONER ARM BOLT | 1 | Pc. | $2.00 | |
| 6 | A01322-09-00 | TENSIONER SPRING | 1 | Pc. | $2.50 | |
| 7 | A01323-09-00 | TENSIONER ROD | 1 | Pc. | $7.00 | |
| 8 | A01299-09-00 | TENSIONING ROD HEAD | 1 | Pc. | $2.50 | |
| 9 | A01300-09-00 | CHAIN ROLLER | RUBBER | 1 | Pc. | $14.00 |
| 10 | A01303-09-00 | ROLLER GUIDE BOLT | 1 | Pc. | $1.50 | |
| 11 | A01304-09-00 | GUIDE SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 12 | A01305-09-00 | OIL PUMP SHAFT | 1 | Pc. | $6.00 | |
| 13 | A02455-09-00 | TENSIONER BOLT | M14X1.5 | 1 | Pc. | $2.50 |
| 14 | A00025-19-03 | BOLT | M5X12 | 3 | Pcs. | $1.50 |
| 15 | A01307-09-00 | TENSIONER SEAL | 1 | Pc. | $1.50 | |
| 16 | A00094-21-01 | WASHER | 8x14x1.5 | 1 | Pc. | $1.50 |

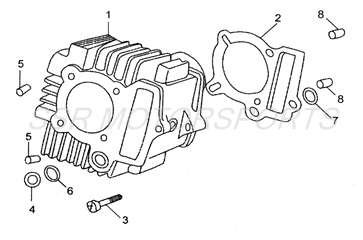

| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02890-09-00 | CYLINDER | 1 | Pc. | $98.00 | |
| 2 | A00259-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $11.00 | |
| 3 | A00002-19-03 | BOLT | M6X23 | 1 | Pc. | $1.50 |
| 4 | A00042-27-00 | O-RING | 9X1.6 | 1 | Pc. | $1.50 |
| 5 | A00001-23-00 | DOWEL PIN | 8X14 | 2 | Pcs. | $1.50 |
| 6 | A00008-27-00 | O-RING | 14.5X2.5 | 1 | Pc. | $1.50 |
| 7 | A00009-27-00 | O-RING | 11.5X2.6 | 1 | Pc. | $1.50 |
| 8 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |

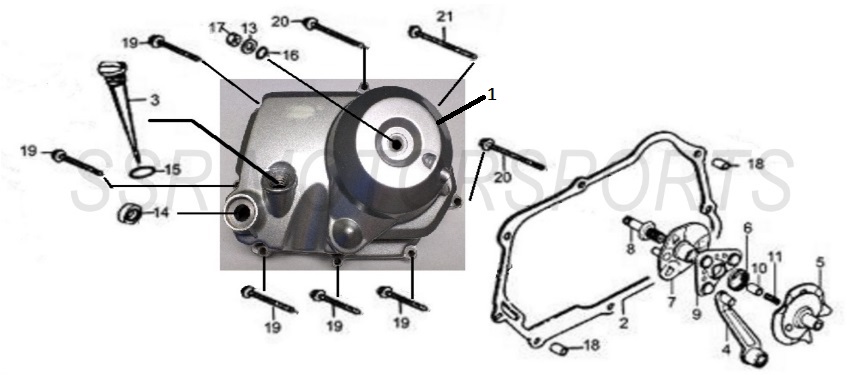

| RIGHT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02884-09-00 | RIGHT ENGINE COVER | 1 | Pc. | $85.00 | |
| 2 | A00120-13-00 | RIGHT ENGINE COVER GASKET | 1 | Pc. | $14.00 | |
| 3 | A02406-09-00 | OIL LEVEL DIPSTICK | 1 | Pc. | $7.00 | |
| 4 | A02327-09-00 | CLUTCH OPERATING ARM | 1 | Pc. | $26.00 | |
| 5 | A02328-09-00 | CLUTCH CAM PLATE | 1 | Pc. | $14.00 | |
| 6 | A02329-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 7 | A02330-09-00 | CLUTCH SEPARATING DISK | 1 | Pc. | $11.00 | |
| 8 | A02331-09-00 | CLUTCH ADJUSTING BOLT | 1 | Pc. | $6.00 | |
| 9 | A02332-09-00 | TAPPET | 1 | Pc. | $10.00 | |
| 10 | A02333-09-00 | OIL TUBE | 1 | Pc. | $3.50 | |
| 11 | A02334-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 13 | A00004-21-01 | WASHER | 8MM | 1 | Pc. | $1.50 |
| 14 | A00005-26-00 | OIL SEAL | 13.7X24X5 | 1 | Pc. | $6.00 |
| 15 | A00090-27-00 | O-RING | 18X3 | 1 | Pc. | $2.50 |
| 16 | A00019-27-00 | O-RING | 8X2 | 1 | Pc. | $1.50 |
| 17 | A00002-22-01 | NUT | M8 | 1 | Pcs. | $1.50 |
| 18 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pc. | $1.50 |
| 19 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 2 | Pcs. | $1.50 |
| 20 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 5 | Pcs. | $2.00 |
| 21 | A00436-19-08 | CASE FLANGE BOLT | M6X80 | 2 | Pcs. | $2.00 |
| CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01327-09-00 | CLUTCH WASHER | 1 | Pc. | $3.50 | |
| 2 | A01271-09-00 | PRIMARY DRIVE GEAR BUSHING | 1 | Pc. | $6.00 | |
| 3 | A01302-09-00 | GEAR | 18T | 1 | Pc. | $18.00 |
| 4 | A01301-09-00 | GEAR | 67T | 1 | Pc. | $21.00 |
| 5 | A00036-24-07 | CIRCLIP | 1 | Pc. | $1.50 | |
| 6 | A01213-09-00 | CLUTCH | 1 | Pc. | $76.00 | |
| 7 | A01283-09-00 | TONGUE WASHER | 1 | Pc. | $2.50 | |
| 8 | A01284-09-00 | PRIMARY DRIVE DISHED WASHER | 1 | Pc. | $1.50 | |
| 9 | A01282-09-00 | PRIMARY DRIVE GEAR LOCKNUT | M14X1 | 1 | Pc. | $2.50 |
| 10 | A00308-13-00 | CLUTCH LIFTER PLATE GASKET | 1 | Pc. | $8.00 | |
| 11 | A03025-09-00 | CLUTCH LIFTER PLATE | 1 | Pc. | $18.00 | |
| 12 | A00007-20-01 | SCREW | M5X12 | 4 | Set | $1.50 |
| 13 | A01280-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 14 | A01279-09-00 | COLLAR | 1 | Pc. | $1.50 | |
| 16 | A02715-09-00 | CLUTCH ASSEMBLY | 1 | Assy. | $98.00 | |

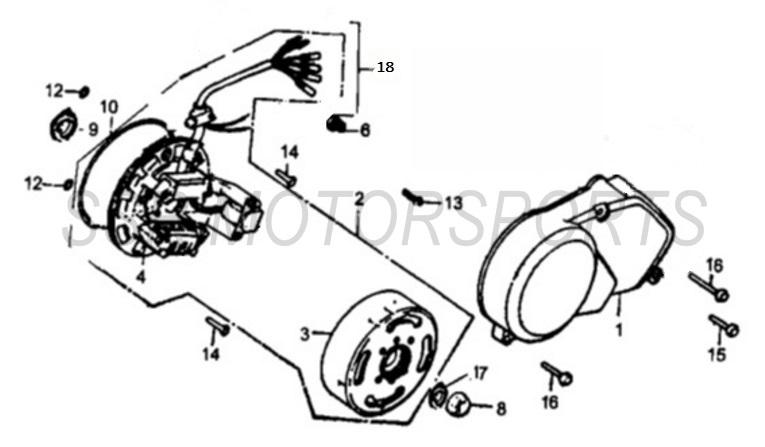

| LEFT ENGINE COVER & STATOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01214-09-00 | STATOR COVER | 1 | Pc. | $48.00 | |
| 2 | A02771-09-00 | STATOR W/ FLYWHEEL ASSY | 1 | Assy. | $129.00 | |
| 3 | A02772-09-00 | FLYWHEEL | 1 | Pc. | $63.00 | |
| 4 | A02773-09-00 | STATOR PLATE ASSY | 1 | Assy. | $85.00 | |
| 6 | A02920-09-00 | RUBBER PLUG | 1 | Pc. | $4.00 | |
| 8 | A00004-22-04 | LOCK NUT | M10X1.25 | 1 | Pc. | $1.50 |
| 9 | A00003-26-00 | OIL SEAL | 18.9X30X5 | 1 | Pc. | $4.00 |
| 10 | A00010-27-00 | O-RING | 107X2 | 1 | Pc. | $8.00 |
| 12 | A00012-27-00 | O-RING | 6.5X1.9 | 2 | Pcs. | $1.50 |
| 13 | A00006-20-01 | PHILLIPS BOLT | M6X12 | 1 | Pc. | $1.50 |
| 14 | A00038-20-01 | SCREW | M6X14 | 2 | Pcs. | $1.50 |
| 15 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 1 | Pc. | $1.50 |
| 16 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 17 | A00002-21-01 | WASHER | M10 | 1 | Pc. | $1.50 |

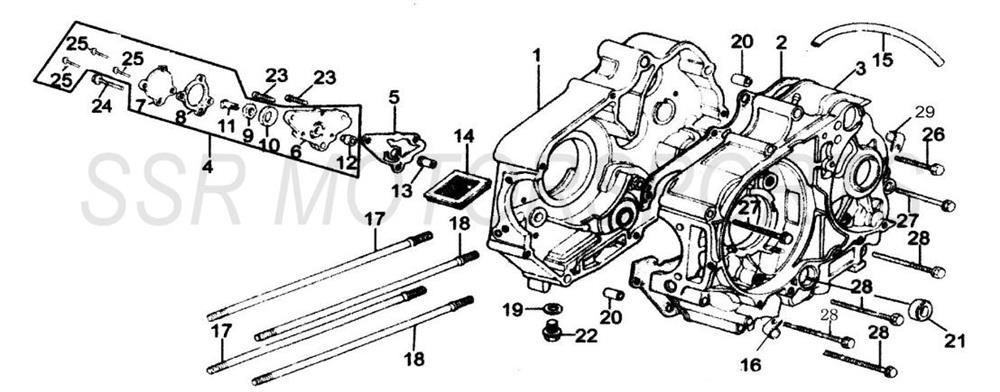

| CRANKCASE & OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02892-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $85.00 | |
| 2 | A00122-13-00 | CENTER CASE GASKET | 1 | Pc. | $14.00 | |
| 3 | A02893-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $90.00 | |
| 4 | A01221-09-00 | OIL PUMP ASSY | 1 | Assy. | $42.00 | |
| 5 | A00123-13-00 | OIL PUMP GASKET | 1 | Pc. | $6.00 | |
| 6 | A01222-09-00 | OIL PUMP BODY | 1 | Pc. | $18.00 | |
| 7 | A01225-09-00 | OIL PUMP COVER | 1 | Pc. | $8.00 | |
| 8 | A00124-13-00 | OIL PUMP COVER GASKET | 1 | Pc. | $4.00 | |
| 9 | A01226-09-00 | OIL PUMP INNER ROTOR | 1 | Pc. | $8.00 | |
| 10 | A01227-09-00 | OIL PUMP OUTER ROTOR | 1 | Pc. | $8.00 | |
| 11 | A01228-09-00 | OIL PUMP SHAFT | 1 | Pc. | $8.00 | |
| 12 | A01229-09-00 | OIL PUMP SHAFT BUSHING | 1 | Pc. | $2.00 | |
| 13 | A01230-09-00 | OIL PUMP SPROCKET BUSHING | 1 | Pc. | $2.00 | |
| 14 | A01098-09-00 | OIL SCREEN | 1 | Pc. | $10.00 | |
| 15 | A02356-09-00 | CRANKCASE VENT HOSE | 1 | Pc. | $10.00 | |
| 16 | A01100-09-00 | STATOR WIRE RETAINER | 1 | Pc. | $1.50 | |
| 17 | A00394-19-04 | CYLINDER STUD A | 2 | Pcs. | $8.00 | |
| 18 | A00395-19-04 | CYLINDER STUD B | 2 | Pcs. | $8.00 | |
| 19 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 20 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 21 | A00002-26-00 | OIL SEAL | 11.6X24X10 | 1 | Pc. | $4.00 |
| 22 | A01102-09-00 | OIL DRAIN BOLT | 1 | Pc. | $4.00 | |
| 23 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 24 | A00024-19-01 | FLANGE BOLT | M6X22 | 1 | Pc. | $1.50 |
| 25 | A00037-19-01 | FLANGE BOLT | M5X10 | 3 | Pcs. | $1.50 |
| 26 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 27 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 28 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 4 | Pcs. | $2.00 |
| 29 | A02576-09-00 | VENT HOSE CLAMP | 1 | Pc. | $1.50 | |

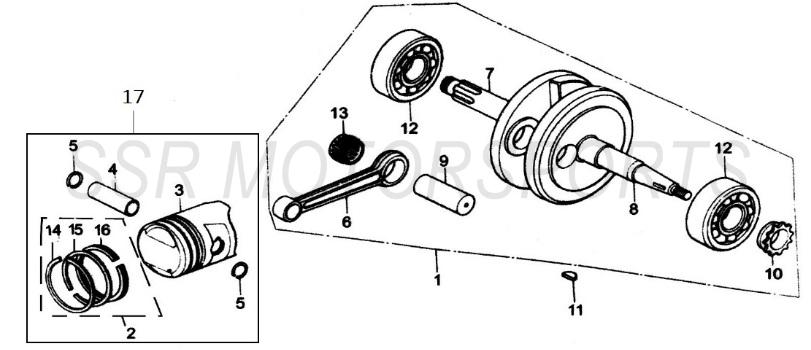

| CRANKSHAFT & PISTON | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02791-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $98.00 | |
| 2 | A02792-09-00 | PISTON RING SET | 1 | Set | $32.00 | |
| 3 | A02776-09-00 | PISTON | 1 | Pc. | $32.00 | |
| 4 | A02777-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 5 | A02778-09-00 | PISTON PIN CIRCLIP | 2 | Pcs. | $1.50 | |
| 6 | A02796-09-00 | CONNECTING ROD | 1 | Pc. | $10.00 | |
| 7 | A02797-09-00 | RIGHT CRANKSHAFT HALF | 1 | Pc. | $33.00 | |
| 8 | A02798-09-00 | LEFT CRANKSHAFT HALF | 1 | Pc. | $33.00 | |
| 9 | A02799-09-00 | CRANKSHAFT PIN | 1 | Pc. | $6.00 | |
| 10 | A02800-09-00 | CAM CHAIN SPROCKET | 1 | Pc. | $8.00 | |
| 11 | A01113-09-00 | WOODRUFF KEY | 2 | Pcs. | $1.50 | |
| 12 | A02802-09-00 | BEARING | 6304 | 2 | Pcs. | $11.00 |
| 13 | A02803-09-00 | BEARING | 1 | Pc. | $8.00 | |
| 17 | A02790-09-00 | PISTON KIT | 2,3,4,5 | 1 | Kit | $63.00 |

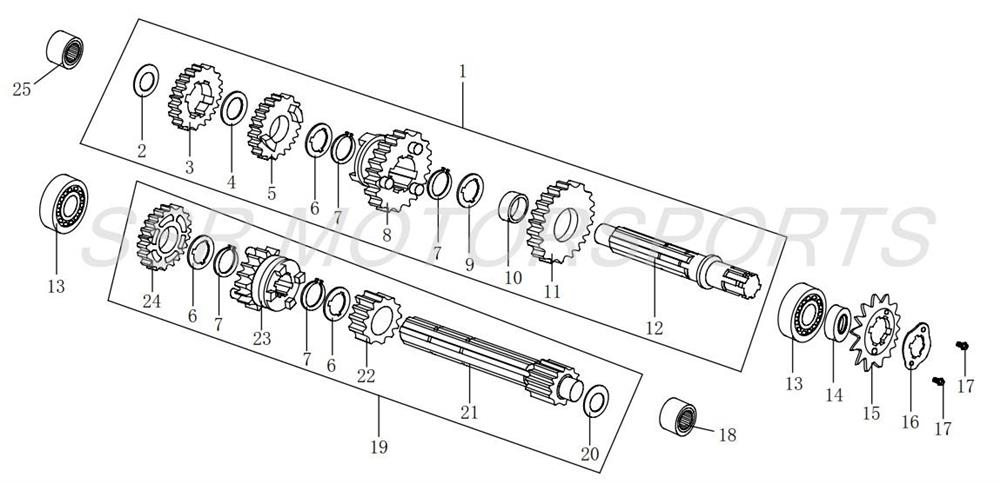

| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00221-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $77.00 | |
| 2 | A00217-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 3 | A00212-17-00 | COUNTERSHAFT 4TH GEAR | 1 | Pc. | $13.00 | |
| 4 | A00215-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 5 | A00210-17-00 | COUNTERSHAFT 3RD GEAR | 1 | Pc. | $13.00 | |
| 6 | A00218-17-00 | WASHER | 3 | Pcs. | $2.00 | |
| 7 | A00220-17-00 | CIRCLIP | 4 | Pcs. | $1.50 | |
| 8 | A00208-17-00 | COUNTERSHAFT 2ND GEAR | 1 | Pc. | $13.00 | |
| 9 | A00219-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 10 | A00206-17-00 | COUNTERSHAFT BUSHING | 1 | Pc. | $7.00 | |
| 11 | A00205-17-00 | COUNTERSHAFT 1ST GEAR | 1 | Pc. | $13.00 | |
| 12 | A00204-17-00 | COUNTER SHAFT | 1 | Pc. | $51.00 | |
| 13 | A00008-28-00 | BEARING | 6203 | 2 | Pcs. | $27.00 |
| 14 | A00001-26-00 | OIL SEAL | 1 | Pc. | $4.00 | |
| 15 | A00307-07-00 | COUNTERSHAFT SPROCKET | 14T | 1 | Pc. | $14.00 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 17 | A00031-19-03 | BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 18 | A00108-28-00 | NEEDLE BEARING | NK14/2 | 1 | Pc. | $7.00 |
| 19 | A00232-17-00 | MAINSHAFT ASSY | 1 | Assy. | $77.00 | |
| 20 | A00216-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 21 | A00203-17-00 | MAINSHAFT | 1 | Pc. | $51.00 | |
| 22 | A00207-17-00 | MAINSHAFT 2ND GEAR | 1 | Pc. | $13.00 | |
| 23 | A00209-17-00 | MAINSHAFT 3RD GEAR | 1 | Pc. | $13.00 | |
| 24 | A00211-17-00 | MAINSHAFT 4TH GEAR | 1 | Pc. | $13.00 | |
| 25 | A00107-28-00 | NEEDLE BEARING | NK13.5/2 | 1 | Pc. | $7.00 |

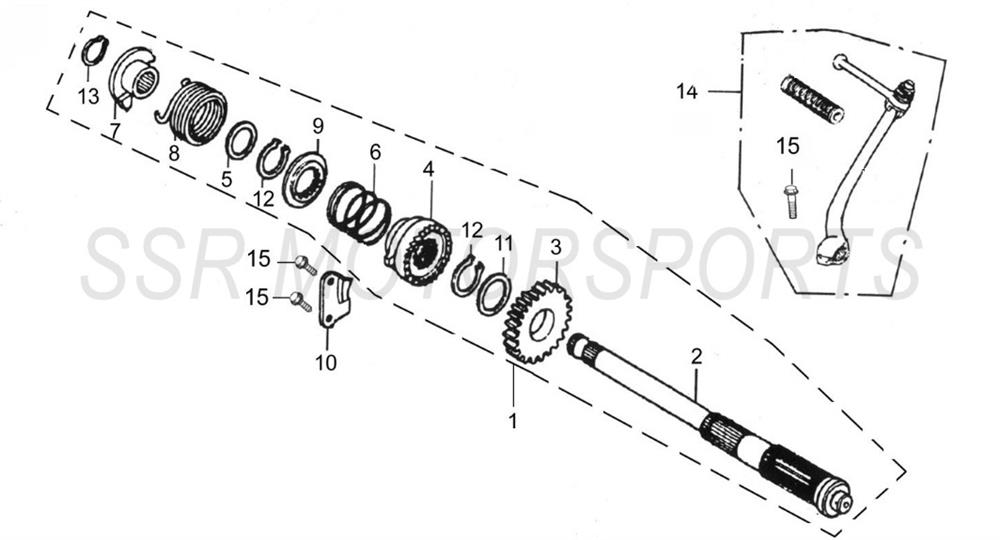

| KICKSTARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02363-09-00 | KICK STARTER SHAFT ASSY | 1 | Assy. | $51.00 | |
| 2 | A02364-09-00 | KICK STARTER SHAFT | 1 | Pc. | $18.00 | |
| 3 | A02365-09-00 | KICK START GEAR | 1 | Pc. | $18.00 | |
| 4 | A02366-09-00 | RATCHET | 1 | Pc. | $13.00 | |
| 5 | A02367-09-00 | WASHER I | 1 | Pc. | $1.50 | |
| 6 | A02368-09-00 | SPRING | 1 | Pc. | $2.00 | |
| 7 | A02369-09-00 | SPRING SEAT | 1 | Pc. | $4.00 | |
| 8 | A02370-09-00 | RETURN SPRING | 1 | Pc. | $2.50 | |
| 9 | A02371-09-00 | SPRING SEAT | 1 | Pc. | $2.50 | |
| 10 | A02372-09-00 | RETAINER PLATE | 1 | Pc. | $4.00 | |
| 11 | A02373-09-00 | WASHER II | 1 | Pc. | $1.50 | |
| 12 | A01130-09-00 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 13 | A01131-09-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 14 | A00321-05-00 | KICKSTARTER LEVER ASSY | 1 | Assy. | $23.00 | |
| 15 | A00047-19-03 | HEX BOLT | M6X20 | 3 | Pcs. | $1.50 |

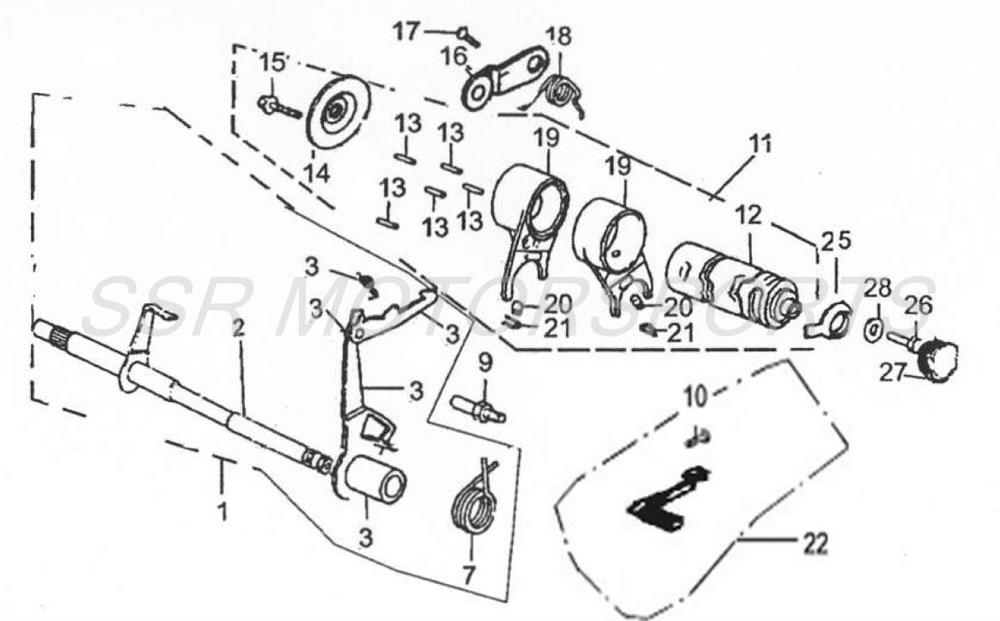

| GEAR SHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02894-09-00 | GEARSHIFT SHAFT ASSY | 1 | Assy. | $59.00 | |
| 2 | A02895-09-00 | GEARSHIFT SHAFT | 1 | Pc. | $35.00 | |
| 3 | A02896-09-00 | GEAR SHIFT ARM ASSY | 1 | Assy. | $24.00 | |
| 7 | A01138-09-00 | GEARSHIFT SPRING | 1 | Pc. | $2.00 | |
| 9 | A01140-09-00 | RETURN SPRING STOPPER | 1 | Pc. | $2.50 | |
| 10 | A00022-19-03 | BOLT | M6X30 | 1 | Pc. | $1.50 |
| 11 | A01141-09-00 | GEARSHIFT DRUM ASSY | 1 | Assy. | $59.00 | |
| 12 | A01142-09-00 | GEARSHIFT DRUM | 1 | Pc. | $39.00 | |
| 13 | A01143-09-00 | PIN | M4x13 | 5 | Pcs. | $1.50 |
| 14 | A01144-09-00 | GEAR PIN PLATE | 1 | Pc. | $6.00 | |
| 15 | A00002-19-05 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 16 | A01145-09-00 | GEAR SETTING ARM | 1 | Pc. | $8.00 | |
| 18 | A01147-09-00 | TORSION SETTING PLATE SPRING | 1 | Pc. | $1.50 | |
| 19 | A01148-09-00 | SHIFT FORK | 2 | Pcs. | $11.00 | |
| 20 | A01149-09-00 | STRIKING PIN | 2 | Pcs. | $1.50 | |
| 21 | A01150-09-00 | CLIP | 2 | Pcs. | $1.50 | |
| 22 | A00440-05-00 | SHIFTER LEVER | 1 | Pc. | $27.00 | |
| 25 | A02900-09-00 | RETAINER PLATE | 1 | Pc. | $4.00 | |
| 26 | A00008-19-03 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 27 | A01151-09-00 | RUBBER PLUG | 1 | Pc. | $2.50 | |
| 28 | A00011-21-01 | WASHER | 6X18X1.5 | 1 | Pc. | $1.50 |
|
ENGINE PART SETS
|
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00249-13-00 | COMPLETE ENGINE GASKET SET | 1 | Set | $63.00 | |
| 2 | A00240-26-00 | COMPLETE ENGINE SEALS SET | 1 | Set | $14.00 | |

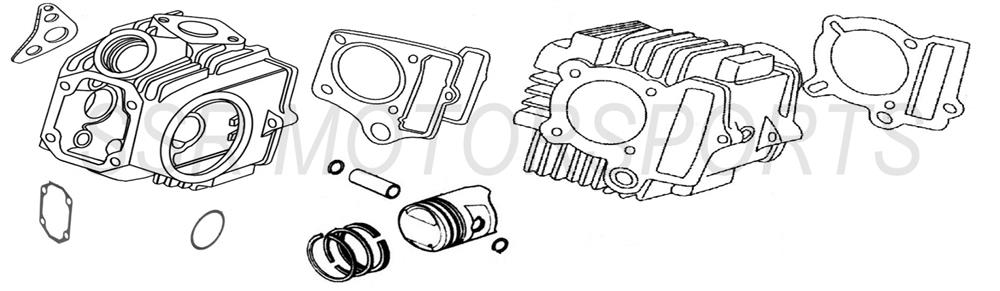

| 3 | A00266-13-00 | COMPLETE TOP END GASKET SET | 1 | Set | $39.00 | |
