(TR110) FULL PARTS SCHEMATICS
SSRCALL TO ORDER (320)-358-1994
(No reviews yet)
Write a Review
SSR
(TR110) FULL PARTS SCHEMATICS
| 2015-2022 SR110TR | ||||||
 |
||||||

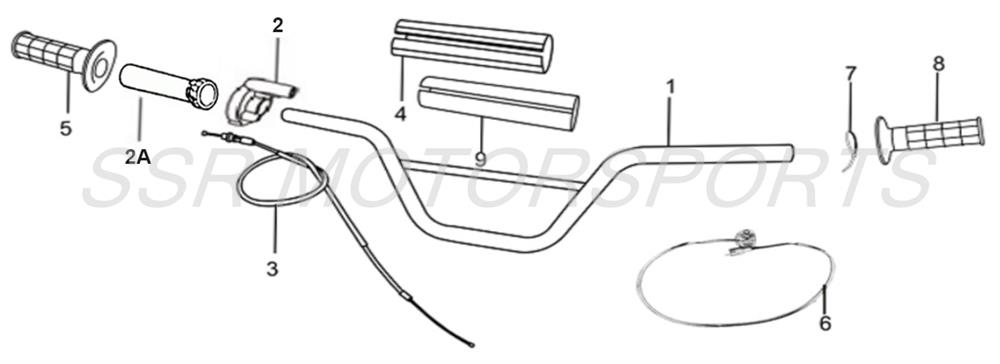

| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00542-05-00 | HANDLEBAR | BLACK | 1 | Pc. | $32.00 |
| 2 | A00311-05-00 | THROTTLE HOUSING | 1 | Pc. | $18.00 | |
| 2A | A00510-05-00 | THROTTLE TUBE | 1 | Pc. | $4.00 | |
| 3 | A00356-05-00 | THROTTLE CABLE | 880 130 | 1 | Pc. | $18.00 |
| 4 | A00313-05-00 | HANDLEBAR PAD COVER | 12X53X220 | 1 | Pc. | $8.00 |
| 5 | A00309-05-00 | RIGHT HANDLEBAR GRIP | GREY | 1 | Pc. | $10.00 |
| 6 | A00473-08-00 | KILL SWITCH | 650mm | 1 | Pc. | $11.00 |
| 7 | A00001-24-01 | ZIP TIE | 5X200mm 380 | 1 | Pc. | $1.50 |
| 8 | A00315-05-00 | LEFT HANDLEBAR GRIP | GREY | 1 | Pc. | $7.00 |
| 9 | A00314-05-00 | HANDLEBAR PAD | 215X185 | 1 | Pc. | $8.00 |

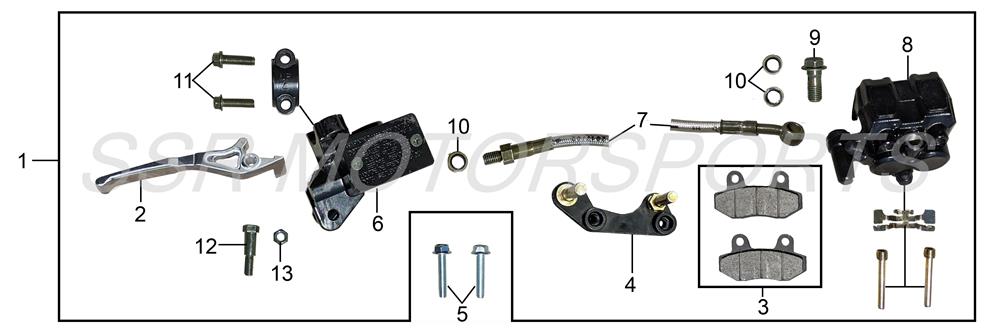

| FRONT BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00689-04-00 | FRONT BRAKE ASSY | L=1100 | 1 | Assy. | $98.00 |
| 2 | A00567-04-00 | FRONT BRAKE LEVER | 1 | Pc. | $18.00 | |
| 3 | A00499-04-00 | FRONT BRAKE PAD SET | 1 | Set | $18.00 | |
| 4 | A00498-04-00 | FRONT CALIPER BRACKET | 1 | Pc. | $18.00 | |
| 5 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 2 | Pcs. | $1.50 |
| 6 | A00571-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $63.00 | |
| 7 | A00590-04-00 | FRONT BRAKE HOSE | L=1100 | 1 | Pc. | $18.00 |
| 8 | A00580-04-00 | FRONT BRAKE CALIPER ASSY | 1 | Assy. | $76.00 | |
| 9 | A00675-04-00 | BANJO BOLT | M8 | 1 | Pc. | $2.00 |
| 10 | A00676-04-00 | SEALING WASHER | M8 | 4 | Pcs. | $1.50 |
| 11 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 12 | A00481-19-07 | LEVER PIVOT BOLT | 1 | Pc. | $2.00 | |
| 13 | A00005-22-04 | LOCKNUT | M6 | 1 | Pc. | $1.50 |

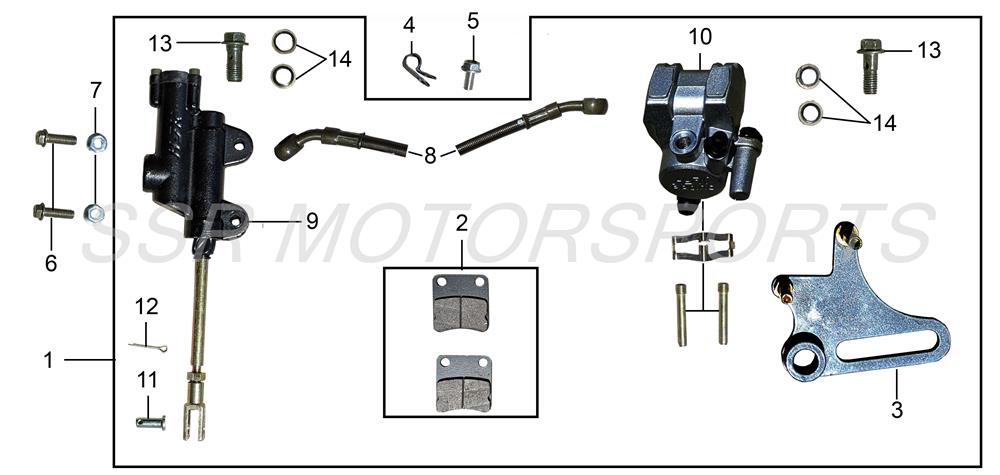

| REAR BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00573-04-00 | REAR BRAKE ASSY | L=545 | 1 | Assy. | $103.00 |
| 2 | A00478-04-00 | REAR BRAKE PAD SET | 1 | Set | $18.00 | |
| 3 | A00479-04-00 | REAR BRAKE CALIPER CARRIER | 1 | Pc. | $23.00 | |
| 4 | A00523-04-00 | REAR BRAKE HOSE RETAINER | 2 | Pcs. | $2.00 | |
| 5 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 6 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00592-04-00 | REAR BRAKE HOSE | L=545 | 1 | Pc. | $21.00 |
| 9 | A00585-04-00 | REAR BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $76.00 | |
| 10 | A00586-04-00 | REAR BRAKE CALIPER ASSY | 1 | Assy. | $85.00 | |
| 11 | A00417-04-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
| 12 | A00007-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 13 | A00675-04-00 | BANJO BOLT | 2 | Pc. | $2.00 | |
| 14 | A00676-04-00 | SEALING WASHER | 4 | Pcs. | $1.50 | |

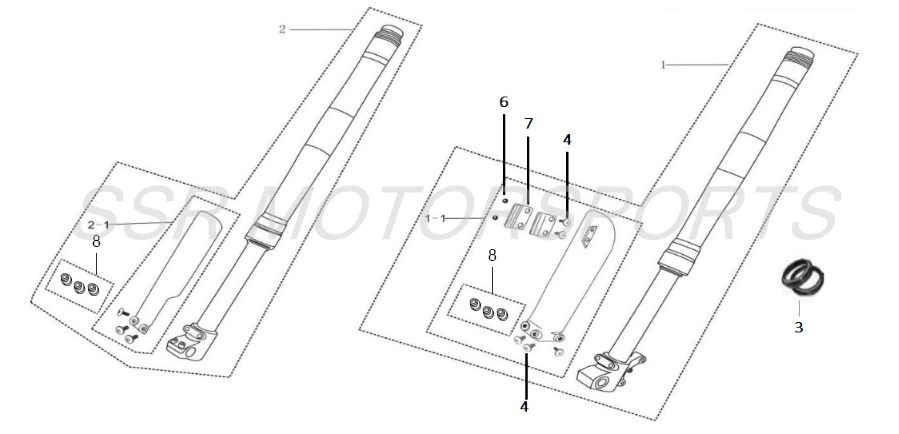

| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00519-16-00 | LEFT FRONT FORK ASSY | 660MM | 1 | Assy. | $156.00 |
| 1-1 | A01029-02-02 | LEFT FORK GUARD | BLACK - 660MM | 1 | Pc. | $14.00 |
| 2 | A00520-16-00 | RIGHT FRONT FORK ASSY | 660MM | 1 | Assy. | $156.00 |
| 2-1 | A01030-02-02 | RIGHT FORK GUARD | BLACK - 660MM | 1 | Pc. | $14.00 |
| 3 | A00511-16-00 | FORK/DUST SEAL SET | 37X50X11 + 37X50X13 | 2 | Set | $11.00 |
| 4 | A00106-19-01 | BUTTON HEAD ALLEN BOLT | M6X16 | 8 | Pcs. | $1.50 |
| 6 | A00005-22-04 | LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 7 | A00800-02-00 | BRAKE LINE HOLDER SET | 1 | Set | $2.50 | |
| 8 | A00701-16-00 | COLLAR | 6 | Pcs. | $1.50 | |
| 9 | A00008-19-02 | ALLEN BOLT | M6X20 | 2 | Pcs. | $1.50 |
| UPPER & LOWER TRIPLE CLAMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00172-15-00 | LOWER TRIPLE CLAMP W/ STEM | 1 | Pc. | $80.00 | |
| 2 | A00173-15-00 | UPPER TRIPLE CLAMP | 45 | 1 | Pc. | $69.00 |
| 4 | A00175-15-00 | HANDLEBAR RISER ASSY | 1 | Assy. | $30.00 | |
| 4-1 | A00176-15-00 | UPPER HANDLEBAR CLAMP | 1 | Pc. | $14.00 | |
| 4-2 | A00177-15-00 | LOWER HANDLEBAR CLAMP | 2 | Pcs. | $10.00 | |
| 5 | A00166-15-00 | STEERING STEM NUT | 1 | Pc. | $6.00 | |
| 6 | A00170-15-00 | WASHER | 23X36X2 | 1 | Pc. | $2.50 |
| 7 | A00180-15-00 | SPLINED NUT | M22X1XH18.5 | 1 | Pc. | $4.00 |
| 8 | A00181-15-00 | DUST CAP | 1 | Pc. | $2.50 | |
| 9 | A00182-15-00 | UPPER STEERING STEM BEARING | 320/22 | 1 | Pc. | $14.00 |
| 10 | A00183-15-00 | LOWER STEERING STEM BEARING | 320/23.5 | 1 | Pc. | $14.00 |
| 11 | A00008-19-02 | ALLEN BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 12 | A00251-19-02 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 13 | A00417-19-02 | ALLEN BOLT | M8X105 | 4 | Pcs. | $2.50 |
| 14 | A00100-22-34 | FLANGE LOCKNUT | M8 | 4 | Pcs. | $1.50 |

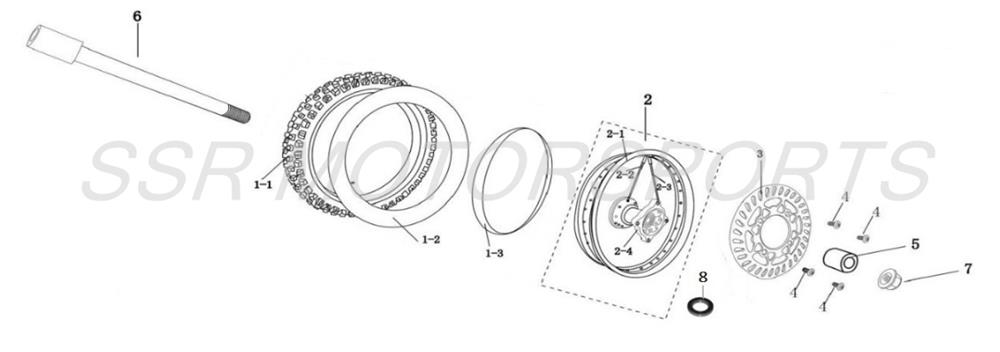

| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00303-18-00 | FRONT TIRE | 60/100-14 | 1 | Pc. | $32.00 |
| 1-1 | A00527-18-00 | FRONT TIRE | 60/100-14 | 1 | Pc. | $34.00 |
| 1-2 | A00233-18-00 | INNERTUBE | 60/100-14 | 1 | Pc. | $18.00 |
| 1-3 | A00400-18-00 | RIM STRIP | 14 | 1 | Pc. | $6.00 |
| 2 | A00336-18-00 | FRONT WHEEL ASSY | 1.4X14 | 1 | Assy. | $103.00 |
| 2-1 | A00337-18-00 | FRONT RIM | 1 | Pc. | $50.00 | |
| 2-2 | A00338-18-00 | INNER SPOKE W/ NIPPLE | 14 | 16 | Pcs. | $2.00 |
| 2-3 | A00339-18-00 | OUTER SPOKE W/ NIPPLE | 14 | 16 | Pcs. | $2.00 |
| 2-4 | A00308-18-00 | FRONT WHEEL HUB | 1 | Pc. | $85.00 | |
| 3 | A00504-04-00 | FRONT BRAKE ROTOR | 210 | 1 | Pc. | $27.00 |
| 4 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 5 | A00341-18-00 | FRONT WHEEL AXLE SPACER | 15X25XH26 | 1 | Pc. | $6.00 |
| 6 | A00342-18-00 | FRONT AXLE | 15X58X215XM14X1.5MM | 1 | Pc. | $30.00 |
| 7 | A00003-22-01 | FLANGE NUT | M14X1.5 | 1 | Pc. | $2.50 |
| 8 | A00017-28-00 | BEARING | 6202-2RS | 2 | Pcs. | $7.00 |

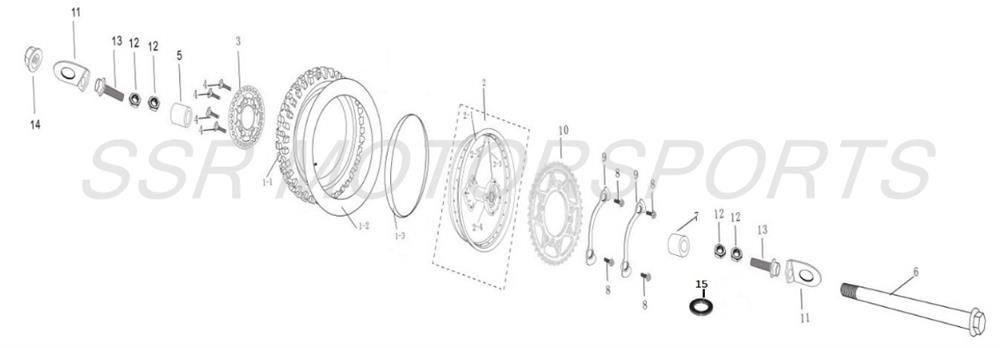

| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00528-18-00 | REAR TIRE | 80/100-12 | 1 | Pc. | $34.00 |
| 1-2 | A00291-18-00 | INNERTUBE | 80/100-12 | 1 | Pc. | $18.00 |
| 1-3 | A00292-18-00 | RIM STRIP | 12 | 1 | Pc. | $6.00 |
| 2 | A00344-18-00 | REAR WHEEL ASSY | 1.85-12 | 1 | Assy. | $103.00 |
| 2-1 | A00345-18-00 | REAR RIM | 1.85-12 | 1 | Pc. | $50.00 |
| 2-2 | A00295-18-00 | REAR INNER SPOKE W/ NIPPLE | 129 | 16 | Pcs. | $2.00 |
| 2-3 | A00296-18-00 | REAR OUTER SPOKE W/ NIPPLE | 133 | 16 | Pcs. | $2.00 |
| 2-4 | A00346-18-00 | REAR WHEEL HUB | 1 | Pc. | $85.00 | |
| 3 | A00505-04-00 | REAR BRAKE ROTOR | 190 16.5XH1.5 | 1 | Pc. | $36.00 |
| 4 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 5 | A00347-18-00 | RIGHT REAR WHEEL SPACER | 15X25XH25 | 1 | Pc. | $6.00 |
| 6 | A00348-18-00 | REAR AXLE | 15X225XM14X1.5MM | 1 | Pc. | $33.00 |
| 7 | A00349-18-00 | LEFT REAR WHEEL SPACER | 15X25XH33 | 1 | Pc. | $6.00 |
| 8 | A00029-19-03 | BOLT | M8X30 | 4 | Pcs. | $1.50 |
| 9 | A00296-07-00 | SPROCKET BOLT RETAINER PLATE | 2 | Pcs. | $8.00 | |
| 10 | A00302-07-00 | REAR SPROCKET | 420-41T | 1 | Pc. | $42.00 |
| 11 | A00350-18-00 | CHAIN ADJUSTER PLATE | 15X29+31X7XH37 | 2 | Pcs. | $8.00 |
| 12 | A00002-22-01 | NUT | M8 | 4 | Pcs. | $1.50 |
| 13 | A00263-19-03 | BOLT | M8X45 | 2 | Pcs. | $2.00 |
| 14 | A00003-22-01 | FLANGE NUT | M14X1.5 | 1 | Pc. | $2.50 |
| 15 | A00017-28-00 | BEARING | 6202-2RS | 2 | Pcs. | $7.00 |

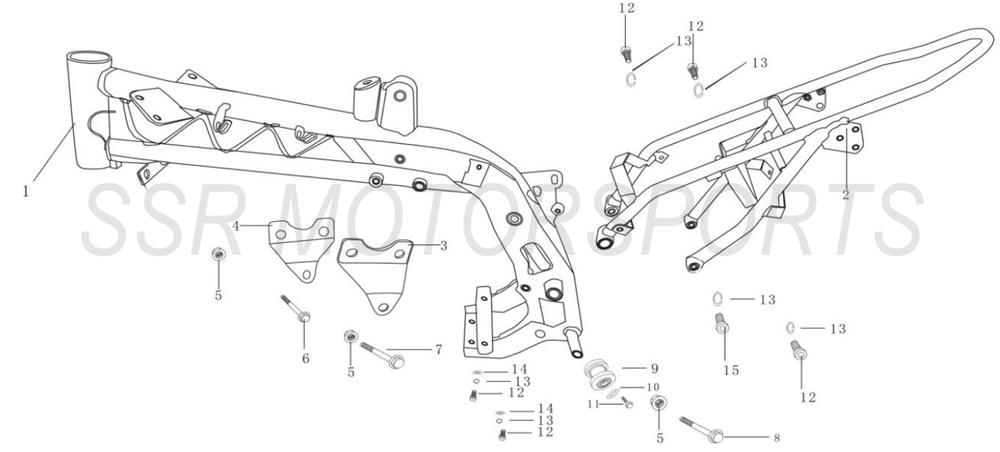

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00482-11-00 | FRAME | BLACK *OVERSIZE* | 1 | Pc. | $145.00 |
| 2 | A00447-11-00 | SUBFRAME | BLACK | 1 | Pc. | $63.00 |
| 3 | A00401-11-00 | LEFT UPPER ENGINE MOUNT | 1 | Pc. | $10.00 | |
| 4 | A00402-11-00 | RIGHT UPPER ENGINE MOUNT | 1 | Pc. | $10.00 | |
| 5 | A00100-22-34 | FLANGE LOCKNUT | M8 | 3 | Pcs. | $1.50 |
| 6 | A00009-19-01 | FLANGE BOLT | GB5789-86 M8X75 S12 | 1 | Pc. | $2.00 |
| 7 | A00043-19-01 | FLANGE BOLT | GB5787-86 M8X115 | 1 | Pc. | $2.50 |
| 8 | A00044-19-01 | FLANGE BOLT | GB5787-86 M8X105 | 1 | Pc. | $2.50 |
| 9 | A00367-11-00 | CHAIN ROLLER | 1 | Pc. | $8.00 | |
| 10 | A00014-21-01 | WASHER | M10X20X2 | 1 | Pc. | $1.50 |
| 11 | A00031-19-01 | FLANGE BOLT | 95701-06012-00 M6X12 | 1 | Pc. | $1.50 |
| 12 | A00412-19-02 | ALLEN BOLT | GB70-85 M8X25 | 5 | Pcs. | $1.50 |
| 13 | A00001-21-02 | LOCK WASHER | M8X13X2 | 5 | Pcs. | $1.50 |
| 14 | A00013-21-01 | WASHER | M8X16X1.5 | 2 | Pcs. | $1.50 |
| 15 | A00049-19-02 | ALLEN BOLT | GB70-85 M8X35 | 1 | Pc. | $1.50 |

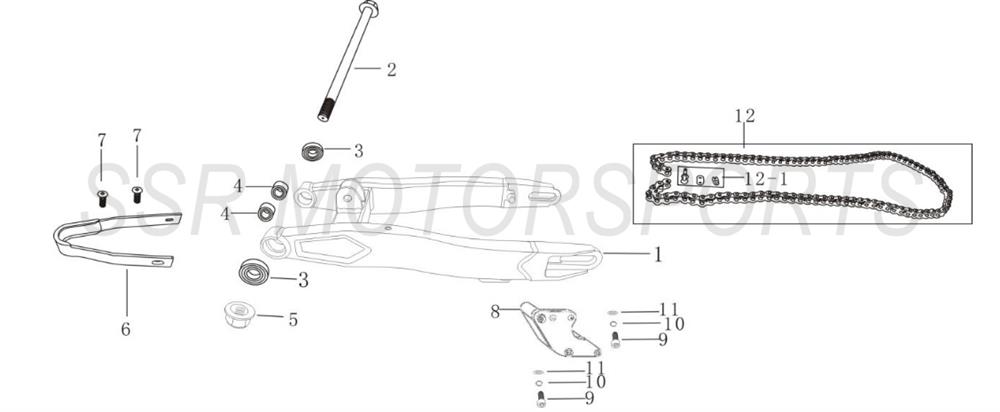

| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00483-11-00 | SWINGARM | 390MM | 1 | Pc. | $85.00 |
| 2 | A00369-11-00 | SWINGARM AXLE | 10X190XM10X1.25MM | 1 | Pc. | $10.00 |
| 3 | A00011-28-00 | BEARING | 6200Z | 2 | Pcs. | $8.00 |
| 4 | A00406-11-00 | SLEEVE | 10.2X22.5XH16 | 2 | Pcs. | $6.00 |
| 5 | A00004-22-03 | NUT | GB6187-86 M10X1.25 | 1 | Pc. | $1.50 |
| 6 | A00545-11-00 | FRONT CHAIN SLIDER | 1 | Pc. | $18.00 | |
| 7 | A00003-20-12 | CS SCREW | M6X16 | 2 | Pcs. | $1.50 |
| 8 | A00409-11-00 | CHAIN GUIDE | 1 | Pc. | $21.00 | |
| 9 | A00251-19-02 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 10 | A00001-21-02 | LOCK WASHER | GB93-87 8X13X2 | 2 | Pcs. | $1.50 |
| 11 | A00013-21-01 | WASHER | GB97.1-85 8X16X1.5 | 2 | Pcs. | $1.50 |
| 12 | A00293-07-00 | DRIVE CHAIN | 420H 102L | 1 | Pc. | $51.00 |
| 12-1 | A00287-07-00 | CLIP LINK | 420 | 1 | Pc. | $6.00 |

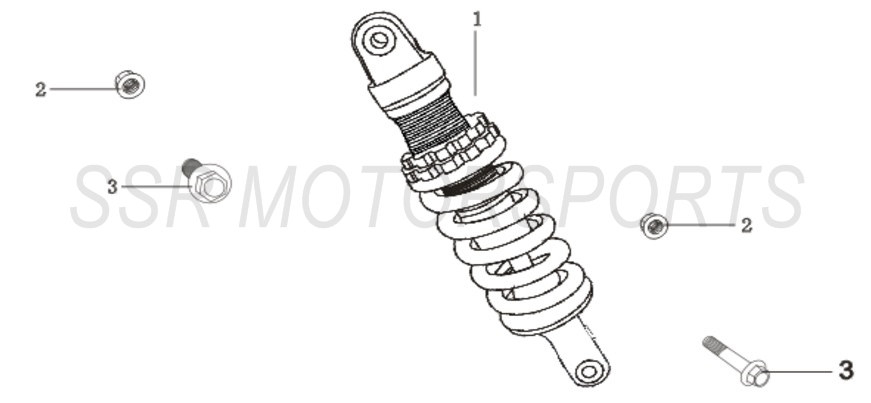

| REAR SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00267-16-00 | REAR SHOCK ABSORBER | SSR/K-00 L=280 11 | 1 | Pc. | $98.00 |
| 2 | A00004-22-03 | FLANGE NUT | M10x1.25 | 2 | Pcs. | $1.50 |
| 3 | A00011-19-01 | FLANGE BOLT | M10×45×1.25 | 2 | Pcs. | $3.50 |

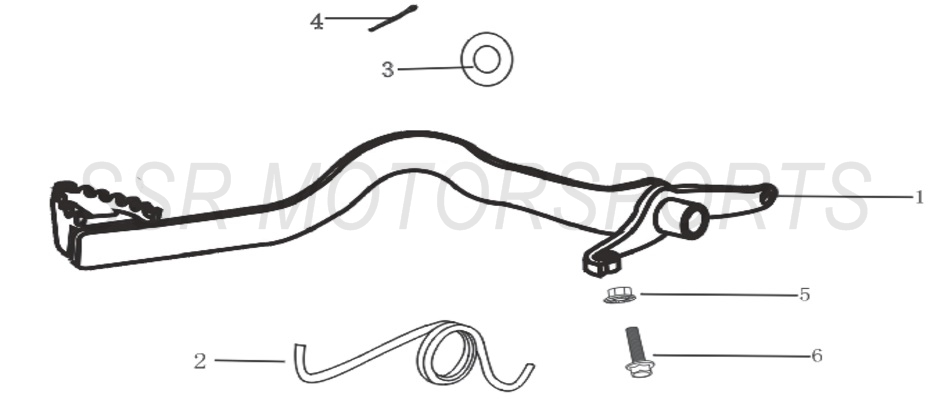

| REAR BRAKE PEDAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00363-05-00 | REAR BRAKE PEDAL | BLACK | 1 | Pc. | $27.00 |
| 2 | A00387-05-00 | REAR BRAKE PEDAL RETURN SPRING | 1 | Pc. | $2.00 | |
| 3 | A00015-21-01 | WASHER | 15X30X2.5 | 1 | Pc. | $1.50 |
| 4 | A00019-28-01 | COTTER PIN | 2.5X24 | 1 | Pc. | $1.50 |
| 5 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 6 | A00001-19-01 | FLANGE BOLT | M6X30 | 1 | Pc. | $1.50 |

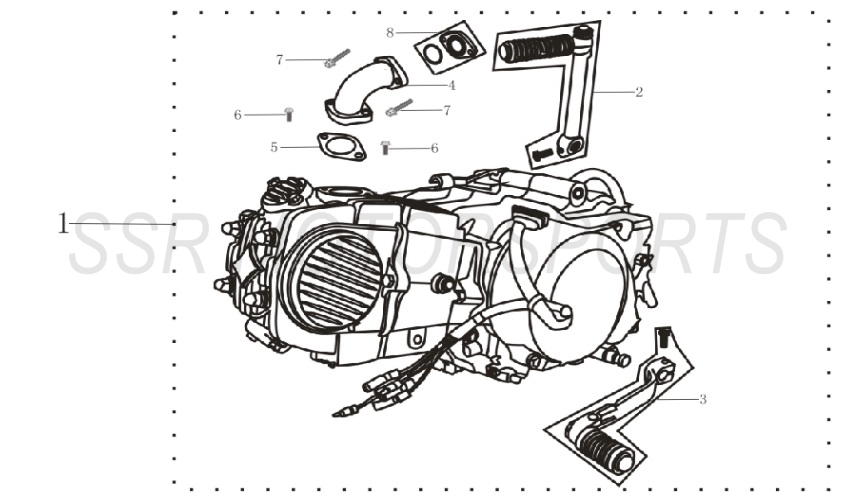

| ENGINE / KICKSTARTER / SHIFTER / INTAKE MANIFOLD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02485-09-00 | LIFAN 110CC ENGINE ASSY | 420-14 *OVERSIZE* | 1 | Assy. | $289.00 |
| 2 | A00321-05-00 | KICKSTARTER LEVER ASSY | 1 | Assy. | $23.00 | |
| 3 | A00440-05-00 | SHIFTER LEVER | 1 | Pc. | $27.00 | |
| 4 | A00293-14-00 | INTAKE MANIFOLD | 1 | Pc. | $36.00 | |
| 5 | A00292-14-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $4.00 | |
| 6 | A00015-19-01 | FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00001-19-01 | FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 8 | A00126-13-00 | INTAKE INSULATOR | 1 | Pc. | $6.00 | |

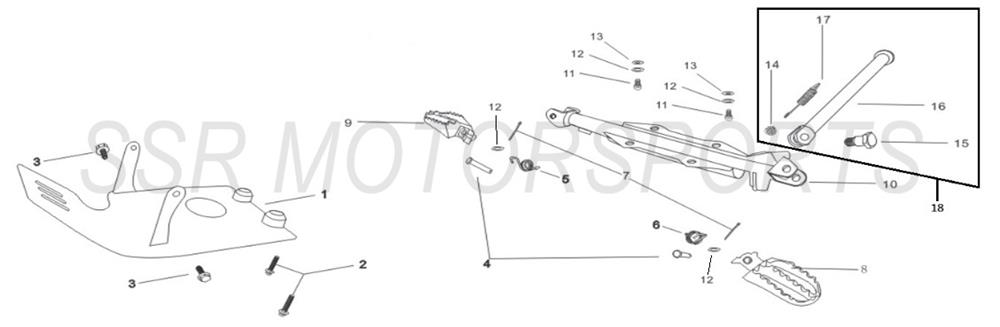

| SKIDPLATE, SIDE STAND AND FOOTPEGS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00372-11-00 | SKID PLATE | BLACK STEEL | 1 | Pc. | $42.00 |
| 2 | A00014-19-01 | FLANGE BOLT | GB5787-86 M8X40 | 2 | Pcs. | $2.00 |
| 3 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 4 | A00336-05-00 | FOOTPEG PIVOT PIN | 7.8X42 | 2 | Pcs. | $1.50 |
| 5 | A00335-05-00 | RIGHT FOOTPEG SPRING | 20X2XH8X4 | 1 | Pc. | $1.50 |
| 6 | A00334-05-00 | LEFT FOOTPEG SPRING | 20X2XH8X4 | 1 | Pc. | $1.50 |
| 7 | A00019-28-01 | COTTER PIN | 2.5X24 | 2 | Pcs. | $1.50 |
| 8 | A00332-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 | |
| 9 | A00330-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
| 10 | A00437-05-00 | FOOTPEG MOUNTING BRACKET | 1 | Pc. | $27.00 | |
| 11 | A00125-19-02 | ALLEN BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 12 | A00013-21-01 | WASHER | M8X16X1.5 | 4 | Pcs. | $1.50 |
| 13 | A00001-21-02 | LOCK WASHER | M8 | 2 | Pcs. | $1.50 |
| 14 | A00004-22-03 | FLANGE NUT | M10X1.5 | 1 | Pc. | $1.50 |
| 15 | A00373-19-07 | SIDE STAND PIVOT BOLT | M10X30 | 1 | Pc. | $2.00 |
| 16 | A00441-05-00 | SIDE STAND | L=250 12.5 | 1 | Pc. | $23.00 |
| 17 | A00375-05-00 | SIDE STAND SPRING | 15X2.5XH40X16 | 1 | Pc. | $2.50 |
| 18 | A00438-05-00 | SIDE STAND ASSY | 1 | Assy. | $27.00 | |
| CARBURETOR & AIR FILTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00314-12-00 | CARBURETOR | DISCONTINUED - PLEASE USE A00352-12-00 (+ A00154-27-00 IF NEEDED) |
1 | Pc. | $115.00 |
| 2 | A00237-14-00 | AIR FILTER ELEMENT | 35 | 1 | Pc. | $18.00 |
| 2 | A00300-14-00 | AIR FILTER ELEMENT - BUTTON | 38 | 1 | Pc. | $23.00 |
| 2-1 | A00020-24-00 | CLAMP | 1 | Pc. | $6.00 | |
| 3 | A00357-12-00 | SCREEN | 37 19 | 1 | Pc. | $8.00 |
| 4 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 5 | A00052-01-00 | CARBURETOR JET KIT | AVAILABLE ACCESSORY | 1 | Pc. | $33.00 |
| 6 | A00151-27-00 | O-RING | 1 | Pc. | $2.50 | |

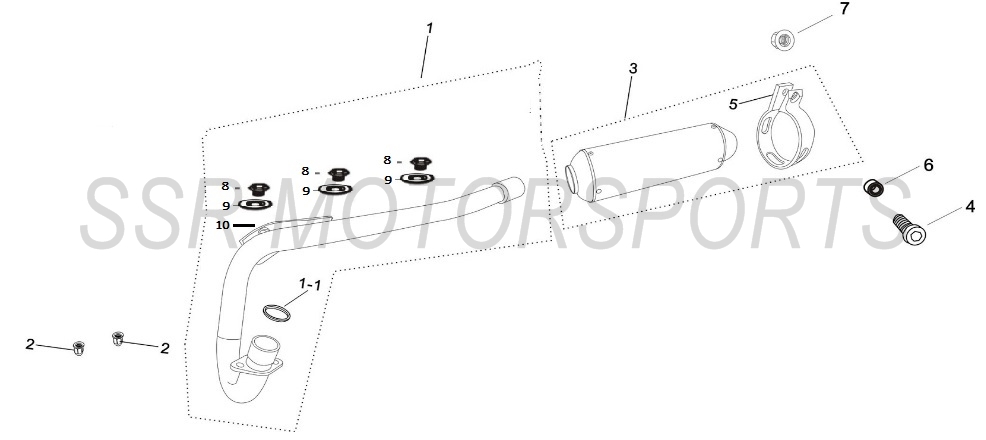

| MUFFLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00077-10-00 | EXHAUST HEADER W/ HEAT SHIELD | 32 | 1 | Assy. | $56.00 |
| 1-1 | A00115-13-00 | EXHAUST GASKET | 1 | Pc. | $6.00 | |
| 2 | A00001-22-01 | NUT | 90301-KRS-8300 M6 | 2 | Pcs. | $1.50 |
| 3 | A00084-10-00 | MUFFLER ASSY W/ CLAMP | 38 | 1 | Assy. | $92.00 |
| 4 | A00005-19-02 | ALLEN BOLT | GB70-85 M8X30 | 1 | Pc. | $1.50 |
| 5 | A00085-10-00 | MUFFLER CLAMP | 1 | Pc. | $18.00 | |
| 6 | A00086-12-00 | SPACER | 8X16XH6.5 | 1 | Pc. | $1.50 |
| 7 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 8 | A00090-20-01 | MED PANHEAD PHILLIPS BOLT | M6X8 | 3 | Pcs. | $1.50 |
| 9 | A00002-21-02 | LOCK WASHER | M6 | 3 | Pcs. | $1.50 |
| 10 | A00204-10-00 | EXHAUST HEADER HEAT SHIELD | 1 | Pc. | $18.00 | |

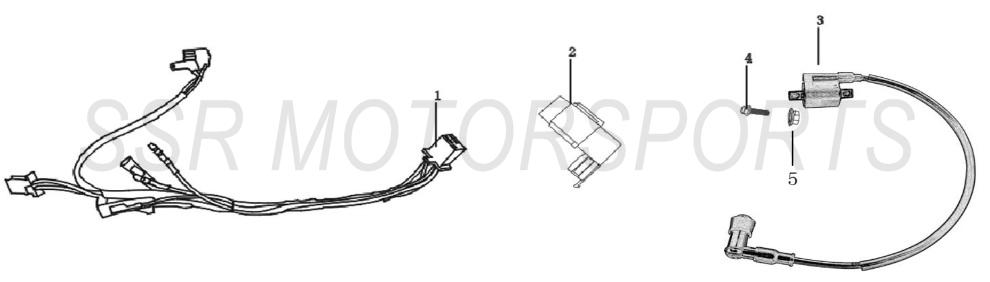

| ELECTRICAL COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00491-08-00 | WIRE HARNESS | 1 | Pc. | $42.00 | |
| 2 | A00479-08-00 | CDI | 1 | Pc. | $21.00 | |
| 3 | A00480-08-00 | IGNITION COIL | 1 | Pc. | $27.00 | |
| 4 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 5 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |

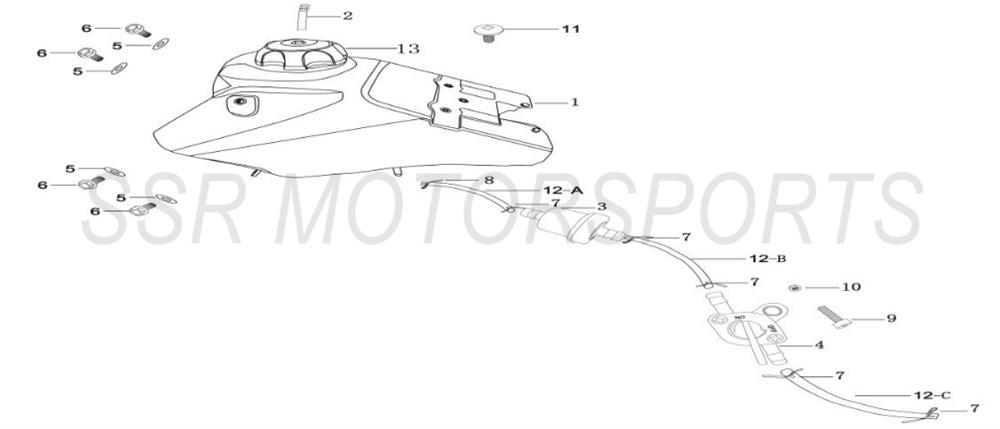

| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00335-12-00 | FUEL TANK W/ CAP | 1 | Pc. | $56.00 | |
| 2 | A00332-12-00 | FUEL TANK CAP VENT | 1 | Pc. | $6.00 | |
| 3 | A00254-12-00 | FUEL FILTER | ONLY | 1 | Pc. | $4.00 |
| 3 | A00426-12-00 | FUEL FILTER | W/ HOSES + CLAMPS | 1 | Assy. | $7.00 |
| 4 | A00338-12-00 | FUEL PETCOCK | 1 | Pc. | $23.00 | |
| 5 | A00011-21-01 | WASHER | M6X18X1.5 | 4 | Pcs. | $1.50 |
| 6 | A00031-19-01 | FLANGE BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 7 | A00002-24-03 | WIRE HOSE CLAMP | 7.5 | 5 | Pcs. | $1.50 |
| 8 | A00001-24-03 | WIRE HOSE CLAMP | 10 | 1 | Pc. | $1.50 |
| 9 | A00003-20-01 | SCREW | M6X16 | 1 | Pc. | $1.50 |
| 10 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 11 | A00003-20-01 | SCREW | M6X16 | 1 | Pc. | $1.50 |
| 12 | A00359-12-00 | FUEL HOSE | A=40MM B=100MM C=300MM | 1 | Set | $6.00 |
| 13 | A00317-12-00 | FUEL TANK CAP | 1 | Pc. | $14.00 | |

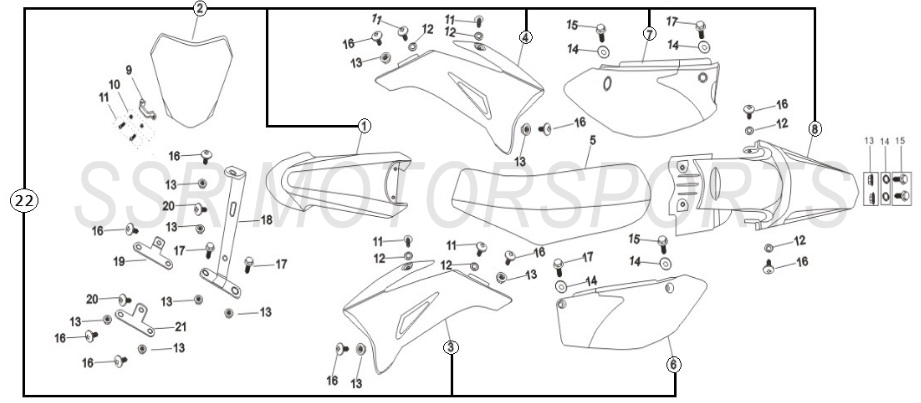

| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00729-02-02 | FRONT FENDER | BLACK | 1 | Pc. | $18.00 |
| 1 | A00729-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $18.00 |
| 2 | A00731-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $14.00 |
| 3 | A00732-02-02 | LEFT FUEL TANK SHROUD | BLACK | 1 | Pc. | $18.00 |
| 3 | A00732-02-01 | LEFT FUEL TANK SHROUD | WHITE | 1 | Pc. | $18.00 |
| 4 | A00733-02-02 | RIGHT FUEL TANK SHROUD | BLACK | 1 | Pc. | $18.00 |
| 4 | A00733-02-01 | RIGHT FUEL TANK SHROUD | WHITE | 1 | Pc. | $18.00 |
| 5 | A00734-02-00 | SEAT | 1 | Pc. | $63.00 | |
| 6 | A00735-02-02 | LEFT REAR NUMBER PLATE | BLACK | 1 | Pc. | $18.00 |
| 6 | A00735-02-01 | LEFT REAR NUMBER PLATE | WHITE | 1 | Pc. | $18.00 |
| 7 | A00736-02-02 | RIGHT REAR NUMBER PLATE | BLACK | 1 | Pc. | $18.00 |
| 7 | A00736-02-01 | RIGHT REAR NUMBER PLATE | WHITE | 1 | Pc. | $18.00 |
| 8 | A00737-02-02 | REAR FENDER | BLACK | 1 | Pc. | $18.00 |
| 8 | A00737-02-01 | REAR FENDER | WHITE | 1 | Pc. | $18.00 |
| 9 | A00738-02-00 | FRONT BRAKE HOSE GUIDE | 1 | Pc. | $1.50 | |
| 10 | A00348-22-04 | LOCKNUT | M4 | 2 | Pcs. | $1.50 |
| 11 | A00009-20-01 | SCREW | GB823-88 M4X12 | 2 | Pcs. | $1.50 |
| 12 | A00016-21-01 | RUBBER WASHER | 6X17X3.5 | 6 | Pcs. | $1.50 |
| 13 | A00093-22-03 | FLANGE NUT | M6 | 12 | Pcs. | $1.50 |
| 14 | A00011-21-01 | WASHER | 6X18X1.5 | 6 | Pcs. | $1.50 |
| 15 | A00015-19-01 | FLANGE BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 16 | A00003-20-01 | SCREW | M6X16 | 10 | Pcs. | $1.50 |
| 17 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 18 | A00739-02-00 | FRONT FENDER / NUMBER PLATE BRACKET | 1 | Pc. | $10.00 | |
| 19 | A00740-02-00 | NUMBER PLATE BRACKET | 1 | Pc. | $7.00 | |
| 20 | A00001-20-01 | BOLT | M5X10 | 1 | Pc. | $1.50 |
| 21 | A00741-02-00 | LOWER FENDER BRACKET | T 8-2 | 1 | Pc. | $7.00 |
| 22 | A00935-02-02 | COMPLETE PLASTIC KIT | BLACK | 1 | Pc. | $63.00 |
| 22 | A00935-02-01 | COMPLETE PLASTIC KIT | WHITE | 1 | Pc. | $63.00 |
| GRAPHICS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00742-02-00 | GRAPHIC KIT | TTR 3M | 1 | Pc. | $51.00 |
| 2 | A00801-02-00 | FORK GUARD GRAPHICS | SYD660 3M | 1 | Pc. | $10.00 |
