(TR140/TR140BW) Full Engine Parts Schematics
| 2019-2022 SR140TR-BW (BIG WHEEL) | ||||||

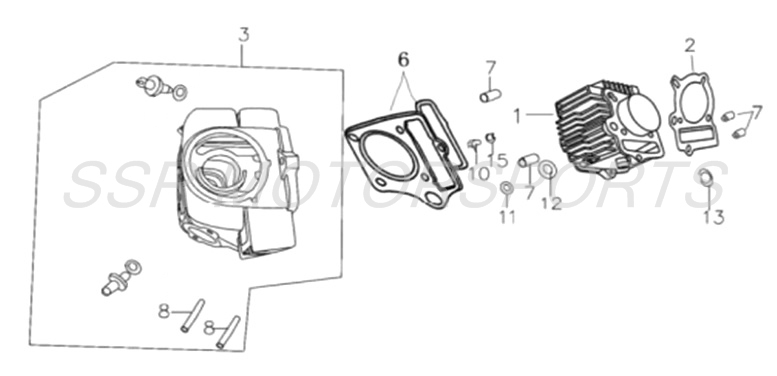

| CYLINDER HEAD AND CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01643-09-00 | CYLINDER | 1 | Pc. | $103.00 | |
| 2 | A00160-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $11.00 | |
| 3 | A01644-09-00 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $206.00 |
| 6 | A00161-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $10.00 | |
| 7 | A00017-23-00 | DOWEL PIN | 10X12 | 4 | Pcs. | $1.50 |
| 8 | A00019-19-04 | STUD | M6X38 | 2 | Pcs. | $1.50 |
| 10 | A00118-23-00 | SPECIAL PIN | 8X11 | 1 | Pc. | $2.50 |
| 11 | A00042-27-00 | O-RING | 9X1.6 | 1 | Pc. | $1.50 |
| 12 | A00008-27-00 | O-RING | 14.5X18.5X2.4 | 1 | Pc. | $1.50 |
| 13 | A00009-27-00 | O-RING | 11.5X2.5 | 1 | Pc. | $1.50 |
| 15 | A01647-09-00 | SEAL | 1 | Pc. | $1.50 | |

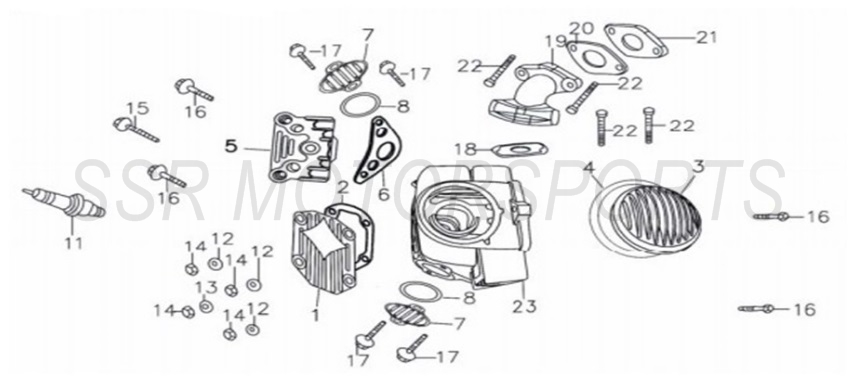

| CYLINDER HEAD COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01648-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $21.00 | |
| 2 | A00162-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 3 | A01649-09-00 | TIMING COVER | 1 | Pc. | $20.00 | |
| 4 | A00163-13-00 | LEFT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 5 | A01650-09-00 | RIGHT CYLINDER HEAD COVER | 1 | Pc. | $20.00 | |
| 6 | A00164-13-00 | RIGHT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 7 | A01651-09-00 | VALVE COVER | 2 | Pcs. | $8.00 | |
| 8 | A00094-27-00 | O-RING | 2 | Pcs. | $4.00 | |
| 11 | CR7HSA | SPARK PLUG | CR7HSA | 1 | Pc. | $9.00 |
| 12 | A00008-21-01 | WASHER | M7 | 3 | Pcs. | $1.50 |
| 13 | A00269-21-01 | COPPER WASHER | M7 | 1 | Pc. | $1.50 |
| 14 | A00003-22-36 | FLANGE CAP NUT | M6 | 4 | Pcs. | $1.50 |
| 15 | A00135-19-01 | BOLT | M6X110 | 1 | Pc. | $1.50 |
| 16 | A00006-19-01 | FLANGE BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 17 | A00003-19-05 | FLANGE BOLT | M6X16 | 6 | Pcs. | $1.50 |
| 18 | A00292-14-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $4.00 | |
| 19 | A00293-14-00 | INTAKE MANIFOLD | YX-02 | 1 | Pc. | $36.00 |
| 20 | A00274-13-00 | CARBURETOR GASKET | 1 | Pc. | $4.00 | |
| 21 | A00231-14-00 | INTAKE INSULATOR | M7.1 | 1 | Pc. | $8.00 |
| 22 | A00040-19-01 | BOLT | M6X28 | 4 | Pcs. | $1.50 |
| 23 | A01653-09-00 | CYLINDER HEAD | 1 | Pc. | $136.00 | |

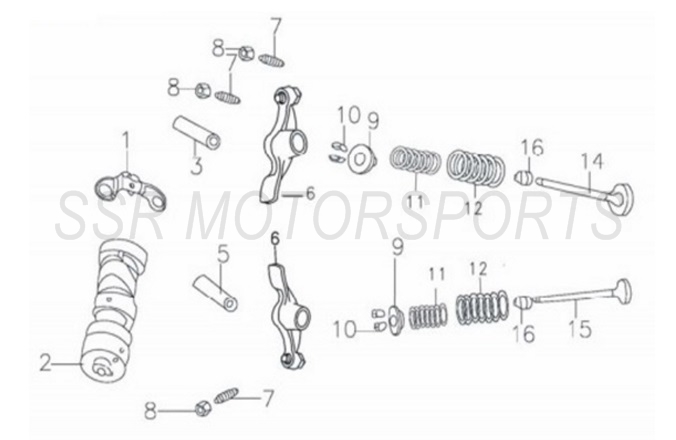

| CAMSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01654-09-00 | ROCKER SHAFT RETAINER PLATE | 1 | Pc. | $6.00 | |
| 2 | A01655-09-00 | CAMSHAFT | 1 | Pc. | $76.00 | |
| 3 | A01656-09-00 | INTAKE ROCKERARM SHAFT | 1 | Pc. | $6.00 | |
| 5 | A01657-09-00 | EXHAUST ROCKERARM SHAFT | 1 | Pc. | $6.00 | |
| 6 | A01658-09-00 | ROCKERARM | 2 | Pcs. | $26.00 | |
| 7 | A01659-09-00 | VALVE ADJUSTING SCREW | 2 | Pcs. | $2.00 | |
| 8 | A01660-09-00 | ADJUSTING NUT | 2 | Pcs. | $2.00 | |
| 9 | A01661-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 10 | A01662-09-00 | COLLET | 4 | Pcs. | $2.00 | |
| 11 | A01663-09-00 | INNER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 12 | A01664-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 14 | A01665-09-00 | INTAKE VALVE | 1 | Pc. | $18.00 | |
| 15 | A01666-09-00 | EXHAUST VALVE | 1 | Pc. | $18.00 | |
| 16 | A01667-09-00 | VALVE STEM SEAL | 2 | Pcs. | $4.00 | |

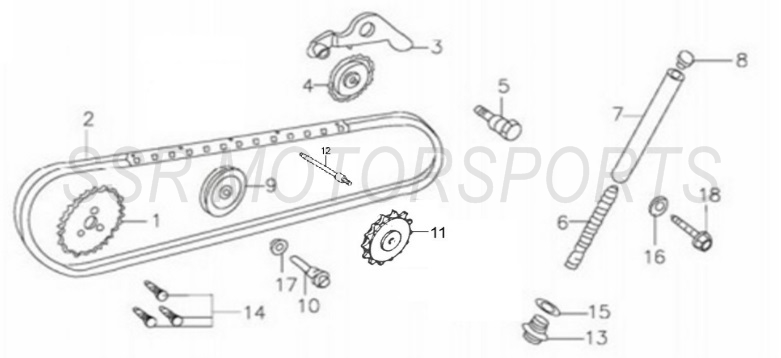

| TIMING CHAIN | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01668-09-00 | CAMSHAFT SPROCKET | 32T | 1 | Pc. | $21.00 |
| 2 | A01669-09-00 | TIMING CHAIN | 1 | Pc. | $39.00 | |
| 3 | A02444-09-00 | CAM CHAIN TENSIONER ARM | 1 | Pc. | $8.00 | |
| 4 | A01257-09-00 | CAM CHAIN TENSIONER ROLLER | RUBBER | 1 | Pc. | $10.00 |
| 5 | A01672-09-00 | CHAIN TENSIONER ARM BOLT | 1 | Pc. | $2.00 | |
| 6 | A01673-09-00 | TENSIONING ROD SPRING | 1 | Pc. | $2.50 | |
| 7 | A01674-09-00 | TENSIONING ROD | 1 | Pc. | $7.00 | |
| 8 | A01675-09-00 | TENSIONING ROD HEAD | 1 | Pc. | $2.50 | |
| 9 | A01676-09-00 | CHAIN ROLLER | RUBBER | 1 | Pc. | $14.00 |
| 10 | A01677-09-00 | CHAIN ROLLER BOLT | 1 | Pc. | $1.50 | |
| 11 | A01304-09-00 | GUIDE SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 12 | A01305-09-00 | OIL PUMP SPROCKET SHAFT | 1 | Pc. | $6.00 | |
| 13 | A01680-09-00 | TENSIONER BOLT | 1 | Pc. | $2.50 | |
| 14 | A00025-19-03 | BOLT | M5X12 | 3 | Pcs. | $1.50 |
| 15 | A00019-21-01 | WASHER | M14 | 1 | Pc. | $1.50 |
| 16 | A00117-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 17 | A00004-21-01 | WASHER | M8 | 1 | Pc. | $1.50 |
| 18 | A00136-19-01 | BOLT | 1 | Pc. | $2.00 | |

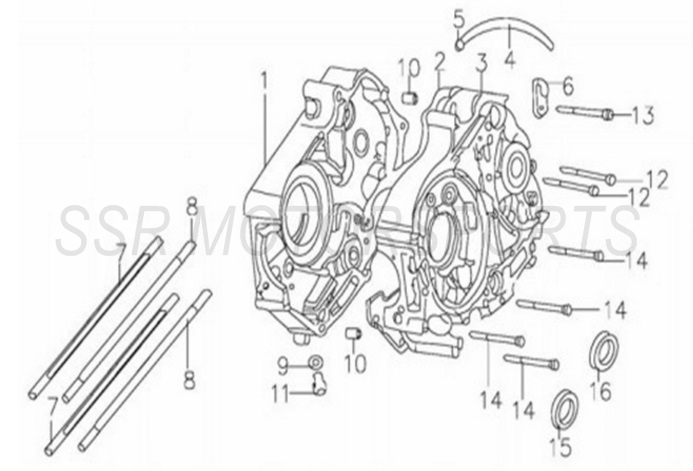

| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01681-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $126.00 | |
| 2 | A00166-13-00 | CRANKCASE GASKET | 1 | Pc. | $16.00 | |
| 3 | A01682-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $150.00 | |
| 4 | A01683-09-00 | CRANKCASE VENT HOSE | 1 | Pc. | $10.00 | |
| 5 | A00033-24-03 | WIRE HOSE CLAMP | 1 | Pc. | $1.50 | |
| 6 | A01685-09-00 | HOSE RETAINER | 1 | Pc. | $1.50 | |
| 7 | A00137-19-04 | CYLINDER STUD A | 212mm | 2 | Pcs. | $11.00 |
| 8 | A00138-19-04 | CYLINDER STUD B | 204mm | 2 | Pcs. | $11.00 |
| 9 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 10 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 11 | A01102-09-00 | OIL DRAIN BOLT | M12 | 1 | Pc. | $4.00 |
| 12 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 13 | A00432-19-08 | CASE FLANGE BOLT | M6X85 | 1 | Pc. | $2.00 |
| 14 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 4 | Pcs. | $2.00 |
| 15 | A00002-26-00 | OIL SEAL (SHIFT SHAFT) | 11.6X24X10 | 1 | Pc. | $4.00 |
| 16 | A00001-26-00 | OIL SEAL (COUNTERSHAFT) | 17X29X5 | 1 | Pc. | $4.00 |

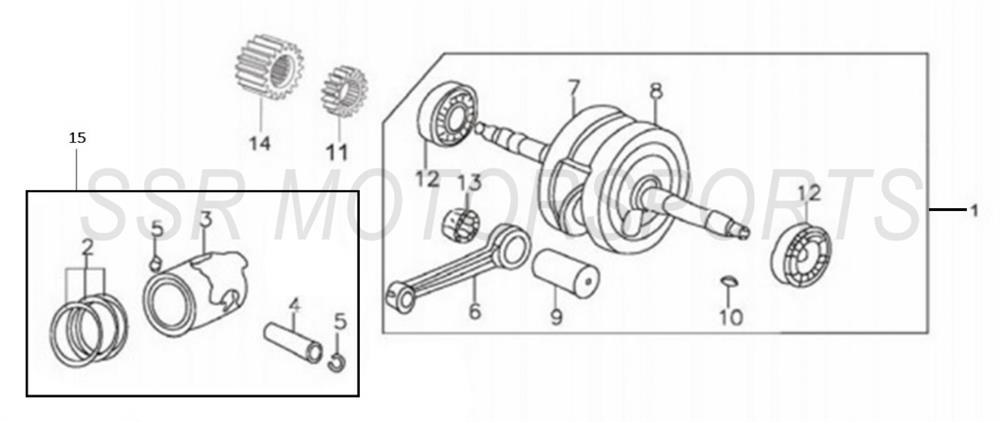

| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01688-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $142.00 | |
| 2 | A01689-09-00 | PISTON RING SET | 1 | Set | $51.00 | |
| 3 | A01690-09-00 | PISTON | 1 | Pc. | $51.00 | |
| 4 | A01691-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 5 | A01692-09-00 | PISTON PIN CLIP | 2 | Pcs. | $1.50 | |
| 6 | A01693-09-00 | CONNECTING ROD | 1 | Pc. | $11.00 | |
| 7 | A01694-09-00 | RIGHT CRANKSHAFT HALF | 1 | Pc. | $72.00 | |
| 8 | A01695-09-00 | LEFT CRANKSHAFT HALF | 1 | Pc. | $72.00 | |
| 9 | A01696-09-00 | CRANK PIN | 1 | Pc. | $6.00 | |
| 10 | A00701-09-00 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 11 | A01698-09-00 | OIL PUMP DRIVE GEAR | 1 | Pc. | $10.00 | |
| 12 | A00118-28-00 | BEARING | 2 | Pcs. | $11.00 | |
| 13 | A00119-28-00 | BEARING | 1 | Pc. | $8.00 | |
| 14 | A01699-09-00 | PRIMARY DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 15 | A02488-09-00 | PISTON KIT | 1 | Kit | $99.00 | |

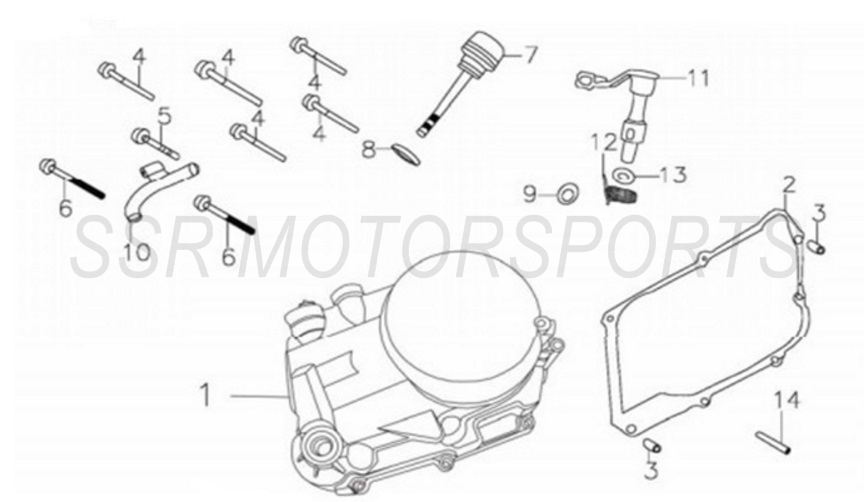

| RIGHT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01700-09-00 | RIGHT ENGINE COVER | 1 | Pc. | $104.00 | |
| 2 | A00167-13-00 | RIGHT CRANKCASE COVER GASKET | 1 | Pc. | $18.00 | |
| 3 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |
| 4 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 5 | Pcs. | $1.50 |
| 5 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 1 | Pc. | $2.00 |
| 6 | A00436-19-08 | CASE FLANGE BOLT | M6X80 | 2 | Pcs. | $2.00 |
| 7 | A01311-09-00 | OIL LEVEL DIPSTICK | 1 | Pc. | $8.00 | |
| 8 | A00090-27-00 | O-RING | 18X3 | 1 | Pc. | $2.50 |
| 9 | A00095-27-00 | OIL SEAL | 1 | Pc. | $1.50 | |
| 10 | A01702-09-00 | CLUTCH CABLE HOLDER | 1 | Pc. | $7.00 | |
| 11 | A01703-09-00 | CLUTCH ACTUATOR LEVER | 1 | Pc. | $27.00 | |
| 12 | A01824-09-00 | CLUTCH ACTUATOR RETURN SPRING | 1 | Pc. | $1.50 | |
| 13 | A00096-27-00 | OIL SEAL | 1 | Pc. | $1.50 | |
| 14 | A01705-09-00 | OIL PIPE | 1 | Pc. | $4.00 | |
| 15 | A00226-26-00 | OIL SEAL (KICKSTARTER) | 16X24X5 | 1 | Pc. | $3.50 |

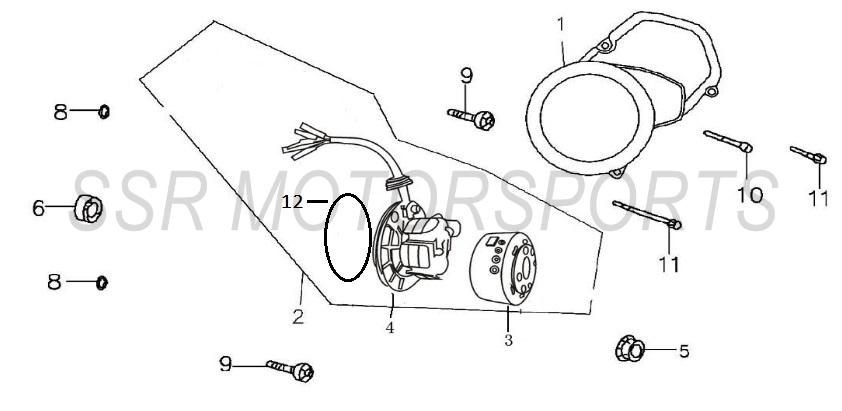

| LEFT ENGINE COVER & STATOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01706-09-00 | LEFT ENGINE COVER | 1 | Pc. | $69.00 | |
| 2 | A02922-09-00 | STATOR W/ FLYWHEEL ASSY | 1 | Assy. | $129.00 | |
| 3 | A02921-09-00 | FLYWHEEL | 1 | Pc. | $63.00 | |
| 4 | A02910-09-00 | STATOR | 1 | Pc. | $85.00 | |
| 5 | A00004-22-08 | SPECIAL NUT | M10 | 1 | Pc. | $1.50 |
| 6 | A00003-26-00 | OIL SEAL | 18.9X30X5 | 1 | Pc. | $4.00 |
| 8 | A00012-27-00 | O-RING | 6.5X1.9 | 2 | Pcs. | $1.50 |
| 9 | A00025-19-01 | FLANGE BOLT | M6X14 | 2 | Pcs. | $1.50 |
| 10 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 1 | Pc. | $1.50 |
| 11 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 12 | A00010-27-00 | O-RING | 1 | Pc. | $8.00 | |
| 13 | A00258-13-00 | STATOR COVER GASKET | 1 | Pc. | $10.00 | |

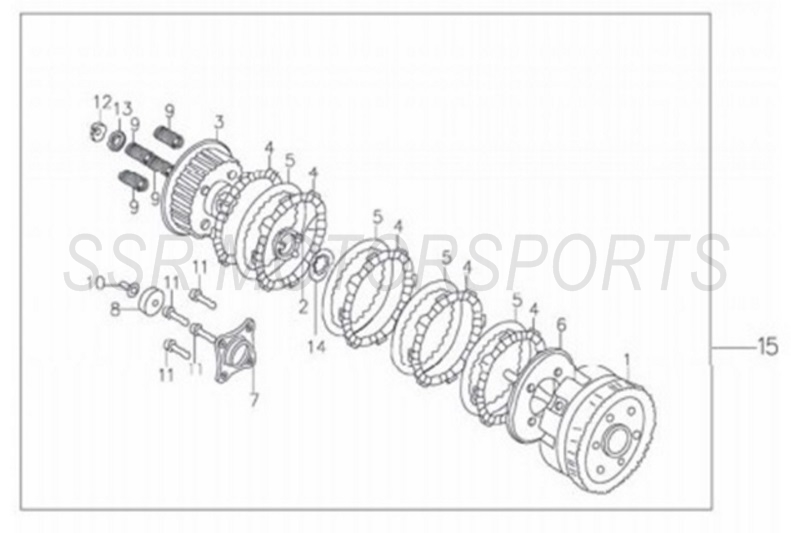

| CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01829-09-00 | CLUTCH BASKET | 1 | Pc. | $59.00 | |
| 2 | A01830-09-00 | HOLDING RING | 1 | Pc. | $8.00 | |
| 3 | A01831-09-00 | CLUTCH HUB | 1 | Pc. | $36.00 | |
| 4 | A01832-09-00 | CLUTCH FRICTION PLATE | 5 | Pcs. | $14.00 | |
| 5 | A01833-09-00 | CLUTCH STEEL PLATE | 4 | Pcs. | $10.00 | |
| 6 | A01834-09-00 | CLUTCH PRESSURE PLATE | 1 | Pc. | $27.00 | |
| 7 | A01835-09-00 | CLUTCH SPRING RETAINER | 1 | Pc. | $18.00 | |
| 8 | A00120-28-00 | BEARING | 1 | Pc. | $8.00 | |
| 9 | A01836-09-00 | CLUTCH SPRING | 4 | Pcs. | $2.00 | |
| 10 | A01837-09-00 | CLUTCH PUSH ROD | 1 | Pc. | $6.00 | |
| 11 | A00024-19-01 | FLANGE BOLT | M6X22 | 4 | Pcs. | $1.50 |
| 12 | A00034-22-01 | NUT | 1 | Pc. | $2.50 | |
| 13 | A00118-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 14 | A01838-09-00 | SPLINED SHAFT WASHER | 1 | Pc. | $2.50 | |
| 15 | A01839-09-00 | CLUTCH ASSY | 1 | Assy. | $115.00 | |

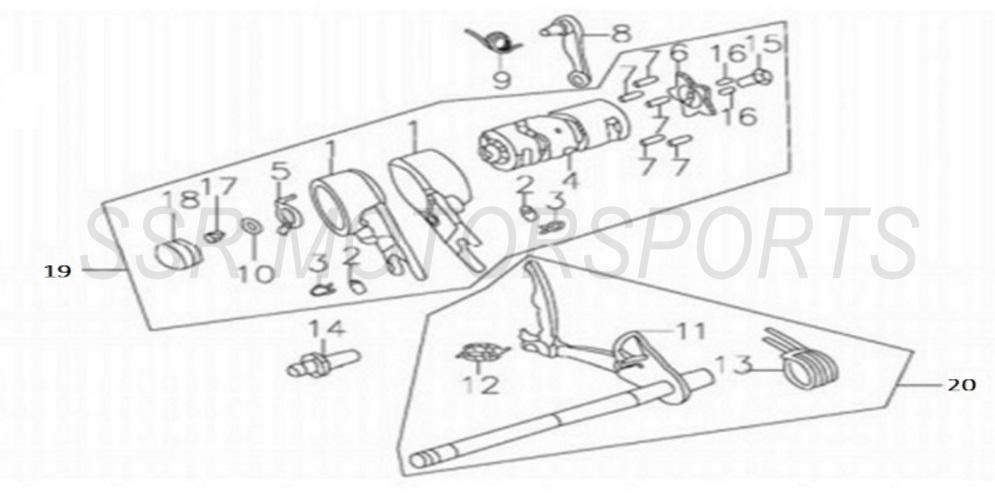

| GEARSHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01721-09-00 | GEAR SHIFT FORK | 2 | Pcs. | $11.00 | |
| 2 | A01722-09-00 | GUIDE PIN | 2 | Pc. | $1.50 | |
| 3 | A01723-09-00 | SPRING CLIP | 2 | Pc. | $1.50 | |
| 4 | A01724-09-00 | SHIFTING DRUM | 1 | Pc. | $42.00 | |
| 5 | A01725-09-00 | NEUTRAL GEAR SWITCH CONTACT | 1 | Pc. | $8.00 | |
| 6 | A01726-09-00 | SPEED VARIATOR PLATE | 1 | Pc. | $7.00 | |
| 7 | A01727-09-00 | PIN BOLT | 5 | Pcs. | $1.50 | |
| 8 | A01728-09-00 | SPEED VARIATOR ACTUATOR | 1 | Pc. | $8.00 | |
| 9 | A01729-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 10 | A00119-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 11 | A01730-09-00 | GEAR SHIFT SHAFT | 1 | Pc. | $60.00 | |
| 12 | A01731-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 13 | A01732-09-00 | RETURN SPRING | 1 | Pc. | $2.00 | |
| 14 | A01733-09-00 | SPRING PIN | 1 | Pc. | $2.50 | |
| 15 | A00031-19-01 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 16 | A01734-09-00 | ROLL PIN | 2 | Pcs. | $1.50 | |
| 17 | A01735-09-00 | SWITCH PIN | 1 | Pc. | $1.50 | |
| 18 | A01736-09-00 | RUBBER PLUG | 1 | Pc. | $2.50 | |
| 19 | A01737-09-00 | GEAR SHIFT DRUM ASSY | 1 | Assy. | $76.00 | |
| 20 | A01738-09-00 | GEAR SHIFT SHAFT ASSY | 1 | Assy. | $63.00 | |
| 21 | A02953-09-00 | GEARSHIFT SHAFT SLEEVE | NOT PICTURED | 1 | Pc. | $6.00 |

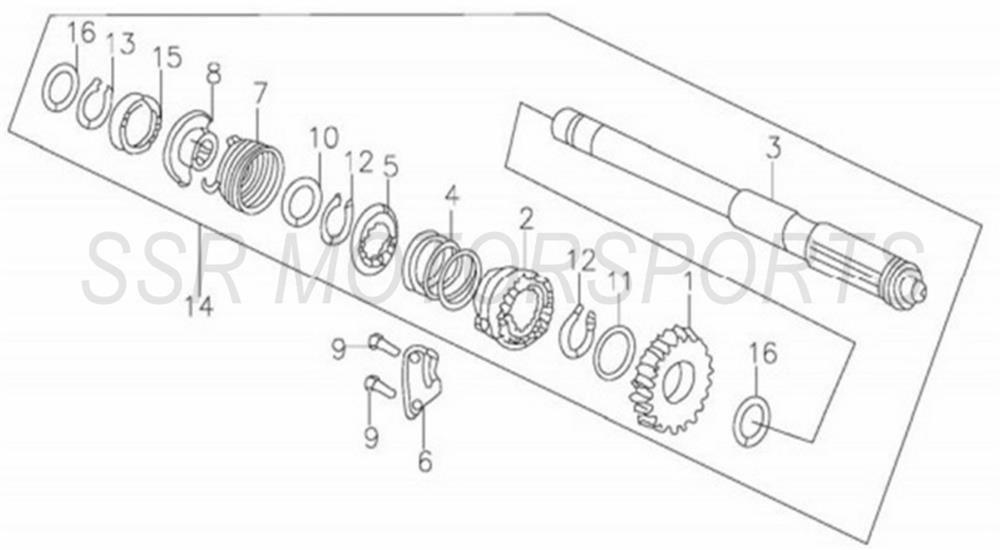

| KICKSTARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01739-09-00 | KICKSTARTER GEAR | 1 | Pc. | $26.00 | |
| 2 | A01740-09-00 | KICKSTARTER RATCHET WHEEL | 1 | Pc. | $18.00 | |
| 3 | A01741-09-00 | KICKSTARTER SHAFT | 1 | Pc. | $42.00 | |
| 4 | A01742-09-00 | SPRING | 1 | Pc. | $2.00 | |
| 5 | A01743-09-00 | RATCHET WHEEL SPRING RETAINER | 1 | Pc. | $2.50 | |
| 6 | A01744-09-00 | RATCHET WHEEL GUIDE PLATE | 1 | Pc. | $6.00 | |
| 7 | A01745-09-00 | STARTING SHAFT RETURN SPRING | 1 | Pc. | $2.50 | |
| 8 | A01746-09-00 | STARTING SHAFT SPRING RATCHET | 1 | Pc. | $8.00 | |
| 9 | A00006-19-01 | FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 10 | A01123-09-00 | WASHER I | 1 | Pc. | $1.50 | |
| 11 | A01129-09-00 | WASHER II | 2 | Pcs. | $1.50 | |
| 12 | A01130-09-00 | CIRCLIP | 3 | Pcs. | $1.50 | |
| 13 | A01131-09-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 14 | A01747-09-00 | KICKSTART SHAFT ASSEMBLY | 1 | Pc. | $98.00 | |
| 15 | A01748-09-00 | SPRING COVER | 1 | Pc. | $4.00 | |
| 16 | A00120-21-01 | WASHER | 2 | Pcs. | $1.50 | |

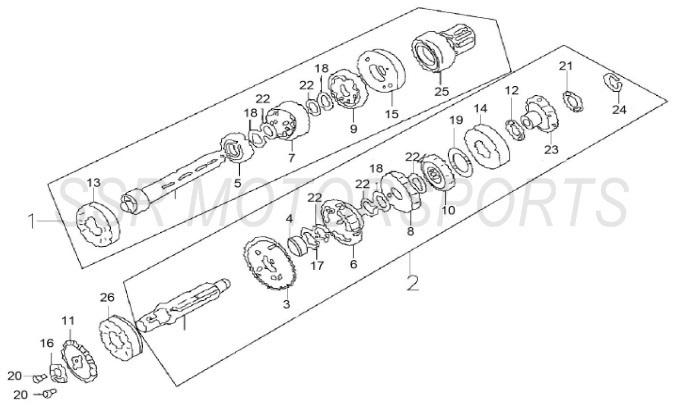

| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00305-17-00 | MAIN SHAFT ASSY | 1 | Assy. | $98.00 | |
| 2 | A00306-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $98.00 | |
| 3 | A00363-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 4 | A00308-17-01 | SPLINED SLEEVE | 1 | Pc. | $10.00 | |
| 5 | A00309-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 6 | A00310-17-00 | SPLINE SHAFT DRIVER GEAR | 1 | Pc. | $18.00 | |
| 7 | A00311-17-00 | SPLINE SHAFT MAIN DRIVEN GEAR | 1 | Pc. | $18.00 | |
| 8 | A00312-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 9 | A00313-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 10 | A00314-17-00 | SPLINE SHAFT GEAR WHEEL | 1 | Pc. | $21.00 | |
| 11 | A00309-07-00 | COUNTERSHAFT SPROCKET | 15T | 1 | Pc. | $21.00 |
| 11 | A00400-07-00 | COUNTERSHAFT SPROCKET | 16T OPT. | 1 | Pc. | $21.00 |
| 12 | A00365-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 13 | A00003-28-00 | LEFT MAINSHAFT BEARING | 6001 | 1 | Pc. | $8.00 |
| 14 | A00084-28-00 | BEARING | 6002 | 1 | Pc. | $8.00 |
| 15 | A00008-28-00 | BEARING | 6203 | 2 | Pcs. | $27.00 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 17 | A00366-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 18 | A00367-17-00 | WASHER | 3 | Pcs. | $2.00 | |
| 19 | A00368-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 20 | A00031-19-03 | BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 21 | A00369-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 22 | A00370-17-00 | WASHER | 5 | Pcs. | $2.00 | |
| 23 | A00337-17-00 | STARTER IDLER GEAR | 22T | 1 | Pc. | $21.00 |
| 24 | A00364-17-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 25 | A00319-17-00 | CLUTCH GEAR SLEEVE | 1 | Pc. | $21.00 | |
| 26 | A00095-28-00 | BEARING | 6303X3 | 1 | Pc. | $10.00 |
| OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01867-09-00 | OIL PUMP ASSY | 1 | Assy. | $42.00 | |
| 2 | A01750-09-00 | OIL PUMP DRIVER GEAR | 1 | Pc. | $10.00 | |
| 3 | A01751-09-00 | OIL PUMP INNER ROTOR | 1 | Pc. | $8.00 | |
| 4 | A01752-09-00 | OIL PUMP OUTER ROTOR | 1 | Pc. | $8.00 | |
| 5 | A01753-09-00 | OIL SCREEN | 1 | Pc. | $10.00 | |
| 6 | A00141-19-05 | WASHER BOLT | 1 | Pc. | $1.50 | |
| 7 | A00038-24-07 | CIRCLIP | 1 | Pc. | $1.50 | |
| 8 | A00142-19-01 | FLANGE BOLT | 1 | Pc. | $1.50 | |
| 9 | A00143-19-01 | FLANGE BOLT | 2 | Pcs. | $2.50 | |
| 10 | A01754-09-00 | PIN | 1 | Pc. | $1.50 | |
| 11 | A01755-09-00 | PIN | 1 | Pc. | $1.50 | |
| 12 | A01756-09-00 | OIL PUMP COVER | 1 | Pc. | $8.00 | |
| 13 | A01757-09-00 | OIL PUMP SHAFT | 1 | Pc. | $8.00 | |
| 14 | A00101-23-00 | DOWEL PIN | 2 | Pcs. | $1.50 | |
| 15 | A01758-09-00 | OIL PUMP BODY | 1 | Pc. | $18.00 | |
| 16 | A00278-13-00 | OIL PUMP GASKET | NOT PICTURED | 1 | Pc. | $6.00 |

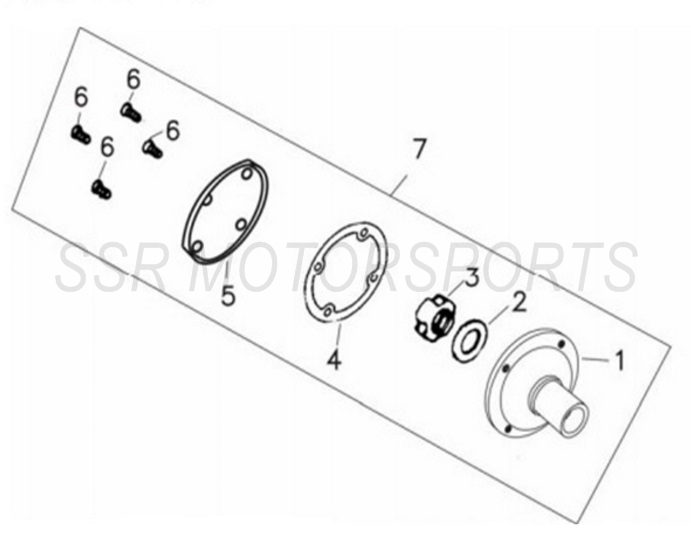

| OIL SLING / OIL FILTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01759-09-00 | SLING WHEEL | 1 | Pc. | $21.00 | |
| 2 | A00121-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 3 | A01760-09-00 | LOCK NUT | 1 | Pc. | $2.50 | |
| 4 | A01761-09-00 | GASKET | 1 | Pc. | $8.00 | |
| 5 | A01762-09-00 | SLING / FILTER COVER | 1 | Pc. | $11.00 | |
| 6 | A00144-19-01 | BOLT | 4 | Pcs. | $1.50 | |
| 7 | A01763-09-00 | OIL SLING / FILTER ASSY | 1 | Assy. | $42.00 | |
|
ENGINE PART SETS |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00253-13-00 | COMPLETE ENGINE GASKET SET | 1 | Set | $63.00 | |
| 2 | A00244-26-00 | COMPLETE ENGINE SEALS SET | 1 | Set | $14.00 | |
| 3 | A00269-13-00 | COMPLETE TOP END GASKET SET | 1 | Set | $39.00 | |
