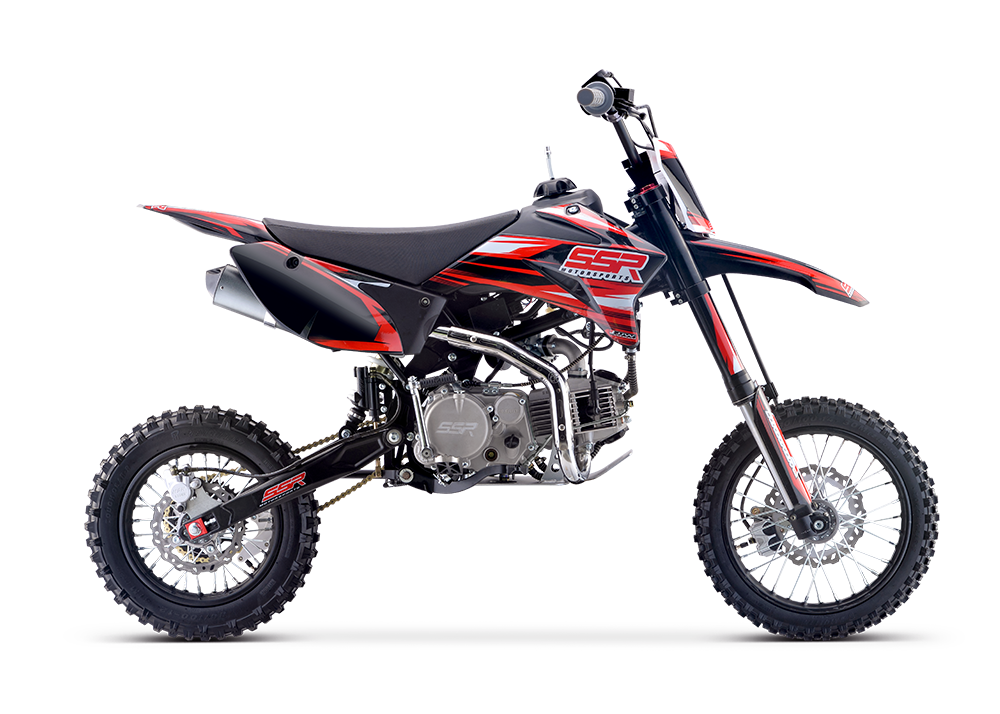

(TR160/TR170) Full Parts Schematics
| 2015-2022 SR160/170TR | ||||||
 |
||||||

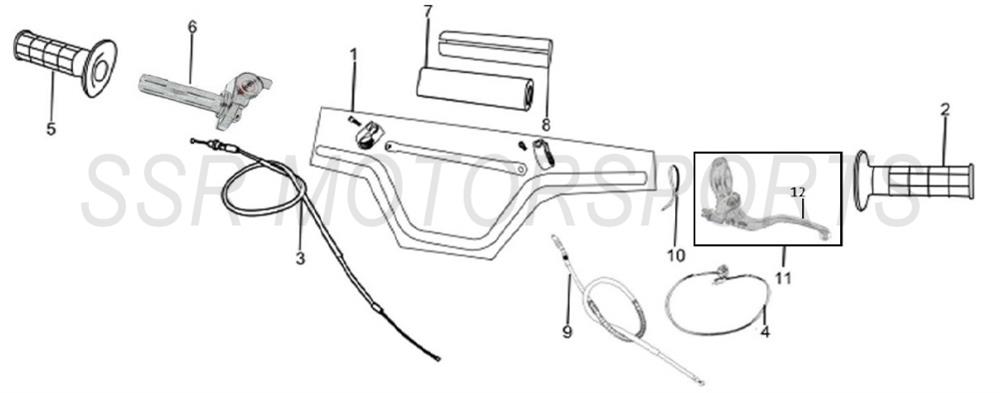

| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00376-05-00 | HANDLEBAR | 1 | Pc. | $72.00 | |
| 2 | A00355-05-00 | LEFT HANDLEBAR GRIP | 1 | Pc. | $7.00 | |
| 3 | A00356-05-00 | THROTTLE CABLE | 880 130 | 1 | Pc. | $18.00 |
| 4 | A00473-08-00 | KILL SWITCH | 650MM | 1 | Pc. | $11.00 |
| 5 | A00309-05-00 | RIGHT GRIP | GREY | 1 | Pc. | $10.00 |
| 6 | A00358-05-00 | THROTTLE ASSY | 1 | Assy. | $27.00 | |
| 7 | A00360-05-00 | HANDLEBAR PAD | 215X185 | 1 | Pc. | $8.00 |
| 8 | A00359-05-00 | HANDLEBAR PAD COVER | 12X53X220 | 1 | Pc. | $8.00 |
| 9 | A00361-05-00 | CLUTCH CABLE | 950 68 | 1 | Pc. | $18.00 |
| 10 | A00001-24-01 | ZIP TIE | 5X200MM 380 | 1 | Pc. | $1.50 |
| 11 | A00362-05-00 | CLUTCH PERCH W/ LEVER | 1 | Assy. | $26.00 | |
| 12 | A00823-05-00 | CLUTCH LEVER | 1 | Pc. | $18.00 | |

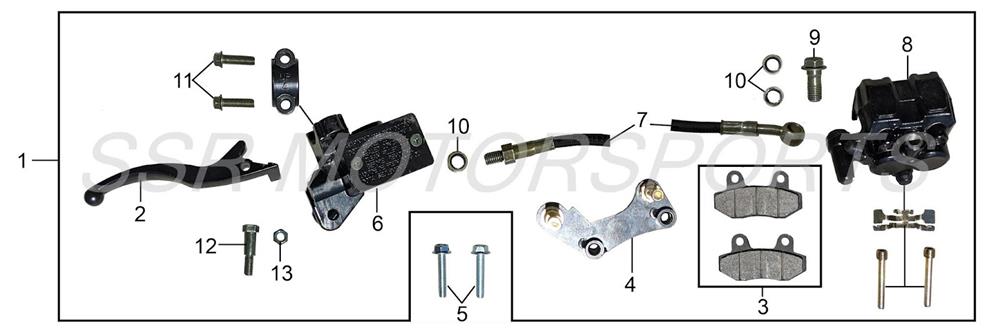

| FRONT BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00496-04-00 | FRONT BRAKE ASSY | L=1150 | 1 | Assy. | $98.00 |
| 2 | A00497-04-00 | FRONT BRAKE LEVER | 1 | Pc. | $18.00 | |
| 3 | A00499-04-00 | FRONT BRAKE PAD SET | 1 | Set | $18.00 | |
| 4 | A00498-04-00 | FRONT CALIPER BRACKET | 51H11 | 1 | Pc. | $18.00 |
| 5 | A00064-19-01 | FLANGE BOLT | M6X32 | 2 | Pcs. | $1.50 |
| 6 | A00571-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $63.00 | |
| 7 | A00558-04-00 | FRONT BRAKE HOSE | L = 1150 | 1 | Pc. | $18.00 |
| 8 | A00580-04-00 | FRONT BRAKE CALIPER ASSY | 1 | Assy. | $76.00 | |
| 9 | A00675-04-00 | BANJO BOLT | M8 | 1 | Pc. | $2.00 |
| 10 | A00676-04-00 | SEALING WASHER | M8 | 3 | Pcs. | $1.50 |
| 11 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 12 | A00481-19-07 | LEVER PIVOT BOLT | 1 | Pc. | $2.00 | |
| 13 | A00005-22-04 | LOCKNUT | M6 | 1 | Pc. | $1.50 |

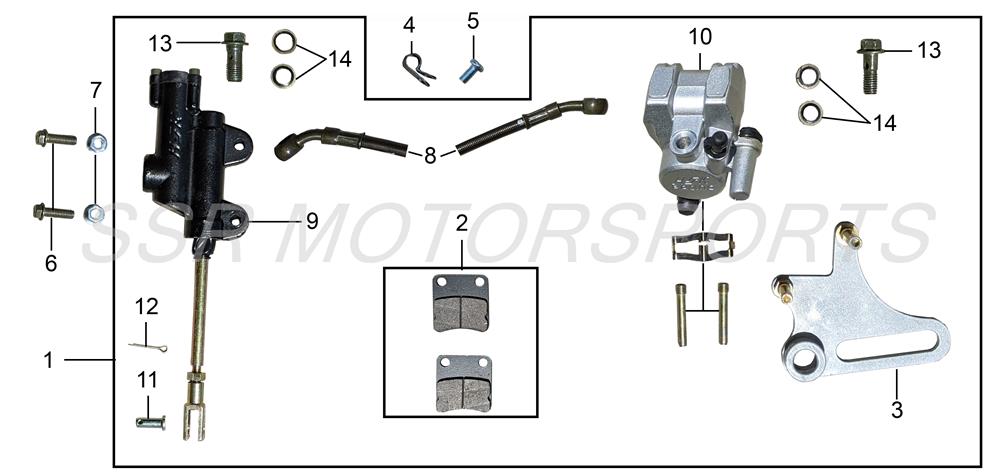

| REAR BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00500-04-00 | REAR BRAKE ASSY | L=580 | 1 | Assy. | $103.00 |
| 2 | A00478-04-00 | REAR BRAKE PAD SET | 1 | Set | $18.00 | |
| 3 | A00502-04-00 | REAR CALIPER BRACKET | 190 | 1 | Pc. | $23.00 |
| 4 | A00523-04-00 | REAR BRAKE HOSE RETAINER | 2 | Pcs. | $2.00 | |
| 5 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 6 | A00418-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00554-04-00 | REAR BRAKE HOSE | L=580 | 1 | Pc. | $21.00 |
| 9 | A00585-04-00 | REAR BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $76.00 | |
| 10 | A00586-04-00 | REAR BRAKE CALIPER ASSY | 1 | Assy. | $85.00 | |
| 11 | A00417-04-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
| 12 | A00007-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 13 | A00675-04-00 | BANJO BOLT | M8 | 2 | Pc. | $2.00 |
| 14 | A00676-04-00 | SEALING WASHER | M8 | 4 | Pcs. | $1.50 |

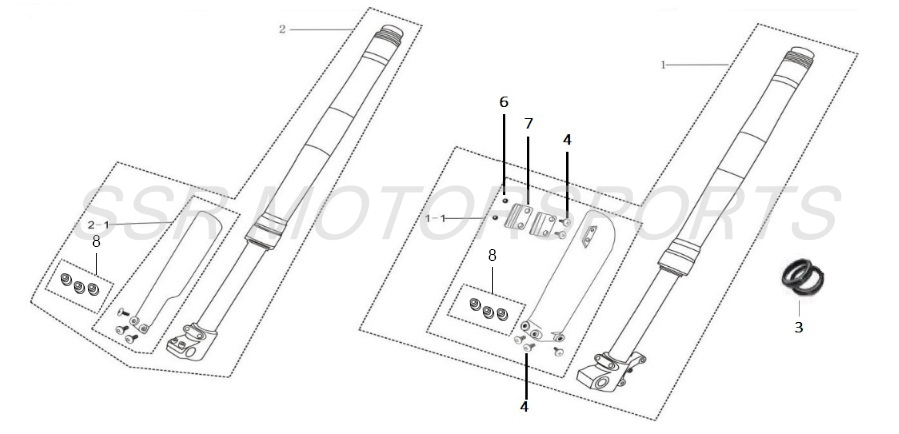

| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00486-16-00 | LEFT FRONT FORK ASSY | 735MM | 1 | Assy. | $177.00 |
| 1-1 | A00727-02-02 | LEFT FORK GUARD | BLACK - 735MM | 1 | Pc. | $14.00 |
| 2 | A00487-16-00 | RIGHT FRONT FORK ASSY | 735MM | 1 | Assy. | $177.00 |
| 2-1 | A00728-02-02 | RIGHT FORK GUARD | BLACK - 735MM | 1 | Pc. | $14.00 |
| 3 | A00511-16-00 | FORK/DUST SEAL SET | 37X50X11 + 37X50X13 | 2 | Set | $11.00 |
| 4 | A00106-19-01 | BUTTON HEAD ALLEN BOLT | M6X16 | 8 | Pcs. | $1.50 |
| 6 | A00005-22-04 | LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 7 | A00800-02-00 | BRAKE LINE HOLDER SET | 1 | Set | $2.50 | |
| 8 | A00701-16-00 | COLLAR | 6 | Pcs. | $1.50 | |

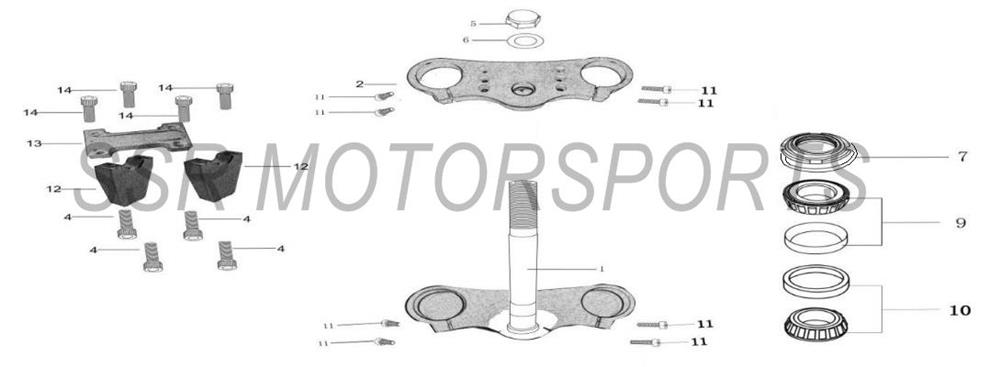

| UPPER & LOWER TRIPLE CLAMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00190-15-00 | LOWER TRIPLE CLAMP W/ STEERING STEM | 23.6XL24 | 1 | Pc. | $103.00 |
| 2 | A00191-15-00 | UPPER TRIPLE CLAMP | 45 | 1 | Pc. | $98.00 |
| 4 | A00048-19-02 | ALLEN BOLT | M10X40X1.5 | 4 | Pcs. | $2.00 |
| 5 | A00166-15-00 | STEERING STEM NUT | 1 | Pc. | $6.00 | |
| 6 | A00061-21-01 | WASHER | 23X36X1.5 | 1 | Pc. | $2.50 |
| 7 | A00205-15-00 | SPLINED NUT W/ COLLAR | 1 | Pc. | $4.00 | |
| 9 | A00182-15-00 | UPPER STEERING STEM BEARING | 320/22 | 1 | Pc. | $14.00 |
| 10 | A00183-15-00 | LOWER STEERING STEM BEARING | 320/23.5 | 1 | Pc. | $14.00 |
| 11 | A00008-19-02 | ALLEN BOLT | GB70-85 M6X20 | 8 | Pcs. | $1.50 |
| 12 | A00198-15-00 | LOWER HANDLEBAR CLAMP | 22 | 2 | Pcs. | $10.00 |
| 13 | A00199-15-00 | UPPER HANDLEBAR CLAMP | 22 | 1 | Pc. | $14.00 |
| 14 | A00125-19-02 | ALLEN BOLT | GB70-85 M8X25 | 4 | Pcs. | $1.50 |

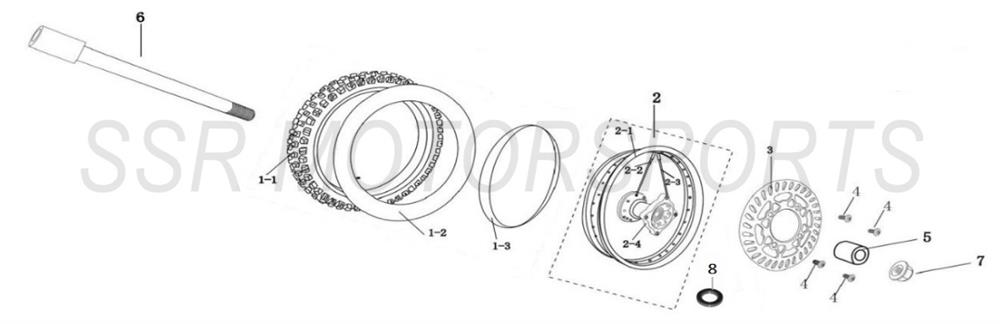

| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00303-18-00 | FRONT TIRE | 60/100-14 | 1 | Pc. | $32.00 |
| 1-1 | A00527-18-00 | FRONT TIRE | 60/100-14 | 1 | Pc. | $34.00 |
| 1-2 | A00233-18-00 | INNER TUBE | 60/100-14 | 1 | Pc. | $18.00 |
| 1-3 | A00400-18-00 | RIM STRIP | 14" | 1 | Pc. | $6.00 |
| 2 | A00336-18-00 | FRONT WHEEL ASSY | 1.4X14 | 1 | Assy. | $103.00 |
| 2-1 | A00337-18-00 | FRONT RIM | 1 | Pc. | $50.00 | |
| 2-2 | A00338-18-00 | INNER SPOKE W/ NIPPLE | 16 | Pc. | $2.00 | |
| 2-3 | A00339-18-00 | OUTER SPOKE W/ NIPPLE | 16 | Pcs. | $2.00 | |
| 2-4 | A00308-18-00 | FRONT WHEEL HUB | 1 | Pc. | $85.00 | |
| 3 | A00504-04-00 | FRONT BRAKE ROTOR | 210 | 1 | Pc. | $27.00 |
| 3 | A00726-04-00 | FRONT BRAKE ROTOR | 2020+ SR170TR ONLY | 1 | Pc. | $24.00 |
| 4 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 5 | A00341-18-00 | FRONT WHEEL AXLE SPACER | 15X25XH26 | 1 | Pc. | $6.00 |
| 6 | A00342-18-00 | FRONT AXLE | 15X58X215XM14X1.5MM | 1 | Pc. | $30.00 |
| 7 | A00003-22-01 | FLANGE NUT | M14X1.5 | 1 | Pc. | $2.50 |
| 8 | A00017-28-00 | BEARING | 6202-2RS | 2 | Pcs. | $7.00 |

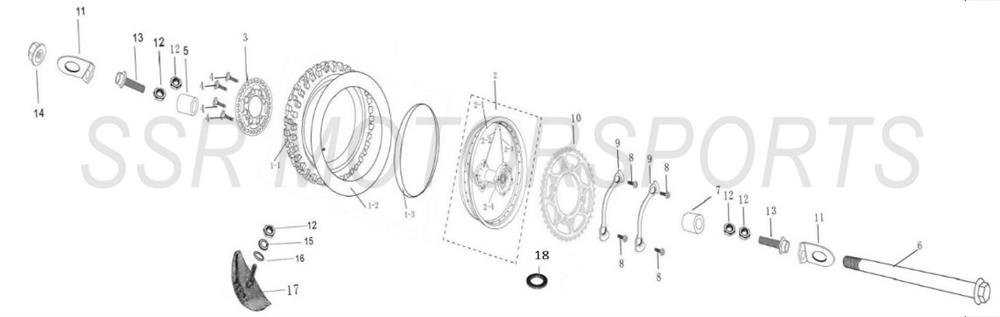

| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00528-18-00 | REAR TIRE | 80/100-12 | 1 | Pc. | $34.00 |
| 1-2 | A00291-18-00 | INNER TUBE | 80/100-12 | 1 | Pc. | $18.00 |
| 1-3 | A00292-18-00 | RIM STRIP | 12X20 | 1 | Pc. | $6.00 |
| 2 | A00636-18-00 | REAR WHEEL ASSY | 1.85-12 | 1 | Assy. | $103.00 |
| 2-2 | A00295-18-00 | REAR INNER SPOKE W/ NIPPLE | 129 | 16 | Pcs. | $2.00 |
| 2-3 | A00296-18-00 | REAR OUTER SPOKE W/ NIPPLE | 133 | 16 | Pcs. | $2.00 |
| 2-4 | A00346-18-00 | REAR WHEEL HUB | 1 | Pc. | $85.00 | |
| 3 | A00505-04-00 | REAR BRAKE ROTOR | 190 16.5XH1.5 | 1 | Pc. | $36.00 |
| 3 | A00724-04-00 | REAR BRAKE ROTOR | 2020+ SR170TR/TX ONLY | 1 | Pc. | $32.00 |
| 4 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 5 | A00347-18-00 | RIGHT REAR WHEEL SPACER | 15X25XH25 | 1 | Pc. | $6.00 |
| 6 | A00348-18-00 | REAR AXLE | 15X225XM14X1.5MM | 1 | Pc. | $33.00 |
| 7 | A00349-18-00 | LEFT REAR WHEEL SPACER | 15X25XH33 | 1 | Pc. | $6.00 |
| 8 | A00029-19-03 | BOLT | M8X30X1.25 8.8/S14 | 4 | Pcs. | $1.50 |
| 9 | A00296-07-00 | SPROCKET BOLT RETAINER PLATE | 2 | Pcs. | $8.00 | |
| 10 | A00302-07-00 | REAR SPROCKET | 420-41T | 1 | Pc. | $42.00 |
| 11 | A00350-18-00 | CHAIN ADJUSTER PLATE | 15X29+31X7XH37 | 2 | Pcs. | $8.00 |
| 12 | A00002-22-01 | NUT | M8 | 5 | Pcs. | $1.50 |
| 13 | A00014-19-01 | FLANGE BOLT | M8X40 | 2 | Pcs. | $2.00 |
| 14 | A00003-22-01 | FLANGE NUT | M14X1.5 | 1 | Pc. | $2.50 |
| 15 | A00001-21-02 | LOCK WASHER | 8 | 1 | Pc. | $1.50 |
| 16 | A00013-21-01 | WASHER | GB97.1-85 8X16X1.5 | 1 | Pc. | $1.50 |
| 17 | A00352-18-00 | RIM LOCK | KAYO 1.6-1.85 | 1 | Pc. | $8.00 |
| 18 | A00017-28-00 | BEARING | 6202-2RS | 2 | Pcs. | $7.00 |

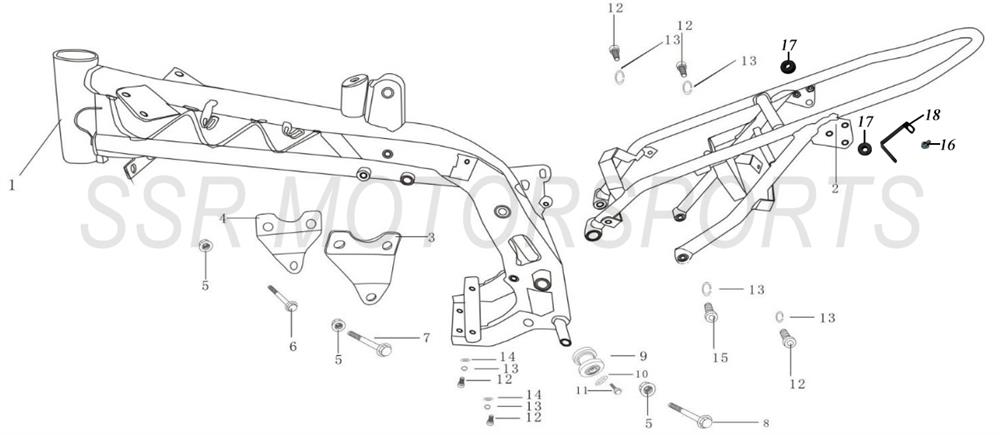

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00399-11-00 | FRAME | BLACK *OVERSIZE* | 1 | Pc. | $185.00 |
| 2 | A00400-11-00 | SUBFRAME | BLACK | 1 | Pc. | $63.00 |
| 3 | A00401-11-00 | LEFT UPPER ENGINE MOUNT | BLACK | 1 | Pc. | $10.00 |
| 4 | A00402-11-00 | RIGHT UPPER ENGINE MOUNT | BLACK | 1 | Pc. | $10.00 |
| 5 | A00100-22-34 | FLANGE LOCKNUT | M8 | 3 | Pcs. | $1.50 |
| 6 | A00009-19-01 | FLANGE BOLT | GB5789-86 M8X75 S12 | 1 | Pc. | $2.00 |
| 7 | A00043-19-01 | FLANGE BOLT | GB5787-86 M8X115 | 1 | Pc. | $2.50 |
| 8 | A00044-19-01 | FLANGE BOLT | GB5787-86 M8X105 | 1 | Pc. | $2.50 |
| 9 | A00367-11-00 | CHAIN ROLLER | 1 | Pc. | $8.00 | |
| 10 | A00014-21-01 | WASHER | GB97.1-85 10X20X2 | 1 | Pc. | $1.50 |
| 11 | A00031-19-01 | FLANGE BOLT | M6X12 S10 | 1 | Pc. | $1.50 |
| 12 | A00412-19-02 | ALLEN BOLT | GB70-85 M8X25 | 5 | Pcs. | $1.50 |
| 13 | A00001-21-02 | LOCK WASHER | GB93-87 8X13X2 | 5 | Pcs. | $1.50 |
| 14 | A00013-21-01 | WASHER | GB97.1-85 8X16X1.5 | 2 | Pcs. | $1.50 |
| 15 | A00049-19-02 | ALLEN BOLT | GB70-85 M8X35 | 1 | Pc. | $1.50 |
| 16 | A00031-19-81 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 17 | A01007-02-00 | RUBBER GROMMET | 2 | Pcs. | $1.50 | |
| 18 | A00559-11-00 | SIDE PANEL BRACKET | 1 | Pc. | $4.00 | |

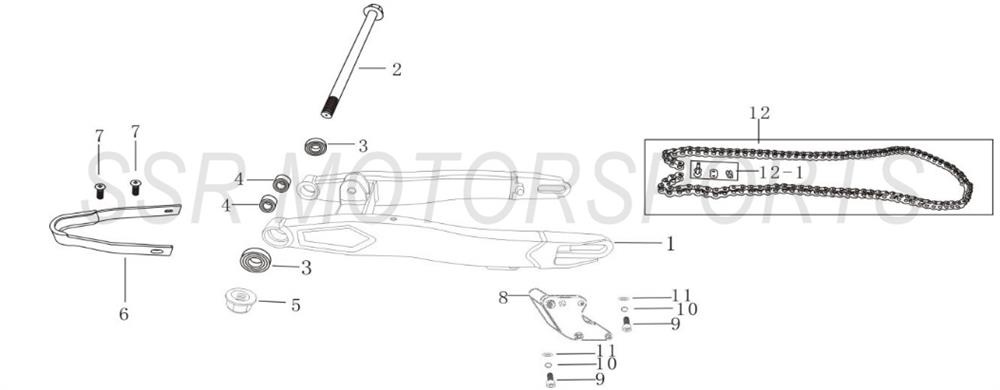

| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00404-11-00 | SWINGARM | 430MM | 1 | Pc. | $103.00 |
| 2 | A00369-11-00 | SWINGARM AXLE | 10X190XM10X1.25MM | 1 | Pc. | $10.00 |
| 3 | A00011-28-00 | BEARING | 6200Z | 2 | Pcs. | $8.00 |
| 4 | A00406-11-00 | SLEEVE | 10.2X22.5XH16 | 2 | Pcs. | $6.00 |
| 5 | A00004-22-34 | FLANGE LOCKNUT | GB6187-86 M10X1.25 | 1 | Pc. | $2.00 |
| 6 | A00545-11-00 | FRONT CHAIN SLIDER | 1 | Pc. | $18.00 | |
| 7 | A00003-20-12 | CS SCREW | M6X16 | 2 | Pcs. | $1.50 |
| 8 | A00409-11-00 | CHAIN GUIDE | 1 | Pc. | $21.00 | |
| 9 | A00251-19-02 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 10 | A00001-21-02 | LOCK WASHER | GB93-87 8X13X2 | 2 | Pcs. | $1.50 |
| 11 | A00013-21-01 | WASHER | GB97.1-85 8X16X1.5 | 2 | Pcs. | $1.50 |
| 12 | A00303-07-00 | DRIVE CHAIN | 420-110L GOLD/BLACK | 1 | Pc. | $59.00 |
| 12-1 | A00287-07-00 | CLIP LINK | 420 | 1 | Pc. | $6.00 |
| REAR SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00488-16-00 | REAR SHOCK ABSORBER | BS-35AR L=290 1000LBS | 1 | Pc. | $252.00 |
| 2 | A00004-22-03 | FLANGE NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 3 | A00011-19-01 | FLANGE BOLT | 10X45XM10X1.25MM | 2 | Pcs. | $3.50 |
| 4 | A00718-16-00 | COLLAR | 4 | Pcs. | $2.50 | |

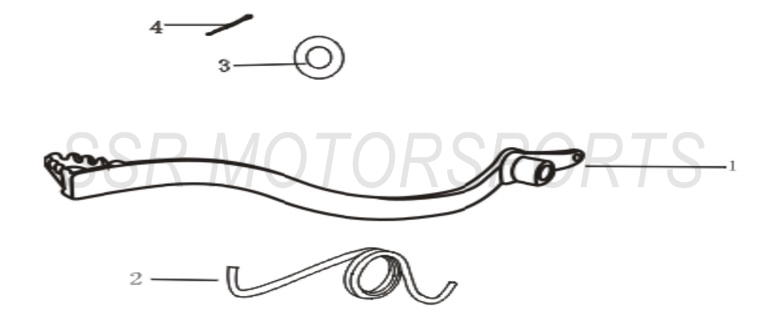

| REAR BRAKE PEDAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00442-05-00 | REAR BRAKE PEDAL | BLACK | 1 | Pc. | $27.00 |
| 2 | A00443-05-00 | REAR BRAKE PEDAL RETURN SPRING | 1 | Pc. | $2.00 | |
| 3 | A00015-21-01 | WASHER | 15X30X2.5 | 1 | Pc. | $1.50 |
| 4 | A00019-28-01 | COTTER PIN | 2.5x24 | 1 | Pc. | $1.50 |

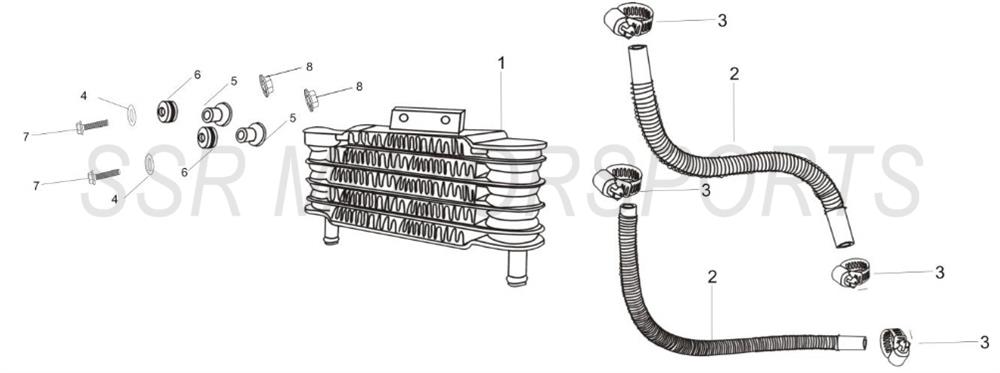

| OIL COOLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00079-06-00 | OIL COOLER | 1 | Pc. | $92.00 | |
| 2 | A00080-06-00 | OIL COOLER HOSE | 8X14XL650 | 2 | Pcs. | $18.00 |
| 3 | A00039-24-03 | HOSE CLAMP | 4 | Pcs. | $2.00 | |
| 4 | A00014-21-01 | WASHER | M10X20X2 | 2 | Pcs. | $1.50 |
| 5 | A00081-06-00 | COLLAR | 2 | Pcs. | $1.50 | |
| 6 | A00082-06-00 | RUBBER GROMMET | 2 | Pcs. | $1.50 | |
| 7 | A00003-19-01 | FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 8 | A00093-22-03 | FLANGE NUT | GB6177-86 M6 | 2 | Pcs. | $1.50 |
| 9 | A00108-06-00 | BRASS OIL HOSE FITTING | NOT PICTURED | 2 | Pcs. | $4.00 |

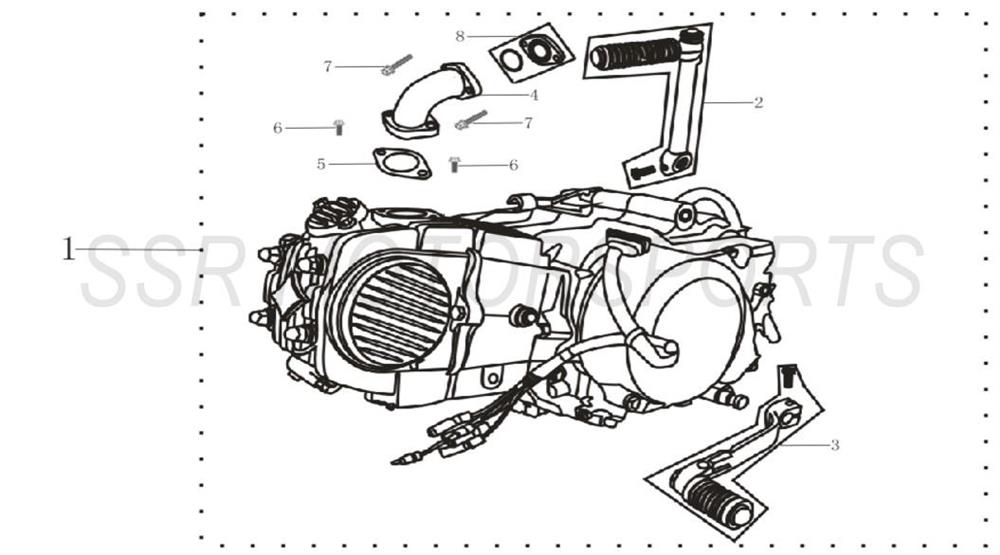

| ENGINE / KICKSTARTER / SHIFTER / INTAKE MANIFOLD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01764-09-00 | ENGINE ASSY | 160TR *OVERSIZE* | 1 | Assy. | $682.00 |
| 1 | A01474-09-00 | ENGINE ASSY | 170TR *OVERSIZE* | 1 | Assy. | $740.00 |
| 2 | A00388-05-00 | KICKSTARTER LEVER | 1 | Pc. | $26.00 | |
| 3 | A00389-05-00 | SHIFTER LEVER | 1 | Assy. | $27.00 | |
| 4 | A00235-14-00 | INTAKE MANIFOLD | 160TR | 1 | Pc. | $36.00 |
| 4 | A02731-09-00 | INTAKE MANIFOLD | 170TR | 1 | Pc. | $36.00 |
| 5 | A00168-13-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $3.50 | |
| 6 | A00040-19-01 | FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 7 | A00001-19-01 | FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 8 | A00236-14-00 | INSULATOR W/ O-RING | 1 | Set | $8.00 | |

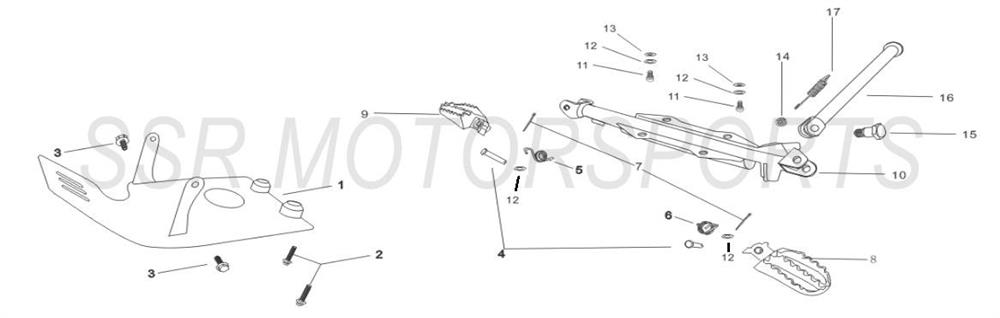

| SKIDPLATE, SIDE STAND AND FOOTPEGS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00410-11-00 | SKID PLATE | ZS155 | 1 | Pc. | $59.00 |
| 2 | A00049-19-01 | FLANGE BOLT | M8X35 | 2 | Pcs. | $2.00 |
| 3 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 4 | A00336-05-00 | FOOTPEG PIVOT PIN | 7.8X42 | 2 | Pcs. | $1.50 |
| 5 | A00335-05-00 | RIGHT FOOTPEG SPRING | 20X2XH8X4 | 1 | Pc. | $1.50 |
| 6 | A00334-05-00 | LEFT FOOTPEG SPRING | 20X2XH8X4 | 1 | Pc. | $1.50 |
| 7 | A00019-28-01 | COTTER PIN | 2.5X24 | 2 | Pcs. | $1.50 |
| 8 | A00332-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 | |
| 9 | A00330-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
| 10 | A00372-05-00 | FOOTPEG MOUNTING BRACKET | 1 | Pc. | $27.00 | |
| 11 | A00125-19-02 | ALLEN BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 12 | A00013-21-01 | WASHER | M8X16X1.5 | 4 | Pcs. | $1.50 |
| 13 | A00001-21-02 | LOCK WASHER | M8 | 2 | Pcs. | $1.50 |
| 14 | A00004-22-03 | NUT | M10X1.5 | 1 | Pc. | $1.50 |
| 15 | A00373-19-07 | SIDE STAND PIVOT BOLT | M10X30 | 1 | Pc. | $2.00 |
| 16 | A00374-05-00 | SIDE STAND | L=315 330 | 1 | Pc. | $23.00 |
| 17 | A00375-05-00 | SIDE STAND SPRING | 15X2.5XH40X16 | 1 | Pc. | $2.50 |

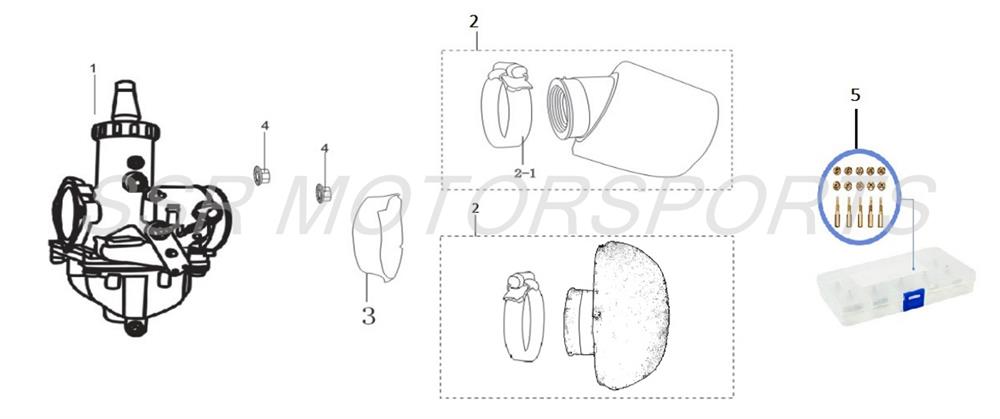

| CARBURETOR & AIR FILTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00463-12-00 | CARBURETOR ASSY | MOLKT 26 | 1 | Assy. | $96.00 |
| 2 | A00232-14-00 | AIR FILTER ELEMENT | 42 | 1 | Pc. | $21.00 |
| 2 | A00301-14-00 | AIR FILTER ELEMENT - BUTTON | 42 (OPTION) | 1 | Pc. | $27.00 |
| 2-1 | A00004-24-02 | HOSE CLAMP | 38-57 | 1 | Pc. | $6.00 |
| 3 | A00234-14-00 | SCREEN | 44/30 | 1 | Pc. | $8.00 |
| 4 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 5 | A00053-01-00 | CARBURETOR JET KIT | AVAILABLE ACCESSORY | 1 | Kit | $89.00 |

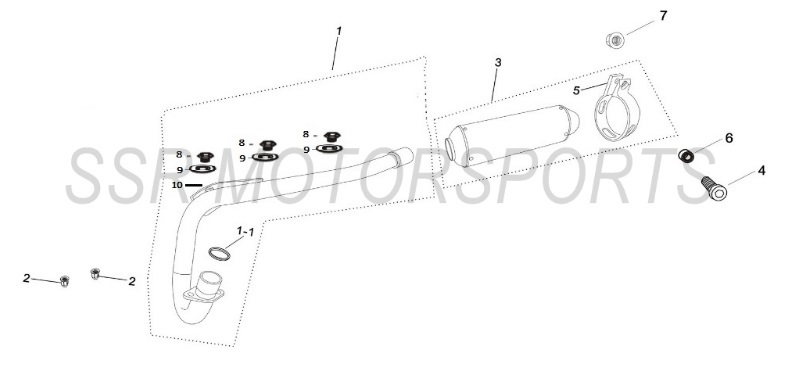

| MUFFLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00077-10-00 | EXHAUST HEADER W/ HEAT SHIELD | 32 | 1 | Assy. | $56.00 |
| 1-1 | A00115-13-00 | EXHAUST GASKET | 1 | Pc. | $6.00 | |
| 2 | A00001-22-01 | NUT | M6 | 2 | Pcs. | $1.50 |
| 3 | A00084-10-00 | MUFFLER W/ CLAMP | 38 | 1 | Assy. | $92.00 |
| 4 | A00005-19-02 | ALLEN BOLT | M8X30 | 1 | Pc. | $1.50 |
| 5 | A00085-10-00 | MUFFLER CLAMP | 1 | Pc. | $18.00 | |
| 6 | A00086-12-00 | SPACER | 8X16XH6.5 | 1 | Pc. | $1.50 |
| 7 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 8 | A00090-20-01 | MED PANHEAD PHILLIPS BOLT | M6X8 | 3 | Pcs. | $1.50 |
| 9 | A00002-21-02 | LOCK WASHER | M6 | 3 | Pcs. | $1.50 |
| 10 | A00206-10-00 | MUFFLER GUARD | 1 | Pc. | $18.00 | |

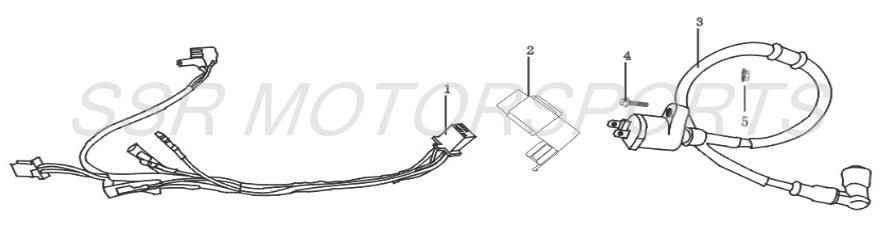

| ELECTRICAL COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00489-08-00 | WIRE HARNESS | 160TR | 1 | Pc. | $42.00 |
| 1 | A00486-08-00 | WIRE HARNESS | 170TR | 1 | Pc. | $42.00 |
| 2 | A00490-08-00 | CDI | 160TR | 1 | Pc. | $27.00 |
| 2 | A00487-08-00 | CDI | 170TR | 1 | Pc. | $27.00 |
| 3 | A00460-08-00 | IGNITION COIL | 1 | Pc. | $42.00 | |
| 4 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 5 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |

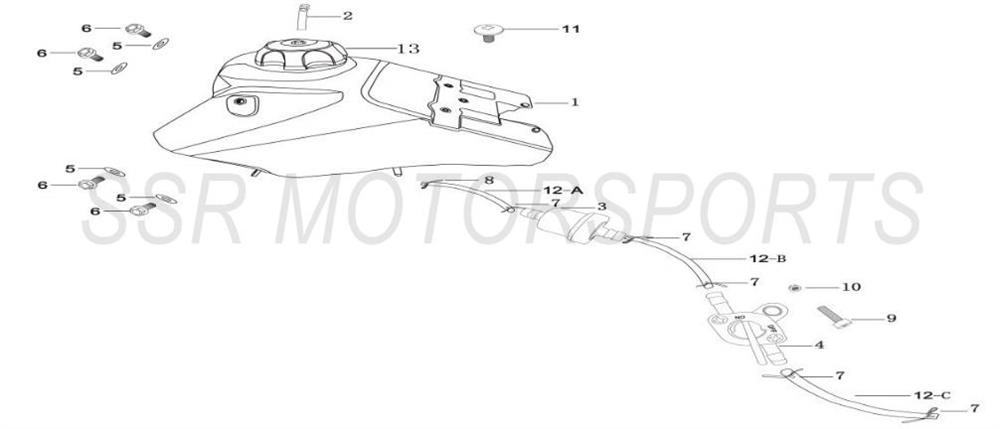

| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00335-12-00 | FUEL TANK | 1 | Pc. | $56.00 | |
| 2 | A00332-12-00 | FUEL TANK CAP VENT | 1 | Pc. | $6.00 | |
| 6 | A00254-12-00 | FUEL FILTER | ONLY | 1 | Pc. | $4.00 |
| 6 | A00319-12-00 | FUEL FILTER | W/ HOSES + CLAMPS | 1 | Assy. | $7.00 |
| 4 | A00338-12-00 | FUEL PETCOCK | 1 | Pc. | $23.00 | |
| 5 | A00011-21-01 | WASHER | M6X18X1.5 | 4 | Pcs. | $1.50 |
| 6 | A00031-19-01 | FLANGE BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 7 | A00002-24-03 | WIRE HOSE CLAMP | 7.5 | 5 | Pcs. | $1.50 |
| 8 | A00001-24-03 | WIRE HOSE CLAMP | 10 | 1 | Pc. | $1.50 |
| 9 | A00003-20-01 | SCREW | M6X16 | 1 | Pc. | $1.50 |
| 10 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 11 | A00003-20-01 | SCREW | M6X16 | 1 | Pc. | $1.50 |
| 12 | A00359-12-00 | FUEL HOSE | A=40MM B=100MM C=300MM | 1 | Set | $6.00 |
| 13 | A00317-12-00 | FUEL TANK CAP | 1 | Pc. | $14.00 | |
| BODY / PLASTICS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00729-02-02 | FRONT FENDER | BLACK | 1 | Pc. | $18.00 |
| 1 | A00729-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $18.00 |
| 2 | A00731-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $14.00 |
| 3 | A00732-02-02 | LEFT FUEL TANK SHROUD | BLACK | 1 | Pc. | $18.00 |
| 3 | A00732-02-01 | LEFT FUEL TANK SHROUD | WHITE | 1 | Pc. | $18.00 |
| 4 | A00733-02-02 | RIGHT FUEL TANK SHROUD | BLACK | 1 | Pc. | $18.00 |
| 4 | A00733-02-01 | RIGHT FUEL TANK SHROUD | WHITE | 1 | Pc. | $18.00 |
| 5 | A00734-02-00 | SEAT | 1 | Pc. | $63.00 | |
| 6 | A00735-02-02 | LEFT REAR NUMBER PLATE | BLACK | 1 | Pc. | $18.00 |
| 6 | A00735-02-01 | LEFT REAR NUMBER PLATE | WHITE | 1 | Pc. | $18.00 |
| 7 | A00736-02-02 | RIGHT REAR NUMBER PLATE | BLACK | 1 | Pc. | $18.00 |
| 7 | A00736-02-01 | RIGHT REAR NUMBER PLATE | WHITE | 1 | Pc. | $18.00 |
| 8 | A00737-02-02 | REAR FENDER | BLACK | 1 | Pc. | $18.00 |
| 8 | A00737-02-01 | REAR FENDER | WHITE | 1 | Pc. | $18.00 |
| 9 | A00738-02-00 | FRONT BRAKE HOSE GUIDE | 1 | Pc. | $1.50 | |
| 10 | A00348-22-04 | LOCKNUT | M4 | 2 | Pcs. | $1.50 |
| 11 | A00009-20-01 | SCREW | M4X12 | 2 | Pcs. | $1.50 |
| 12 | A00016-21-01 | RUBBER WASHER | 6X17X3.5 | 6 | Pcs. | $1.50 |
| 13 | A00093-22-03 | FLANGE NUT | M6 | 12 | Pcs. | $1.50 |
| 14 | A00011-21-01 | WASHER | 6X18X1.5 | 6 | Pcs. | $1.50 |
| 15 | A00015-19-01 | FLANGE BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 16 | A00003-20-01 | SCREW | M6X16 | 10 | Pcs. | $1.50 |
| 17 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 18 | A00739-02-00 | FRONT FENDER / NUMBER PLATE BRACKET | 1 | Pc. | $10.00 | |
| 19 | A00740-02-00 | NUMBER PLATE BRACKET | 1 | Pc. | $7.00 | |
| 20 | A00001-20-01 | SCREW | M5X10 | 1 | Pc. | $1.50 |
| 21 | A00741-02-00 | LOWER FENDER BRACKET | 1 | Pc. | $7.00 | |
| 22 | A00935-02-02 | COMPLETE PLASTIC KIT | BLACK | 1 | Kit | $63.00 |
| 23 | A00935-02-01 | COMPLETE PLASTIC KIT | WHITE | 1 | Kit | $63.00 |
| 24 | A01109-02-00 | SPACER | 6X13.4X9 | 1 | Pc. | $4.00 |

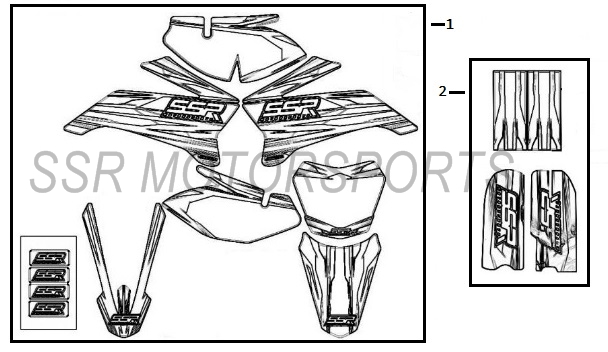

| GRAPHICS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00742-02-00 | GRAPHIC KIT | TTR 3M | 1 | Kit | $51.00 |
| 2 | A00743-02-00 | FORK GUARD GRAPHICS | 3M | 1 | Set | $10.00 |
-
-
-
-
-
-
-
Out of stock
-
-
Out of stock
