Product Description
| 2015-2022 SR170TR | ||||||

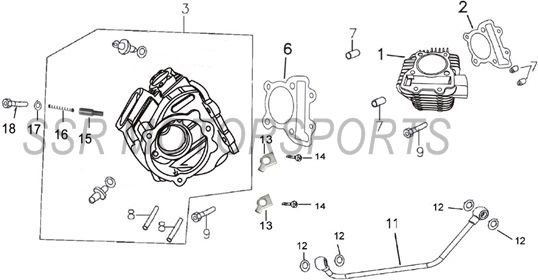

| CYLINDER HEAD & CYLINDER ASSY. | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01475-09-00 | CYLINDER | 1 | Pc. | $115.00 | |
| 2 | A00185-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $11.00 | |
| 3 | A02551-09-00 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $260.00 |
| 6 | A00186-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $11.00 | |
| 7 | A00002-23-00 | DOWEL PIN | 10X14 | 4 | Pcs. | $1.50 |
| 8 | A00384-19-04 | STUD | 2 | Pcs. | $1.50 | |
| 9 | A01769-09-00 | OIL PIPE BOLT | M8x25 | 2 | Pcs. | $1.50 |
| 11 | A02724-09-00 | OIL PIPE | 1 | Pc. | $14.00 | |
| 12 | A00238-21-01 | COPPER WASHER | 4 | Pcs. | $1.50 | |
| 13 | A02725-09-00 | RETAINER PLATE | 2 | Pcs. | $2.50 | |
| 14 | A00385-19-03 | BOLT | 2 | Pcs. | $1.50 | |
| 15 | A02726-09-00 | COMPRESSION RELEASE PIN | 1 | Pc. | $2.50 | |
| 16 | A02727-09-00 | COMPRESSION RELEASE SPRING | 1 | Pc. | $2.50 | |
| 17 | A00239-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 18 | A00386-19-03 | BOLT | 1 | Pc. | $1.50 | |

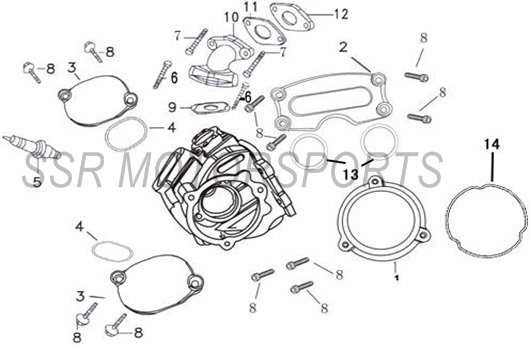

| CYLINDER HEAD COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02728-09-00 | LEFT CYLINDER HEAD COVER | 1 | Pc. | $21.00 | |
| 2 | A02729-09-00 | RIGHT CYLINDER HEAD COVER | 1 | Pc. | $21.00 | |
| 3 | A02730-09-00 | VALVE COVER | 2 | Pcs. | $18.00 | |
| 4 | A00146-27-00 | O-RING | 2 | Pcs. | $4.00 | |
| 5 | CR7HSA | SPARK PLUG | CR7HSA | 1 | Pc. | $9.00 |
| 6 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 8 | A00068-19-01 | FLANGE BOLT | M5X14 | 11 | Pcs. | $1.50 |
| 9 | A00292-14-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $4.00 | |
| 10 | A02731-09-00 | INTAKE MANIFOLD | ZL56-5 | 1 | Pc. | $36.00 |
| 11 | A00296-13-00 | CARBURETOR GASKET | 1 | Pc. | $4.00 | |
| 12 | A00275-13-00 | INTAKE INSULATOR | M10 | 1 | Pc. | $6.00 |
| 13 | A00147-27-00 | O-RING | 2 | Pcs. | $4.00 | |
| 14 | A00148-27-00 | O-RING | 1 | Pc. | $4.00 | |

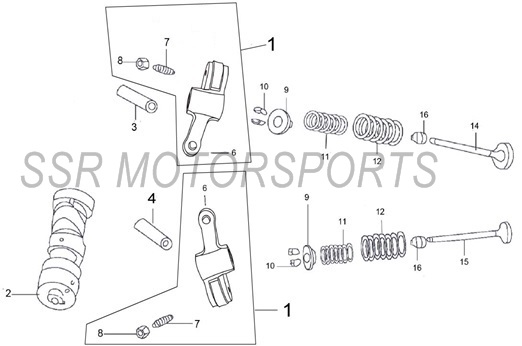

| CAMSHAFT ASSY. | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02732-09-00 | ROLLER ROCKER ARM ASSY | 2 | Assy. | $32.00 | |
| 2 | A02558-09-00 | CAMSHAFT | 1 | Pc. | $85.00 | |
| 3 | A02733-09-00 | ROCKERARM SHAFT | 1 | Pc. | $6.00 | |
| 4 | A02734-09-00 | ROCKERARM SHAFT | 1 | Pc. | $6.00 | |
| 6 | A02735-09-00 | ROLLER ROCKER ARM | 2 | Pcs. | $27.00 | |
| 7 | A01778-09-00 | VALVE ADJUSTING SCREW | 2 | Pcs. | $2.00 | |
| 8 | A01779-09-00 | LOCKNUT | 2 | Pcs. | $2.00 | |
| 9 | A02736-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 10 | A02737-09-00 | COLLET | 4 | Pcs. | $2.00 | |
| 11 | A02738-09-00 | INNER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 12 | A02739-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 14 | A02740-09-00 | INTAKE VALVE | 1 | Pc. | $18.00 | |
| 15 | A02741-09-00 | EXHAUST VALVE | 1 | Pc. | $18.00 | |
| 16 | A02742-09-00 | VALVE GUIDE SEAL | 2 | Pcs. | $4.00 | |

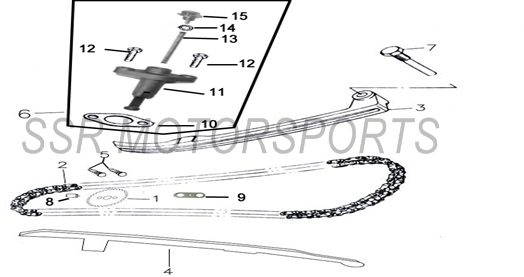

| TIMING CHAIN | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02743-09-00 | CAM SPROCKET | 1 | Pc. | $21.00 | |
| 2 | A02744-09-00 | TIMING CHAIN | 1 | Pc. | $63.00 | |
| 3 | A01789-09-00 | UPPER TENSIONER GUIDE | 1 | Pc. | $14.00 | |
| 4 | A01790-09-00 | LOWER TENSIONER GUIDE | 1 | Pc. | $14.00 | |
| 5 | A00011-19-03 | BOLT | M6X14 | 2 | Pcs. | $1.50 |
| 6 | A01791-09-00 | CAM CHAIN TENSIONER ASSY | 1 | Assy. | $14.00 | |
| 7 | A02954-09-00 | UPPER CHAIN SLIDER PIVOT BOLT | 1 | Pc. | $2.00 | |
| 8 | A00003-23-00 | DOWEL PIN | M8X12 | 1 | Pc. | $1.50 |
| 9 | A02749-09-00 | CAMSAFT RETAINER | 1 | Pc. | $1.50 | |
| 10 | A00276-13-00 | CAM CHAIN TENTIONER GASKET | 1 | Pc. | $2.50 | |
| 11 | A02750-09-00 | TENSIONER BODY | 1 | Pc. | $11.00 | |
| 12 | A00126-19-01 | BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 13 | A02751-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 14 | A00149-27-00 | O-RING | 1 | Pc. | $1.50 | |
| 15 | A00095-20-01 | SCREW | 1 | Pc. | $1.50 | |

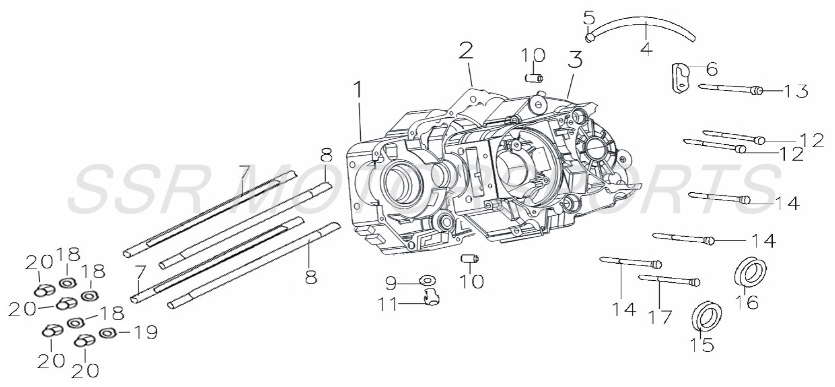

| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02752-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $126.00 | |
| 2 | A00277-13-00 | CENTER CASE GASKET | 1 | Pc. | $16.00 | |
| 3 | A02753-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $150.00 | |
| 4 | A02754-09-00 | BREATHER HOSE | 1 | Pc. | $10.00 | |
| 5 | A00067-24-03 | WIRE HOSE CLAMP | 15 | 1 | Pc. | $2.50 |
| 6 | A01797-09-00 | VENT HOSE CLAMP | 1 | Pc. | $1.50 | |
| 7 | A00387-19-04 | CYLINDER STUD A | M8x208 | 2 | Pcs. | $11.00 |
| 8 | A00388-19-04 | CYLINDER STUD B | M8x214 | 2 | Pcs. | $11.00 |
| 9 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 10 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 11 | A01102-09-00 | OIL DRAIN BOLT | M12 | 1 | Pc. | $4.00 |
| 12 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 13 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 14 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 3 | Pcs. | $2.00 |
| 15 | A00002-26-00 | OIL SEAL | 11.6X24X10 | 1 | Pc. | $4.00 |
| 16 | A00001-26-00 | OIL SEAL | 17X29X5 | 1 | Pc. | $4.00 |
| 17 | A00432-19-08 | CASE FLANGE BOLT | M6X85 | 1 | Pc. | $2.00 |
| 18 | A00004-21-01 | WASHER | M8 | 3 | Pcs. | $1.50 |
| 19 | A00264-21-01 | COPPER WASHER | M8 | 1 | Pcs. | $1.50 |
| 20 | A00004-22-36 | FLANGE CAP NUT | M8 | 4 | Pcs. | $1.50 |

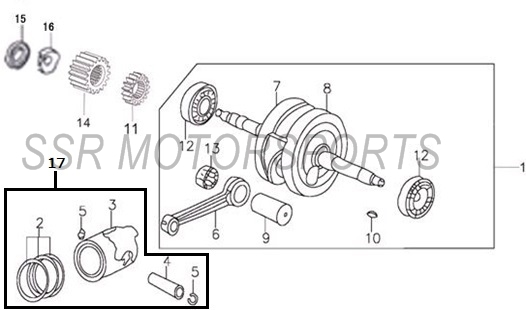

| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02552-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $168.00 | |
| 2 | A01476-09-00 | PISTON RING SET | 1 | Set | $59.00 | |
| 3 | A01477-09-00 | PISTON | 1 | Pc. | $59.00 | |
| 4 | A02755-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 5 | A02756-09-00 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 6 | A02757-09-00 | CONNECTING ROD | 1 | Pc. | $11.00 | |
| 7 | A02553-09-00 | RIGHT CRANKSHAFT HALF | 1 | Pc. | $86.00 | |
| 8 | A02554-09-00 | LEFT CRANKSHAFT HALF | 1 | Pc. | $86.00 | |
| 9 | A02555-09-00 | CRANK PIN | 1 | Pc. | $6.00 | |
| 10 | A01809-09-00 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
| 11 | A02758-09-00 | OIL PUMP DRIVEN GEAR | 17T | 1 | Pc. | $10.00 |
| 12 | A00062-28-00 | BEARING | 63/22 | 2 | Pcs. | $11.00 |
| 13 | A02556-09-00 | BEARING | 1 | Pc. | $8.00 | |
| 14 | A02759-09-00 | PRIMARY DRIVEN GEAR | 18T | 1 | Pc. | $21.00 |
| 15 | A00323-24-01 | NUT | 1 | Pc. | $2.50 | |
| 16 | A00240-21-01 | TAB WASHER | 1 | Pc. | $1.50 | |
| 17 | A02557-09-00 | PISTON KIT | 1 | Kit | $112.00 | |

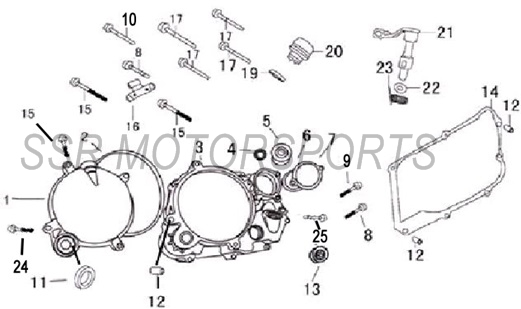

| CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01812-09-00 | OUTER CLUTCH COVER | 1 | Pc. | $69.00 | |
| 2 | A00082-27-00 | CLUTCH COVER O-RING | 1 | Pc. | $8.00 | |
| 3 | A02969-09-00 | INNER CLUTCH COVER | 1 | Pc. | $96.00 | |
| 4 | A01815-09-00 | OIL FILTER SPRING | 1 | Pc. | $2.00 | |
| 5 | A01816-09-00 | OIL FILTER | 1 | Pc. | $24.00 | |
| 6 | A00083-27-00 | OIL FILTER COVER O-RING | 1 | Pc. | $2.00 | |
| 7 | A01818-09-00 | OIL FILTER COVER | 1 | Pc. | $21.00 | |
| 8 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 9 | A00435-19-08 | CASE FLANGE BOLT | M6X130 | 1 | Pc. | $1.50 |
| 10 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 11 | A00226-26-00 | OIL SEAL (KICKSTARTER) | 16X24X5 | 1 | Pc. | $3.50 |
| 12 | A00102-23-00 | DOWEL PIN | 3 | Pcs. | $1.50 | |
| 13 | A01820-09-00 | OIL LEVEL WINDOW | 1 | Pc. | $11.00 | |
| 14 | A00176-13-00 | CLUTCH COVER GASKET | 1 | Pc. | $18.00 | |
| 15 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 3 | Pcs. | $1.50 |
| 16 | A01821-09-00 | CLUTCH CABLE HOLDER | 1 | Pc. | $2.50 | |
| 17 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 1 | Pc. | $1.50 |
| 19 | A00099-27-00 | O-RING | 1 | Pc. | $1.50 | |
| 20 | A01822-09-00 | OIL FILLER CAP | 1 | Pc. | $8.00 | |
| 21 | A01823-09-00 | CLUTCH ACTUATOR | 1 | Pc. | $27.00 | |
| 22 | A00096-27-00 | OIL SEAL | 1 | Pc. | $1.50 | |
| 23 | A01824-09-00 | CLUTCH ACTUATOR RETURN SPRING | 1 | Pc. | $1.50 | |
| 24 | A00438-19-08 | CASE FLANGE BOLT | M6X90 | 1 | Pc. | $1.50 |
| 25 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 1 | Pc. | $2.00 |

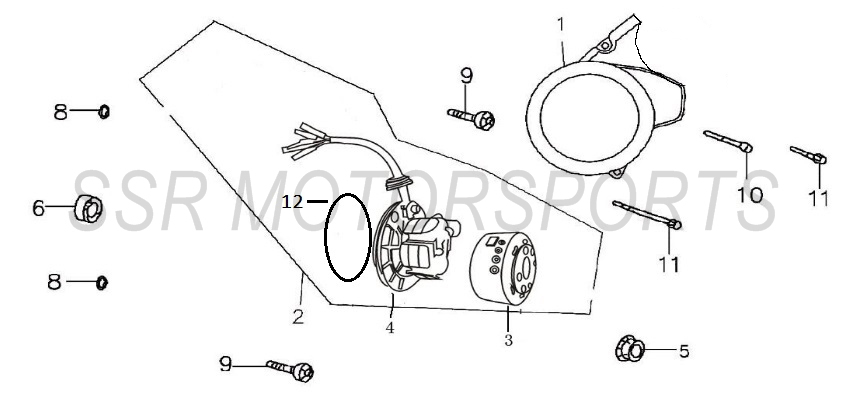

| STATOR AND STATOR COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01825-09-00 | STATOR COVER | 1 | Pc. | $69.00 | |
| 2 | A02702-09-00 | STATOR W/ FLYWHEEL ASSY | 1 | Assy. | $142.00 | |
| 3 | A02703-09-00 | FLYWHEEL | 1 | Pc. | $79.00 | |
| 4 | A02704-09-00 | STATOR | 1 | Pc. | $98.00 | |
| 5 | A00004-22-08 | SPECIAL NUT | M10 | 1 | Pc. | $1.50 |
| 6 | A00003-26-00 | OIL SEAL | 1 | Pc. | $4.00 | |
| 8 | A00012-27-00 | O-RING | 6.5X1.9 | 2 | Pcs. | $1.50 |
| 9 | A00025-19-01 | FLANGE BOLT | M6X14 | 2 | Pcs. | $1.50 |
| 10 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 1 | Pc. | $1.50 |
| 11 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 12 | A00010-27-00 | O-RING | 1 | Pc. | $8.00 | |
| 13 | A00258-13-00 | STATOR COVER GASKET | 1 | Pc. | $10.00 | |

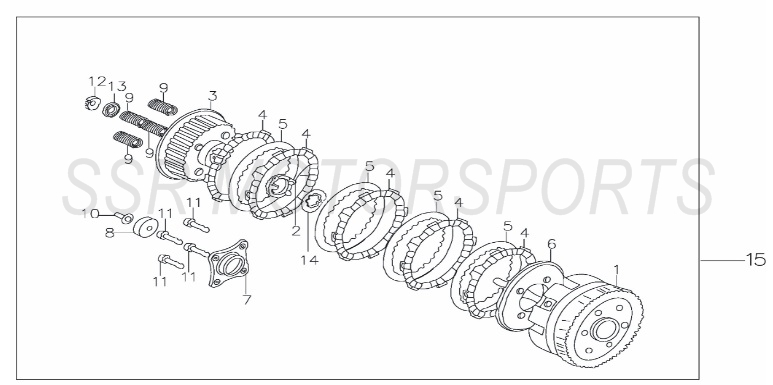

| CLUTCH ASSY. | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01829-09-00 | CLUTCH BASKET | 1 | Pc. | $59.00 | |
| 2 | A01830-09-00 | HOLDING RING | 1 | Pc. | $8.00 | |
| 3 | A01831-09-00 | CLUTCH HUB | 1 | Pc. | $36.00 | |
| 4 | A01832-09-00 | CLUTCH FRICTION PLATE | 5 | Pcs. | $14.00 | |
| 5 | A01833-09-00 | CLUTCH STEEL PLATE | 4 | Pcs. | $10.00 | |
| 6 | A01834-09-00 | CLUTCH PRESSURE PLATE | 1 | Pc. | $27.00 | |
| 7 | A01835-09-00 | CLUTCH SPRING RETAINER | 1 | Pc. | $18.00 | |
| 8 | A00120-28-00 | BEARING | 6000X1/P6 | 1 | Pc. | $8.00 |
| 9 | A01836-09-00 | CLUTCH SPRING | 4 | Pcs. | $2.00 | |
| 10 | A01837-09-00 | CLUTCH PUSH ROD | 1 | Pc. | $6.00 | |
| 11 | A00139-19-01 | FLANGE BOLT | 4 | Pcs. | $1.50 | |
| 12 | A00034-22-01 | NUT | 1 | Pc. | $2.50 | |
| 13 | A00118-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 14 | A01838-09-00 | SPLINED SHAFT WASHER | 1 | Pc. | $2.50 | |
| 15 | A01839-09-00 | CLUTCH ASSY | 1 | Assy. | $115.00 | |

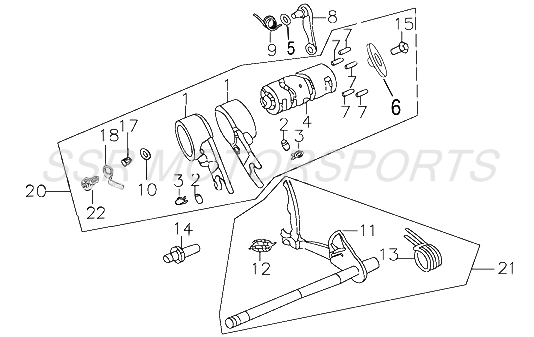

| SHIFTING MECHANISM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01840-09-00 | SHIFT FORK | 2 | Pcs. | $11.00 | |
| 2 | A01841-09-00 | GUIDE PIN | 2 | Pc. | $1.50 | |
| 3 | A01842-09-00 | SPRING CLIP | 2 | Pc. | $1.50 | |
| 4 | A01843-09-00 | SHIFT DRUM | 1 | Pc. | $42.00 | |
| 5 | A01844-09-00 | LOCK WASHER | 1 | Pc. | $7.00 | |
| 6 | A01845-09-00 | SHIFTER PIN BAFFLE | 1 | Pc. | $7.00 | |
| 7 | A01846-09-00 | SHIFTER PIN | 5 | Pcs. | $1.50 | |
| 8 | A01847-09-00 | SHIFTER ACTUATOR | 1 | Pc. | $8.00 | |
| 9 | A01848-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 10 | A00267-21-03 | GROUNDING WASHER | 1 | Pc. | $6.00 | |
| 11 | A01849-09-00 | SHIFT SHAFT | 1 | Pc. | $60.00 | |
| 12 | A01850-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 13 | A01851-09-00 | RETURN SPRING | 1 | Pc. | $2.00 | |
| 14 | A01852-09-00 | RETAINER PIN | 1 | Pc. | $2.50 | |
| 15 | A00031-19-01 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 17 | A01853-09-00 | SWITCH PLUG | 1 | Pc. | $1.50 | |
| 18 | RETAINER PLATE | 1 | Pc. | #N/A | ||
| 20 | A01855-09-00 | SHIFT DRUM ASSY | 1 | Assy. | $85.00 | |
| 21 | A01856-09-00 | SHIFTING SUBASSEMBLY | 1 | Assy. | $63.00 | |
| 22 | CASE FLANGE BOLT | M6x12 | 1 | Pc. | #N/A | |

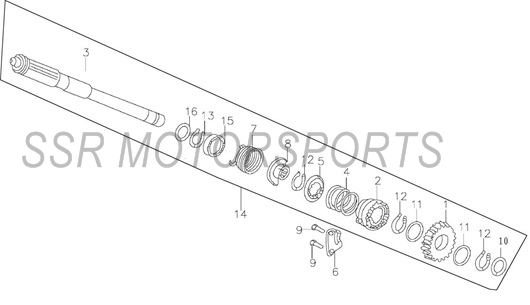

| KICKSTART ASSY. | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01857-09-00 | KICKSTARTER GEAR | 1 | Pc. | $26.00 | |
| 2 | A01858-09-00 | KICKSTARTER RATCHET WHEEL | 1 | Pc. | $18.00 | |
| 3 | A01859-09-00 | KICKSTARTER SHAFT | 1 | Pc. | $42.00 | |
| 4 | A01860-09-00 | SPRING | 1 | Pc. | $2.00 | |
| 5 | A01861-09-00 | RATCHET WASHER | 1 | Pc. | $2.50 | |
| 6 | A01862-09-00 | RATCHET WHEEL GUIDE RUNNER | 1 | Pc. | $6.00 | |
| 7 | A01863-09-00 | STARTING SHAFT SPRING | 1 | Pc. | $2.50 | |
| 8 | A01864-09-00 | STARTING SHAFT SPRING PLATE | 1 | Pc. | $8.00 | |
| 9 | A00047-19-03 | HEX BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 10 | A01123-09-00 | WASHER I | 1 | Pc. | $1.50 | |
| 11 | A01129-09-00 | WASHER II | 2 | Pcs. | $1.50 | |
| 12 | A01130-09-00 | CIRCLIP | 3 | Pcs. | $1.50 | |
| 13 | A01131-09-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 14 | A01865-09-00 | KICKSTARTER SHAFT ASSY | 1 | Assy. | $98.00 | |
| 15 | A01866-09-00 | SPRING COVER | 1 | Pc. | $4.00 | |
| 16 | A00120-21-01 | WASHER | 1 | Pc. | $1.50 | |

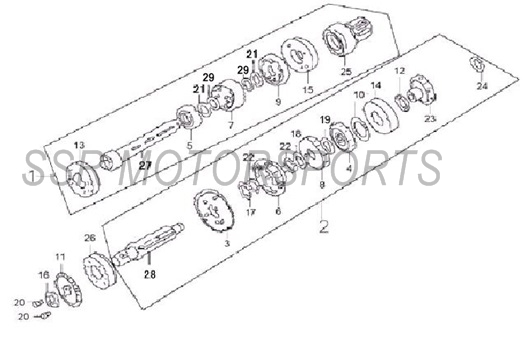

| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00407-17-00 | MAIN SHAFT ASSY | 1 | Assy. | $115.00 | |
| 2 | A00408-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $115.00 | |
| 3 | A00409-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 4 | A00410-17-00 | GEAR | 1 | Pc. | $10.00 | |
| 5 | A00411-17-00 | GEAR | 16T | 1 | Pc. | $18.00 |
| 6 | A00412-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 7 | A00413-17-00 | GEAR | 17T | 1 | Pc. | $18.00 |
| 8 | A00414-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 9 | A00415-17-00 | GEAR | 20T | 1 | Pc. | $18.00 |
| 10 | A00241-21-01 | WASHER | 1 | Pc. | $6.00 | |
| 11 | A00309-07-00 | COUNTERSHAFT SPROCKET | 420x15T | 1 | Pc. | $21.00 |
| 11 | A00400-07-00 | COUNTERSHAFT SPROCKET | 16T OPT. | 1 | Pc. | $21.00 |
| 12 | A00242-21-01 | WASHER | 1 | Pc. | $2.00 | |
| 13 | A00003-28-00 | BEARING | 6001 | 1 | Pc. | $8.00 |
| 14 | A00094-28-00 | BEARING | 152712 | 1 | Pc. | $8.00 |
| 15 | A00008-28-00 | BEARING | 6203 | 1 | Pc. | $27.00 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 17 | A00244-21-01 | SPLINED SHAFT WASHER | 1 | Pc. | $2.00 | |
| 18 | A00245-21-01 | SPLINED SHAFT WASHER | 1 | Pc. | $2.00 | |
| 19 | A00246-21-01 | WASHER | 1 | Pc. | $2.00 | |
| 20 | A00140-19-01 | BOLT | 2 | Pcs. | $1.50 | |
| 21 | A00335-17-00 | SPLINED SHAFT WASHER | 2 | Pcs. | $2.00 | |
| 22 | A00336-17-00 | SHIELD RING | 2 | Pcs. | $2.00 | |
| 23 | A00337-17-00 | STARTER ROLLING GEAR | 22T | 1 | Pc. | $21.00 |
| 24 | A00364-17-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 25 | A00338-17-00 | CLUTCH GEAR SLEEVE | 1 | Pc. | $21.00 | |
| 26 | A00095-28-00 | BEARING | 6303X3 | 1 | Pc. | $10.00 |
| 27 | A00416-17-00 | MAINSHAFT | 1 | Pc. | $85.00 | |
| 28 | A00417-17-00 | COUNTERSHAFT | 1 | Pc. | $85.00 | |
| 29 | A00247-21-01 | CIRCLIP | 2 | Pcs. | $1.50 | |

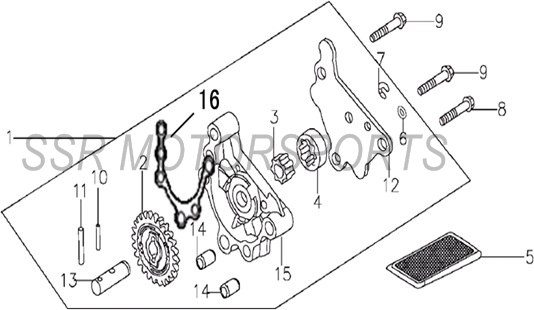

| OIL PUMP ASSY. | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01867-09-00 | OIL PUMP ASSY | 1 | Assy. | $42.00 | |
| 2 | A01868-09-00 | OIL PUMP DRIVEN GEAR | 1 | Pc. | $10.00 | |
| 3 | A01869-09-00 | OIL PUMP INNER ROTOR | 1 | Pc. | $8.00 | |
| 4 | A01870-09-00 | OIL PUMP OUTER ROTOR | 1 | Pc. | $8.00 | |
| 5 | A01098-09-00 | OIL SCREEN | 1 | Pc. | $10.00 | |
| 6 | A00141-19-05 | WASHER BOLT | 1 | Pc. | $1.50 | |
| 7 | A00038-24-07 | CIRCLIP | 1 | Pc. | $1.50 | |
| 8 | A00142-19-01 | FLANGE BOLT | 1 | Pc. | $1.50 | |
| 9 | A00143-19-01 | FLANGE BOLT | 2 | Pcs. | $2.50 | |
| 10 | A01754-09-00 | PIN | 1 | Pc. | $1.50 | |
| 11 | A01755-09-00 | PIN | 1 | Pc. | $1.50 | |
| 12 | A01872-09-00 | OIL PUMP COVER | 1 | Pc. | $8.00 | |
| 13 | A01873-09-00 | OIL PUMP ROD | 1 | Pc. | $8.00 | |
| 14 | A00101-23-00 | DOWEL PIN | 2 | Pcs. | $1.50 | |
| 15 | A01874-09-00 | OIL PUMP BODY | 1 | Pc. | $18.00 | |
| 16 | A00278-13-00 | OIL PUMP GASKET | 1 | Pc. | $6.00 | |
| ENGINE PART SETS | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00255-13-00 | COMPLETE ENGINE GASKET SET | 1 | Set | $63.00 | |
| 2 | A00246-26-00 | COMPLETE ENGINE SEALS SET | SEE NOTES | 1 | Set | $14.00 |
| 3 | A00271-13-00 | COMPLETE TOP END GASKET SET | 1 | Set | $39.00 | |
