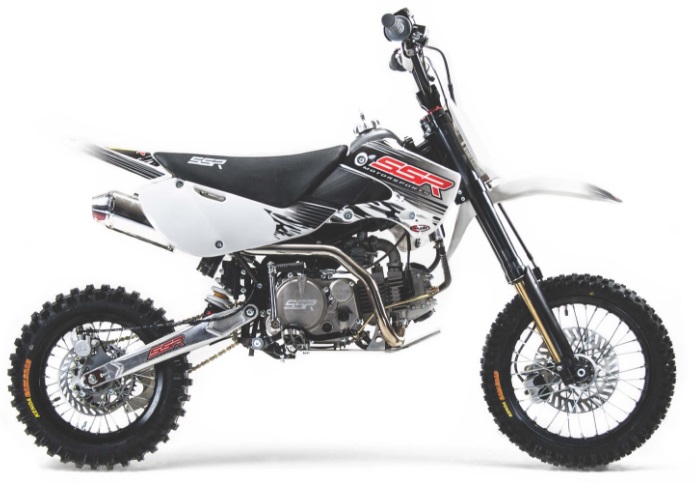

(TX160/TX170) Full Parts Schematics
| 2015-2022 SR160/170TX | ||||||
 |
||||||

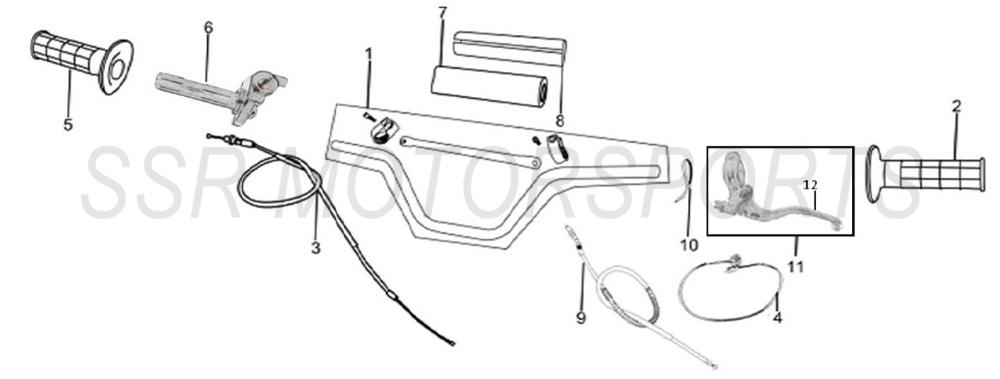

| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00376-05-00 | HANDLEBAR | 1 | Pc. | $72.00 | |
| 2 | A00377-05-00 | LEFT GRIP | 1 | Pc. | $7.00 | |
| 3 | A00356-05-00 | THROTTLE CABLE | 880 130 | 1 | Pc. | $18.00 |
| 4 | A00473-08-00 | KILL SWITCH | 650MM | 1 | Pc. | $11.00 |
| 5 | A00379-05-00 | RIGHT GRIP | 1 | Pc. | $7.00 | |
| 6 | A00358-05-00 | THROTTLE ASSY | 1 | Assy. | $27.00 | |
| 7 | A00381-05-00 | HANDLEBAR PAD | 12X53X220 | 1 | Pc. | $8.00 |
| 8 | A00382-05-00 | HANDLEBAR PAD COVER | 215X185 | 1 | Pc. | $8.00 |
| 9 | A00361-05-00 | CLUTCH CABLE | 950 68 | 1 | Pc. | $18.00 |
| 10 | A00001-24-01 | ZIP TIE | 5X200MM /380 | 1 | Pc. | $1.50 |
| 11 | A00384-05-00 | FOLDING CLUTCH LEVER W/ PERCH | 1 | Pc. | $63.00 | |
| 12 | A00385-05-00 | FOLDING CLUTCH LEVER | 1 | Pc. | $54.00 | |

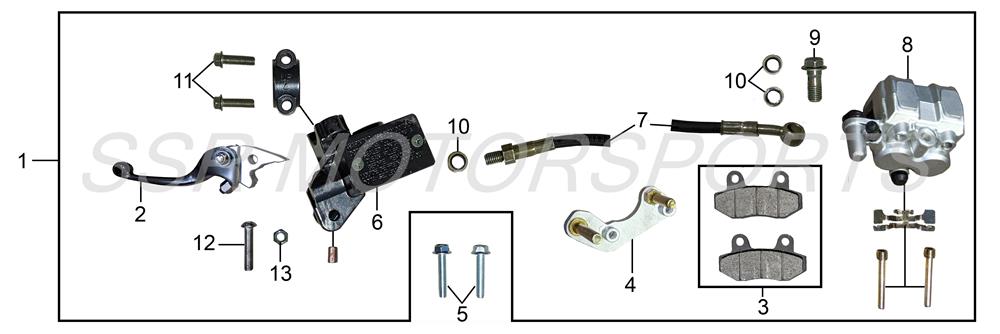

| FRONT BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00506-04-00 | FRONT BRAKE ASSY | L=1150 | 1 | Assy. | $136.00 |
| 2 | A00507-04-00 | FOLDING FRONT BRAKE LEVER | 1 | Pc. | $48.00 | |
| 3 | A00499-04-00 | FRONT BRAKE PAD SET | 1 | Set | $18.00 | |
| 4 | A00508-04-00 | FRONT BRAKE CALIPER BRACKET | 51H11 | 1 | Pc. | $18.00 |
| 5 | A00064-19-01 | FLANGE BOLT | M6X32 | 2 | Pcs. | $1.50 |
| 6 | A00571-04-00 | FRONT BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $63.00 | |
| 7 | A00558-04-00 | FRONT BRAKE HOSE | 1 | Pc. | $18.00 | |
| 8 | A00580-04-00 | FRONT BRAKE CALIPER ASSY | 1 | Assy. | $76.00 | |
| 9 | A00675-04-00 | BANJO BOLT | 1 | Pc. | $2.00 | |
| 10 | A00676-04-00 | SEALING WASHER | 3 | Pcs. | $1.50 | |
| 11 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 12 | A00259-19-02 | BUTTON HEAD ALLEN BOLT | M6X35 | 1 | Pc. | $1.50 |
| 13 | A00005-22-04 | LOCKNUT | M6 | 1 | Pc. | $1.50 |

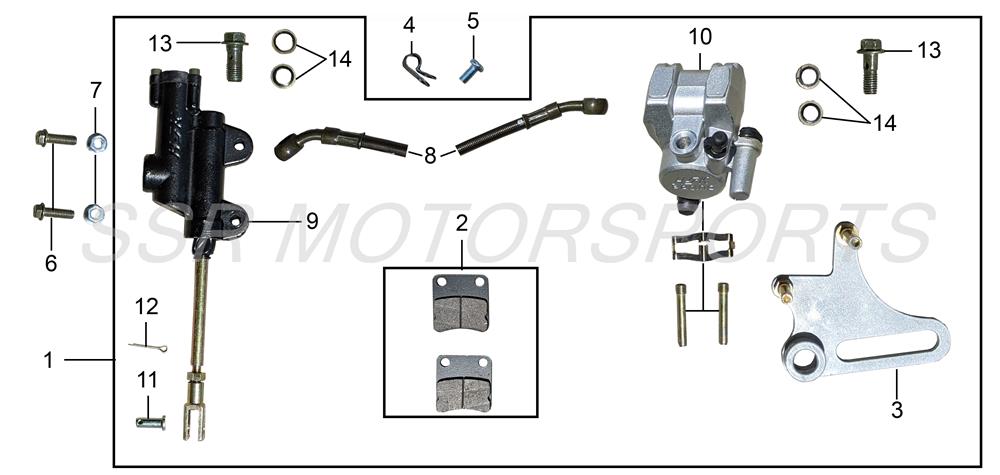

| REAR BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00510-04-00 | REAR BRAKE ASSY | L=560 | 1 | Assy. | $103.00 |
| 2 | A00478-04-00 | REAR BRAKE PAD SET | 1 | Set | $18.00 | |
| 3 | A00512-04-00 | REAR BRAKE CALIPER BRACKET | 190 | 1 | Pc. | $23.00 |
| 4 | A00523-04-00 | REAR BRAKE HOSE RETAINER | 2 | Pcs. | $2.00 | |
| 5 | A00488-19-20 | PHILLIPS BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 6 | A00418-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00554-04-00 | REAR BRAKE HOSE | 1 | Pc. | $21.00 | |
| 9 | A00585-04-00 | REAR BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $76.00 | |
| 10 | A00579-04-00 | REAR BRAKE CALIPER | 1 | Assy. | $85.00 | |
| 11 | A00417-04-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
| 12 | A00007-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 13 | A00675-04-00 | BANJO BOLT | 2 | Pcs. | $2.00 | |
| 14 | A00676-04-00 | SEALING WASHER | 4 | Pcs. | $1.50 | |

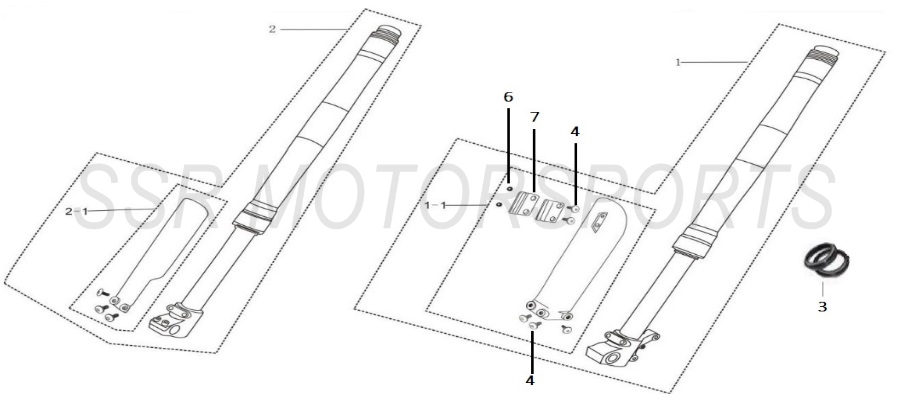

| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00489-16-00 | LEFT FRONT FORK ASSY | 735MM | 1 | Assy. | $311.00 |
| 1-1 | A00744-02-02 | LEFT FRONT FORK PROTECTOR | BLACK | 1 | Pc. | $18.00 |
| 2 | A00490-16-00 | RIGHT FRONT FORK ASSY | 735MM | 1 | Assy. | $311.00 |
| 2-1 | A00745-02-02 | RIGHT FRONT FORK PROTECTOR | BLACK | 1 | Pc. | $18.00 |
| 3 | A00491-16-00 | FORK/DUST SEAL SET | 33X46X11 + 33X46X14 | 2 | Set | $14.00 |
| 4 | A00106-19-01 | BUTTON HEAD ALLEN BOLT | M6X16 | 8 | Pcs. | $1.50 |
| 6 | A00005-22-04 | LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 7 | A00800-02-00 | BRAKE LINE HOLDER SET | 1 | Set | $2.50 | |
| 8 | A00008-19-02 | ALLEN BOLT | M6X20 | 2 | Pcs. | $1.50 |

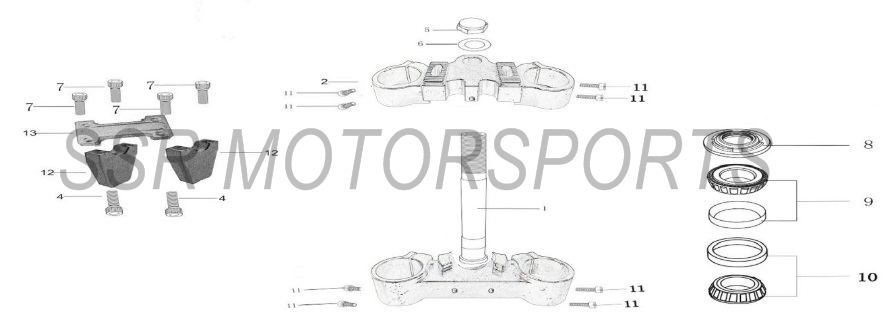

| UPPER AND LOWER TRIPLE CLAMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00200-15-00 | LOWER TRIPLE CLAMP W/ STEERING STEM | 23.5XL230 | 1 | Pc. | $103.00 |
| 2 | A00201-15-00 | UPPER TRIPLE CLAMP | 45/ 160 | 1 | Pc. | $98.00 |
| 4 | A00048-19-02 | ALLEN BOLT | GB70-85 M10X40X1.5 | 4 | Pcs. | $2.00 |
| 5 | A00166-15-00 | STEERING STEM NUT | 1 | Pc. | $6.00 | |
| 6 | A00061-21-01 | STEERING STEM WASHER | 23X36X1.5 | 1 | Pc. | $2.50 |
| 7 | A00125-19-02 | ALLEN BOLT | GB70-85 M8X25 | 4 | Pcs. | $1.50 |
| 8 | A00205-15-00 | SPLINED NUT W/ COLLAR | 1 | Pc. | $4.00 | |
| 9 | A00182-15-00 | UPPER STEERING STEM BEARING | 320/22 | 1 | Pc. | $14.00 |
| 10 | A00183-15-00 | LOWER STEERING STEM BEARING | 320/23.5 | 1 | Pc. | $14.00 |
| 11 | A00008-19-02 | ALLEN BOLT | GB70-85 M6X20 | 8 | Pcs. | $1.50 |
| 12 | A00208-15-00 | LOWER HANDLEBAR CLAMP | H=55 | 2 | Pcs. | $18.00 |
| 13 | A00209-15-00 | UPPER HANDLEBAR CLAMP | 94X54X21 | 1 | Pc. | $27.00 |

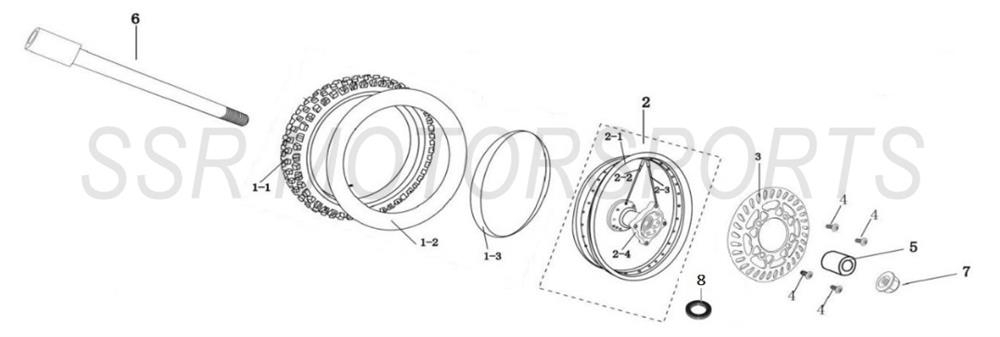

| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00354-18-00 | FRONT TIRE | 60/100-14 | 1 | Pc. | $52.00 |
| 1-2 | A00233-18-00 | INNER TUBE | 60/100-14 | 1 | Pc. | $18.00 |
| 1-3 | A00400-18-00 | RIM STRIP | 14" | 1 | Pc. | $6.00 |
| 2 | A00515-18-00 | FRONT WHEEL ASSY | 1.4-14 ALUMINUM | 1 | Assy. | $124.00 |
| 2-1 | A00517-18-00 | FRONT RIM | 1.4-14 | 1 | Pc. | $60.00 |
| 2-2 | A00338-18-00 | INNER SPOKE W/ NIPPLE | 16 | Pcs. | $2.00 | |
| 2-3 | A00339-18-00 | OUTER SPOKE W/ NIPPLE | 16 | Pcs. | $2.00 | |
| 2-4 | A00308-18-00 | FRONT WHEEL HUB | 1 | Pc. | $85.00 | |
| 3 | A00514-04-00 | FRONT BRAKE ROTOR | 220 16.5XH1.5 | 1 | Pc. | $32.00 |
| 3 | A00723-04-00 | FRONT BRAKE ROTOR | 2020+ SR170TX ONLY | 1 | Pc. | $32.00 |
| 4 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 5 | A00341-18-00 | FRONT WHEEL AXLE SPACER | 15X25XH26 | 1 | Pc. | $6.00 |
| 6 | A00342-18-00 | FRONT AXLE | 15X58X215XM14X1.5MM | 1 | Pc. | $30.00 |
| 7 | A00003-22-01 | FLANGE NUT | M14x1.5 | 1 | Pc. | $2.50 |
| 8 | A00017-28-00 | BEARING | 6202-2RS | 2 | Pcs. | $7.00 |

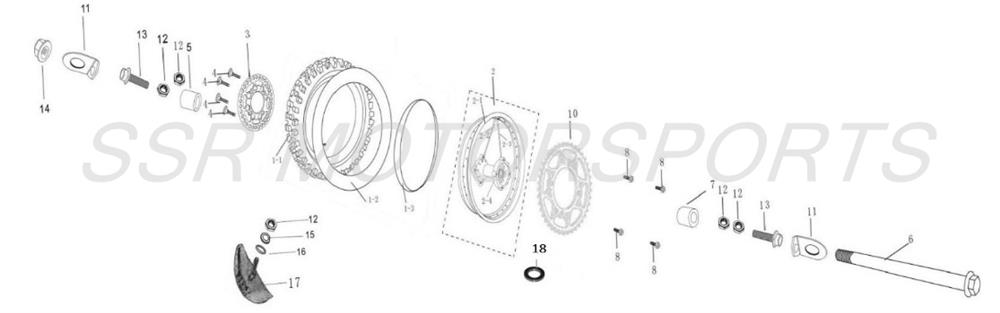

| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00452-18-00 | REAR TIRE | 80/100-12 | 1 | Pc. | $52.00 |
| 1-2 | A00291-18-00 | INNER TUBE | 80/100-12 | 1 | Pc. | $18.00 |
| 1-3 | A00292-18-00 | RIM STRIP | 12 | 1 | Pc. | $6.00 |
| 2 | A00516-18-00 | REAR WHEEL ASSY | 1.85X12/36 ALUMINUM | 1 | Assy. | $124.00 |
| 2-2 | A00295-18-00 | REAR INNER SPOKE W/ NIPPLE | 129 | 16 | Pcs. | $2.00 |
| 2-3 | A00296-18-00 | REAR OUTER SPOKE W/ NIPPLE | 133 | 16 | Pcs. | $2.00 |
| 2-4 | A00346-18-00 | REAR WHEEL HUB | 1 | Pc. | $85.00 | |
| 3 | A00515-04-00 | REAR BRAKE ROTOR | 190/16.5XH1.5 | 1 | Pc. | $32.00 |
| 3 | A00724-04-00 | REAR BRAKE ROTOR | 2020+ SR170TR/TX ONLY | 1 | Pc. | $32.00 |
| 4 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 5 | A00347-18-00 | RIGHT REAR WHEEL SPACER | 15X25XH25 | 1 | Pc. | $6.00 |
| 6 | A00348-18-00 | REAR AXLE | 15X225XM14X1.5MM | 1 | Pc. | $33.00 |
| 7 | A00349-18-00 | LEFT REAR WHEEL SPACER | 15X25XH33 | 1 | Pc. | $6.00 |
| 8 | A00007-19-01 | FLANGE BOLT | GB5789-86 M8X25 | 4 | Pcs. | $1.50 |
| 10 | A00385-07-00 | REAR SPROCKET | 420-41T ALUMINUM | 1 | Pc. | $85.00 |
| 11 | A00350-18-00 | CHAIN ADJUSTER PLATE | 15X29+31X7XH37 | 2 | Pcs. | $8.00 |
| 12 | A00002-22-01 | NUT | M8 | 5 | Pcs. | $1.50 |
| 13 | A00263-19-03 | HEX BOLT | M8X45 | 2 | Pcs. | $2.00 |
| 14 | A00003-22-01 | FLANGE NUT | M14X1.5 | 1 | Pc. | $2.50 |
| 15 | A00001-21-02 | LOCK WASHER | GB93-87 8 | 1 | Pc. | $1.50 |
| 16 | A00013-21-01 | WASHER | GB97.1-85 8X16X1.5 | 1 | Pc. | $1.50 |
| 17 | A00352-18-00 | RIM LOCK | KAYO 1.6-1.85 | 1 | Pc. | $8.00 |
| 18 | A00017-28-00 | BEARING | 6202-2RS | 2 | Pcs. | $7.00 |

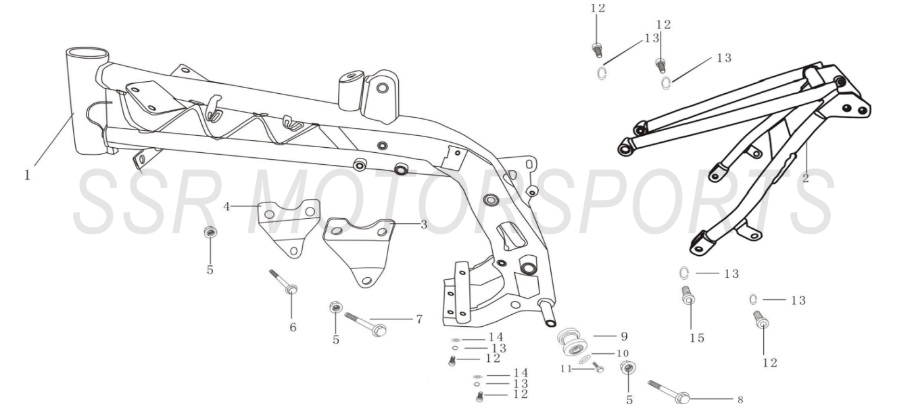

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00411-11-00 | FRAME | 160TX BLACK *OVERSIZE* | 1 | Pc. | $219.00 |
| 1 | A00593-11-00 | FRAME | 170TX BLACK *OVERSIZE* | 1 | Pc. | $219.00 |
| 2 | A00422-11-00 | SUBFRAME | 160TX | 1 | Pc. | $156.00 |
| 2 | A00412-11-00 | SUBFRAME | 170TX | 1 | Pc. | $156.00 |
| 3 | A00413-11-00 | LEFT MOTOR MOUNT BRACKET | T=3 | 1 | Pc. | $18.00 |
| 4 | A00414-11-00 | RIGHT MOTOR MOUNT BRACKET | T=3 | 1 | Pc. | $18.00 |
| 5 | A00100-22-34 | FLANGE LOCKNUT | M8 | 3 | Pcs. | $1.50 |
| 6 | A00009-19-01 | FLANGE BOLT | M8X75 S12 | 1 | Pc. | $2.00 |
| 7 | A00043-19-01 | FLANGE BOLT | M8X115 | 1 | Pc. | $2.50 |
| 8 | A00023-19-03 | FLANGE BOLT | M8X105 | 1 | Pc. | $2.50 |
| 9 | A00367-11-00 | CHAIN ROLLER | 1 | Pc. | $8.00 | |
| 10 | A00014-21-01 | WASHER | M10X20X2 | 1 | Pc. | $1.50 |
| 11 | A00031-19-01 | FLANGE BOLT | M6X12 S10 | 1 | Pc. | $1.50 |
| 12 | A00007-19-02 | ALLEN BOLT | M8X40 | 5 | Pcs. | $1.50 |
| 13 | A00001-21-02 | LOCK WASHER | M8X13X2 | 5 | Pcs. | $1.50 |
| 14 | A00013-21-01 | WASHER | M8X16X1.5 | 2 | Pcs. | $1.50 |
| 15 | A00044-19-02 | ALLEN BOLT | M8X35 | 1 | Pc. | $1.50 |

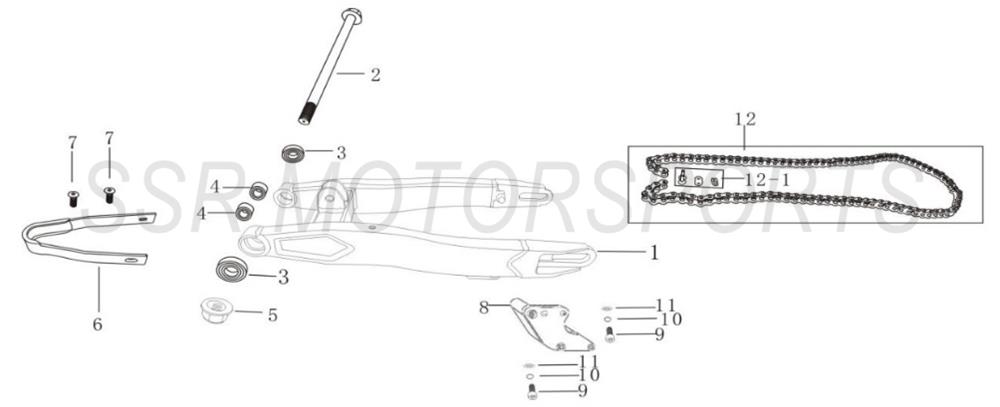

| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00416-11-00 | SWINGARM | 420MM | 1 | Assy. | $185.00 |
| 2 | A00369-11-00 | SWINGARM AXLE | 10X190XM10X1.25MM | 1 | Pc. | $10.00 |
| 3 | A00011-28-00 | BEARING | 6200Z | 2 | Pcs. | $8.00 |
| 4 | A00406-11-00 | SLEEVE | 10.15X20.8XH16 | 2 | Pcs. | $6.00 |
| 5 | A00004-22-34 | FLANGE LOCKNUT | GB6187-86 M10X1.25 | 1 | Pc. | $2.00 |
| 6 | A00545-11-00 | CHAIN SLIDER | 1 | Pc. | $18.00 | |
| 7 | A00006-20-12 | CS SCREW | M6X12 | 2 | Pcs. | $1.50 |
| 8 | A00409-11-00 | LOWER CHAIN GUIDE | 1 | Pc. | $21.00 | |
| 9 | A00251-19-02 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 10 | A00001-21-02 | LOCK WASHER | GB93-87 8X13X2 | 2 | Pcs. | $1.50 |
| 11 | A00013-21-01 | WASHER | GB97.1-85 8X16X1.5 | 2 | Pcs. | $1.50 |
| 12 | A00396-07-00 | DRIVE CHAIN | 420-108L GOLD/BLACK | 1 | Pc. | $57.00 |
| 12-1 | A00287-07-00 | CLIP LINK | 420 | 1 | Pc. | $6.00 |

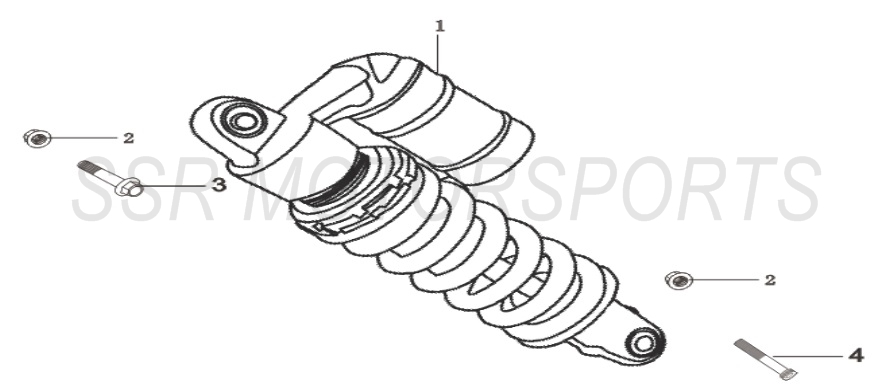

| REAR SHOCK ABSORBER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00492-16-00 | REAR SHOCK ABSORBER | DNM MTG-RC L=280 900LBS | 1 | Pc. | $280.00 |
| 2 | A00004-22-03 | FLANGE NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 3 | A00011-19-01 | FLANGE BOLT | 10X45XM10X1.25MM | 1 | Pc. | $3.50 |
| 4 | A00084-19-01 | FLANGE BOLT | GB70-85 M10X55X1.5 | 1 | Pc. | $3.50 |

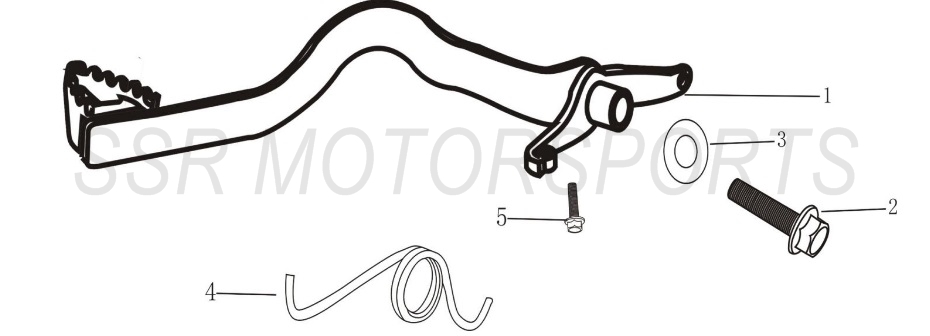

| REAR BRAKE PEDAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00386-05-00 | REAR BRAKE PEDAL | 14.1X32+M10X15L=51 | 1 | Pc. | $27.00 |
| 2 | A00017-19-01 | FLANGE BOLT | GB5789-86 M8X16 | 1 | Pc. | $1.50 |
| 3 | A00012-21-01 | WASHER | GB97.1-85 8X28X1.5 | 1 | Pc. | $1.50 |
| 4 | A00387-05-00 | RETURN SPRING | 32X3.5XH7X2 | 1 | Pc. | $2.00 |
| 5 | A00001-19-01 | FLANGE BOLT | GB5789-86 M6X30 | 1 | Pc. | $1.50 |
| 6 | A00643-11-00 | REAR BRAKE LEVER SHAFT | M10X20/M34X14 INNER M10 | 1 | Pc. | $8.00 |

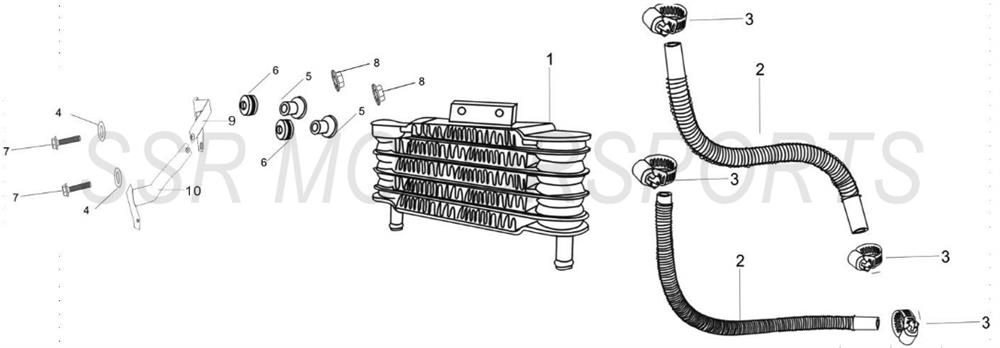

| OIL COOLER SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00079-06-00 | OIL COOLER | 1 | Pc. | $92.00 | |
| 2 | A00080-06-00 | OIL COOLER HOSE | 8X14XL650 YX150 | 2 | Pcs. | $18.00 |
| 3 | A00039-24-03 | HOSE CLAMP | 4 | Pcs. | $2.00 | |
| 4 | A00014-21-01 | WASHER | GB97.1-85 10X20X2 | 2 | Pcs. | $1.50 |
| 5 | A00081-06-00 | COLLAR | 2 | Pcs. | $1.50 | |
| 6 | A00082-06-00 | RUBBER GROMMET | 2 | Pcs. | $1.50 | |
| 7 | A00003-19-01 | FLANGE BOLT | GB5789-86 M6X25 | 2 | Pcs. | $1.50 |
| 8 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 9 | A00083-06-00 | RIGHT TANK SHROUD BRACKET | 1 | Pc. | $11.00 | |
| 10 | A00084-06-00 | LEFT TANK SHROUD BRACKET | 1 | Pc. | $11.00 | |
| 11 | A00108-06-00 | BRASS OIL HOSE FITTING | NOT PICTURED | 2 | Pcs. | $4.00 |

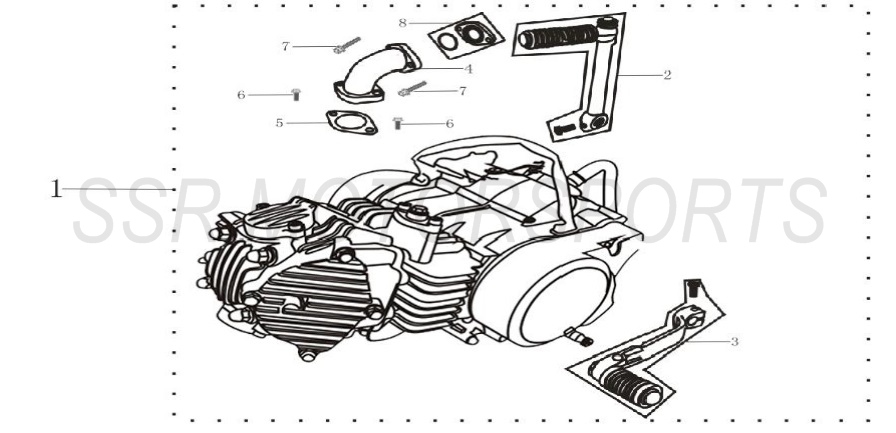

| ENGINE ASSEMBLY (INTAKE MANIFOLD, KICKSTARTER AND SHIFTER LEVER) | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY . | UNIT | RETAIL |
| 1 | A01764-09-00 | ENGINE ASSY | 160TX *OVERSIZE* | 1 | Assy. | $682.00 |
| 1 | A01474-09-00 | ENGINE ASSY | 170TX *OVERSIZE* | 1 | Assy. | $740.00 |
| 2 | A00388-05-00 | KICKSTARTER LEVER | 1 | Pc. | $26.00 | |
| 3 | A00389-05-00 | SHIFTER LEVER | 1 | Assy. | $27.00 | |
| 4 | A00235-14-00 | INTAKE MANIFOLD | 160TX | 1 | Pc. | $36.00 |
| 4 | A02731-09-00 | INTAKE MANIFOLD | 170TX | 1 | Pc. | $36.00 |
| 5 | A00168-13-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $3.50 | |
| 6 | A00040-19-01 | FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 7 | A00001-19-01 | FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 8 | A00236-14-00 | INSULATOR W/ O-RING | 1 | Set | $8.00 | |

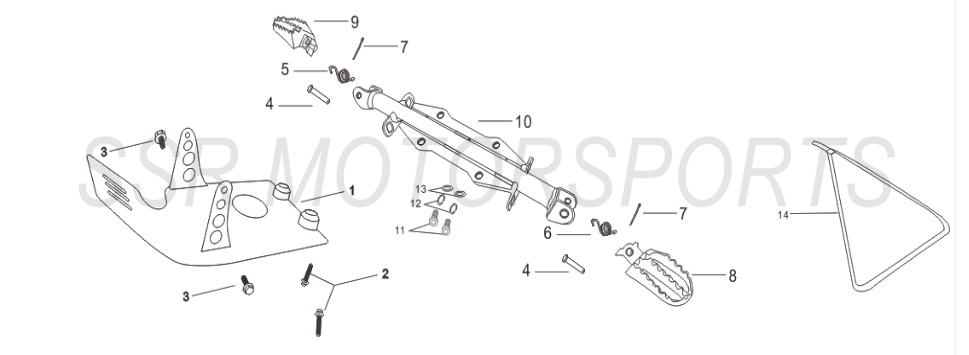

| FOOTPEGS, SIDE STAND AND SKID PLATE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00410-11-00 | SKID PLATE | 1 | Pc. | $59.00 | |
| 2 | A00049-19-01 | FLANGE BOLT | GB5789-86 M8X35 S12 | 2 | Pcs. | $2.00 |
| 3 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 4 | A00336-05-00 | FOOTPEG PIVOT PIN | 7.8X42 | 2 | Pcs. | $1.50 |
| 5 | A00335-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 6 | A00334-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 7 | A00019-28-01 | COTTER PIN | 2.5X24 | 2 | Pcs. | $1.50 |
| 8 | A00332-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 | |
| 9 | A00330-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
| 10 | A00395-05-00 | FOOTPEG BRACKET | 1 | Pc. | $27.00 | |
| 11 | A00125-19-02 | ALLEN BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 12 | A00005-21-04 | LOCK WASHER | 8X16X1.5 | 2 | Pcs. | $1.50 |
| 13 | A00004-21-01 | WASHER | 8 | 2 | Pcs. | $1.50 |
| 14 | A00396-05-00 | TRIANGLE SIDE STAND | 14/12 | 1 | Pc. | $33.00 |

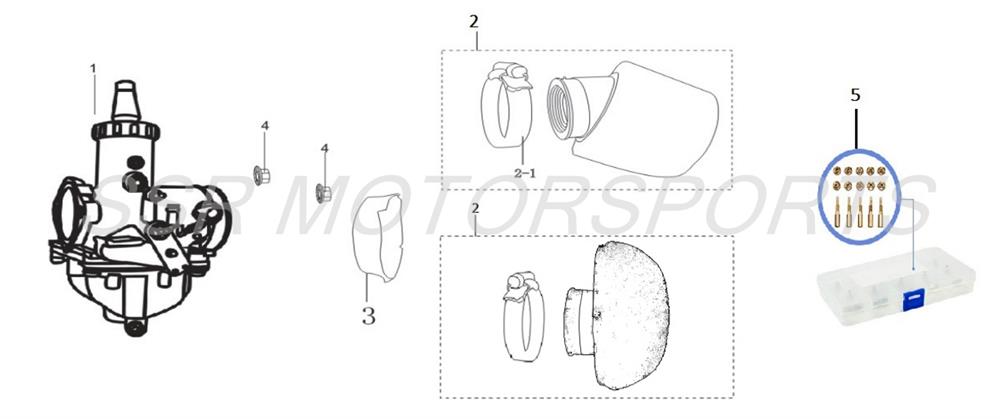

| CARBURETOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY . | UNIT | RETAIL |
| 1 | A00463-12-00 | CARBURETOR ASSY | MOLKT 26 | 1 | Assy. | $96.00 |
| 2 | A00232-14-00 | AIR FILTER ELEMENT | 42 | 1 | Pc. | $21.00 |
| 2 | A00301-14-00 | AIR FILTER ELEMENT - BUTTON | 42 (OPTION) | 1 | Pc. | $27.00 |
| 2-1 | A00004-24-02 | HOSE CLAMP | 38-57 | 1 | Pc. | $6.00 |
| 3 | A00234-14-00 | SCREEN | 1 | Pc. | $8.00 | |
| 4 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 5 | A00053-01-00 | CARBURETOR JET KIT | AVAILABLE ACCESSORY | 1 | Kit | $89.00 |

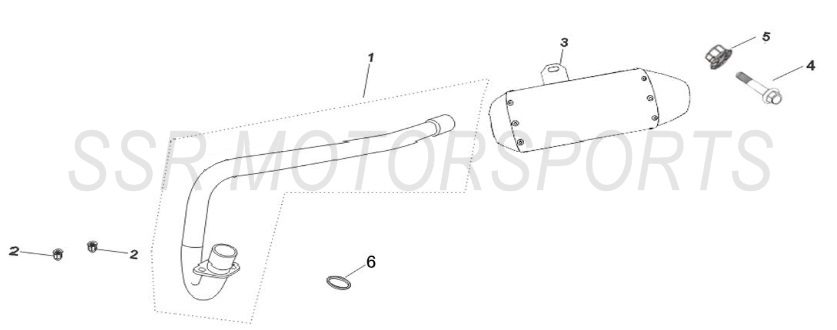

| MUFFLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00088-10-00 | EXHAUST HEADER | 160TX | 1 | Pc. | $83.00 |
| 1 | A00395-12-00 | EXHAUST HEADER | 170TX | 1 | Pc. | $83.00 |
| 2 | A00001-22-01 | NUT | GB6187-86 M6 | 2 | Pcs. | $1.50 |
| 3 | A00087-10-00 | MUFFLER | 1 | Pc. | $145.00 | |
| 4 | A00007-19-01 | FLANGE BOLT | GB5789-86 M8X25 S12 | 1 | Pc. | $1.50 |
| 5 | A00003-22-03 | FLANGE NUT | GB6187-86 M8 | 1 | Pc. | $1.50 |
| 6 | A00115-13-00 | EXHAUST GASKET | 1 | Pc. | $6.00 | |

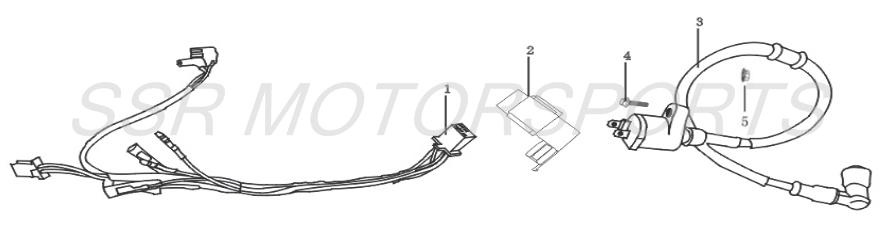

| ELECTRICAL COMPONENTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00489-08-00 | WIRE HARNESS | 160TX | 1 | Pc. | $42.00 |
| 1 | A00486-08-00 | WIRE HARNESS | 170TX | 1 | Pc. | $42.00 |
| 2 | A00490-08-00 | CDI | 160TX | 1 | Pc. | $27.00 |
| 2 | A00487-08-00 | CDI | 170TX | 1 | Pc. | $27.00 |
| 3 | A00460-08-00 | IGNITION COIL | 1 | Pc. | $42.00 | |
| 4 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 5 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |

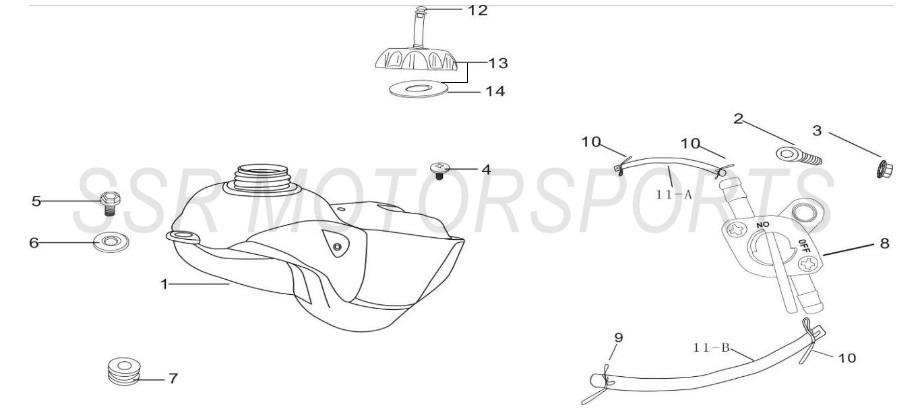

| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00353-12-00 | FUEL TANK | BLACK | 1 | Pc. | $56.00 |
| 2 | A00008-19-02 | ALLEN BOLT | GB70-85 M6X20 | 1 | Pc. | $1.50 |
| 3 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 4 | A00006-20-01 | PHILLIPS BOLT | TM6X12 | 1 | Pc. | $1.50 |
| 5 | A00007-19-01 | FLANGE BOLT | GB5789-86 M8X25 | 1 | Pc. | $1.50 |
| 6 | A00012-21-01 | WASHER | GB97.1-85 8X28X1.5 | 1 | Pc. | $1.50 |
| 7 | A00356-12-00 | RUBBER GROMMET | 1 | Pc. | $1.50 | |
| 8 | A00338-12-00 | FUEL PETCOCK | 1 | Pc. | $23.00 | |
| 9 | A00001-24-03 | WIRE HOSE CLAMP | 10 | 1 | Pc. | $1.50 |
| 10 | A00002-24-03 | WIRE HOSE CLAMP | 7.5 | 5 | Pcs. | $1.50 |
| 11 | A00360-12-00 | FUEL HOSE SET | A=300MM, B=50MM, C=150MM | 1 | Set | $6.00 |
| 12 | A00332-12-00 | FUEL TANK CAP VENT | 1 | Pc. | $6.00 | |
| 13 | A00343-12-00 | FUEL TANK CAP | BILLET ALUMINUM | 1 | Pc. | $33.00 |
| 14 | A00355-12-00 | FUEL TANK CAP SEAL | 19.5X50.5XT3 | 1 | Pc. | $6.00 |

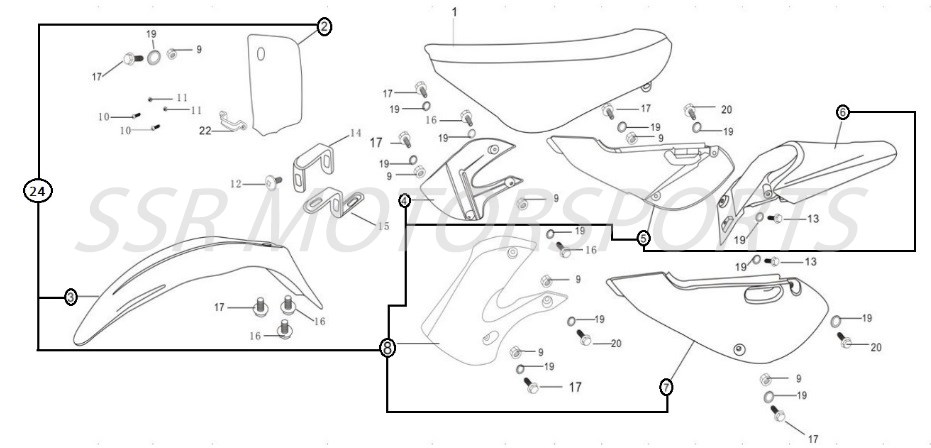

| BODY | ||||||
 |

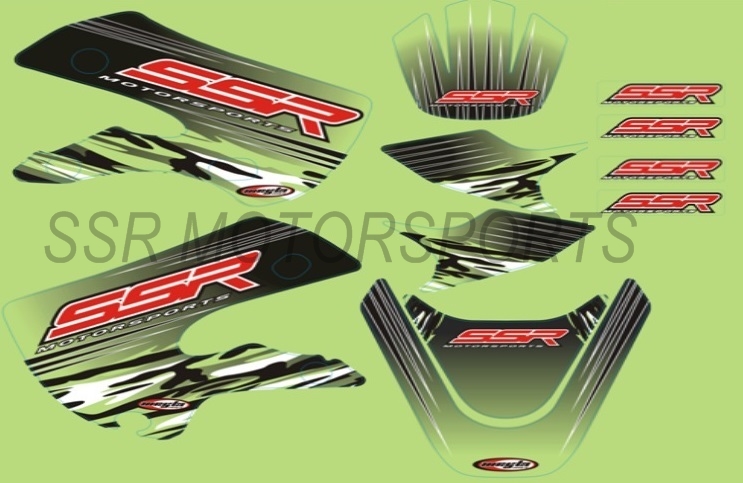

||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00746-02-00 | SEAT | 1 | Pc. | $85.00 | |
| 2 | A00748-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $14.00 |
| 3 | A00749-02-02 | FRONT FENDER | BLACK | 1 | Pc. | $18.00 |
| 3 | A00749-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $18.00 |
| 4 | A00750-02-02 | RIGHT FUEL TANK SHROUD | BLACK | 1 | Pc. | $21.00 |
| 4 | A00750-02-01 | RIGHT FUEL TANK SHROUD | WHITE | 1 | Pc. | $21.00 |
| 5 | A00751-02-01 | RIGHT REAR NUMBER PLATE | WHITE | 1 | Pc. | $18.00 |
| 5 | A00751-02-02 | RIGHT REAR NUMBER PLATE | BLACK | 1 | Pc. | $18.00 |
| 6 | A00752-02-02 | REAR FENDER | BLACK | 1 | Pc. | $18.00 |
| 6 | A00752-02-01 | REAR FENDER | WHITE | 1 | Pc. | $18.00 |
| 7 | A00753-02-01 | LEFT REAR NUMBER PLATE | WHITE | 1 | Pc. | $18.00 |
| 7 | A00753-02-02 | LEFT REAR NUMBER PLATE | BLACK | 1 | Pc. | $18.00 |
| 8 | A00754-02-02 | LEFT FUEL TANK SHROUD | BLACK | 1 | Pc. | $21.00 |
| 8 | A00754-02-01 | LEFT FUEL TANK SHROUD | WHITE | 1 | Pc. | $21.00 |
| 9 | A00001-22-01 | NUT | M6 | 7 | Pcs. | $1.50 |
| 10 | A00009-20-01 | SCREW | M4X12 | 2 | Pcs. | $1.50 |
| 11 | A00348-22-04 | LOCKNUT | M4 | 2 | Pcs. | $1.50 |
| 12 | A00001-20-01 | BOLT | M5X10 | 1 | Pc. | $1.50 |
| 13 | A00003-19-01 | FLANGE BOLT | GB5789-86 M6X25 | 2 | Pcs. | $1.50 |
| 15 | A00756-02-00 | FRONT LOWER NUMBER PLATE BRACKET | 2015-2019 | 1 | Pc. | $7.00 |
| 15 | A01045-02-00 | FRONT LOWER NUMBER PLATE BRACKET | 2020+ | 1 | Pc. | $7.00 |
| 16 | A00031-19-01 | FLANGE BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 17 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 6 | Pcs. | $1.50 |
| 19 | A00011-21-01 | WASHER | 6X18X1.5 | 13 | Pcs. | $1.50 |
| 20 | A00015-19-01 | FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 22 | A00757-02-01 | FRONT BRAKE HOSE GUIDE | WHITE | 1 | Pc. | $1.50 |
| 24 | A00938-02-02 | COMPLETE PLASTIC KIT | BLACK | 1 | Kit | $63.00 |
| 24 | A00938-02-01 | COMPLETE PLASTIC KIT | WHITE | 1 | Kit | $63.00 |
| 24 | A00938-02-18 | COMPLETE PLASTIC KIT | RED | 1 | Kit | $63.00 |
| GRAPHICS | ||||||
 |
||||||
| NO | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY | UNIT | RETAIL |
| 1 | A00758-02-00 | GRAPHIC KIT | KLX 3M | 1 | Kit | $51.00 |
-
-
-
-
-
-
-
Only 2 left in stock
-
Only 1 left in stock
-
