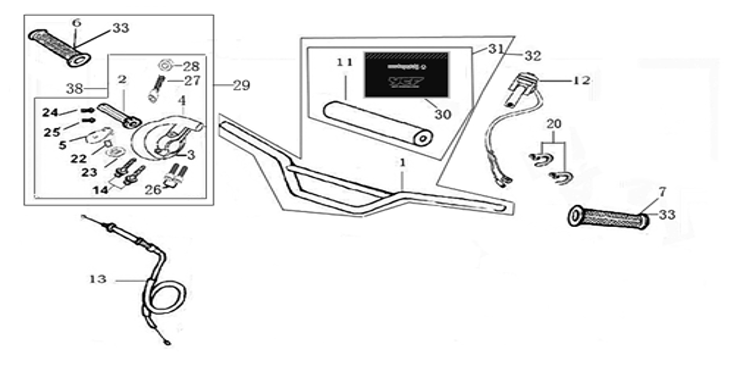

| No. |
Part Number |
Item Description |
Qty |
| 1 |
YC110-0101-0701-BK |
Aluminum Handlebar with bar "Low" shape |
1 |
| 31 |
YC110-0131-02 |
Complete Bar Pad for Chromolly Handlebar L=250mm BLACK |
1 |
| |
YC110-0153-01 |
Handle bar plastic cap |
1 |
| |
YC110-0138 -04 |
YCF complete Throttle Assy. 2020 with YCF grip + Screw 2020 |
1 |
| |
YC110-01022-06 |
SCREW FOR THROTTLE ADJUSTMENT, SIZE M5X50(WITH：Yc110-01021-07 1EA GB97-d5xd9x1 2EA) |
1 |
| 33 |
PPC011-GY |
YCF set of grip GREY 2020 |
1 |
| 34 |
YC110-0135-02 |
CNC adjustable bracket with lever 2020 |
1 |
| 36 |
YC110-0136-01 |
Rubber on clutch lever |
1 |
| |
YC110-0134-04 |
Clutch bracket Assy |
1 |
| 15 |
BT08-M6x20-W |
Hex.Bolt M6x20 mm for clutch lever bracket |
2 |
| |
YC110-0103-07 |
Clutch lever 2020 (with FB13-8x10x10.5-Cu 1EA FB13-8x10x9.4-Cu 1EA ) complete with bushings and washer |
1 |
| 21 |
YC110-0109-25 |
Clutch Cable Assy. L=900mm A+B=75mm |
1 |
| 12 |
YC110-0105-06 |
Kill Switch ON/OFF L=580mm |
1 |
| 13 |
YC110-0106 |
Throttle Cable L=840mm A+B=130mm |
1 |
| |
YC110-0143-01 |
RUBBER ON THROTTLE CABLE |
1 |
| 20 |
YC110-01-03-BK |
Cable tie L=150mm BLACK |
3 |
