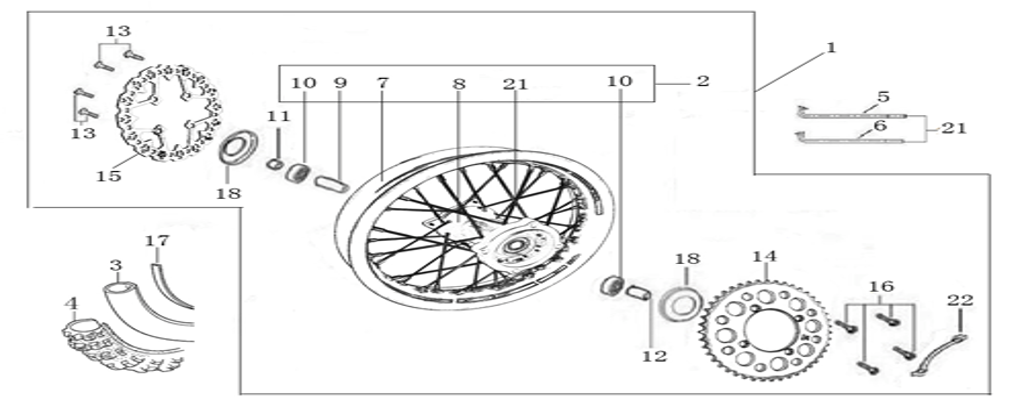

| No. |
Part Number |
Item Description |
Qty |
| 1 |
YC110-1101-33-BK |
Complete ALUMINUM Rear wheel 1.85x14' with disk and sprocket die cast hub 2021 (SPOKES 4 mm - 8K) |
1 |
| 3 |
CHAMBRE12 |
Tube for Rear tire 3.00-12' GL |
1 |
| 4 |
300/12 |
Rear tyre 80/100-12' GUANGLI |
1 |
| 7 |
YC110-1107-34-BK |
STEEL Rim 1.85x12' BLACK 2021 8k |
1 |
| 8 |
YC110-1122-11 |
Rear wheel die cast hub with oil seal 2021 8k |
1 |
| |
YC110-1101-06 |
Rear hub axle bushing d16mmxd20mmx74mm |
1 |
| 10 |
6003 |
NTN Ball bearing 6003 |
2 |
| 18 |
YC110-0611 |
OIL SEAL d23mmxd35mmx5mm |
2 |
| 21 |
JR12-12.8-8K |
set of spoke 12' (122mmx8+125mmx8+128mmx16) 8K(4.0mm) |
1 |
| 11 |
YC110-11-041 |
Rear wheel spacer right d15mmxd22mmx29mm |
1 |
| 12 |
YC110-11-052 |
Rear wheel spacer left d15mmxd22mmx38mm |
1 |
| 14 |
YC110-11-06/45 |
YCF Driven sprocket 420-45T (4 holes) |
1 |
| 22 |
YC110-11-03 |
Sprocket Locking piece |
2 |
| 16 |
GB5783-M8x25-W |
Hex.Bolt M8x25mm for rear sprocket fixation |
4 |
| 15 |
YC110-1115-01 |
Rear Brake disc d200mm 2016 |
1 |
| 13 |
GB70.2-M8x16 |
Screw M8x16mm for brake disk |
4 |
| 17 |
YC110-11-01 |
tire lining 12" |
1 |
| |
BT08-M6x16-W |
Hex.Bolt M6x16mm for Chain box protection |
|
