2016-2019 ZAFFERANO 250 SPARE PARTS CATALOG | |||
COLOR | RED | GREY | WHITE |
CODE | F9 | JJ | WF |
PICTURE |
HANDLEBARS | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 40480N120000 | RIGHT MIRROR | 1 | Pc. | $23.00 | |
2 | 40450N120000 | LEFT MIRROR | 1 | Pc. | $23.00 | |
3 | 40030J000022 | HANDLEBAR END WEIGHT ASSY | 2 | Assy. | $8.00 | |
4 | 40210N120000 | RIGHT HANDLEBAR GRIP | 1 | Pc. | $14.00 | |
5 | 40600N120001 | RIGHT HANDLEBAR SWITCH | 1 | Pc. | $36.00 | |
6 | 40300N120000 | THROTTLE CABLE | 1 | Pc. | $21.00 | |
7 | B0200050102H | SCREW | 5×10MM | 1 | Pc. | $1.50 |
8 | 40100N120100 | HANDLEBAR | 1 | Pc. | $51.00 | |
9 | 40500N120000 | LEFT HANDLEBAR SWITCH | 1 | Pc. | $47.00 | |
10 | 40001H010001 | LEFT HANDLEBAR GRIP | 1 | Pc. | $11.00 | |
11 | 58900N120000 | SEAT LOCK CABLE | 1 | Pc. | $13.00 | |

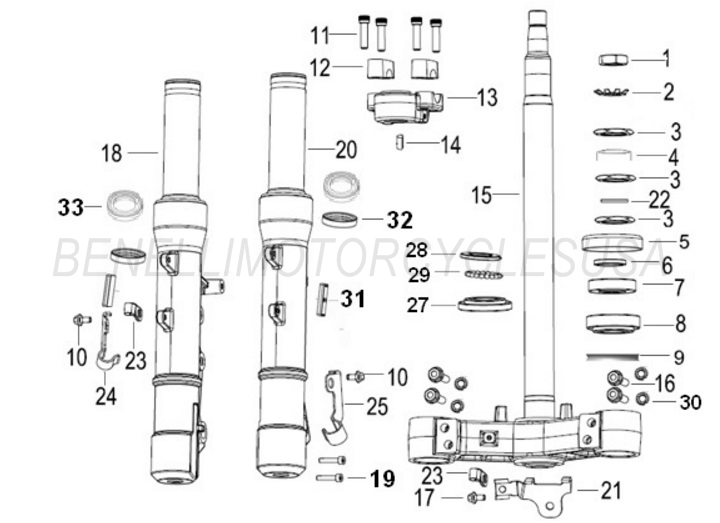

FRONT SUSPENSION | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B0403201500H | NUT | M20×1.5 | 1 | Pc. | $6.00 |
2 | 43059N120100 | WASHER | 1 | Pc. | $4.00 | |
3 | 43008N120000 | NUT | 3 | Pcs. | $6.00 | |
4 | 43007N120000 | WASHER STOPPER | 31×20×1.5 | 1 | Pc. | $3.50 |
5 | 43022N100100 | DUSTPROOF COVER | 1 | Pc. | $8.00 | |
7 | B12016000600 | BEARING | 6006-2RS | 1 | Pc. | $14.00 |
8 | 43004T180000 | BEARING | 32007 | 1 | Pc. | $39.00 |
9 | 43006T430000 | STEERING STEM DUST SEAL | 1 | Pc. | $7.00 | |
10 | B0109060126H | FLANGE BOLT | M6×12 | 2 | Pcs. | $1.50 |
11 | B0281080256H | ALLEN BOLT | M8×1.25×25 | 4 | Pcs. | $1.50 |
12 | 43014N120000 | UPPER HANDLERBAR CLAMP | 2 | Pcs. | $7.00 | |
13 | 43013N120000 | LOWER HANDLERBAR CLAMP | 1 | Pc. | $21.00 | |
14 | B1118046516H | SPLINE | 4×6.5×16 | 1 | Pc. | $1.50 |
15 | 43100N120000 | LOWER TRIPLE CLAMP ASSY | 1 | Assy. | $142.00 | |
16 | B0109080406H | BOLT | M8×40 | 4 | Pcs. | $2.00 |
17 | B0109050106H | BOLT | M5×10 | 1 | Pc. | $1.50 |
18 | 43300N120000 | RIGHT FRONT FORK ASSY | BLACK B4 | 1 | Assy. | $124.00 |
19 | B0205060256H | SCREW | M6×25 | 2 | Pcs. | $1.50 |
20 | 43200N120000 | LEFT FRONT FORK ASSY | BLACK B4 | 1 | Assy. | $124.00 |
21 | 43080N120100 | FRONT DISK BRAKE HOSE BRACKET | 1 | Pc. | $7.00 | |
22 | 43052N120000 | RUBBER CUSION | 1 | Pc. | $2.50 | |
23 | 43057J410000 | CLIP | 2 | Pcs. | $1.50 | |
24 | 45351N120000 | RIGHT BRAKE HOSE GUIDE | 1 | Pc. | $2.00 | |
25 | 45352N120000 | LEFT BRAKE HOSE GUIDE | 1 | Pc. | $2.00 | |
27 | 43004K100000 | LOWER BEARING LOWER RACE | 1 | Pc. | $8.00 | |
28 | 43003K100000 | LOWER BEARING UPPER RACE | 1 | Pc. | $8.00 | |
29 | 43130N120000 | BALL BEARING | 1 | Pc. | $8.00 | |
30 | B0700000080H | LOCK WASHER | M8 | 4 | Pcs. | $1.50 |
31 | 86200P250000 | FORK REFLECTOR | 2 | Pcs. | $7.00 | |
32 | 43260N120000 | FORK SEAL | 2 | Pcs. | $6.00 | |
33 | 43290N120000 | DUST SEAL | 2 | Pcs. | $7.00 | |

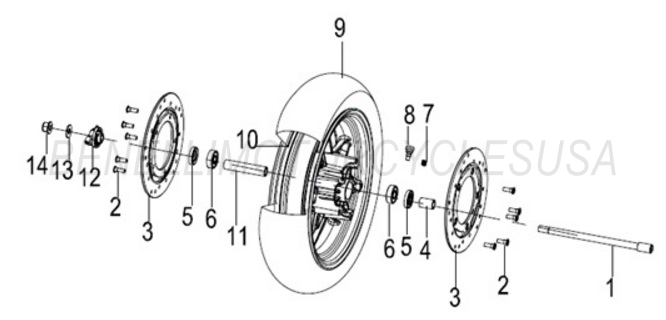

FRONT WHEEL | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 44004N120100 | FRONT WHEEL AXLE | 1 | Pc. | $18.00 | |
2 | 45036K010000 | BOLT | M8x24 | 10 | Pcs. | $1.50 |
3 | 45033N120000 | FRONT/REAR BRAKE ROTOR | 2 | Pcs. | $59.00 | |
4 | 44005N100100 | LEFT AXLE SPACER | 1 | Pc. | $7.00 | |
5 | 44300J130000 | DUST SEAL | 2 | Pcs. | $2.50 | |
6 | B12016030200 | BEARING | 6302-2RS | 2 | Pcs. | $16.00 |
7 | B1404Z2011A0 | VALVE STEM CAP | 1 | Pc. | $1.50 | |
8 | B1403Z201120 | VALVE STEM | 1 | Pc. | $8.00 | |
9 | B140107D1410 | FRONT TIRE | 120/70-14,E11 75R-001242,DOT | 1 | Pc. | $79.00 |
10 | 44101N120000 | FRONT WHEEL | BLACK B5 | 1 | Pc. | $206.00 |
11 | 44006N120000 | WHEEL BEARING SPACER | 1 | Pc. | $13.00 | |
12 | 44200N120000 | SPEEDOMETER DRIVE GEAR | 1 | Pc. | $33.00 | |
13 | 44027N100000 | WASHER | 1 | Pc. | $1.50 | |
14 | B0417141504H | NUT | M14×1.5 | 1 | Pc. | $2.50 |
FRONT BRAKE SYSTEM | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B0205060256H | BOLT | M6x25 | 2 | Pcs. | $1.50 |
2 | 45023N140000 | BRACKET | 1 | Pc. | $8.00 | |
3 | 45024N140000 | BRAKE LEVER PIVOT BOLT | 1 | Pc. | $1.50 | |
4 | 45022N120001 | FRONT BRAKE LEVER | 1 | Pc. | $18.00 | |
5 | B04160600065 | NUT | M6 | 1 | Pc. | $1.50 |
6 | 45300N140000 | BRAKE LIGHT SWITCH | 1 | Pc. | $8.00 | |
7 | 45200N120000 | FRONT BRAKE HOSE | 1 | Pc. | $59.00 | |
8 | 45037J000000 | BANJO BOLT | 3 | Pcs. | $2.00 | |
9 | 45900N120000 | FRONT BRAKE ASSY | 1 | Assy. | $276.00 | |
10 | 45029J000000 | CRUSH WASHER | 6 | Pcs. | $1.50 | |
11 | B0109080356H | BOLT | M8×35 | 4 | Pcs. | $1.50 |
12 | 45500N120000 | FRONT RIGHT CALIPER ASSY | 1 | Assy. | $69.00 | |
13 | 45400N140000 | FRONT BRAKE MASTER CYLINDER | 1 | Pc. | $57.00 | |
14 | 45110T400000 | RIGHT FRONT BRAKE PAD SET | 1 | Set | $18.00 | |
15 | 45600N120000 | FRONT LEFT CALIPER ASSY | 1 | Pc. | $69.00 | |
16 | 45044T430000 | BRAKE HOSE CLAMP | 1 | Pc. | $2.00 | |
17 | B0109060356H | BOLT | M6×35 | 1 | Pc. | $1.50 |
18 | B0109060126H | FLANGE BOLT | M6×12 | 1 | Pc. | $1.50 |
19 | 45120B960000 | FRONT/REAR/LEFT BRAKE PAD SET | 1 | Set | $18.00 | |
20 | 45008G070000 | FRONT BRAKE CALIPER PISTON SEAL | 25 | 4 | Pcs. | $1.50 |
21 | 45007G070000 | FRONT BRAKE CALIPER PISTON SEAL | 25 | 4 | Pcs. | $1.50 |
EXHAUST SYSTEM | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 47760N12HU00 | HEAT SHIELD | SILVER GRAY HU | 1 | Pc. | $33.00 |
2 | B1306060200H | SCREW W/ WASHER | M6×20 | 2 | Pcs. | $1.50 |
3 | 47142T430000 | RUBBER DAMPER | 1 | Pc. | $1.50 | |
4 | B0700000060A | WASHER | 6 | 3 | Pcs. | $1.50 |
5 | B0205060126L | SCREW | M6×12 | 3 | Pcs. | $1.50 |
5 | B1304060160A | SCREW W/ WASHER | M6×16 | 3 | Pcs. | $1.50 |
6 | B07030000604 | WASHER | 6 | 3 | Pcs. | $1.50 |
7 | 47781N120000 | MUFFLER END CAP | 1 | Pc. | $21.00 | |
8 | B0140101056H | BOLT | M10×1.25×105 | 3 | Pcs. | $3.50 |
9 | 47100N120005 | MUFFLER | WITH CATALYZER | 1 | Pc. | $505.00 |
10 | B04220800044 | NUT | M8 | 2 | Pcs. | $1.50 |
11 | 47800J000000 | MUFFLER GASKET | 1 | Pc. | $4.00 | |
12 | B0703000100H | WASHER | 10 | 3 | Pcs. | $1.50 |
13 | B0700000100H | LOCK WASHER | 10 | 3 | Pcs. | $1.50 |

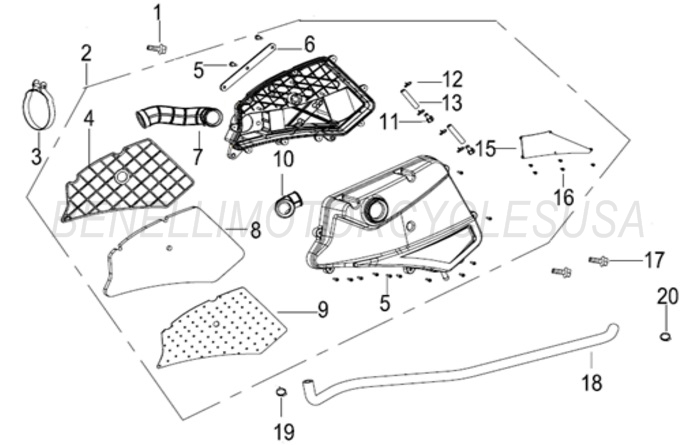

AIR CLEANER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B0109050126H | BOLT | M5×12 | 1 | Pc. | $1.50 |
2 | 49100N120001 | AIR BOX ASSY | 1 | Assy. | $77.00 | |
3 | 49016N070001 | INTAKE HOSE CLAMP | 40-60 | 1 | Pc. | $7.00 |
4 | 49205N120000 | AIR FILTER ELEMENT SCREEN | 1 | Pc. | $8.00 | |
5 | B0500480160H | SCREW | ST4.8×16 | 13 | Pcs. | $1.50 |
6 | 49361N120000 | MOUNTING PLATE | 1 | Pc. | $13.00 | |
7 | 49005N120001 | INTAKE HOSE I | 1 | Pc. | $18.00 | |
8 | 49208N120000 | AIR FILTER ELEMENT | 1 | Pc. | $18.00 | |
9 | 49207N120000 | AIR FILTER ELEMENT METAL SCREEN | 1 | Pc. | $7.00 | |
10 | 49002N120000 | INTAKE HOSE II | 1 | Pc. | $24.00 | |
11 | 49011T020000 | AIR BOX DRAIN HOSE PLUG | 1 | Pc. | $1.50 | |
12 | B17010110003 | WIRE HOSE CLAMP | 11 | 4 | Pcs. | $1.50 |
13 | 49009N100000 | AIR BOX DRAIN HOSE | 1 | Pc. | $6.00 | |
15 | 49003N120000 | AIR BOX DRAIN PLATE | 1 | Pc. | $11.00 | |
16 | B05003501205 | SCREW | ST3.5×12 | 5 | Pcs. | $1.50 |
17 | B0109060306H | BOLT | M6X30 | 2 | Pcs. | $1.50 |
18 | 49025N120000 | HOSE | 1 | Pc. | $11.00 | |
19 | B17010130003 | WIRE HOSE CLAMP | 13 | 1 | Pc. | $1.50 |
20 | B17010125003 | WIRE HOSE CLAMP | 12.5 | 1 | Pc. | $1.50 |
FUEL TANK | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B0407060005H | NUT | M6 | 7 | Pcs. | $1.50 |
2 | 50182N120000 | FUEL PUMP RETAINER PLATE | 1 | Pc. | $10.00 | |
3 | 50027N140001 | FUEL PUMP O-RING SEAL | 7 | Pcs. | $1.50 | |
4 | 50400N120000 | FUEL PUMP | 1 | Pc. | $246.00 | |
4A | 50400N120002 | FUEL PUMP | 2019+ | 1 | Pc. | #N/A |
5 | 50073N120000 | FUEL LINE | 8×14×980 | 1 | Pc. | $60.00 |
6 | 50208N120000 | FILLER NECK SEAL | 1 | Pc. | $11.00 | |
7 | B0109060126H | FLANGE BOLT | M6×12 | 1 | Pc. | $1.50 |
8 | 43035J410000 | FUEL LINE CLAMP | 1 | Pc. | $2.50 | |
9 | 08016B920200 | BOLT W/ WASHER | M5×14 | 4 | Pcs. | $1.50 |
10 | 50810N120000 | FUEL LEVEL SENSOR | 1 | Pc. | $23.00 | |
11 | B0107080166H | BOLT | M8×16 | 6 | Pcs. | $1.50 |
12 | 50080N140001 | FUEL HOSE JOINT | 1 | Pc. | $7.00 | |
13 | 50170N120000 | MOUNTING PLATE | 1 | Pc. | $7.00 | |
14 | 50100N120002 | FUEL TANK | 1 | Pc. | $124.00 | |
15 | B17010105003 | WIRE HOSE CLAMP | 10.5 | 1 | Pc. | $1.50 |
16 | B16010724001 | HOSE | 7×2×400 | 1 | Pc. | $8.00 |
17 | 50307J690000 | HOSE CLAMP | 14.5-706R | 2 | Pcs. | $1.50 |
18 | 58430J000000 | WIRE RETAINER | 81mm | 2 | Pcs. | $2.00 |
19 | 50004B590000 | FUEL LEVEL SENSOR SEAL | 1 | Pc. | $2.00 | |
20 | 49710N070000 | EGR VALVE | 1 | Pc. | $59.00 | |
21 | 49912K670000 | EVAPORATIVE EMISSIONS CANISTER | 1 | Pc. | $47.00 | |
22 | 49016B350010 | HOSE CLAMP | 8.5×8×0.6 | 5 | Pcs. | $2.50 |
23 | 49902N120000 | HOSE | 4.5×8.5×660 | 1 | Pc. | $4.00 |
24 | 49905N120000 | HOSE | 5×2×650 | 1 | Pc. | $4.00 |
25 | 49923N120000 | HOSE | 7×11×400 | 1 | Pc. | $8.00 |
26 | 49922N120000 | HOSE | 7×11×80 | 1 | Pc. | $8.00 |
27 | 50260T730000 | ONE-WAY VALVE | 1 | Pc. | $13.00 | |
28 | 50070N120000 | PIPE I | 2019 | 1 | Pc. | #N/A |
29 | 50080N120000 | PIPE II | 2019 | 1 | Pc. | #N/A |
30 | 50340N070000 | FUEL FILTER | 2019 | 1 | Pc. | $24.00 |
31 | 50391T430001 | FUEL FILTER HOLDER | 2019 | 1 | Pc. | $2.00 |
SEAT | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 51100N120010 | SEAT ASSY | 1 | Assy. | $229.00 | |
2 | 51080N120000 | SEAT HINGE | 1 | Pc. | $18.00 | |
3 | 51005N120000 | ENGINE ACCESS COVER | 1 | Pc. | $18.00 | |
4 | B0109060126H | FLANGE BOLT | M6×12 | 7 | Pcs. | $1.50 |
5 | 51700N120000 | SEAT OPENING SHOCK | 1 | Pc. | $45.00 | |
6 | 08382B000000 | COTTER PIN | 2 | Pcs. | $1.50 | |
7 | 51004N120000 | UNDERSEAT STORAGETRAY | 1 | Pc. | $69.00 | |
8 | 65813N120000 | BATTERY COVER | 1 | Pc. | $8.00 | |
9 | 65801T020201 | CLIP NUT | ST4.2MM | 2 | Pcs. | $1.50 |
10 | B0507420160H | SCREW | ST4.2×16 | 2 | Pcs. | $1.50 |
11 | B0507420130H | SCREW | ST4.2×13 | 2 | Pcs. | $1.50 |
REAR CARRIER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 52010N12HU00 | REAR CARRIER | SILVER GRAY HU | 1 | Pc. | $51.00 |
2 | 52005N120000 | RIGHT REAR CARRIER BOLT COVER | 1 | Pc. | $1.50 | |
3 | B0107080506H | BOLT | M8×50 | 4 | Pcs. | $2.00 |
4 | 52004N120000 | LEFT REAR CARRIER BOLT COVER | 1 | Pc. | $1.50 | |
6 | 52003N120000 | REAR CARRIER COVER | 1 | Pc. | $1.50 | |
7 | 52006N120001 | RUBBER DAMPER | 2 | Pcs. | $2.00 | |
REAR WHEEL | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 54100N12B501 | REAR WHEEL | BLACK B5 | 1 | Pc. | $135.00 |
2 | B140109C1410 | REAR TIRE | 140/60-14,E11 75R-001252,DOT | 1 | Pc. | $95.00 |
3 | 54006N120100 | WHEEL SPACER | 1 | Pc. | $11.00 | |
4 | 45033N120000 | FRONT/REAR BRAKE ROTOR | 1 | Pc. | $59.00 | |
5 | 45036K010000 | BOLT | M8x24 | 5 | Pcs. | $1.50 |
6 | B1403Z201120 | VALVE STEM | 1 | Pc. | $8.00 | |
7 | B1404Z2011A0 | VALVE STEM CAP | 1 | Pc. | $1.50 | |
8 | B2204FB28407 | SEAL | 28×40×7 | 1 | Pc. | $1.50 |
9 | B12016020400 | BEARING | 6204-2RS | 1 | Pc. | $18.00 |
10 | B08000004701 | CIRCLIP | 47 | 1 | Pc. | $1.50 |
11 | B2204FB28477 | SEAL | 28×47×7 | 1 | Pc. | $1.50 |
12A | 54611N120003 | REAR SHOCK HANGER | 1 | Pc. | $125.00 | |
13 | 58340W020000 | COLLAR II | 1 | Pc. | $4.00 | |
14 | 54005N120100 | COLLAR | 1 | Pc. | $6.00 | |
15 | 08050N120000 | NUT | M18×1.5 | 1 | Pc. | $4.00 |
16 | 08013N100100 | BOLT | M10×1.25×80 | 2 | Pcs. | $2.50 |
REAR BRAKE SYSTEM | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B0205060256H | ALLEN BOLT | M6×25 | 2 | Pcs. | $1.50 |
2 | 45023N140000 | BRACKET | 1 | Pc. | $8.00 | |
3 | 45024N140000 | BRAKE LEVER PIVOT BOLT | 1 | Pc. | $1.50 | |
4 | 55022N120001 | REAR BRAKE LEVER | 1 | Pc. | $18.00 | |
5 | B04160600065 | NUT | M6 | 1 | Pc. | $1.50 |
6 | 45300N140000 | BRAKE LIGHT SWITCH | 1 | Pc. | $8.00 | |
7 | 45037J000000 | BANJO BOLT | 2 | Pcs. | $2.00 | |
8 | 55200N120001 | REAR BRAKE HOSE | 1 | Pc. | $57.00 | |
9 | 45029J000000 | CRUSH WASHER | 4 | Pcs. | $1.50 | |
10 | 55120T740000 | REAR BRAKE PAD SET | 1 | Set | $21.00 | |
11 | 55600T740000 | CALIPER ASSY | 1 | Pc. | $69.00 | |
12 | 55400N140000 | REAR BRAKE MASTER CYLINDER ASSY | 1 | Assy. | $57.00 | |
13 | 55900N120003 | REAR BRAKE ASSY | 1 | Assy. | $218.00 | |
14 | B0703000080H | WASHER | 8 | 1 | Pc. | $1.50 |
15 | B0159100356H | FLANGE BOLT | M10×1.25×35 | 3 | Pcs. | $2.00 |
16 | B0109060126H | FLANGE BOLT | M6×12 | 2 | Pcs. | $1.50 |
17 | 45044T430000 | BRAKE HOSE CLAMP | 2 | Pcs. | $2.00 | |
18 | 45008G070000 | SEAL | 25 | 1 | Pc. | $1.50 |
19 | 45007G070000 | SEAL | 25 | 1 | Pc. | $1.50 |
20 | 45007N120000 | SEAL | 22.6 | 1 | Pc. | $2.00 |
21 | 45008N120000 | SEAL | 22.6 | 1 | Pc. | $2.00 |
22 | 55098N120000 | BRAKE PAD HEAT INSULATOR BACKING | 2 | Pcs. | $8.00 | |
23 | 55099N120000 | BRAKE PAD INSULATION HOLDER | 2 | Pcs. | $7.00 | |

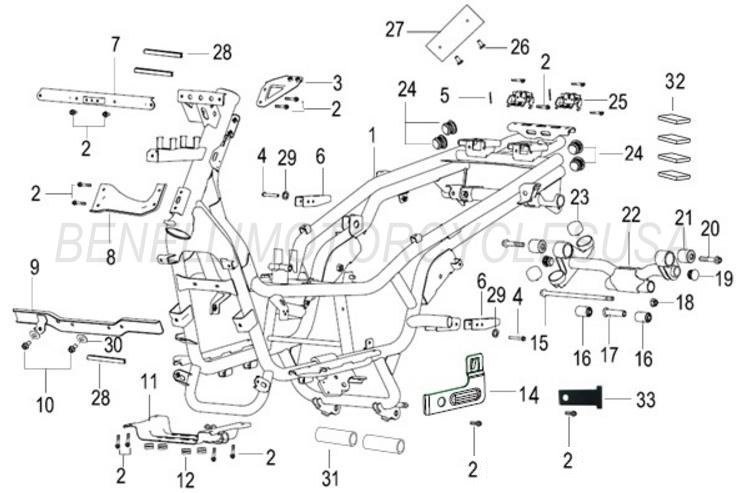

FRAME | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 57100N120009 | FRAME | *OVERSIZE* | 1 | Pc. | $413.00 |
2 | B0109060126H | FLANGE BOLT | M6×12 | 16 | Pcs. | $1.50 |
3 | 59450N120000 | MOUNTING BRACKET | 1 | Pc. | $11.00 | |
4 | B0109060426H | BOLT | M6×42 | 2 | Pcs. | $1.50 |
5 | B090002018AH | COTTER PIN | 2×18 | 2 | Pcs. | $1.50 |
6 | 58270N120001 | PASSENGER FOOTRESTMOUNTING BRACKET | 1 | Pc. | $14.00 | |
7 | 59410N120000 | FRONT COWLING MOUNTING BRACKET | 1 | Pc. | $27.00 | |
8 | 59460N120000 | MOUNTING BRACKET | 1 | Pc. | $13.00 | |
9 | 59470N120000 | SUPPORT BRACKET | 1 | Pc. | $27.00 | |
10 | B0107080166H | BOLT | M8×16 | 2 | Pcs. | $1.50 |
11 | 59480N120000 | FUEL TANK SUPPORT | 1 | Pc. | $33.00 | |
12 | 08331J040000 | RUBBER BUSHING | 4 | Pcs. | $4.00 | |
14 | 96911T740000 | BRACKET | 1 | Pc. | $11.00 | |
15 | 58305W200100 | BOLT | M10x223 | 1 | Pc. | $8.00 |
16 | 58350T430000 | ENGINE MOUNTING DAMPER | 2 | Pcs. | $6.00 | |
17 | 58380N140000 | SLEEVE | 1 | Pc. | $2.50 | |
18 | B0417101254H | NUT | M10×1.25 | 1 | Pc. | $1.50 |
19 | 58308N120000 | PLUG | 2 | Pcs. | $3.50 | |
20 | B0159100556H | BOLT | M10×1.25×55 | 2 | Pcs. | $2.00 |
21 | 58350N140000 | ENGINE HANGER DAMPER | 2 | Pcs. | $7.00 | |
22 | 58320N120000 | ENGINE HANGER | 1 | Pc. | $57.00 | |
23 | 58302T430000 | RUBBER DAMPER | 2 | Pcs. | $3.50 | |
24 | 57015N100000 | FRAME PLUG | 4 | Pcs. | $1.50 | |
25 | 58800T420000 | SEAT LATCH | 2 | Pcs. | $8.00 | |
28 | 65508T750000 | PAD STRIP | 3 | Pcs. | $2.50 | |
29 | B0700000060H | LOCK WASHER | 6 | 2 | Pcs. | $1.50 |
30 | 63014J040030 | WASHER | 8×27×2 | 2 | Pcs. | $1.50 |
31 | 58513N120000 | RUBBER BUSHING | 2 | Pcs. | $4.00 | |
32 | 65463B860000 | SPONGE | 4 | Pcs. | $3.50 | |
33 | 57055J690000 | CANISTER VALVE MOUNTING BRACKET | 1 | Pc. | $1.50 | |
CENTER / SIDE STAND | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 57010D010000 | SIDE STAND SPRING | 1 | Pc. | $3.50 | |
2 | B0402080001H | NUT | M8 | 1 | Pc. | $1.50 |
3 | 57005B410101 | SIDE STAND PIVOT BOLT | M8×35.5 | 1 | Pc. | $2.50 |
4 | 57215N100000 | RUBBER SIDE STAND STOPPER | 1 | Pc. | $2.50 | |
5 | 58700N120000 | SIDE STAND | 1 | Pc. | $18.00 | |
6 | 08014N120100 | BOLT | M6×38 | 1 | Pc. | $1.50 |
7A | 58507N120000 | CENTER STAND RUBBER DAMPER | 35×22 | 1 | Pc. | $2.00 |
8 | B0407060005H | NUT | M6 | 1 | Pc. | $1.50 |
9 | 58520N120001 | CENTER STAND | 1 | Pc. | $33.00 | |
10 | 58502N120000 | CENTER STAND SPRING | 2 | Pcs. | $2.50 | |
11 | B0159100356H | FLANGE BOLT | M10×1.25×35 | 2 | Pcs. | $2.00 |
12 | 58511N100100 | BUSHING | 2 | Pcs. | $2.00 | |
13 | B0417101254H | NUT | M10×1.25 | 2 | Pcs. | $1.50 |
14 | 43029N120100 | COLLAR | 9×12×23 | 1 | Pc. | $1.50 |
REAR SUSPENSION | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B0159100506H | BOLT | M10×1.25×50 | 2 | Pcs. | $2.00 |
2 | 63800N120000 | SHOCK ABSORBER | 2 | Pcs. | $89.00 | |
3 | 08002T020100 | BOLT | M8×31 | 2 | Pcs. | $1.50 |

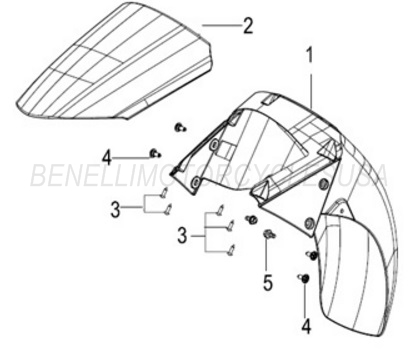

FRONT FENDER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 65106N120000 | FRONT FENDER REAR SECTION | BLACK | 1 | Pc. | $39.00 |
2 | 65101N12WF00 | FRONT FENDER | WHITE WF | 1 | Pc. | $23.00 |
2 | 65101N12JJ00 | FRONT FENDER | GRAY JJ | 1 | Pc. | $30.00 |
3 | B0507420130H | SCREW | ST4.2×13 | 5 | Pcs. | $1.50 |
4 | B0284060150A | SCREW | M6×15.2 | 4 | Pcs. | $1.50 |
5 | B0109060126H | FLANGE BOLT | M6×12 | 2 | Pcs. | $1.50 |
HANDLEBAR COVER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1A | 65201N12000A | METER COVER | 1 | Pc. | $18.00 | |
2 | 65801T020201 | CLIP NUT | 4.2MM | 12 | Pcs. | $1.50 |
3 | 65205N12JJ01 | RIGHT CORNER HANDLEBAR COWLING | GRAY JJ | 1 | Pc. | $14.00 |
3A | 65205N12JJ02 | RIGHT CORNER HANDLEBAR COWLING | GREY JJ (NO CLIP) | 1 | Pc. | $14.00 |
4A | 65503N120002 | WINDSHIELD | 1 | Pc. | $98.00 | |
5 | 65115N140000 | RUBBER GROMMET | 4 | Pcs. | $1.50 | |
6 | B0109060206H | BOLT | M6×20 | 4 | Pcs. | $1.50 |
7 | 27097505001X | COLLAR | 5 | Pcs. | $1.50 | |
8 | B0507420130H | SCREW | ST4.2×13 | 14 | Pcs. | $1.50 |
9 | B0109060166H | BOLT | M6×16 | 1 | Pc. | $1.50 |
10A | 65551N120000 | FRONT HANDLEBAR COVER | 1 | Pc. | $7.00 | |
11 | 65202N120002 | REAR HANDLEBAR COVER | 1 | Pc. | $29.00 | |
12 | B0109060126H | FLANGE BOLT | M6×12 | 4 | Pcs. | $1.50 |
13 | 65204N12JJ01 | LEFT CORNER HANDLEBAR COWLING | GREY JJ | 1 | Pc. | $14.00 |
13A | 65204N12JJ02 | LEFT CORNER HANDLEBAR COWLING | GREY JJ (NO CLIP) | 1 | Pc. | $14.00 |
14 | 53021J410100 | COLLAR | 1 | Pc. | $1.50 | |
15 | 65509N120000 | WINDSHIELD FOAM SEAL | 1 | Pc. | $8.00 | |
FRONT COWLING | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |

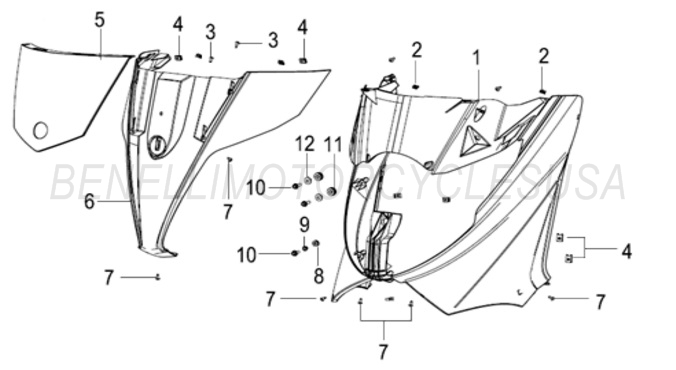

1 | 65302N12006Z | LOWER FRONT COWLING | WHITE WF, WITH STICKER | 1 | Pc. | $124.00 |
1 | 65302N12011Z | LOWER FRONT COWLING | GRAY JJ, WITH STICKER | 1 | Pc. | $124.00 |
1 | 65302N12009Z | LOWER FRONT COWLING | RED F9, WITH STICKER | 1 | Pc. | $124.00 |
2 | 65801S010000 | CLIP NUT | 2 | Pcs. | $1.50 | |
3 | B0507420160H | TAPPING SCREW | ST4.2×16 | 2 | Pcs. | $1.50 |
4 | 65801T020201 | CLIP NUT | 4.2MM | 9 | Pcs. | $1.50 |
5 | 65303N12B500 | UPPER FRONT COWLING DECO COVER | BLACK B5 | 1 | Pc. | $30.00 |
6 | 65301N12JJ00 | UPPER FRONT COWLING | GRAY JJ | 1 | Pc. | $98.00 |
7 | B0507420130H | SCREW | ST4.2×13 | 6 | Pcs. | $1.50 |
8 | 57039S010000 | RUBBER GROMMET | 1 | Pc. | $4.00 | |
9 | 58307B450000 | COLLAR | 1 | Pc. | $1.50 | |
10 | B0109060256H | BOLT | M6×25 | 3 | Pcs. | $1.50 |
11 | 65115N140000 | RUBBER GROMMET | 2 | Pcs. | $1.50 | |
12 | 27097505001X | COLLAR | 2 | Pcs. | $1.50 | |

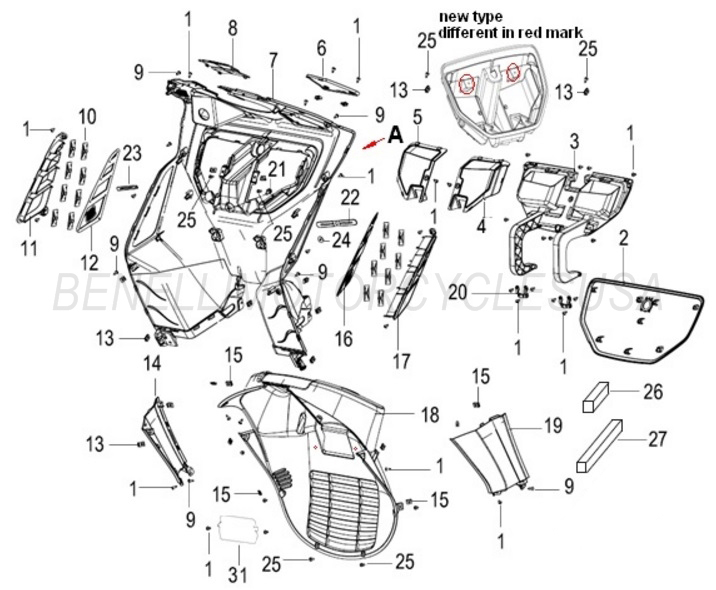

LEG SHIELD | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B0507420130H | SCREW | ST4.2×13 | 28 | Pcs. | $1.50 |
2 | 65404N120002 | FRONT STORAGE BOX COVER | 1 | Pc. | $13.00 | |
3 | 65321N120000 | FRONT STORAGE BOX BODY | 1 | Pc. | $27.00 | |
4 | 65326N120001 | LEFT INSPECTION COVER | 1 | Pc. | $7.00 | |
5 | 65327N120001 | RIGHT INSPECTION COVER | 1 | Pc. | $7.00 | |
6 | 65434N120000 | RADIATOR FILLER COVER | 1 | Pc. | $6.00 | |
7 | 65402N120002 | LEG SHIELD | 1 | Pc. | $42.00 | |
9 | B0507420160H | TAPPING SCREW | ST4.2×16 | 14 | Pcs. | $1.50 |
10 | 65311B910020 | NUT PLATE | 16 | Pcs. | $1.50 | |
11 | 65368N12HU00 | RIGHT SIDE VENT | SILVER GRAY HU | 1 | Pc. | $8.00 |
12 | 65306N120000 | PROTECTOR II | 1 | Pc. | $8.00 | |
13 | 65801T020201 | CLIP NUT | 4.2MM | 16 | Pcs. | $1.50 |
14 | 65317N12003Z | FRONT RIGHT SIDE COWLING | BLACK BA with sticker | 1 | Pc. | $18.00 |
15 | 65801S010000 | NUT CLIP | 6 | Pcs. | $1.50 | |
16 | 65305N120000 | PROTECTOR I | 1 | Pc. | $8.00 | |
17 | 65367N12HU00 | LEFT SIDE VENT | SILVER GRAY HU | 1 | Pc. | $8.00 |
18 | 65304N120000 | INNER FENDER | 1 | Pc. | $30.00 | |
19 | 65316N12003Z | FRONT LEFT SIDE COWLING | BLACK BA with sticker | 1 | Pc. | $18.00 |
20 | 65331N120000 | FRONT LUGGAGE BOX HINGE | 2 | Pcs. | $1.50 | |
21 | B0109060126H | FLANGE BOLT | M6×12 | 3 | Pcs. | $1.50 |
22 | 58430J000001 | LEFT CLIP ASSY | 1 | Pc. | $2.00 | |
23 | 58430J000000 | WIRE RETAINER | 1 | Pc. | $2.00 | |
24 | B0702000050H | WASHER | M5 | 1 | Pc. | $1.50 |
25 | B0507420101H | SCREW | ST4.2×10 | 6 | Pcs. | $1.50 |
26 | 65323T430001 | GLOVEBOX SEAL | 100mm | 1 | Pc. | $1.50 |
27 | 65323N120000 | BOX COVER SEAL | 360mm | 1 | Pc. | $7.00 |
31 | 65329N120000 | INNER FENDER COVER | 1 | Pc. | $7.00 | |
FLOOR PANEL | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B0507420101H | ST SCREW | ST4.2×10 | 6 | Pcs. | $1.50 |
2 | 65801T020201 | CLIP NUT | 4.2MM | 22 | Pcs. | $1.50 |
3 | 65401N120000 | LEFT FOOT PANEL | 1 | Pc. | $29.00 | |
4 | 65451N120000 | FUEL TANK COVER | 1 | Pc. | $11.00 | |
5 | B0109060126H | FLANGE BOLT | M6×12 | 2 | Pcs. | $1.50 |
6 | B0109060106H | FLANGE BOLT | M6×10 | 2 | Pcs. | $1.50 |
7 | 65423N120000 | RIGHT REAR FOOTREST DAMPER | 1 | Pc. | $10.00 | |
8 | B0109060206H | BOLT | M6×20 | 4 | Pcs. | $1.50 |
9 | 65414N120000 | RIGHT FRONT FOOTREST DAMPER | 1 | Pc. | $27.00 | |
10 | 65417N120000 | SPARK PLUG INSPECTION COVER | 1 | Pc. | $7.00 | |
11 | 27097505001X | COLLAR | 4 | Pcs. | $1.50 | |
12 | 65115N140000 | RUBBER GROMMET | 4 | Pcs. | $1.50 | |
13 | 65801S010000 | NUT CLIP | 6 | Pcs. | $1.50 | |
14 | 65405N120000 | RIGHT FOOT PANEL | 1 | Pc. | $29.00 | |
15 | B0507420160H | SCREW | ST4.2×16 | 14 | Pcs. | $1.50 |
16 | B0507420130H | SCREW | ST4.2×13 | 8 | Pcs. | $1.50 |
17 | 65406N12WF00 | BELLY PAN | WHITE WF | 1 | Pc. | $104.00 |
17 | 65406N12JJ00 | BELLY PAN | GRAY JJ | 1 | Pc. | $104.00 |
17 | 65406N12F900 | BELLY PAN | RED F9 | 1 | Pc. | $104.00 |
18 | 65413N120000 | LEFT FRONT FOOTREST DAMPER | 1 | Pc. | $27.00 | |
19 | 65424N120000 | EFI ACCESS COVER | 1 | Pc. | $7.00 | |
20 | 65411N120000 | FOOTREST COVER BOARD | 1 | Pc. | $13.00 | |
21 | 65415N120000 | LEFT REAR FOOTREST DAMPER | 1 | Pc. | $10.00 | |
23 | 53021J410100 | COLLAR | 2 | Pcs. | $1.50 | |
24 | 65313B920000 | RUBBER WASHER | 2 | Pcs. | $1.50 | |
SIDE COVERS | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 65605N12WF00 | CENTER TAIL COWLING | WHITE WF | 1 | Pc. | $41.00 |
1 | 65605N12JJ00 | CENTER TAIL COWLING | GRAY JJ | 1 | Pc. | $41.00 |
1 | 65605N12F900 | CENTER TAIL COWLING | RED F9 | 1 | Pc. | $41.00 |
2 | 65801S010000 | NUT CLIP | 2 | Pcs. | $1.50 | |
3 | B0507420160H | TAPPING SCREW | ST4.2×16 | 4 | Pcs. | $1.50 |
4 | B0507420101H | TAPPING SCREW | ST4.2×10 | 2 | Pcs. | $1.50 |
5 | 65602N12009Z | RIGHT REAR SIDE COVER | WHITE WF, WITH STICKER | 1 | Pc. | $89.00 |
5 | 65602N12012Z | RIGHT REAR SIDE COVER | RED F9, WITH STICKER | 1 | Pc. | $89.00 |
5 | 65602N12014Z | RIGHT REAR SIDE COVER | GRAY JJ, WITH STICKER | 1 | Pc. | $89.00 |
6 | B0284060180A | SCREW | M6×18 | 2 | Pcs. | $1.50 |
7 | 65604N12004Z | RIGHT FRONT SIDE COVER | WHITE WF, WITH STICKER | 1 | Pc. | $42.00 |
7 | 65604N12007Z | RIGHT FRONT SIDE COVER | RED F9, WITH STICKER | 1 | Pc. | $42.00 |
7 | 65604N12008Z | RIGHT FRONT SIDE COVER | GRAY JJ, WITH STICKER | 1 | Pc. | $42.00 |
8 | 47936S010000 | NYLON WASHER | 2 | Pcs. | $1.50 | |
9 | B0109060126H | FLANGE BOLT | M6×12 | 2 | Pcs. | $1.50 |
10 | 65308N120000 | PROTECTOR IV | 1 | Pc. | $7.00 | |
11 | 65311B910020 | NUT PLATE | 8 | Pcs. | $1.50 | |
12 | 65307N120000 | PROTECTOR III | 1 | Pc. | $7.00 | |
13 | 65603N12004Z | LEFT FRONT SIDE COVER | WHITE WF, WITH STICKER | 1 | Pc. | $42.00 |
13 | 65603N12007Z | LEFT FRONT SIDE COVER | RED F9, WITH STICKER | 1 | Pc. | $42.00 |
13 | 65603N12008Z | LEFT FRONT SIDE COVER | GRAY H8, WITH STICKER | 1 | Pc. | $42.00 |
14 | 65601N12009Z | LEFT REAR SIDE COVER | WHITE WF, WITH STICKER | 1 | Pc. | $89.00 |
14 | 65601N12012Z | LEFT REAR SIDE COVER | RED F9, WITH STICKER | 1 | Pc. | $89.00 |
14 | 65601N12014Z | LEFT REAR SIDE COVER | GRAY JJ, WITH STICKER | 1 | Pc. | $89.00 |
15 | 65608N12HU00 | TAIL COWLING DECORATIVE COVER | SILVER GRAY HU | 1 | Pc. | $8.00 |
16 | B0507420130H | SCREW | ST4.2×13 | 2 | Pcs. | $1.50 |
17 | B0284060150A | SCREW | M6×15.2 | 2 | Pcs. | $1.50 |
18 | B0709000060H | WASHER | M6 | 2 | Pcs. | $1.50 |
19 | 65618N120000 | RUBBER WASHER | 2 | Pcs. | $1.50 | |
20 | 65485N050000 | RUBBER WASHER | 2 | Pcs. | $1.50 | |
21 | 58307B450000 | COLLAR | 2 | Pcs. | $1.50 | |
REAR FENDER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B0109060166H | BOLT | M6×16 | 9 | Pcs. | $1.50 |
2 | 58850N120000 | REAR FENDER MOUNTING BRACKET I | 1 | Pc. | $8.00 | |
3 | 65723N120000 | REINFORCEMENT PLATE | 1 | Pc. | $11.00 | |
4 | B0109060126H | FLANGE BOLT | M6×12 | 2 | Pcs. | $1.50 |
5 | 65761N120001 | REAR MUD FLAP | 1 | Pc. | $18.00 | |
6 | 65770N120100 | REAR MUD FLAP BRACKET | 1 | Pc. | $14.00 | |
7 | 65803S010010 | CLIP NUT | M6 | 2 | Pcs. | $1.50 |
8 | 65720N120002 | REAR FENDER MOUNTING BRACKET | 1 | Pc. | $8.00 | |
9 | 08011H010200 | BOLT | M6×14 | 2 | Pcs. | $1.50 |
10 | 65701N120000 | REAR FENDER | 1 | Pc. | $30.00 | |
11 | B0417060004H | NUT | M6 | 2 | Pcs. | $1.50 |
12 | 08252N120000 | LICENCE PLATE MOUNTING BRACKET | 1 | Pc. | $13.00 | |
14 | 86500T030001 | REAR REFLECTOR | 1 | Pc. | $7.00 | |
15 | B0417050004H | NUT | M5 | 1 | Pc. | $1.50 |
17 | B0700000060H | LOCK WASHER | M6 | 1 | Pc. | $1.50 |
18 | B0702000060H | WASHER | M6 | 1 | Pc. | $1.50 |
19 | 86400T180002 | SIDE REFLECTOR | 2 | Pcs. | $7.00 | |
SPEEDOMETER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 70000N120002 | SPEEDOMETER ASSY | 1 | Assy. | $254.00 | |
2 | B0507420160H | TAPPING SCREW | ST4.2×16 | 6 | Pcs. | $1.50 |
3A | 70001N120001 | SPEEDOMETER COVER | 1 | Pc. | $18.00 | |

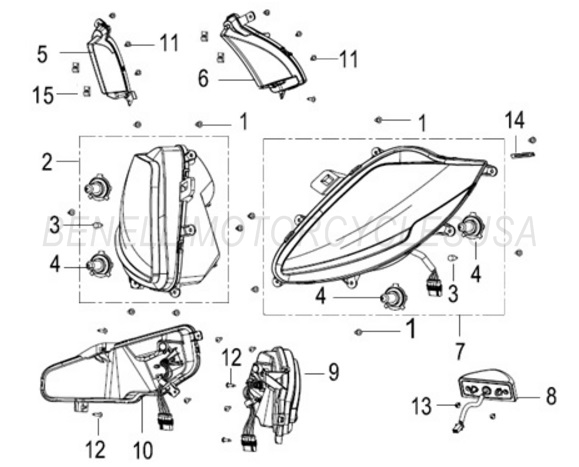

HEADLIGHT | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B0507480160H | SCREW | ST4.8×16 | 12 | Pcs. | $1.50 |
2 | 80300N120000 | RIGHT HEADLIGHT ASSY | 1 | Assy. | $112.00 | |
3 | B24013120000 | BULB | 12V/5W | 2 | Pcs. | $8.00 |
4 | B24010320010 | HEADLIGHT BULB | 12V35/35W | 4 | Pcs. | $18.00 |
5 | 81300N120000 | RIGHT FRONT TURN SIGNAL | 1 | Pc. | $66.00 | |
6 | 81100N120000 | LEFT FRONT TURN SIGNAL | 1 | Pc. | $66.00 | |
7 | 80200N120000 | LEFT HEADLIGHT ASSY | 1 | Assy. | $112.00 | |
8 | 82900N120000 | LICENCE PLATE LIGHT | 1 | Pc. | $10.00 | |
9 | 82600N120000 | RIGHT REAR TURN SIGNAL | 1 | Pc. | $69.00 | |
10 | 82500N120000 | LEFT REAR TURN SIGNAL | 1 | Pc. | $69.00 | |
11 | B0507420130H | SCREW | ST4.2×13 | 6 | Pcs. | $1.50 |
12 | B0507420160H | TAPPING SCREW | ST4.2×16 | 8 | Pcs. | $1.50 |
13 | B0507420101H | TAPPING SCREW | ST4.2×10 | 2 | Pcs. | $1.50 |
14 | 58430J000000 | WIRE RETAINER | 81MM | 2 | Pcs. | $2.00 |
15 | 65801T020201 | CLIP NUT | ST4.2MM | 4 | Pcs. | $1.50 |

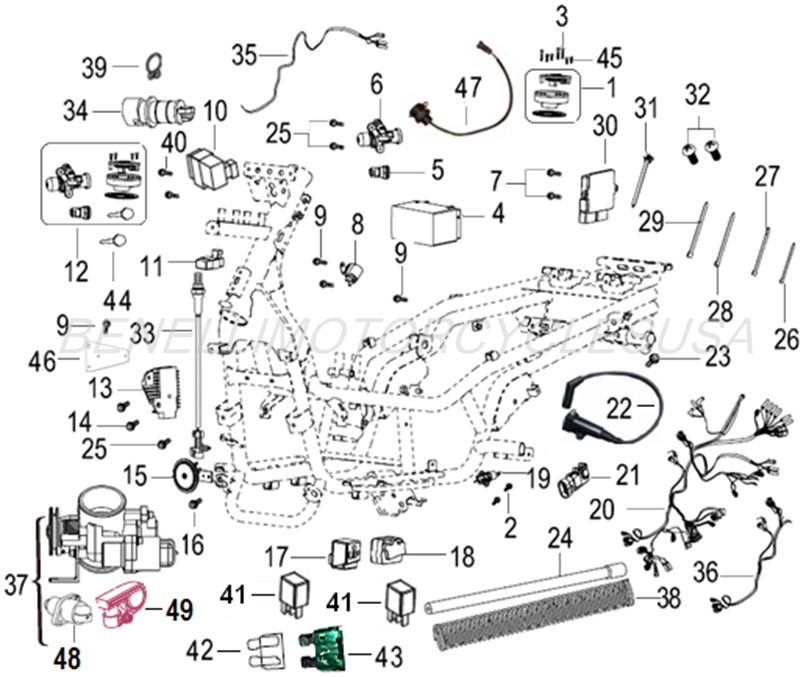

ELECTRICAL EQUIPMENT | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 88400N120000 | FUEL TANK CAP | 1 | Pc. | $48.00 | |
2 | B0205050166H | BOLT | M5×16 | 2 | Pcs. | $1.50 |
3 | B0280050300A | BOLT | M5×30 | 3 | Pcs. | $1.50 |
4 | 96100P160000 | BATTERY | YTX9-BS 8AH | 1 | Pc. | $150.00 |
5 | 88200T420000 | FRONT LUGGAGE BOX LOCK | 1 | Pc. | $27.00 | |
6 | 88100N120003 | IGNITION SWITCH | 1 | Pc. | $42.00 | |
7 | B0107060166H | FLANGE BOLT | M6×16 | 2 | Pcs. | $1.50 |
8 | 94100B400000 | STARTER RELAY | 1 | Pc. | $36.00 | |
9 | B0109060126H | FLANGE BOLT | M6×12 | 4 | Pcs. | $1.50 |
10 | 94400N140000 | CONTROLLER | mark:250T-4 | 1 | Pc. | $21.00 |
11 | 96400N120000 | FLASHER RELAY | 1 | Pc. | $48.00 | |
12 | 88000N120003 | IGNITION LOCK SET | 1 | Set | $108.00 | |
13 | 341065540010 | REGULATOR / RECTIFIER | 1 | Pc. | $39.00 | |
14 | B0109060356H | BOLT | M6×35 | 2 | Pcs. | $1.50 |
15 | 95100K670001 | HORN | 1 | Pc. | $18.00 | |
16 | B0109080166H | BOLT | M8×16 | 1 | Pc. | $1.50 |
17 | 98901S010000 | BANK ANGLE SENSOR RUBBER HOLDER | 2 | Pcs. | $7.00 | |
18 | 91210P250000 | BANK ANGLE SENSOR | 1 | Pc. | $27.00 | |
19 | 91170N070000 | SIDE STAND SWITCH | 1 | Pc. | $39.00 | |
20 | 92050N120003 | MAIN WIRE HARNESS | 1 | Pc. | $238.00 | |
ELECTRICAL EQUIPMENT CON'T. | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
21 | 280106220000 | MAP SENSOR | 1 | Pc. | $112.00 | |
22 | 96200N120000 | IGNITION COIL ASSY | 1 | Assy. | $59.00 | |
23 | B0109060406H | BOLT | M6×40 | 1 | Pc. | $1.50 |
24 | 110075130000 | MAP TUBE | 1 | Pc. | $3.50 | |
25 | B0109060166H | FLANGE BOLT | M6×16 | 3 | Pcs. | $1.50 |
26 | 96001J000000 | ZIP TIE | 150MM | 4 | Pcs. | $1.50 |
27 | 96002J000000 | ZIP TIE | 200MM | 12 | Pcs. | $3.50 |
28 | 96003J000000 | ZIP TIE | 250MM | 4 | Pcs. | $1.50 |
29 | 96004J000000 | ZIP TIE | 300MM | 1 | Pc. | $4.00 |
30 | 96C00N120003 | ECU | 1 | Pc. | $367.00 | |
31 | 96001T750000 | ZIP TIE | 150MM | 1 | Pc. | $3.50 |
32 | B0200050122H | SCREW | M5×12 | 2 | Pcs. | $1.50 |
33 | 310023160000 | OXYGEN SENSOR | 1 | Pc. | $124.00 | |
34 | 310015040000 | INTAKE AIR TEMPERATURE SENSOR | 1 | Pc. | $30.00 | |
35 | 49011S010000 | AIR TEMPERATURE SENSOR | 1 | Pc. | $8.00 | |
36 | 92070N120003 | EFI HARNESS | 1 | Pc. | $229.00 | |
36 | 92070N120007 | EFI HARNESS | 2019 | 1 | Pc. | #N/A |
37 | 289005110010 | THROTTLE BODY ASSY | 1 | Assy. | $218.00 | |
38 | 08354B920000 | PROTECTOR SPRING | 1 | Pc. | $3.50 | |
39 | B17010150003 | WIRE HOSE CLAMP | 15 | 1 | Pc. | $1.50 |
40 | B0109050126H | BOLT | M5×12 | 2 | Pcs. | $1.50 |
41 | 92039S010000 | RELAY | 2 | Pcs. | $29.00 | |
42 | 96810N120000 | FUSE | 15A | 1 | Pc. | $1.50 |
43 | 96820N120000 | FUSE | 30A | 1 | Pc. | $2.00 |
44 | 88900N12091X | KEY BLANK | 1 | Pc. | $13.00 | |
45 | B0280050140A | SCREW | M5×14 | 4 | Pcs. | $1.50 |
46 | 57591N120002 | MOUNTING PLATE | 1 | Pc. | $7.00 | |
48 | 280476030010 | STEPPER MOTOR | 1 | Pc. | #N/A | |
49 | 280756030001 | THROTTLE POSITION SENSOR | 1 | Pc. | $42.00 | |
RADIATOR AND HOSES | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 270045110000 | RADIATOR FILLER NECK W/ CAP | 1 | Pc. | $35.00 | |
2 | B0109060126H | FLANGE BOLT | M6×12 | 4 | Pcs. | $1.50 |
3 | 270063310000 | RADIATOR OVERFLOW RETURN HOSE | 1 | Pc. | $18.00 | |
4 | 06112J690000 | COOLANT RESERVOIR CAP | 1 | Pc. | $4.00 | |
5 | 06111N120000 | COOLANT RESERVOIR | 1 | Pc. | $29.00 | |
6 | 50306J690000 | HOSE CLAMP | 13.3-706R | 1 | Pcs. | $1.50 |
7 | 06105N120000 | RADIATOR OVERFLOW HOSE | 1 | Pc. | $14.00 | |
8 | 57045N140000 | BUSHING | 1 | Pc. | $4.00 | |
9 | B0109060206H | BOLT | M6×20 | 2 | Pcs. | $1.50 |
10 | 27097505001X | COLLAR | 2 | Pcs. | $1.50 | |
11 | 65115N140000 | RUBBER GROMMET | 2 | Pcs. | $1.50 | |
12 | 279195110000 | RADIATOR | 1 | Pc. | $180.00 | |
13 | 279113160010 | WATER TEMPERATURE SENSOR | 93° | 1 | Pc. | $35.00 |
14 | 14022N100000 | PROTECTOR SPRING | 3 | Pcs. | $3.50 | |
15 | 279095110000 | RADIATOR OUTLET HOSE | 1 | Pc. | $33.00 | |
16 | B0109060166H | BOLT | M6×16 | 2 | Pcs. | $1.50 |
17 | 279021170000 | RADIATOR FAN | 1 | Pc. | $104.00 | |
18 | 06103N120000 | HOSE CLAMP | 25 | 6 | Pcs. | $1.50 |
19 | 279085110000 | RADIATOR INLET HOSE | 1 | Pc. | $29.00 | |
20 | 270053310000 | RADIATOR FILLER NECK HOSE | 1 | Pc. | $18.00 | |
21 | 06107N120000 | OVERFLOW HOSE | 1 | Pc. | $14.00 | |
22 | 06103N140010 | SPRING HOSE CLAMP | 12.5 | 3 | Pcs. | $1.50 |
23 | 50376S010000 | HOSE CLAMP | 10 | 1 | Pc. | $1.50 |
TOOL KIT | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 02100N100002 | TOOL KIT | 1 | Kit | $30.00 | |
2 | 02114B910000 | FUNNEL | 1 | Pc. | $4.00 | |
3 | 02110J000000 | TOOL KIT BAG | 1 | Pc. | $3.50 | |
4 | B20020600003 | ALLEN WRENCH | 6MM | 1 | Pc. | $7.00 |
5 | B20011301603 | DOUBLE WRENCH | 13-16MM | 1 | Pc. | $4.00 |
6 | B20011001203 | DOUBLE WRENCH | 10-12MM | 1 | Pc. | $11.00 |
7 | B20020500003 | ALLEN WRENCH | 5MM | 1 | Pc. | $8.00 |
8 | 02101J000000 | SPARK PLUG WRENCH | 1 | Pc. | $3.50 | |
9 | 02102J000000 | SPARK PLUG SOCKET | 1 | Pc. | $3.50 | |
10 | 02106J000000 | SCREW DRIVER HANDLE | 1 | Pc. | $7.00 | |
11 | 02103J000000 | DOUBLE SIDED SCREW DRIVER | 1 | Pc. | $8.00 | |
GRAPHICS | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 05523N12E404 | ZAFFERANO STICKER II | WHITE | 1 | Pc. | $8.00 |
2 | 05512N120001 | LEFT SIDE COVER STICKER | 1 | Pc. | $4.00 | |
3 | 05513N120001 | RIGHTSIDE COVER STICKER | 1 | Pc. | $4.00 | |
4 | 05526N120004 | RIGHT STICKER III | 1 | Pc. | $8.00 | |
5 | 05525N120004 | LEFT STICKER III | 1 | Pc. | $8.00 | |
6 | 05515N120001 | RIGHT FRONT SIDE COVER STICKER | 1 | Pc. | $3.50 | |
7 | 05515N120004 | LEFT STICKER II | 1 | Pc. | $6.00 | |
8 | 05523N12WF04 | ZAFFERANO STICKER II | BLACK | 1 | Pc. | $8.00 |
9 | 05512N120004 | BENELLI STICKER II | 2 | Pcs. | $6.00 | |
10 | 05511N120004 | EFI STICKER | 1 | Pc. | $6.00 | |
11 | 05514N120001 | LEFT FRONT SIDE COVER STICKER | 1 | Pc. | $3.50 | |
12 | 05512N12B804 | STICKER II | 2 | Pcs. | $3.50 | |
13 | 05516N120004 | RIGHT STICKER II | 1 | Pc. | $6.00 | |
14 | 05512P250001 | BENELLI LABEL | 2 | Pcs. | $8.00 | |
15 | 05521B450000 | BENELLI LOGO | 1 | Pc. | $24.00 |
CYLINDER HEAD | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 109055090011 | CYLINDER HEAD | ASM | 1 | Pc. | $218.00 |
2 | 110045090000 | O-RING | 1.8×63.6 | 1 | Pc. | $11.00 |
3 | 12007505011X | BOLT | 1 | Pc. | $1.50 | |
4 | 150013070000 | WASHER | 1 | Pc. | $1.50 | |
5 | B0417080005H | NUT | M8 | 4 | Pcs. | $1.50 |
6 | 10004609001X | INTAKE STUD | M8×41 | 2 | Pcs. | $3.50 |
7 | 299073160000 | SPARK PLUG | NGK CR8E | 1 | Pc. | $12.00 |
8 | 12003505011X | EXHAUST STUD | M8×36.5 | 2 | Pcs. | $3.50 |
9 | 270013160002 | WATER TEMPERATURE SENSOR | 1 | Pc. | $39.00 | |
10 | B0107060206H | BOLT | M6×20 | 2 | Pcs. | $1.50 |
11 | 100175050000 | CLIP | 1 | Pc. | $3.50 | |
12 | 100085050011 | THERMOSTAT COVER | 1 | Pc. | $13.00 | |
13 | 279165050000 | THERMOSTAT | 1 | Pc. | $36.00 | |
14 | 110035090000 | CAMSHAFT RETAINER PLATE | 1 | Pc. | $8.00 | |
15 | B0107060126H | BOLT | M6×12 | 3 | Pcs. | $1.50 |
16 | 100395090000 | RETAINER PLATE COVER | 1 | Pc. | $14.00 | |
18 | 100025050000 | O-RING | 92.5X3.5 | 1 | Pc. | $11.00 |
19 | 159095050000 | BREATHER FITTING | 1 | Pc. | $4.00 | |
20 | 100025090030 | CAMSHAFT SPROCKET COVER | 1 | Pc. | $21.00 | |
21 | B0107060166H | FLANGE BOLT | M6×16 | 6 | Pcs. | $1.50 |
22 | B190100860A0 | O-RING | 8.6×1.9 | 1 | Pc. | $1.50 |
24 | 120025090010 | VALVE ADJUSTMENT INSPECTION COVER | 2 | Pcs. | $13.00 | |
25 | 120115090000 | O-RING | 1.8×60.078 | 2 | Pcs. | $11.00 |
26 | 120015090000 | VALVE STEM SEAL | 4 | Pcs. | $2.50 | |
27 | 110025090010 | CYLINDER HEAD INSPECTION COVER | SILVER | 1 | Pc. | $18.00 |
28 | B1308040100H | SCREW W/WASHER | M4×10 | 3 | Pcs. | $1.50 |
29 | 130013050000 | WASHER | 1 | Pc. | $1.50 | |
31 | 109005090040 | CYLINDER HEAD ASSY | 1 | Assy. | #N/A | |
32 | 150105090010 | GASKET | 1 | Pc. | #N/A | |
CYLINDER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 130015090000 | DOWEL PIN | 2 | Pcs. | $1.50 | |
2 | 100065090000 | CYLINDER HEAD GASKET | 1 | Pc. | $24.00 | |
3 | 139035090010 | CYLINDER | 1 | Pc. | $96.00 | |
4 | 139025090000 | CYLINDER BASE GASKET | 1 | Pc. | $8.00 | |
5 | 100156110000 | OUTLET CONNECTOR | 2 | Pcs. | $11.00 | |
6 | 270405090020 | HOSE CLAMP | 31 | 1 | Pcs. | $4.00 |
7 | 130025090000 | RADIATOR INLET HOSE | 1 | Pc. | $14.00 | |
8 | 270405090010 | HOSE CLAMP | 32 | 1 | Pc. | $4.00 |
CAM CHAIN & TENSIONER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 14008505011X | SPROCKET BOLT | 1 | Pc. | $7.00 | |
2 | 14007505001X | WASHER | 1 | Pc. | $1.50 | |
3 | 140055050000 | SPROCKET GUARD | 1 | Pc. | $8.00 | |
4 | 129035050000 | TIMING CHAIN SPROCKET | 1 | Pc. | $18.00 | |
5 | 140035050000 | TIMING CHAIN | 1 | Pc. | $27.00 | |
6 | 149025050000 | CAM CHAIN SLIDER LOWER | 1 | Pc. | $11.00 | |
7 | 149015050000 | CAM CHAIN SLIDER UPPER | 1 | Pc. | $13.00 | |
8 | B0205060166H | SCREW | M6×16 | 2 | Pcs. | $1.50 |
9 | 149035040010 | CAM CHAIN TENSIONER ASSY | 1 | Pc. | $18.00 | |
10 | 140035090010 | CAM CHAIN TENSIONER GASKET | 1 | Pc. | $2.50 | |
11 | 14004505011X | UPPER CHAIN SLIDER PIVOT BOLT | 1 | Pc. | $3.50 | |
12 | 140065050000 | O-RING | 14.8×1.9 | 1 | Pc. | $1.50 |
INTAKE & EXHAUST VALVES W/ CAMSHAFT | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 129243120000 | NUT | M5 | 4 | Pcs. | $1.50 |
2 | 129225090000 | VALVE COLLET | 8 | Pcs. | $2.50 | |
3 | 129205090000 | UPPER VALVE SPRING RETAINER | 4 | Pcs. | $7.00 | |
4 | 129265090000 | OUTER VALVE SPRING | 4 | Pcs. | $7.00 | |
5 | 129255090000 | INNER VALVE SPRING | 4 | Pcs. | $6.00 | |
6 | 129215090001 | LOWER VALVE SPRING RETAINER | 4 | Pcs. | $3.50 | |
7 | 120045090001 | INTAKE ROCKER ARM | 1 | Pc. | $30.00 | |
8 | 120035090001 | EXHAUST ROCKER ARM | 1 | Pc. | $30.00 | |
9 | 129165090000 | INTAKE ROCKER SHAFT | 2 | Pcs. | $8.00 | |
10 | 129175090000 | EXHAUST ROCKER SHAFT | 2 | Pcs. | $11.00 | |
11 | 129185090000 | INTAKE VALVE | 2 | Pcs. | $21.00 | |
12 | 129195090000 | EXHAUST VALVE | 2 | Pcs. | $27.00 | |
13 | B12016020204 | BEARING | 6202/P6 | 1 | Pc. | $8.00 |
14 | 129075090000 | CAM SHAFT | 1 | Pc. | $33.00 | |
16 | B12016000505 | BEARING | 6005/P6 | 1 | Pc. | $27.00 |
17 | 129233120000 | VALVE ADJUSTING SCREW | 4 | Pcs. | $1.50 | |
18 | 129095090000 | CAM SHAFT ASSY W/ BEARINGS | 1 | Assy. | $66.00 | |
CRANKCASE | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 15024505011X | NUT | M8 | 4 | Pcs. | $1.50 |
2 | 150175050000 | COVER | 1 | Pc. | $7.00 | |
3 | B0107060146H | BOLT | M6×14 | 2 | Pcs. | $1.50 |
4 | 150083070000 | DOWEL PIN | 10 | Pcs. | $1.50 | |
5 | 150015050000 | ENGINE MOUNT BUSHING | 2 | Pcs. | $11.00 | |
6 | 159035090010 | RIGHT CRANKCASE ASSY | 1 | Assy. | $131.00 | |
7 | 159025090060 | LEFT CRANKCASE ASSY | 1 | Assy. | $229.00 | |
8 | B12016030203 | BEARING | 6302/P6 | 1 | Pc. | $18.00 |
11A | 150012080000 | ENGINE MOUNT BUSHING | 1 | Pc. | $8.00 | |
12 | 220032080000 | GEARBOX OIL FILLER PLUG | 1 | Pc. | $4.00 | |
13 | 220042080000 | O-RING | 14×2.65 | 1 | Pc. | $1.50 |
14 | 210013050000 | SEALING WASHER | 1 | Pc. | $1.50 | |
15 | 22007208011X | BOLT | M8×16 | 1 | Pc. | $1.50 |
18 | 150035050000 | OIL SEAL | 30×45×5 | 1 | Pc. | $18.00 |
19 | 15008505001X | BOLT | M6X100 | 5 | Pcs. | $2.00 |
20 | 15007505001X | BOLT | M6X70 | 4 | Pcs. | $2.00 |
21 | 15009505001X | BOLT | M6×120 | 2 | Pcs. | $2.50 |
22 | 159105090000 | CYLINDER STUD | M8X253 | 2 | Pcs. | $11.00 |
23 | 150055090050 | OIL FILTER SCREEN CAP | 1 | Pc. | $8.00 | |
24 | 150205040000 | O-RING | 35×3.4 | 1 | Pc. | $1.50 |
25 | 150195050000 | SPRING | 1 | Pc. | $2.00 | |
26 | 150105050000 | FILTER SCREEN | 1 | Pc. | $8.00 | |
27 | 159115090000 | CYLINDER STUD | M8X260 | 2 | Pcs. | $11.00 |
28 | 150135050010 | WASHER | 4 | Pcs. | $1.50 | |
29 | 150055050000 | HOSE | 1 | Pc. | $2.50 | |
30 | 150045050000 | HOSE | 1 | Pc. | $3.50 | |
31 | B12016190603 | BEARING | 61906-2LS | 1 | Pc. | $30.00 |
32 | 150045090010 | BRACKET | 1 | Pc. | $33.00 | |
33 | B0107080206H | BOLT | M8×20 | 2 | Pcs. | $1.50 |
34 | 220075090000 | AIR PIPE | 1 | Pc. | $6.00 | |
35 | 110043050030 | CLIP | 1 | Pc. | $1.50 | |
36 | 150115050000 | GEARBOX VENT FITTING | 1 | Pc. | $7.00 | |
37 | 08001B030200 | BOLT | M8×20 | 2 | Pcs. | $1.50 |
38 | 200155090000 | PLATE | 1 | Pc. | $8.00 | |
39 | B0201060126H | SCREW | M6×12 | 2 | Pcs. | $1.50 |
40 | 15006305002X | BOLT | 1 | Pc. | $3.50 | |
41 | 200014130000 | CRUSH WASHER | 1 | Pc. | $1.50 | |
CRANKSHAFT | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 17004505011X | NUT | 1 | Pc. | $1.50 | |
2 | 17005505001X | WASHER | 1 | Pc. | $1.50 | |
3 | 179015090010 | CRANKSHAFT ASSY | 1 | Assy. | $218.00 | |
4 | 220095050000 | GEAR | 1 | Pc. | $18.00 | |
5 | B12016032801 | BEARING | 63/28/P5 | 1 | Pc. | $39.00 |
6 | 170095050000 | OIL SLING | 1 | Pc. | $14.00 | |
7 | B12016030601 | BEARING | 1 | Pc. | $39.00 | |
8 | 170025090000 | TIMING SPROCKET | 1 | Pc. | $24.00 | |
9 | 17007505002X | WASHER | 1 | Pc. | $1.50 | |
10 | 17008505001X | NUT | 1 | Pc. | $1.50 | |
11 | 170065050000 | WOODRUFF KEY | 1 | Pc. | $1.50 | |
12 | 179155050000 | PISTON PIN CLIP | 2 | Pcs. | $1.50 | |
13 | 170035090020 | PISTON RING SET | 1 | Set | $42.00 | |
14 | 179135090000 | PISTON | 1 | Pc. | $30.00 | |
15 | 179145050000 | PISTON PIN | 1 | Pc. | $6.00 | |
STARTER MOTOR / STARTER CLUTCH | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 29001307001X | BOLT | M8×18 | 6 | Pcs. | $1.50 |
3 | 240435050000 | ONE-WAY STARTER CLUTCH ASSY | 1 | Assy. | $69.00 | |
4 | 249075050001 | STARTER CLUTCH GEAR | 1 | Pc. | $24.00 | |
5 | B08010001201 | CIRCLIP | 12 | 2 | Pcs. | $1.50 |
6 | 270025050000 | SHAFT | 1 | Pc. | $7.00 | |
7 | 240025050000 | STARTER MOTOR REDUCTION GEAR | 1 | Pc. | $26.00 | |
8 | 270075050000 | WASHER | 1 | Pc. | $1.50 | |
9 | 249015050000 | STARTER MOTOR ASSY | 1 | Assy. | $112.00 | |
10 | B0107060256H | FLANGE BOLT | M6×25 | 2 | Pcs. | $1.50 |
REAR DRIVE CLUTCH | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 200025090030 | DRIVEN PULLEY ASSY | 1 | Assy. | $308.00 | |
2 | 200125050000 | OIL SEAL | 1 | Pc. | $8.00 | |
3 | B1212K251201 | NEEDLE BEARING | HK253212 | 1 | Pc. | $23.00 |
4 | B12016190301 | BEARING | 1 | Pc. | $18.00 | |
5 | B08040003101 | CIRCLIP | 2 | Pcs. | $1.50 | |
6 | 200115050010 | OUTER DRIVEN DISC SHAFT | 1 | Pc. | $72.00 | |
7 | 200215050000 | PIN | 4 | Pcs. | $1.50 | |
8 | 200105050000 | O-RING | 2 | Pc. | $4.00 | |
9 | 200085050010 | INNER DRIVEN DISC SHAFT | 1 | Pc. | $59.00 | |
10 | 200095050000 | OIL SEAL | 2 | Pc. | $11.00 | |
11 | 200195050000 | SEALING SLEEVE | 1 | Pc. | $7.00 | |
12 | 200185050000 | SPRING | 1 | Pc. | $11.00 | |
13 | 200205090000 | SLEEVE | 1 | Pc. | $7.00 | |
14 | 200305090000 | CLUTCH SHOE ASSEMBLY | 1 | Assy. | $89.00 | |
15 | 200205050000 | NUT | 1 | Pc. | $6.00 | |
16 | 200235090000 | CLUTCH HUB OUTER | 1 | Pc. | $51.00 | |

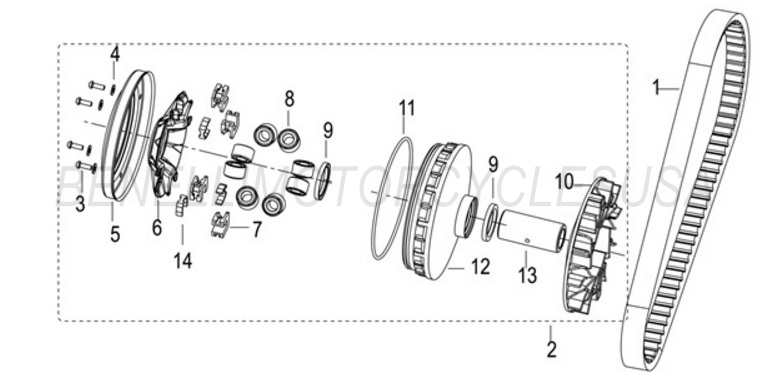

FRONT DRIVE CLUTCH | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 200085090000 | DRIVE BELT | 1006X23 | 1 | Pc. | $124.00 |
2 | 200115090020 | VARIATOR ASSY | 1 | Assy. | $104.00 | |
3 | B02000401264 | SCREW | M4X12 | 4 | Pcs. | $1.50 |
4 | 200015050000 | SHIM | 4 | Pcs. | $1.50 | |
5 | 200265050000 | COVER | 1 | Pc. | $13.00 | |
6 | 200055050000 | SLIDING DISC | 1 | Pc. | $21.00 | |
7 | 200075050000 | SLIDING DISC GUIDE | 4 | Pcs. | $2.00 | |
8 | 200065090010 | ROLLER WEIGHT SET (8 PIECES) | 11G | 1 | Set | $29.00 |
9 | 160035050000 | OIL SEAL | 2 | Pcs. | $8.00 | |
10 | 200245050000 | ACTIVE DISK FAN | 1 | Pc. | $30.00 | |
11 | 200045050000 | O-RING | 1 | Pc. | $8.00 | |
12 | 200025050000 | RIGHT ACTIVE DISK | 1 | Pc. | $59.00 | |
13 | 200235050000 | AXLE SLEEVE | length 60.5mm | 1 | Pc. | $16.00 |
14 | 200065050000 | BRACKET | 4 | Pcs. | $3.50 | |
RIGHT CRANKCASE COVER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 160035050H00 | BOLT | M6×40 | 10 | Pcs. | $1.50 |
2 | 169185050000 | OIL LEVEL DIPSTICK | 1 | Pc. | $8.00 | |
3 | B190101900B1 | O-RING | 19×2.65 | 1 | Pc. | $1.50 |
4 | 169105050100 | RIGHT CRANKCASE COVER | 1 | Pc. | $72.00 | |
5 | B0205060256H | BOLT | M6×25 | 3 | Pcs. | $1.50 |
6 | 150025050000 | O-RING | 16×2.4 | 1 | Pc. | $1.50 |
7 | 169165050020 | INSPECTION PLUG | BLACK | 1 | Pc. | $7.00 |
8 | 169115050010 | RIGHT ENGINE COVER GASKET | 1 | Pc. | $18.00 | |
9 | 160015050000 | OIL SEAL | 14×27×8 | 1 | Pc. | $1.50 |
10 | B08000002800 | CIRCLIP | 28 | 1 | Pc. | $2.00 |
LEFT CRANKCASE COVER | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 160135090000 | DRIVE BELT COVER GASKET | 1 | Pc. | $14.00 | |
2 | 169025090110 | DRIVE BELT COVER | BLACK mark:BENELLI | 1 | Pc. | $95.00 |
3 | 160045090000 | DRIVE BELT COVER FILTER SCREEN | 1 | Pc. | $11.00 | |
4 | 160035090000 | DRIVE BELT COVER FILTER | 1 | Pc. | $7.00 | |
5 | 270025090001 | DRIVE BELT FILTER COVER | 1 | Pc. | $14.00 | |
6 | B0107060206H | BOLT | M6×20 | 3 | Pcs. | $1.50 |
7 | 200663070120 | BOLT | M6×42 | 9 | Pcs. | $1.50 |
TRANSMISSION | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 220125090000 | OUTPUT SHAFT | 1 | Pc. | $69.00 | |
2 | 220175090000 | IDLER SHAFT | 1 | Pc. | $27.00 | |
3 | 150155050000 | NEEDLE BEARING | NK152815 | 2 | Pcs. | $13.00 |
4 | 150085090000 | OIL SEAL | 38X58X10 | 1 | Pc. | $10.00 |
5 | 220235090000 | GEAR BOX COVER GASKET | 1 | Pc. | $18.00 | |
6 | 229105090020 | GEAR BOX COVER | 1 | Pc. | $89.00 | |
11 | 15023505011X | BOLT | M8 | 6 | Pcs. | $1.50 |
12 | B08010002501 | CIRCLIP | 25 | 1 | Pc. | $1.50 |
13 | B12016030303 | BEARING | 6303/P6 | 1 | Pc. | $30.00 |
14 | 220185090000 | WASHER | 15×40×1.5 | 2 | Pcs. | $1.50 |
15 | 210013050000 | CRUSH WASHER | 1 | Pc. | $1.50 | |
16 | 22007208011X | BOLT | M8×16 | 1 | Pc. | $1.50 |
17 | B12016020507 | BEARING | 6205/P6 | 1 | Pc. | $18.00 |
18 | 220115090000 | DRIVE SHAFT | 1 | Pc. | $30.00 | |
19 | 150083070000 | DOWEL PIN | 2 | Pcs. | $1.50 | |
20 | B12016000600 | BEARING | 6006-2RS | 1 | Pc. | $14.00 |
21 | 150173070000 | CIRCLIP | 14 | 1 | Pc. | $1.50 |
22 | 17008505001X | NUT | 1 | Pc. | $1.50 | |
24 | 220265090000 | O-RING | 25×2 | 1 | Pc. | $1.50 |
25 | 220225090000 | SPACER | 1 | Pc. | $8.00 | |
26 | 220165090000 | MIDDLE SHAFT GEAR | 1 | Pc. | $30.00 | |
27 | 220135090000 | OUTPUT SHAFT GEAR | 1 | Pc. | $33.00 | |
28 | 220145090000 | WASHER | 25×59×0.5 | 1 | Pc. | $1.50 |
29 | 220155090000 | WASHER | 22×32×2.5 | 1 | Pc. | $1.50 |
30 | 150145050000 | OIL SEAL | 25×42×6 | 1 | Pc. | $14.00 |
31 | 220215090000 | WASHER | 21×56.5×0.5 | 1 | Pc. | $1.50 |
32 | B190102700A0 | O-RING | 27x2 | 1 | Pc. | $1.50 |

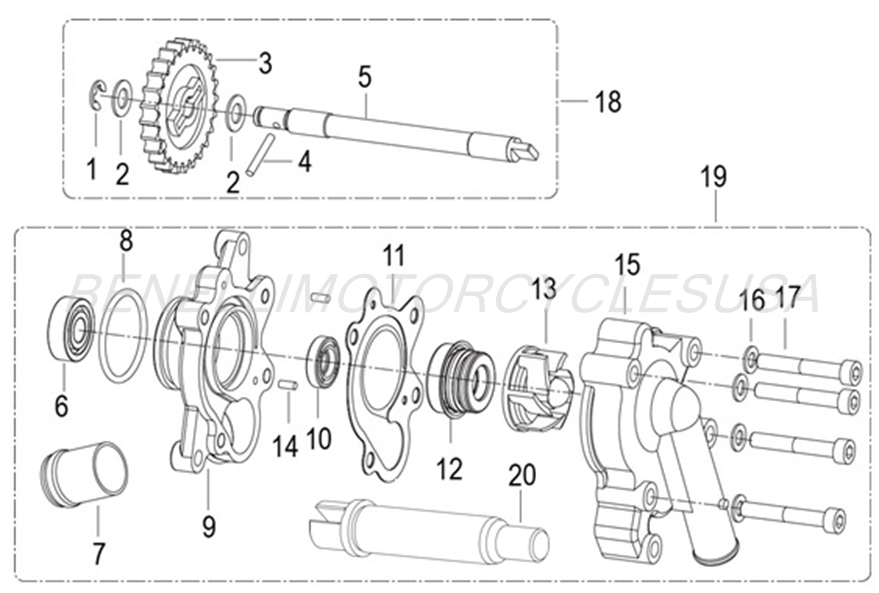

WATER PUMP | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B08030000601 | CIRCLIP | 1 | Pc. | $1.50 | |
2 | 260135050000 | WASHER | 2 | Pcs. | $2.50 | |
3 | 270115050000 | WATER PUMP GEAR | 1 | Pc. | $13.00 | |
4 | B090103022B0 | ROLL PIN | B3×22 | 1 | Pc. | $1.50 |
5 | 279225050000 | WATER PUMP SHAFT | 1 | Pc. | $10.00 | |
6 | B12016000002 | BEARING | 6000 | 1 | Pc. | $11.00 |
7 | 100156110000 | OUTLET CONNECTOR | 1 | Pc. | $11.00 | |
8 | B190100335B0 | O-RING | 1 | Pc. | $2.50 | |
9 | 279315090000 | WATER PUMP BODY | 1 | Pc. | $30.00 | |
10 | 270195050000 | OIL SEAL | 1 | Pc. | $2.50 | |
11 | 270325050000 | WATER PUMP COVER GASKET | 1 | Pc. | $3.50 | |
12 | 270216030000 | MECHANICAL SEAL ASSY | 1 | Assy. | $11.00 | |
13 | 279215050000 | IMPELLER | 1 | Pc. | $13.00 | |
14 | B091403008B0 | ROLL PIN | B3×8 | 2 | Pcs. | $1.50 |
15 | 279335050000 | WATER PUMP COVER | 1 | Pc. | $39.00 | |
16 | 120085050000 | WASHER | 4 | Pcs. | $1.50 | |
17 | B0283060356H | BOLT | M6×35 | 4 | Pcs. | $1.50 |
18 | 271005050010 | WATER PUMP GEAR ASSY | 1 | Assy. | $18.00 | |
19 | 279255090000 | WATER PUMP ASSY | 1 | Assy. | $60.00 | |
20 | 27022505001X | IMPELLER SHAFT | 1 | Pc. | $7.00 | |

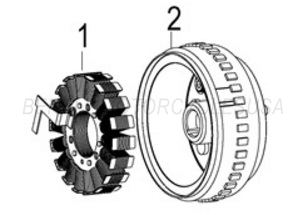

STATOR | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 299035110010 | STATOR | 1 | Pc. | $96.00 | |
2 | 299025110010 | ROTOR | 1 | Pc. | $168.00 | |
OIL PUMP | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | B08030000601 | CIRCLIP | 1 | Pc. | $1.50 | |
2 | 280023180000 | WASHER | 1 | Pc. | $1.50 | |
3 | 269065050000 | OIL PUMP GEAR | 1 | Pc. | $13.00 | |
4 | B090103022B0 | ROLL PIN | B3×22 | 1 | Pc. | $1.50 |
5 | B02010602563 | SCREW | M6×25 | 2 | Pcs. | $1.50 |
6 | 269096160000 | OIL PUMP BODY | 1 | Pc. | $11.00 | |
7 | 260033090000 | OIL PUMP EXTERNAL ROTOR | 1 | Pc. | $14.00 | |
8 | 260023090000 | OIL PUMP INTERNAL ROTOR | 1 | Pc. | $14.00 | |
9 | 269086160000 | OIL PUMP SHAFT | 1 | Pc. | $11.00 | |
10 | B09012501220 | ROLL PIN | B2.5×12 | 1 | Pc. | $1.50 |
11 | 269105050000 | OIL PUMP COVER | 1 | Pc. | $8.00 | |
12 | 260045050000 | GASKET | 1 | Pc. | $3.50 | |
13 | B091403014B0 | PARALLEL PIN | B3×14 | 2 | Pcs. | $1.50 |
14 | B02000300862 | SCREW | M3×8 | 1 | Pc. | $1.50 |
15 | 269016160000 | OIL PUMP ASSY | 1 | Assy. | $77.00 | |

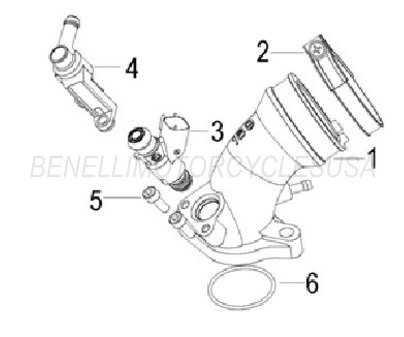

EFI SYSTEM | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | 119015110020 | INTAKE MANIFOLD | 1 | Pc. | $48.00 | |
2 | 49350T090000 | CLAMP | 40-60 | 1 | Pc. | $7.00 |
3 | 289035110010 | FUEL INJECTOR | 1 | Pc. | $112.00 | |
4 | 280075110010 | FUEL INJECTOR RAIL | 1 | Pc. | $18.00 | |
5 | B0205050146H | SCREW | M5×14 | 2 | Pcs. | $1.50 |
6 | 110035050000 | O-RING | 35×2 | 1 | Pc. | $2.50 |
ENGINE ASSY. | ||||||
NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
1 | C2511022CD00 | ENGINE ASSEMBLY | *OVERSIZE* | 1 | Assy. | $1,325.00 |
