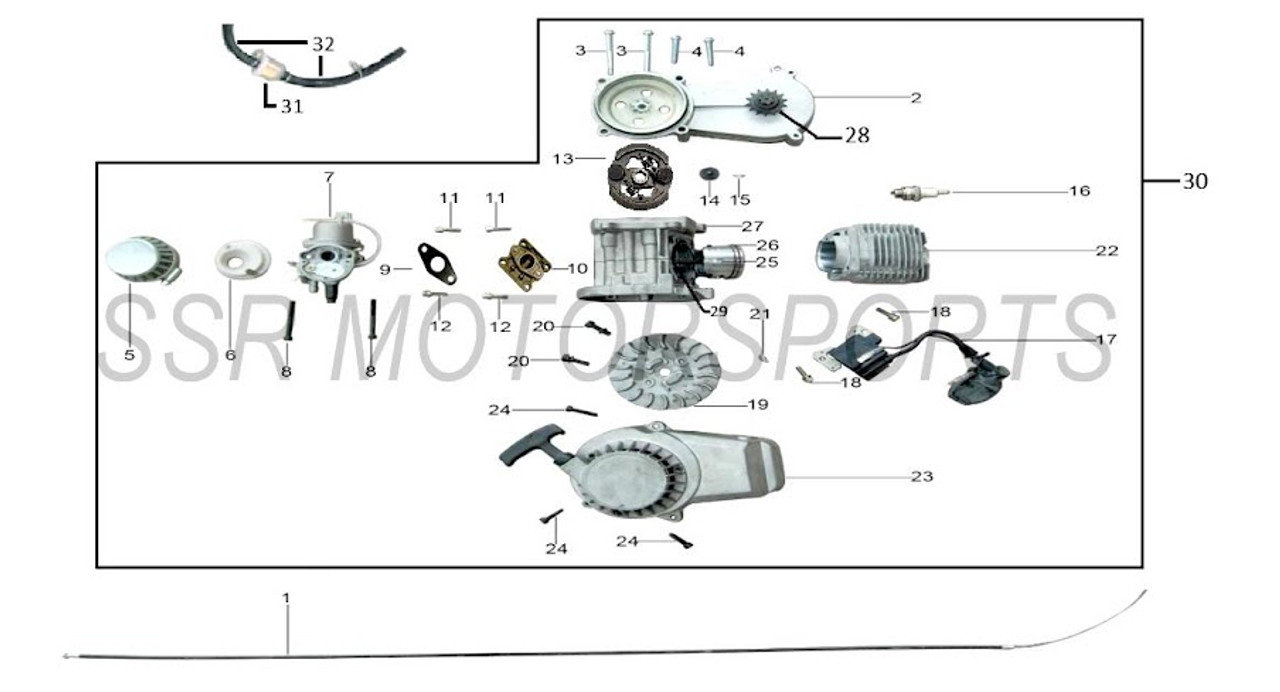

2016-2018 SSR SX50 (Engine)
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | PRICE |
| 1 | A00279-05-00 | THROTTLE CABLE | 700 120 | 1 | Pc. | $13.00 |
| 2 | A00202-17-00 | TRANSMISSION BOX | 1 | Pc. | $42.00 | |
| 3 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 2 | Pcs. | $1.50 |
| 4 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 2 | Pcs. | $1.00 |
| 5 | A00209-14-00 | AIR FILTER | 1 | Pc. | $13.00 | |
| 6 | A00210-14-00 | AIR FILTER ADAPTER | 1 | Pc. | $8.00 | |
| 7 | A00253-12-00 | CARBURETOR | READ NOTE | 1 | Pc. | $32.00 |
| 8 | A00171-19-03 | ALLEN BOLT | M6X20 | 2 | Pcs. | $1.00 |
| 9 | A00211-14-00 | INTAKE INSULATOR | ORDER THESE PARTS | 1 | Pc. | DISCONTINUED - SEE NOTE |
| 10 | A00295-14-00 | REED CAGE | 1 | Pc. | $13.00 | |
| 11 | A00172-19-03 | BOLT | 2 | Pcs. | $1.00 | |
| 12 | A00173-19-03 | BOLT | 2 | Pcs. | $1.00 | |
| 13 | A01232-09-00 | CLUTCH ASSY | 1 | Assy. | $25.00 | |
| 14 | A01233-09-00 | CLUTCH LOCK NUT | 1 | Pc. | $1.00 | |
| 15 | A00021-28-01 | WOODRUFF KEY | 1 | Pc. | $2.00 | |
| 16 | BM6A | SPARK PLUG | BM6A | 1 | Pc. | $8.00 |
| 17 | A00407-08-00 | IGNITION COIL | 1 | Pc. | $21.00 | |
| 18 | A00174-19-03 | ALLEN BOLT | 2 | Pcs. | $1.00 | |
| 19 | A00991-09-00 | FLYWHEEL | 1 | Pc. | $6.00 | |
| 20 | A00175-19-03 | BOLT | 2 | Pcs. | $1.00 | |
| 21 | A00022-28-01 | PIN | 1 | Pc. | $2.00 | |
| 22 | A00992-09-00 | CYLINDER/HEAD | 1 | Pc. | $42.00 | |
| 23 | A00960-09-00 | PULL START ASSY | 1 | Assy. | $25.00 | |
| 24 | A00401-19-X2 | ALLEN BOLT | M5X50 | 3 | Pcs. | $1.50 |
| 25 | A00994-09-00 | PISTON | 1 | Pc. | $25.00 | |
| 26 | A00995-09-00 | PISTON RING SET | 1 | Set | $13.00 | |
| 27 | A00996-09-00 | CRANKCASE | 1 | Pc. | $32.00 | |
| 28 | A00354-07-00 | COUNTERSHAFT SPROCKET | 11T | 1 | Pc. | $11.00 |
| 29 | A02483-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $33.00 | |
| 30 | A02496-09-00 | ENGINE ASSY | 1 | Assy. | $99.00 | |
| 31 | A00254-12-00 | FUEL FILTER | 1 | Pc. | $3.50 | |
| 32 | A00255-12-00 | FUEL LINE | 1 | Pc. | $6.00 | |
| 33 | A00338-12-00 | FUEL PETCOCK | INLINE | 1 | Pc. | $18.00 |
-
-
-
-
-
-
-
-
-
