  • (25) Hammerhead Tie Rod End

    • (25) Hammerhead Tie Rod End

    Hammerhead By Polaris

    $17.99
    (No reviews yet) Write a Review
    SKU:
    6.000.062
    Availability:
    CALL (320)-358-1994 FOR BEST SHIPPING!
    Adding to cart… category.add_cart_announcement

    Product Description

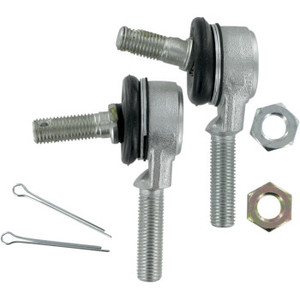

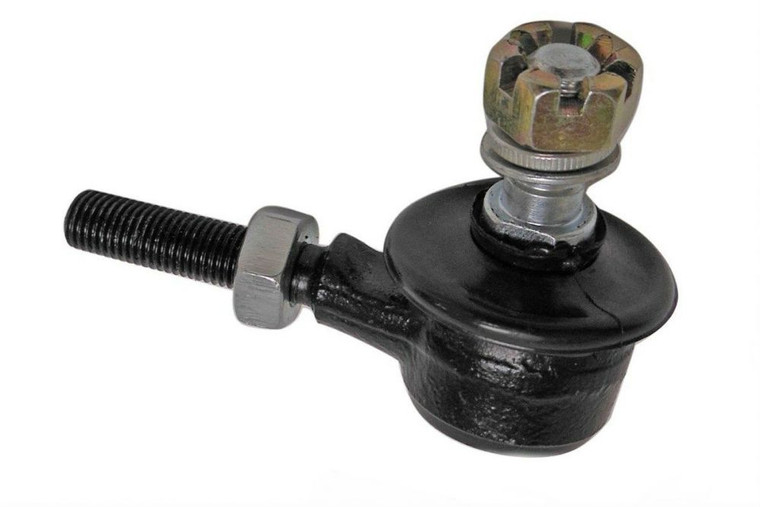

    The tie rod end attaches the tie rod to the strut. This tie rod end is used on nearly all Hammerhead 150cc and 250cc buggies, except for the GTS 250 which uses part # 6.000.062-250.

    **Some manuals might say 6.000.062-250, but the -250 tie rod end is ONLY used on the GTS250 with enclosed sides and 5-point seatbelts.**

    Measurements:

    • Long Bolt threaded length: 1.5" / 40mm:
      • Thickness: M10 (Metric 10mm)
      • REVERSE THREADS
    • Short Bolt threaded length: 19/32" (0.6") / 16mm
      • Thickness M10 (Metric 10mm)
      • Standard threads

    The tie rod may or may not come with reverse thread nut on long bolt, and two (2) washers and castle nut for short end. Cotter pin will not be included even if other hardware is.  It depends how we receive these from the factory whether or not they will come with the proper hardware.



    PART#S

    Hammerhead Part # 6.000.062
    Carter Brothers part # 536-3009
    Trailmaster part # 6.000.062-250 (different than Hammerhead part # 6.000.062-250
    Trailmaster part # 6000062250G000
