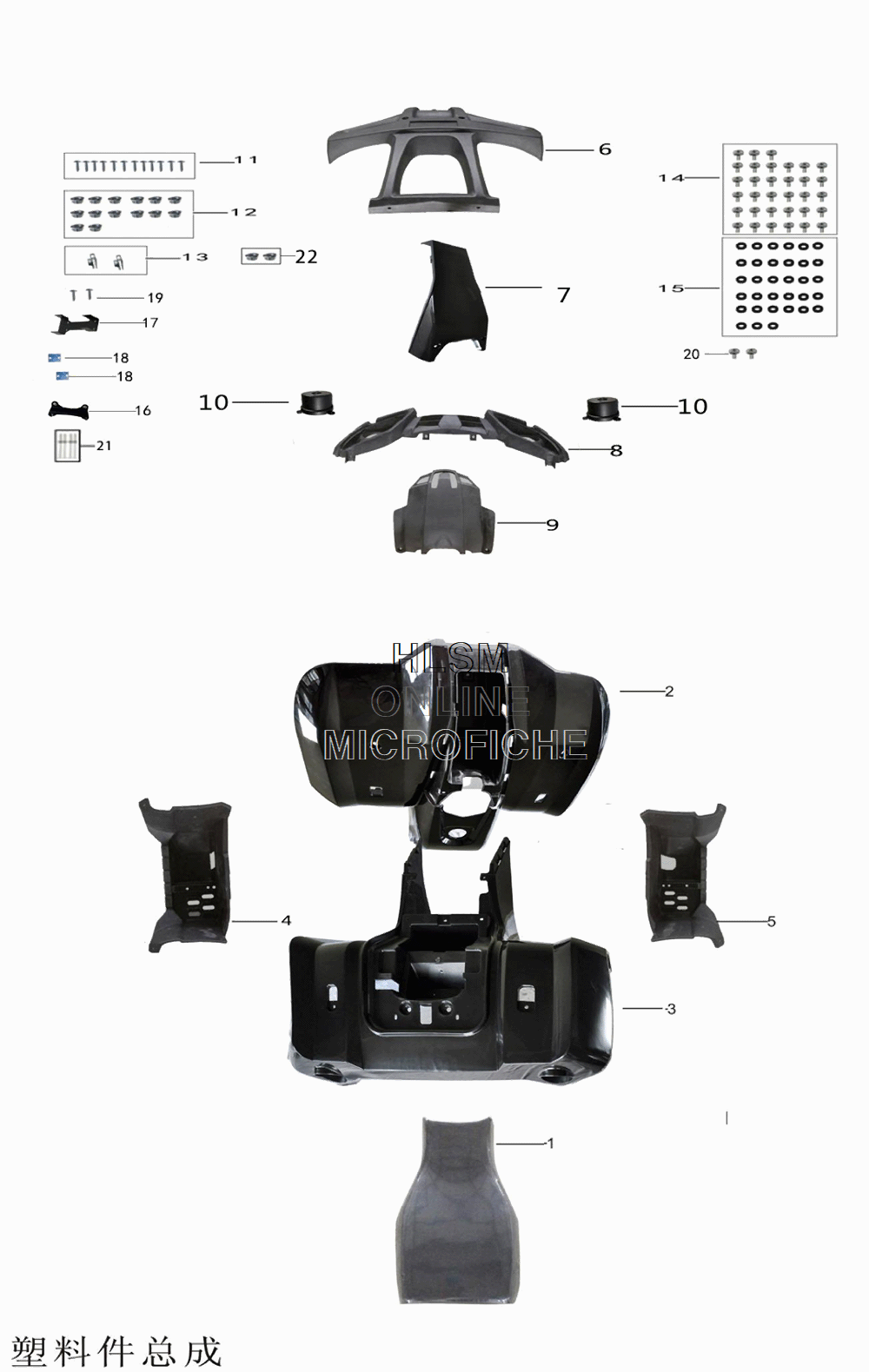

Body Panels with Seat

No. U8 Code EN name Qty/vehicle QTY Retail
1 701000-0041 seat 1 /ea $ 59.50
2 803004-0010-02 front cover black 1 /ea $ 76.50
2-1 803004-0010-01 front cover white 1 /ea $ 76.50
3 803004-0011 rear plastics black 1 /ea $ 76.50
4 803004-0016 left plastic footpeg black 1 /ea $ 47.60
5 803004-0017 right plastic footpeg black 1 /ea $ 47.60
6 803004-0013 bumper cover 1 /ea $ 42.50
7 803004-0012-02 head cover black 1 /ea $ 30.60
7 803004-0012 head cover white 1 /ea $ 30.60
8 308006-0016-02 headlight assy Φ75.5 1 /ea $ 37.40
9 308006-0018-02 Front display cover black 1 /ea $ 22.10
9 308006-0018 Front display cover white 1 /ea $ 22.10
10 308006-0017 headlight cover 2 /ea $ 13.60
11 903010-0004-02 screw ST4.2*12 12 /ea $ 3.40
11 903010-0004-03 screw ST4.2*12(1.1.24~) 12 /ea $ 3.40
12 903006-0002-02 nut M6 14 /ea $ 3.40
12 903006-0002-03 nut M6(1.1.24~) 14 /ea $ 3.40
13 903008-0019 nut M6 11*17.2*1.0 2 /ea $ 3.40
13 903008-0019-02 nut M6 11*17.2*1.0(1.1.24~) 2 /ea $ 3.40
14 903012-0007-02 screw TM6*16 33 /ea $ 3.40
14 903012-0007-03 screw TM6*16(1.1.24~) 3 /ea $ 3.40
15 908003-0002 flat washer 'Φ5.5*15*2 33 /ea $ 2.55
16 568000-0103 front head cover bracket 80*22+2*M5 1 /ea $ 13.60
17 315001-0005 Electrical fixing frame 100*43.5*29 1 /ea $ 13.60
18 315003-0004 CDI support plate 27.5*21*1.5 2 /ea $ 10.20
19 903009-0005-02 screw M5*12 2 /ea $ 3.40
19 903009-0005-03 screw M5*12(1.1.24~) 2 /ea $ 3.40
20 903010-0006-02 screw ST4.8*12 2 /ea $ 2.55
20 903010-0006-03 screw ST4.8*12(1.1.24~) 2 /ea $ 2.55
21 905001-0003 rivet Φ3.5*12 4 /ea $ 3.40
22 903007-0002-02 nut M6 2 /ea $ 3.40
22 903007-0002-03 nut M6(1.1.24~) 2 /ea $ 3.40
