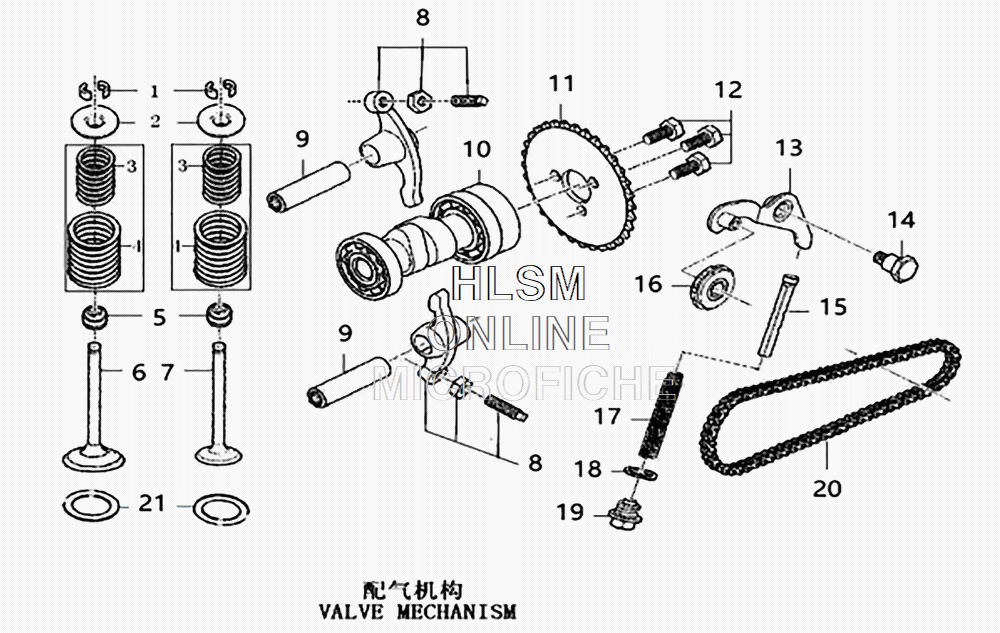

Cam Shaft W/ Valves Assembly
| VALVE MECHANISM | |||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | H01021-0110 | Valve Locker | 4 | /ea | $ 6.80 |
| 2 | H01021-0100 | SpRing,Seat | 2 | /ea | $ 8.50 |
| 3 | H01021-0090 | Valve Inner Spring | 2 | /ea | $ 8.50 |
| 4 | H01021-0080 | Valve Outer Spring | 2 | /ea | $ 8.50 |
| 5 | H01021-0020 | Seal Valve Stem | 2 | /ea | $ 10.20 |
| 6 | H01021-0060 | Intake Valve | 1 | /ea | $ 25.50 |
| 7 | H01021-0070 | Exhaust Valve | 1 | /ea | $ 25.50 |
| 8 | H01021-0040 | Rocker Arm Assembly Valve | 2 | /ea | $ 17.00 |
| 9 | H01021-0050 | Rocker Shaft | 2 | /ea | $ 8.50 |
| 10 | H01021-0030 | Gamp Shaft Comp | 1 | /ea | $ 40.80 |
| 11 | H01023-0010 | Timing Driven Sprocket | 1 | /ea | $ 25.50 |
| 12 | A00100-0501-65 | Bolt,M5×12 | 3 | /ea | $ 5.10 |
| 13 | H01023-0030 | Chain Adjusting Set | 1 | /ea | $ 17.00 |
| 14 | H01023-0050 | Axle Tensioner Lever | 1 | /ea | $ 13.60 |
| 15 | H01023-0070 | Cam Chain Tensioner Push Rod | 1 | /ea | $ 25.50 |
| 16 | H01023-0040 | Chain Tensioning Wheel | 1 | /ea | $ 25.50 |
| 17 | H01023-0060 | Spring | 1 | /ea | $ 17.00 |
| 18 | A00160-1402 | Washer,Φ14×Φ20×1.5 | 1 | /ea | $ 5.10 |
| 19 | H01023-0130 | Sealing Plug M14×1.5 | 1 | /ea | $ 17.00 |
| 20 | H01023-0020 | Sproket Chain | 1 | /ea | $ 25.50 |
| 21 | H01021-0120 | Outer Valve SpRing,Retainer | 2 | /ea | $ 8.50 |
