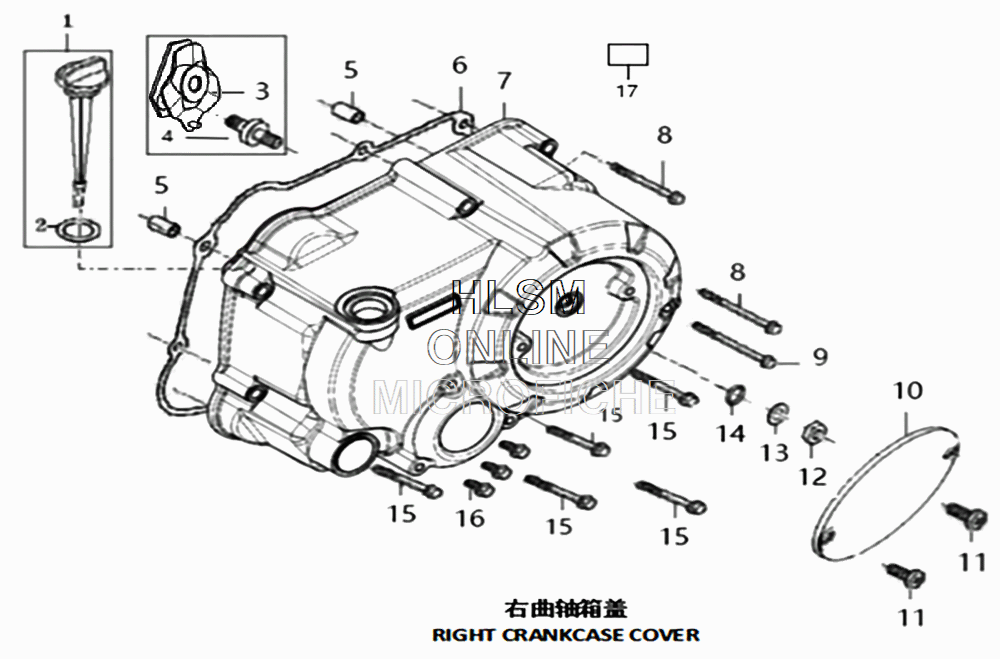

Crankcase Cover - Right
| RIGHT CRANKCASE COVER | |||||
| No. | U8 Code | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | H01010-0131 | Oil Ruler Assy | 1 | /ea | $ 25.50 |
| 2 | A00280-1801 | O-Ring,φ18×3.5 | 1 | /ea | $ 6.80 |
| 3 | H01051-0041 | Clutch Tappet | 1 | /ea | $ 20.40 |
| 4 | H01051-0031 | Clutch adjusting bolt | 1 | /ea | $ 8.50 |
| 5 | A00206-0803 | Dowel Pin,φ8×12×φ7 | 2 | /ea | $ 6.80 |
| 6 | H01010-0110 | Gasket R.Crankcase Cover | 1 | /ea | $ 17.00 |
| 7 | H01010-0040 | Cover Comp Right Crankcase | 1 | /ea | $ 68.00 |
| 8 | A00103-0617-24 | Bolt, M6×85 | 2 | /ea | $ 8.50 |
| 9 | A00103-0614-24 | Bolt, M6×70 | 1 | /ea | $ 6.80 |
| 10 | H01010-0060 | Decorate Cover R.Crankcase Cover | 1 | /ea | $ 25.50 |
| 11 | A00124-0601-24 | Screw, M6×12 | 2 | /ea | $ 5.10 |
| 12 | A00140-0801-24 | Nut, M8 | 1 | /ea | $ 5.10 |
| 13 | A00160-0803 | Washer 8x16x2 | 1 | /ea | $ 5.10 |
| 14 | A00280-0703 | O-Ring,φ7.5x1.8 | 1 | /ea | $ 5.10 |
| 15 | A00103-0609-24 | Bolt, M6×40 | 5 | /ea | $ 6.80 |
| 16 | A00103-0611-24 | Bolt, M6×6 | 3 | /ea | $ 6.80 |
| 17 | H01100-0300 | Oil label | 1 | /ea | $ 5.10 |
