| No. |
U8 Code |
EN name |
Qty/vehicle |
QTY |
Retail |
| 1 |
404000-0161 |

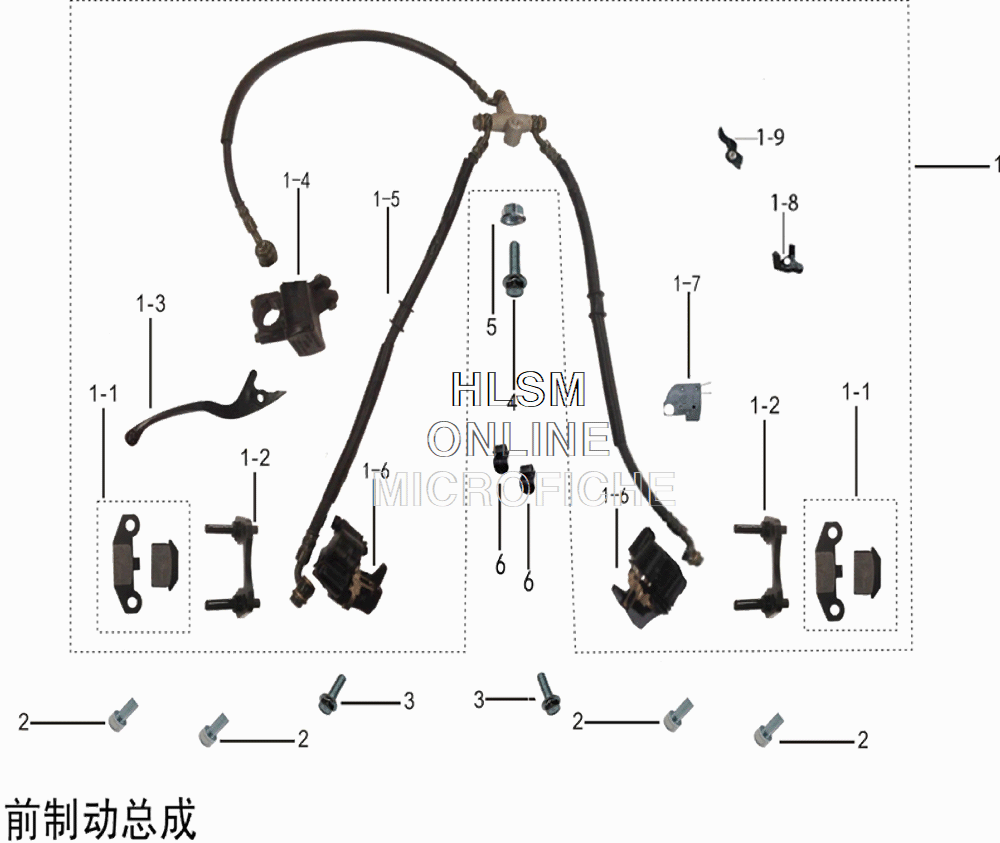

front brake assy 'L=460+440*2 |
1 |
/ea |
$ 110.50 |
| 1 |
404000-0161-02 |
front brake assy 'L=460+440*2(1.1.24~) |
1 |
/ea |
$ 110.50 |
| 1-1 |
404007-0011 |
front brake pad |
2 |
/ea |
$ 13.60 |
| 1-2 |
404008-0011 |
front brake bracket |
2 |
/ea |
$ 13.60 |
| 1-3 |
404002-0016 |
brake lever |
1 |
/ea |
$ 17.00 |
| 1-4 |
404003-0007 |
Front brake upper cylinder |
1 |
/ea |
$ 28.90 |
| 1-5 |
404005-0020 |
Front brake oil pipe L=460+440*2 |
1 |
/ea |
$ 34.00 |
| 1-6 |
404006-0008 |
Front brake lower cylinder |
1 |
/ea |
$ 34.00 |
| 1-7 |
404011-0014 |
front brake switch |
1 |
/ea |
$ 8.50 |
| 1-7 |
404011-0022 |
front brake switch(1.1.24~) |
1 |
/ea |
$ 10.20 |
| 1-8 |
404011-0009 |
front brake lock tab/bracket |
1 |
/ea |
$ 13.60 |
| 1-9 |
404011-0010 |
front park lock kit |
1 |
/ea |
$ 13.60 |
| 2 |
903019-0012-02 |
flange bolt M8*16 |
4 |
/ea |
$ 3.40 |
| 2 |
903019-0012-03 |
flange bolt M8*16(1.1.24~) |
4 |
/ea |
$ 3.40 |
| 3 |
903018-0003-02 |
flange bolt M6*12 |
2 |
/ea |
$ 3.40 |
| 3 |
903018-0003-03 |
flange bolt M6*12(1.1.24~) |
2 |
/ea |
$ 3.40 |
| 4 |
903018-0011 |
flange bolt M8*35 |
1 |
/ea |
$ 5.10 |
| 4 |
903018-0011-02 |
flange bolt M8*35(1.1.24~) |
1 |
/ea |
$ 5.10 |
| 5 |
903007-0004-02 |
nut M8 |
1 |
/ea |
$ 3.40 |
| 5 |
903007-0005 |
nut M8 90309-KV8-8400(1.1.24~) |
1 |
/ea |
$ 3.40 |
| 6 |
405010-0002 |
rear brake oil pipe clamp |
2 |
/ea |
$ 6.80 |
