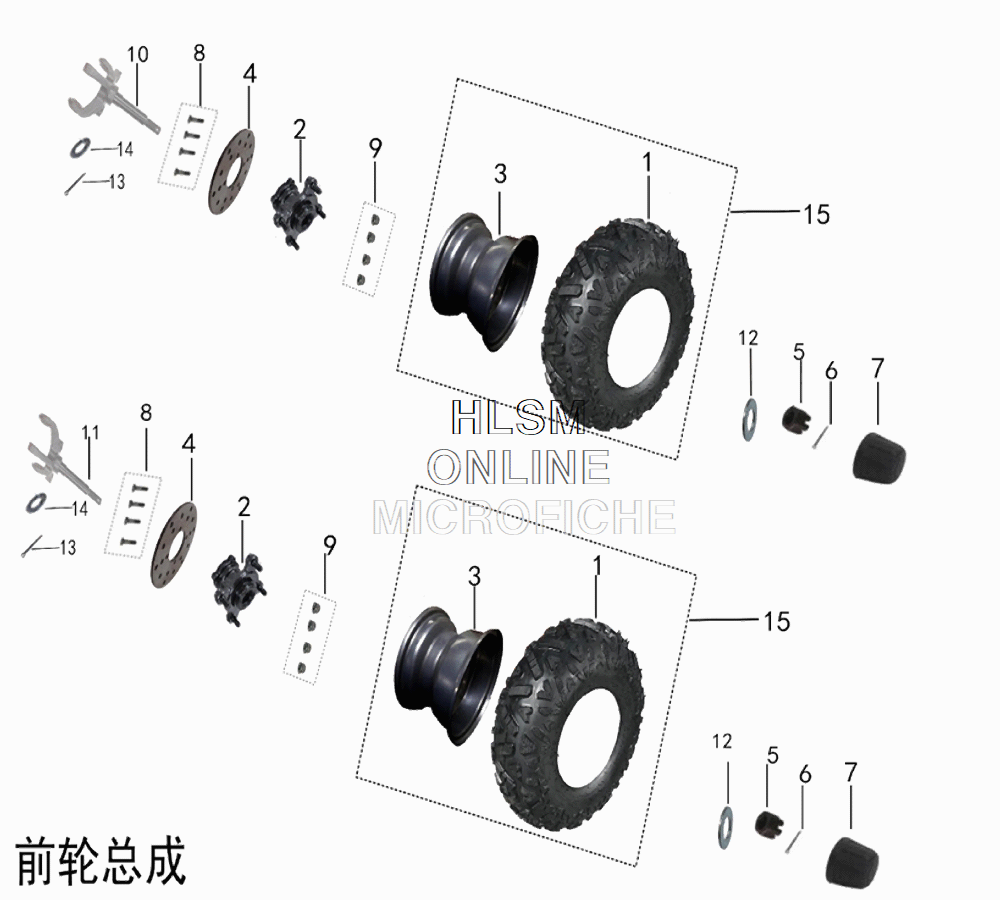

No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
1 | 401006-0030 | front tire 'AT19*7.0-8 | 2 | /ea | $ 76.50 |
2 | 401003-0008 | front hub | 2 | /ea | $ 51.00 |
3 | 401000-0058 | front rim 8*5.5AT-4/88 67 | 2 | /ea | $ 59.50 |
4 | 404001-0014 | front brake disc | 2 | /ea | $ 27.20 |
5 | 903008-0011 | slotted nut M14*1.5*H18 | 2 | /ea | $ 8.50 |
5 | 903008-0011-02 | slotted nut M14*1.5*H18(1.1.24~) | 2 | /ea | $ 8.50 |
6 | 904002-0004-02 | cotter pin 3*20 | 2 | /ea | $ 3.40 |
6 | 904002-0004-03 | cotter pin 3*20(1.1.24~) | 2 | /ea | $ 3.40 |
7 | 401011-0001 | hub cover | 2 | /ea | $ 8.50 |
8 | 903014-0001 | screw M6*16 | 8 | /ea | $ 5.10 |
8 | 903014-0001-03 | screw M6*16(1.1.24~) | 8 | /ea | $ 5.10 |
9 | 903007-0004-02 | flange locknut M8 | 8 | /ea | $ 3.40 |
9 | 903007-0005 | flange locknut M8 | 8 | /ea | $ 3.40 |
10 | 603002-0009 | left knuckle | 1 | /ea | $ 40.80 |
11 | 603002-0010 | right knuckle | 1 | /ea | $ 40.80 |
12 | 903002-0013-02 | flat washer Φ15*30*2.5 | 2 | /ea | $ 6.80 |
12 | 903002-0013-03 | flat washer Φ15*30*2.5(1.1.24~) | 2 | /ea | $ 6.80 |
13 | 904002-0002-02 | cotter pin 2.5*24 | 2 | /ea | $ 3.40 |
13 | 904002-0002-03 | cotter pin 2.5*24(1.1.24~) | 2 | /ea | $ 3.40 |
14 | 903002-0008-02 | flat washer Φ10*20*2 | 2 | /ea | $ 5.10 |
14 | 903002-0008-03 | flat washer Φ10*20*2(1.1.24~) | 2 | /ea | $ 5.10 |
15 | 401012-0007L | left front wheel assy | 1 | /ea | $ 136.00 |
15 | 401012-0007R | right front wheel assy | 1 | /ea | $ 136.00 |
