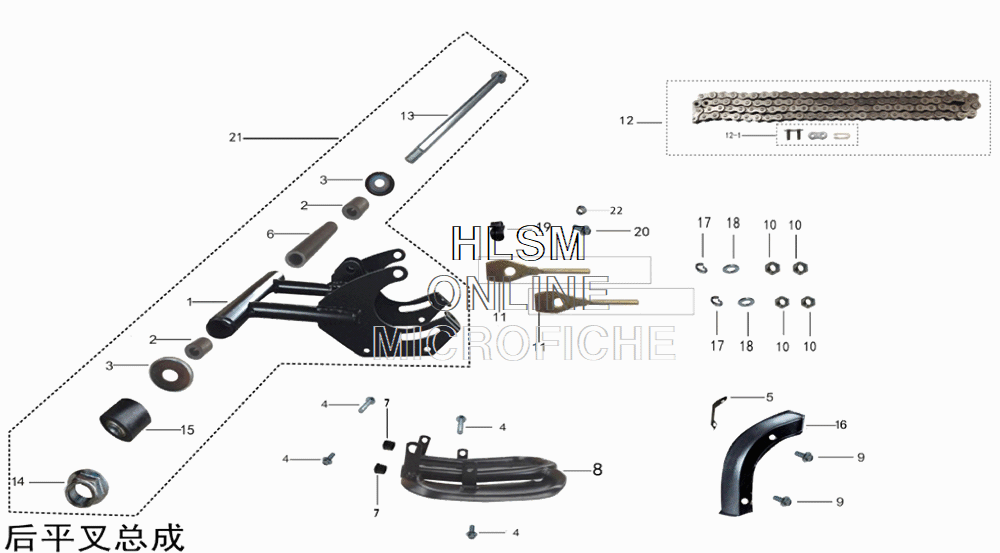

| No. |
U8 Code |
EN name |
Qty/vehicle |
QTY |
Retail |
| 1 |
563000-0014-01 |
Rear fork 289*200*56 |
1 |
/ea |
$ 68.00 |
| 1 |
563000-0030-01 |
Rear fork L=289(1.1.24~) |
1 |
/ea |
$ 68.00 |
| 2 |
902001-0053 |
spacer bush Φ12.3*24*29 |
2 |
/ea |
$ 6.80 |
| 3 |
908007-0007 |
sealed cap 'Φ12*35*H8+Φ27.5*6.5 |
2 |
/ea |
$ 6.80 |
| 4 |
903015-0005 |
screw M8*16 |
4 |
/ea |
$ 3.40 |
| 4 |
903015-0005-02 |
screw M8*16(1.1.24~) |
4 |
/ea |
$ 3.40 |
| 5 |
568000-0010 |
chain cover plate 57*20 |
1 |
/ea |
$ 8.50 |
| 6 |
901003-0007 |
inner sleeve Φ12.5*19*L143 |
1 |
/ea |
$ 17.00 |
| 7 |
908004-0002 |
plug Φ9*16*H14 |
2 |
/ea |
$ 3.40 |
| 8 |
568000-0004 |
chain support assy |
1 |
/ea |
$ 25.50 |
| 9 |
903018-0003-02 |
flange bolt M6*12 |
2 |
/ea |
$ 3.40 |
| 9 |
903018-0003-03 |
flange bolt M6*12(1.1.24~) |
2 |
/ea |
$ 3.40 |
| 10 |
903005-0007-02 |
nut M8 94001-08000-0S |
4 |
/ea |
$ 3.40 |
| 10 |
903005-0007-03 |
nut M8 94001-08000-0S(1.1.24~) |
4 |
/ea |
$ 3.40 |
| 11 |
203003-0009 |
chain ajuster Φ13*M8*85 |
2 |
/ea |
$ 11.90 |
| 12 |
203000-0086 |
chain 420H 86L |
1 |
/ea |
$ 42.50 |
| 12-1 |
203001-0002 |
chain joint 420H |
1 |
/ea |
$ 6.80 |
| 13 |
901001-0022 |
flange axle Φ12*236*M12*1.25mm |
1 |
/ea |
$ 20.40 |
| 14 |
903007-0008 |
flange locknut M12*1.25 |
1 |
/ea |
$ 8.50 |
| 14 |
903007-0008-02 |
flange locknut M12*1.25(1.1.24~) |
1 |
/ea |
$ 8.50 |
| 15 |
203004-0024 |
chain guide bush 'Φ30.5*43*H38 |
1 |
/ea |
$ 20.40 |
| 16 |
203004-0027 |
chain cover |
1 |
/ea |
$ 17.00 |
| 17 |
903001-0003 |
spring washer Φ8*13*2 |
2 |
/ea |
$ 3.40 |
| 17 |
903001-0003-02 |
spring washer Φ8*13*2(1.1.24~) |
2 |
/ea |
$ 3.40 |
| 18 |
903002-0004-02 |
bush Φ8*16*1.5 |
2 |
/ea |
$ 3.40 |
| 18 |
903002-0004-03 |
bush Φ8*16*1.5(1.1.24~) |
2 |
/ea |
$ 3.40 |
| 19 |
405010-0001 |
rear brake oil pipe clamp |
1 |
/ea |
$ 5.10 |
| 20 |
903019-0003 |
flange bolt M6*16 |
1 |
/ea |
$ 3.40 |
| 20 |
903019-0003-02 |
flange bolt M6*16(1.1.24~) |
1 |
/ea |
$ 3.40 |
| 21 |
C90004-0086 |
swingarm assy |
1 |
/ea |
$ 127.50 |
| 22 |
903007-0002-02 |
nut M6 |
1 |
/ea |
$ 3.40 |
| 22 |
903007-0002-03 |
nut M6(1.1.24~) |
1 |
/ea |
$ 3.40 |
