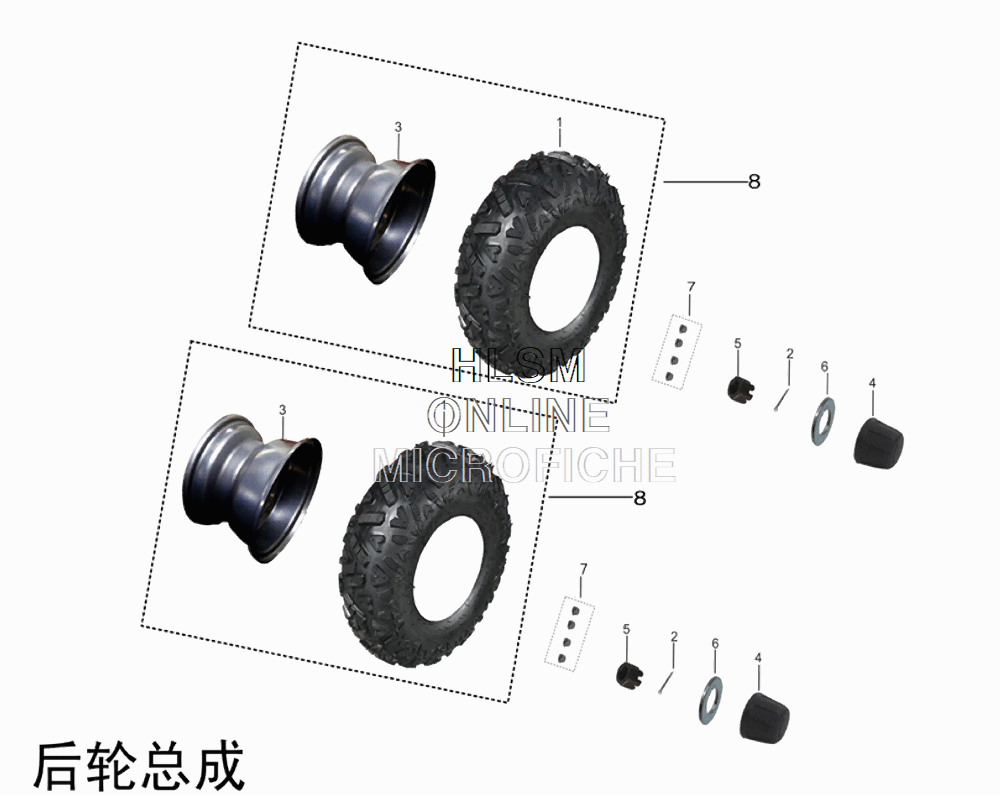

| No. |
U8 Code |
EN name |
Qty/vehicle |
QTY |
Retail |
| 1 |
402006-0020 |
rear tire AT18*9.5-8 |
2 |
/ea |
$ 85.00 |
| 2 |
904002-0006-02 |
cotter pin 4*28 |
2 |
/ea |
$ 3.40 |
| 2 |
904002-0006-03 |
cotter pin 4*28(1.1.24~) |
2 |
/ea |
$ 3.40 |
| 3 |
402000-0064 |
rear rim 8*7.0AT-4/110 90 |
2 |
/ea |
$ 59.50 |
| 4 |
401011-0001 |
hub cover |
2 |
/ea |
$ 8.50 |
| 5 |
903008-0030 |
nut M16*1.5*H18 |
2 |
/ea |
$ 8.50 |
| 5 |
903008-0030-02 |
nut M16*1.5*H18(1.1.24~) |
2 |
/ea |
$ 8.50 |
| 6 |
903002-0014 |
flat washer Φ17*48*3 |
2 |
/ea |
$ 6.80 |
| 6 |
903002-0014-02 |
flat washer Φ17*48*3(1.1.24~) |
2 |
/ea |
$ 6.80 |
| 7 |
903007-0006 |
flange locknut M10*1.25 |
8 |
/ea |
$ 5.10 |
| 7 |
903007-0006-02 |
flange locknut M10*1.25(1.1.24~) |
8 |
/ea |
$ 5.10 |
| 8 |
402008-0008L |
left rear wheel assy |
1 |
/ea |
$ 144.50 |
| 8 |
402008-0008R |
right rear wheel assy |
1 |
/ea |
$ 144.50 |
