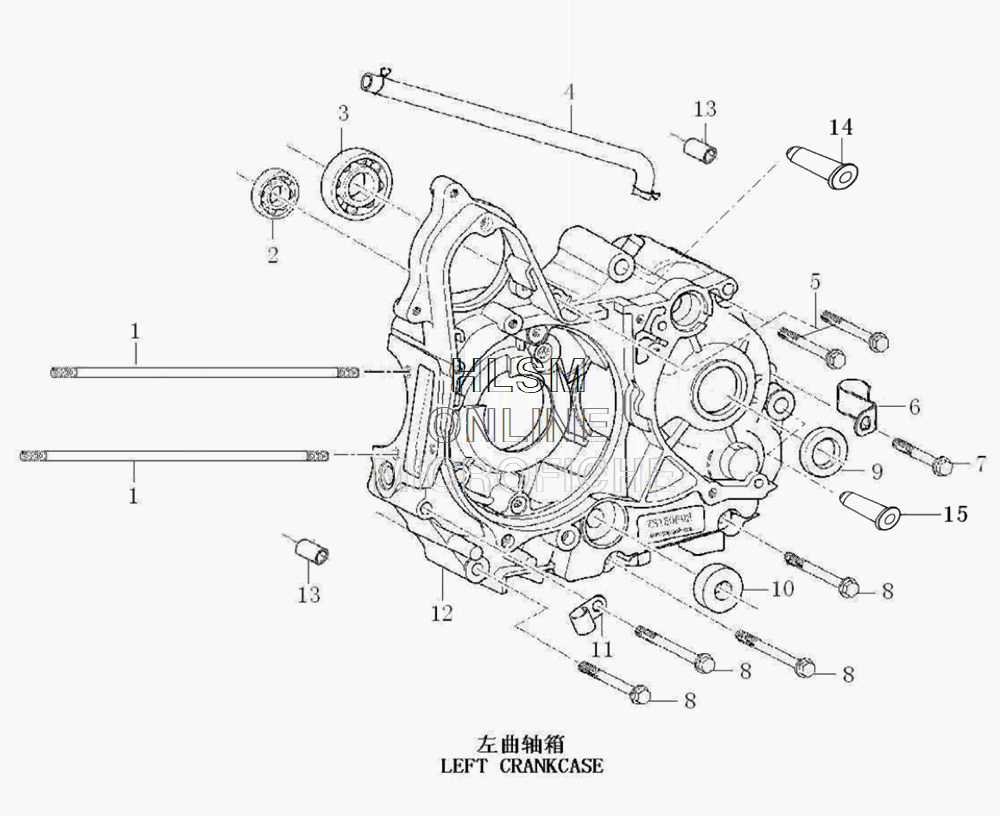

Crankcase - Left
 |
|||||
| LEFT CRANKCASE | |||||
| No. | NEW PART NUMBER | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101038-0518 | Cylinder Stud Bolt A | 2 | /ea | $ 20.40 |
| 2 | 101038-0399 | Bearing, 6001 | 1 | /ea | $ 13.60 |
| 3 | 101038-0401 | Bearing, 6203 | 1 | /ea | $ 17.00 |
| 4 | 101038-0428 | Pipe Assy | 1 | /ea | $ 8.50 |
| 5 | 101038-0556 | Bolt, M6×60 | 2 | /ea | $ 6.80 |
| 6 | 101038-0570 | Clip High Voltage Wire | 1 | /ea | $ 6.80 |
| 7 | 101038-0555 | Bolt, M6×50 | 1 | /ea | $ 8.50 |
| 8 | 101038-0557 | Bolt, M6×65 | 4 | /ea | $ 8.50 |
| 9 | 101038-0458 | Oil Seal 17×29×5 | 1 | /ea | $ 17.00 |
| 10 | 101038-0457 | Oil Seal 11.6×24×10 | 1 | /ea | $ 17.00 |
| 11 | 101038-0578 | Clip Overflow Pipe | 1 | /ea | $ 6.80 |
| 12 | 101038-0567 | Left Crankcase Block | 1 | /ea | $ 85.00 |
| 13 | 101038-0423 | Pin,φ10×14 | 2 | /ea | $ 6.80 |
| 14 | 101038-0485 | Absorber Sleeve | 1 | /ea | $ 13.60 |
| 15 | 101038-0484 | Absorber Sleeve | 1 | /ea | $ 13.60 |
