Starter
 |
|||||

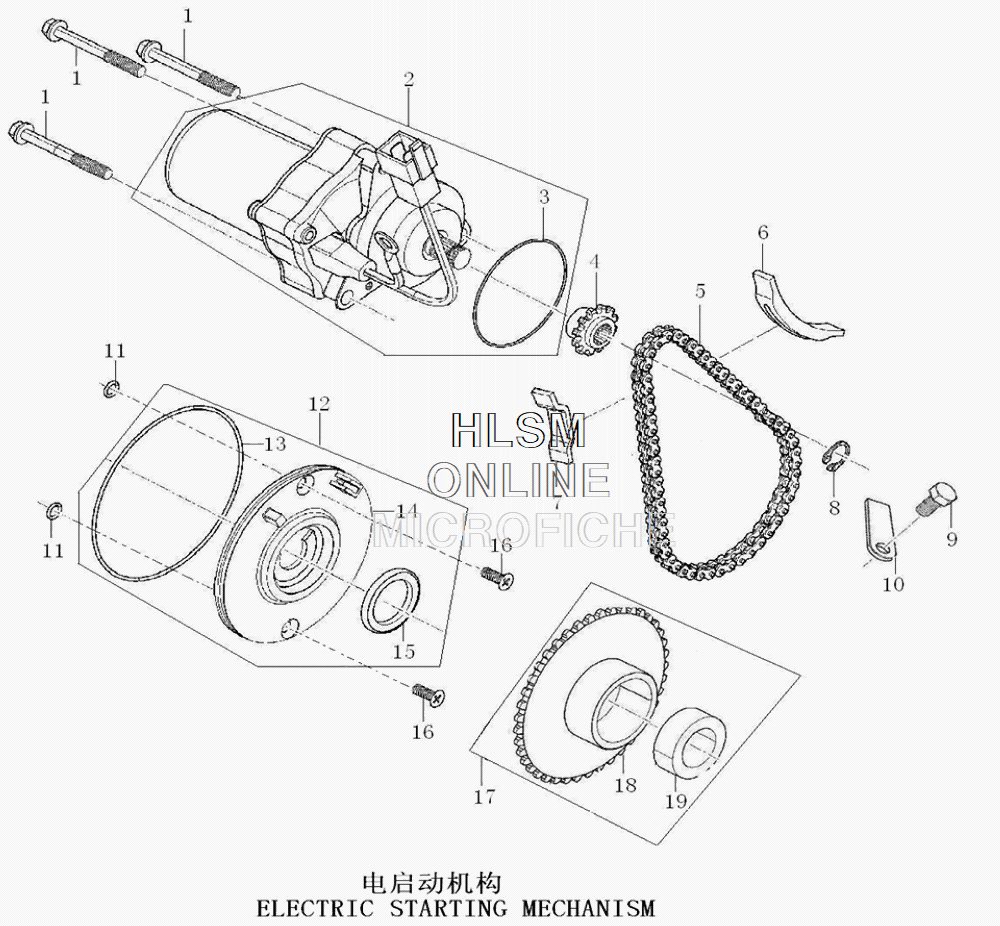

| ELECTRIC STARTING MECHANISM | |||||
| No. | NEW PART NUMBER | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101038-0555 | Bolt, M6×50 | 3 | /ea | $ 6.80 |
| 2 | 101038-0588 | Starting Motor Assy | 1 | /ea | $ 51.00 |
| 3 | 101038-0499 | O-Ring,φ52.5×2 | 1 | /ea | $ 6.80 |
| 4 | 101038-0451 | Sprocket | 1 | /ea | $ 13.60 |
| 5 | 101038-0432 | Starting Motor Drive Chain | 1 | /ea | $ 17.00 |
| 6 | 101038-0434 | Assembly Guide Plate | 1 | /ea | $ 13.60 |
| 7 | 101038-0433 | Assembly Chain Protect Plate | 1 | /ea | $ 13.60 |
| 8 | 101038-0405 | Retaining Ring, 11 | 1 | /ea | $ 8.50 |
| 9 | 101038-0542 | Bolt, M6×12 | 1 | /ea | $ 5.10 |
| 10 | 101038-0431 | Plate Start Clutch | 1 | /ea | $ 8.50 |
| 11 | 101038-0500 | O-Ring,φ6.5×1.8 | 2 | /ea | $ 5.10 |
| 12 | 101038-0509 | Disk Insulator | 1 | /ea | $ 34.00 |
| 16 | 101038-0563 | Screw, M6×16 | 2 | /ea | $ 5.10 |
| 17 | 101038-0510 | Plate Gear Assy | 1 | /ea | $ 42.50 |
