Stator Assembly
 |
|||||

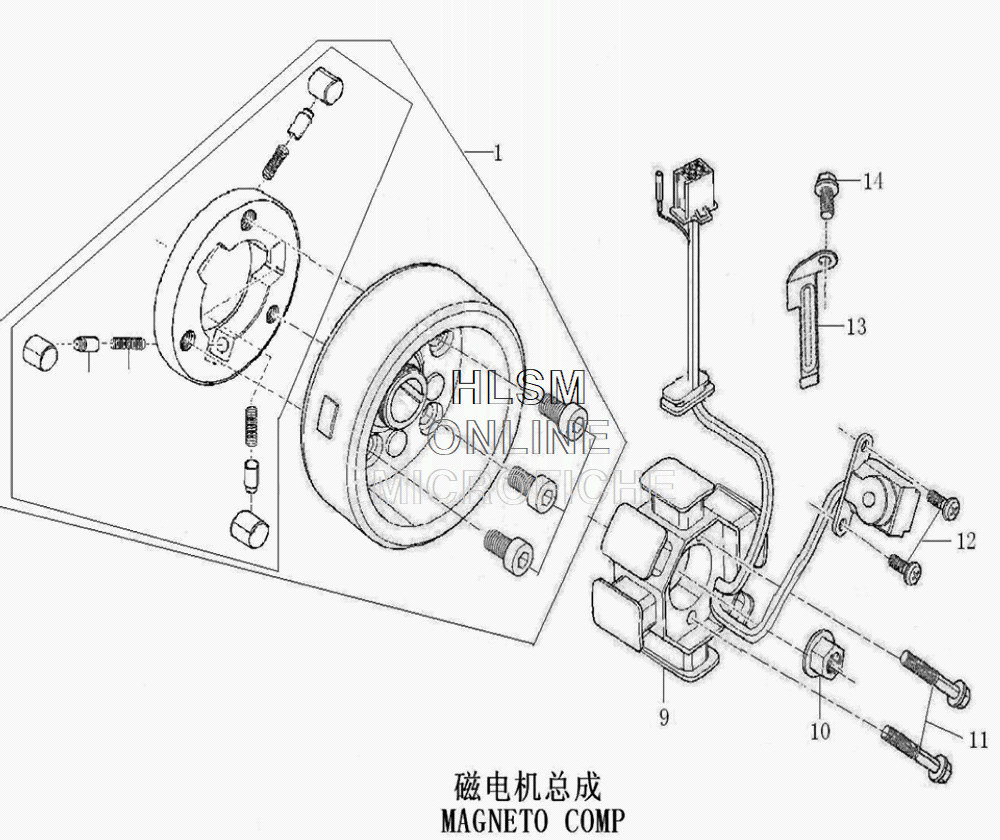

| MAGNETO COMP | |||||
| No. | NEW PART NUMBER | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101038-0450 | Rotor Assy Magneto | 1 | /ea | $ 42.50 |
| 9 | 101038-0587 | Stator Assy Magneto | 1 | /ea | $ 42.50 |
| 10 | 101038-0586 | Nut | 1 | /ea | $ 8.50 |
| 11 | 101038-0549 | Bolt, M6×22 | 2 | /ea | $ 5.10 |
| 12 | 101038-0541 | Bolt, M5×12 | 2 | /ea | $ 5.10 |
| 13 | 101038-0429 | Fixing Plate Magneto Cable | 1 | /ea | $ 6.80 |
| 14 | 101038-0546 | Bolt, M6×16 | 1 | /ea | $ 5.10 |
