- Home
- PARTS/ACCESSORIES/SCHEMATICS
- ATV PARTS BY MAKE & MODEL
- Kayo Atv Parts
- Kayo Fox/Storm
- Kayo Fox/Storm 70 (2016-2023)
- Frame

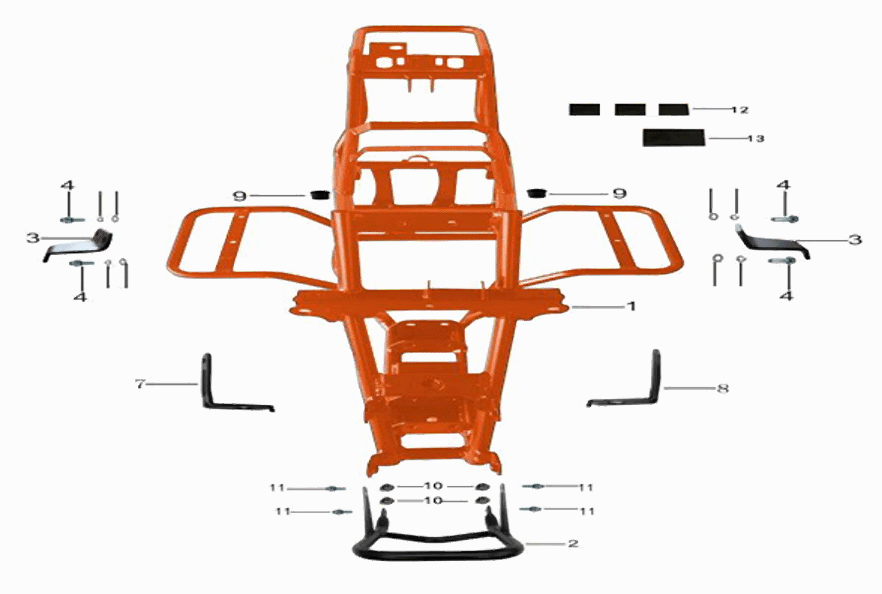

Frame
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 561000-0041-01 | frame | 1 | /ea | $ 408.00 |
| 1 | 561000-0048-01 | frame(black) | 1 | /ea | $ 408.00 |
| 1-1 | 561000-0048-02 | frame(orange) | 1 | /ea | $ 408.00 |
| 2 | 704000-0001-01 | bumper | 1 | /ea | $ 42.50 |
| 3 | 568000-0006 | engine hanger | 2 | /ea | $ 17.00 |
| 4 | 903020-0030 | bolt | 4 | /ea | $ 3.40 |
| 7 | 568000-0009 | front fixer for right plastic | 1 | /ea | $ 13.60 |
| 8 | 568000-0008 | front fixer for left plastic | 1 | /ea | $ 13.60 |
| 9 | 908004-0003 | plug | 2 | /ea | $ 6.80 |
| 10 | 903007-0004-02 | nut | 4 | /ea | $ 3.40 |
| 11 | 903019-0012-02 | bolt | 4 | /ea | $ 3.40 |
| 12 | 909010-0001 | cushion | 3 | /ea | $ 3.40 |
| 13 | 909010-0008 | cushion | 1 | /ea | $ 3.40 |
