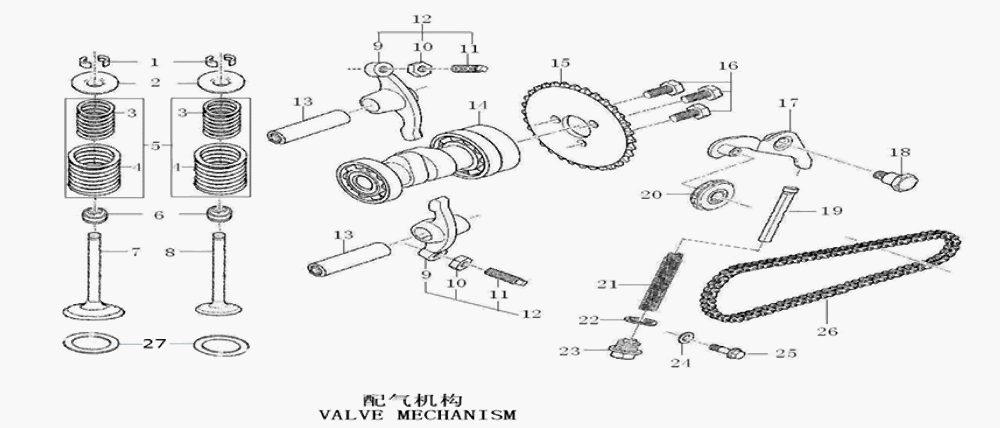

Cam Shaft W/ Valves Assembly
  |
|||||
| VALVE MECHANISM | |||||
| No. | NEW part number | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101038-0480 | Valve Locker | 4 | /ea | $ 6.80 |
| 2 | 101038-0478 | SpRing,Seat | 2 | /ea | $ 8.50 |
| 3 | 101038-0477 | Valve Inner Spring | 2 | /ea | $ 8.50 |
| 4 | 101038-0476 | Valve Outer Spring | 2 | /ea | $ 8.50 |
| 5 | 101038-0481 | Inner SpRing,Assy | 2 | /ea | $ 17.00 |
| 6 | 101038-0482 | Seal Valve Stem | 2 | /ea | $ 10.20 |
| 7 | 101038-0505 | Intake Valve | 1 | /ea | $ 25.50 |
| 8 | 101038-0506 | Exhaust Valve | 1 | /ea | $ 25.50 |
| 9 | 101038-0466 | Rocker Arm | 2 | /ea | $ 17.00 |
| 10 | 101038-0468 | Nut Valve Clearance | 2 | /ea | $ 5.10 |
| 11 | 101038-0469 | Screw,Valve Clearance | 2 | /ea | $ 5.10 |
| 12 | 101038-0470 | Rocker Arm Assembly Valve | 2 | /ea | $ 34.00 |
| 13 | 101038-0467 | Rocker Shaft | 2 | /ea | $ 8.50 |
| 14 | 101038-0410 | Gamp Shaft Comp | 1 | /ea | $ 40.80 |
| 15 | 101038-0464 | Timing Driven Sprocket | 1 | /ea | $ 25.50 |
| 16 | 101038-0415 | Bolt,M5×12 | 3 | /ea | $ 5.10 |
| 17 | 101038-0475 | Chain Adjusting Set | 1 | /ea | $ 17.00 |
| 18 | 101038-0472 | Axle Tensioner Lever | 1 | /ea | $ 13.60 |
| 19 | 101038-0474 | Cam Chain Tensioner Push Rod | 1 | /ea | $ 25.50 |
| 20 | 101038-0473 | Chain Tensioning Wheel | 1 | /ea | $ 25.50 |
| 21 | 101038-0471 | Spring | 1 | /ea | $ 17.00 |
| 22 | 101038-0493 | Washer,φ14×1.5×φ20 | 1 | /ea | $ 5.10 |
| 23 | 101038-0572 | Sealing Plug M14×1.5 | 1 | /ea | $ 17.00 |
| 24 | 101038-0486 | Washer,φ6.2×1.5×φ13 | 1 | /ea | $ 5.10 |
| 25 | 101038-0547 | Bolt, M6×18 | 1 | /ea | $ 5.10 |
| 26 | 101038-0465 | Sproket Chain | 1 | /ea | $ 25.50 |
| 27 | 101038-0479 | Outer Valve SpRing,Retainer | 2 | /ea | $ 8.50 |
