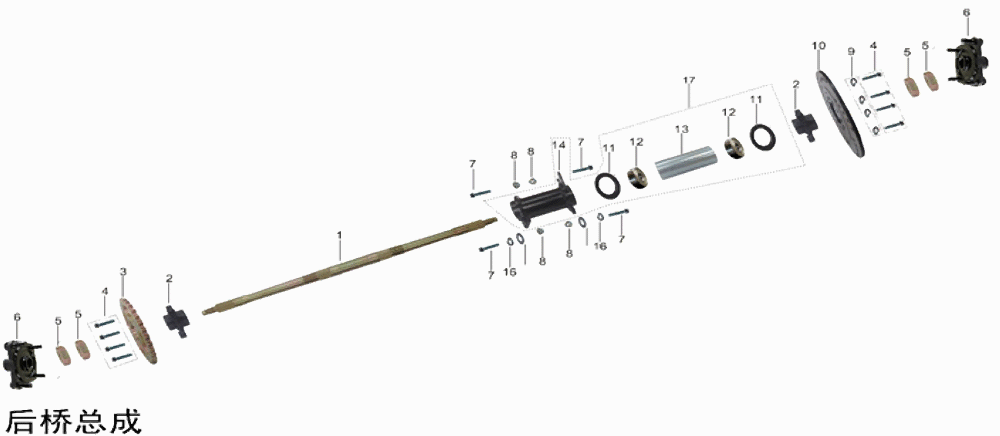

Rear Axle
| 1 | 505001-0011 | rear axle | 1 | /pc | $61.20 |
| 2 | 205003-0004 | chain pulley seat | 2 | /pc | $22.10 |
| 3 | 205001-0004 | rear sprocket | 1 | /pc | $34.00 |
| 4 | 903019-0012-02 | flange bolt | 8 | /set | $27.20 |
| 5 | 903008-0016 | nut | 4 | /set | $27.20 |
| 6 | 402003-0018 | rear hub | 2 | /pc | $34.00 |
| 7 | 903019-0025 | flange bolt | 4 | /set | $17.00 |
| 8 | 903007-0008 | flange lock nut | 4 | /set | $17.00 |
| 9 | 903001-0003 | spring washer | 4 | /set | $17.00 |
| 10 | 405001-0012 | rear brake disc | 1 | /pc | $34.00 |
| 11 | 908001-0010 | oil seal | 2 | /set | $13.60 |
| 12 | 907001-0010 | bearing | 2 | /set | $25.50 |
| 13 | 901003-0009 | inner sleeve | 1 | /pc | $25.50 |
| 14 | 564000-0002 | rear axle housing | 1 | /pc | $51.00 |
| 15 | 903002-0010 | flat washer | 4 | /set | $13.60 |
| 16 | 903001-0006 | spring washer | 2 | /set | $6.80 |
