    • Kayo TS 90 (2024+)



    TS90 EPA Parts Diagram

    Visual schematics and retail prices — TS90 EPA (organized by system)

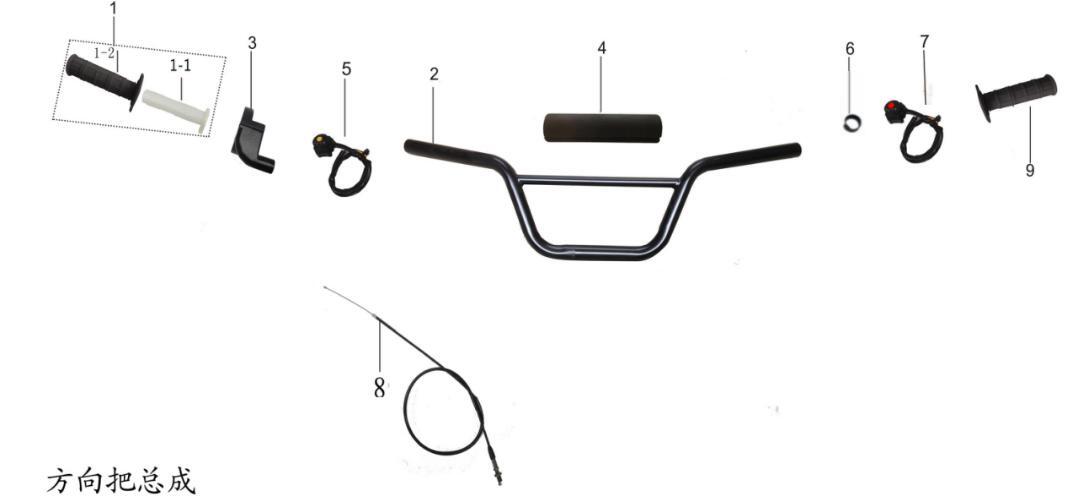

    TS90 controls & grips
    Controls & Grips
    Includes grips, throttle perch, handlebar, switches and cables — retail prices shown.

    No. U8 Code EN name Qty/Vehicle Retail (USD)
    1 602006-0004-02 Right grip 1 $13.60
    1-1 602012-0002 Throttle perch bar core 1 $6.80
    1-2 602006-0005-02 Grip 1 $6.80
    2 602001-0004-01 Steel handle bar 1 $34.00
    3 602011-0003 Throttle perch 1 $17.00
    4 602017-0002 Bar padding core 1 $8.50
    5 313002-0007-02 Start switch 1 $13.60
    6 908007-0071 Tie 1 $1.70
    7 313003-0015-02 Stop switch 1 $13.60
    8 602014-0024 Throttle cable 1 $13.60
    9 602006-0003-02 Left grip 1 $6.80

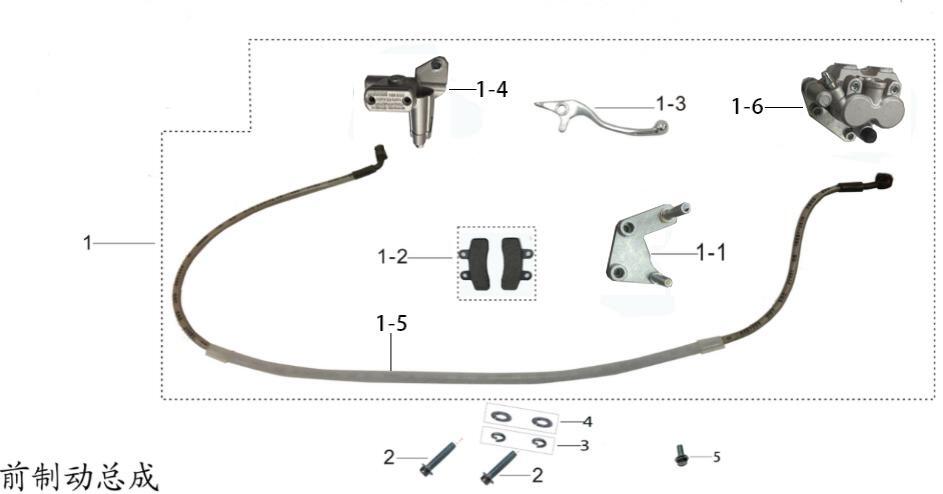

    TS90 Front Brake Assembly
    Front Brake
    Front brake assembly, pads, master cylinder and hydraulic line.

    No. U8 Code EN name Qty/Vehicle Retail (USD)
    1 404000-0168-02 Front brake assy. 1 $59.50
    1-1 404008-0020 Front brake bracket 1 $10.20
    1-2 404007-0008 Front brake pad 1 $8.50
    1-3 404002-0008 Brake lever 1 $22.10
    1-4 404003-0002 Front brake master cylinder 1 $25.50
    1-5 404005-0033 Front brake oil pipe L=890 1 $22.10
    1-6 404006-0009 Front brake lower caliper 1 $34.00
    2 903018-0012-03 Bolt M8*40 2 $5.10
    3 903001-0003-02 Spring washer Φ8*13*2 2 $3.40
    4 903002-0004-03 Washer Φ8*16*1.5 2 $3.40
    5 903018-0003-03 Bolt M6*12 1 $3.40

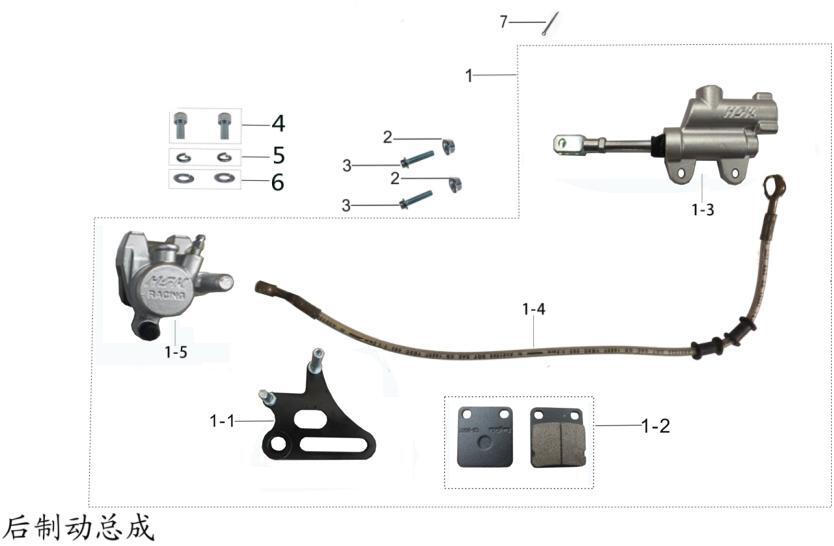

    TS90 Rear Brake Assembly
    Rear Brake
    Rear brake assemblies and related fasteners.

    No. U8 Code EN name Qty/Vehicle Retail (USD)
    1 405000-0003 Rear brake assy 1 $57.80
    1-1 405009-0005 Rear brake bracket 1 $13.60
    1-2 405008-0004 Rear brake pad 1 $13.60
    1-3 405004-0025 Rear brake master cylinder 1 $34.00
    1-4 405006-0032 Rear brake oil pipe L=450 1 $17.00
    1-5 405007-0010 Rear brake lower caliper 1 $34.00
    2 903006-0002-03 Nut M6 2 $3.40
    3 903019-0005-03 Bolt M6*20 2 $3.40
    4 903013-0017-03 Screw M8*16 2 $3.40
    5 904002-0001-03 Cotter pin 2*20 1 $2.55

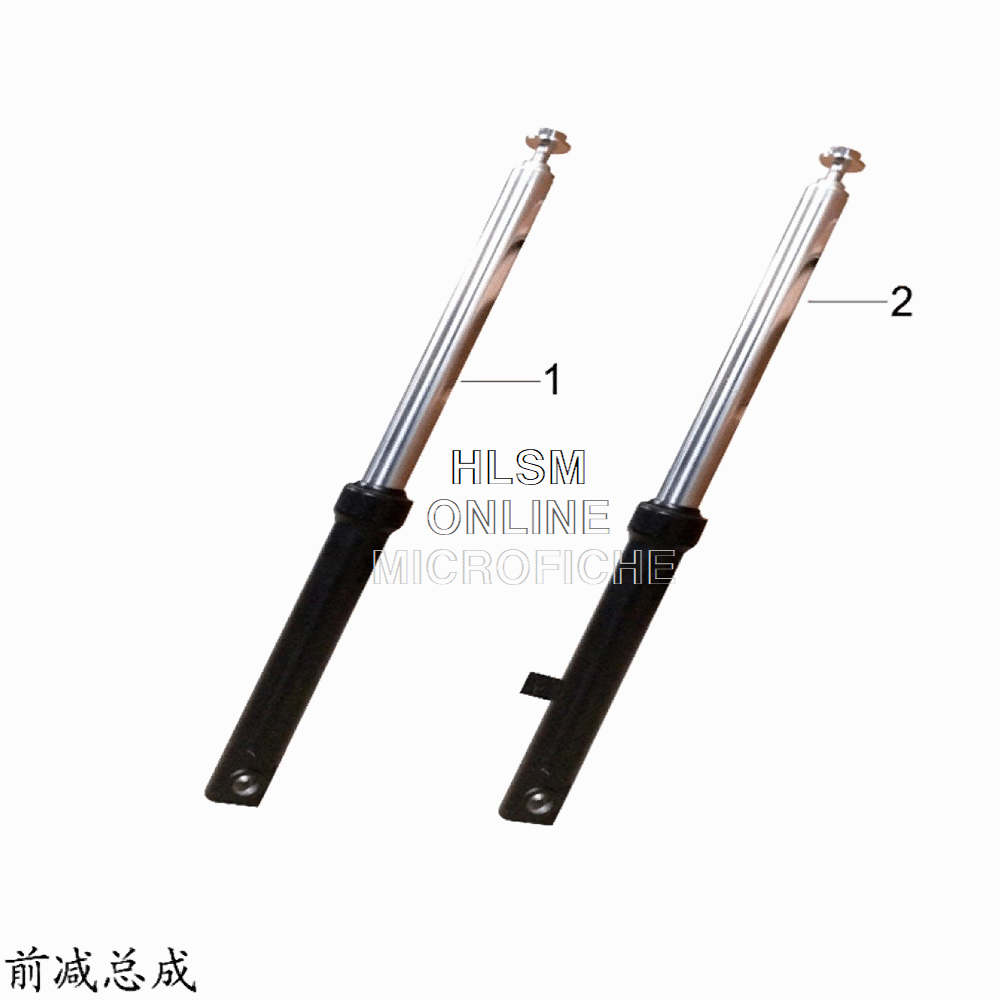

    TS90 Front Forks
    Front Forks & Suspension
    Left and right forks, shock assemblies and fitment parts.

    No. U8 Code EN name Qty/Vehicle Retail (USD)
    1 501000-0115 Front right shock 540mm Φ15 1 $62.90
    2 501000-0114 Front left shock 540mm Φ15 1 $62.90

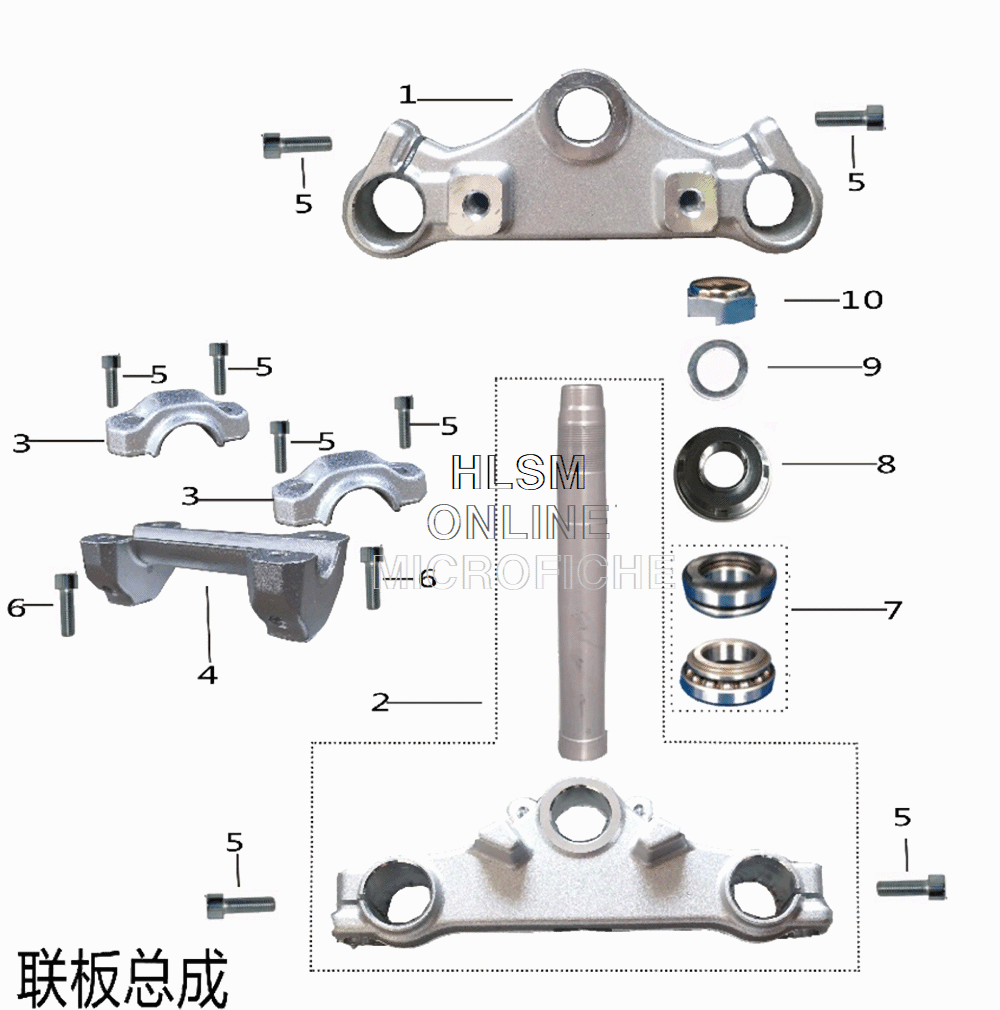

    TS90 Clamps & Steering
    Clamps, Raisers & Steering
    Upper clamp, lower clamp, raisers, bearings and top nut.

    No. U8 Code EN name Qty/Vehicle Retail (USD)
    1 601001-0025 Upper clamp 1 $40.80
    2 601002-0027 Lower clamp 1 $51.00
    3 601003-0017 Upper raiser 2 $8.50
    4 601004-0022 Lower raiser 1 $17.00
    5 903013-0020-05 Screw M8*25 8 $5.10
    6 903013-0036-02 Screw M10*30*1.5 2 $6.80
    7 907001-0028 Bearing 91683 1 $17.00
    8 601005-0009 Dust seal 1 $8.50
    9 903003-0001-02 Washer Φ23*36*1.5 1 $6.80
    10 601005-0001 Top nut 1 $8.50

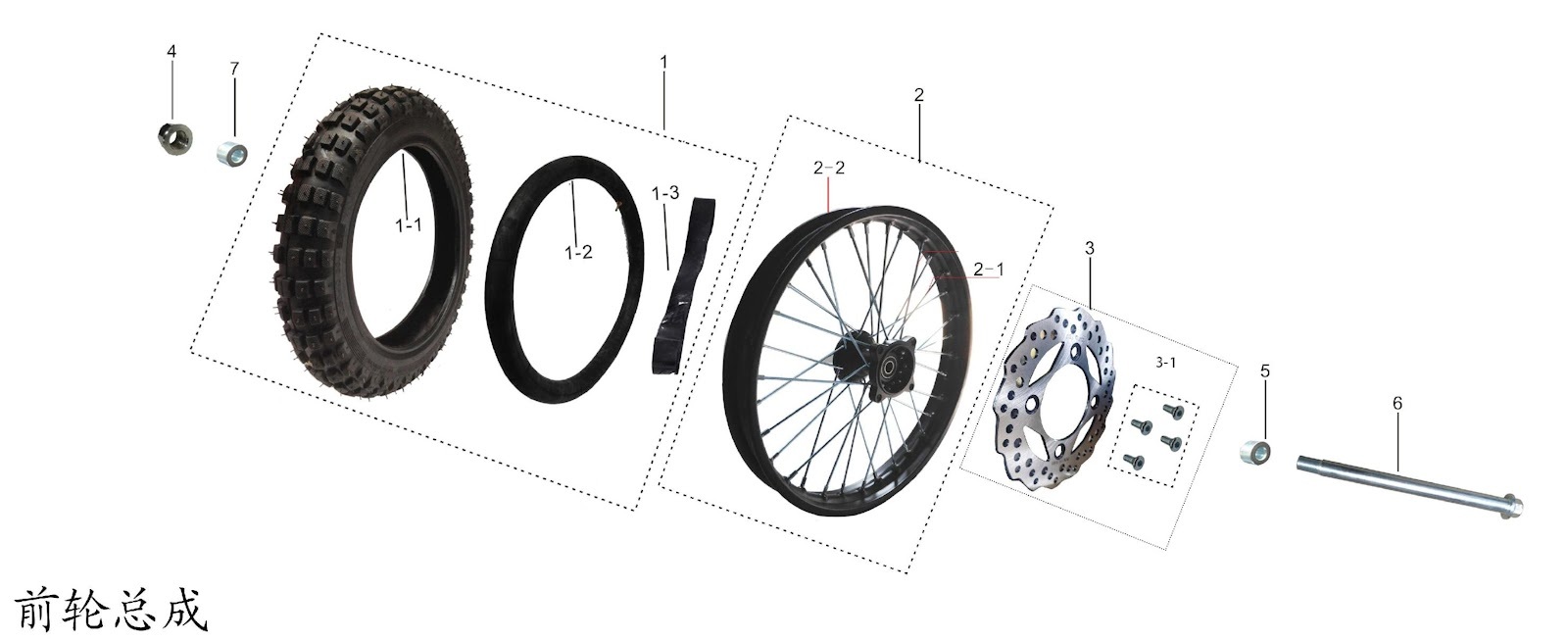

    TS90 Front Wheel Assembly
    Front Wheel Assembly
    Wheel, rim, spokes, disc and related hardware.

    No. U8 Code EN name Qty/Vehicle Retail (USD)
    1 401005-0036 Front wheel assy 1 $51.00
    1-1 401006-0047 Front tyre 1 $40.80
    1-2 401007-0003 Inner tube 1 $10.20
    2 401000-0008-04 Front rim 1 $47.60
    2-1 401004-0002 Spoke (x32) 32 $3.40
    3 404001-0019 Front brake disc 1 $30.60
    3-1 404011-0001 Bolt M8*16*1.25 (x4) 4 $10.20
    4 903007-0009-02 Nut M14*1.5 1 $6.80
    5 902001-0068 Busher Φ15*25*H27 1 $6.80
    6 901001-0027-02 Flange shaft Φ15*195 1 $13.60

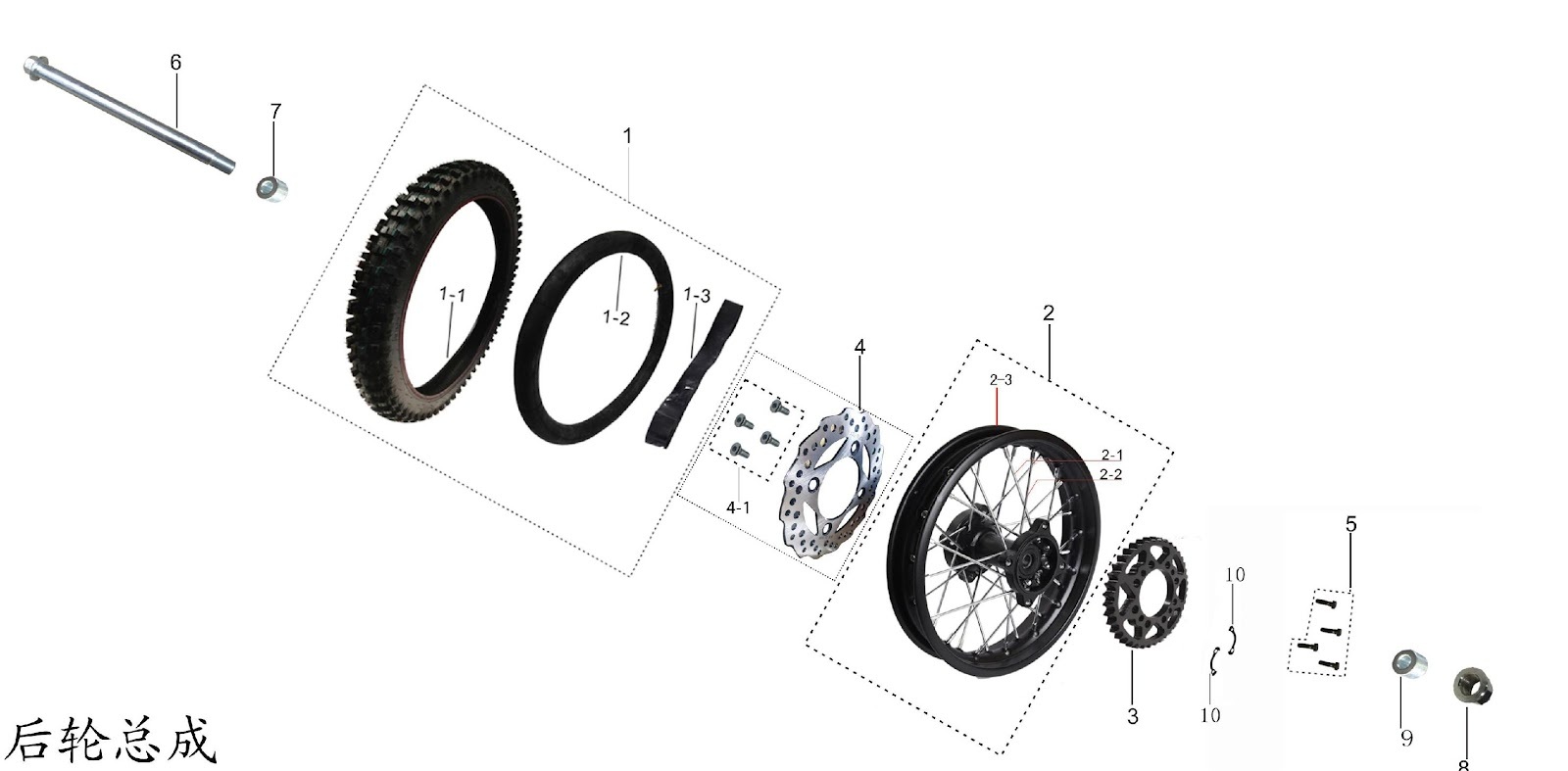

    TS90 Rear Wheel Assembly
    Rear Wheel Assembly
    Rim, tyre, sprocket, and axle hardware.

    No. U8 Code EN name Qty/Vehicle Retail (USD)
    1 402005-0036 Rear wheel assy 1 $51.00
    1-1 402006-0038 Rear tyre 1 $40.80
    2 402000-0010-04 Rear rim 1 $51.00
    3 205001-0006 Steel rear sprocket 1 $25.50
    4 405001-0017 Rear brake disc 1 $30.60
    4-1 404011-0001 Bolt M8*16*1.25 (x4) 4 $3.40
    5 901001-0033-03 Flange axle Φ15*225 1 $20.40
    8 903007-0009-02 Nut M14*1.5 1 $10.20

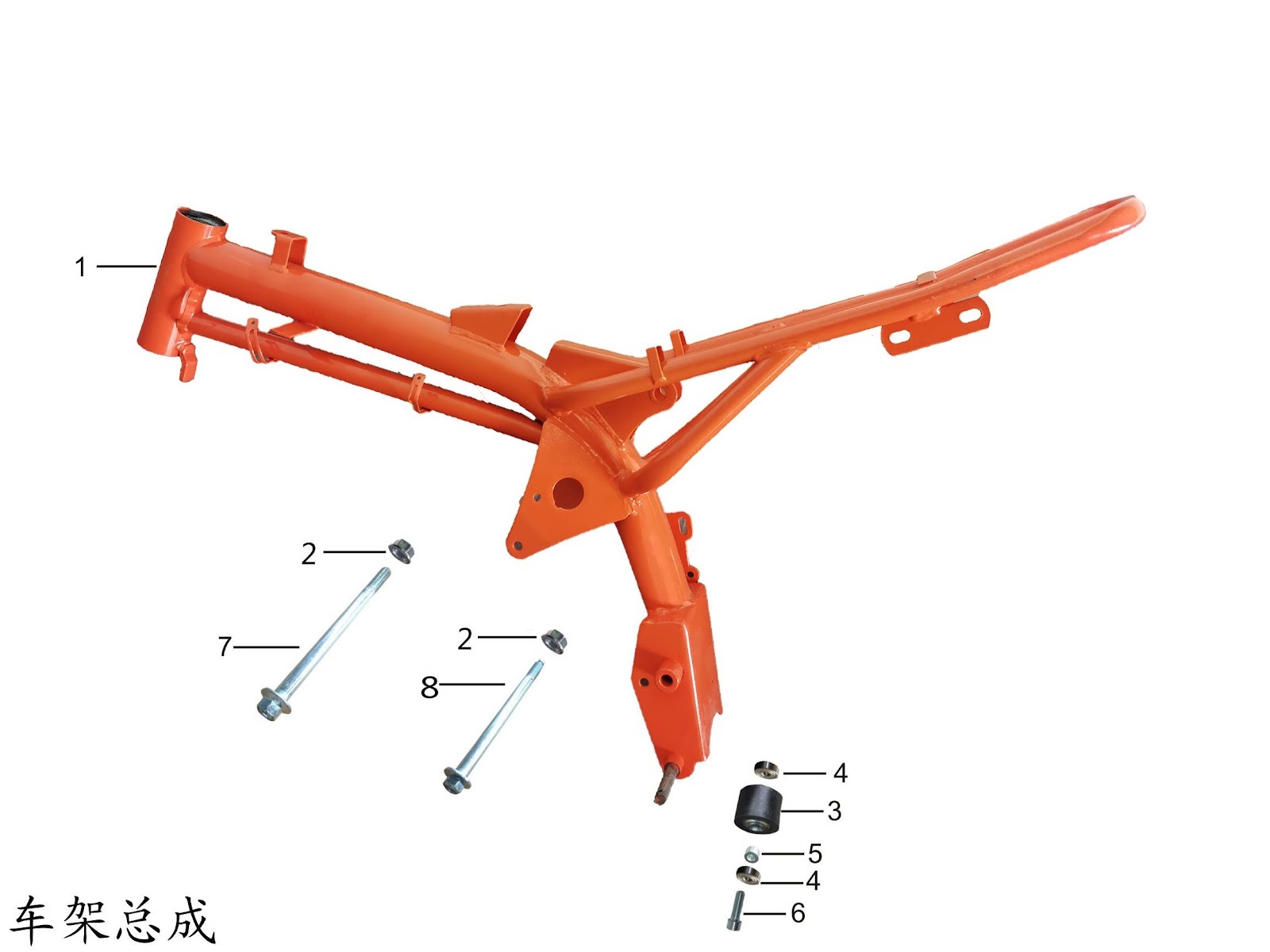

    TS90 Frame
    Frame & Mounting Parts
    Main frame, bearings, bolts and chain roller.

    No. U8 Code EN name Qty/vehicle QTY Retail
    1 551000-0160 frame 1 /ea $ 425.00
    2 903007-0005 nut M8 2 /ea $ 3.40
    3 203004-0014 chain roller Φ13*34.5*21.5 1 /ea $ 13.60
    4 907001-0001 bearing'608ZZ 2 /ea $ 13.60
    5 902001-0003 busher Φ8*12*H13 1 /ea $ 5.10
    6 903013-0024 screw M8*40 1 /ea $ 6.80
    7 903018-0023 bolt M8*110 1 /ea $ 17.00
    8 903018-0024-02 bolt M8*110 1 /ea $ 17.00

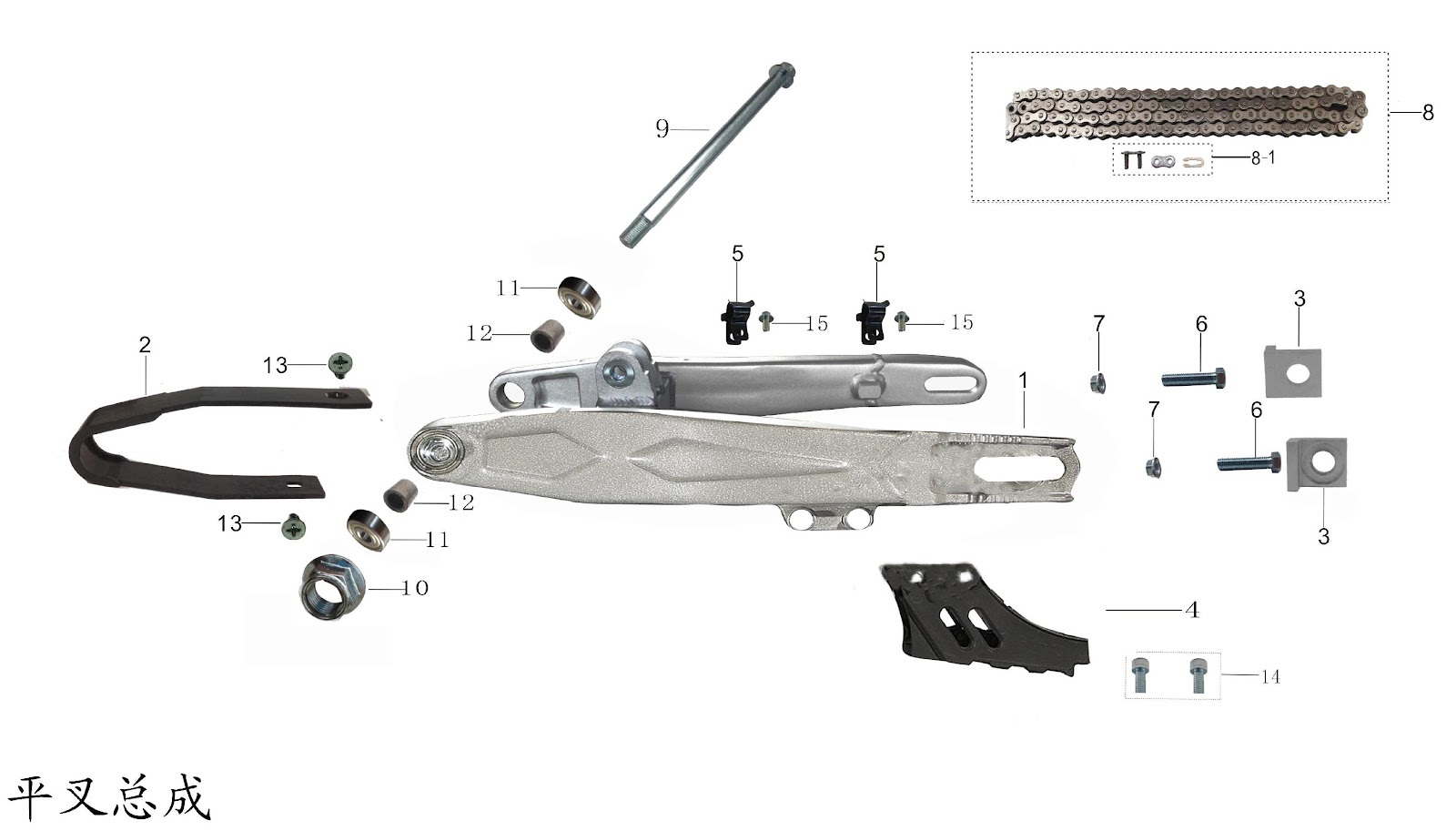

    TS90 Swingarm
    Swingarm & Drive
    Swingarm, chain, adjusters and bearings.



    No. U8 Code EN name Qty/vehicle QTY Retail
    1 553000-0058 steel swing arm 1 /ea $ 59.50
    2 203004-0049 chain slider 170*45*70.5 1 /ea $ 13.60
    3 203002-0001-06 alloy chain adjuster L/Φ15 2 /ea $ 13.60
    4 203004-0036-01 chain guide 1 /ea $ 25.50
    5 405010-0003 oil pipe clip 2 /ea $ 3.40
    6 903017-0007-04 bolt M8*40 2 /ea $ 6.80
    7 903005-0006-02 nut M8 2 /ea $ 3.40
    8 203000-0055 chain 420H 90L 1 /ea $ 25.50
    8-1 203001-0002 chain clip 420H 1 /ea $ 6.80
    9 901001-0005 flange axle Φ10*185*M10*1.25mm 1 /ea $ 20.40
    10 903007-0006-02 nut M10*1.25 1 /ea $ 10.20
    11 907001-0014 bearing'6200Z-10/P6 XG 2 /ea $ 13.60
    12 902001-0035 busher Φ10.2*22.5*H16 2 /ea $ 8.50
    13 903011-0002-03 screw M6*12 2 /ea $ 3.40
    14 903020-0015-02 screw M8*20 2 /ea $ 3.40
    15 903018-0003-03 bolt M6*12 2 /ea $ 3.40

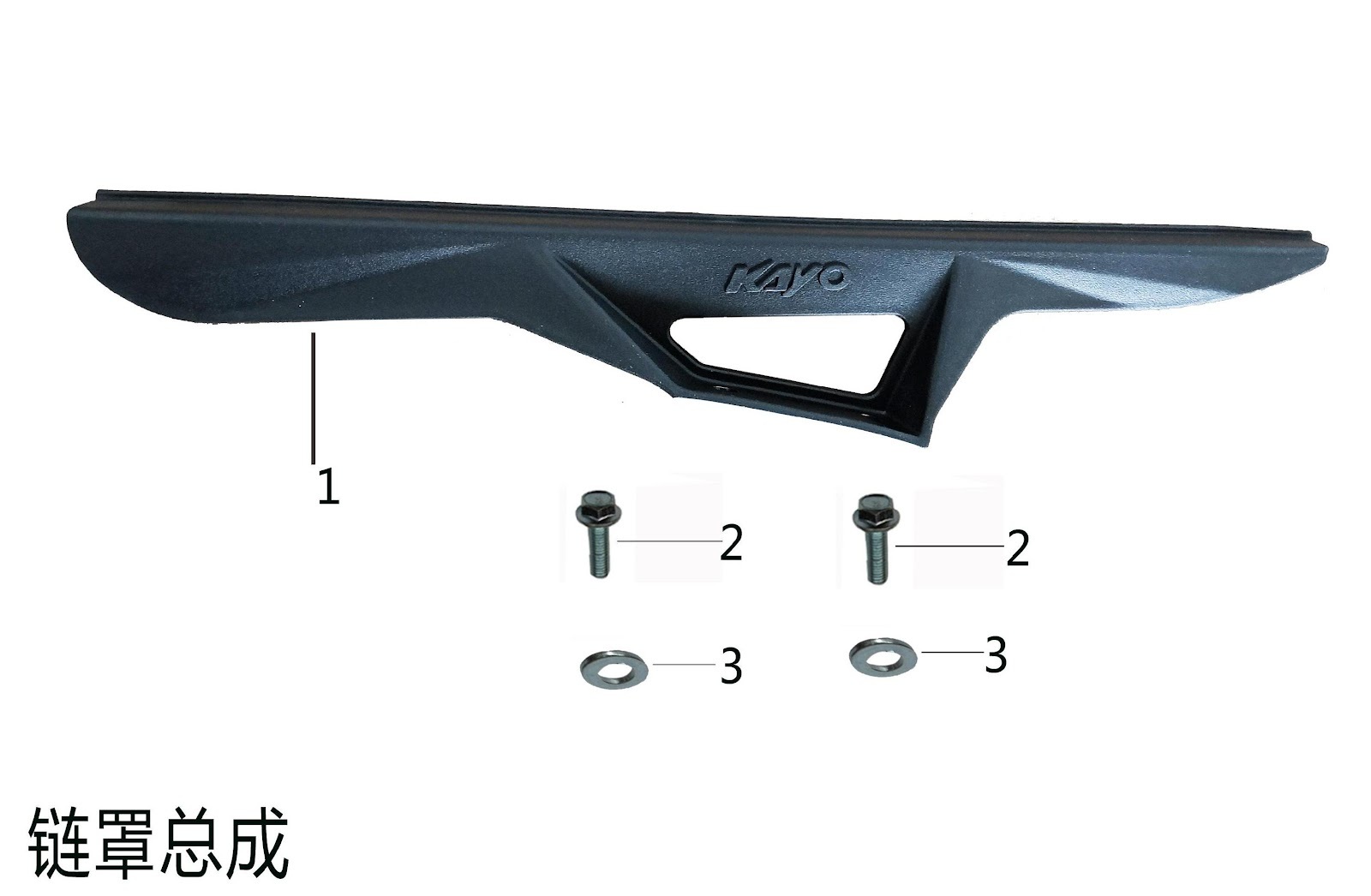

    No. U8 Code EN name Qty/vehicle QTY Retail
    1 203004-0048 chain protective cover 1 /ea $ 17.00
    2 903018-0003-03 bolt M6*12 2 /ea $ 3.40
    3 903002-0002-03 washer Φ6*18*1.5 2 /ea $ 3.40

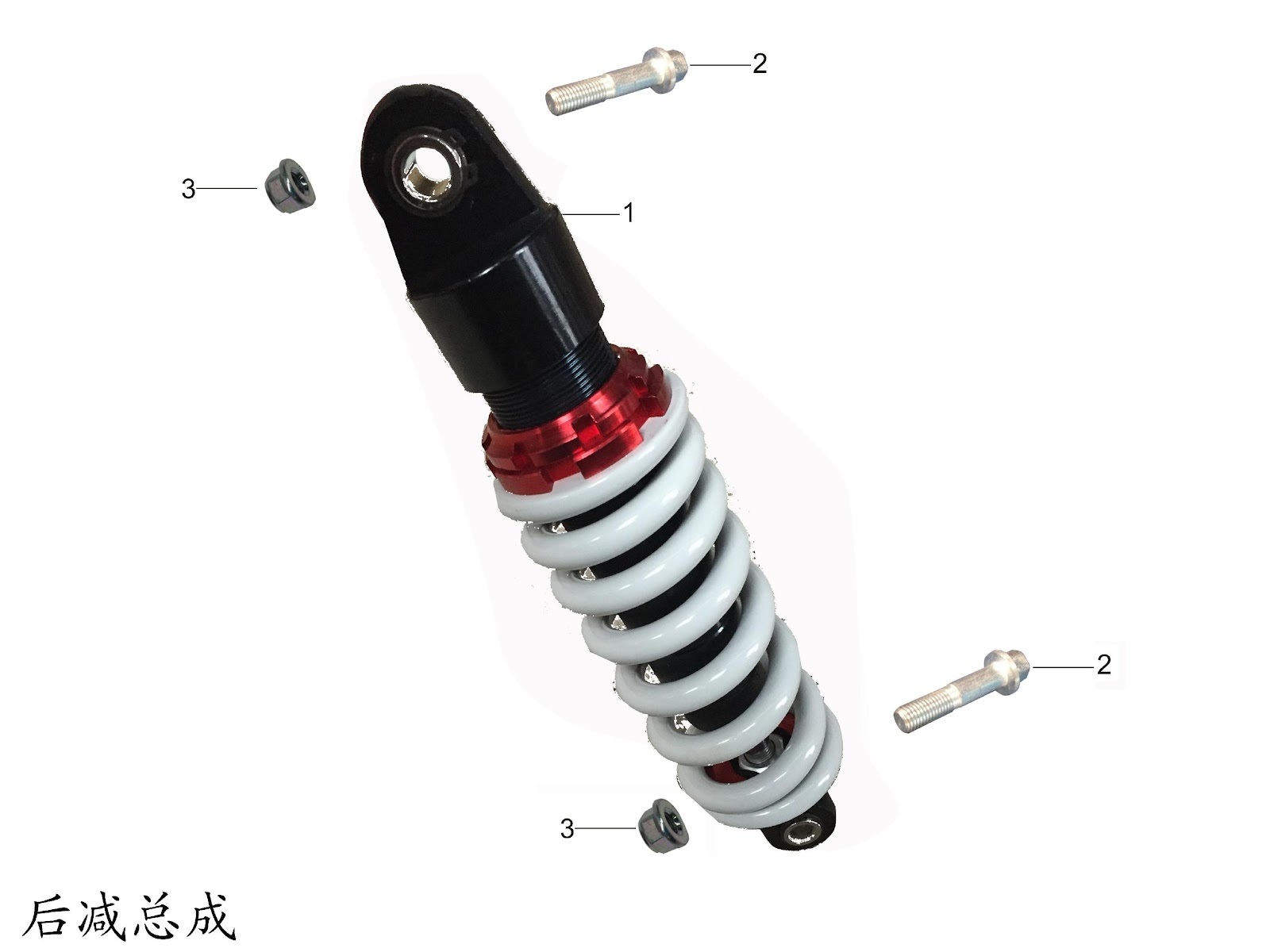

    TS90 Rear Shock
    Rear Shock Assembly
    Rear shock, flange shafts and nuts.

    No. U8 Code EN name Qty/Vehicle Retail (USD)
    1 502000-0008 Rear shock assy L=270 Φ10 1 $61.20
    2 901001-0001-02 Flange shaft Φ10*45 2 $6.80
    3 903007-0006-02 Nut M10*1.25 2 $5.10

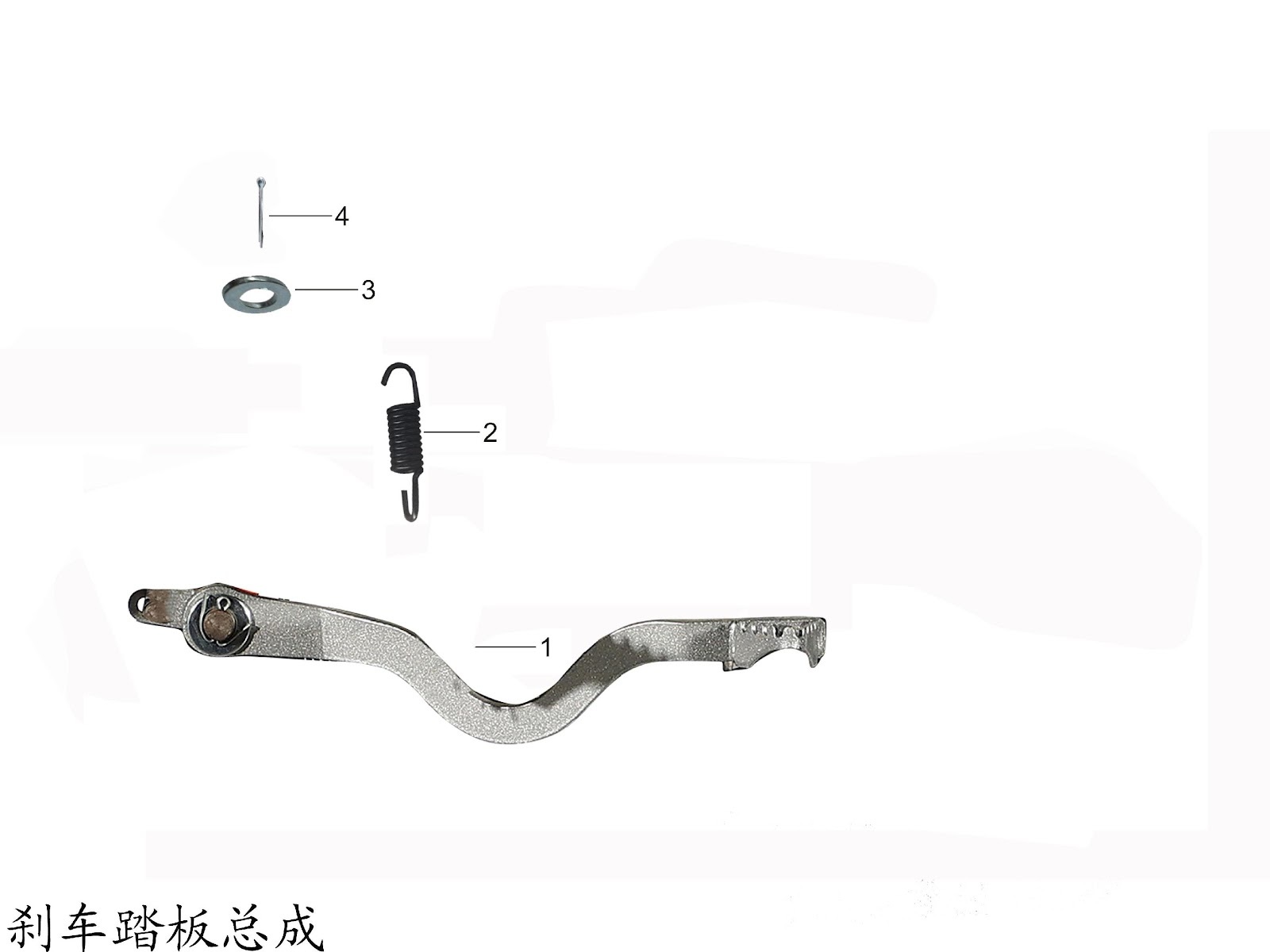

    TS90 Brake Pedal
    Brake Pedal & Small Parts
    Pedal, springs, washers and cotter pins.

    No. U8 Code EN name Qty/Vehicle Retail (USD)
    1 406001-0020-02 Brake pedal 1 $22.10
    2 407003-0002 Pedal spring 1 $5.10
    3 903002-0013-03 Washer Φ15*30*2.5 1 $3.40
    4 904002-0003-03 Cotter pin 2.5*30 1 $3.40

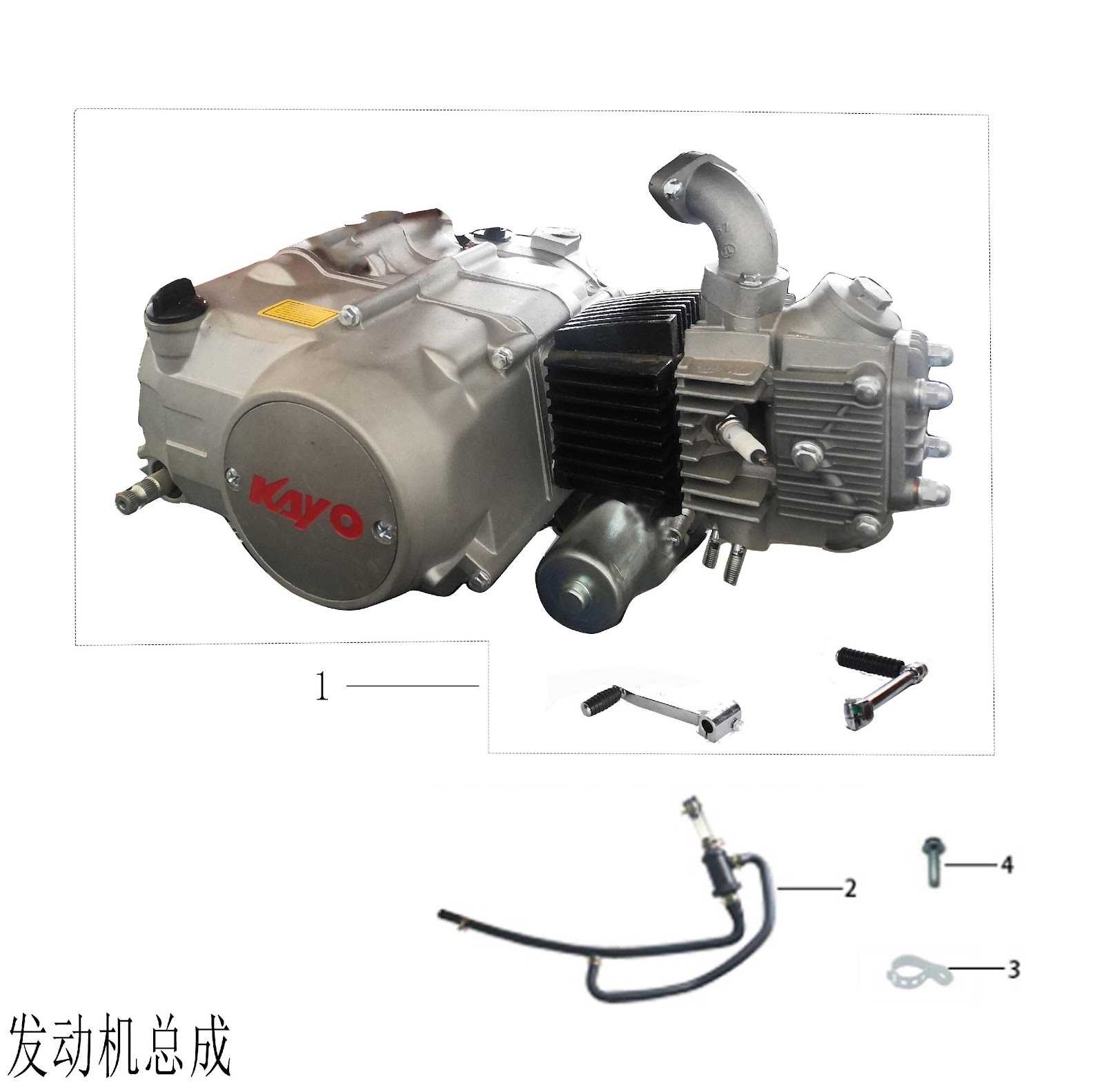

    TS90 Engine
    Engine & Oil Separator
    Engine assembly and associated parts (retail prices).

    No. U8 Code EN name Qty/vehicle QTY Retail
    1 101000-0685 engine 1 /ea $ 476.00
    2 107001-0058 oil separator 1 /ea $ 30.60
    3 555000-0192 oil separator bracket 1 /ea $ 5.10
    4 903019-0011-03 bolt M8*12 1 /ea $ 3.40

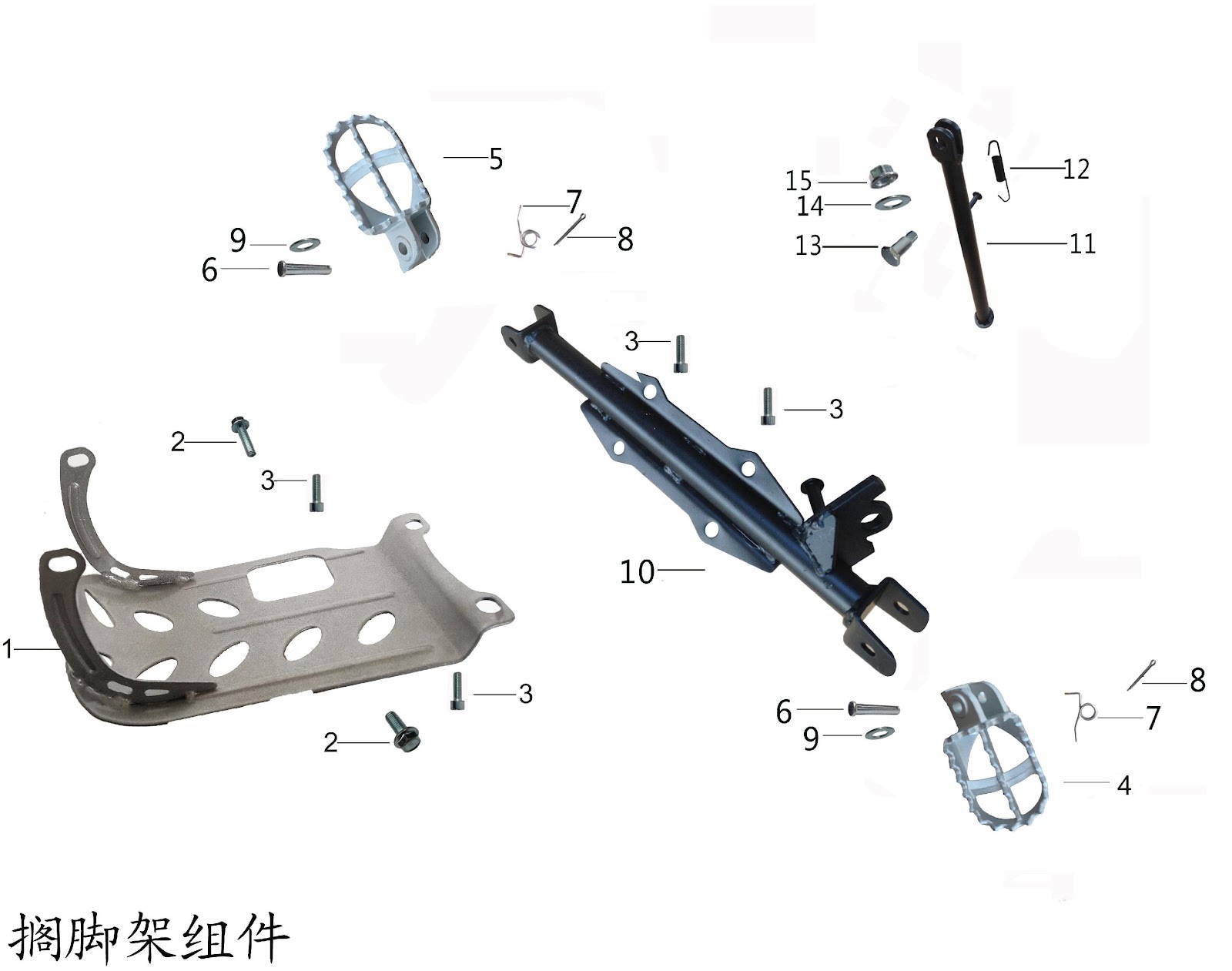

    TS90 Footpegs & Skid Plate
    Skid Plate & Footpegs
    Bash plate, footpegs, hinge pins and small fasteners.

    No. U8 Code EN name Qty/vehicle QTY Retail
    1 109001-0006-02 steel plate 215.5*131.2*104 1 /ea $ 30.60
    2 903019-0004 bolt M6*16 2 /ea $ 3.40
    3 903020-0015-02 screw M8*20 4 /ea $ 3.40
    4 506003-0028 left footpeg assy 1 /ea $ 20.40
    5 506003-0029 right footpeg assy 1 /ea $ 20.40
    6 904001-0001 hinge pin Φ8*42.5+Φ3*37.5 2 /ea $ 5.10
    7 407001-0014 footpeg spring Φ15*Φ2*H8*4 2 /ea $ 3.40
    8 904002-0002-03 cotter pin 2.5*24 2 /ea $ 1.70
    9 903002-0004-03 wahsher Φ8*16*1.5 2 /ea $ 3.40
    10 506001-0011-02 FOOTPEG MOUNTING BRACKET 1 /ea $ 42.50
    11 554000-0002 side stand L=180 1 /ea $ 25.50
    12 407002-0001 side stand spring Φ15*Φ2.5*H40*16 1 /ea $ 8.50
    13 903020-0001-03 bolt M10*30*1.5 1 /ea $ 6.80
    14 903002-0011-02 washer Φ13*20*1.5 1 /ea $ 3.40
    15 903006-0005-03 nut M10*1.5 1 /ea $ 5.10

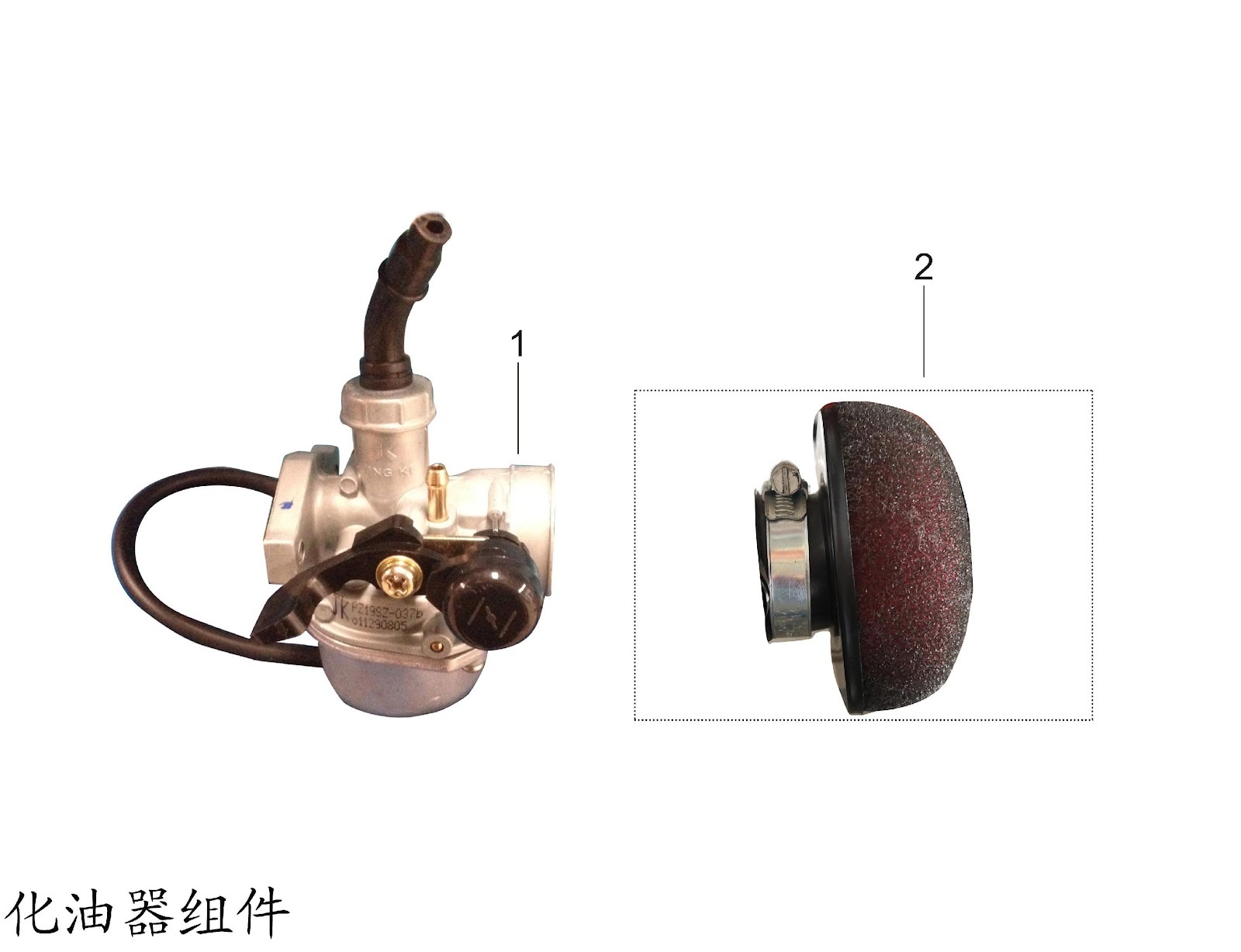

    TS90 Carburetor & Air Filter
    Carburetor & Air Filter
    Carburetor and air filtration components.

    No. U8 Code EN name Qty/Vehicle Retail (USD)
    1 102000-0097-02 Carburetor 1 $47.60
    2 105000-0042 Air filter 1 $22.10

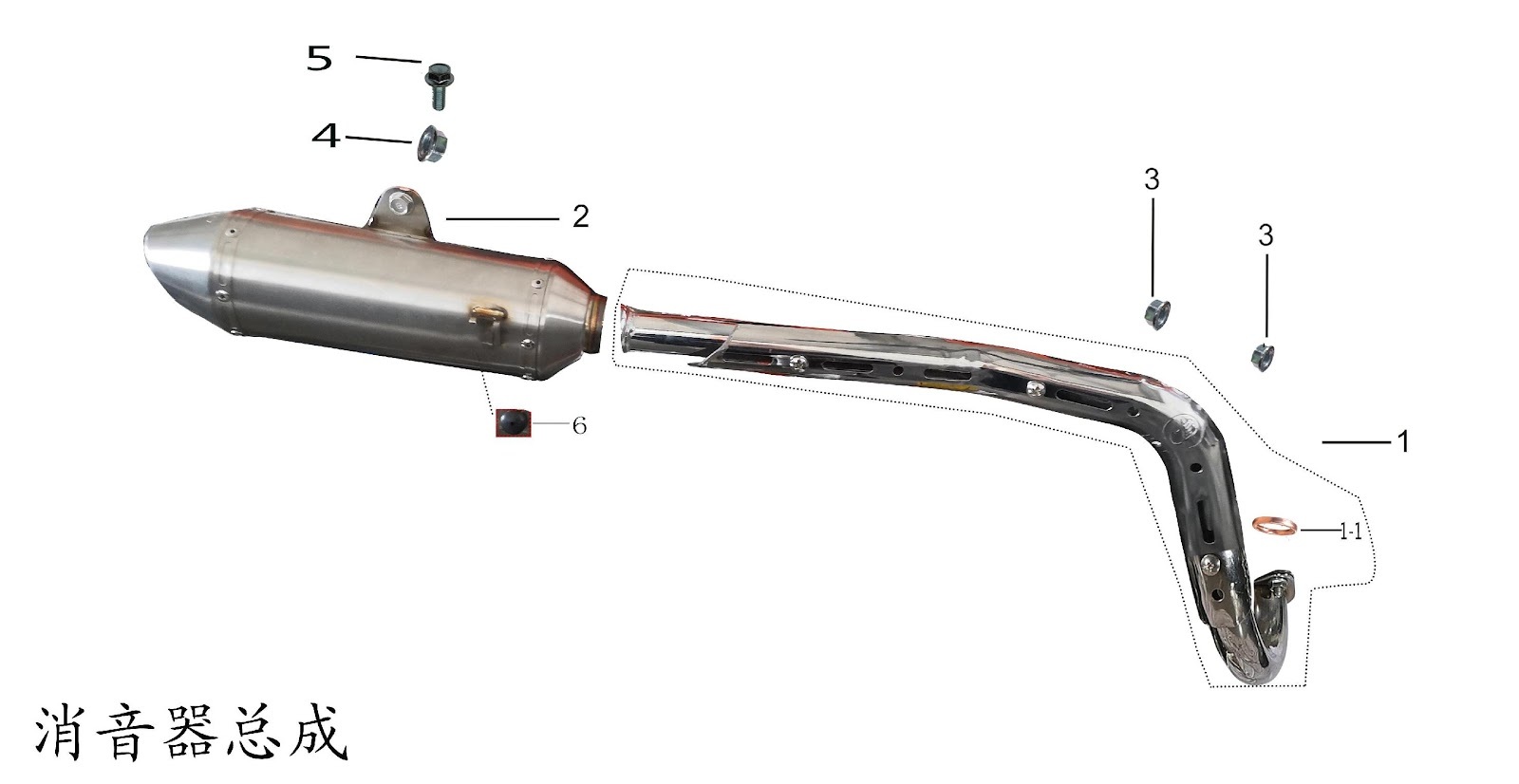

    TS90 Exhaust & Muffler
    Exhaust & Muffler
    Exhaust pipe, gaskets and muffler assembly.

    No. U8 Code EN name Qty/vehicle QTY Retail
    1 106001-0096 exhaust pipe 1 /ea $ 47.60
    1-1 106003-0002 gasket 1 /ea $ 6.80
    2 106002-0038 muffler 1 /ea $ 115.60
    3 903007-0003 nut M6 2 /ea $ 3.40
    4 903007-0005 nut M8 1 /ea $ 3.40
    5 903019-0018-02 bolt M8*35 1 /ea $ 5.10
    6 908007-0052 muffler heat-proof string Φ16*Φ12*H13.3 1 /ea $ 3.40

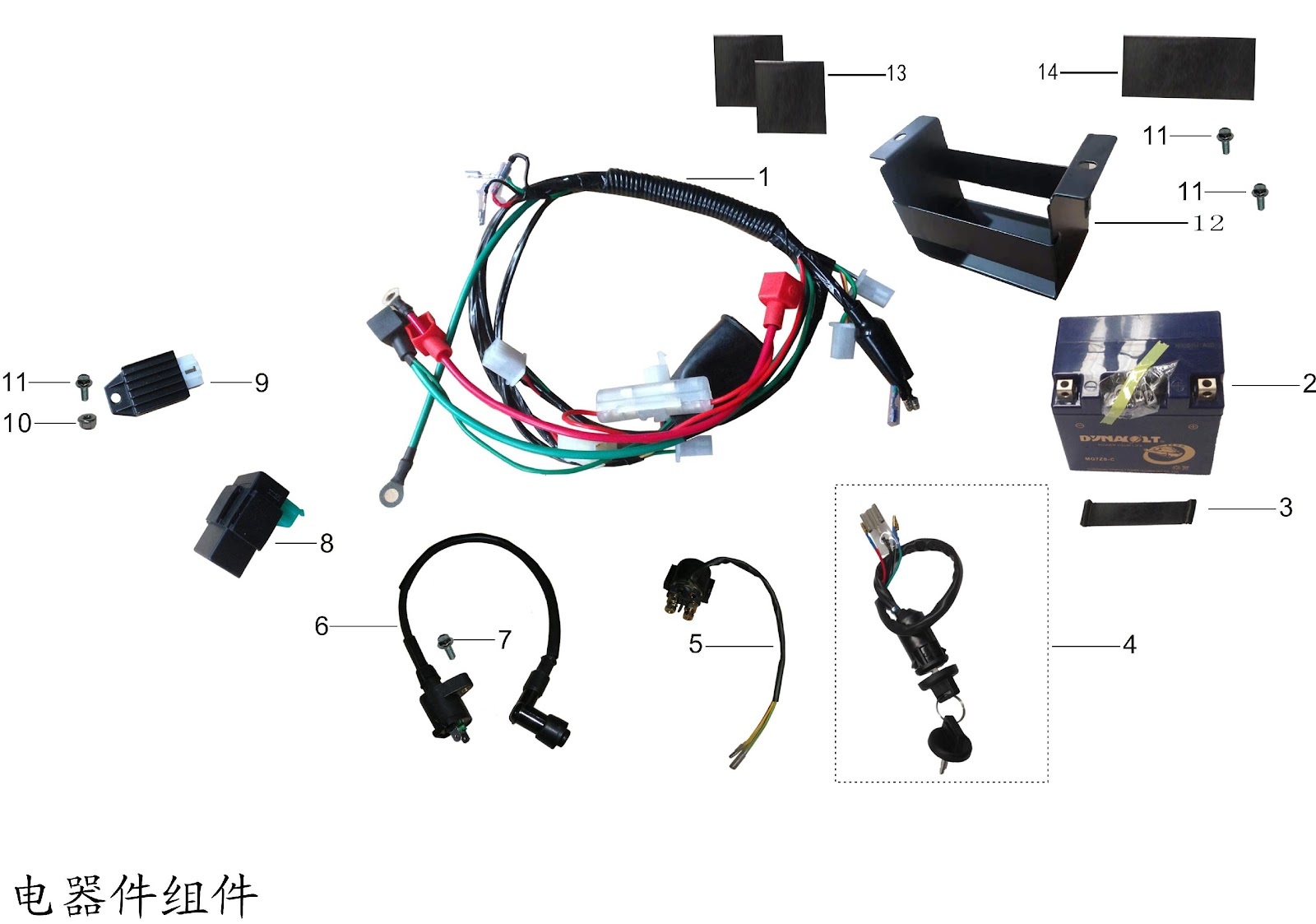

    TS90 Electrical Components
    Electrical
    Main cable, battery, CDI and related parts.

    No. U8 Code EN name Qty/vehicle QTY Retail
    1 309001-0135-02 main cable 1 /ea $ 44.20
    2 312001-0044 battery MF12V4AH 113*69*85 1 /ea $ 51.00
    3 555000-0179 battery pack upper plate 158*15*1.5 1 /ea $ 6.80
    4 314001-0003-04 electric key 1 /ea $ 20.40
    5 301001-0001 relay 1 /ea $ 20.40
    6 306001-0025 ignition coil 1 /ea $ 20.40
    7 903018-0005-03 bolt M6*20 1 /ea $ 3.40
    8 303001-0001-02 CDI 1 /ea $ 17.00
    9 302001-0002 voltage regulator 1 /ea $ 20.40
    10 903006-0002-03 nut M6 1 /ea $ 3.40
    11 903019-0004 bolt M6*16 3 /ea $ 3.40
    12 555000-0180 battery box 120*70*87.5 1 /ea $ 20.40
    13 909010-0008 EVA 82*65*4 2 /ea $ 3.40
    14 909010-0009 EVA 118*65*4 1 /ea $ 3.40

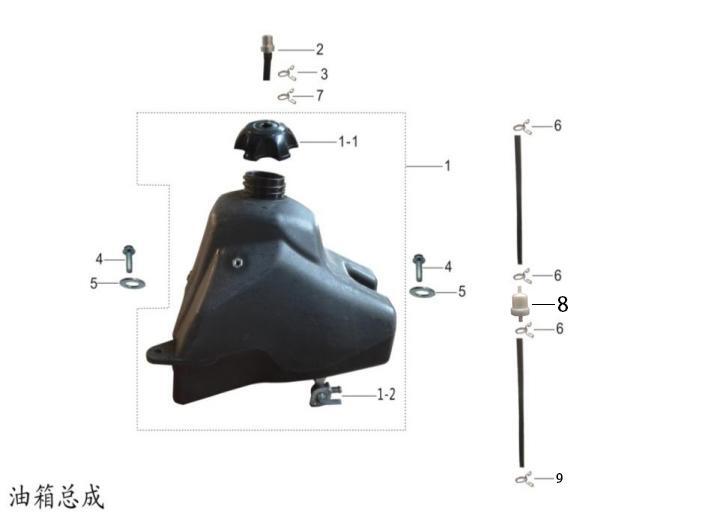

    TS90 Fuel Tank
    Fuel Tank & Accessories
    Tank, caps, clamps, filters and pipes.

    No. U8 Code EN name Qty/vehicle QTY Retail
    1 805001-0038 fuel tank assy. 1 /ea $ 51.00
    1-1 805003-0003 fuel tank cover 1 /ea $ 10.20
    1-2 805004-0005 fuel tank switch 1 /ea $ 13.60
    2 805005-0001-06 One-way air valve 1 /ea $ 6.80
    3 906002-0003 pipe clamp Φ8.2 1 /ea $ 3.40
    4 903019-0014-03 bolt M8*25 2 /ea $ 3.40
    5 903002-0005-03 washer Φ8*28*1.5 2 /ea $ 3.40
    6 906002-0001 pipe clamp Φ7.5 3 /ea $ 2.55
    7 906002-0004 pipe clamp Φ8.5 1 /ea $ 3.40
    8 108001-0002 fuel filter 1 /ea $ 8.50
    9 906002-0002 pipe clamp Φ8 1 /ea $ 2.55

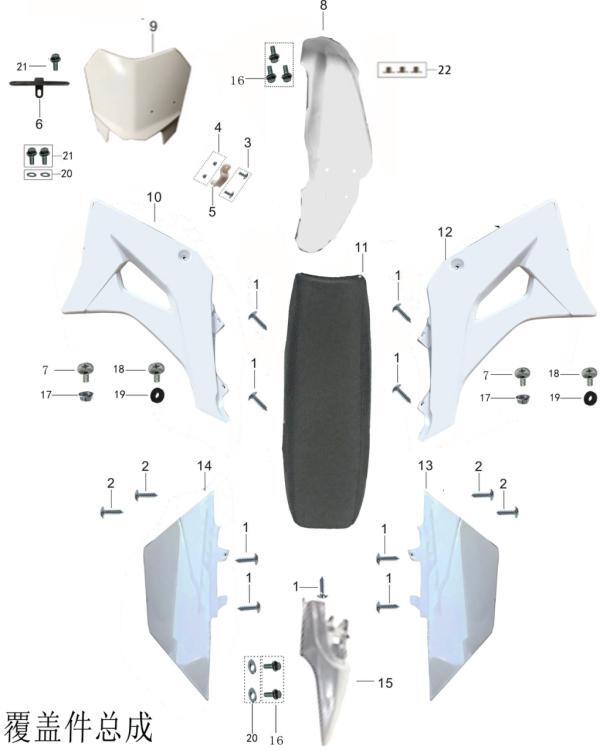

    TS90 Plastics & Fasteners
    Panels, Fasteners & Stickers
    Body plastics, screws, nuts and decals.

    No. U8 Code EN name Qty/vehicle QTY Retail
    1 903010-0005-03 screw ST4.2*16 9 /ea $ 3.40
    2 903010-0004-03 screw ST4.2*12 4 /ea $ 3.40
    3 903009-0003-03 screw M4*12 Φ7 2 /ea $ 3.40
    4 903008-0024-02 nut M4 2 /ea $ 3.40
    5 801003-0011 line card 1 /ea $ 6.80
    6 555000-0137 panel bracket/black 1 /ea $ 13.60
    7 903012-0011-03 screwTM6*10 2 /ea $ 3.40
    8 801016-0007 front mud guard/white 1 /ea $ 42.50
    9 801016-0006 Front Panel/wihte 1 /ea $ 25.50
    10 801016-0001 front left cover/white 1 /ea $ 30.60
    11 701000-0046-06 seat cushion/black 1 /ea $ 51.00
    12 801016-0002 Front right cover/white 1 /ea $ 30.60
    13 801016-0004 rear right cover/white 1 /ea $ 30.60
    14 801016-0003 rear left cover/white 1 /ea $ 30.60
    15 801016-0005 rear center cover/white 1 /ea $ 34.00
    16 903019-0004 bolt M6*16 5 /ea $ 3.40
    17 903006-0002-03 nut M6 2 /ea $ 3.40
    18 903012-0007-04 screw TM6*16 2 /ea $ 3.40
    19 908003-0002 washer Φ5.5*15*2 2 /ea $ 2.55
    20 903002-0002-03 washer Φ6*18*1.5 4 /ea $ 3.40
    21 903018-0003-03 bolt M6*12 3 /ea $ 3.40
    22 902002-0042 bush Φ6.5*16*H6+Φ10+H4 3 /ea $ 3.40



    No. U8 Code EN name Qty/vehicle QTY Retail
    1 802018-0192 sticker 1 /ea $ 42.50
    2 802007-0507 padding cover 1 /ea $ 6.80
    3 802013-0081 warning sticker 1 /ea $ 8.50
    4 909006-0024 warning sticker 1 /ea $ 8.50
    5 802013-0080 warning sticker 1 /ea $ 8.50
    East Central Sports —Kayo TS90 EPA Parts Diagram & Pricing



    Compare Selected
