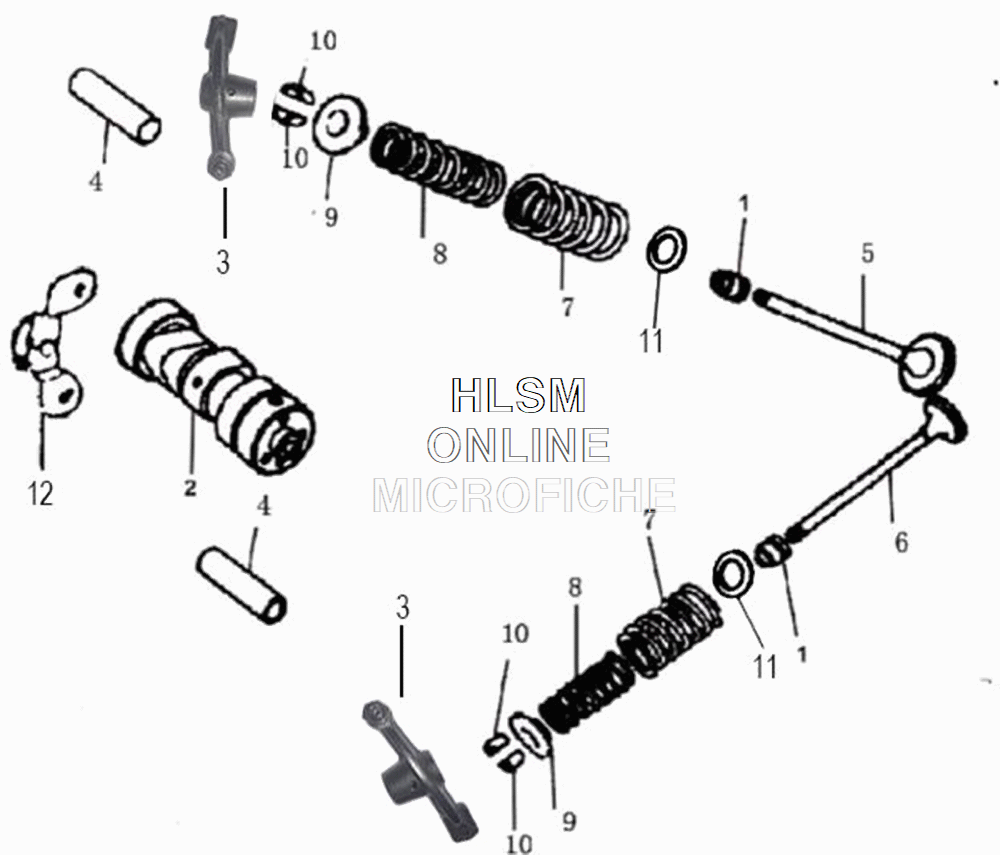

Cam Shaft W/ Valves Assembly
| E-3 | |||||
 |
|||||
| NO. | U8 Parts No. | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101019-0576 | Oil seal,valve stem assembly | 2 | /ea | $ 6.80 |
| 2 | 101019-0577 | camshaft component | 1 | /ea | $ 47.60 |
| 3 | 101019-0578 | Valve rocker arm component | 2 | /ea | $ 34.00 |
| 4 | 101019-0579 | rockshaft | 2 | /ea | $ 17.00 |
| 5 | 101019-0543 | Intake valve | 1 | /ea | $ 25.50 |
| 6 | 101019-0544 | Exhaust valve | 1 | /ea | $ 25.50 |
| 7 | 101019-0580 | valve outer spring | 2 | /ea | $ 20.40 |
| 8 | 101019-0581 | Valve inner spring | 2 | /ea | $ 20.40 |
| 9 | 101019-0582 | Valve inner and outer spring seat | 2 | /ea | $ 13.60 |
| 10 | 101019-0583 | Valve cliper | 4 | /ea | $ 5.10 |
| 11 | 101019-0584 | valve outer spring seat | 2 | /ea | $ 8.50 |
| 12 | 101019-0585 | Limit plate component | 1 | /ea | $ 6.80 |
