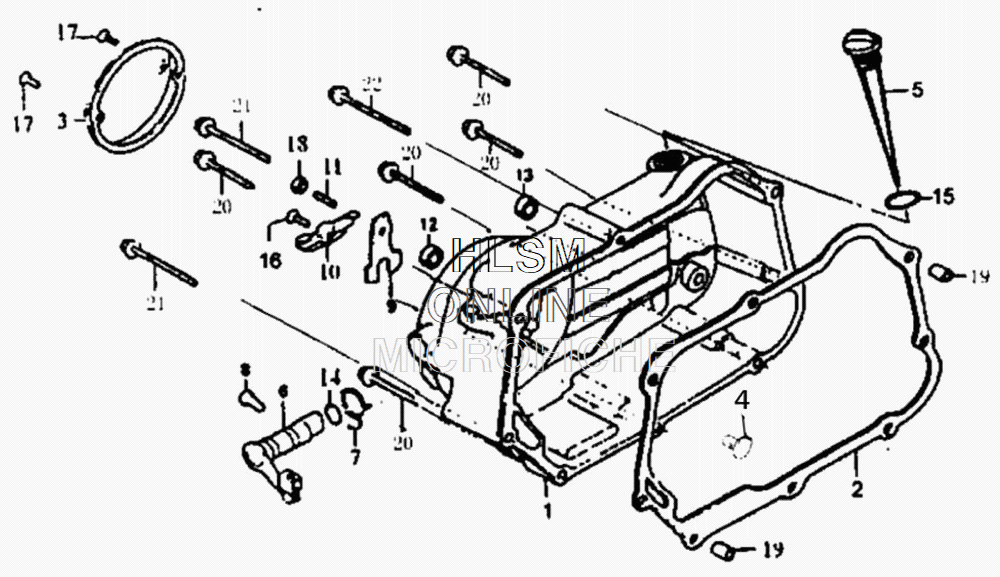

Crankcase Cover - Right
| E-6 Right Crankcase Cover | |||||
 |
|||||
| NO. | U8 Parts No. | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | H02010-0040 | Right box cover | 1 | /ea | $ 68.00 |
| 2 | H01010-0110 | Sealing gasket for right crankcase cover | 1 | /ea | $ 17.00 |
| 3 | H02010-0060 | Right trademark cover | 1 | /ea | $ 25.50 |
| 4 | H02051-0020 | Clutch push rod combination | 1 | /ea | $ 17.00 |
| 5 | H01010-0131 | Oil dipstick | 1 | /ea | $ 25.50 |
| 6 | H02050-0030 | Clutch control arm assembly | 1 | /ea | $ 25.50 |
| 7 | H02051-0070 | Lever spring | 1 | /ea | $ 8.50 |
| 8 | A00201-0301 | Joystick positioning pin | 1 | /ea | $ 8.50 |
| 9 | H02051-0060 | Clutch plate | 1 | /ea | $ 8.50 |
| 10 | H02051-0050 | Clutch pressure plate | 1 | /ea | $ 13.60 |
| 11 | H02051-0030 | Adjusting screw | 1 | /ea | $ 8.50 |
| 12 | A00283-1202 | oil seal | 1 | /ea | $ 13.60 |
| 13 | A00140-0601-24 | nut | 1 | /ea | $ 5.10 |
| 14 | A00283-1401 | oil seal | 1 | /ea | $ 13.60 |
| 15 | A00280-1801 | O-seal ring | 1 | /ea | $ 6.80 |
| 16 | A00126-0604-24 | screw | 1 | /ea | $ 5.10 |
| 17 | A00126-0605-24 | Cross recessed countersunk head screws | 2 | /ea | $ 5.10 |
| 18 | A00206-0803 | dowel | 1 | /ea | $ 6.80 |
| 19 | A00103-0609-24 | bolt | 4 | /ea | $ 6.80 |
| 20 | A00103-0617-24 | bolt | 2 | /ea | $ 13.60 |
| 21 | A00103-0614-24 | bolt | 1 | /ea | $ 11.90 |
| 22 | A00103-0622-24 | bolt | 1 | /ea | $ 8.50 |
| 23 | A00283-1401 | oil seal | 1 | /ea | $ 13.60 |
