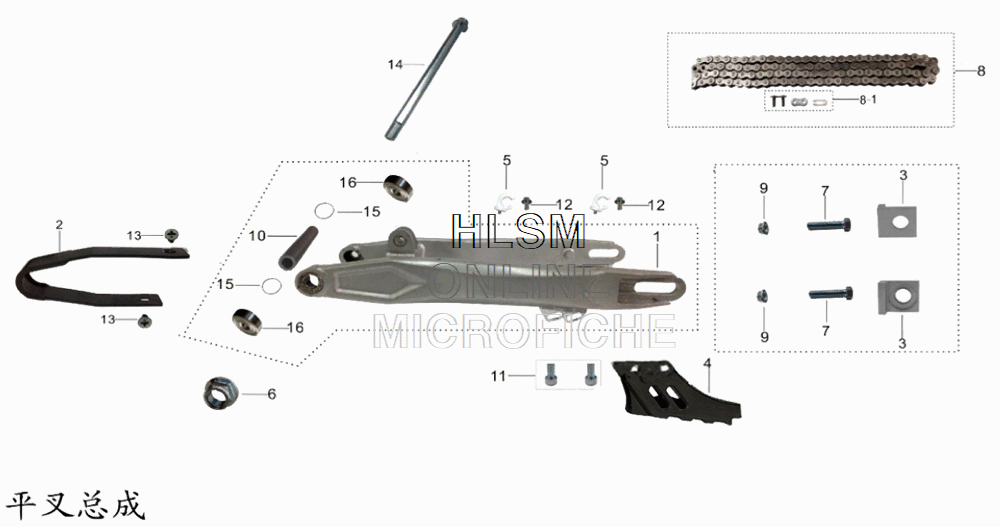

Rear Suspension
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 553000-0061 | steel swing arm | 1 | /ea | $ 76.50 |
| 2 | 203004-0031 | chain slider | 1 | /ea | $ 17.00 |
| 3 | 203002-0001-06 | alloy adjuster | 2 | /ea | $ 10.20 |
| 4 | 203004-0036-01 | chain guider | 1 | /ea | $ 25.50 |
| 5 | 405010-0003 | rear brake oil pipe clip | 2 | /ea | $ 3.40 |
| 6 | 903007-0008 | flange nut | 1 | /ea | $ 6.80 |
| 7 | 903017-0007-03 | nut | 2 | /ea | $ 6.80 |
| 8 | 203000-0068 | chain | 1 | /ea | $ 37.40 |
| 8-1 | 203001-0004 | chain linkage | 1 | /ea | $ 5.10 |
| 9 | 903005-0006 | nut | 2 | /ea | $ 3.40 |
| 10 | 902001-0112 | bush | 1 | /ea | $ 13.60 |
| 11 | 903020-0016 | screw | 2 | /ea | $ 5.10 |
| 12 | 903018-0003 | bolt | 2 | /ea | $ 3.40 |
| 13 | 903011-0002 | screw | 2 | /ea | $ 3.40 |
| 14 | 901001-0018 | flange axle | 1 | /ea | $ 20.40 |
| 15 | 908005-0006 | rubber O-shape washer | 2 | /ea | $ 6.80 |
| 16 | 907001-0015 | bearing | 2 | /ea | $ 17.00 |
| 203004-0014 | chain roller | 1 | /ea | $ 13.60 |
