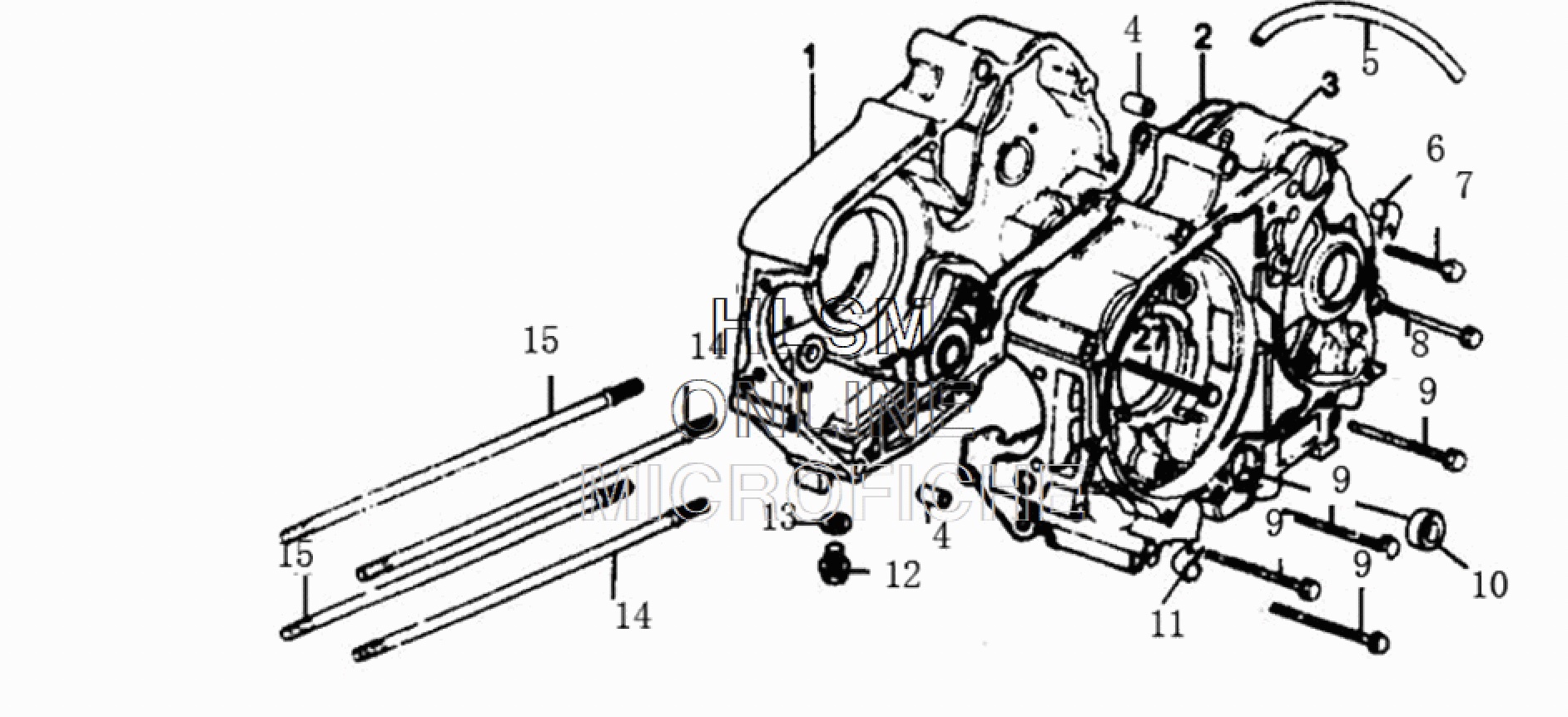

Crankcase Assembly
| Ref. No. | Part No. | Description | Price | Qty |
|---|---|---|---|---|
| 1 | 101020-0413 | Crankcase Sub-Assy, RH | $93.50 | 1 |
| 2 | 101020-0414 | Gasket, Crankcase | $17.00 | 1 |
| 3 | 101020-0415 | Crankcase Sub-Assy, LH | $93.50 | 1 |
| 4 | 101020-0416 | Oil Pump | $6.80 | 2 |
| 5 | 101020-0417 | Air Pipe | $8.50 | 1 |
| 6 | 101020-0418 | Clamp | $3.40 | 1 |
| 7 | 101020-0419 | Bolt M6x50 | $13.60 | 1 |
| 8 | 101020-0420 | Bolt M6x60 | $13.60 | 1 |
| 9 | 101020-0421 | Bolt M6x65 | $13.60 | 4 |
| 10 | 101020-0422 | Oil Seal 11.62410 | $17.00 | 1 |
| 11 | 101020-0423 | Pipe Clamp | $3.40 | 1 |
| 12 | 101020-0424 | Drain Plug | $17.00 | 1 |
| 13 | 101020-0425 | Washer | $8.50 | 1 |
| 14 | 101020-0426 | Bolt B, Cylinder | $20.40 | 2 |
| 15 | 101020-0427 | Bolt A, Cylinder | $20.40 | 2 |
