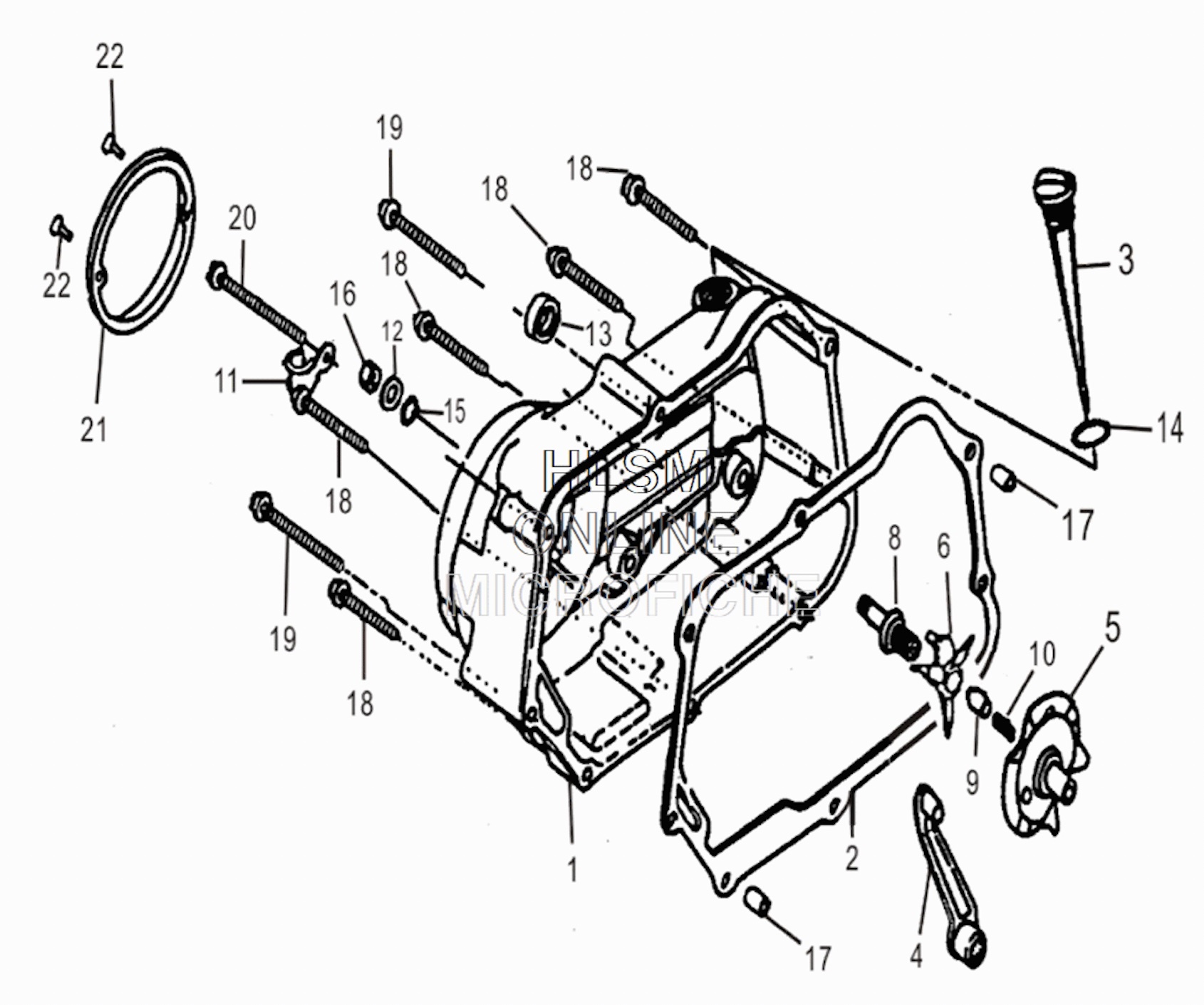

CRANKCASE COVER - RIGHT
| Ref. No. | Part No. | Description | Price | Qty |
|---|---|---|---|---|
| 1 | 101020-0291 | Right Crankcase Cover | $76.50 | 1 |
| 2 | 101020-0292 | Gasket, Crankcase Cover, RH | $17.00 | 1 |
| 3 | 101020-0293 | Dipstick | $25.50 | 1 |
| 4 | 101020-0294 | Clutch Lever Comp | $25.50 | 1 |
| 5 | 101020-0295 | Clutch Plate Set | $17.00 | 1 |
| 6 | 101020-0296 | Ball Retainer Comp | $25.50 | 1 |
| 8 | 101020-0297 | Clutch Adjusting Bolt | $10.20 | 1 |
| 9 | 101020-0298 | Oil Tube | $5.10 | 1 |
| 10 | 101020-0299 | Spring | $5.10 | 1 |
| 11 | 101020-0300 | Cord Clip | $5.10 | 1 |
| 12 | 101020-0301 | Washer 8mm | $5.10 | 1 |
| 13 | 101020-0302 | Oil Seal 13.8x24.5 | $13.60 | 1 |
| 14 | 101020-0303 | O-Ring 18x3 | $6.80 | 1 |
| 15 | 101020-0304 | O-Ring F7.5x1.8mm | $6.80 | 1 |
| 16 | 101020-0305 | Hex Nut 8mm | $6.80 | 1 |
| 17 | 101020-0306 | Dowel Pin 8x12 | $6.80 | 2 |
| 18 | 101020-0307 | Bolt M6x40 | $8.50 | 5 |
| 19 | 101020-0308 | Bolt M6x65 | $8.50 | 2 |
| 20 | 101020-0309 | Bolt M6x80 | $8.50 | 1 |
| 21 | 101021-0519-02 | Clutch Cover | $25.50 | 1 |
| 22 | 101020-0311 | Screw M6x22 | $5.10 | 2 |
