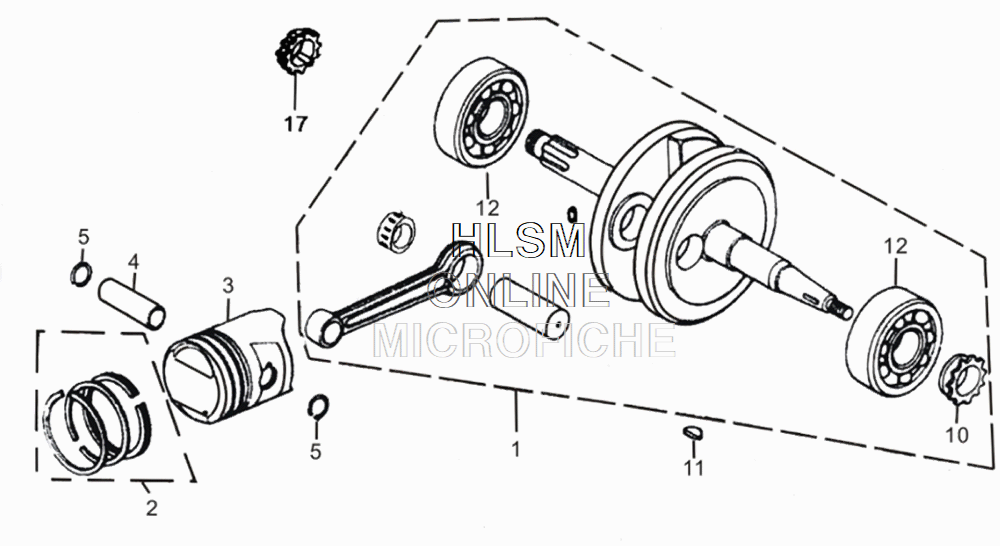

CRANKSHAFT AND PISTON
| Ref. No. | Part No. | Description | Price | Qty |
|---|---|---|---|---|
| 1 | 101020-0428 | Crankshaft & Connecting Rod | $119.00 | 1 |
| 2 | 101020-0429 | Piston Ring Set | $30.60 | 1 |
| 3 | 101020-0430 | Piston | $42.50 | 1 |
| 4 | 101020-0431 | Piston Pin | $17.00 | 1 |
| 5 | 101020-0432 | Circlip, Piston Pin | $6.80 | 2 |
| 10 | 101020-0437 | Drive Sprocket, Timing (16T) | $20.40 | 1 |
| 11 | 101020-0438 | Woodruff Key | $6.80 | 1 |
| 12 | 101020-0439 | Bearing 6304 | $25.50 | 2 |
| 17 | 101020-0444 | Oil Pump Driving Gear | $25.50 | 1 |
