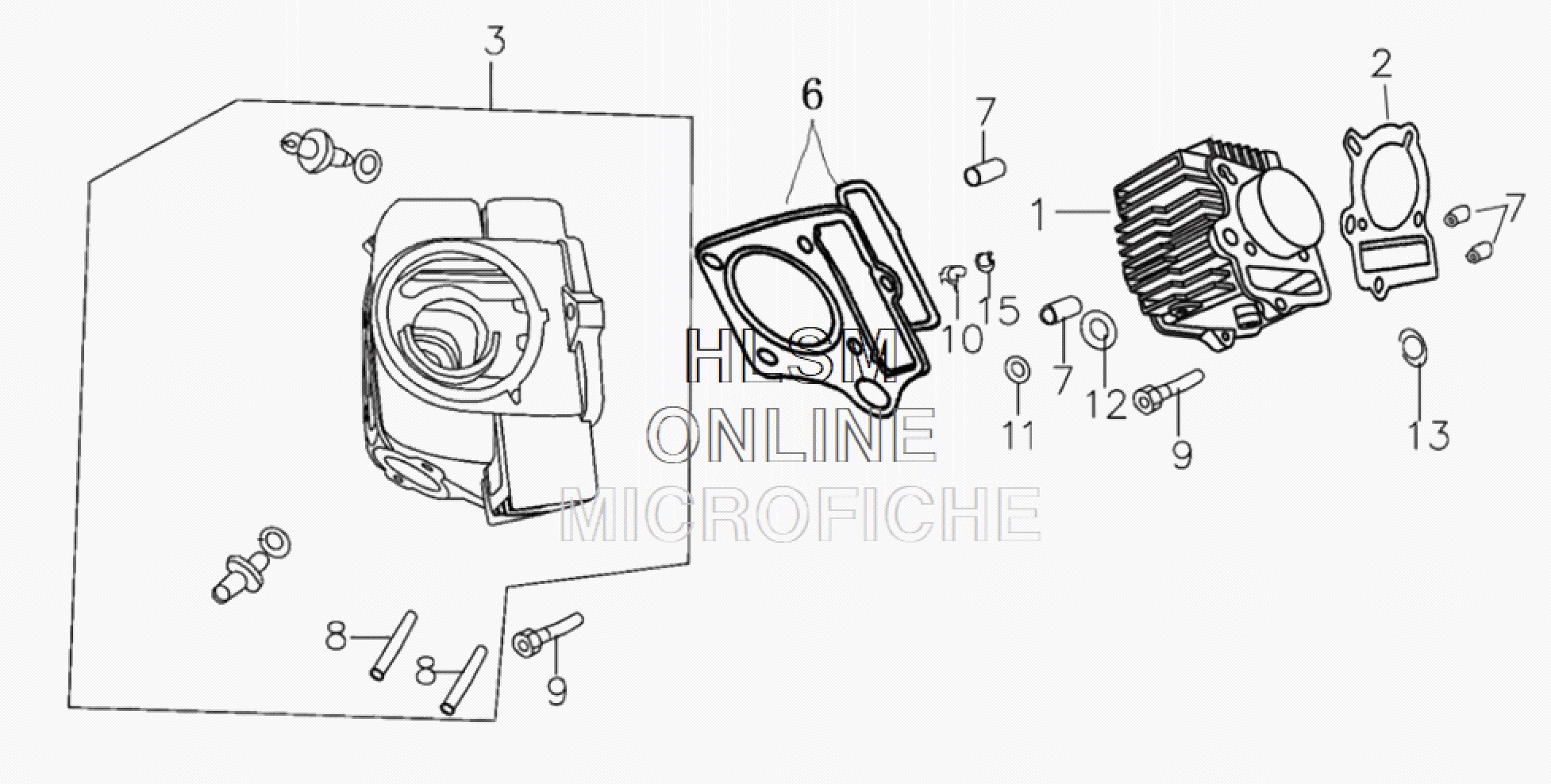

CYLINDER ASSEMBLY
| Ref. No. | Part No. | Description | Price | Qty |
|---|---|---|---|---|
| 1 | 101020-0225 | Cylinder Body | $93.50 | 1 |
| 2 | 101020-0226 | Cylinder Body Seal Packing | $17.00 | 1 |
| 3 | 101020-0227 | Cylinder Head | $102.00 | 1 |
| 6 | 101020-0230 | Cylinder Head Seal Gasket | $17.00 | 1 |
| 7 | 101020-0231 | Assembling Pin 10x12 | $6.80 | 4 |
| 8 | 101020-0232 | Bolt M6x38 | $10.20 | 2 |
| 9 | 101020-0233 | Bolt | $5.10 | 2 |
| 10 | 101020-0234 | Cylinder Block Oil Bush | $5.10 | 1 |
| 11 | 101020-0235 | Oil Seal | $5.10 | 1 |
| 12 | 101020-0236 | Rectangle Seal Pin | $5.10 | 1 |
| 13 | 101020-0237 | Rectangle Seal Pin | $5.10 | 1 |
| 15 | 101020-0239 | Seal Washer | $5.10 | 1 |
