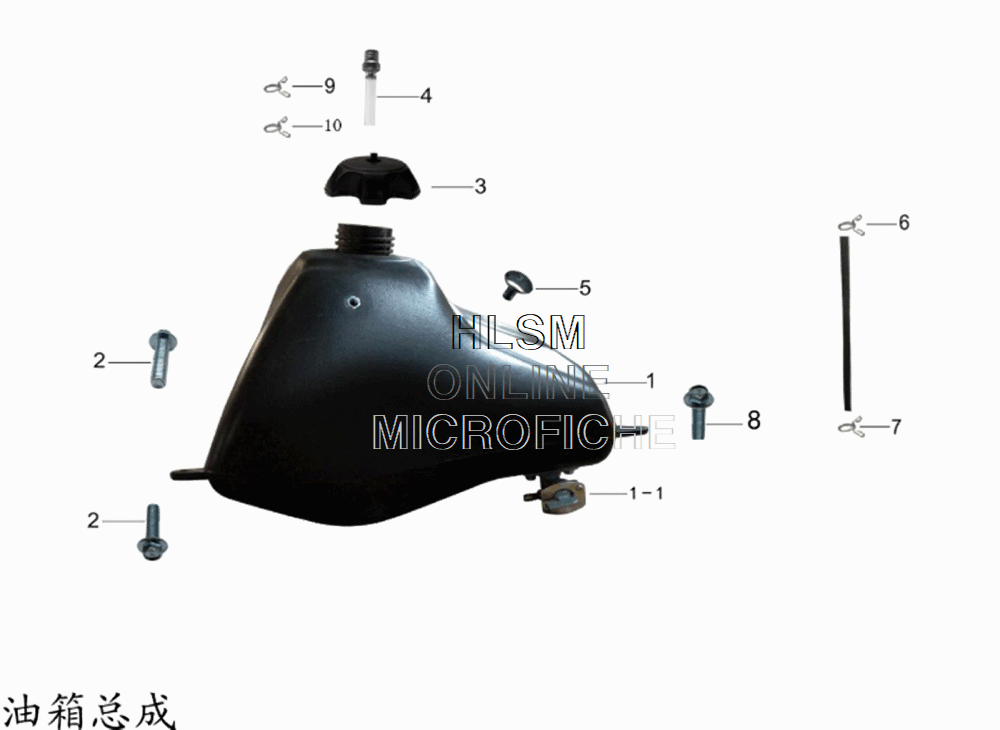

FUEL TANK ASSEMBLY
| Ref. No. | Part No. | Description | Price | Qty |
|---|---|---|---|---|
| 1 | 805001-0020 | Fuel Tank Assy. | $61.20 | 1 |
| 1-1 | 805004-0008 | Fuel Tank Switch | $13.60 | 1 |
| 2 | 903019-0010 | Outer Hexagon Flange Bolt | $3.40 | 2 |
| 3 | 805003-0004 | Fuel Tank Cap - Plastic | $10.20 | 1 |
| 4 | 805005-0001-06 | Fuel Tank Breathe Valve | $6.80 | 1 |
| 5 | 903012-0006 | Screw | $3.40 | 1 |
| 6 | 906002-0002 | Oil Pipe Clip | $2.55 | 1 |
| 7 | 906002-0001 | Oil Pipe Clip | $2.55 | 1 |
| 8 | 903019-0019 | Outer Hexagon Flange Bolt | $5.10 | 1 |
| 9 | 906002-0003 | Pipe Clip | $3.40 | 1 |
| 10 | 906002-0004 | Pipe Clip | $3.40 | 1 |
