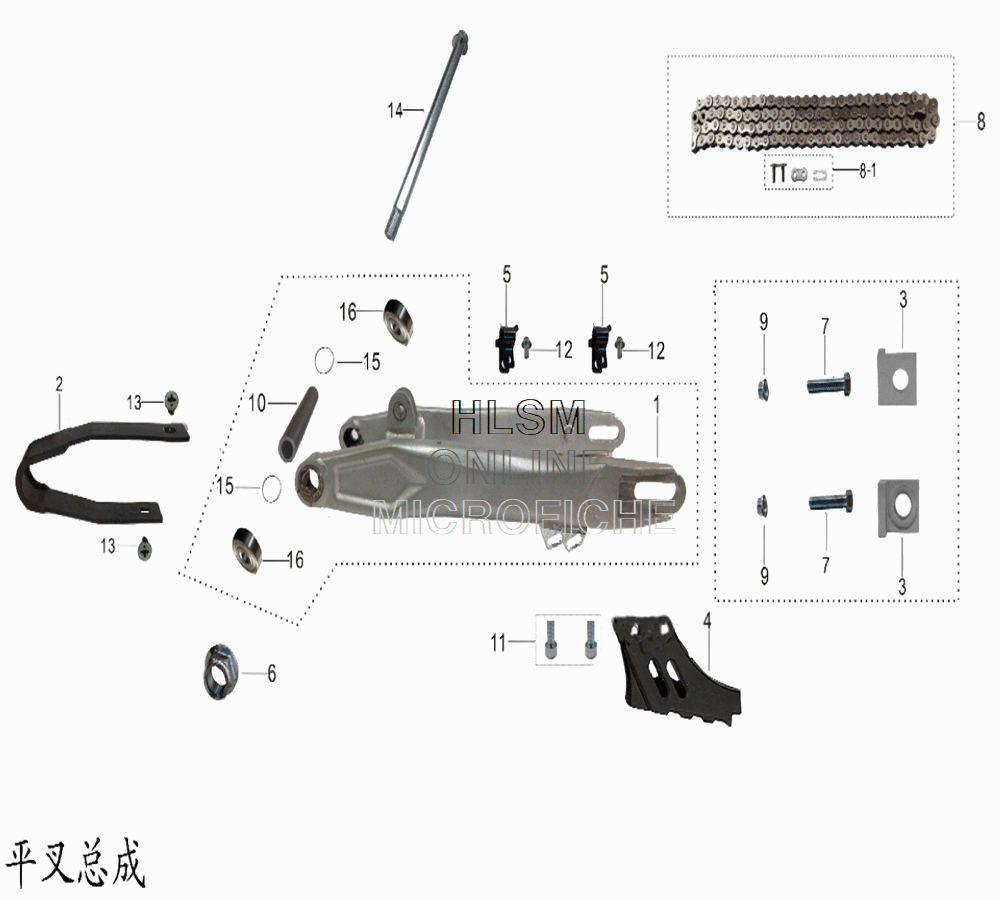

REAR SUSPENSION
| Ref. No. | Part No. | Description | Price | Qty |
|---|---|---|---|---|
| 1 | 553000-0061 | Steel Swing Arm | $76.50 | 1 |
| 2 | 203004-0031 | Chain Slider | $17.00 | 1 |
| 3 | 203002-0001-06 | Alloy Adjuster | $13.60 | 2 |
| 4 | 203004-0036-01 | Chain Guide | $25.50 | 1 |
| 5 | 405010-0003 | Rear Brake Oil Pipe Clip | $3.40 | 2 |
| 6 | 903007-0008 | Flange Nut | $6.80 | 1 |
| 7 | 903017-0007-03 | Nut | $6.80 | 2 |
| 8 | 203000-0068 | Chain | $37.40 | 1 |
| 8-1 | 203001-0004 | Chain Linkage | $6.80 | 1 |
| 9 | 903005-0006 | Nut | $3.40 | 2 |
| 10 | 902001-0112 | Bush | $13.60 | 1 |
| 11 | 903020-0016 | Screw | $5.10 | 2 |
| 12 | 903018-0003 | Outer Hexagon Flange Bolt | $3.40 | 2 |
| 13 | 903011-0002 | Screw | $3.40 | 2 |
| 14 | 901001-0018 | Flange Axle | $20.40 | 1 |
| 15 | 908005-0006 | Rubber O-Shape Washer | $6.80 | 2 |
| 16 | 907001-0015 | Bearing | $17.00 | 2 |
| – | 203004-0014 | Chain Roller | $13.60 | 1 |
