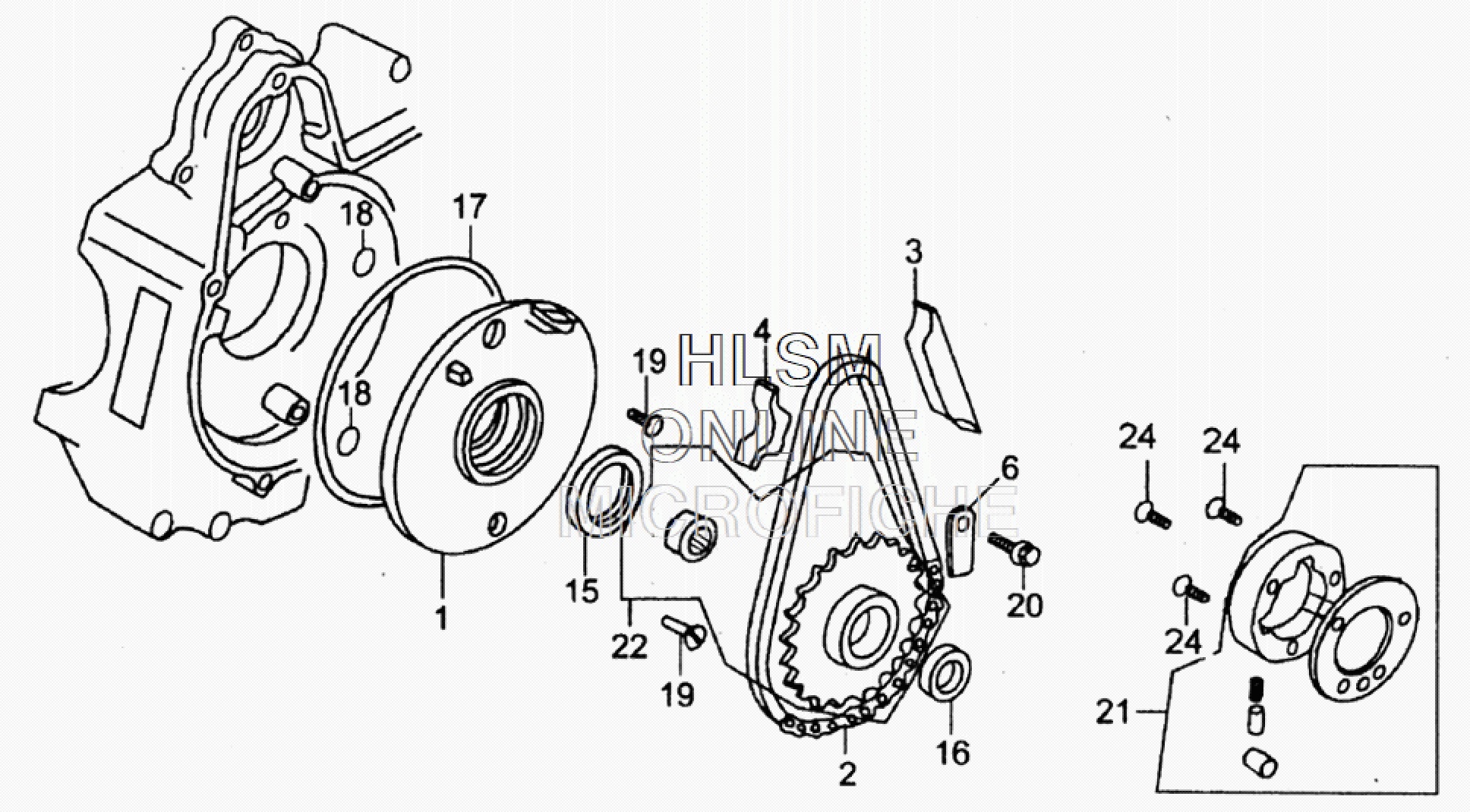

STARTER - SPROCKET COMPONENT
| Ref. No. | Part No. | Description | Price | Qty |
|---|---|---|---|---|
| 1 | 101020-0383 | Oil Separate Plate | $42.50 | 1 |
| 2 | 101020-0384 | Starting Chain, 62T | $25.50 | 1 |
| 3 | 101020-0385 | Starter Chain Guide | $13.60 | 1 |
| 4 | 101020-0386 | Starter Chain Protector | $13.60 | 1 |
| 6 | 101020-0388 | Starting Sprocket Setting Plate | $8.50 | 1 |
| 15 | 101020-0396 | Oil Seal 30424.5 | $13.60 | 1 |
| 16 | 101020-0397 | Oil Seal 18.9305 | $13.60 | 1 |
| 17 | 101020-0398 | O-Ring 1072 | $10.20 | 1 |
| 18 | 101020-0399 | O-Ring 6.81.9 | $10.20 | 2 |
| 19 | 101020-0400 | Screw M616 | $5.10 | 2 |
| 20 | 101020-0401 | Screw M614 | $5.10 | 1 |
| 21 | 101020-0402 | Start Clutch Assy | $42.50 | 1 |
| 22 | 101020-0403 | Sprocket | $34.00 | 1 |
| 24 | 101020-0404 | Screw M614 | $5.10 | 3 |
