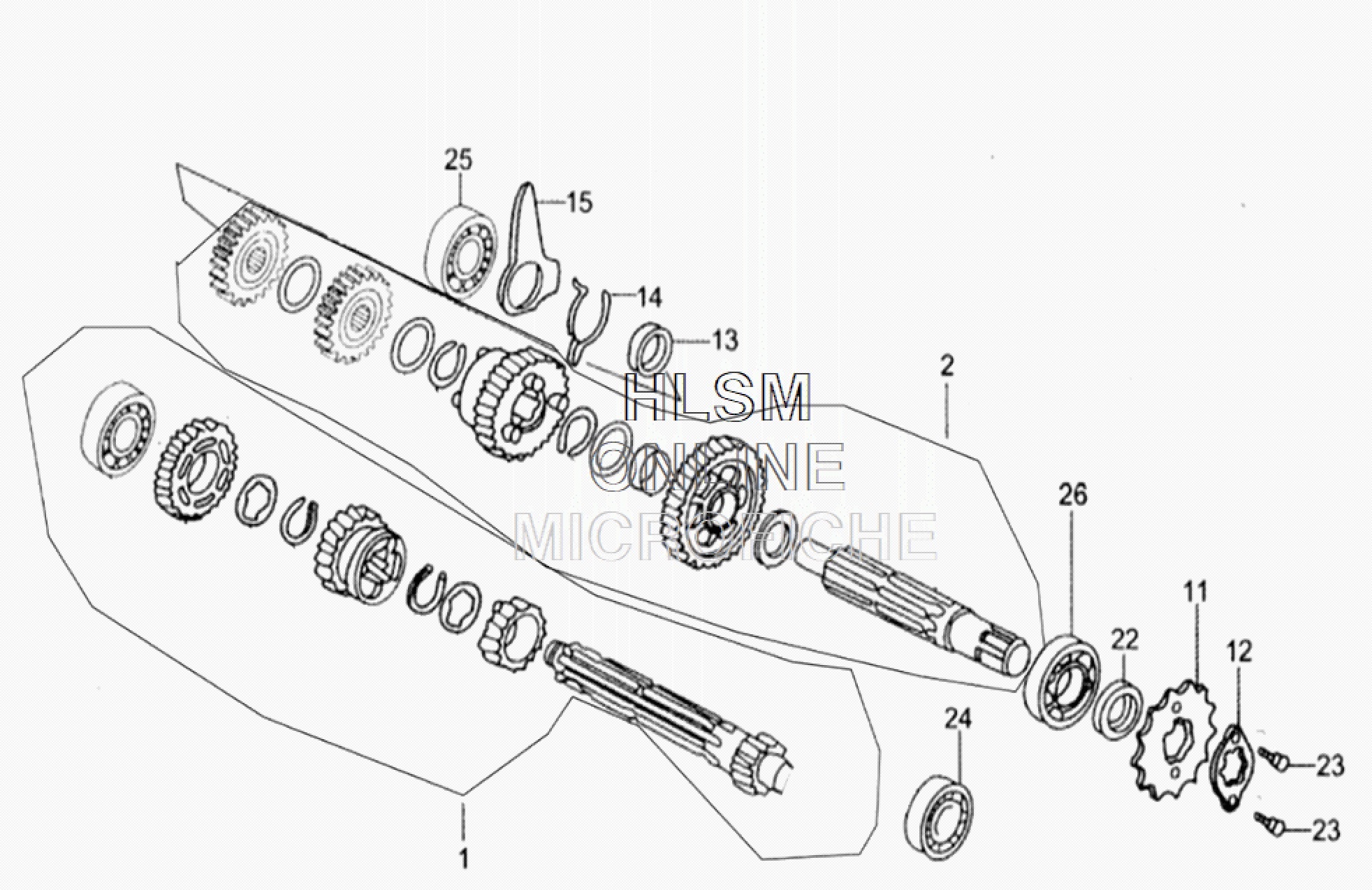

TRANSMISSION ASSEMBLY
| Ref. No. | Part No. | Description | Price | Qty |
|---|---|---|---|---|
| 1 | 101020-0548 | Main Shaft | $85.00 | 1 |
| 2 | 101020-0549 | Counter Shaft | $85.00 | 1 |
| 11 | 101019-0667 | Drive Sprocket 14T | $30.60 | 1 |
| 12 | 101020-0457 | Drive Sprocket Fixing Plate | $13.60 | 1 |
| 13 | 101020-0458 | Collar | $6.80 | 1 |
| 14 | 101020-0459 | Spring | $6.80 | 1 |
| 15 | 101020-0460 | Gearshift Drum Lock Plate | $13.60 | 1 |
| 22 | 101020-0467 | Oil Seal 17x29x5 | $17.00 | 1 |
| 23 | 101020-0468 | Hex Bolt 6x8 | $6.80 | 2 |
| 24 | 101020-0469 | Bearing, Radial, 6001 | $17.00 | 1 |
| 25 | 101020-0470 | Bearing, Radial, 6201 | $17.00 | 1 |
| 26 | 101020-0471 | Bearing, Radial, 6203 | $17.00 | 1 |
