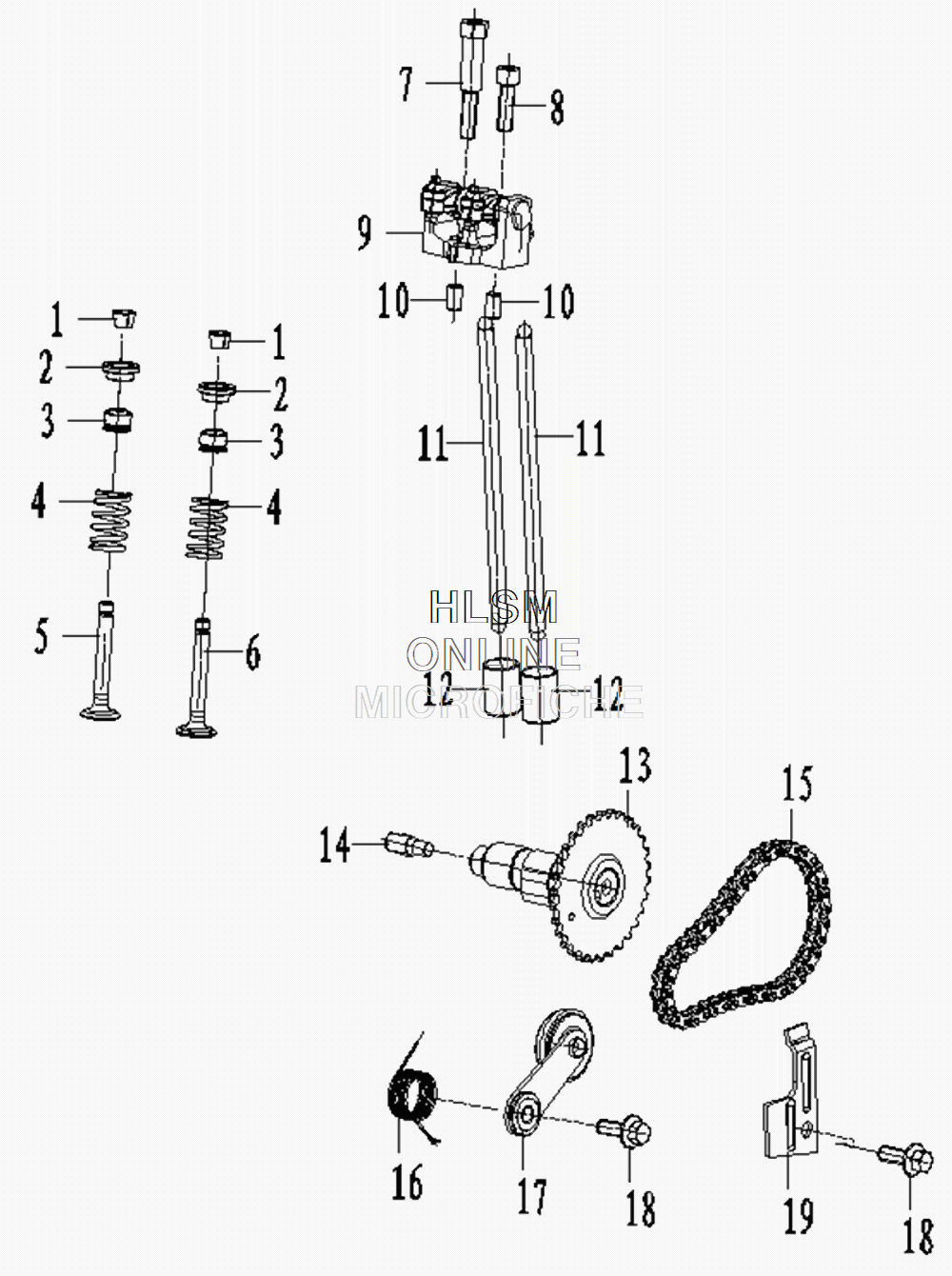

Cam Shaft W/ Valves Assembly
| REF. NO. |
PART NO. / DESCRIPTION | PRICE EACH |
KMB 60-2 |
| 1 |
101034-0021
VALVE LOCKER
|
4.25 | 4 |
| 2 |
101034-0022
SPRING,SEAT
|
8.50 | 2 |
| 3 |
101034-0023
SEAL VALVE STEM
|
8.50 | 2 |
| 4 |
101034-0024
VALVE OUTER SPRING
|
8.50 | 2 |
| 5 |
101034-0025
INTAKE VALVE
|
17.00 | 1 |
| 6 |
101034-0026
EXHAUST VALVE
|
17.00 | 1 |
| 7 |
101034-0027
ROCKER INSTALL BOLT
|
10.20 | 1 |
| 8 |
101034-0028
ROCKER INSTALL BOLT
|
10.20 | 1 |
| 9 |
101034-0029
ROCKER ARM ASSEMBLY VALVE
|
25.50 | 1 |
| 10 |
101034-0030
PIN,6X10
|
3.40 | 2 |
| 11 |
101034-0031
PUSH LEVER COMP
|
12.75 | 2 |
| 12 |
101034-0032
HANDSPIKE SOCKET SLEEVE
|
17.00 | 2 |
| 13 |
101034-0033
GAMP SHAFT COMP
|
25.50 | 1 |
| 14 |
101034-0034
CAMSHAFT BOLT
|
8.50 | 1 |
| 15 |
101034-0035
SPOKE CHAIN
|
17.00 | 1 |
| 16 |
101034-0036
SPRING
|
5.10 | 1 |
| 17 |
101034-0037
CHAIN ADJUSTING SET
|
13.60 | 1 |
| 18 |
101034-0038
BOLT, M6X16
|
3.40 | 2 |
| 19 |
101034-0039
CHAIN WHEEL PLATEN
|
6.80 | 1 |
