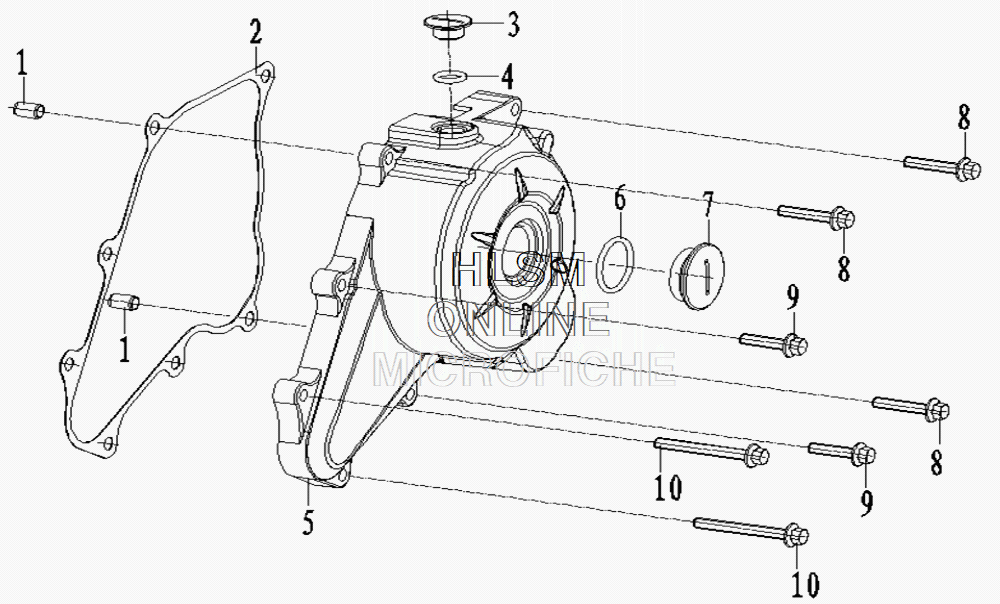

Crankcase Cover - Left
| REF. NO. |
PART NO. / DESCRIPTION | PRICE EACH |
KMB 60-2 |
| 1 |
101034-0049
DOWEL PIN,8X12X6.3
|
3.40 | 2 |
| 2 |
101034-0050
GASKET L.CRANKCASE COVER
|
17.00 | 1 |
| 3 |
101034-0051
CAP SMALL VIEW HOLE
|
13.60 | 1 |
| 4 |
101034-0052
O-RING,13.2X2.65
|
6.80 | 1 |
| 5 |
101034-0053-F
L.CRANKCASE COVER
|
59.50 | 1 |
|
101034-0053-B
BACK PART L.CRANKCASE COVER
|
25.50 | 1 | |
| 6 |
101034-0054
O-RING,27.4X2.65
|
6.80 | 1 |
| 7 |
101034-0055
CAP BIG VIEW HOLE
|
13.60 | 1 |
| 8 |
101034-0056
BOLT, M6X30
|
5.10 | 3 |
| 9 |
101034-0057
BOLT, M6X25
|
5.10 | 2 |
| 10 |
101034-0058
BOLT, M6X50
|
6.80 | 2 |
