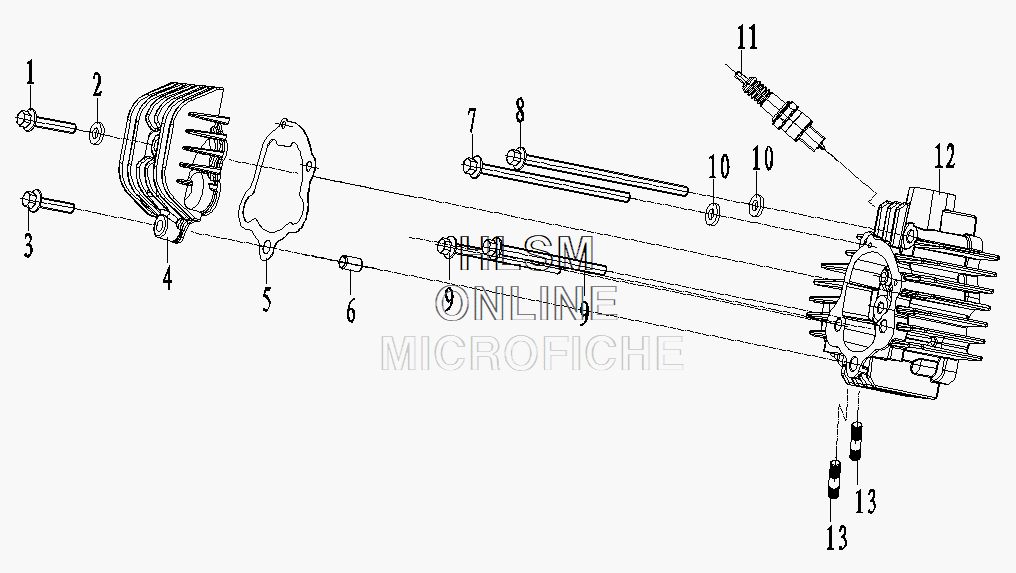

Cylinder Head Assembly
| REF. NO. |
PART NO. / DESCRIPTION | PRICE EACH |
KMB 60-2 |
| 1 |
101034-0001
BOLT, M6X25
|
5.10 | 1 |
| 2 |
101034-0002
WASHER,6.2X2X13
|
3.40 | 1 |
| 3 |
101034-0003
BOLT, M6X30
|
5.10 | 1 |
| 4 |
101034-0004
UPPER COVER CYLINDER HEAD
|
25.50 | 1 |
| 5 |
101034-0005
GASKET CYLINDER HEAD UPPER COVER
|
8.50 | 1 |
| 6 |
101034-0006
DOWEL PIN,8X12X6.3
|
3.40 | 1 |
| 7 |
101034-0007
BOLT, M6X105
|
10.20 | 1 |
| 8 |
101034-0008
BOLT, M6X115
|
10.20 | 1 |
| 9 |
101034-0009
BOLT, M6X75
|
8.50 | 2 |
| 10 |
101034-0010
WASHER,6.2X2X13
|
3.40 | 2 |
| 11 |
101034-0011
SPARK PLUG
|
13.60 | 1 |
| 12 |
101034-0012
CYLINDER HEAD ASSY
|
68.00 | 1 |
| 13 |
101034-0013
STUD
|
8.50 | 2 |
