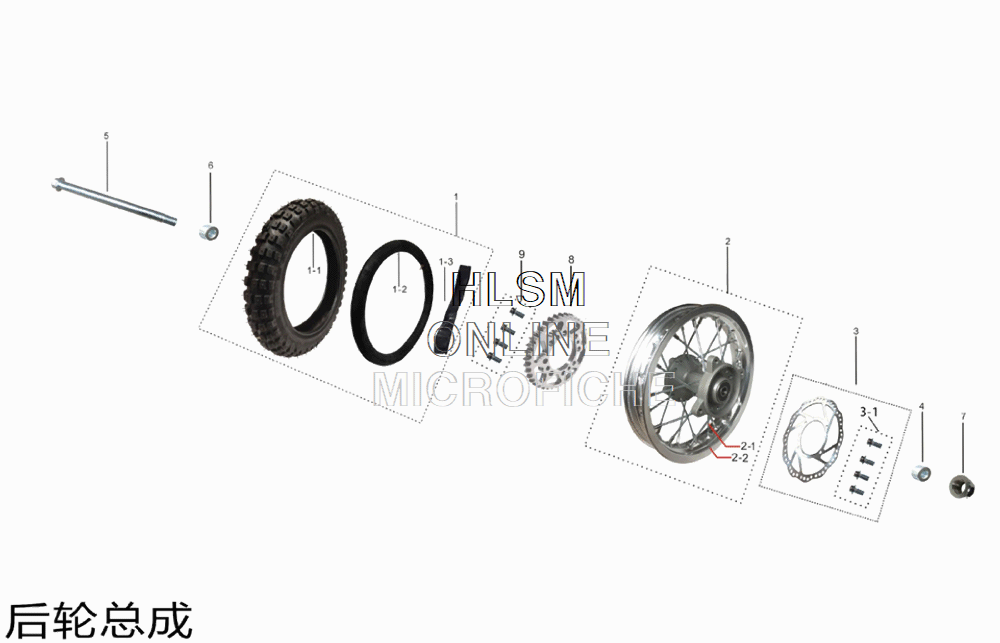

Wheels - Rear
| REF. NO. |
PART NO. / DESCRIPTION | PRICE EACH |
KMB 60-2 |
| 1 |
401005-0001
REAR TIRE ASSY.
|
42.50 | 1 |
| 1-1 |
401006-0001
FRONT OUTER TIRE
|
34.00 | 1 |
| 1-2 |
401007-0002
FRONT INNER TIRE
|
13.60 | 1 |
| 1-3 |
401008-0001
LINNING BELT
|
6.80 | 1 |
| 2 | 76.50 | 1 | |
| 2-1 |
402004-0021
SPOKE ASSY.
|
3.40 | 28 |
| 2-2 |
401001-0013
LITHIUM RING
|
51.00 | 1 |
| 3 |
404001-0028
FRONT BRAKE DISC
|
12.00 | 1 |
| 3-1 |
903017-0020
BOLT
|
20.40 | 1 |
| 4 |
902001-0095
FLAT BUSHING
|
6.80 | 1 |
| 5 |
901001-0014
FLANGE AXLE
|
13.60 | 1 |
| 6 |
902001-0093
FLAT BUSHING
|
6.80 | 1 |
| 7 |
903007-0008
FLANGE NUT
|
6.80 | 1 |
| 8 |
205001-0031
REAR SPOKET
|
25.50 | 1 |
| 9 |
903020-0035
SCREW
|
3.40 | 4 |
