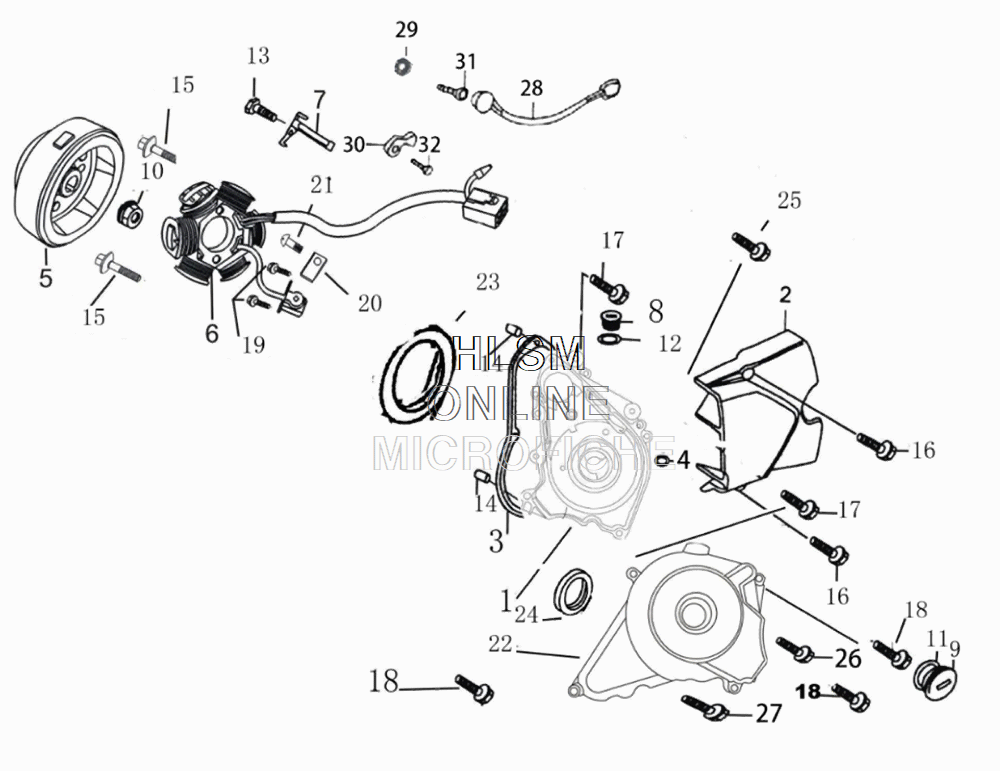

Crankcase Cover - Left W/Stator Assembly
| NO. | U8 Parts No. | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101019-0624 | Left Crankcase Cover Plate | 1 | /ea | $ 51.00 |
| 2 | 101019-0822 | Rear Cover LH | 1 | /ea | $ 30.60 |
| 3 | 101019-0625-02 | Gasket,Crankcase,LH | 1 | /ea | $ 17.00 |
| 4 | 101019-0626 | O-ring | 1 | /ea | $ 6.80 |
| 5 | 101019-0627 | Rotor,Magneto | 1 | /ea | $ 34.00 |
| 6 | 101019-0823 | Stator,Magneto | 1 | /ea | $ 42.50 |
| 7 | 101019-0629 | Wire Clamp | 1 | /ea | $ 8.50 |
| 8 | 101019-0630 | A.c generator cap | 1 | /ea | $ 8.50 |
| 9 | 101019-0631 | hole plug | 1 | /ea | $ 17.00 |
| 10 | 101019-0632 | Lock Nut | 1 | /ea | $ 8.50 |
| 11 | 101019-0633 | O-ring | 1 | /ea | $ 8.50 |
| 12 | 101019-0634 | O-ring | 1 | /ea | $ 8.50 |
| 13 | 101019-0835 | Bolt | 1 | /ea | $ 6.80 |
| 14 | 101019-0088 | Set Pin | 2 | /ea | $ 6.80 |
| 15 | 101019-0837 | Bolt | 2 | /ea | $ 6.80 |
| 16 | 101019-0839 | Bolt | 2 | /ea | $ 6.80 |
| 17 | 101019-0840 | Bolt | 2 | /ea | $ 6.80 |
| 18 | 101019-0841 | Bolt | 2 | /ea | $ 6.80 |
| 19 | 101019-0827 | Screw | 2 | /ea | $ 6.80 |
| 20 | 101019-0635 | Wire Clamp | 1 | /ea | $ 6.80 |
| 21 | 101019-0825 | Screw | 1 | /ea | $ 6.80 |
| 22 | 101019-0550 | Crankcase Cover,LH | 1 | /ea | $ 59.50 |
| 23 | 101019-0636 | O-ring | 1 | /ea | $ 8.50 |
| 24 | 101019-0637 | Oil seal | 1 | /ea | $ 17.00 |
| 25 | 101019-0847 | Bolt | 1 | /ea | $ 6.80 |
| 26 | 101019-0838 | Bolt | 1 | /ea | $ 6.80 |
| 27 | 101019-0843 | Bolt | 1 | /ea | $ 6.80 |
| 28 | 101017-0316 | Rubber plug | 1 | /ea | $ 17.00 |
| 29 | 101017-0317 | Washer, gearshift drum | 1 | /ea | $ 8.50 |
| 30 | 101017-0318 | Baffle, valve camshaft | 1 | /ea | $ 13.60 |
| 31 | 101017-0462 | Screw, hexagon socket head | 1 | /ea | $ 5.10 |
| 32 | 101017-0427 | Bolt | 1 | /ea | $ 5.10 |
